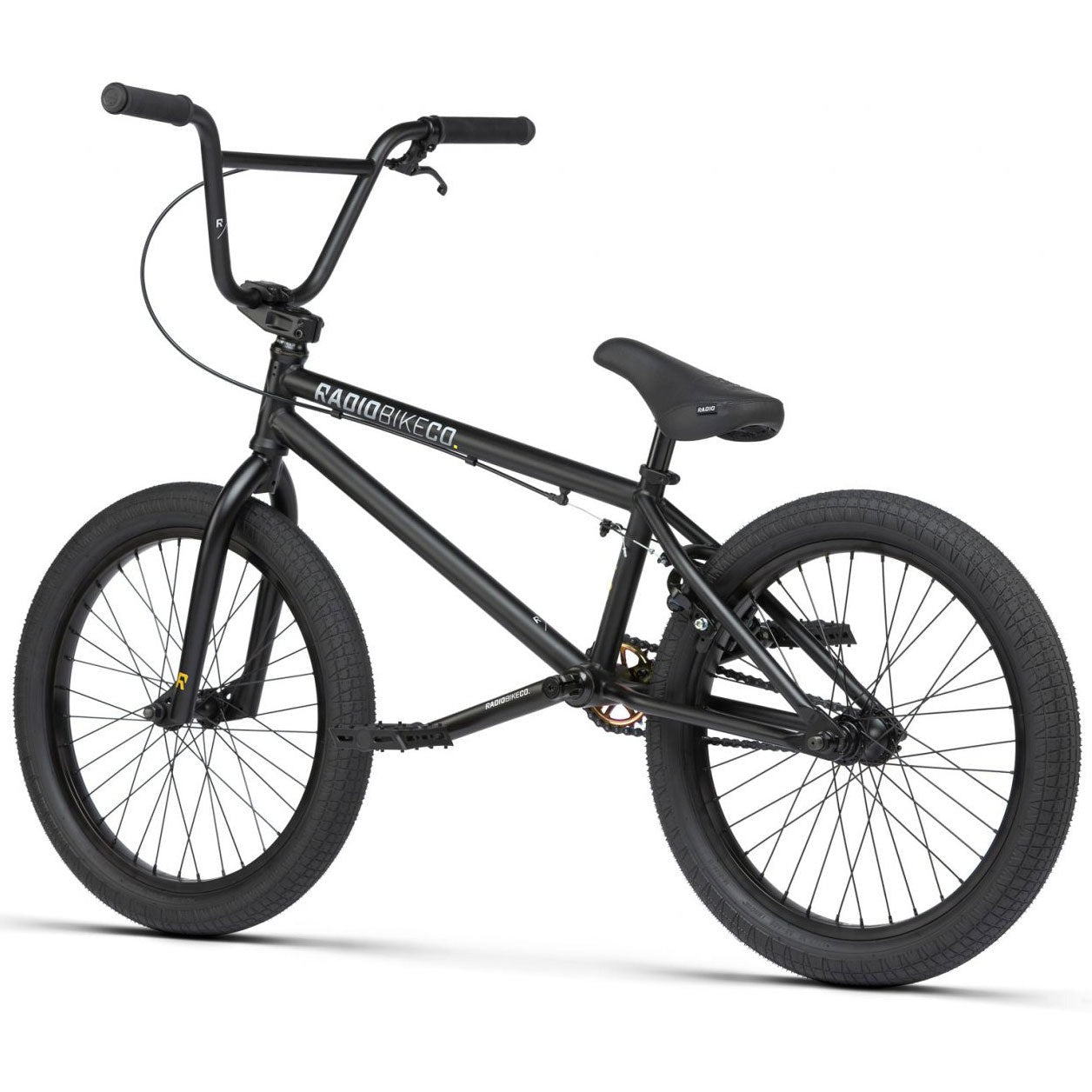

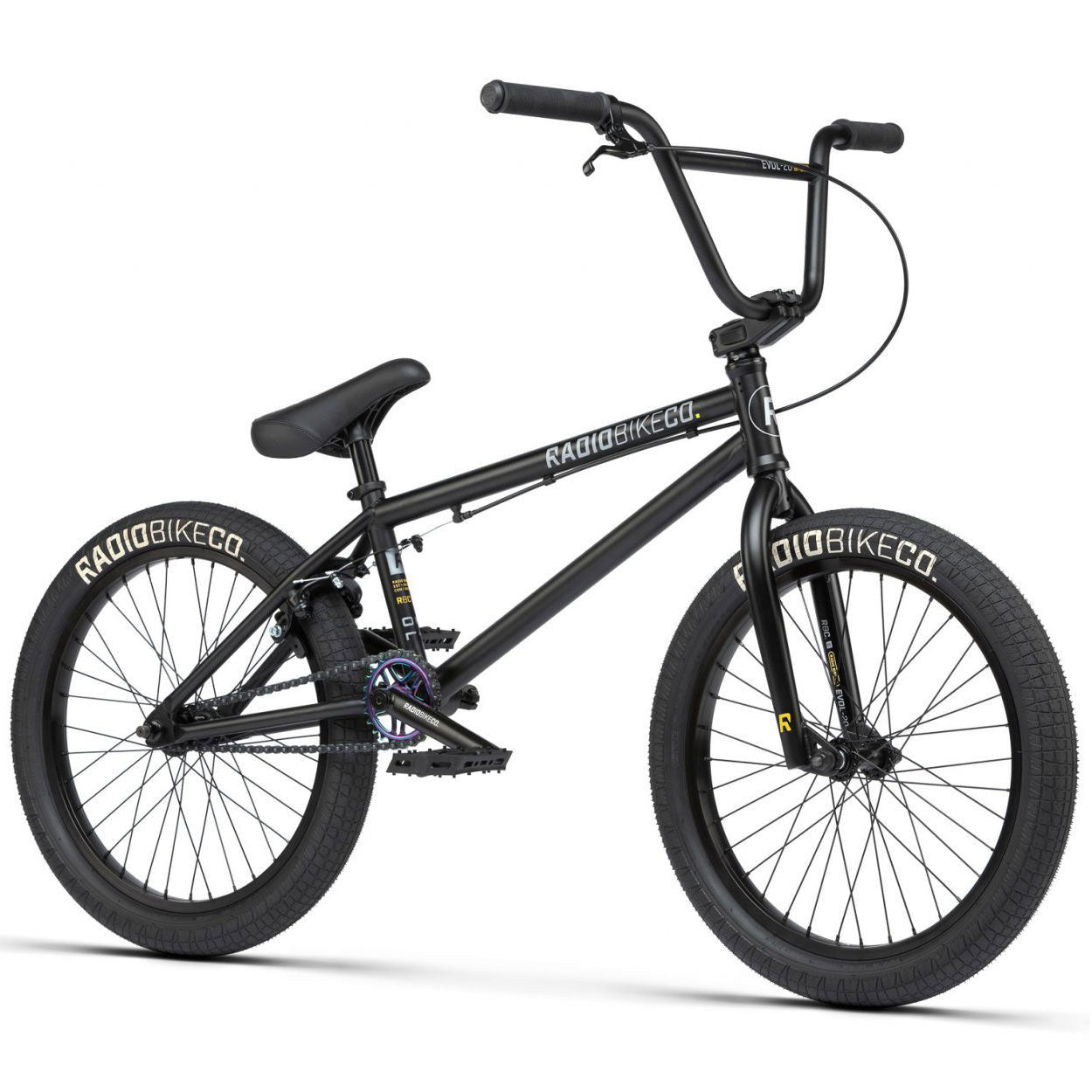

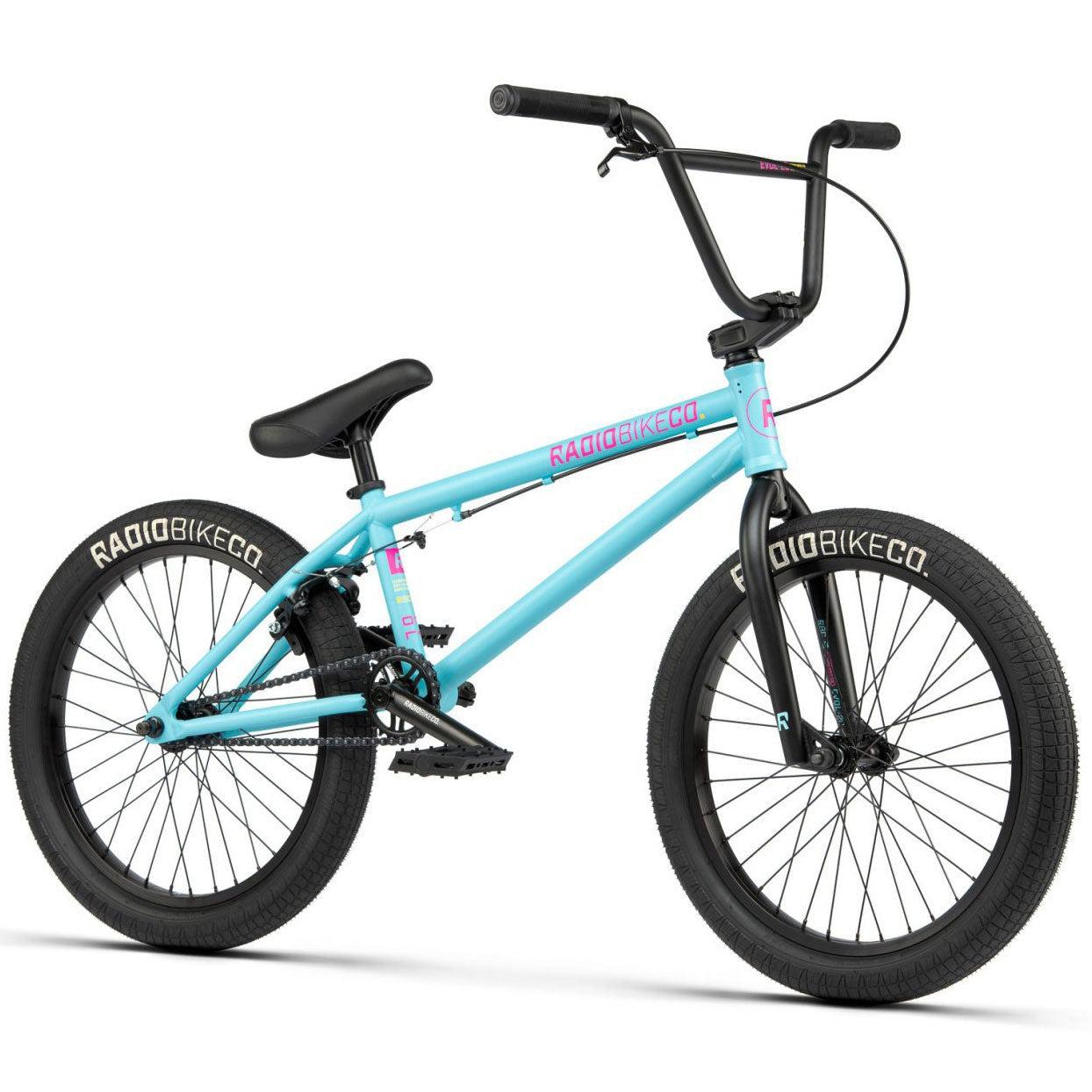

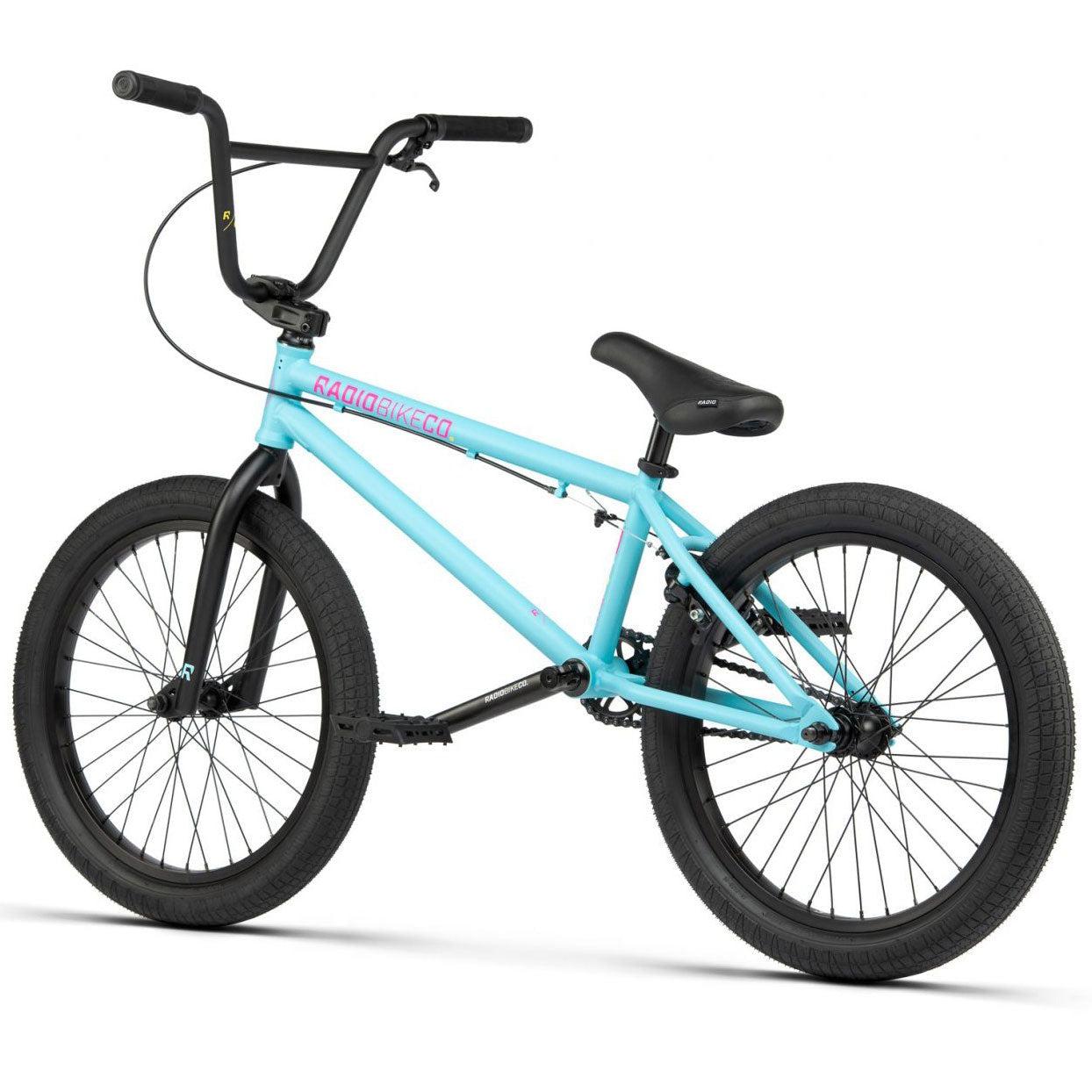

Evol may be Love spelt backwards, but we have a strong inkling that you will fall in love with this bike! Radio have been making some really high quality bikes over the past few years and this is certainly no exception! The parts included in this build makes the mouth water! Radio Pro Pedals, Radio Rookie Tyres, Salt Pro Headset, Salt Ex Grips and loads more! A shorter 20.3 inch Chromoly Top Tube has been used on this bike to make it feel better and handle better for beginner riders.
Specifications
Frame - Radio 'Evol' frame, Cr-Mo top tube, 1020 hi-ten
Fork - Radio 'AM' fork, 1020 hi-ten, Cr-Mo steerer, tapered legs
Handlebar - Radio 'AM' 20 bar, 1020 hi-ten
Grips - Salt 'Ex' grips, flangeless, 155mm

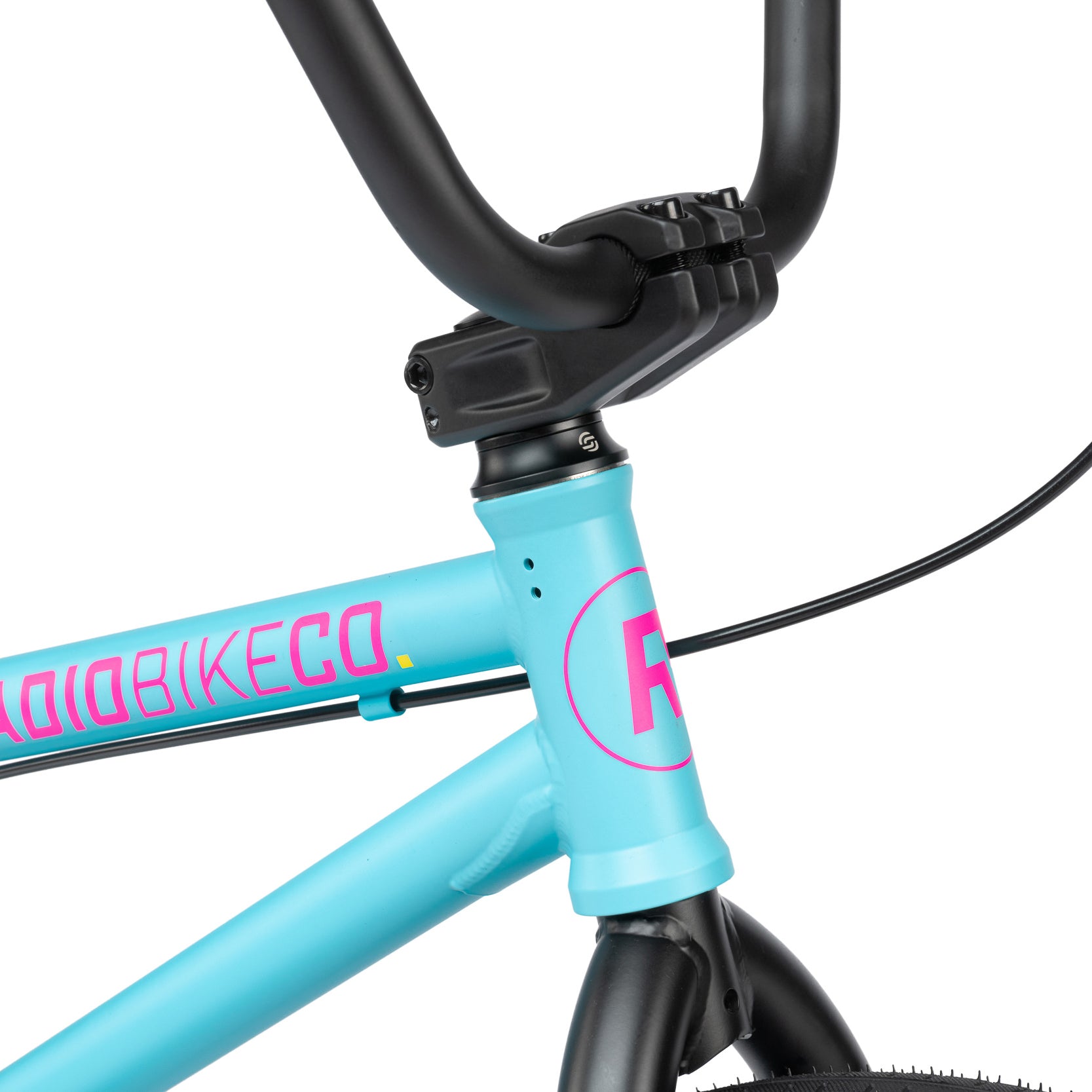

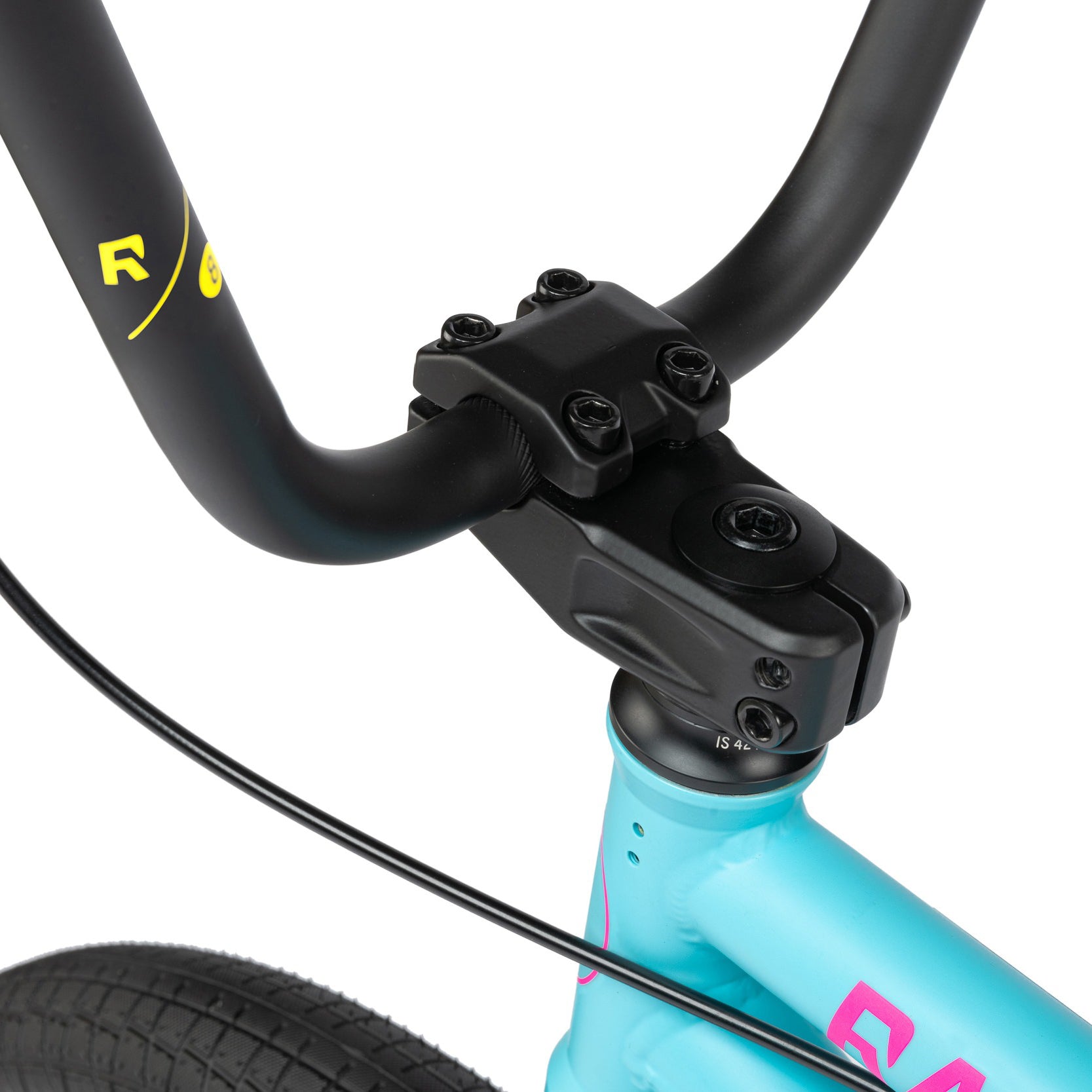

Stem - Radio 'AM' topload stem, 50mm reach
Headset - Salt 'Pro' integ. headset, sealed ball
Gyro - Holes for removable tabs
Brake lever - Radio 'AM' alloy brake lever
Brake - Radio 'AM' alloy u-brake rear
Crank - Radio 'Rookie' tubular 3pc crank Cr-Mo, 165mm, 8 spline
BB - Mid size, press fit, sealed bearing

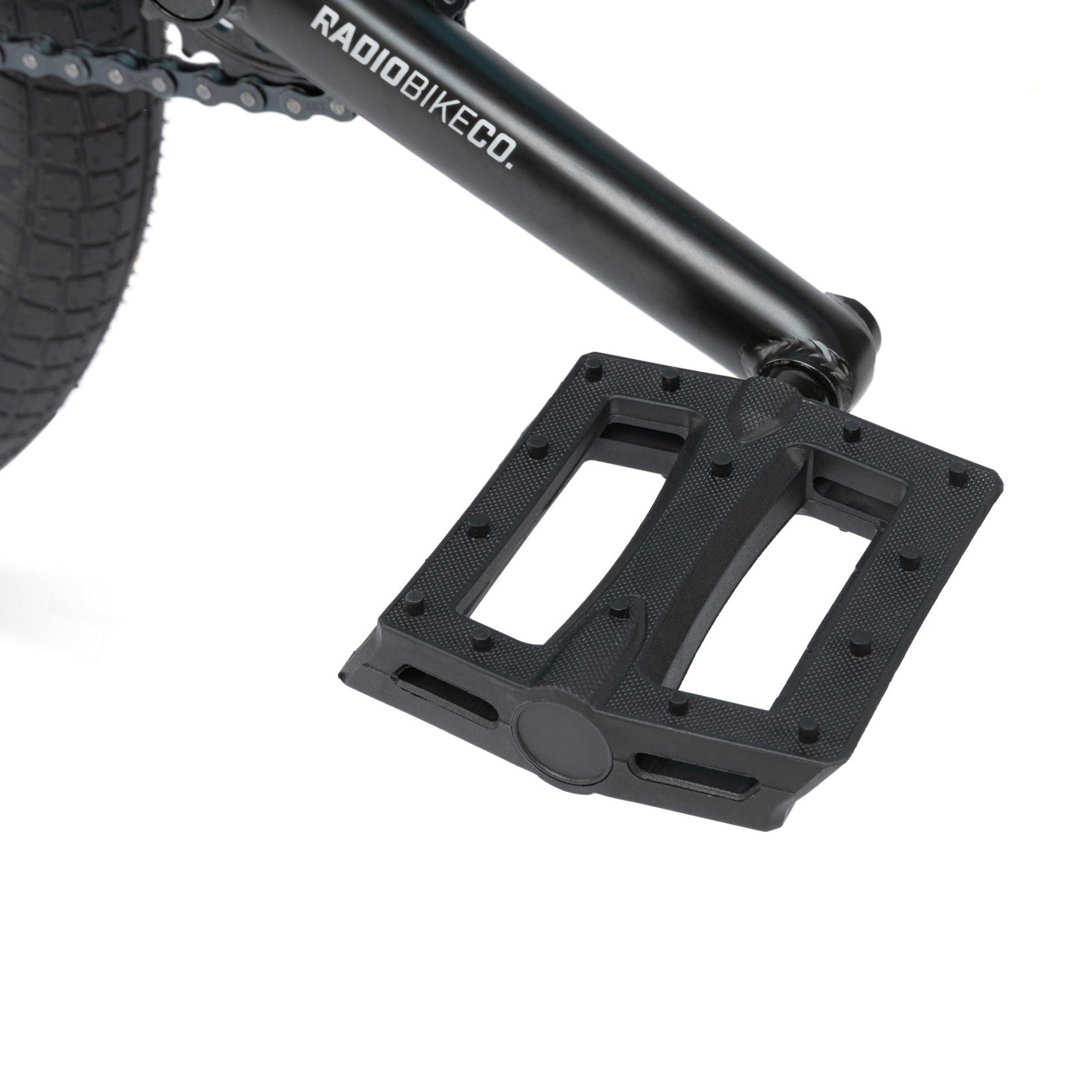

Pedals - Radio 'Pro' nylon fibreglass pedals
Chain - Salt 'AM' chain, WZ1 type

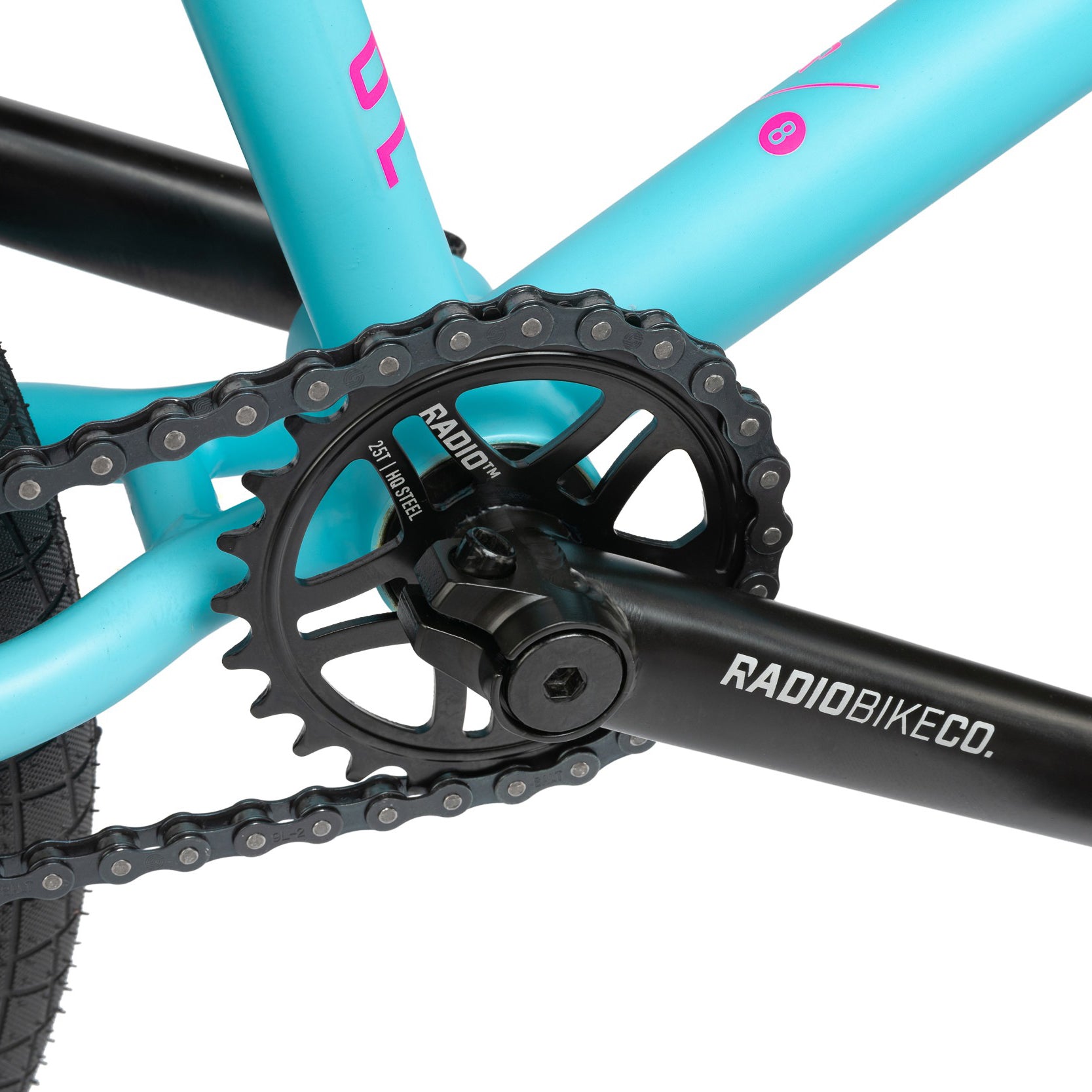

Sprocket - Radio 'Vision' steel 25T sprocket
Driver - 9T cassette driver, loose ball
Front hub - Radio 'Rookie' steel hub, lb, 3/8″s, 36H

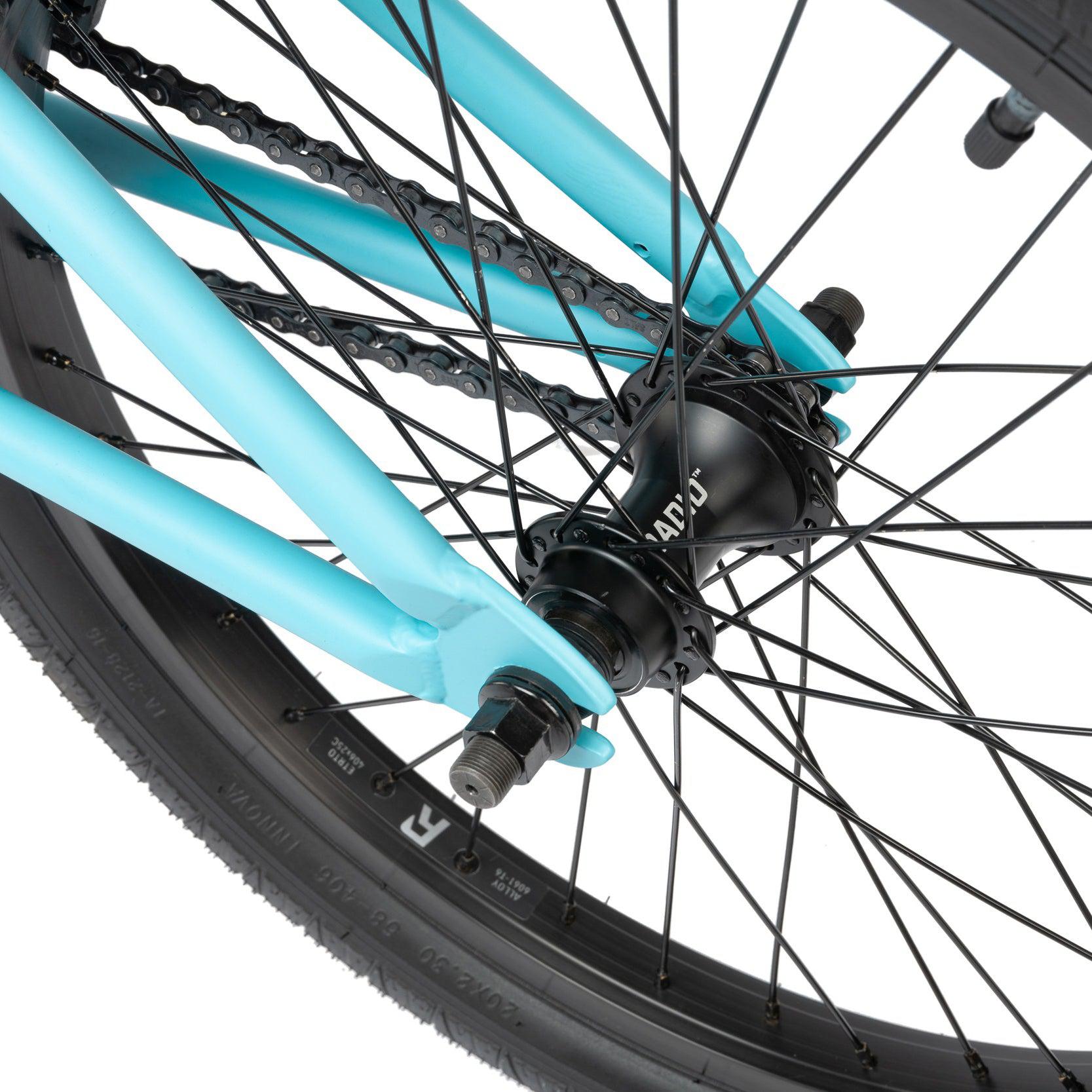

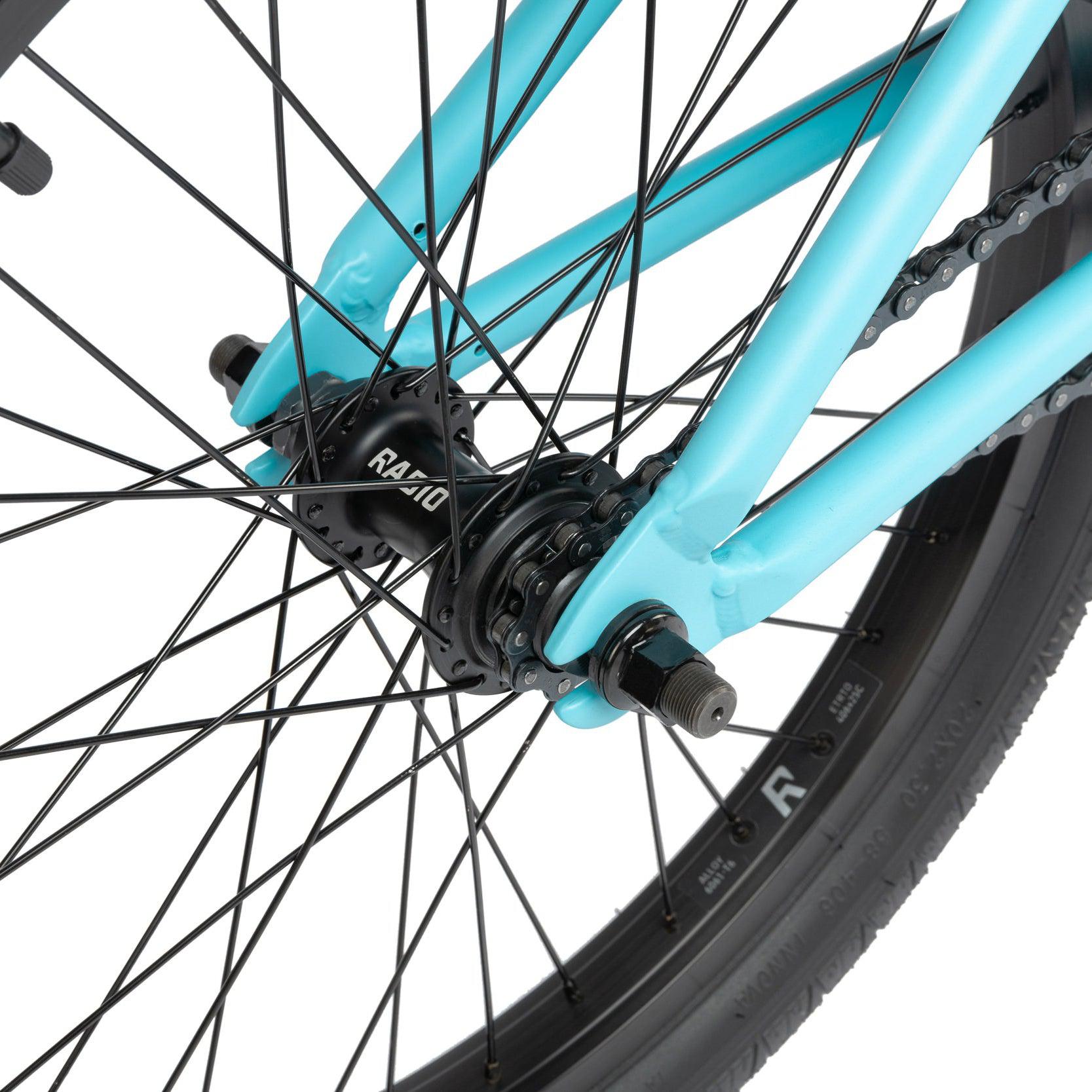

Rear hub - Radio 'AM' cassette hub, alloy, semi-sealed, 9T, 14mm axle, 36H
Front rim - Radio 'Rookie' rim, single wall, 36H
Rear rim - Radio 'Rookie' rim, single wall, 36H

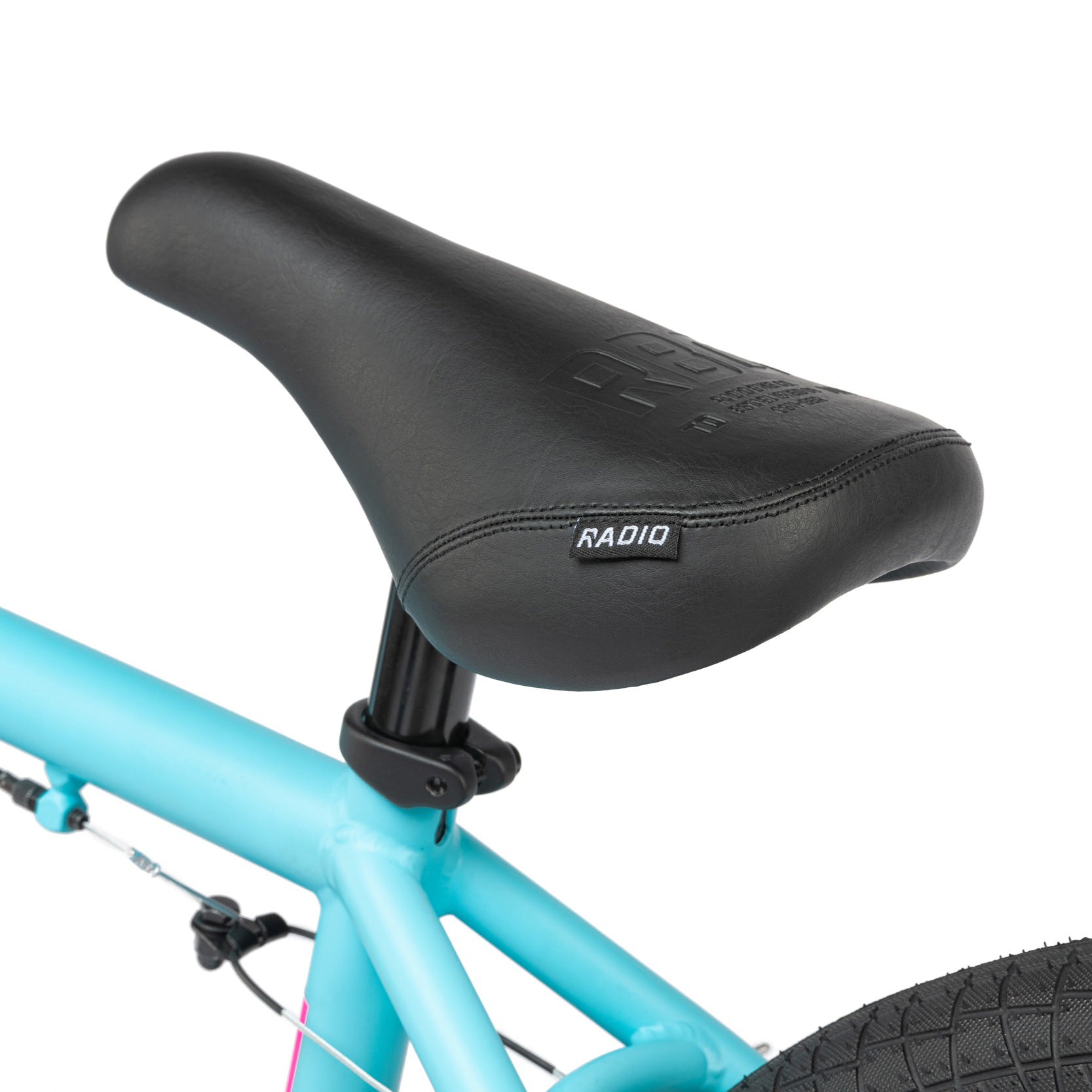

Seat - Radio 'Century' mid padded combo seat
Seat clamp - Radio 'Slim' alloy seat clamp

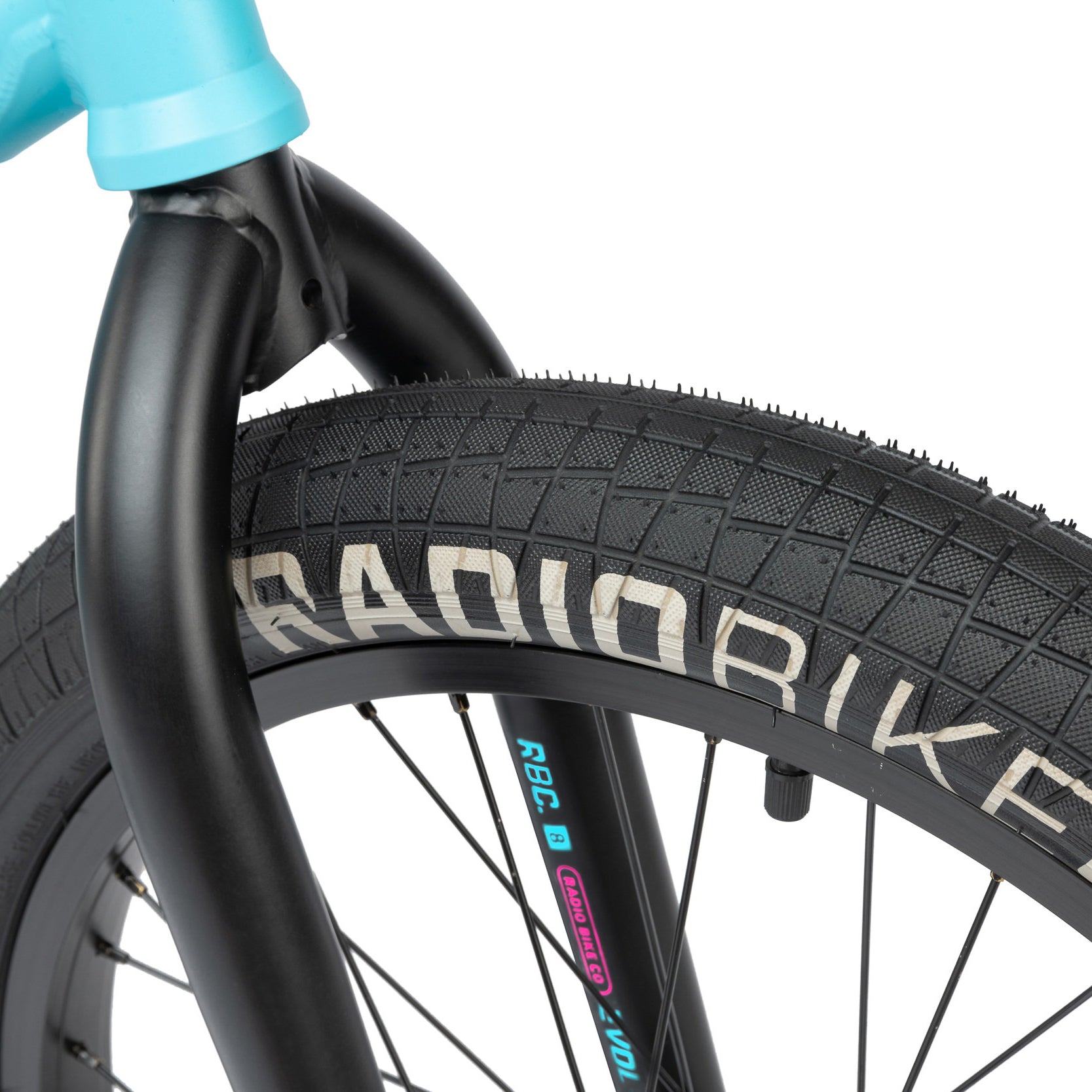

Tyres - Radio 'Rookie' tyres, 2.3″ front & rear
Weight - 12.25kg
Frame geometry
Top tube length - 20.3″
Chain stay length - 13.2″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 11.75″
Standover height - 8.25″
Handlebar geometry
Rise - 8.8″
Width - 29″
Backsweep - 11°
Upsweep - 2°
