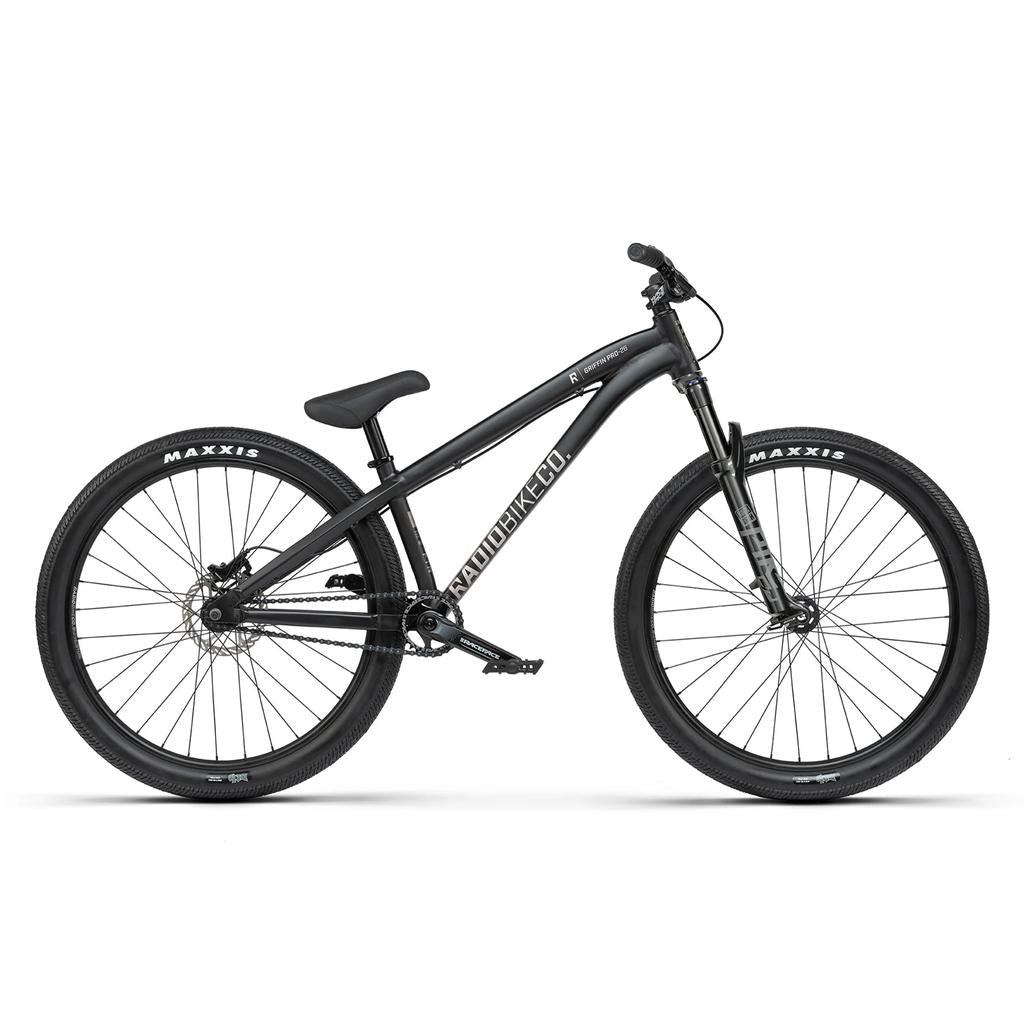

• Rock Shox Pike DJ up front. 100mm of Ultimate Solo travel soaks up hard landings, so a cased jump does not end the session.
• Discs front and rear. A Tektro Aries mechanical up front and a SRAM DB-LVL hydraulic out back, both on 160mm rotors, for consistent stopping.
• Hydroformed butted alloy frame. 6061-T6 with a tapered head tube and forged yoke: light and stiff, with 22.8" of top tube and a 70° head angle.
• Race Face Aeffect drivetrain. 170mm alloy cranks, a 28t alloy sprocket and a 10t sealed cassette driver give short, punchy gearing for pumping trails.
• Maxxis DTH 2.3" tyres. Dirt jump rubber on double wall sleeved DB-T25 rims, with a 15mm through axle front hub for a stiff front end.

• Size: 26" wheels
• Frame: Radio Griffin Pro, 6061-T6 hydroformed and butted alloy, tapered head tube, forged yoke
• Top tube: 22.8"
• Chainstay: 15"
• Head tube angle: 70°
• Seat tube angle: 70°
• Fork: Rock Shox Pike DJ, Ultimate Solo, 100mm travel
• Headset: FSA No.42/ACB-A integrated A-headset, 1-1/8" to 1.5"
• Stem: Race Face Chester 35 frontload, alloy, 40mm reach
• Bars: Radio Griffin, 6061-T6 alloy, 35mm
• Grips: Radio Frequency XL, flangeless, 160mm
• Brakes: Tektro Aries mechanical disc 160mm front, SRAM DB-LVL-A1 hydraulic disc 160mm rear
• Brake lever: Tektro RS-360A front, SRAM DB-LVL-A1 rear
• Cranks: Race Face Aeffect, alloy, 170mm
• Bottom bracket: Race Face Aeffect, BSA, sealed bearing
• Sprocket: Race Face Aeffect, alloy, 28t
• Chain: Salt AM, WZ1 type
• Pedals: Radio Slim, nylon and fibreglass
• Front hub: Radio Pro-DJ disc, alloy, sealed, 15mm alloy through axle, 32h
• Rear hub: Radio Pro-DJ disc, alloy, sealed, 3/8" chromoly axle, 32h
• Rear cog: Cassette driver, 10t, sealed bearing
• Rims: Radio DB-T25, double wall, sleeved
• Tyres: Maxxis DTH 2.3", front and rear
• Seat: Radio Century pivotal, fat padded
• Seat post: Radio Pivotal, alloy
• Seat clamp: Radio Slim, alloy

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

• Fit the handlebars and line them up with the front wheel
• Fit the front wheel, pedals and seat post
• Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.
