Description

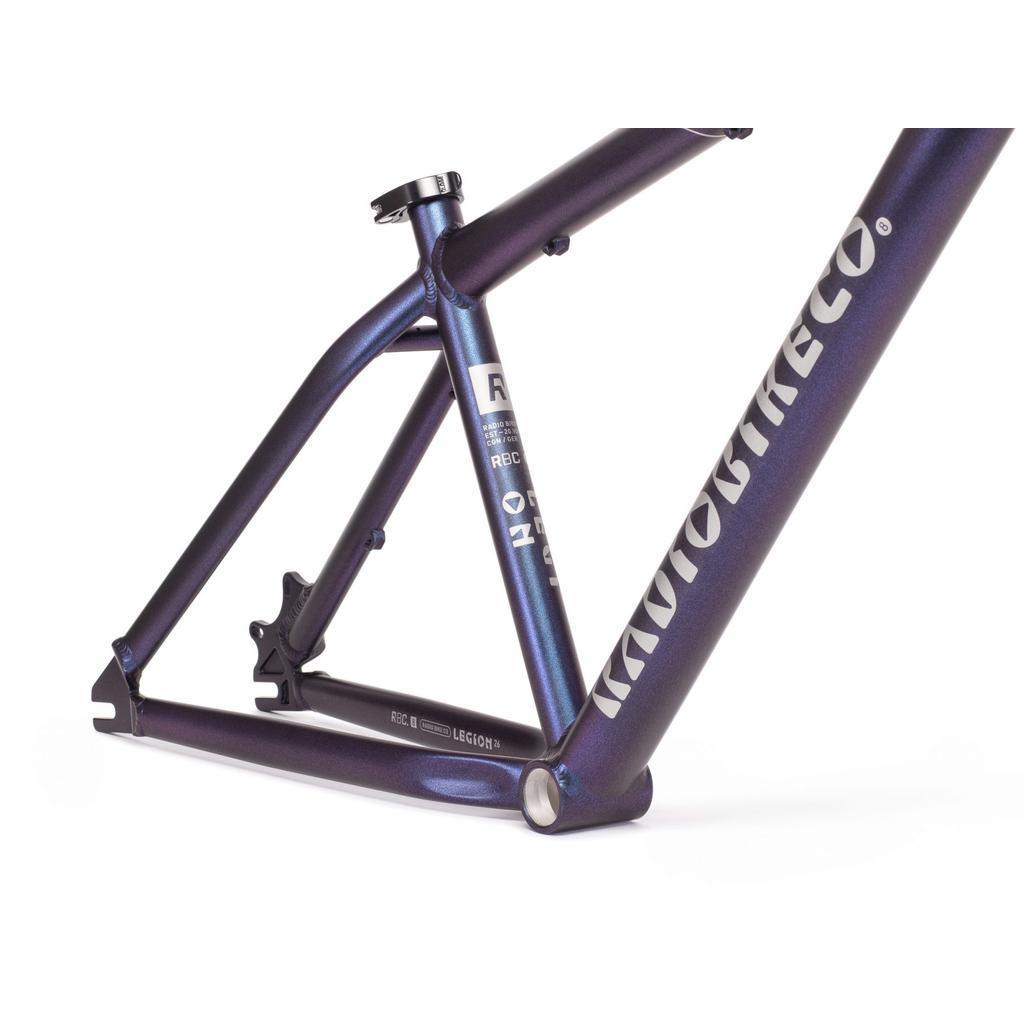

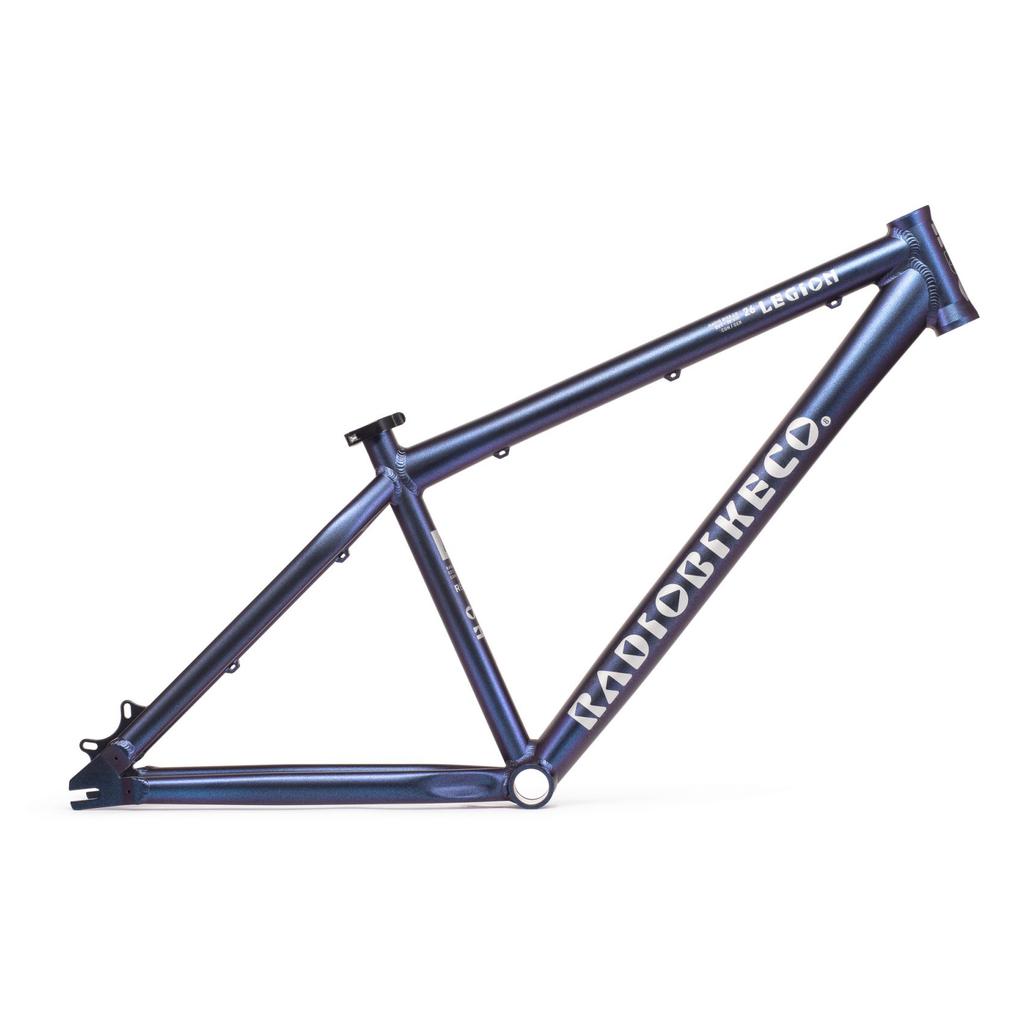

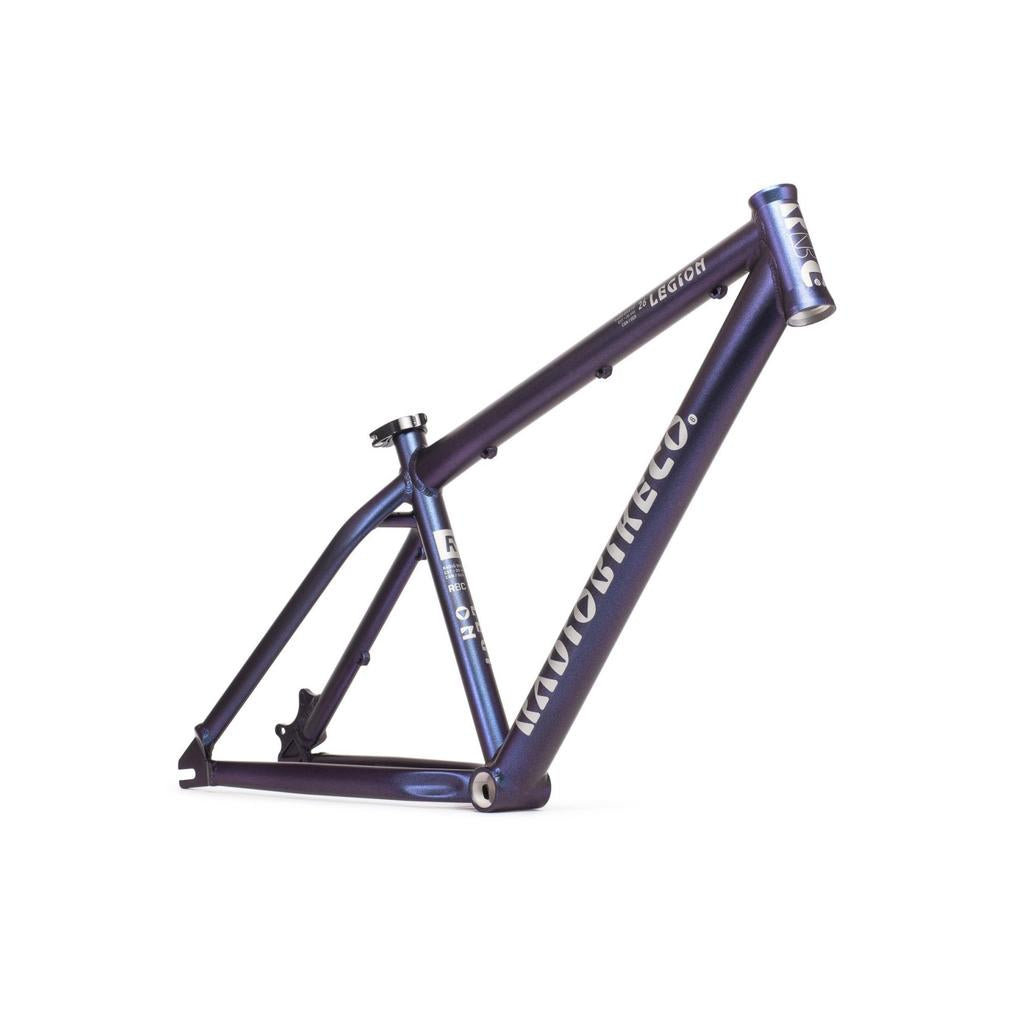

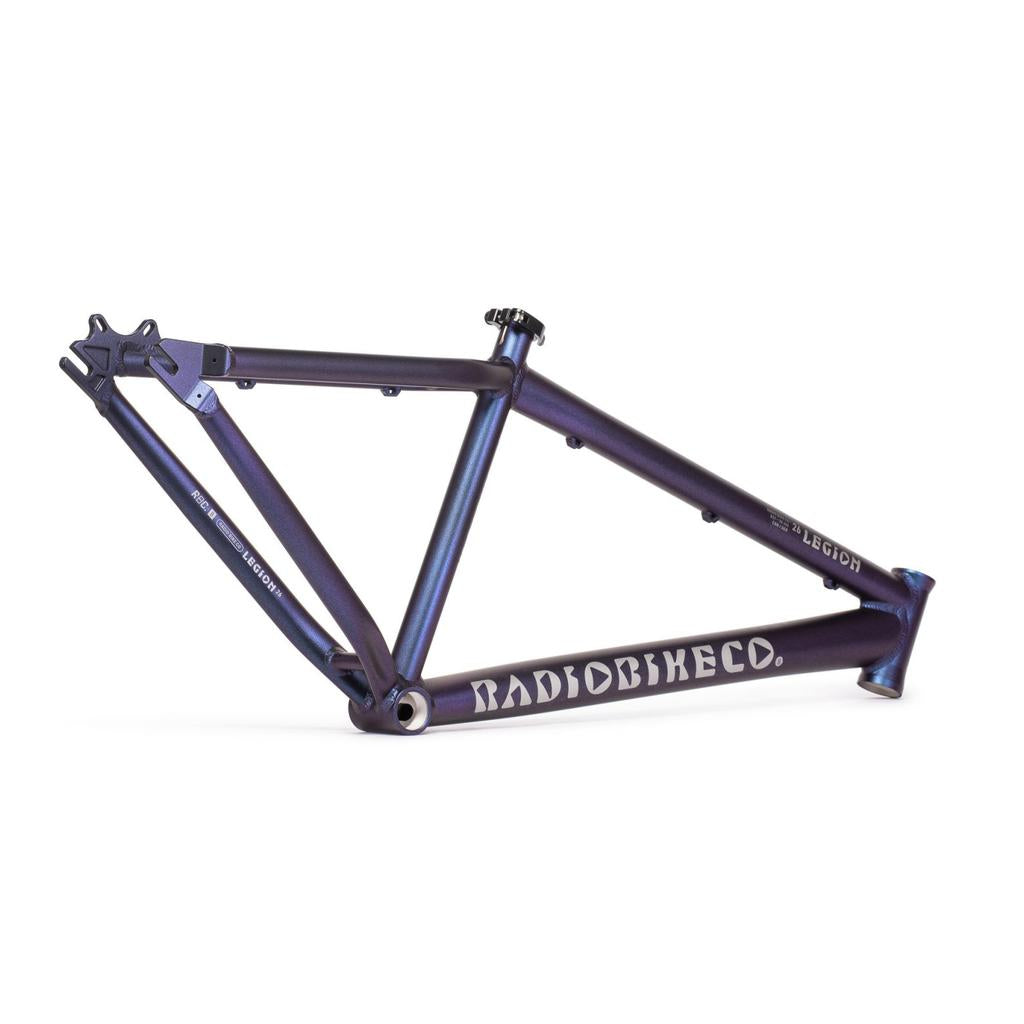

The Legion 26 frame is alloy, so it is low in weight but tough enough to handle anything you can throw at it. It is a pro level 26 inch wheelie bike frame with wheelie specific geometry and short chain stays.

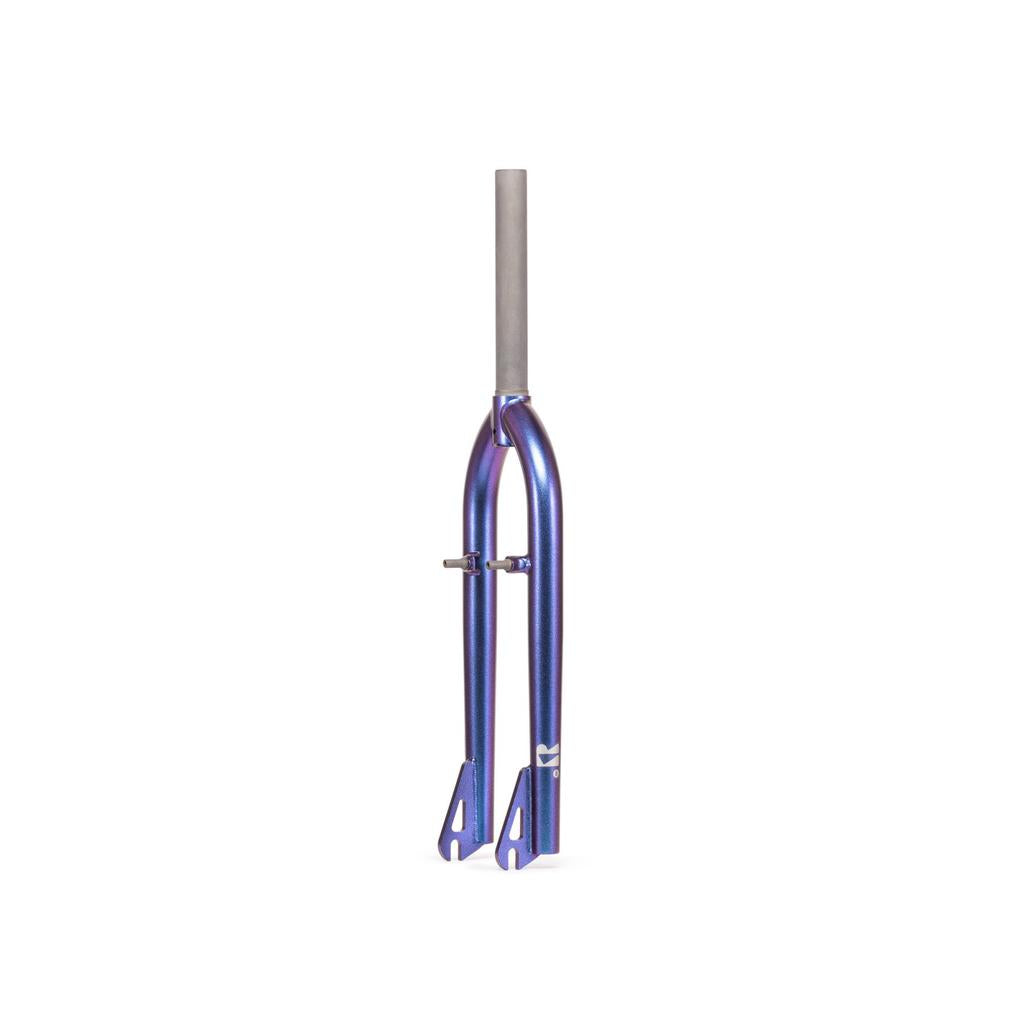

The kit includes a full chromoly aftermarket Legion fork with a butted steer tube and 6mm laser cut dropouts, plus a Radio 31.8mm quick release seat clamp.

Features
  • Wheelie specific geometry. A 66.7° head tube angle and short chain stays put the frame where a pro level wheelie bike needs to be.
  • Light 6061-T6 alloy frame. The custom Radio oval tube set keeps the frame at 1.92kg while staying strong enough for street riding.

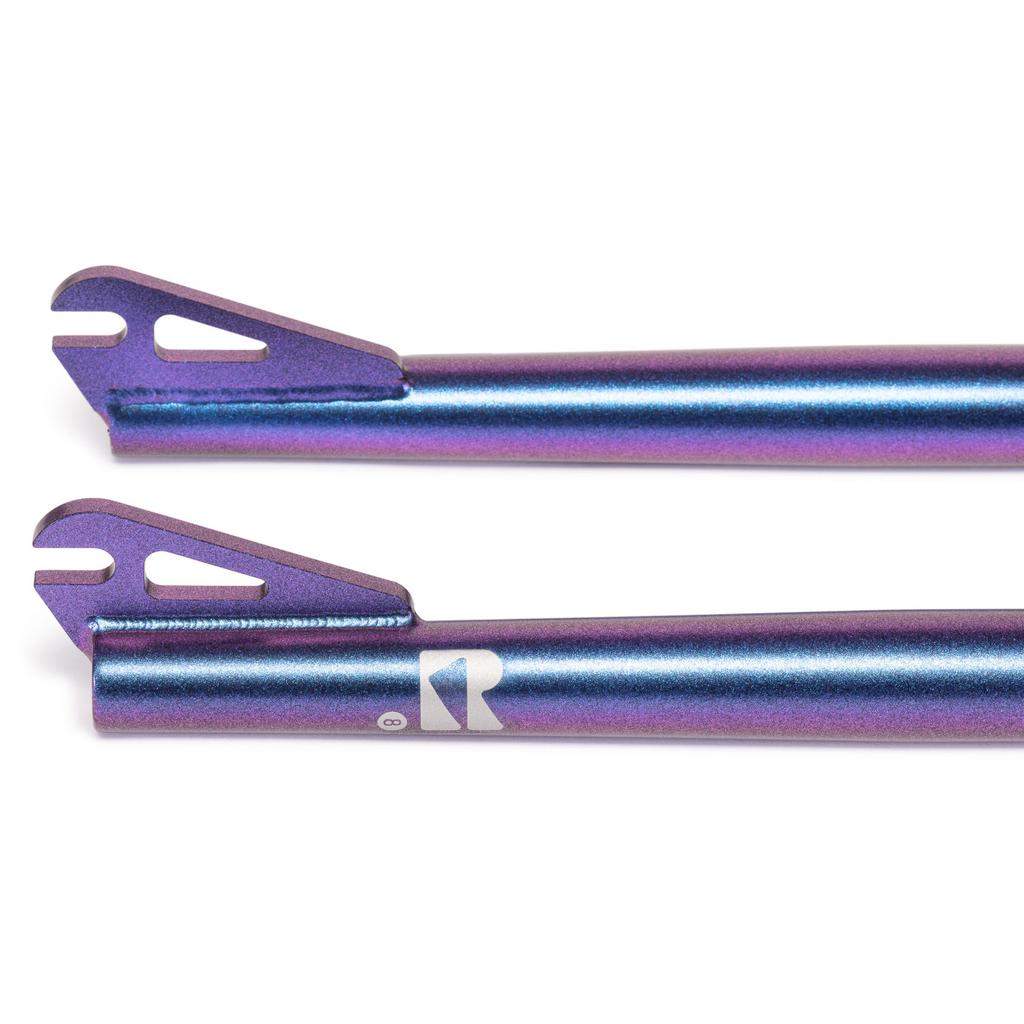

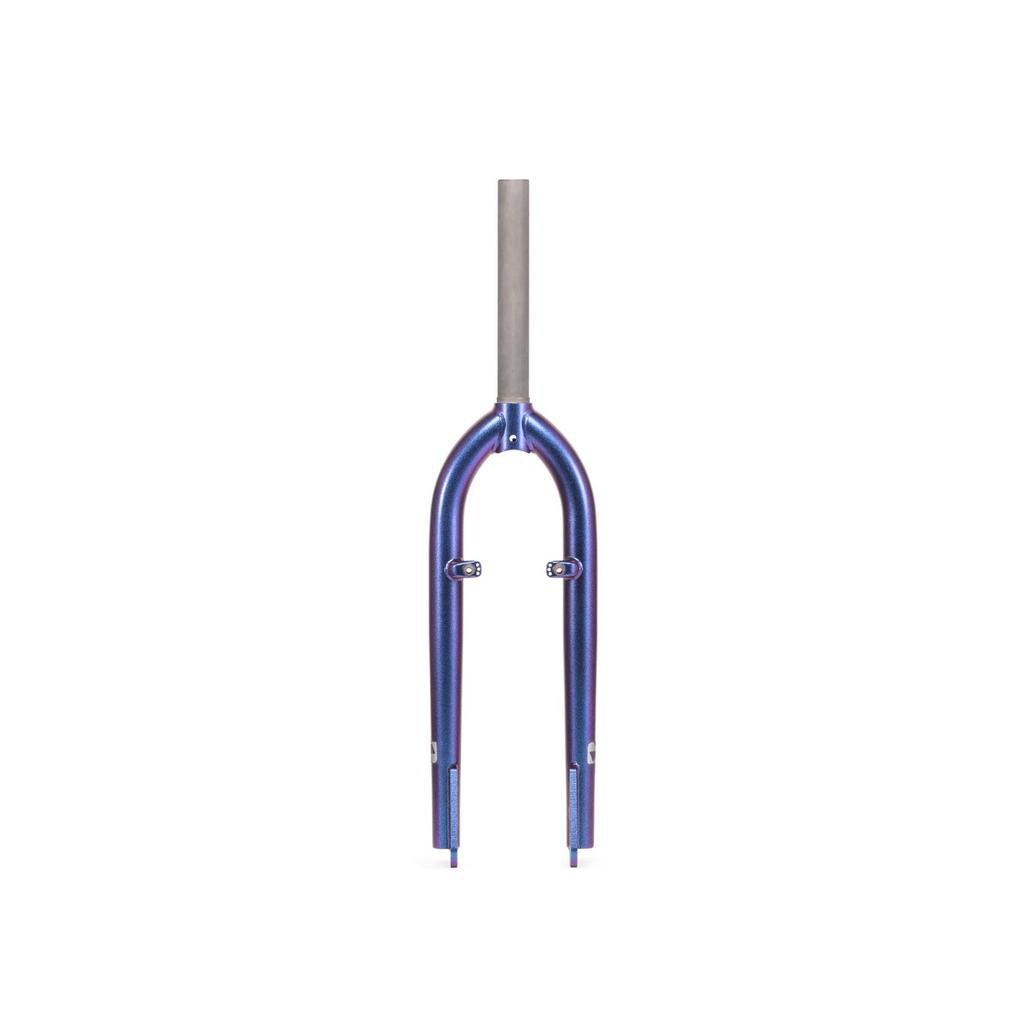

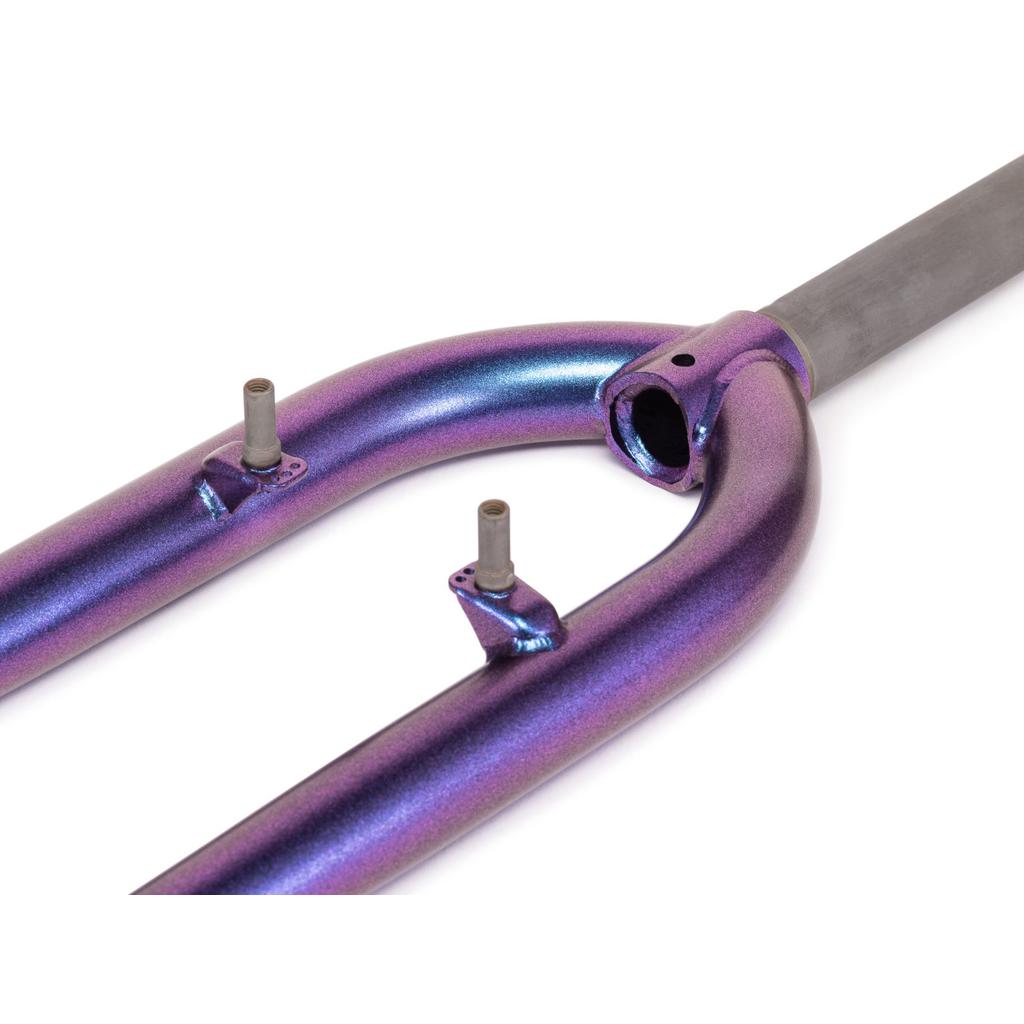

  • Full chromoly fork included. The Legion aftermarket fork has a butted steer tube and 6mm laser cut dropouts for durability in the streets.
  • IS-2000 disc brake mount. Runs a disc brake up to a 160mm rotor, on cold forged dropouts with 10mm slots and 120mm spacing.
  • Peg compatible, 2.40" tyre clearance. Takes pegs and fits up to a 2.40" (60mm) tyre, with a 27.2mm seat post and Radio 31.8mm quick release clamp.

Specifications
  • Top tube: 22" (23.1" effective)
  • Chainstay: 16.7"
  • Head tube angle: 66.7°
  • Seat tube angle: 71°
  • Standover: 15"
  • Bottom bracket height: 33mm drop

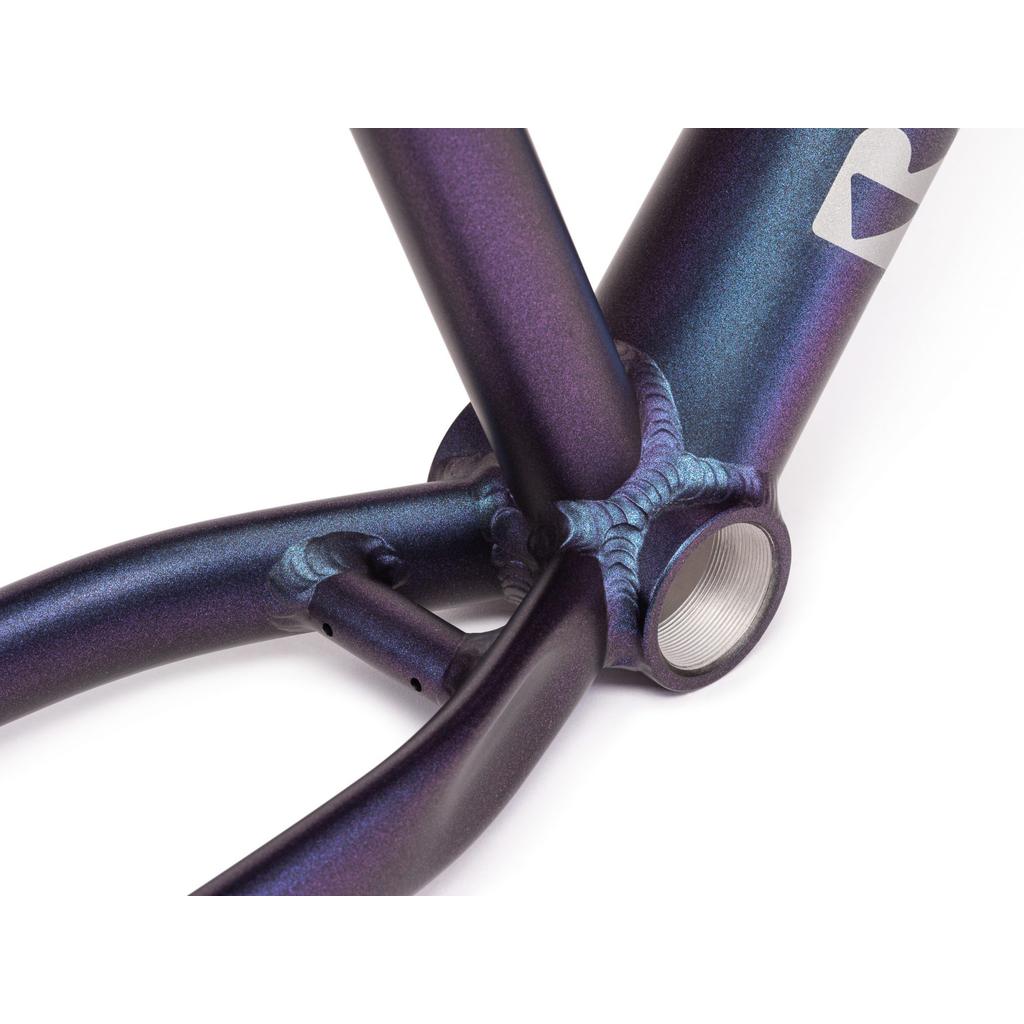

  • Bottom bracket: CNC machined BSA, 68mm width
  • Material: 6061-T6 alloy
  • Tubing: Custom Radio oval tube set

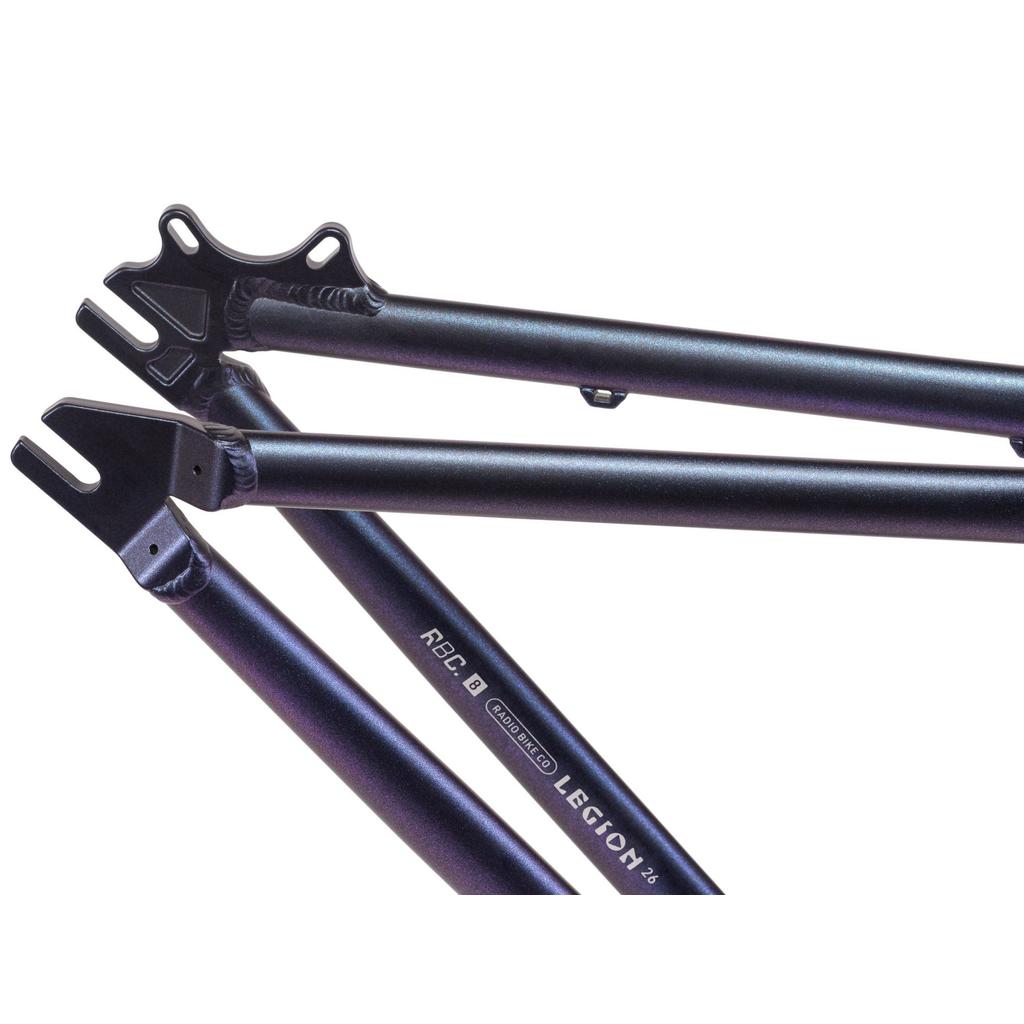

  • Dropouts: Cold forged, 120mm OLD, 10mm slots, 8mm thick, disc brake mount
  • Brake mounts: IS-2000 disc, max rotor size 160mm

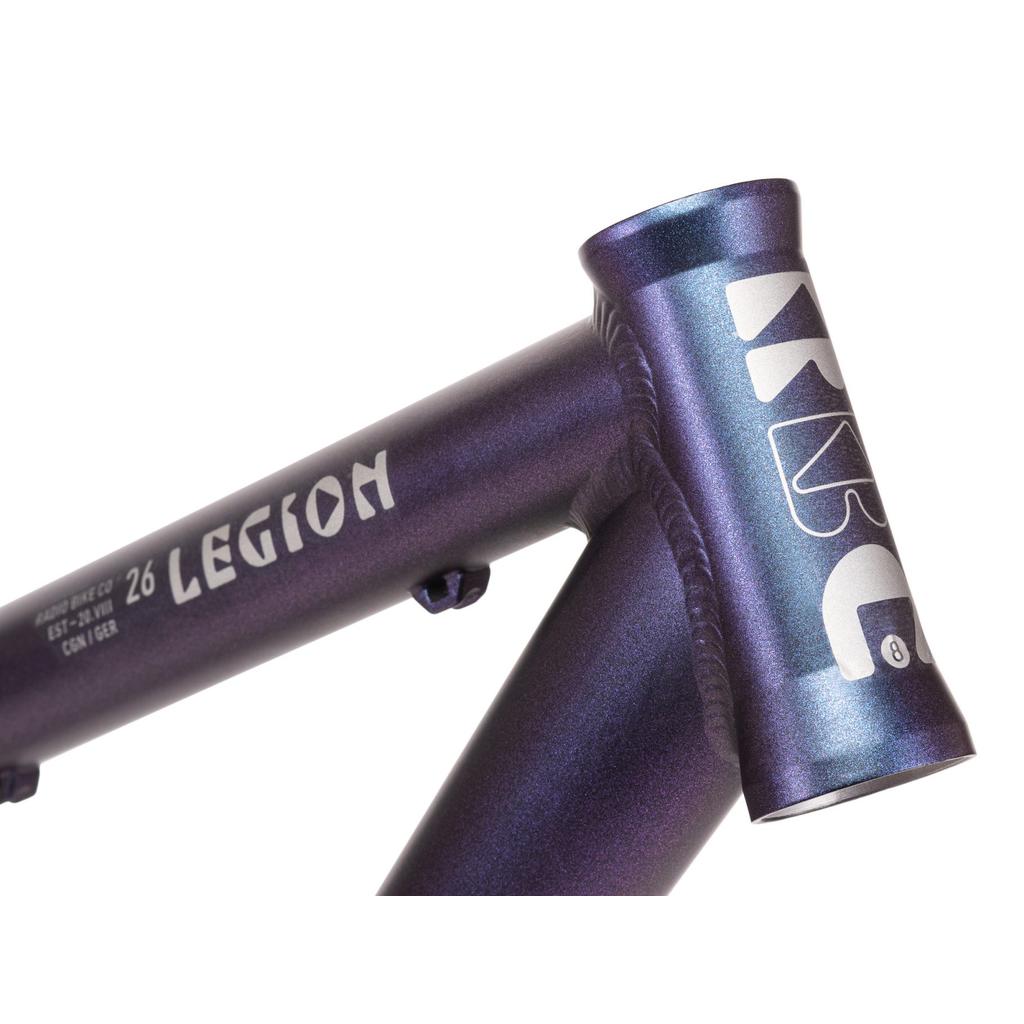

  • Head tube: CNC machined, 1 1/8", 120mm tall, integrated headset
  • Seat tube: 27.2mm post

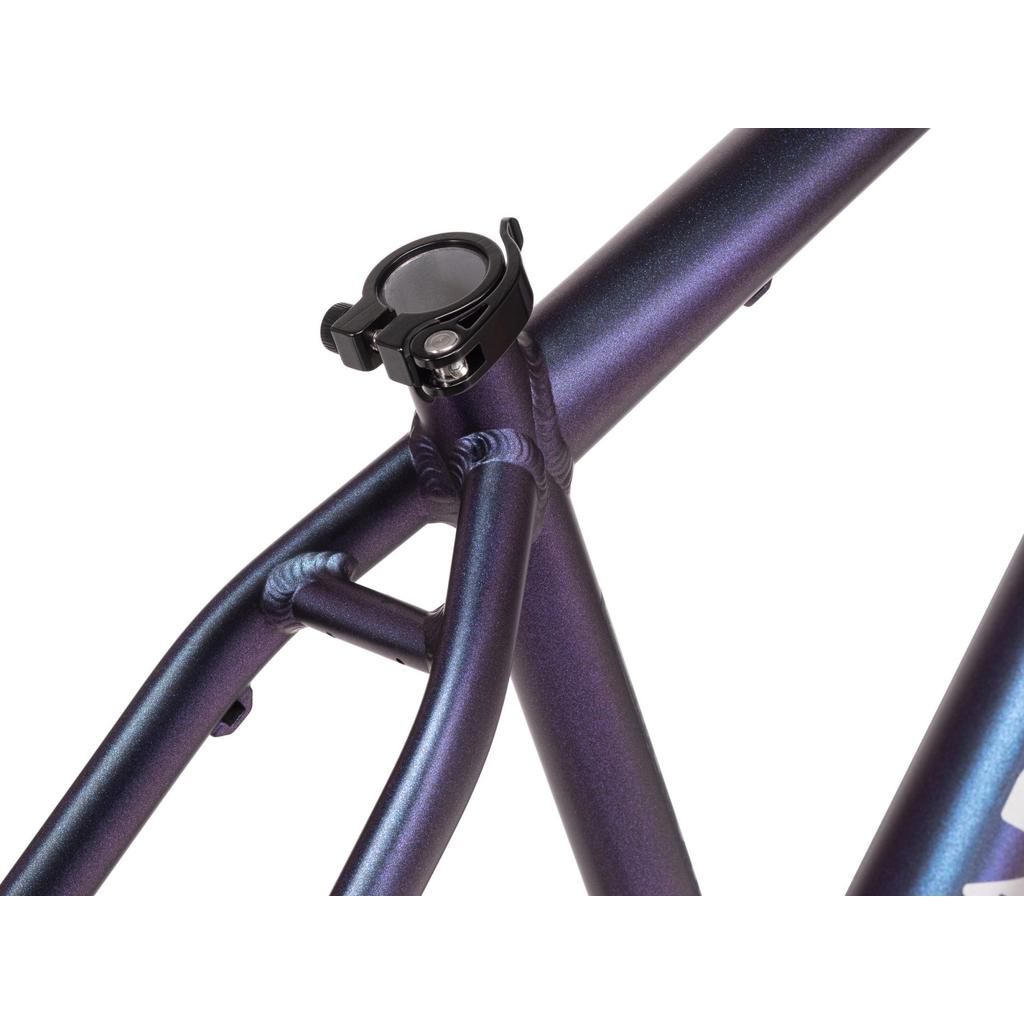

  • Seat clamp: Radio 31.8mm quick release, included
  • Steerer: Butted (Legion fork)
  • Fork legs: Full chromoly
  • Peg compatible: Yes
  • Tyre clearance: 2.40" (60mm)
  • Wheel size: 26"
  • Weight: 1.92kg (frame)

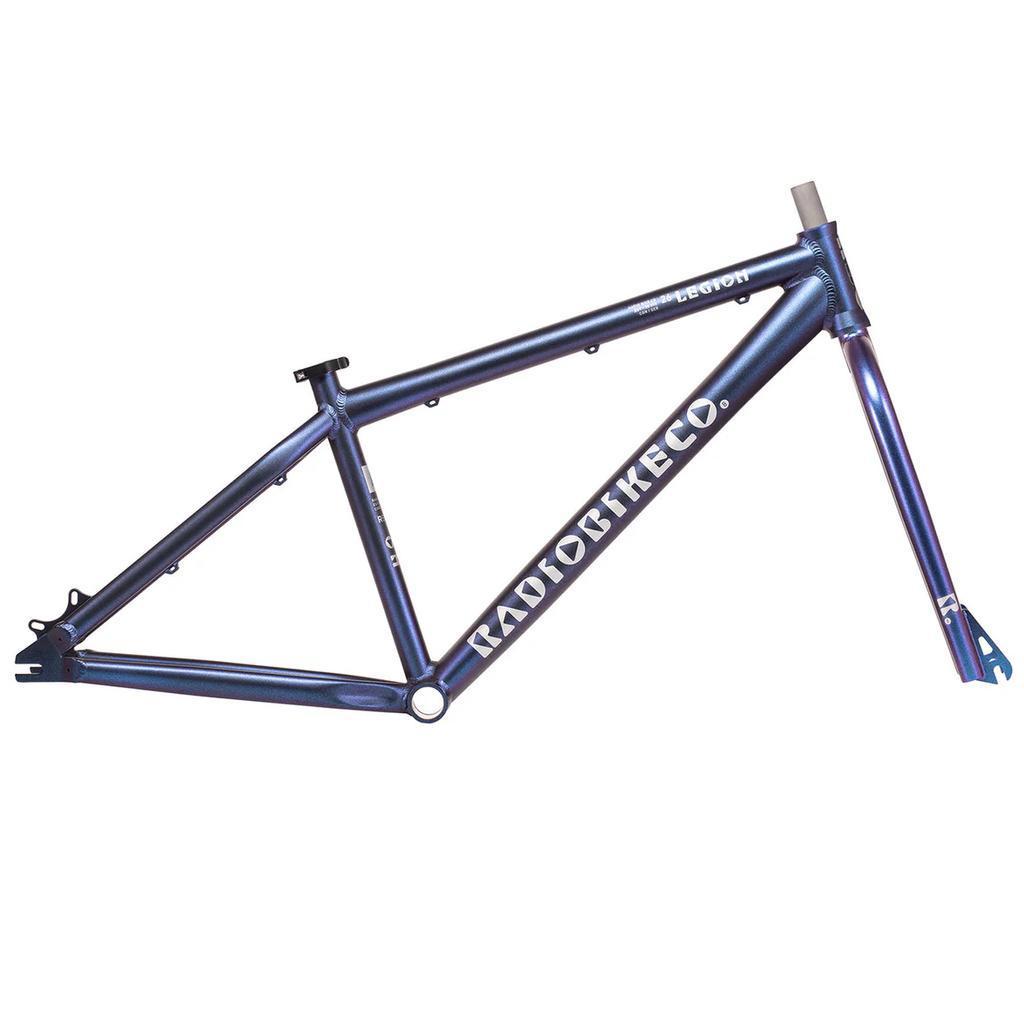

Radio Legion 26 26 Inch Frame/Fork Kit

Brand: Radio SKU:

$999.99 AUD

Or 4 payments of $249.99 AUD with

Colour - Matt Galactic Purple

Top Tube Length - 22

Radio Legion 26 26 Inch Frame/Fork Kit - Matt Galactic Purple / 22

$999.99 AUD
