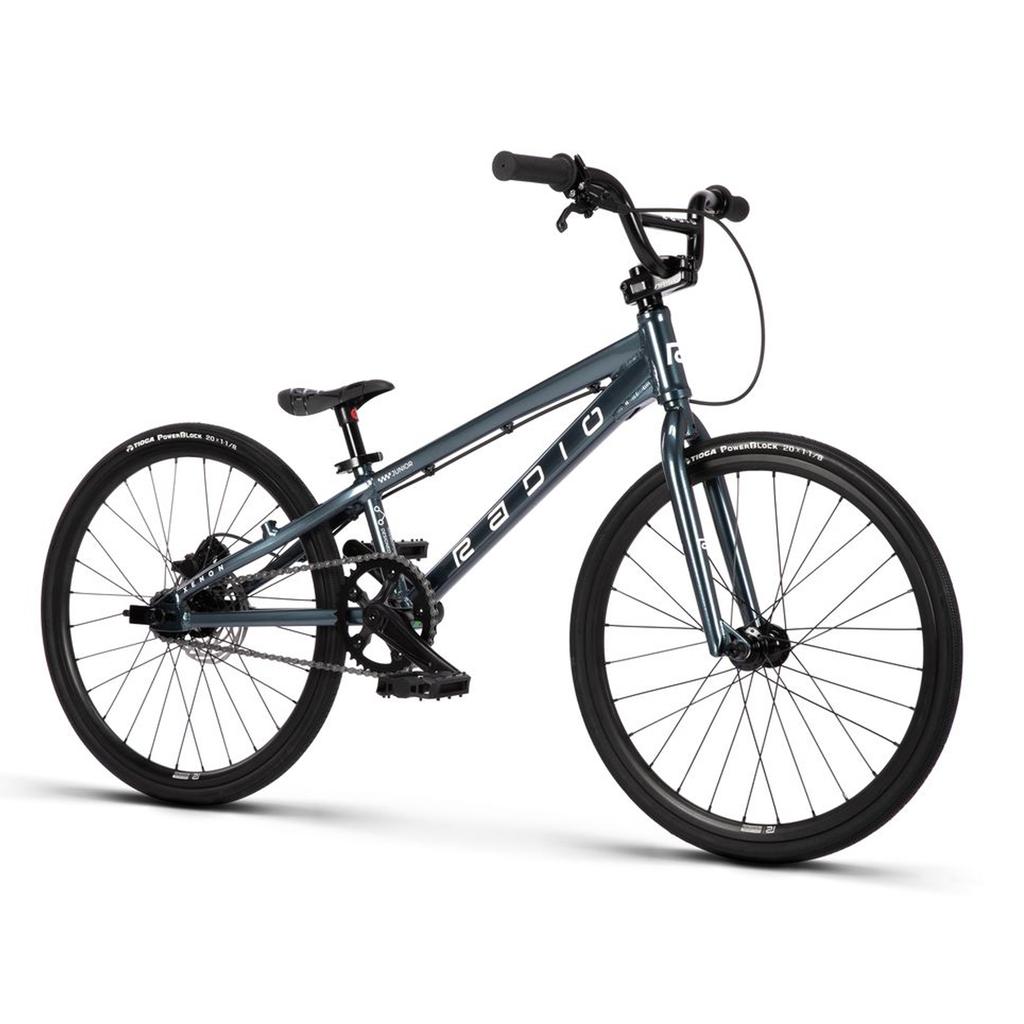

A Radio Xenon Junior Disc 20 Inch Bike, featuring a blue hydroformed 6061-T6 alloy frame with the "Radio" brand name, equipped with black Tioga Power Block tyres and both front and rear brakes, is displayed against a white background.
A Radio Xenon Junior Disc 20 Inch Bike in dark blue, featuring a hydroformed 6061-T6 alloy frame, black wheels with Tioga Power Block tyres, a slim seat, and a white logo, displayed from a rear side angle on a white background.

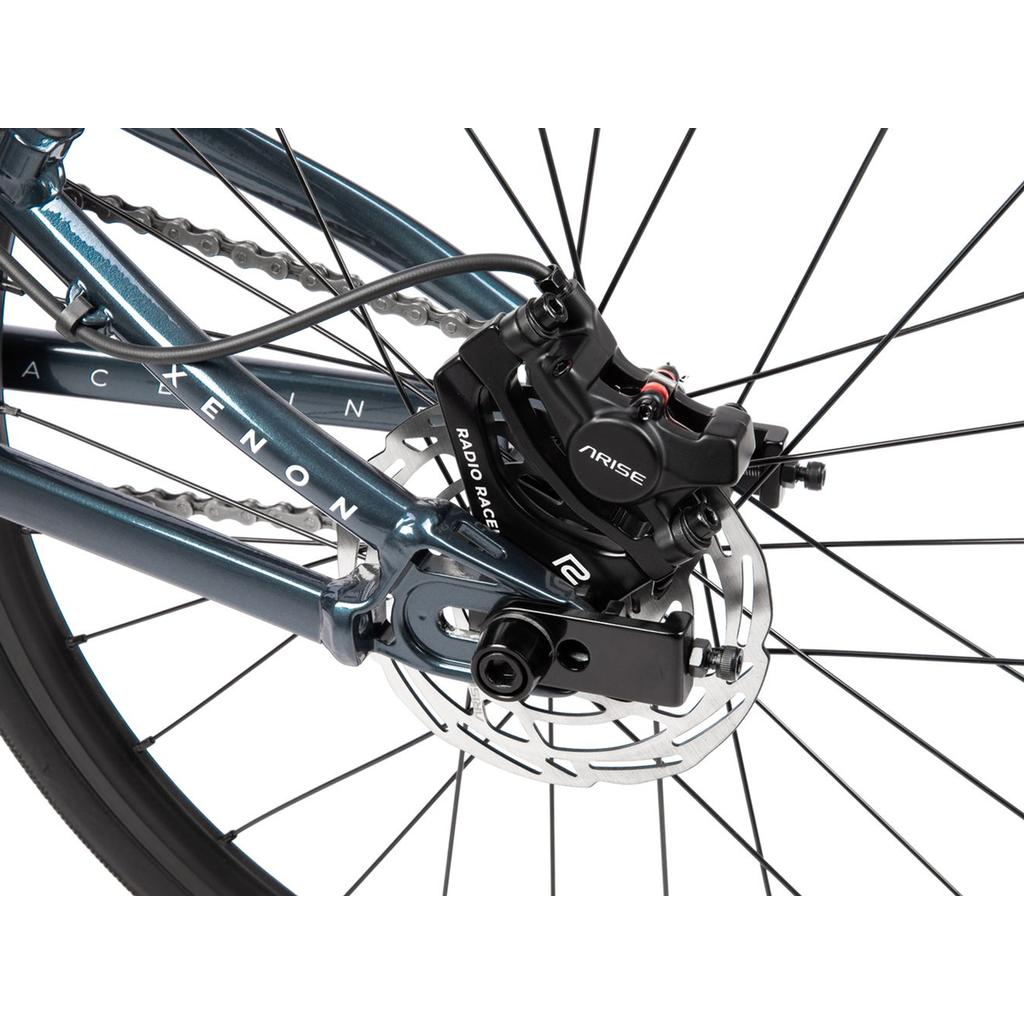

Close-up of the rear wheel of the Radio Xenon Junior Disc 20 Inch Bike, showcasing its disc brake system with visible rotor and caliper, as well as a portion of its hydroformed 6061-T6 alloy frame labeled "XENON." The image also highlights the sturdy Tioga Power Block tyres.

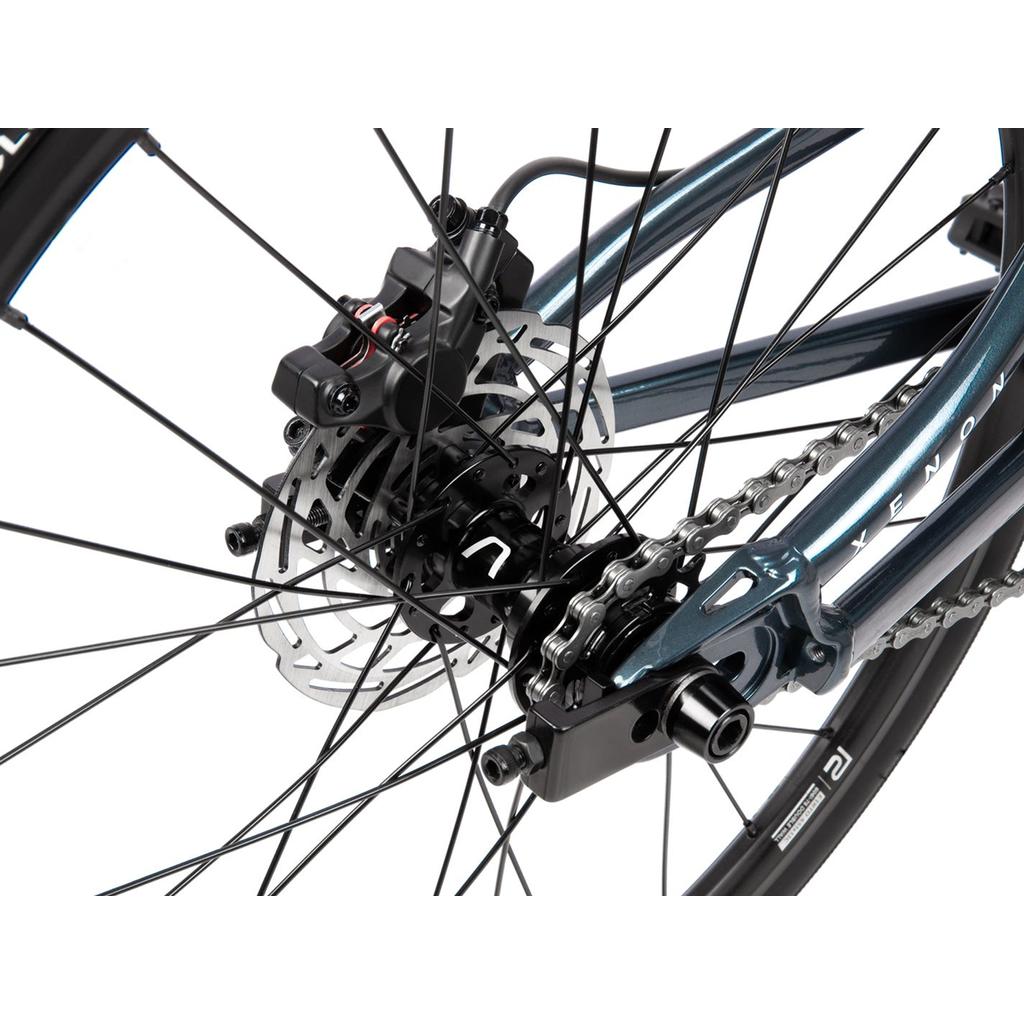

Close-up of the Radio Xenon Junior Disc 20 Inch Bike's rear wheel, highlighting the disc brake, chain, derailleur, spokes, and part of its hydroformed 6061-T6 alloy frame. Partially visible Tioga Power Block tyres underscore the bike’s performance and durability.

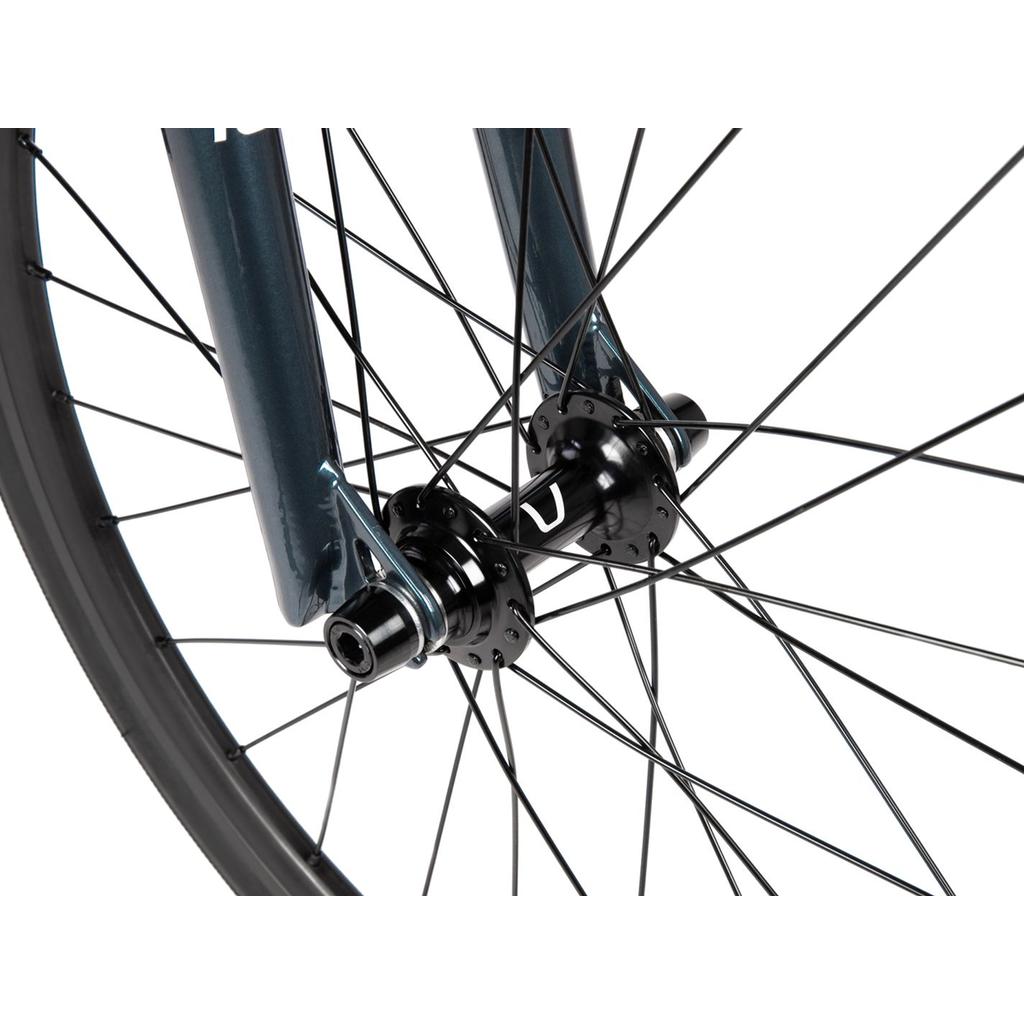

Close-up of the front wheel of the Radio Xenon Junior Disc 20 Inch Bike, featuring black spokes, a black hub, and a section of its metallic blue fork. The Tioga Power Block tyres complement the hydroformed 6061-T6 alloy frame.

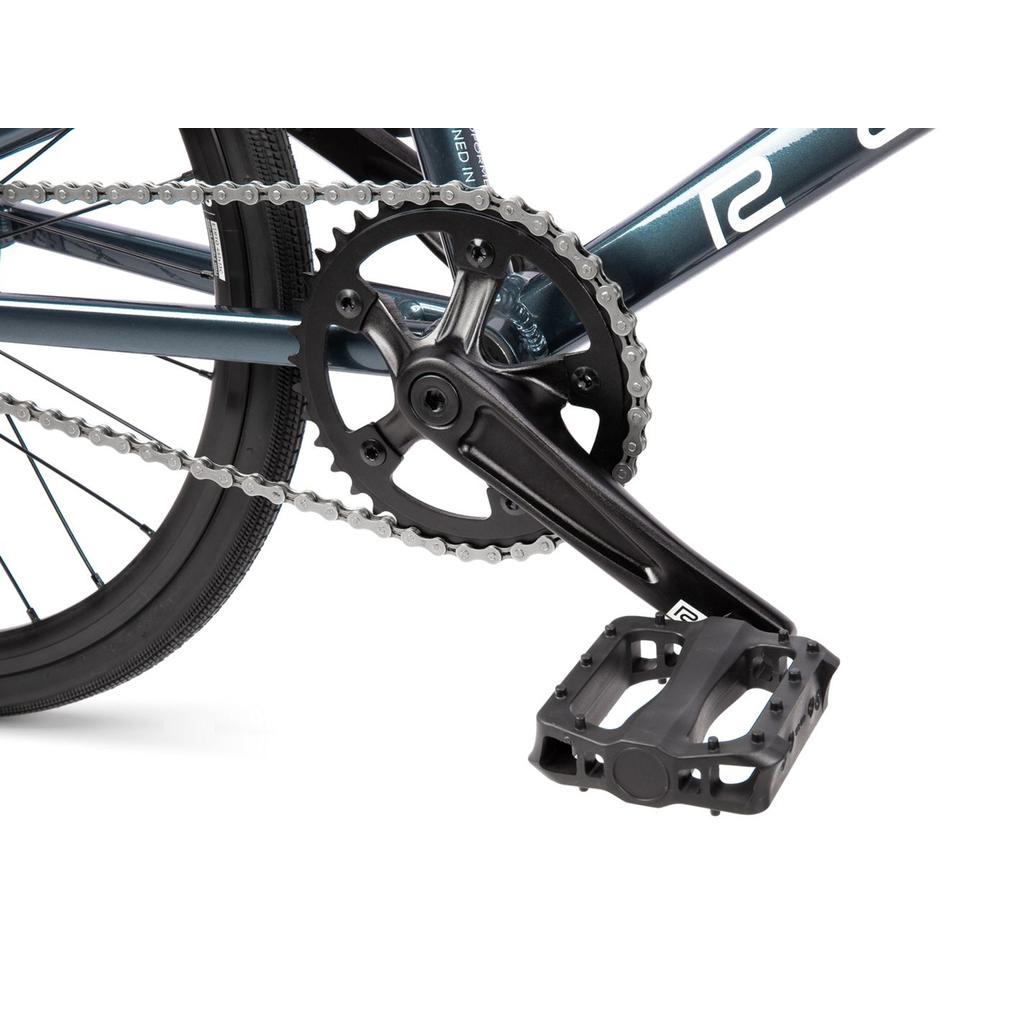

Close-up of the Radio Xenon Junior Disc 20 Inch Bike’s crankset, chainring, chain, and pedal, showing part of its hydroformed 6061-T6 alloy frame and rear wheel fitted with Tioga Power Block tyres.

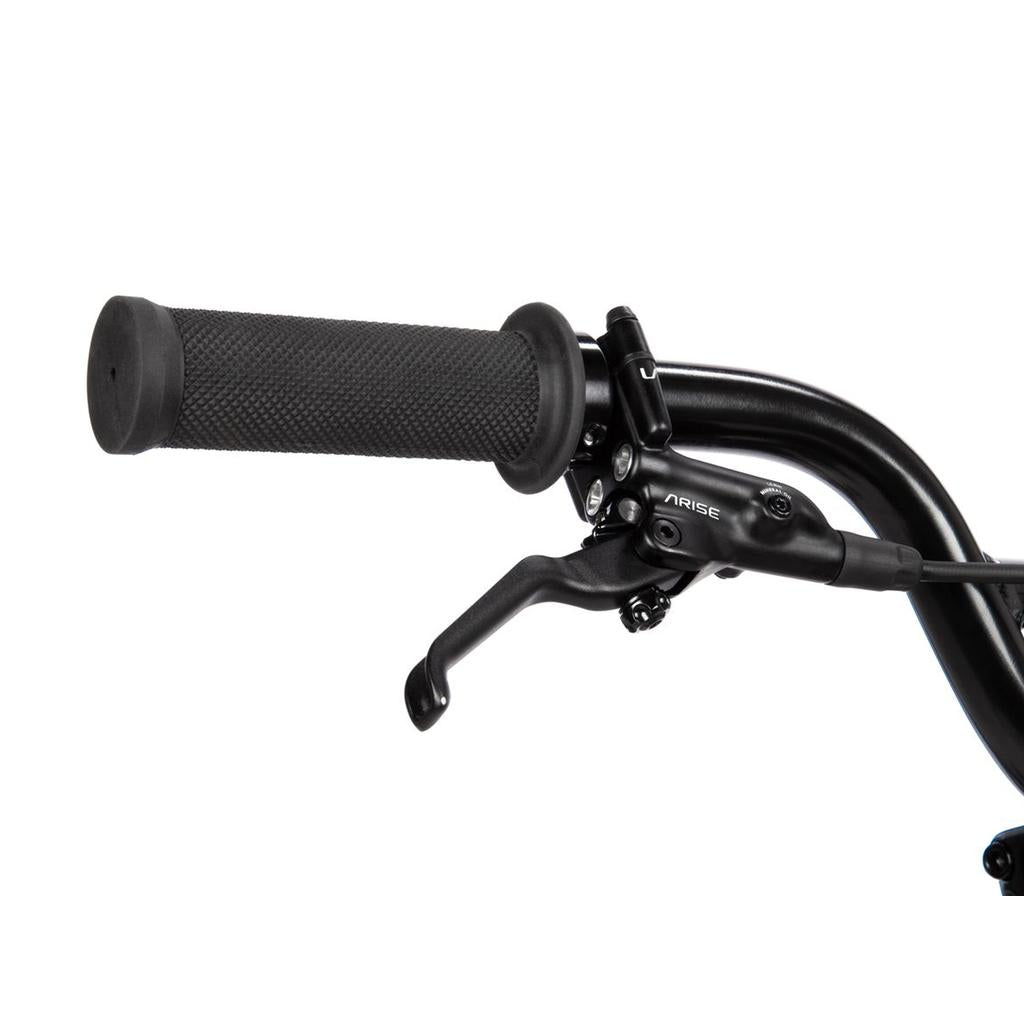

Close-up of a black BMX race bike handlebar with a textured rubber grip and a brake lever labeled "ARISE," highlighting the attention to detail found on the Radio Xenon Junior Disc 20 Inch Bike, which comes equipped with features like hydroformed 6061-T6 alloy frames and Tioga Power Block tyres.

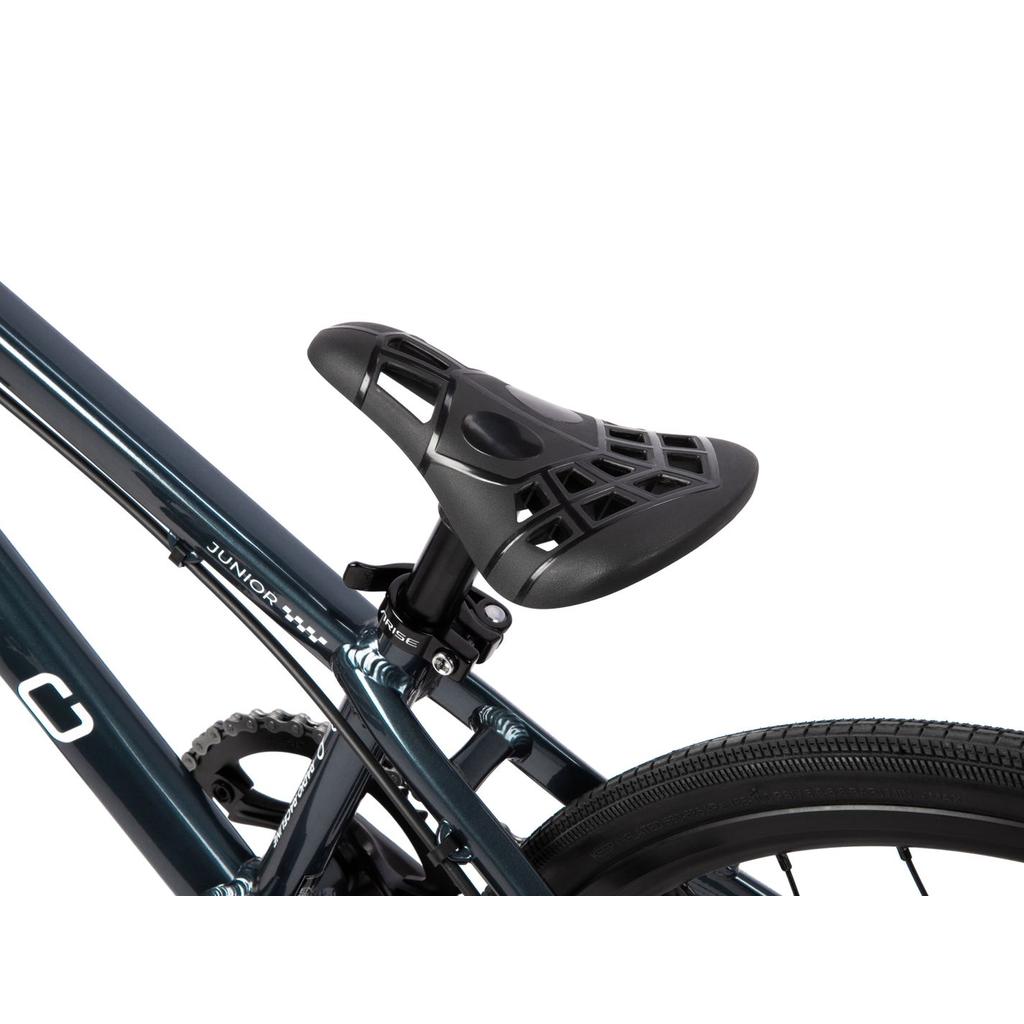

Close-up of a black saddle with a cutout design, mounted on the blue hydroformed 6061-T6 alloy frame of the Radio Xenon Junior Disc 20 Inch Bike, showing part of the rear wheel and Tioga Power Block tyres.

Description

The Radio Xenon Junior Disc is for riders ready to go faster and get serious on the track. It is built around a hydroformed 6061-T6 alloy frame with forged, disc brake mount ready dropouts, and a full chromoly fork with a 1" butted steerer keeps the front end solid.

The build is Radio Raceline Xenon: 155mm 3-piece forged alloy cranks on a sealed square taper bottom bracket, a sealed cassette hub, Tioga Power Block tyres and an Arise Xenon disc brake out back. At 7.78kg it stays light for its size.

Features
  • 7.78kg on the scales. Light for a 20 inch race bike, so a junior rider can snap out of the gate and hold speed through the straights.
  • Hydroformed 6061-T6 alloy frame. Light and stiff with forged, disc brake mount ready dropouts, ready for proper race pace.
  • Rear disc brake. An Arise Xenon disc and matching lever give reliable stopping lap after lap, in the wet as well as the dry.
  • 155mm 3-piece forged alloy cranks. Radio Raceline Xenon cranks, CNC machined, on a sealed square taper bottom bracket for a junior length stroke and smooth power.
  • Tioga Power Block tyres. They grip hard out of the gate, paired with a sealed cassette hub for a drivetrain that keeps up every lap.

Specifications
  • Size: 20" wheels, Junior
  • Frame: Hydroformed 6061-T6 alloy, forged and disc brake mount ready dropouts
  • Fork: Chromoly fork, 1" butted steerer, chromoly legs, 23mm offset
  • Headset: Radio Raceline integrated, sealed, 1"
  • Stem: Arise Cobalt toploader, 40mm extension, alloy
  • Bars: 6061-T6 alloy
  • Grips: Radio Raceline Xenon, diamond knurling, clamp on, 115mm
  • Brakes: Arise Xenon disc, rear
  • Brake lever: Arise Xenon disc
  • Cranks: Radio Raceline Xenon 3pc, forged alloy, CNC machined, 155mm
  • Bottom bracket: Radio Raceline, BSA square taper, sealed
  • Chain: KMC Z6, 1/2" x 3/32"
  • Pedals: Radio Raceline Xenon Junior, alloy
  • Rear hub: Sealed cassette
  • Tyres: Tioga Power Block
  • Weight: 7.78kg

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.
