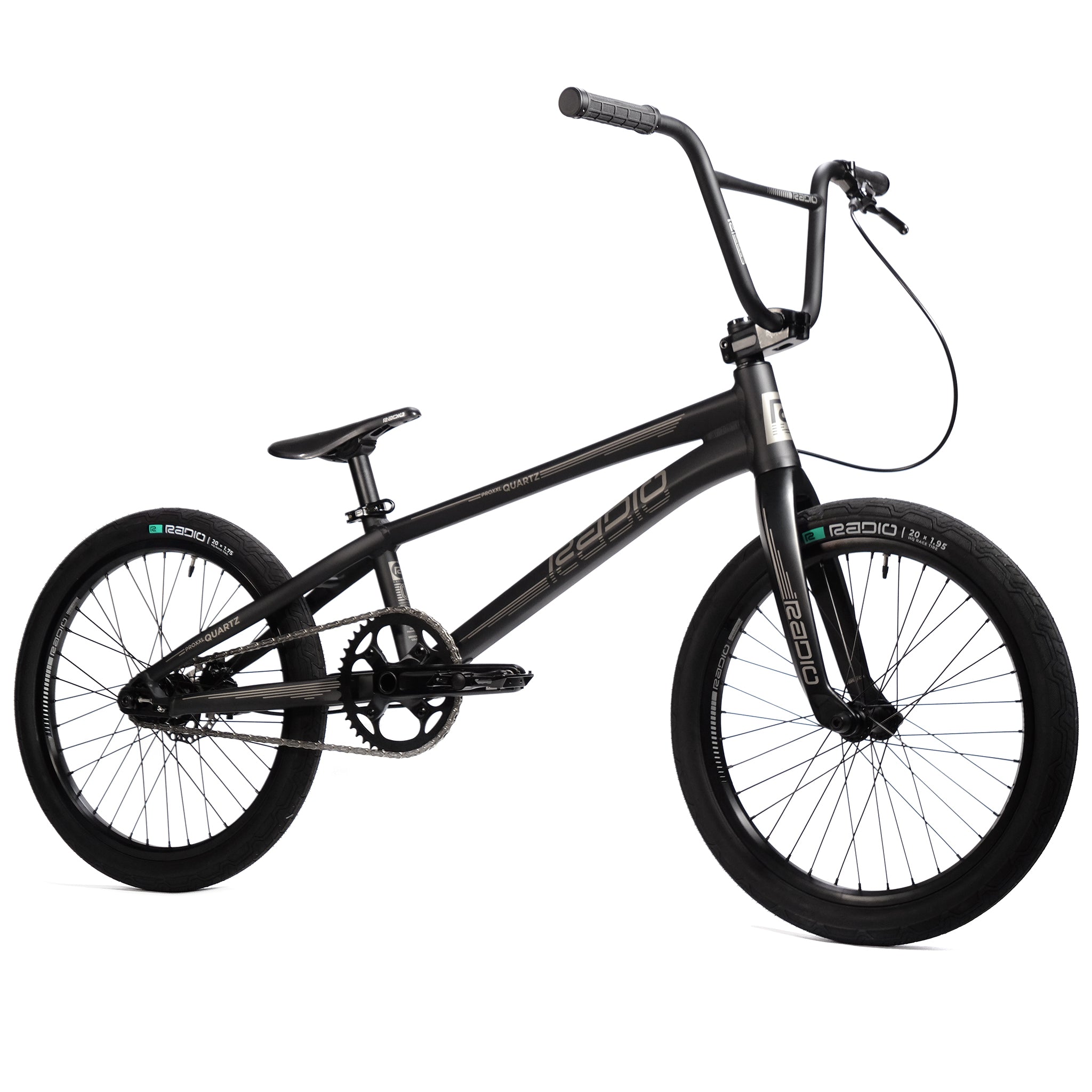

The Radio Raceline Quartz Pro L Bike 2025 is a black BMX bike featuring a sleek, lightweight hydro-formed frame, single gear, flat handlebars, and 20-inch wheels. Its streamlined design is showcased against a white background.
The Radio Raceline Quartz Pro L Bike 2025 is a black BMX bike featuring a sturdy, lightweight hydro-formed frame, thick tires, and high handlebars. The frame proudly displays the Radio Raceline Quartz Pro L logo. This bike comes with a single gear and no additional accessories.
The Radio Raceline Quartz Pro L Bike 2025 features a lightweight hydro-formed frame in black, with knobby tires and handlebars equipped with grips and a brake lever. Its simple, sleek design makes it ideal for off-road cycling.

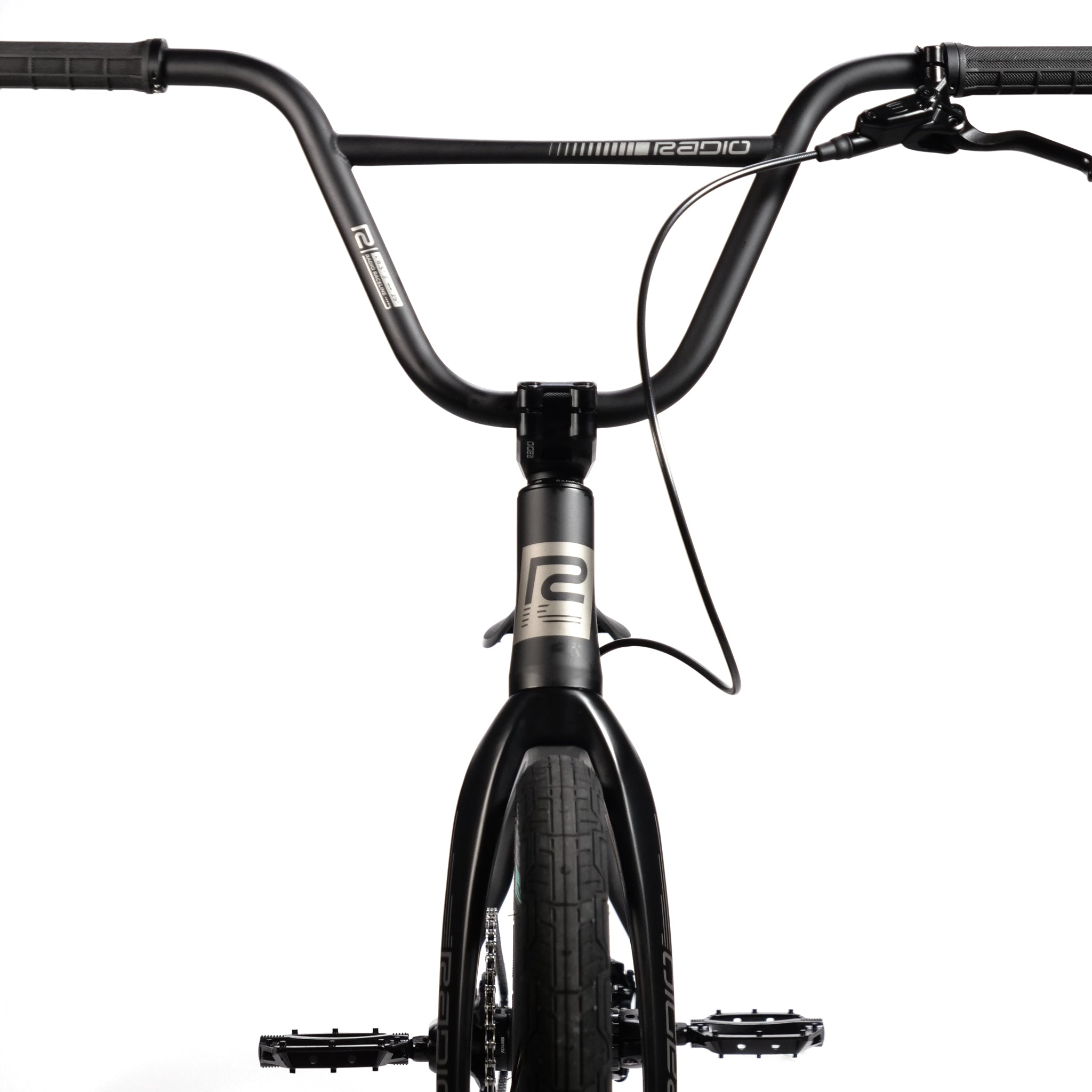

Front view of the Radio Raceline Quartz Pro L Bike 2025 in black, showcasing the handlebars, front wheel, and pedal; featuring a durable and lightweight hydro-formed frame.
Close-up of a black Radio Raceline Quartz Pro L Bike 2025's front frame and handlebars, showcasing the brand name "Radio" on the lightweight hydro-formed frame and tire against a plain white background.
Close-up of black bicycle handlebars with Radio branding, brake lever, and cables against a plain white background. The sleek design complements the lightweight hydro-formed frame and hydraulic disc brakes of the Radio Raceline Quartz Pro L Bike 2025 for a smooth ride.

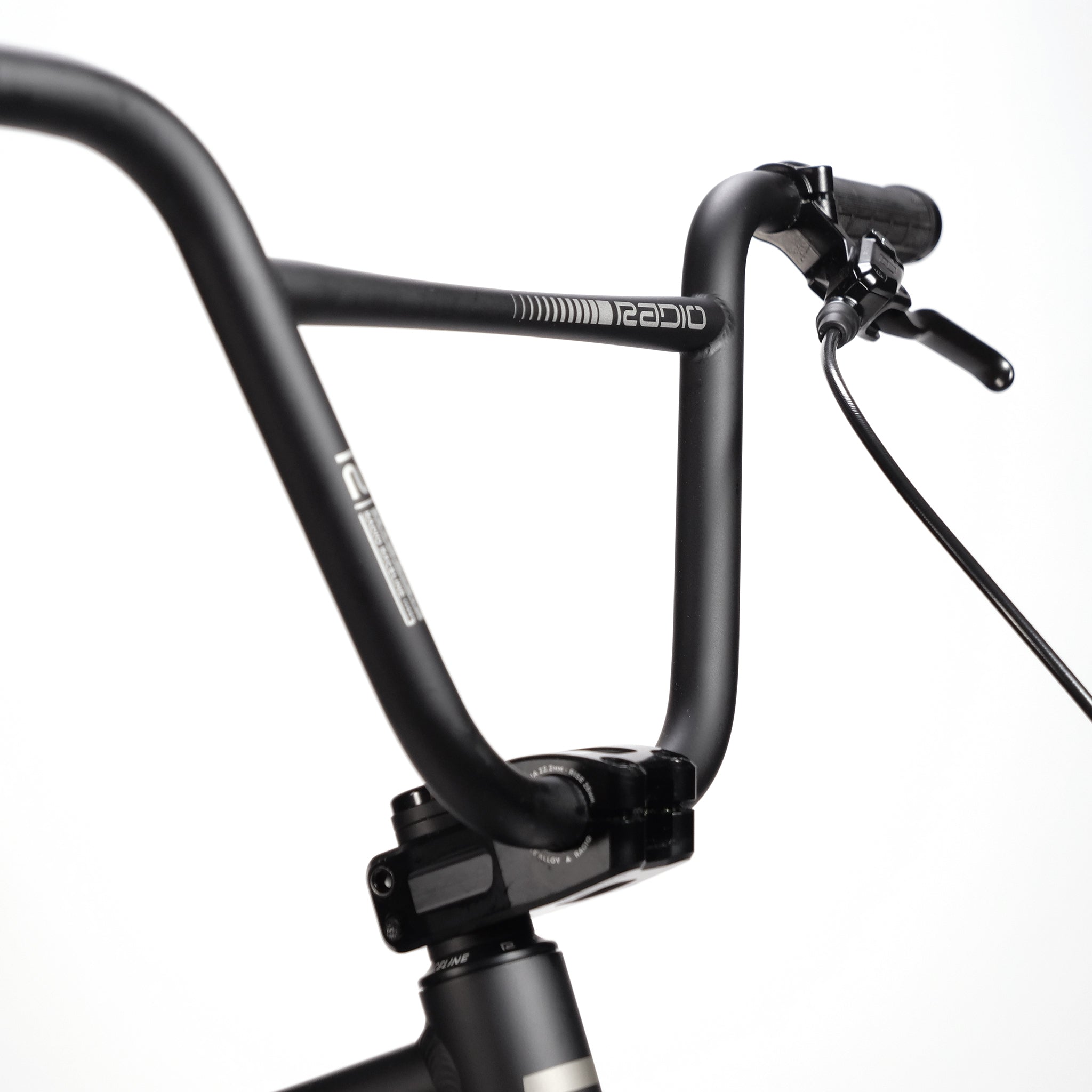

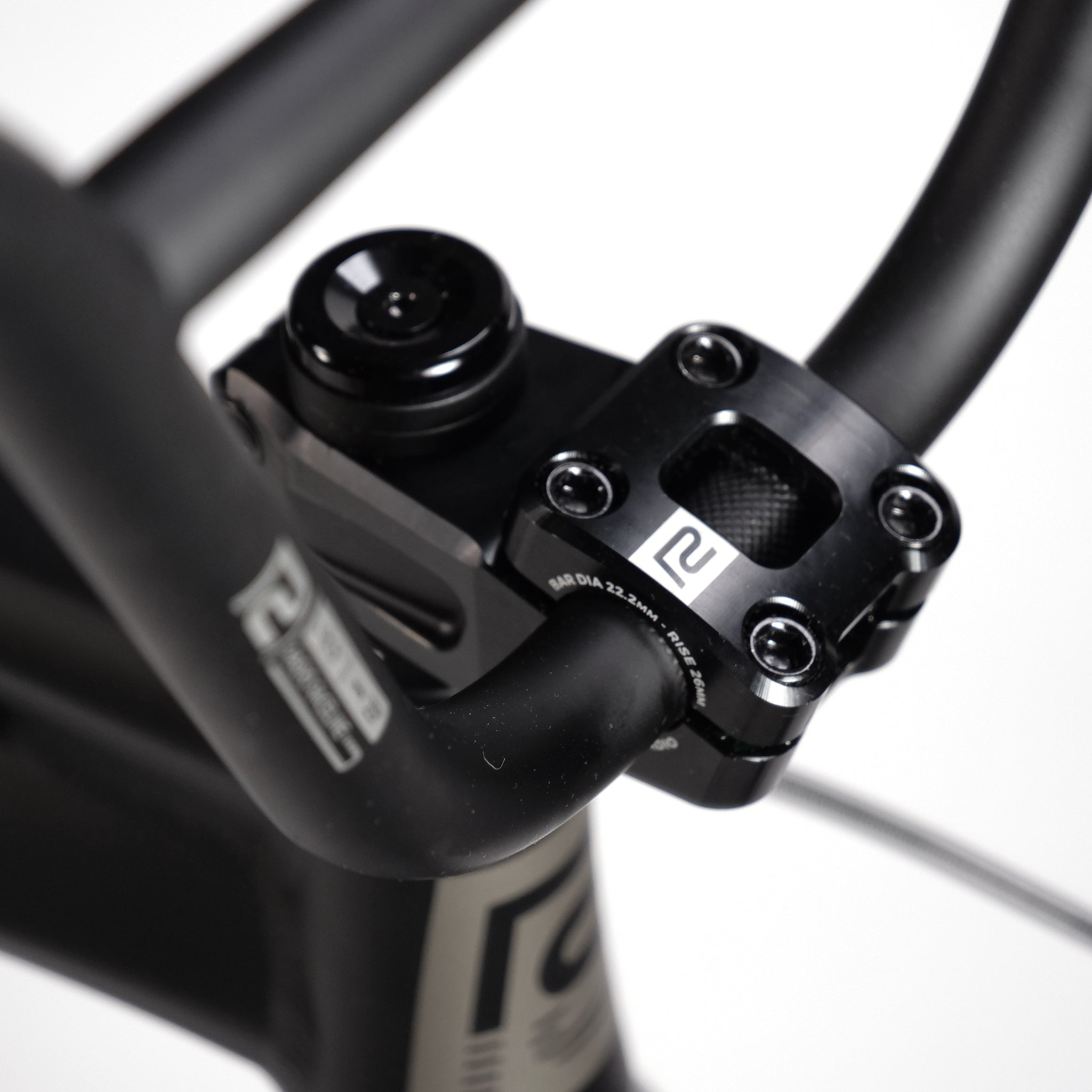

Close-up of a black bicycle handlebar and stem from the Radio Raceline Quartz Pro L Bike 2025, showcasing the bolts securing the handlebar to the stem. A logo is visible on the stem, and the setup appears robust and well-engineered, complete with hydraulic disc brakes for exceptional stopping power.

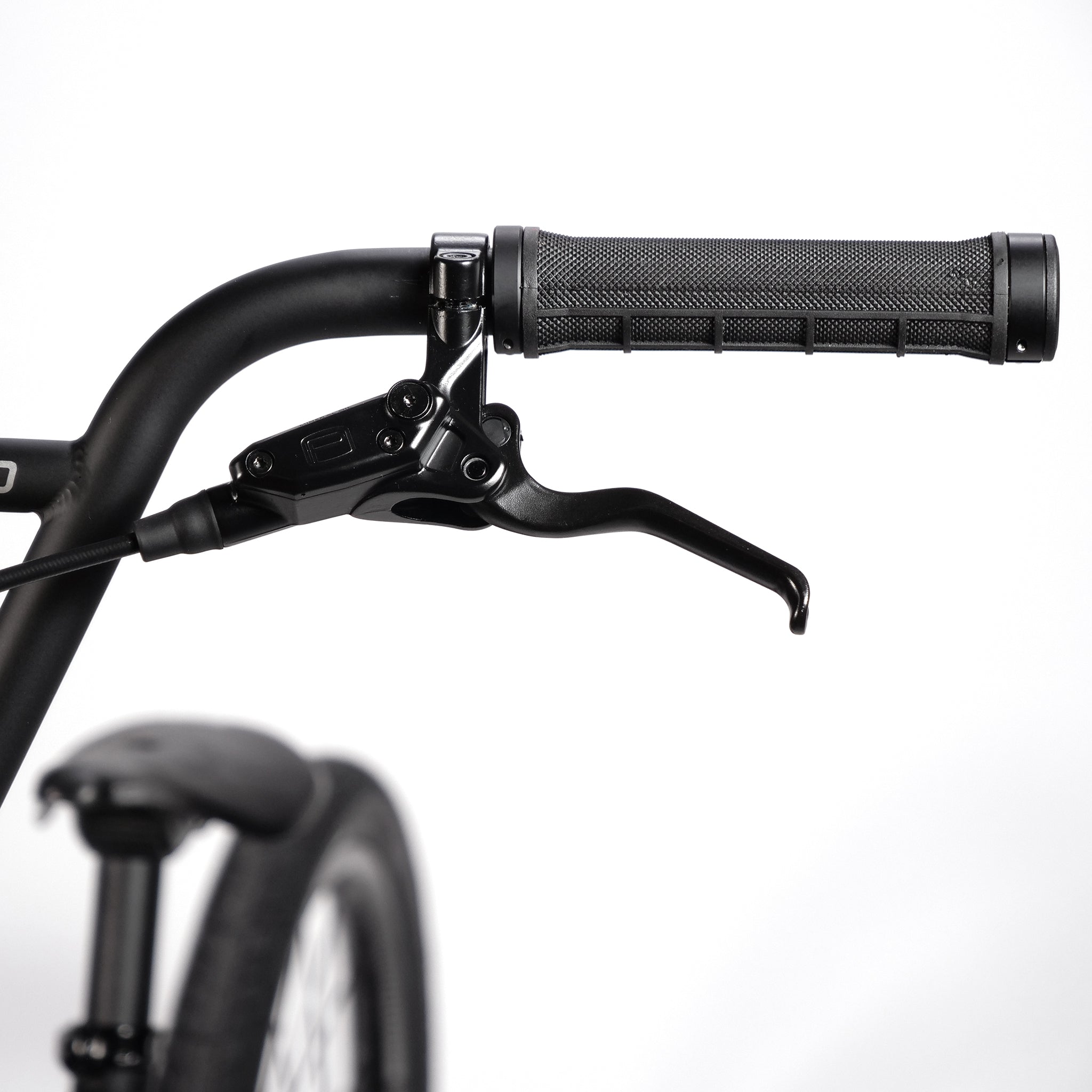

Close-up view of a black bicycle handlebar with a textured grip and brake lever, mounted on a Radio Raceline Quartz Pro L Bike 2025 frame, against a plain white background.

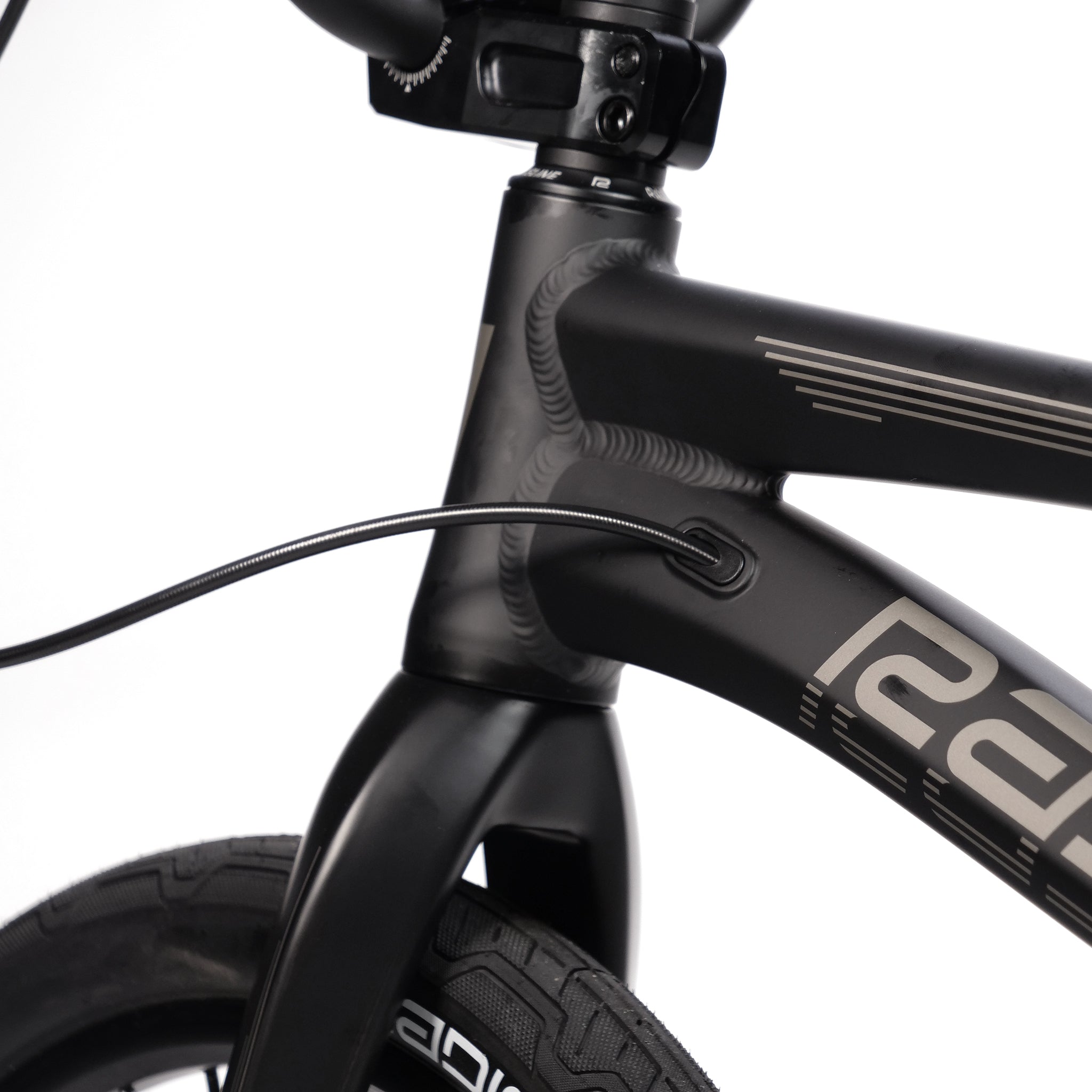

Close-up of the black Radio Raceline Quartz Pro L Bike 2025 frame, showcasing its fork, tire, and front brake cable that is routed internally through the lightweight hydro-formed frame. The matte finish frame features sleek white modern graphics.

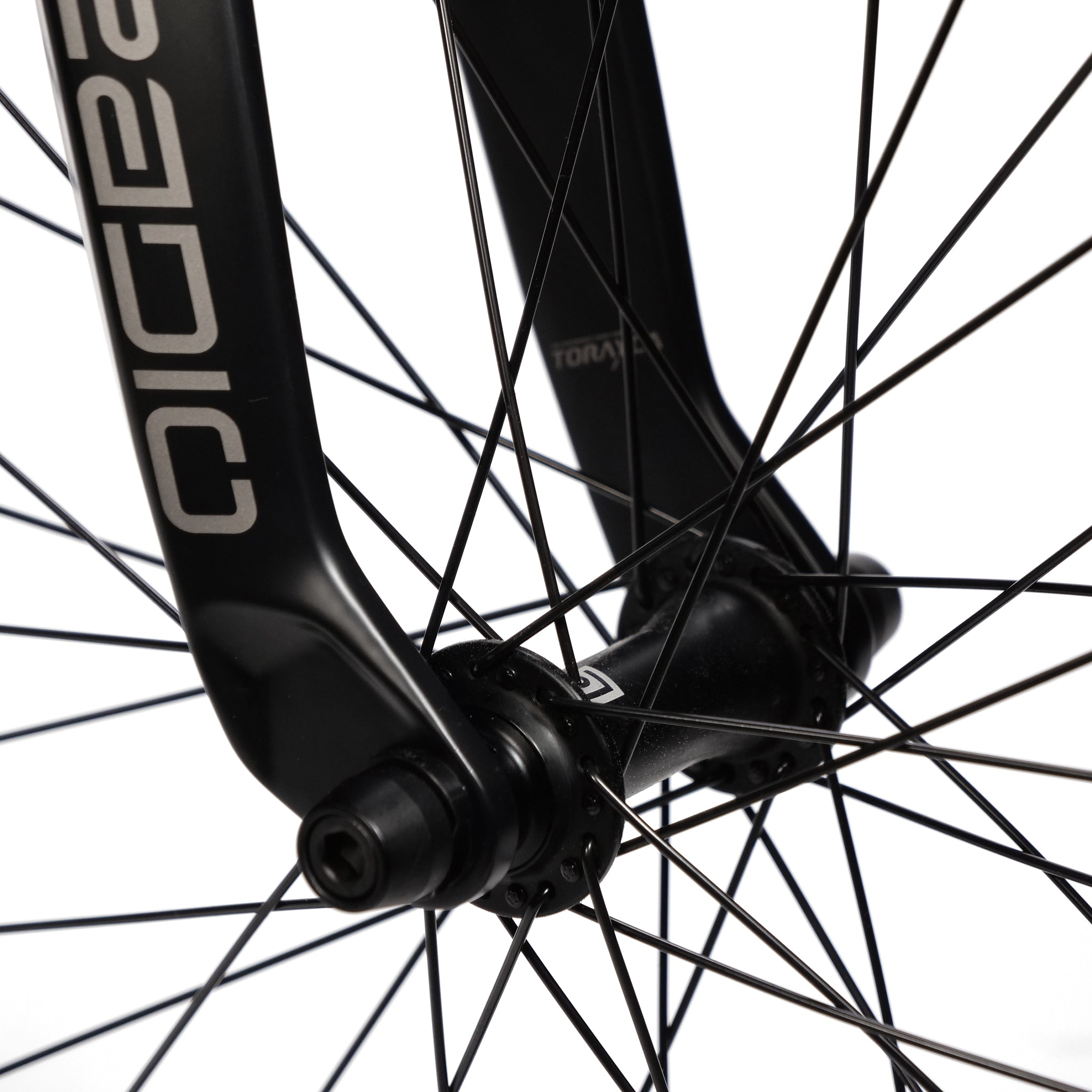

Close-up of the front wheel and fork of the Radio Raceline Quartz Pro L Bike 2025. The spokes radiate from a central hub, while the black fork adorned with branding supports the lightweight hydro-formed frame.

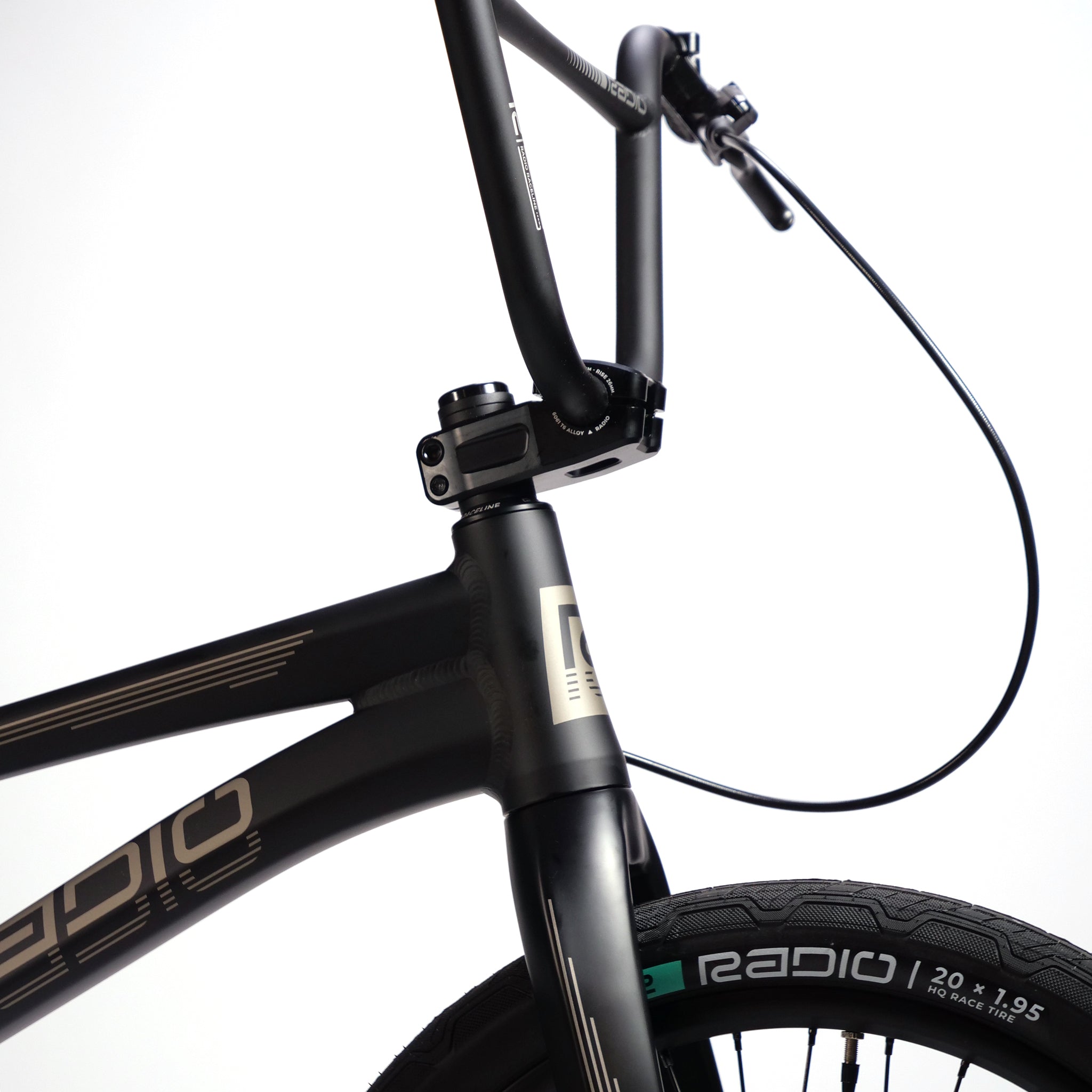

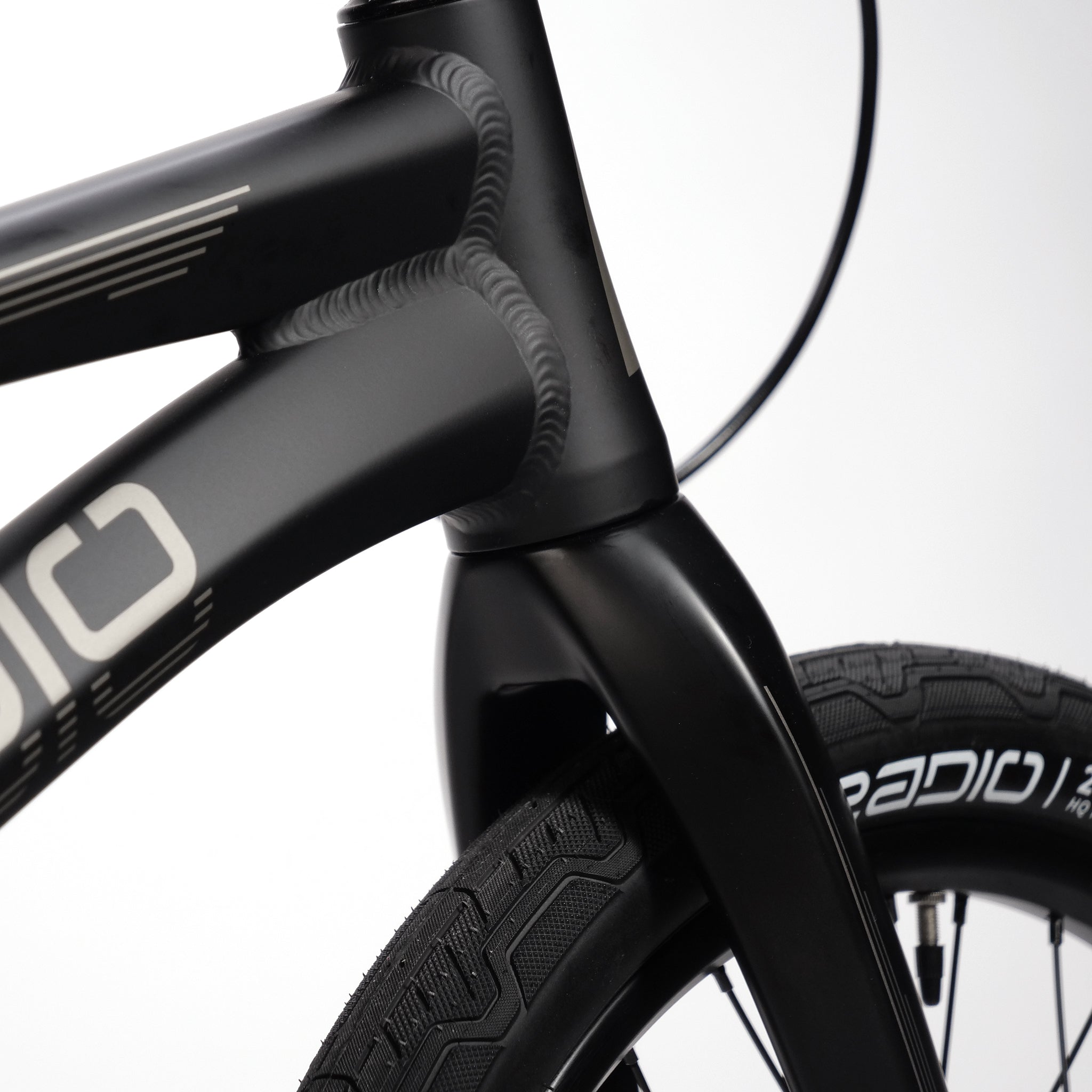

Close-up of the front end of the Radio Raceline Quartz Pro L Bike 2025, showcasing its black, hydro-formed frame along with the fork and front tire. The sidewall of the tire features the text "RADIO.

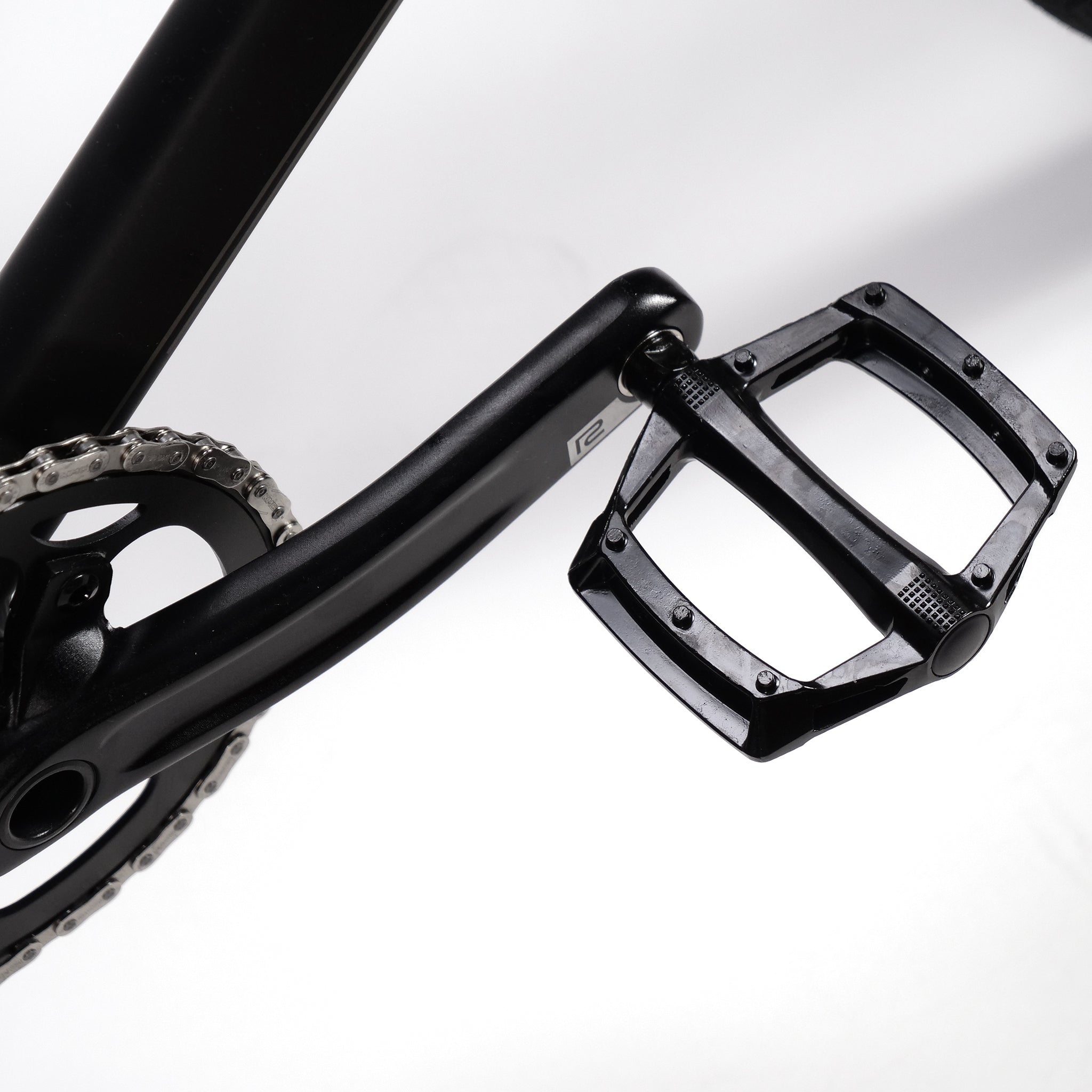

Close-up view of a black bicycle pedal, crank arm, and chainring against a white background, showcasing the precision and quality evident in the Radio Raceline Quartz Pro L Bike 2025.

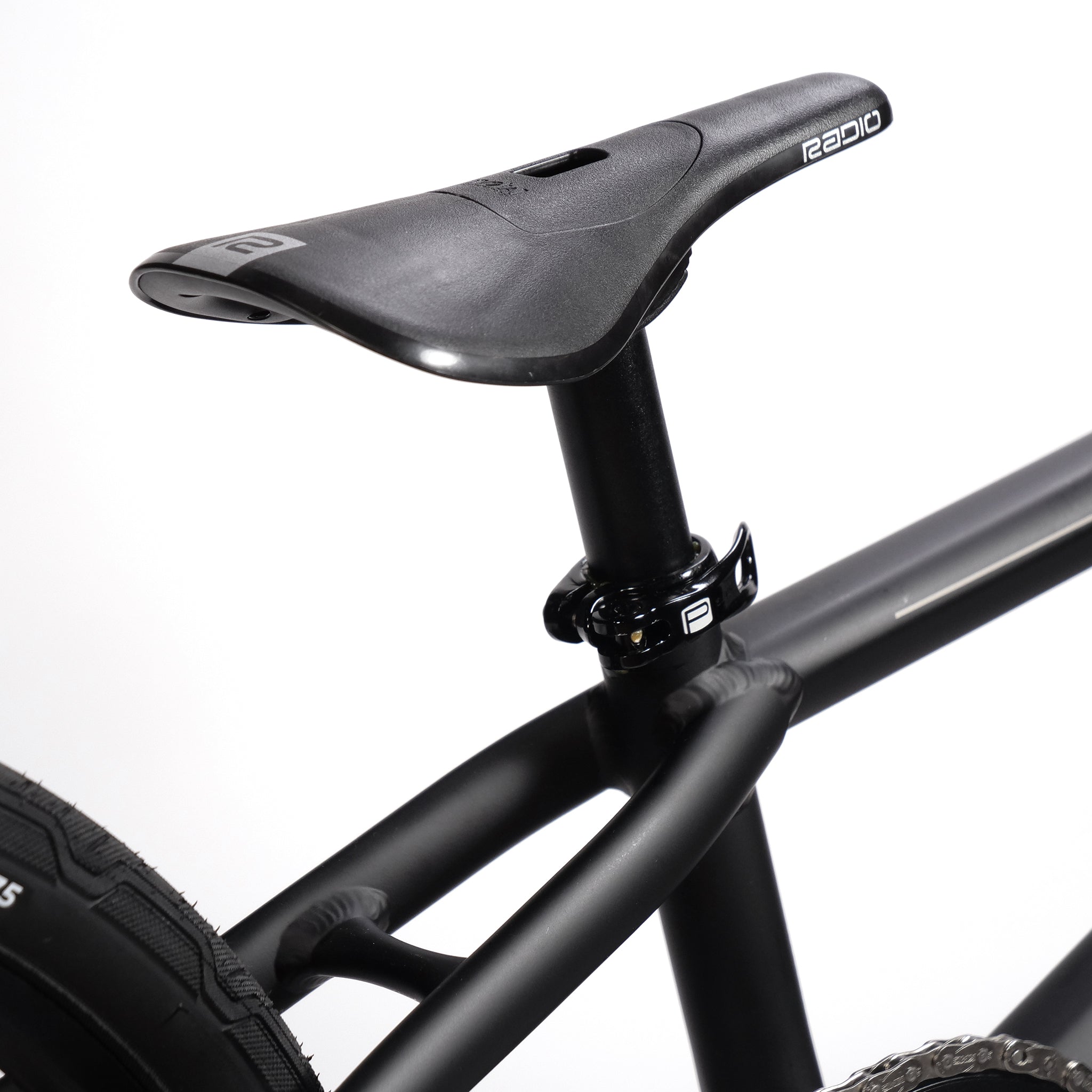

Close-up of a black bicycle seat and frame, highlighting the seat post and top tube on the lightweight hydro-formed frame of the Radio Raceline Quartz Pro L Bike 2025.

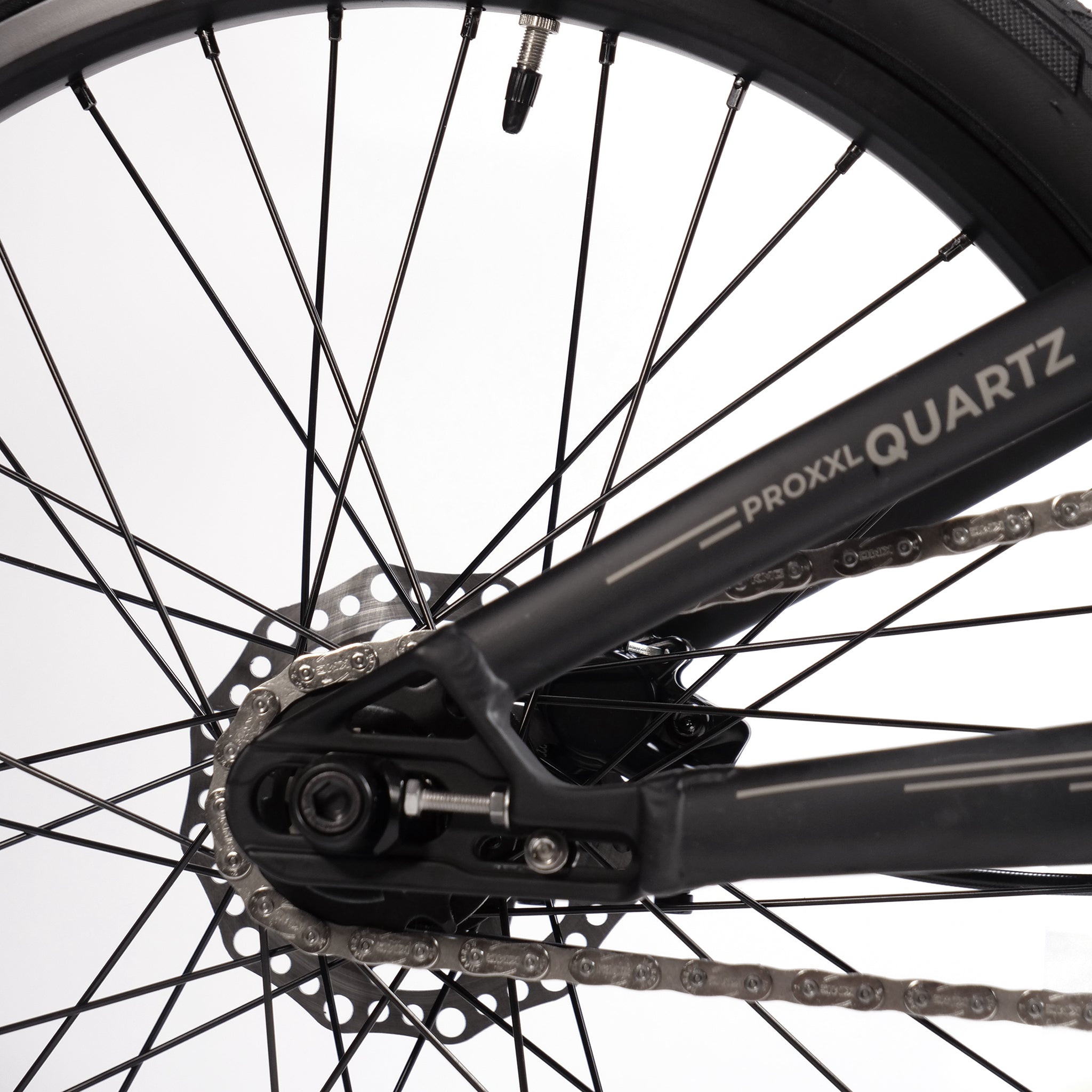

Close-up of the rear wheel of the Radio Raceline Quartz Pro L Bike 2025, showcasing the spokes, chain, and part of its lightweight hydro-formed frame with "PROXXL QUARTZ" branding. The background is white.

Description

It was only a matter of time before Radio Raceline started to produce complete race bikes to shake up the traditional race bike market, The Radio Raceline Quartz Pro L is the first size offered in the 3 bike Quartz range. With a (near) Pro XL top tube length at 20.9 inches, this lightweight hydro-formed frame is spec'd with some very impressive parts like the Radio Solar carbon fork and hydraulic disc brakes.

The Radio Quartz has class leading frame geometry design, and materials utilised in its construction are at the top end of any complete race bike available on the market today . Add to that that Radio have nailed the colourway and graphics and we'll be lucky if any are left by the time you finish reading this description!

The vital stats are listed below, but make sure you check the specification table to drill down into what makes this bike unique in the sub $3000 race market. We've been building custom race bikes for a number of years now at LUXBMX, and we can hand on heart say, you wouldn't get anything near the level that this bike straight out of the box. Bolt on your clip pedals and tear out the fastest hill times you've ever done. The Radio Quartz is that good!

Features
  • Radio Solar carbon fork. A full carbon fork with a 1-1/8" to 1.5" tapered steerer and 32mm offset, one of the standout parts on this build.
  • Hydraulic disc brake, 140mm rotor. A Radio Raceline two finger lever runs the rear hydraulic disc, straight out of the box.
  • Hydroformed 6061-T6 alloy frame. Tapered head tube, forged dropouts, internal chain tensioners, the new sliding dropout and internal cable routing.
  • Pro L, 20.9 inch top tube. The first size in the three bike Quartz range, near Pro XL length, with an 11.6" bottom bracket height and 43x16 gearing.
  • Tubeless ready Argon Pro rims. Sleeved 36H alloy rims on fully sealed Turbine hubs with stainless spokes, running 20x1.75" tyres.

Specifications
  • Size: 20" wheels, Pro L
  • Frame: Radio Raceline 'Quartz', lightweight hydroformed 6061-T6 alloy, tapered head tube, forged dropouts, internal chain tensioners, sliding dropout, internal cable routing
  • Top tube: 20.9"
  • Bottom bracket height: 11.6"
  • Fork: Radio Raceline 'Solar' carbon fork, 1-1/8" to 1.5" tapered steerer, 32mm offset
  • Headset: Radio Raceline 'Pro' integrated headset, sealed, threadless, 1-1/8" to 1.5"
  • Stem: Radio Raceline 'Neon Pro' toploader, 54mm extension, CNC machined alloy
  • Bars: Radio Raceline 'Neon Pro' hydroformed bar, multiple butted and heat treated crmo
  • Grips: Radio Raceline 'Xenon' grips, diamond knurling, clamp on, 139mm
  • Brakes: Radio Raceline hydraulic disc, 140mm rotor, rear, 2 finger lever
  • Cranks: Radio Raceline 'Xenon Pro' 2pc crank, cold forged and CNC alloy, 175mm, 24mm spindle
  • Bottom bracket: Radio Raceline 'BSA24', external bearing cups, CNC machined, sealed
  • Chainring: Radio Raceline 'Xenon Pro' sprocket, 43T, alloy, alloy bolts
  • Chain: KMC 'Z1eHX', 1/2" x 3/32"
  • Pedals: Radio Raceline 'Xenon Slim' pedal, alloy
  • Front hub: Radio Raceline 'Turbine' front hub, CNC alloy, fully sealed, 3/8" female crmo axle
  • Rear hub: Radio Raceline 'Turbine' rear hub, CNC alloy, fully sealed, disc brake cassette, 3/8" female crmo axle
  • Rear cog: 16T
  • Spokes: Stainless steel
  • Rims: Radio Raceline 'Argon Pro' rim, sleeved, 36H, tubeless ready, alloy
  • Tyres: 20x1.75"
  • Gearing: 43x16, 52.41" gear ratio

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Raceline Quartz Pro L Bike 2025

Brand: Radio SKU:

$2,599.99 AUD

Or 4 payments of $649.99 AUD with

Recommended Rider Height:

150-175cm

Colour - Matte Black

Top Tube Length - 20.9

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
$2,599.99 AUD

Price match request

Radio Raceline Quartz Pro L Bike 2025 - Matte Black / 20.9

Metro bike shipping from $59.99

Regional and remote rates may differ

Free in-store pickup - Brisbane

Need Help ?

Chat with the LUXBMX crew!

Email Us Call Us SMS Us
  • 100% Australian owned
  • Australia's largest BMX range
  • Hassle-free returns
  • Fast trackable shipping

WE ALSO RECOMMEND:

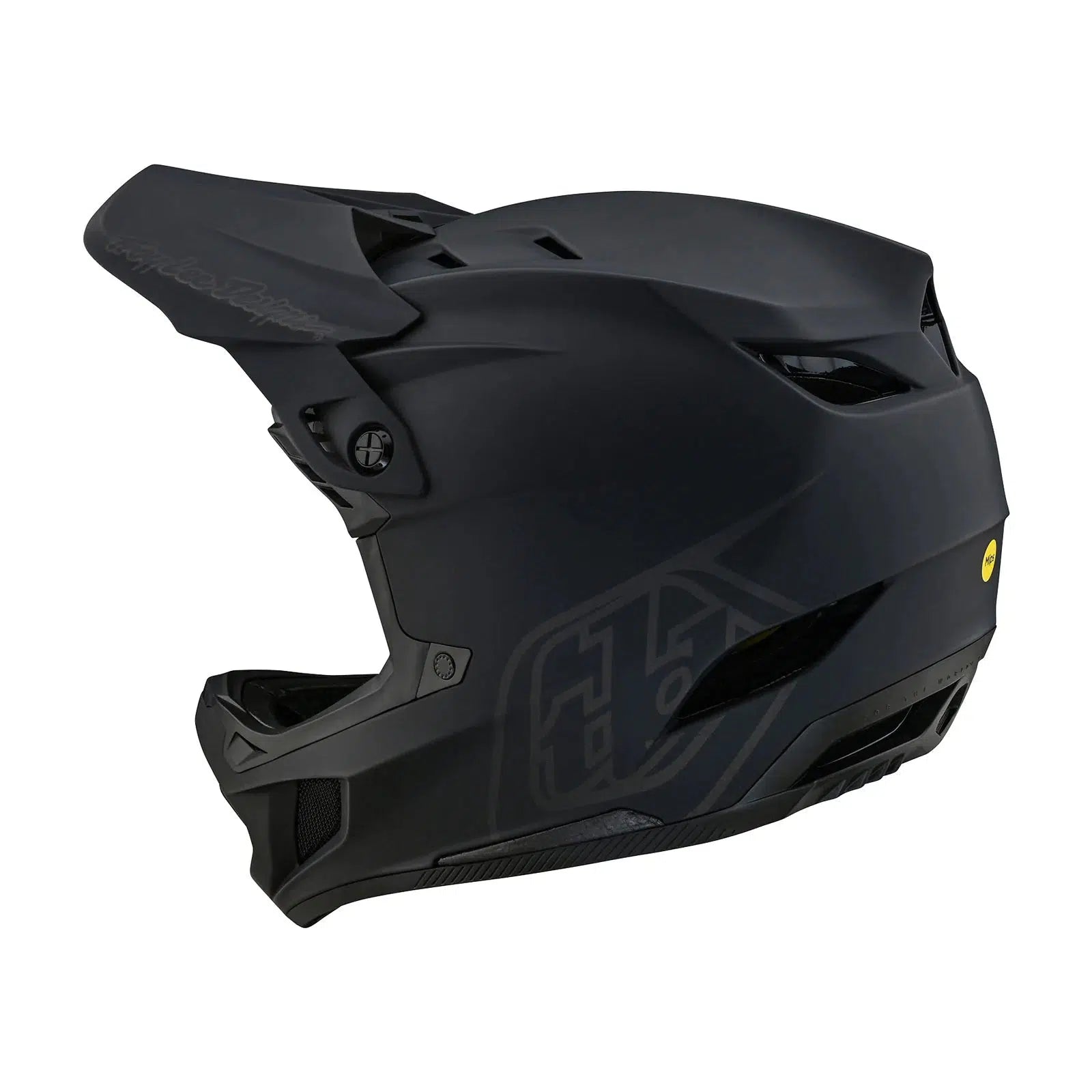

The TLD D4 AS Polyacrylite Helmet W/MIPS Stealth Black is a matte black full-face helmet with a visor, white Troy Lee Designs branding, and geometric graphics on the side and chin. A TLD D4 AS Polyacrylite Helmet W/MIPS Stealth Black by Troy Lee Designs on a white background.
