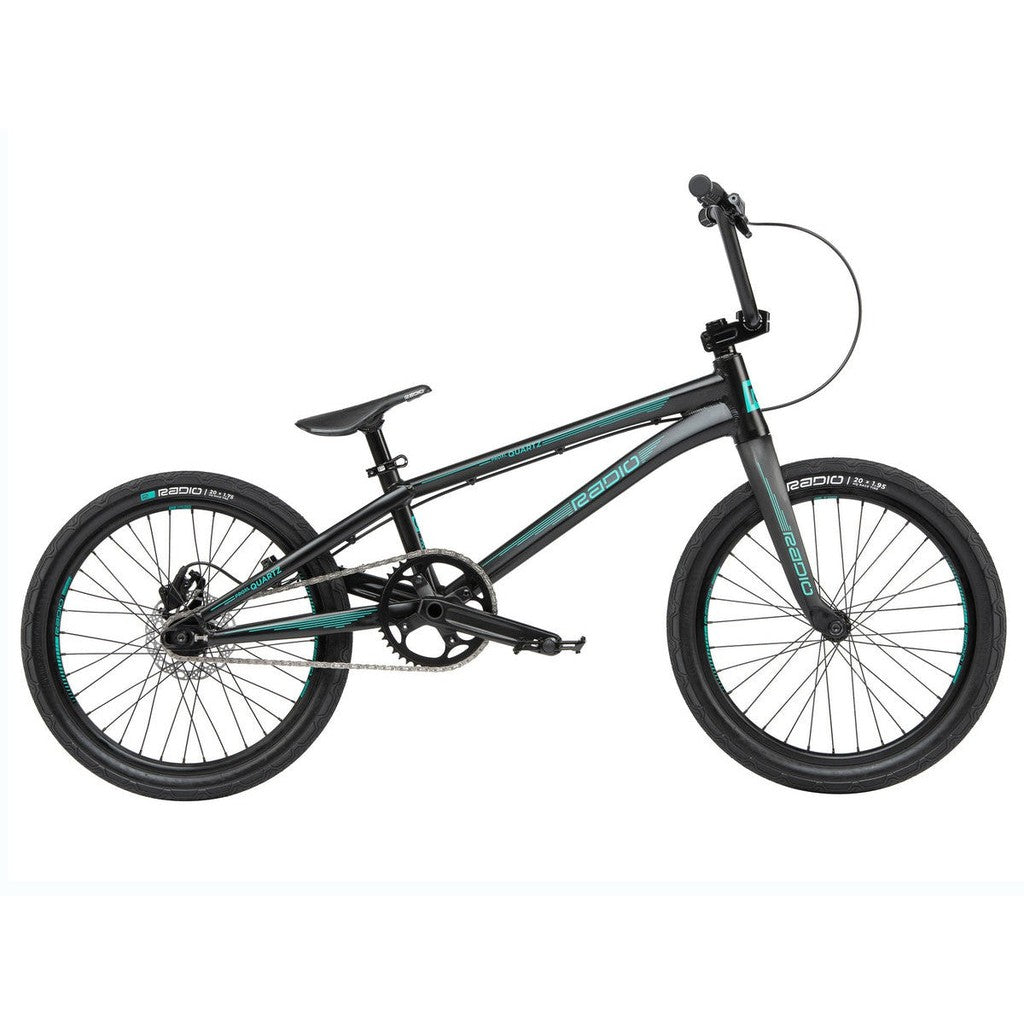

Radio Quartz Pro XL Bike / Matt Black / 21.25TT

Description

It was only a matter of time before Radio Raceline started to produce complete race bikes to shake up the traditional race bike market, The Radio Raceline Quartz Pro XL is the second size offered in the 3 bike Quartz range. With a Pro XL+ top tube length at 21.25 inches, this lightweight hydro-formed frame is spec'd with some very impressive parts like the Radio Solar carbon fork and hydraulic disc brakes. We've seen nothing for 2021 that comes even close to matching this race bike on both frame geometry design and materials utilzed. Add to that that Radio have nailed the colourway and graphics and we'll be lucky if any are left by the time you finish reading this description!

The vital stats are listed below, but make sure you click on the specification tab to drill down into what makes this bike unique in the sub $3000 race market. We've been building custom race bikes for a number of years now at LUXBMX, and we can hand on heart say, you wouldn't get anything near the level that this bike straight out of the box. Bolt on your clip pedals and tear out the fastest hill times you've ever done. The Radio Quartz is that good!

Features

Radio Raceline Solar carbon fork. Carbon legs on a 1-1/8" to 1.5" tapered steerer with 32mm offset, a big part of why this bike comes in at 9.00 kg.
Hydraulic disc brake, rear. A 120mm rotor and a two finger lever let you scrub speed with a light pull instead of a handful.
Pro XL+ 21.25" top tube. The second size in the three bike Quartz range, with a 14.85" chainstay and 11.6" bottom bracket height.
Tubeless ready wheels. Argon Pro flash welded 36H rims and foldable Oxygen tyres are both tubeless ready, laced to fully sealed Turbine hubs.
180mm Xenon Pro cranks. Cold forged alloy arms on a 24mm spindle with 44x16 gearing for a 53.63" ratio, and clip pedals bolt straight on.

Specifications

Size: 21.25" top tube
Frame: Lightweight hydro formed 6061-T6 alloy, tapered head tube, forged dropouts, internal chain tensioners
Top tube: 21.25"
Chainstay: 14.85"
Head tube angle: 74°
Seat tube angle: 71°
Bottom bracket height: 11.6"
Fork: Radio Raceline Solar carbon, 1-1/8" to 1.5" tapered steerer, 32mm offset
Headset: Radio Raceline Pro integrated, sealed, threadless, 1-1/8" to 1.5"
Stem: Radio Raceline Neon Pro top loader, 54mm reach, cnc machined alloy
Bars: 4130 crmo, seamless, 8" rise, 28.5" wide, 6.5° backsweep, 2.5° upsweep
Grips: Radio Raceline Xenon, diamond knurling, clamp on, 140mm
Brakes: Radio Raceline hydraulic disc, 120mm rotor, rear
Brake lever: Radio Raceline 2 finger, for hydraulic disc
Cranks: Radio Raceline Xenon Pro, 2pc, cold forged and cnc alloy, 180mm, 24mm spindle
Bottom bracket: Radio Raceline BSA24, external bearing cups, cnc machined, sealed
Chainring: Radio Raceline Xenon Pro, 44T, alloy
Chain: KMC Z6, 1/2" x 3/32"
Pedals: Radio Raceline Xenon Slim, alloy
Front hub: Radio Raceline Turbine, cnc alloy, fully sealed, 36H, 3/8" female crmo axle
Rear hub: Radio Raceline Turbine, cnc alloy, fully sealed, 36H, disc brake cassette, 3/8" female crmo axle
Rear cog: Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette
Rims: Radio Raceline Argon Pro, flash welded, 36H, tubeless ready, alloy, front and rear
Tyres: Radio Raceline Oxygen, foldable, tubeless ready, front 20" x 1.95", rear 20" x 1.75"
Seat: Radio Raceline Xenon pivotal, no padding
Seat post: Radio Raceline, 27.2mm, alloy
Seat clamp: Radio Raceline Helium Pro, quick-release, alloy
Gearing: 44 x 16, 53.63" ratio
Weight: 9.00 kg

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Spin the rear wheel and check the rotor runs clear of the calliper
Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Quartz Pro XL Bike

Name: Radio Quartz Pro XL Bike
Brand: Radio
SKU: RABK184-21-BLK
Price: 2799.99 AUD
Availability: OutOfStock

Brand: Radio SKU: Click to copy the SKU and show the pick location

$2,799.99 AUD

Or 4 payments of $699.99 AUD with

Recommended Rider Height:

165-180cm

Colour - Matt Black

Top Tube Length - 21.25

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
