Description

Radio haven't been sitting back and watching the competition catch up, they've kept their foot to the floor and just released the disc dedicated Quartz frame. Radio's Quartz range has some of the sharpest geometry in this competitive market and they are definitely one of the major players in the BMX race aftermarket frame game.

With this update, they've ditched the V-brake mounts altogether a trend that the leading brands have adopted as the industry standard moves to disc brakes. Radio have chosen to go with a flat mount system with this frame, a system we really like here at LUXBMX for it's neat and compact design. It also tucks the calliper out of harms way from errant front wheels and pedals, helping ensure your chances of damage are minimised.

Features

  • Flat mount disc brake only. The V-brake mounts are gone: a flat mount 120mm calliper sits neat and compact, tucked away from errant front wheels and pedals.
  • Internal cable routing. The brake line runs inside the frame, part of the disc specific build of this Quartz.
  • Sliding dropout disc system. Forged and CNC machined sliding dropouts with an integrated chain tensioner, for 10 and 15mm axles only.
  • 200g lighter than the Helium. Hydroformed 6061 alloy with Paradigm tubing makes this a super lightweight frame, so there is less to haul out of the gate.
  • Pro L race geometry. A 20.9" top tube, 13.9" minimum chain stay and 74° head angle on a frame with two world championship wins behind it.

Specifications

  • Sizes: Pro L
  • Top tube: 20.9" (530mm) actual
  • Chainstay: 13.9" (353mm) minimum
  • Head tube angle: 74°
  • Seat tube angle: 71°
  • Bottom bracket height: 11.6"
  • Bottom bracket: Euro, threaded, BSA 68mm
  • Material: Hydroformed 6061 alloy
  • Tubing: Paradigm
  • Dropouts: Sliding dropout disc system for 10 and 15mm axles, integrated chain tensioner
  • Brake mounts: Flat mount 120mm disc, not compatible with V-brakes
  • Cable routing: Internal
  • Head tube: Full integrated, tapered 1-1/8" to 1.5" (125mm)
  • Seat tube: 231mm, 27.2mm seat post
  • Axle size: 10 and 15mm only
  • Wheel size: 20 x 1.75"
  • Weight: 1.655g
  • Note: Rider area 532.6mm

Radio Raceline Quartz Disc Pro L Frame

Brand: Radio Raceline SKU: Click to copy the SKU and show the pick location

Sale price$1,199.99 AUD

Or 4 payments of $299.99 AUD with

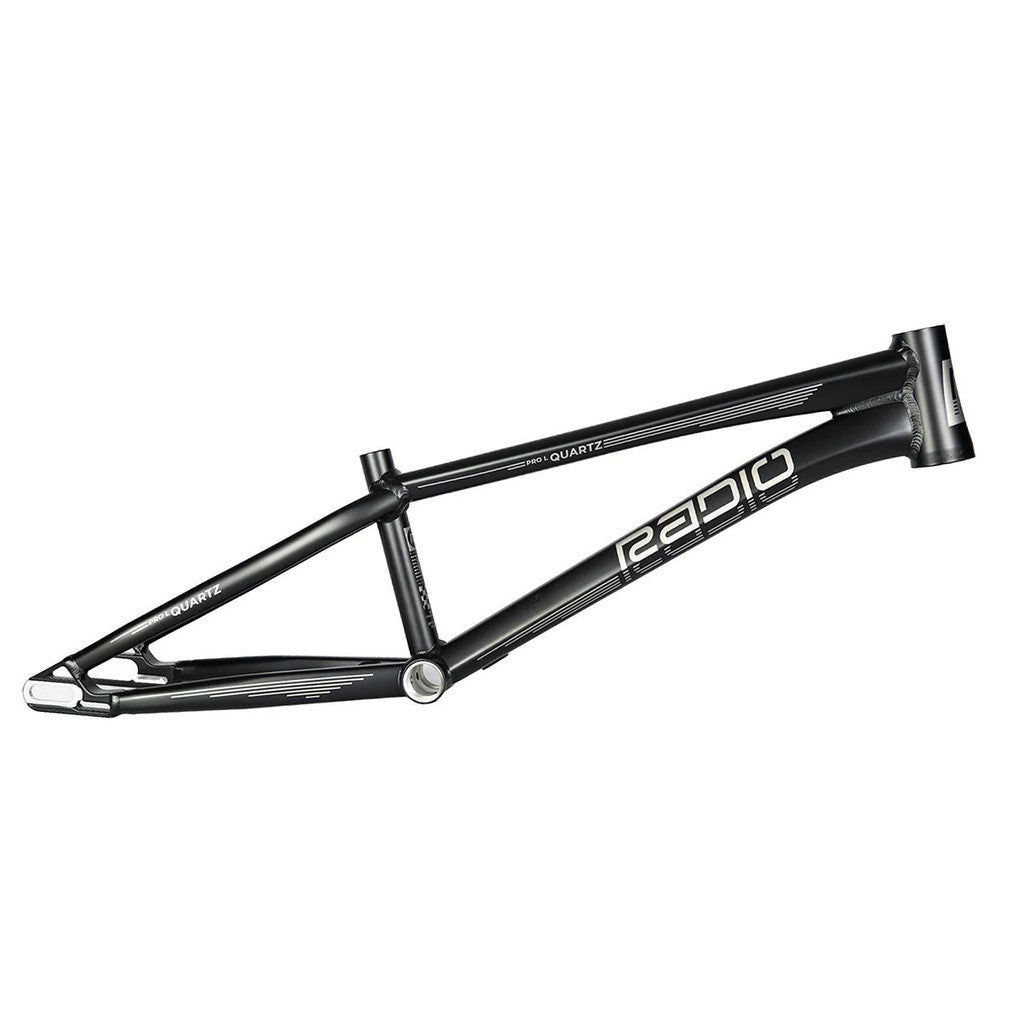

Colour - Matte Black

Top Tube Length - 20.9


$1,199.99 AUD

Price match request

Radio Raceline Quartz Disc Pro L Frame - Matte Black / 20.9

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

20.9
Matte Black

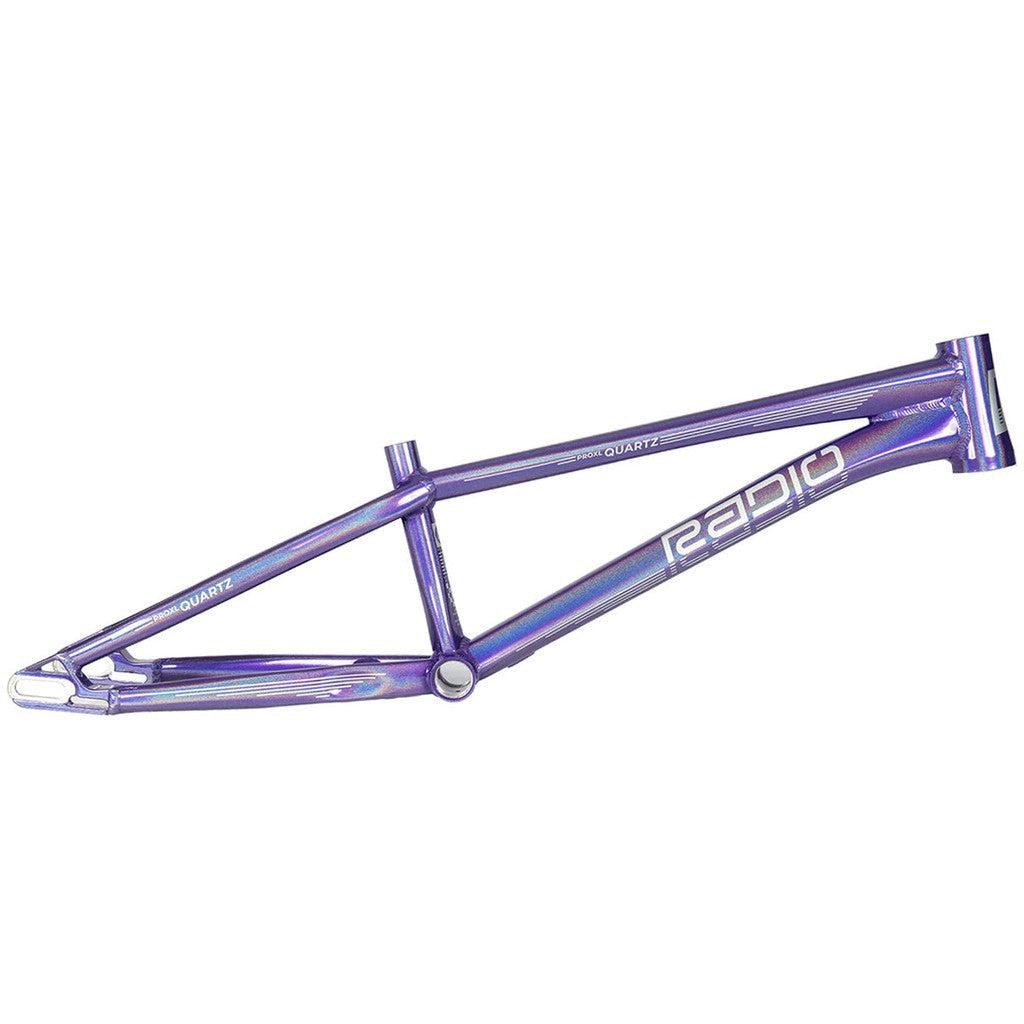

Spectral Silver

In stock at LUXBMX With supplier Preorder Sold out
