RADIO

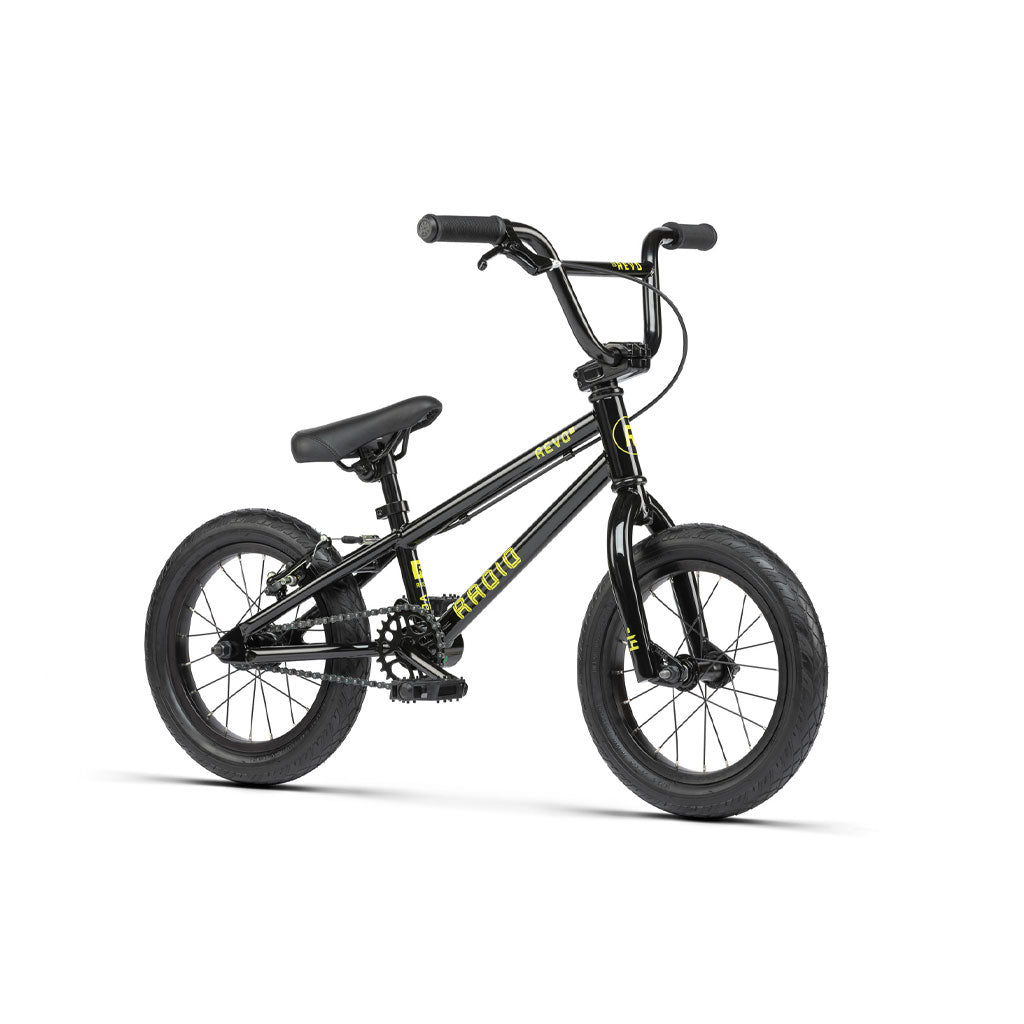

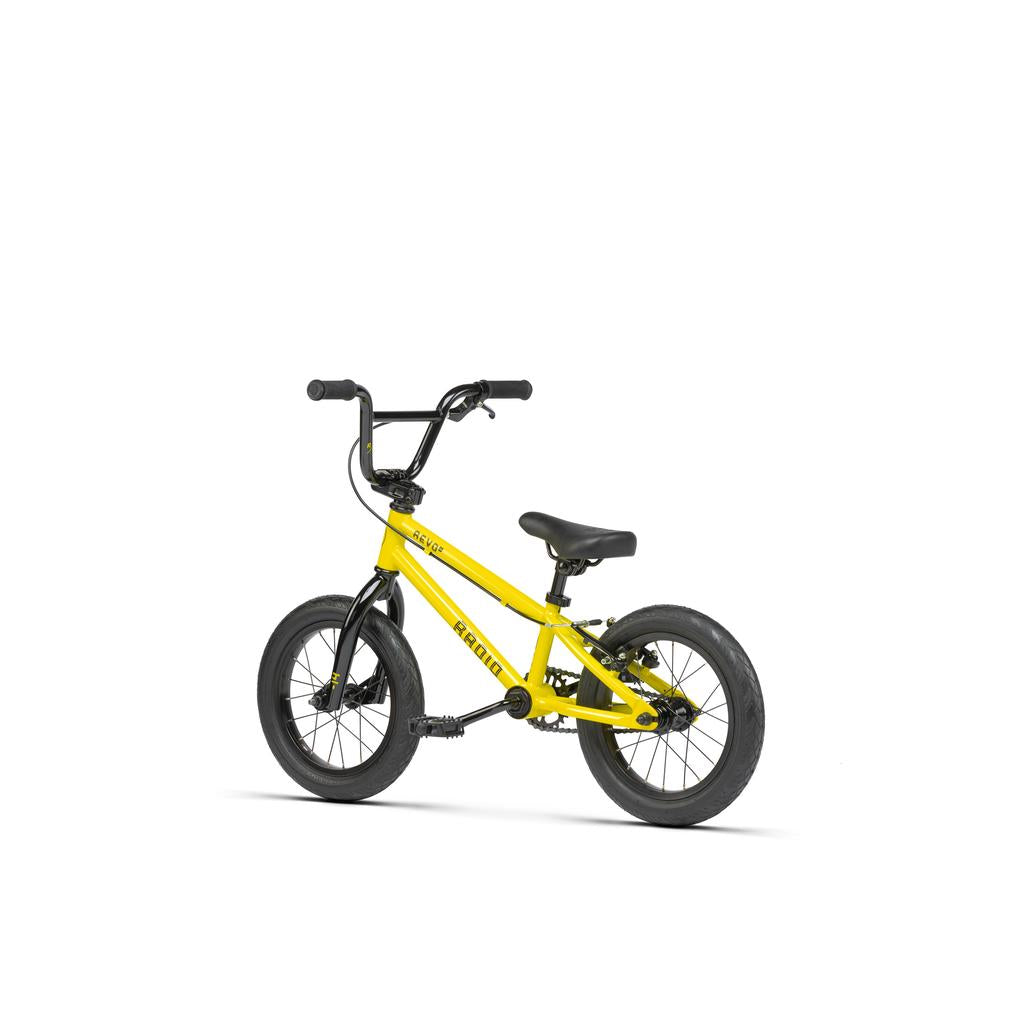

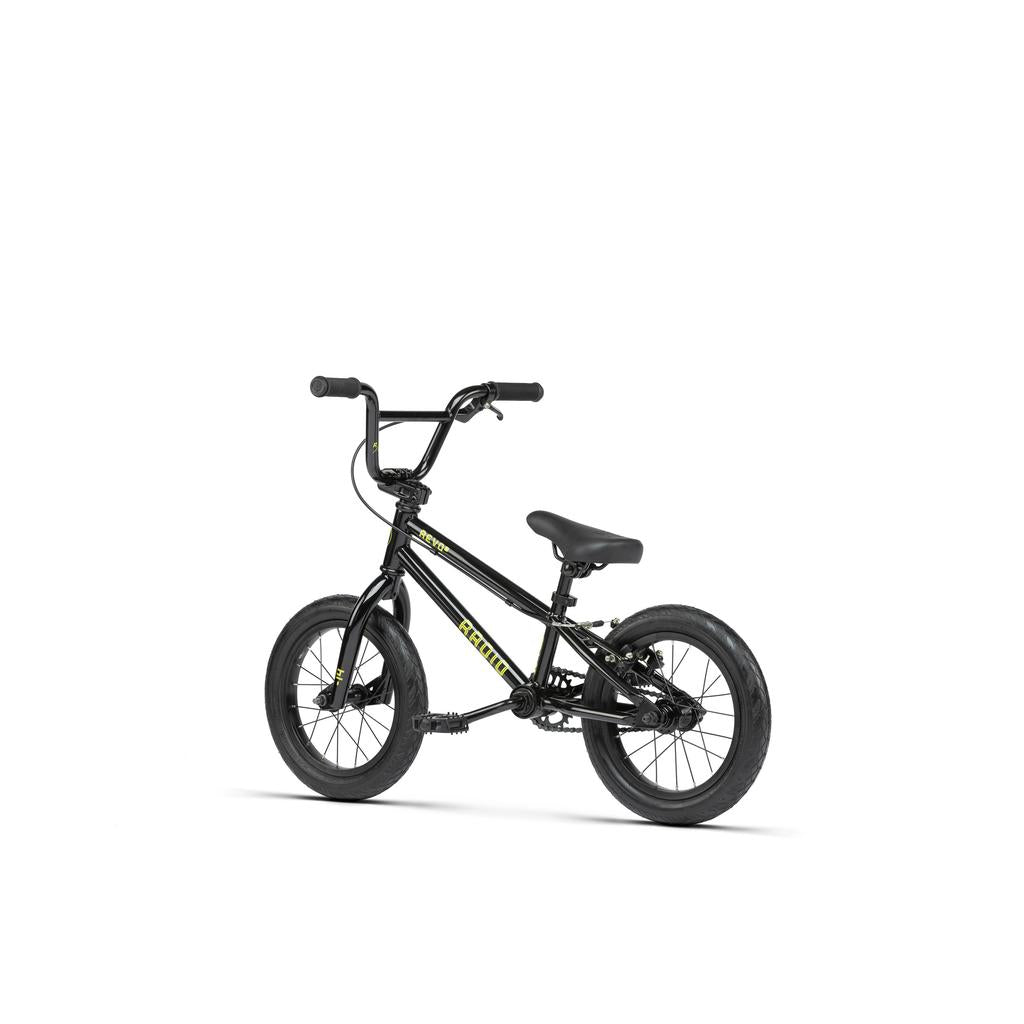

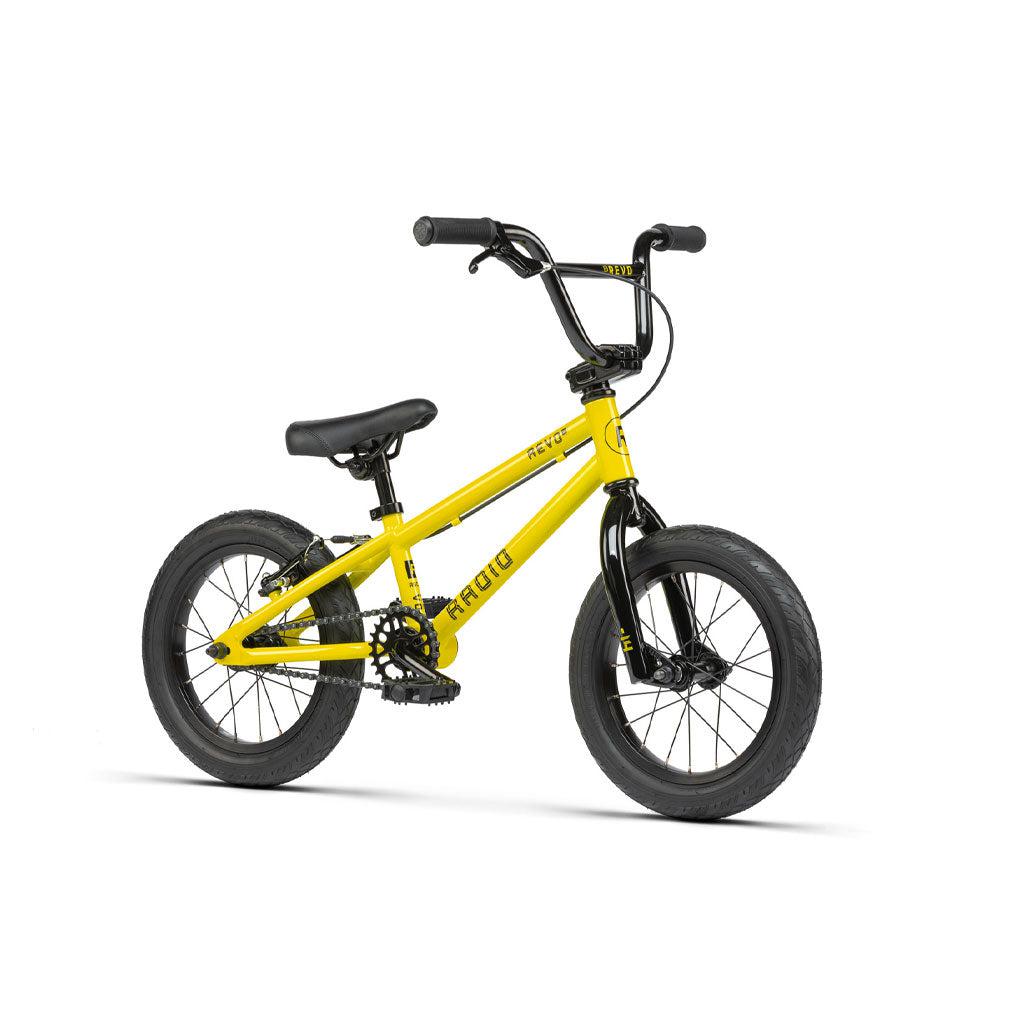

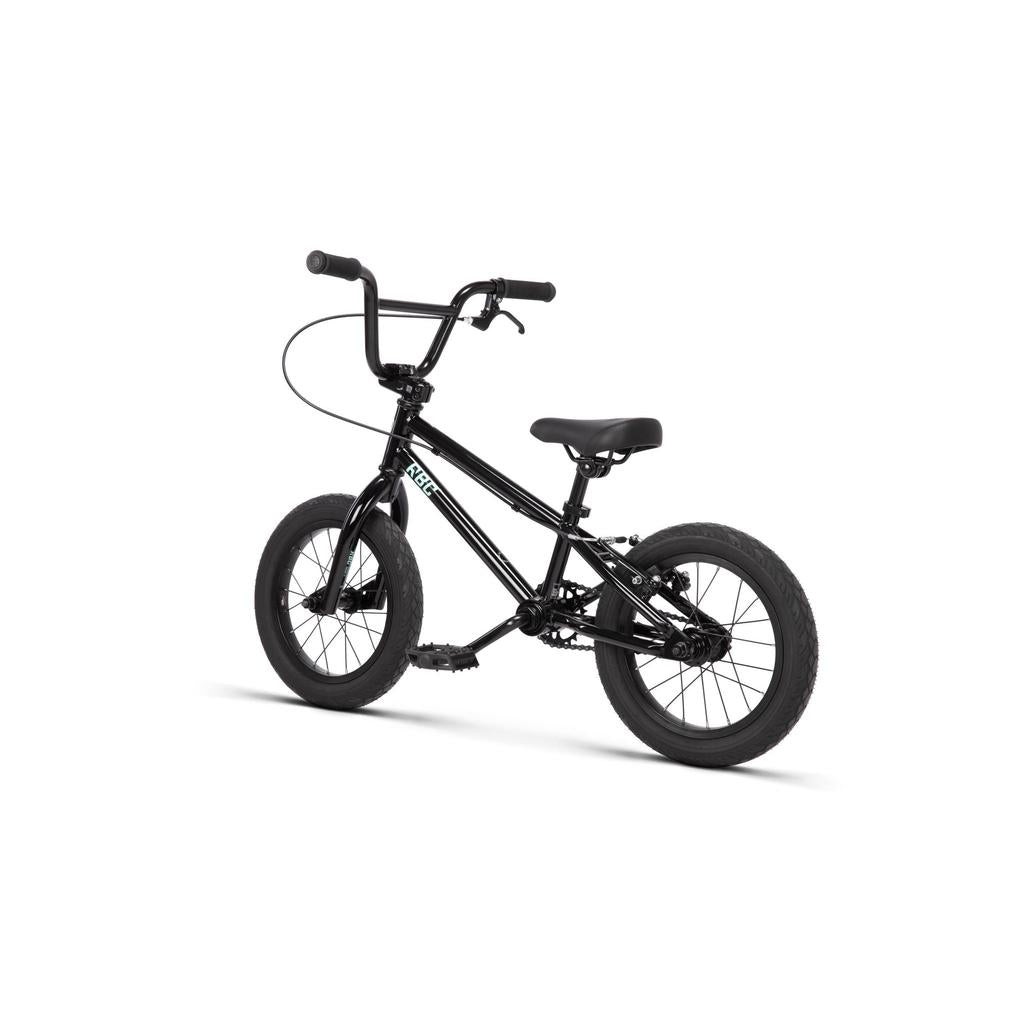

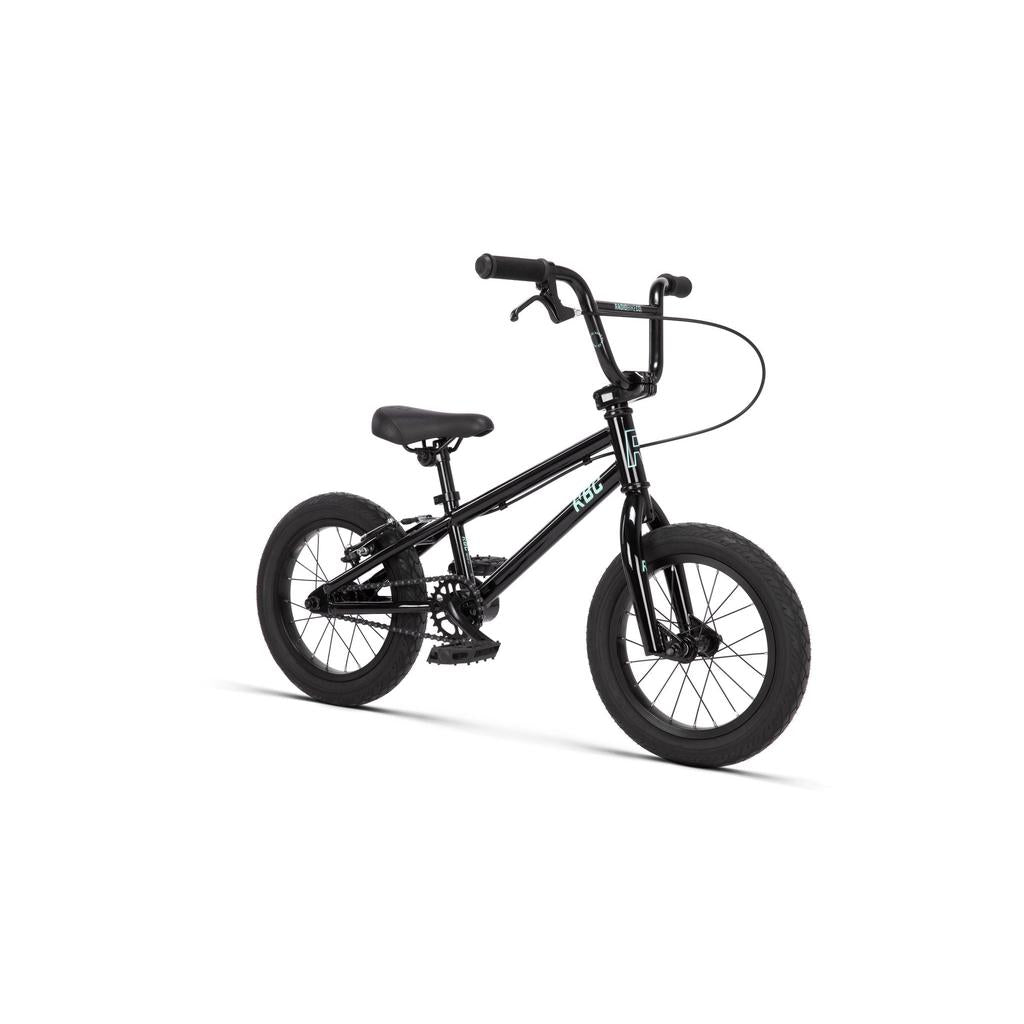

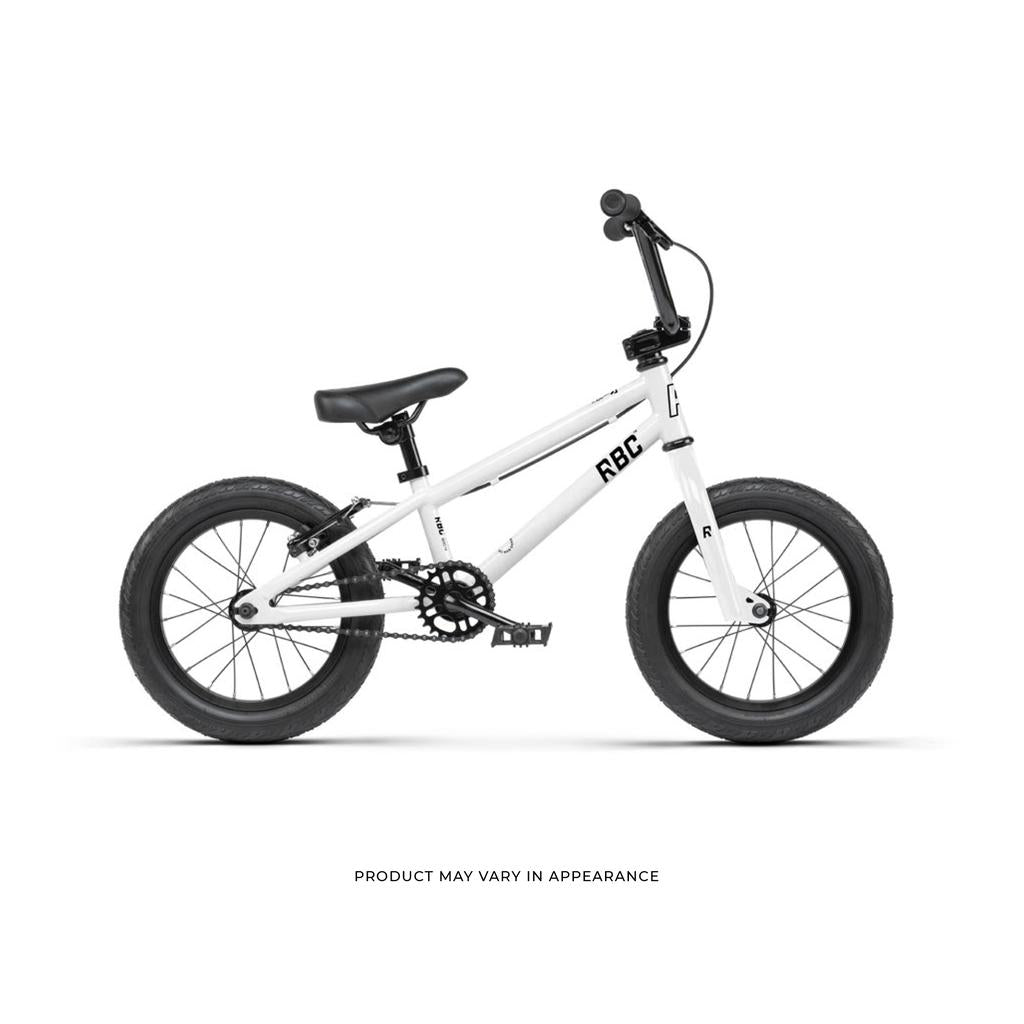

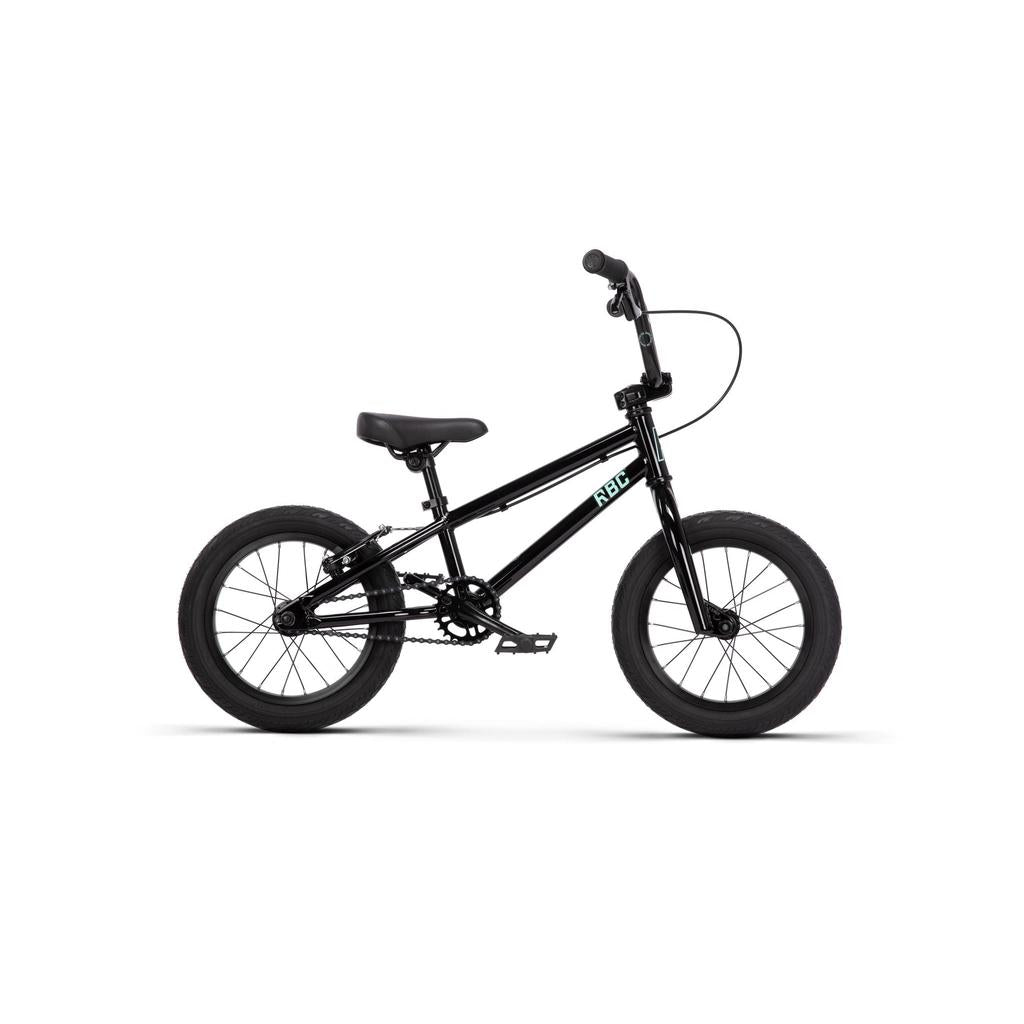

14" Revo Bike
The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. Radio took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the Revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
The Revo 14″ could be that “first bike”, and for that very reason, Radio were dedicated to ensuring it was as perfect as it possibly could be. The railed seat and V-brake make this bike safe and comfortable for the first-time user, but the small details like slimmed down tubing allow the little shredder to take their wheels to the skatepark and start pumping.
Specifications
Frame - Radio 'Revo 14' frame, full 1020 hi-ten

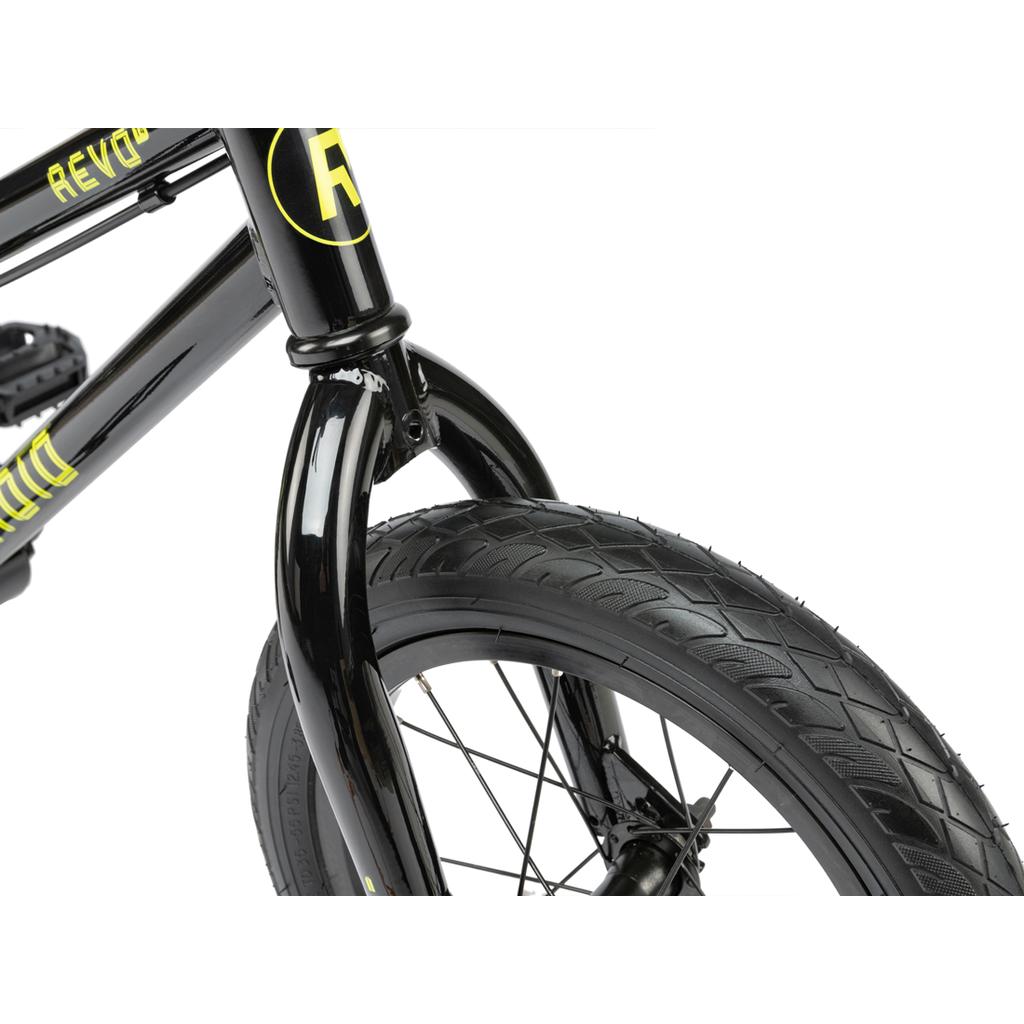

Fork - Radio 'Rookie 14' 1020 hi-ten fork, tapered legs

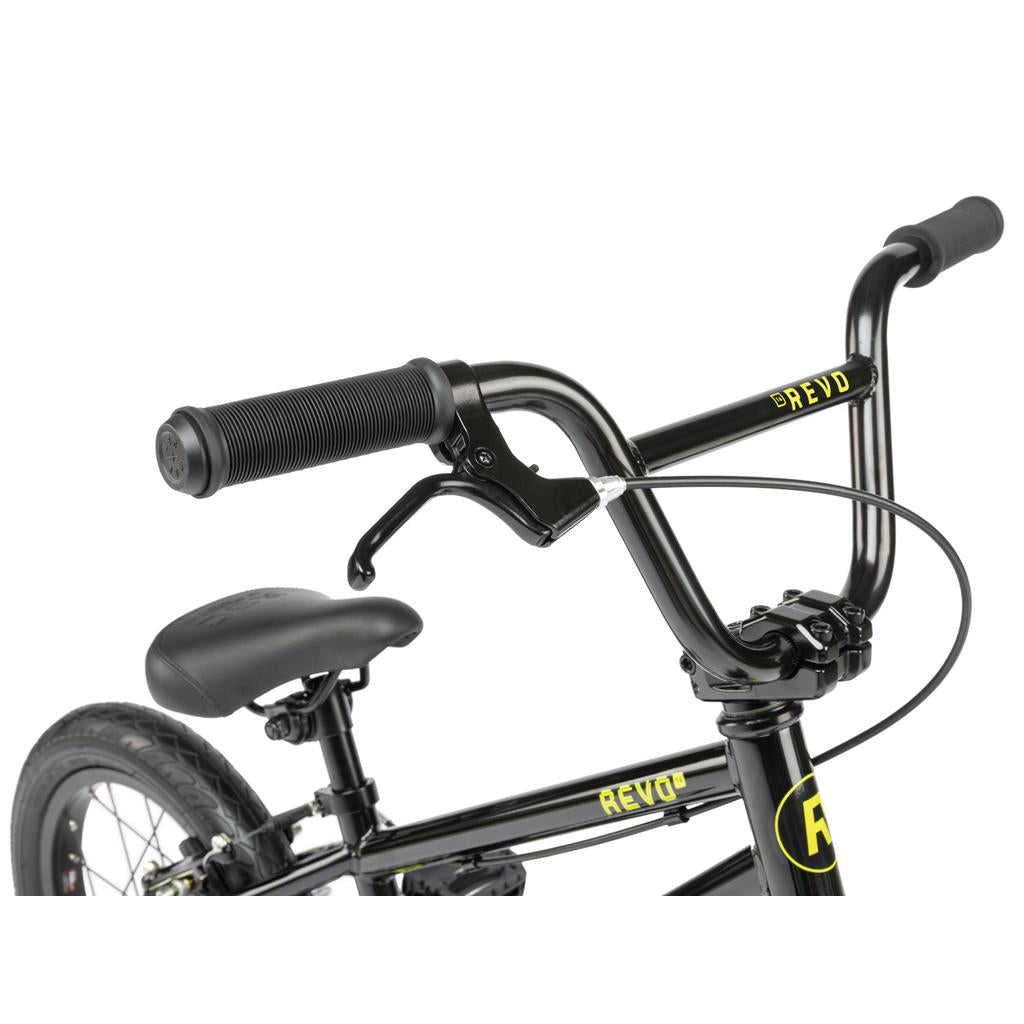

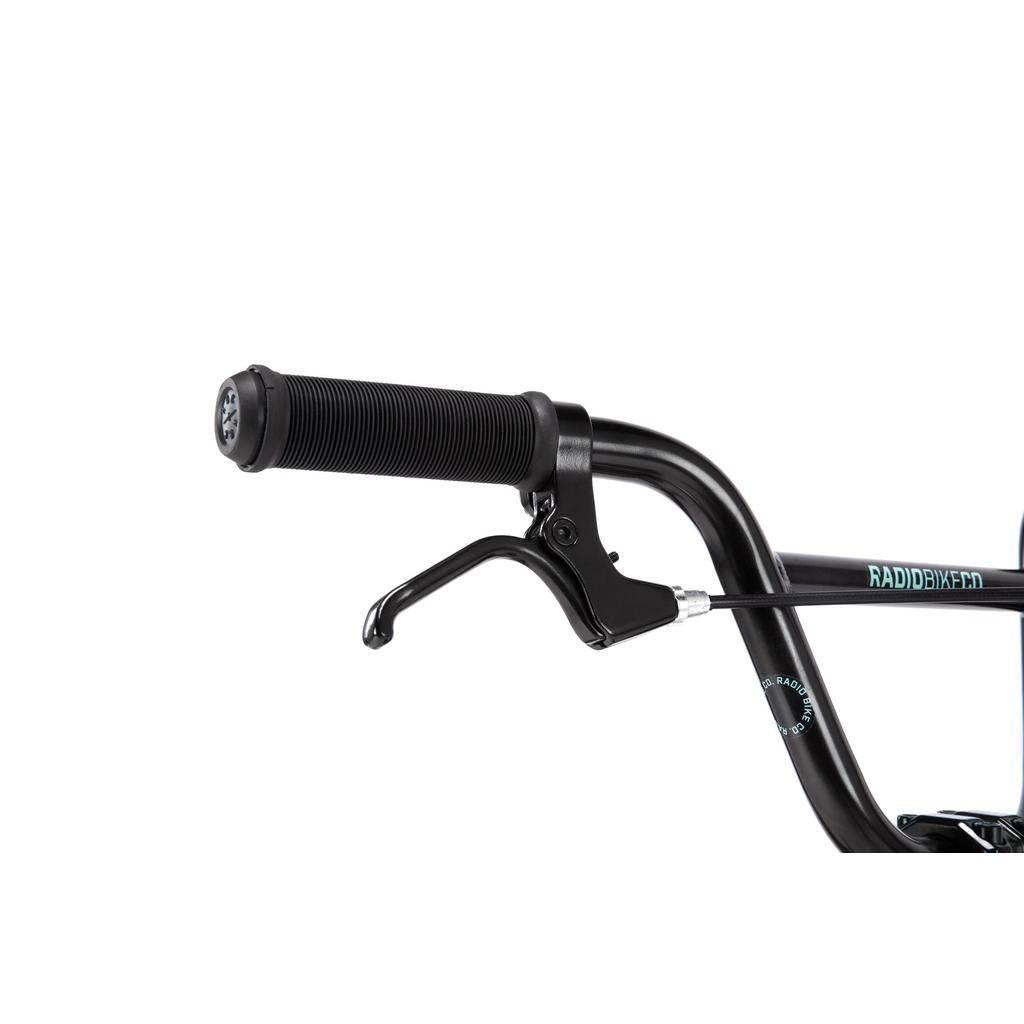

Handlebar - Radio 'Revo 14' bar, hi-ten
Grips - Radio 'Junior' grips, flangeless, 110mm

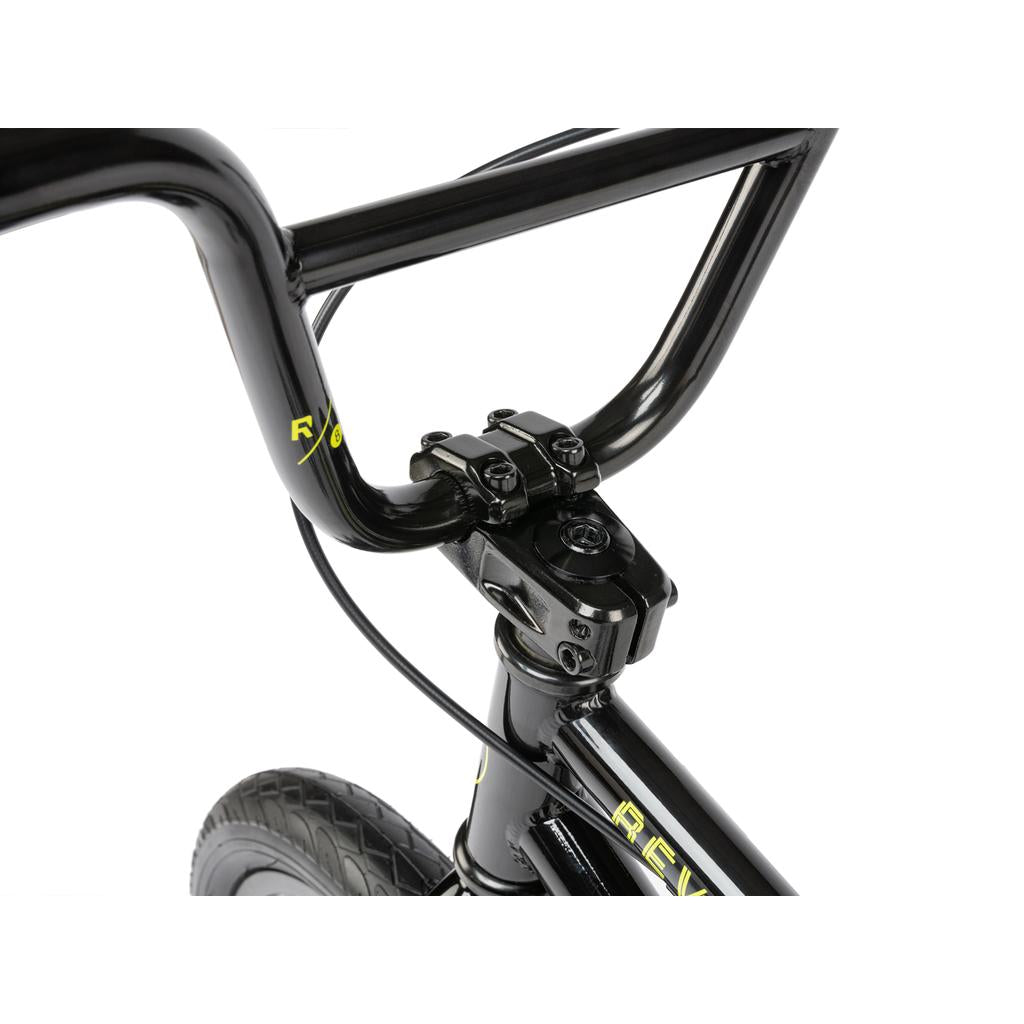

Stem - Salt 'Junior' topload stem, 40mm reach
Headset - FSA a-head-set loose ball

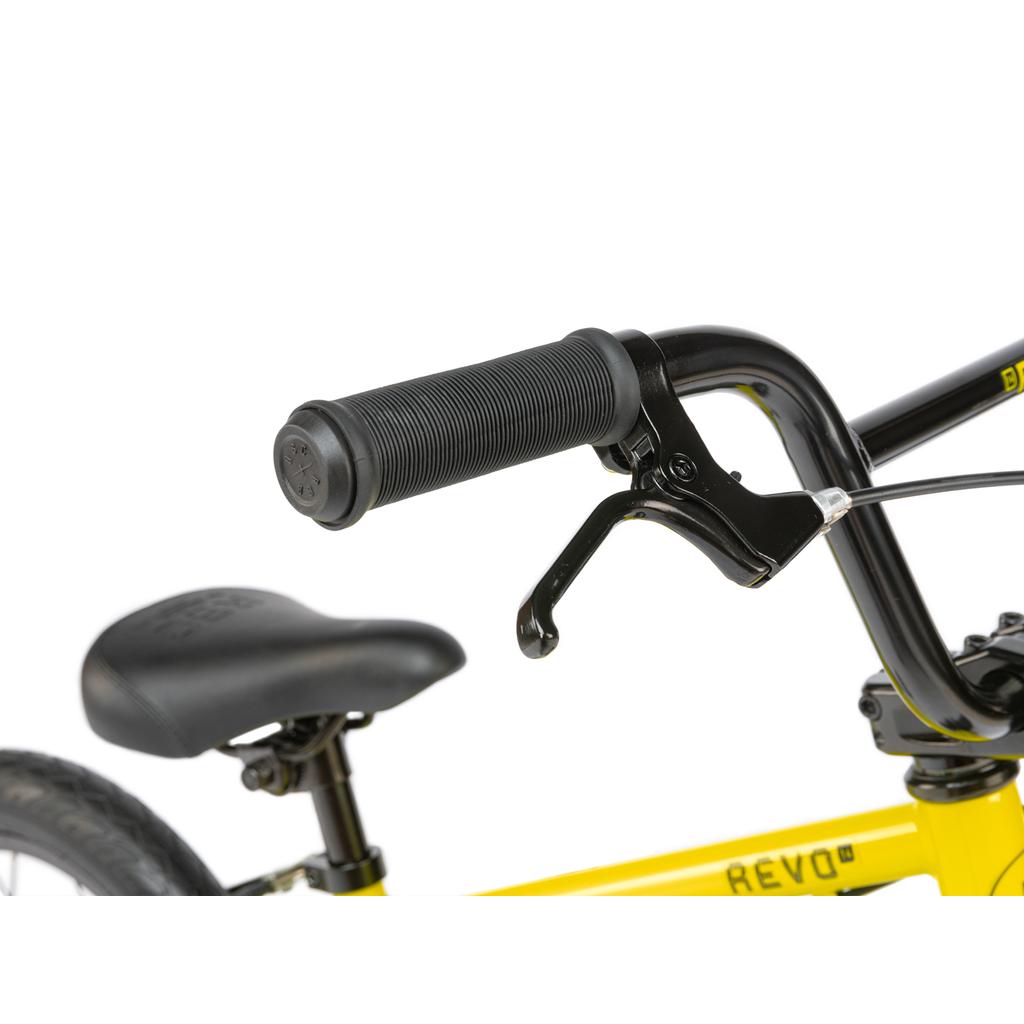

Brake lever - Radio 'Junior' alloy brake lever

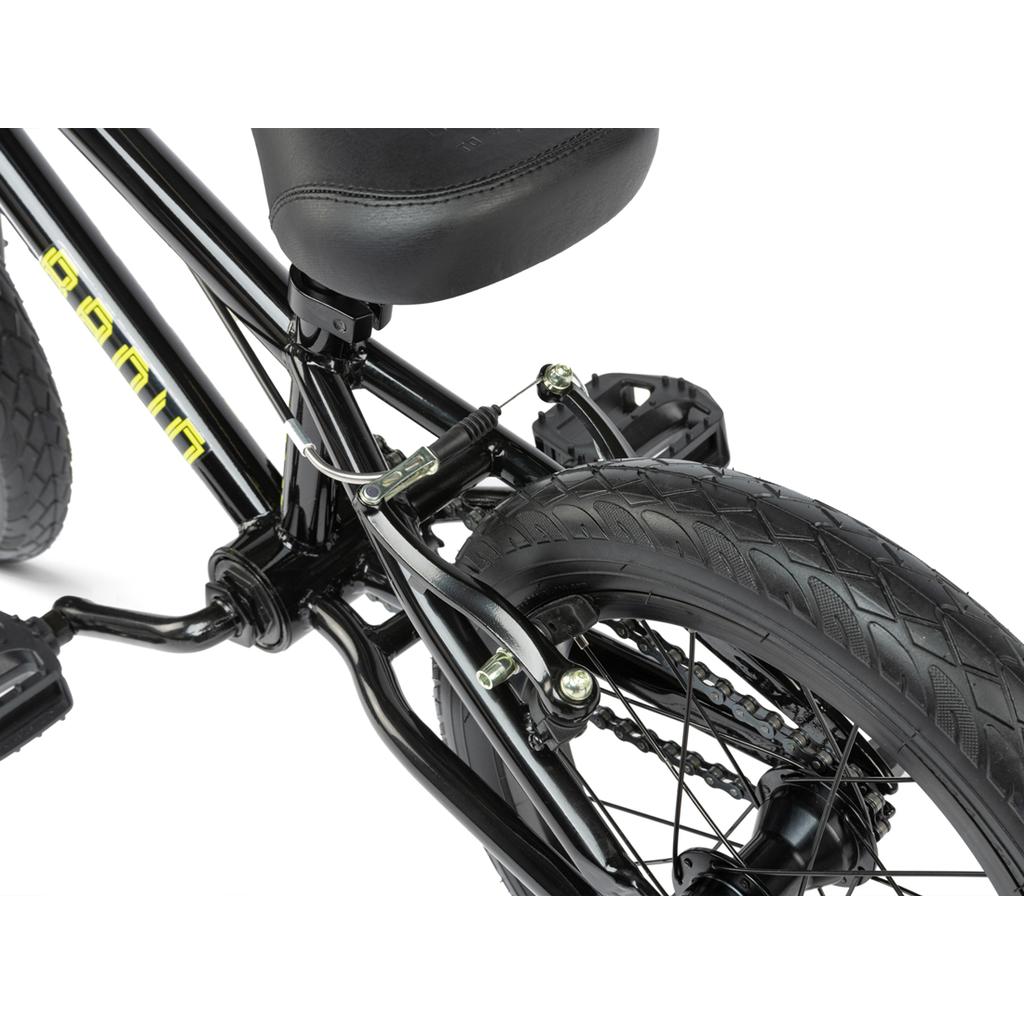

Brake - Radio 'AM' caliper brake, alloy, front / Radio 'AM-V' V-brake, alloy, rear

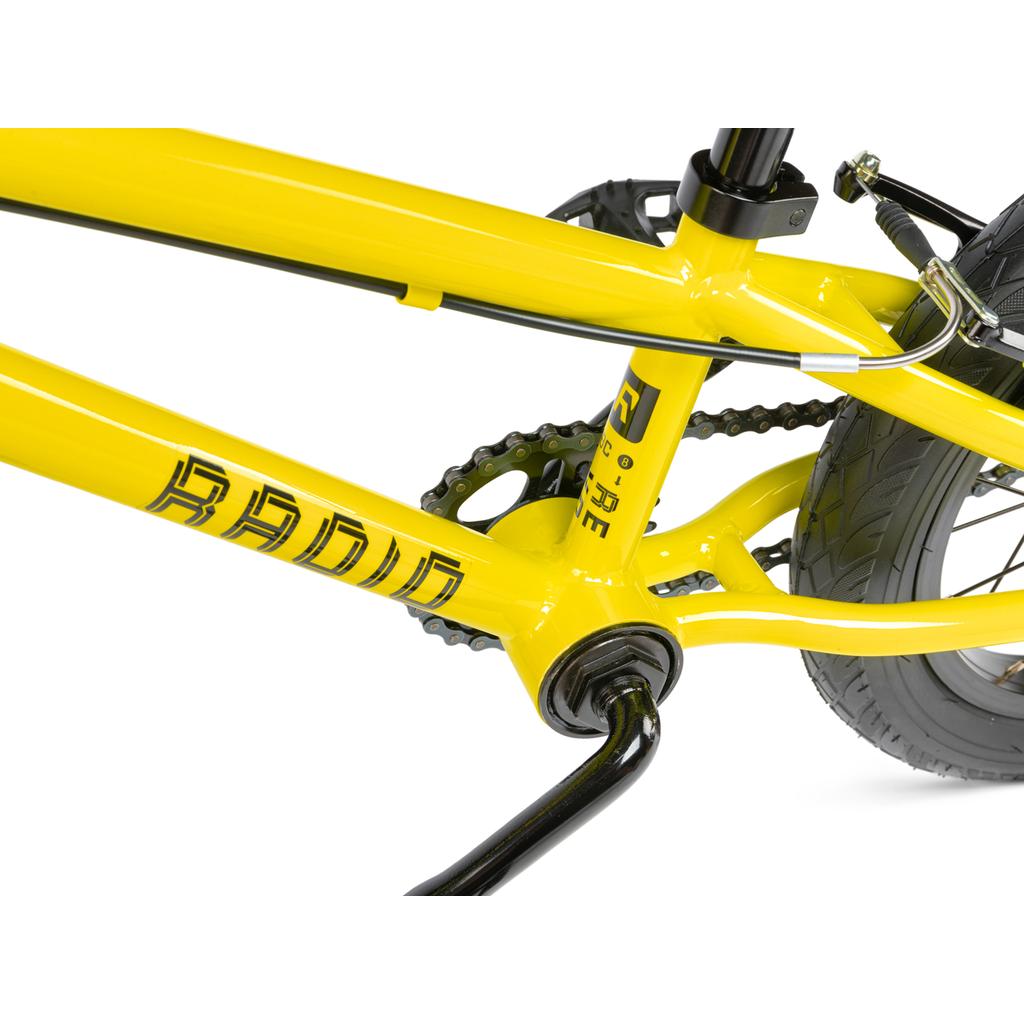

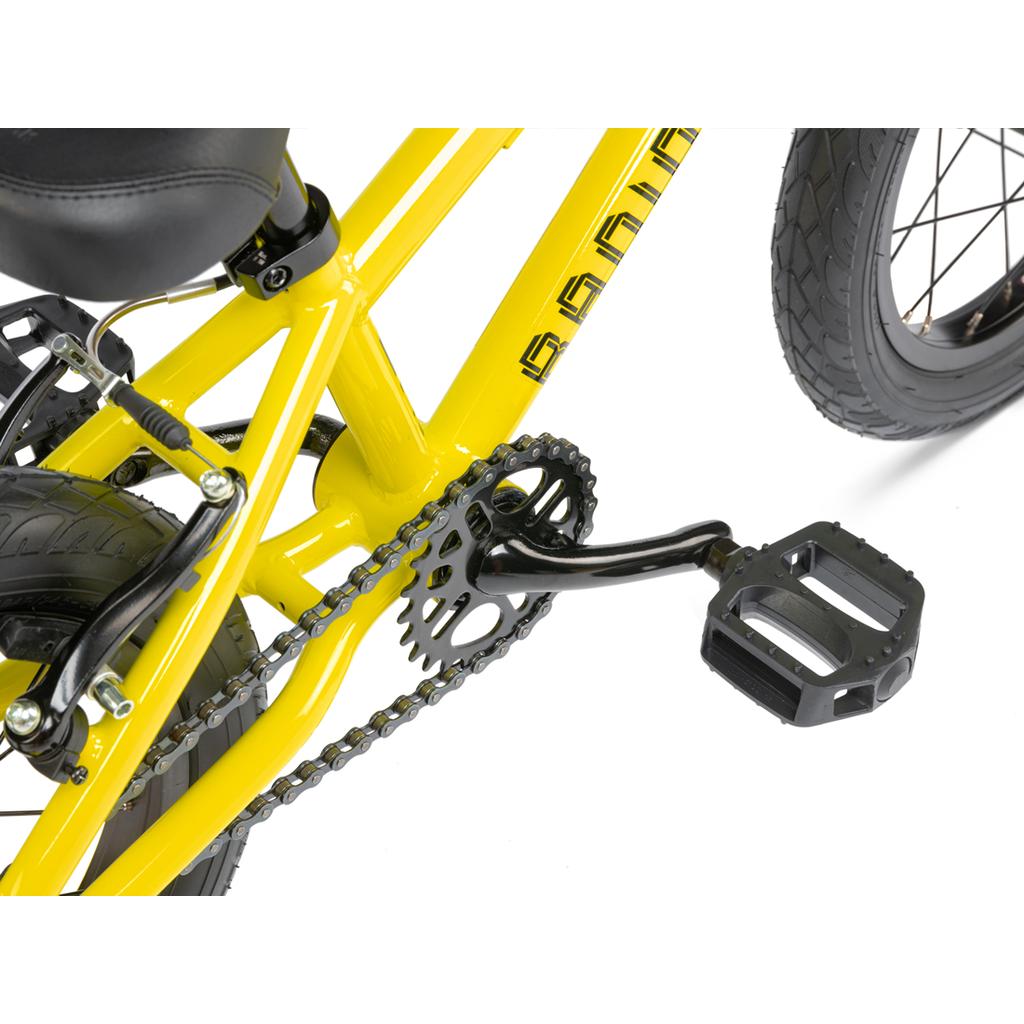

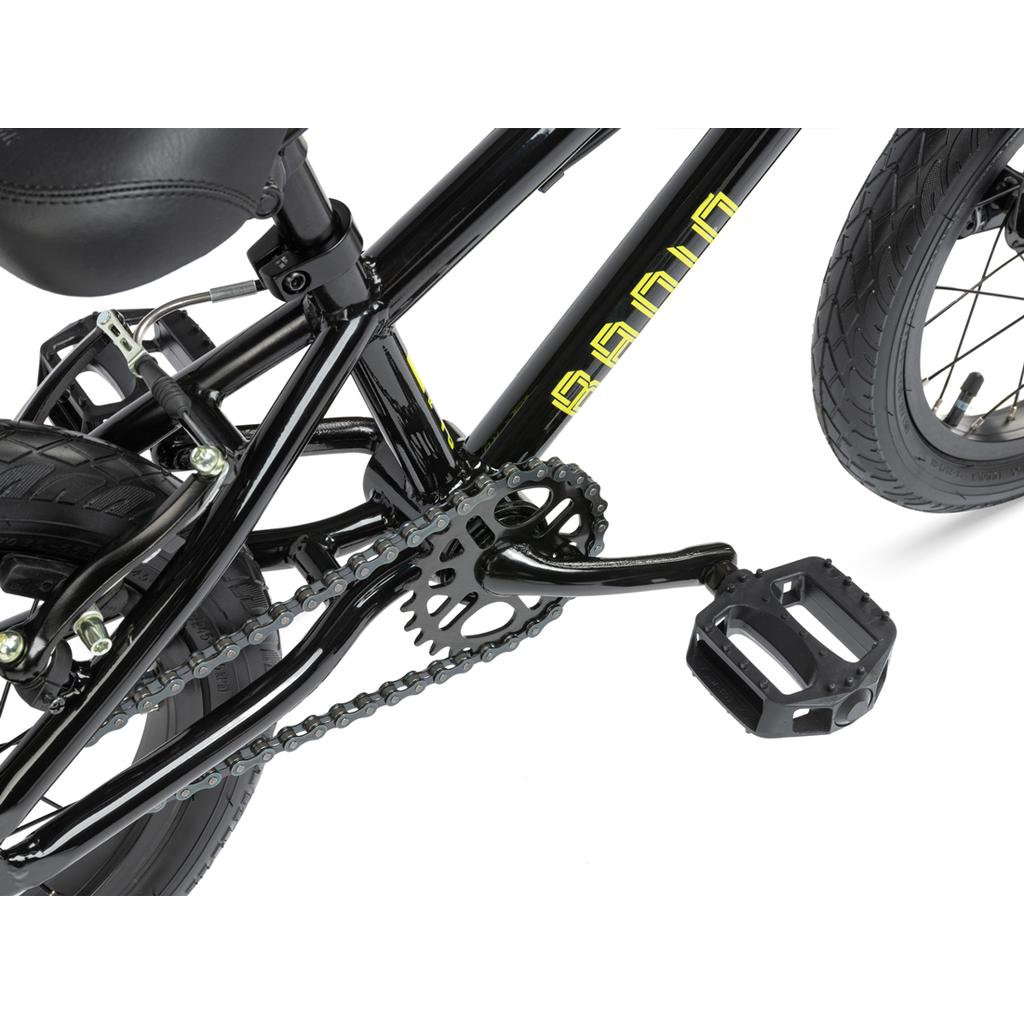

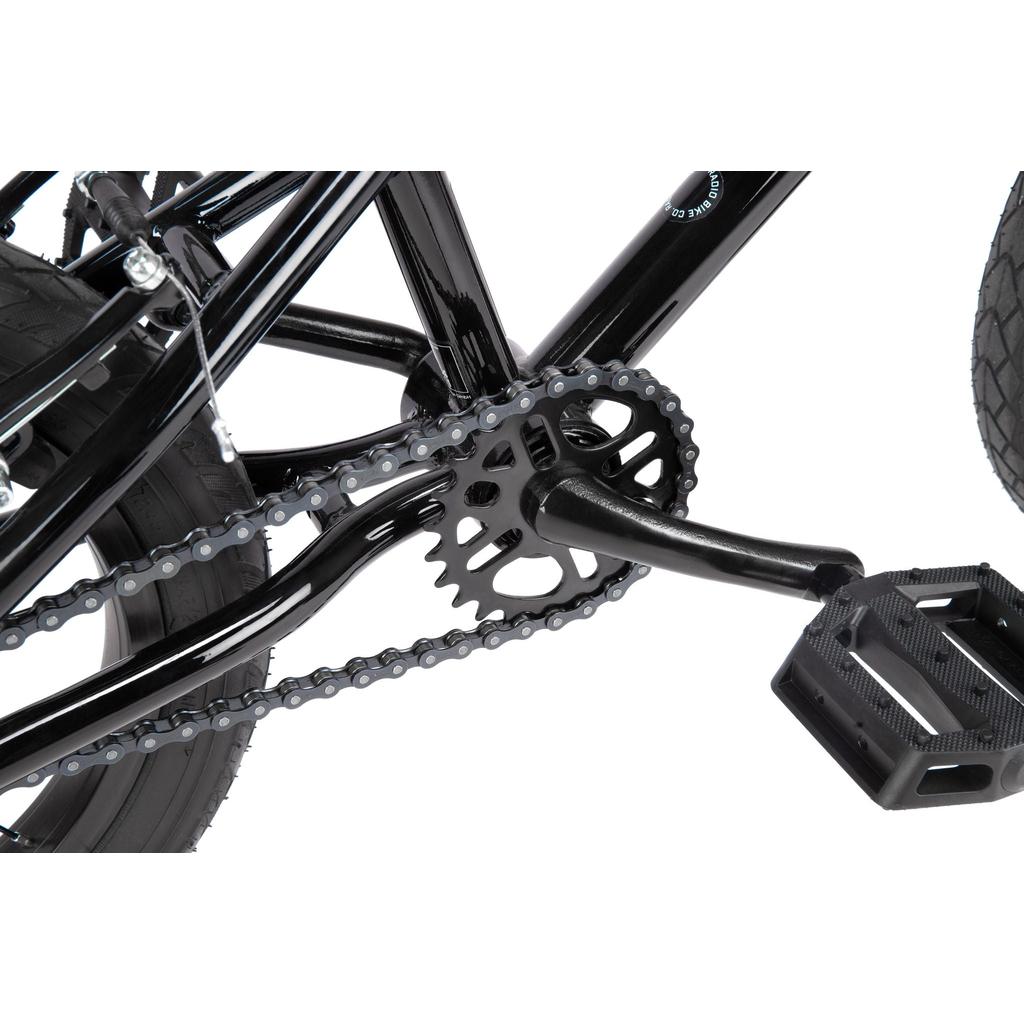

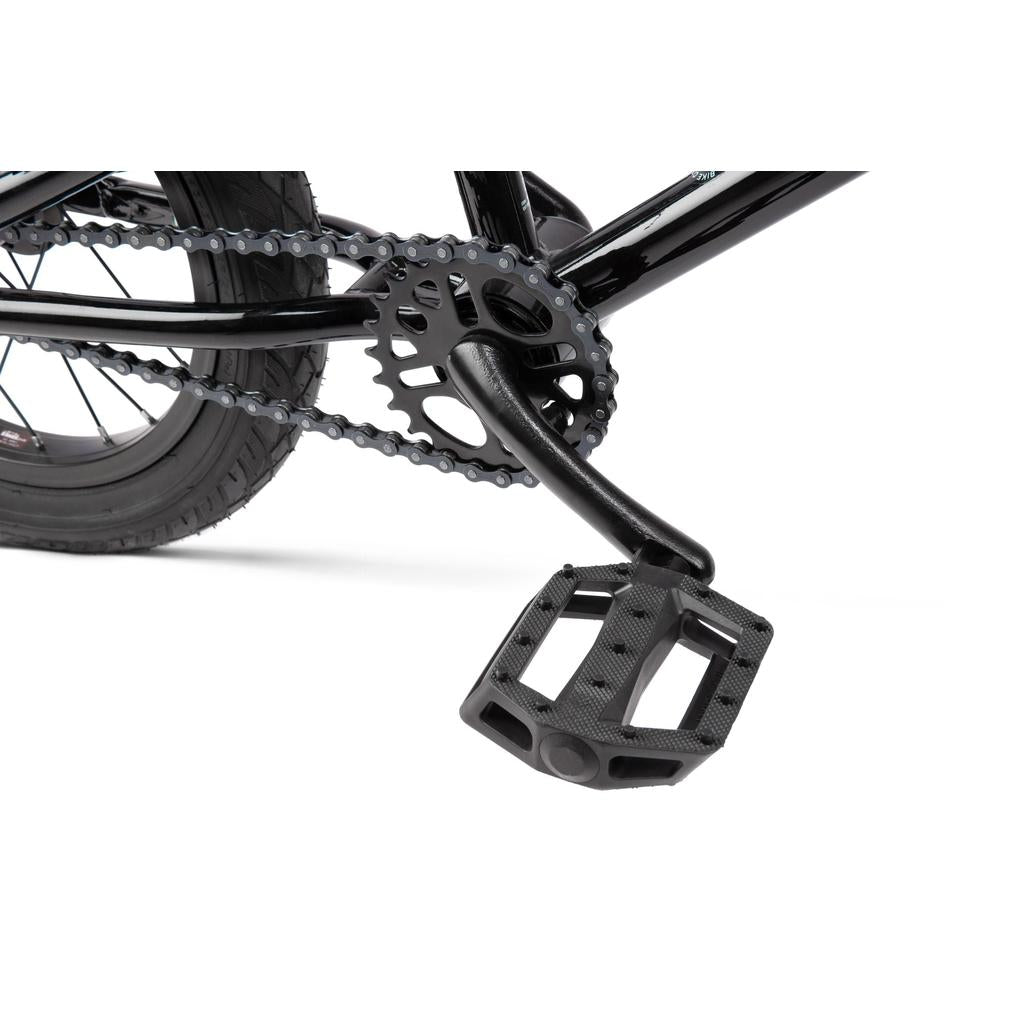

Crank - Radio 'Rookie' 1pc crank, forged, Cr-Mo, 102mm
BB - Radio 'US' BB set, looseball
Pedals - Radio 'Junior' pedals, nylon

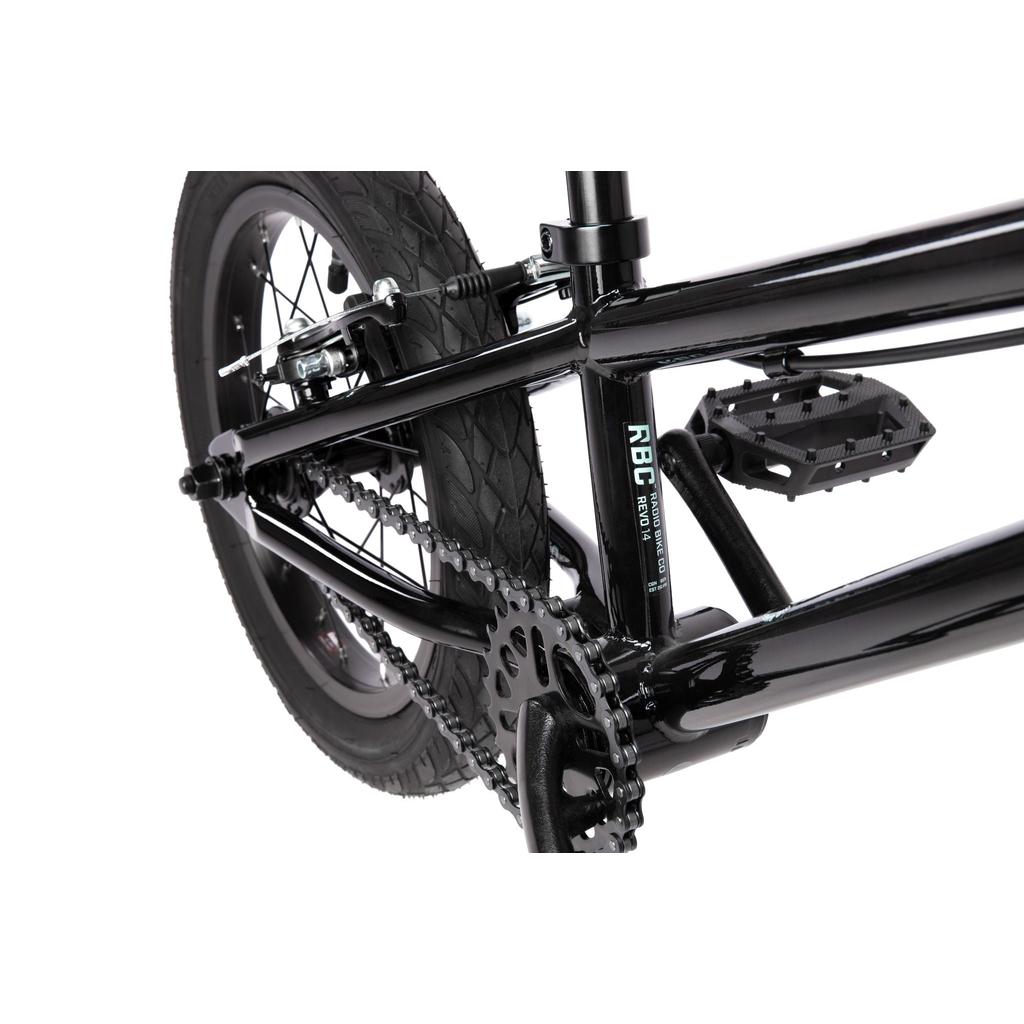

Chain - KMC S1 chain
Sprocket - Radio 'Rookie' steel 25T sprocket
Driver – 9T, cassette

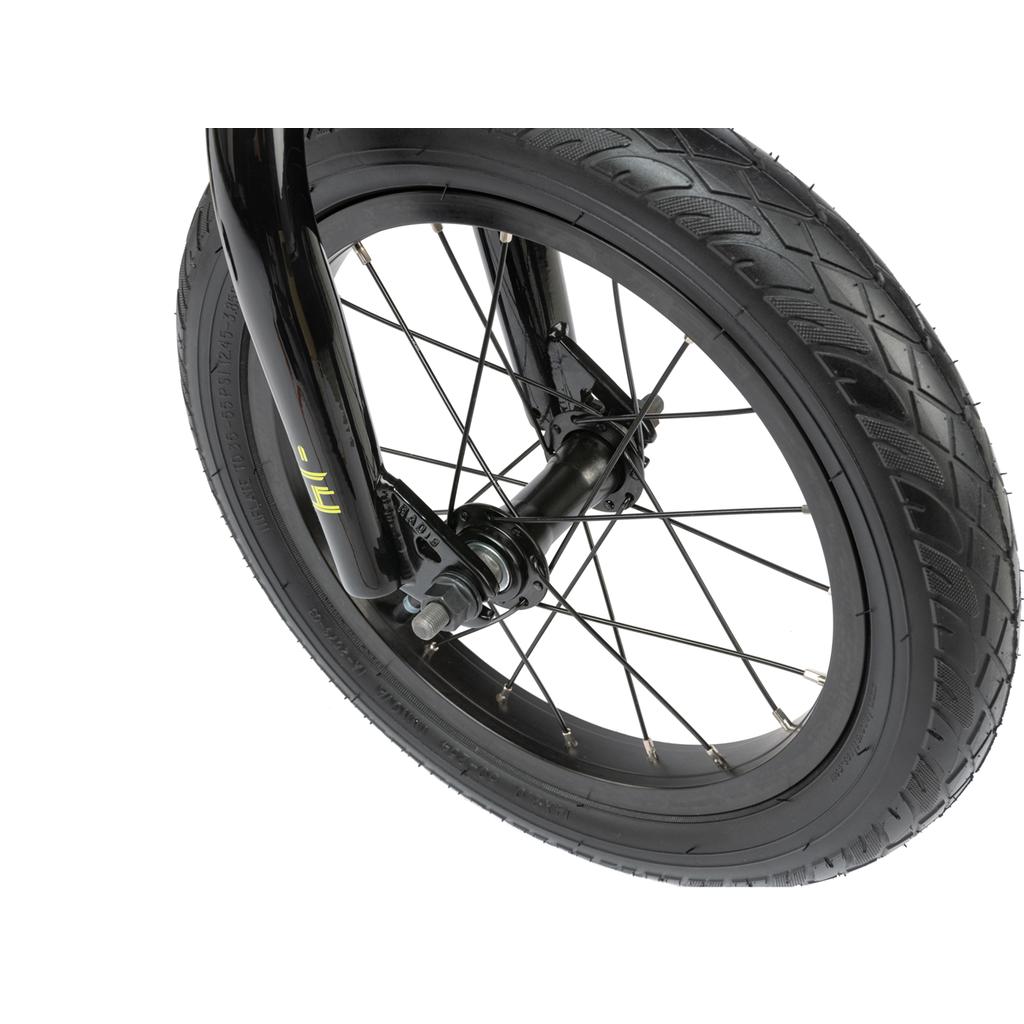

Front hub - Radio 'Rookie' steel hub, Lb, 20H

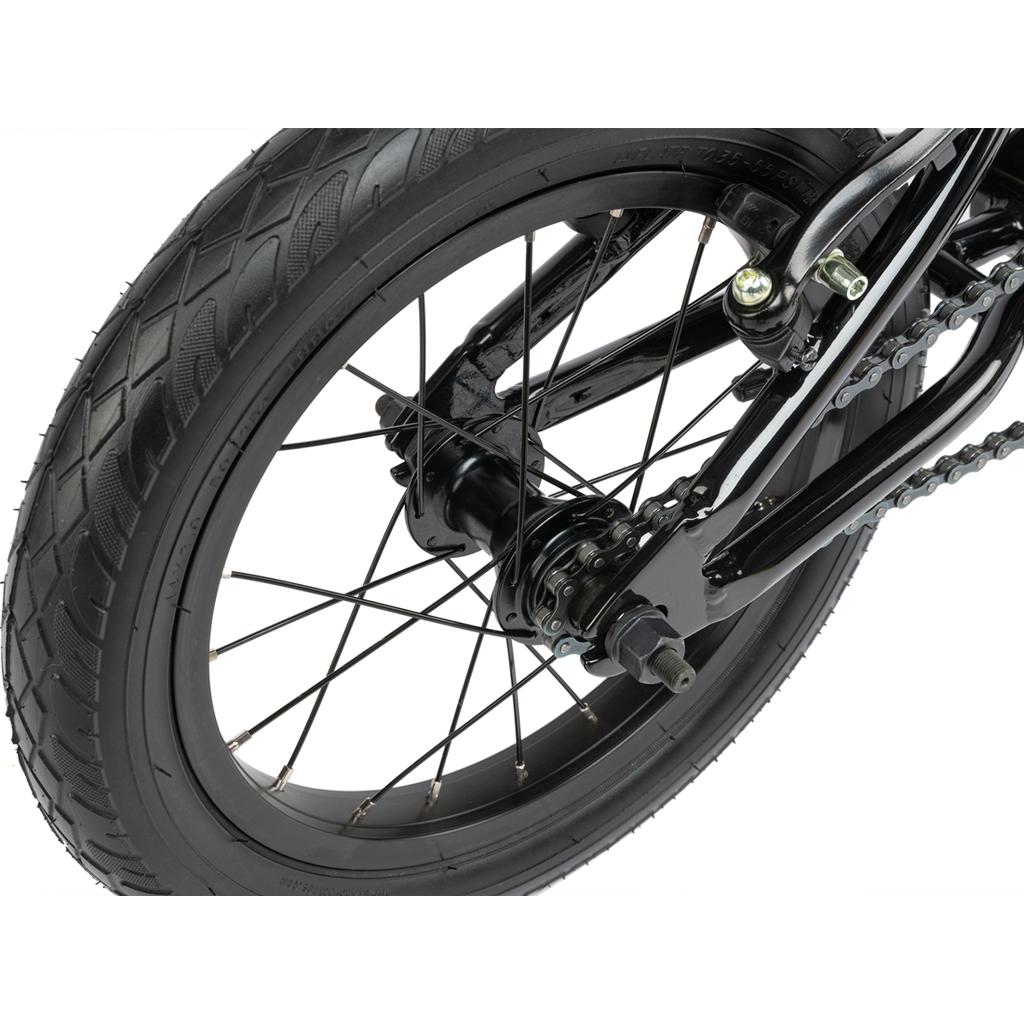

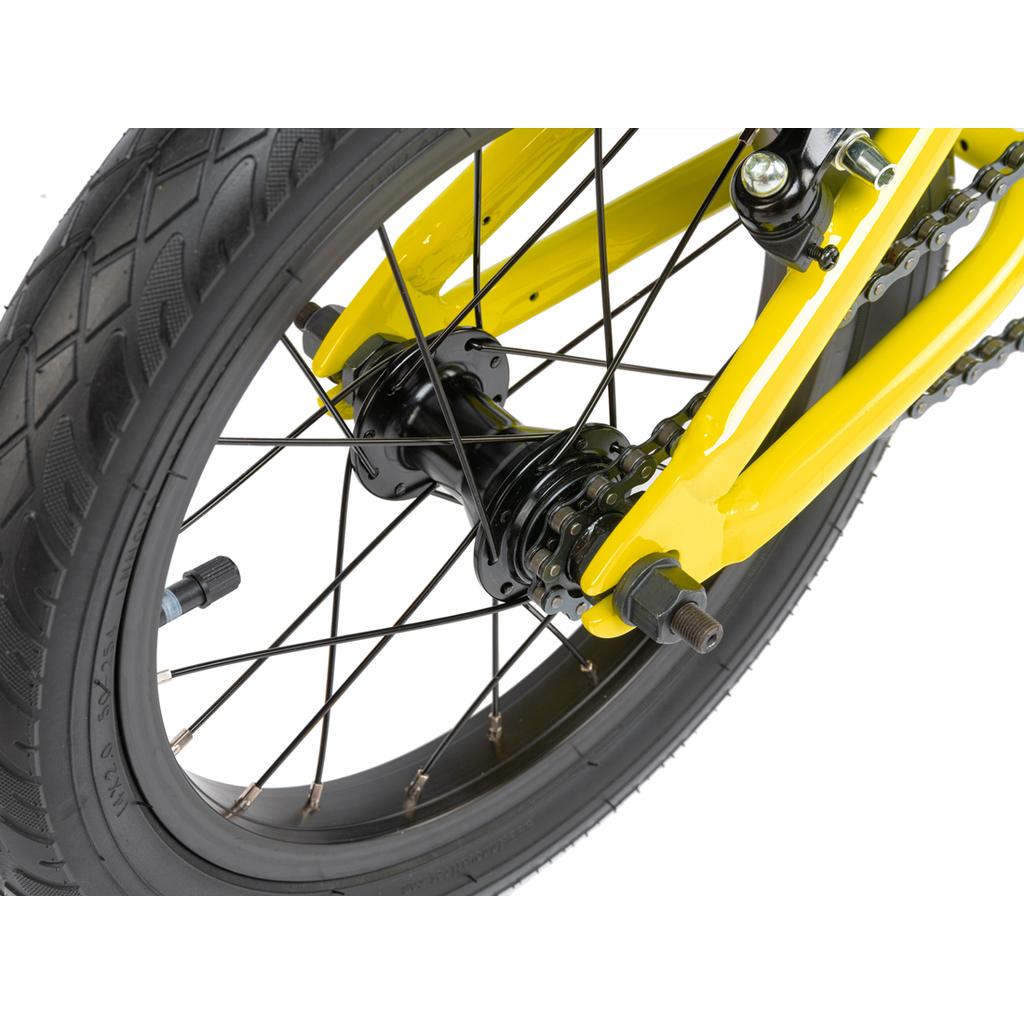

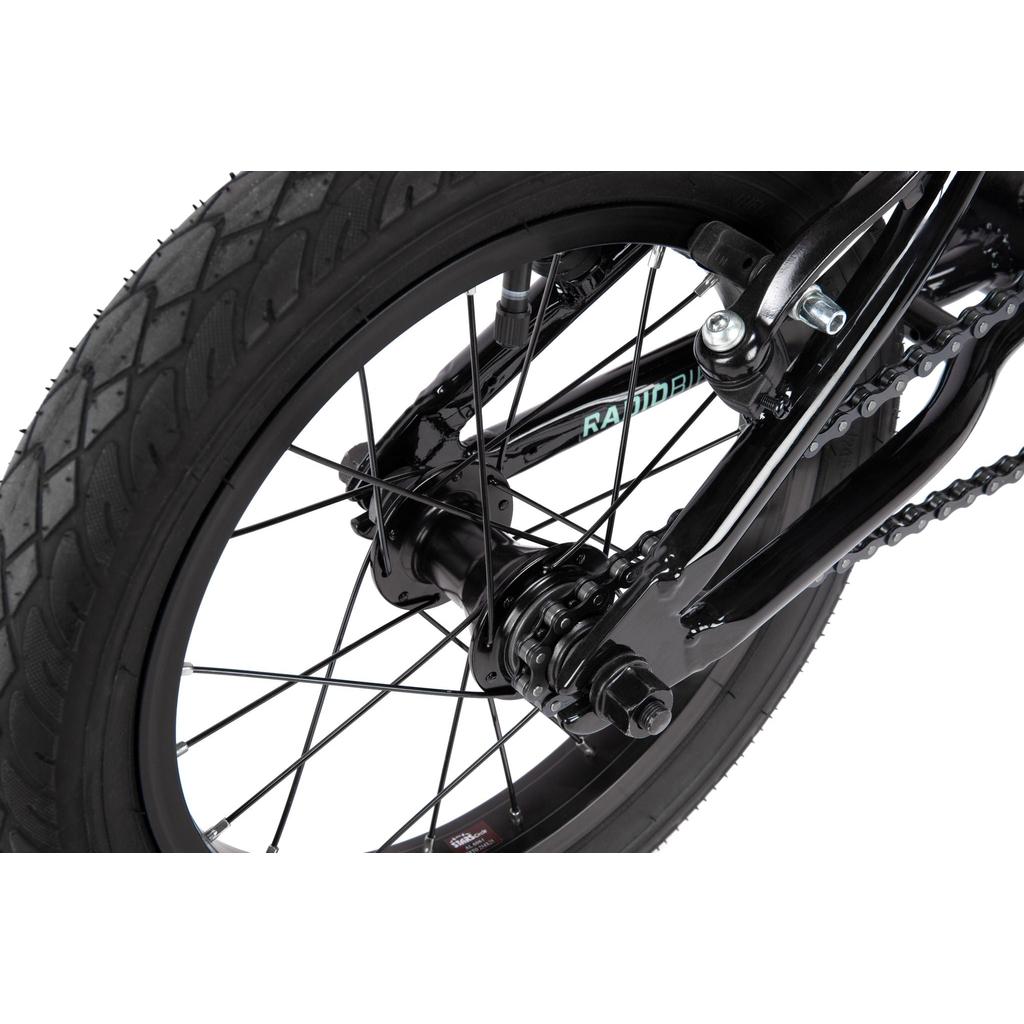

Rear hub - Radio 'Rookie' steel hub, Lb, 20H
Front rim - Salt 'AM' rim, straight single wall, 20H
Rear rim - Salt 'AM' rim, straight single wall, 20H

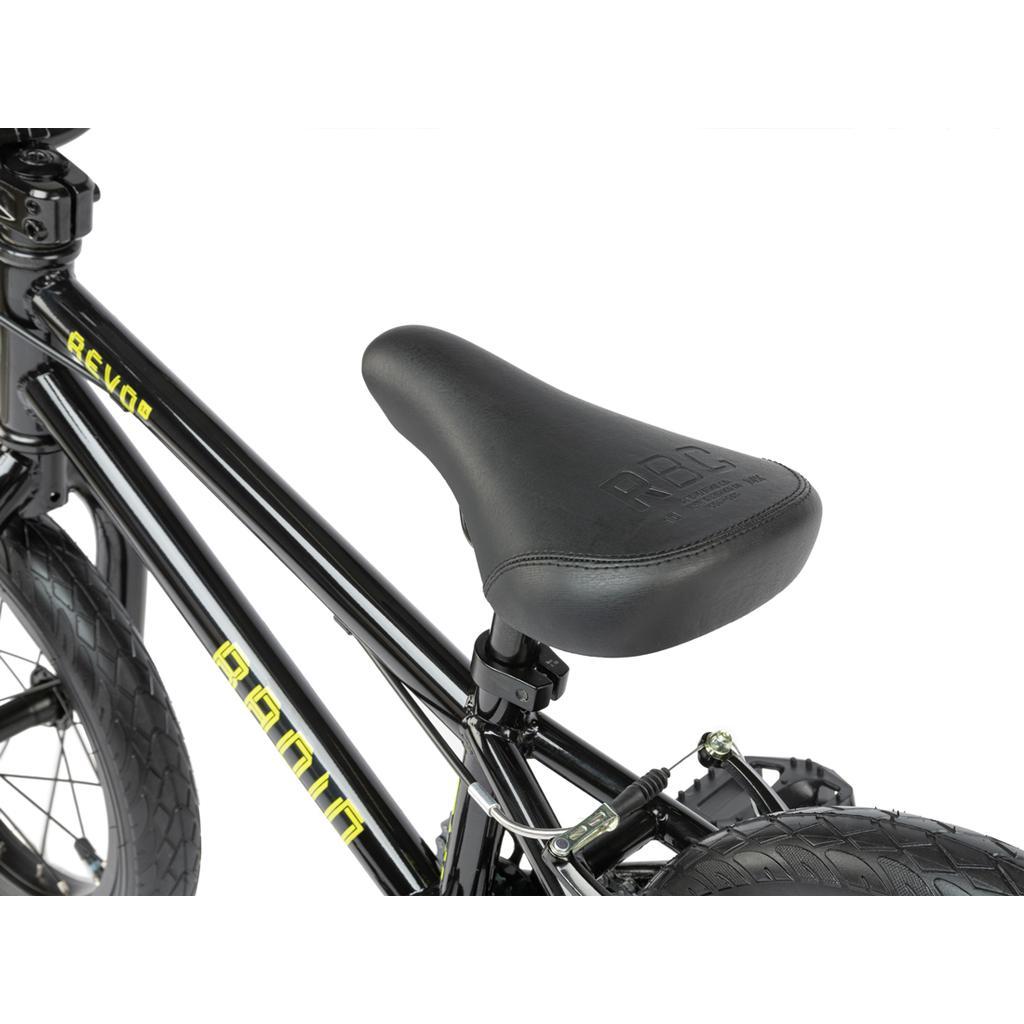

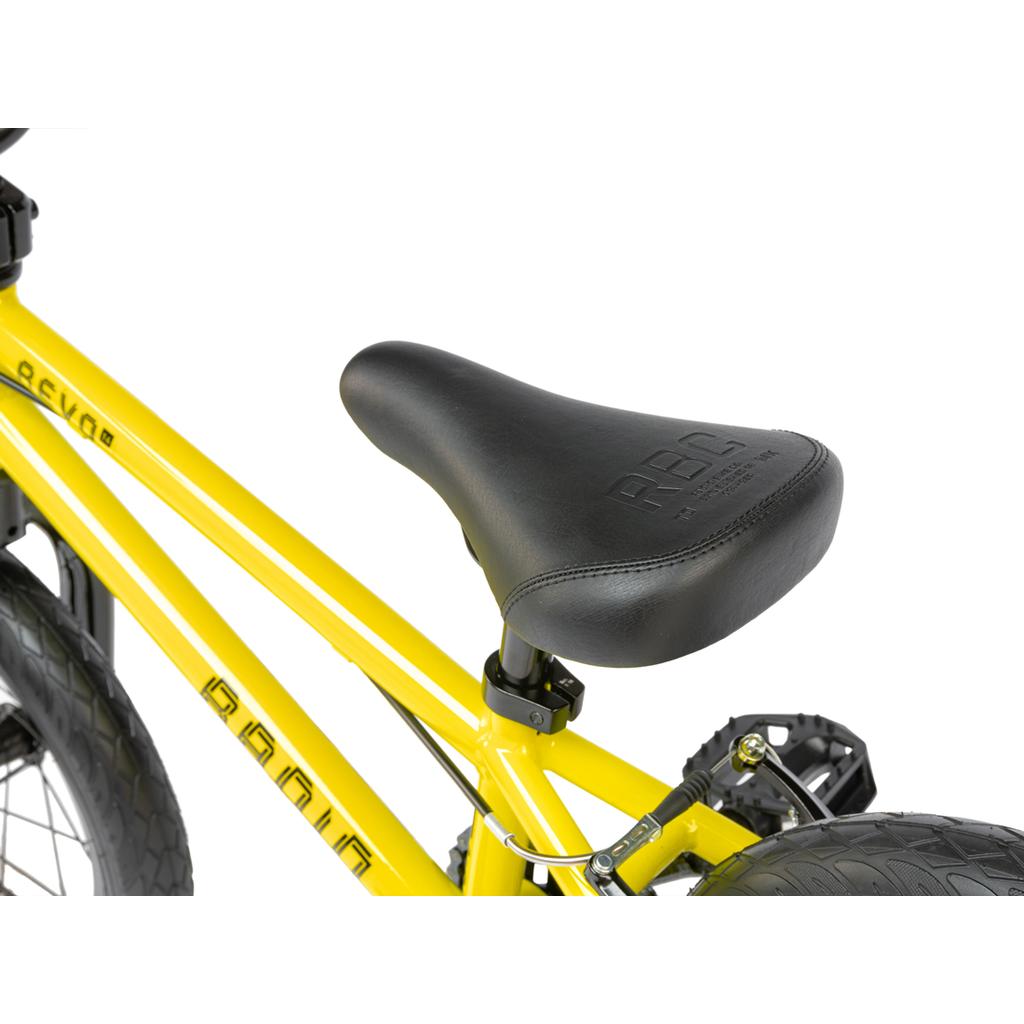

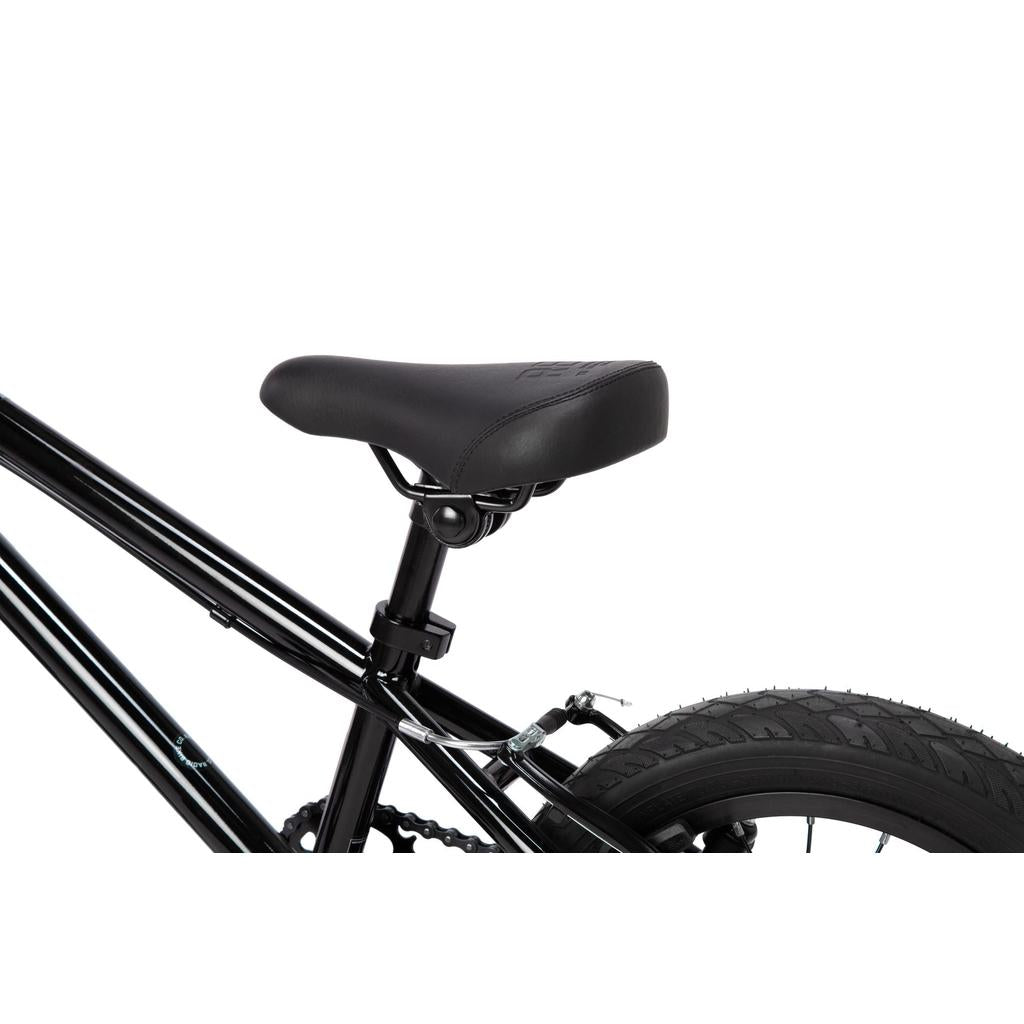

Seat - Radio 'Century' railed seat
Seat post – Radio 'AM' alloy seat post 250mm
Seat clamp - Radio slim alloy seat clamp
Tyres - Radio 'Rookie' tyres, 2.0″ front & rear
Weight - 8.825kg
Frame geometry
Top tube length - 13.7″
Chain stay length - 10.55″
Head tube angle - 72°
Seat tube angle - 73°
Bottom bracket height - 7.5″
Standover height - 5.5″
Handlebar geometry
Rise - 6.5″
Width - 22.4″
Backsweep - 8°
Upsweep - 2.5°
