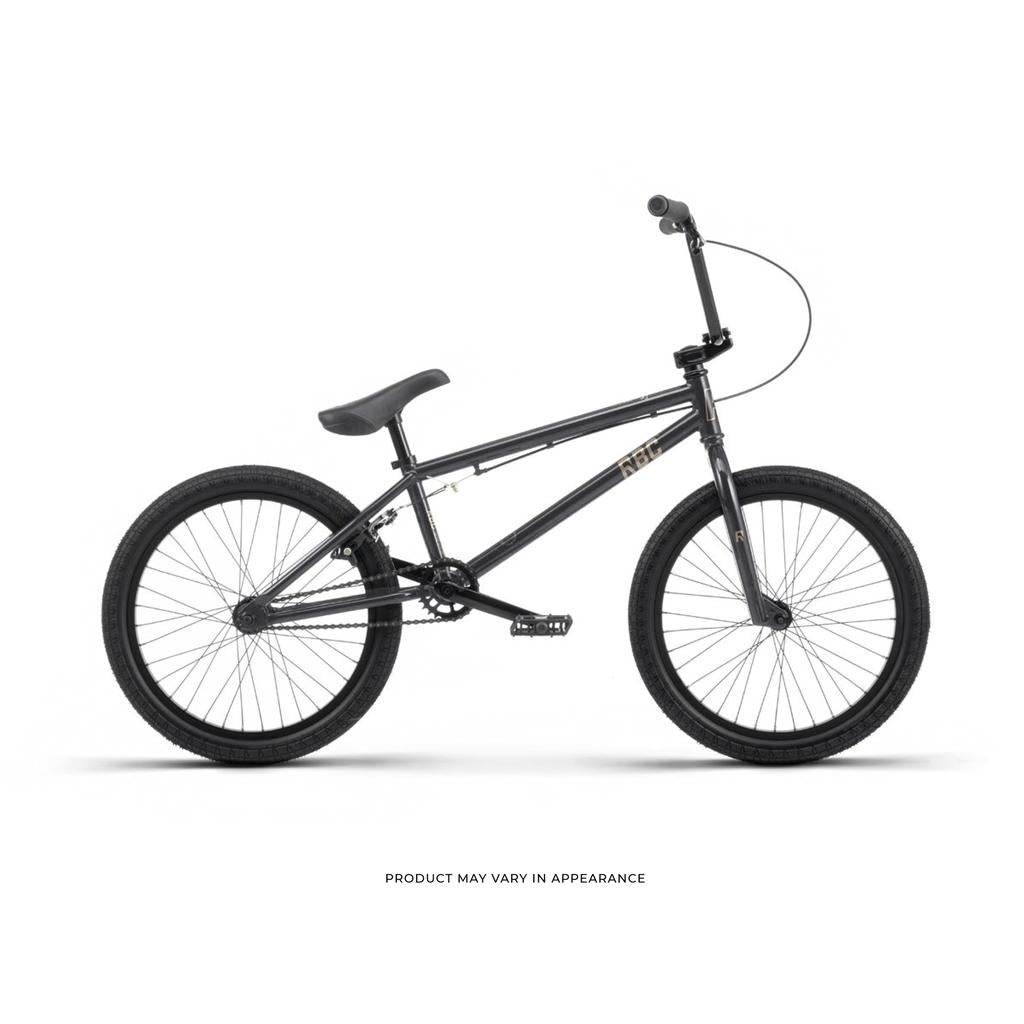

Radio Revo Pro 18 Inch Bike - supplier product photo

Description

The Revo line lets you get your first taste of the BMX world on a solid, well designed bike. Radio took extra care hand-selecting the components so it can be ridden straight out of the box, is simple to work on and maintain, and is easy to upgrade over time.

The Revo 18" Pro builds on the standard Revo 18" by adding a 3-piece crank upgrade, making it more dialled again. Compact and lightweight, with 25-9 gearing and a combo saddle, it is aimed straight at skatepark riding.

Features

Rides straight out of the box. Radio hand-selected the parts so the bike is ready to ride, simple to maintain and easy to upgrade as the rider improves.
3-piece crank upgrade. Tubular chromoly Radio Rookie cranks, 152mm and 8 spline, are the step up over the standard Revo 18.
25-9 cassette gearing. A 25T steel sprocket into a 9T cassette rear hub, the same layout full size BMX bikes use.
Compact, lightweight design. Hi-ten frame, fork and bars in a small package, which suits skatepark riding and riders still growing into it.
Front and rear aluminium brakes. A Radio AM calliper up front and an AM-U U-brake at the rear, both run from an aluminium Radio AM lever.

Specifications

Size: 18"
Frame: Radio Revo 18, full 1020 hi-ten
Fork: Radio Rookie 18, hi-ten
Headset: FSA A-headset, loose ball
Stem: Salt Junior topload, 40mm reach
Bars: Radio Revo 18, hi-ten
Grips: Radio Junior, flangeless, 130mm
Brakes: Radio AM aluminium calliper front, Radio AM-U aluminium U-brake rear
Brake lever: Radio AM, aluminium
Cranks: Radio Rookie 3-piece, tubular chromoly, 152mm, 8 spline
Bottom bracket: Radio US BB set, loose ball
Sprocket: Radio Rookie, steel, 25T
Chain: KMC S1
Pedals: Radio Rookie, nylon
Front hub: Radio Rookie, steel, loose ball, 3/8" axle, 28H
Rear hub: Radio Rookie cassette, steel, loose ball, 9T, 14mm axle, 28H
Rims: Salt AM, straight single wall, 28H
Seat: Combo saddle
Gearing: 25-9

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Revo Pro 18 Inch Bike

Name: Radio Revo Pro 18 Inch Bike
Brand: Radio
SKU: RABK193-26-BLK
Price: 599.99 AUD
Availability: InStock

Brand: Radio SKU: Click to copy the SKU and show the pick location

$599.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Graphite Deluxe

Top Tube Length - 18

An 18 inch bike suits a rider of about 122 to 147cm, usually 7 to 11 years old, on an 18 to 18.5 inch top tube. It is the last step before a full size 20 inch.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If your rider is near 147cm and still growing, look at a 20 inch instead: it is the size they will keep riding.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between an 18 and a 20? Take the 20. It is the size they will keep riding, and an 18 gets outgrown quickly.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.
