The Radio Sonar 148 Rear Hub, in black and gold with multiple spoke holes and a freehub body, features a Hybrid Freecoaster System and is shown on a white background.
Disassembled Radio Sonar 148 Rear Hub showing its internal gear mechanism, axle, and multiple metal components arranged on a white background.

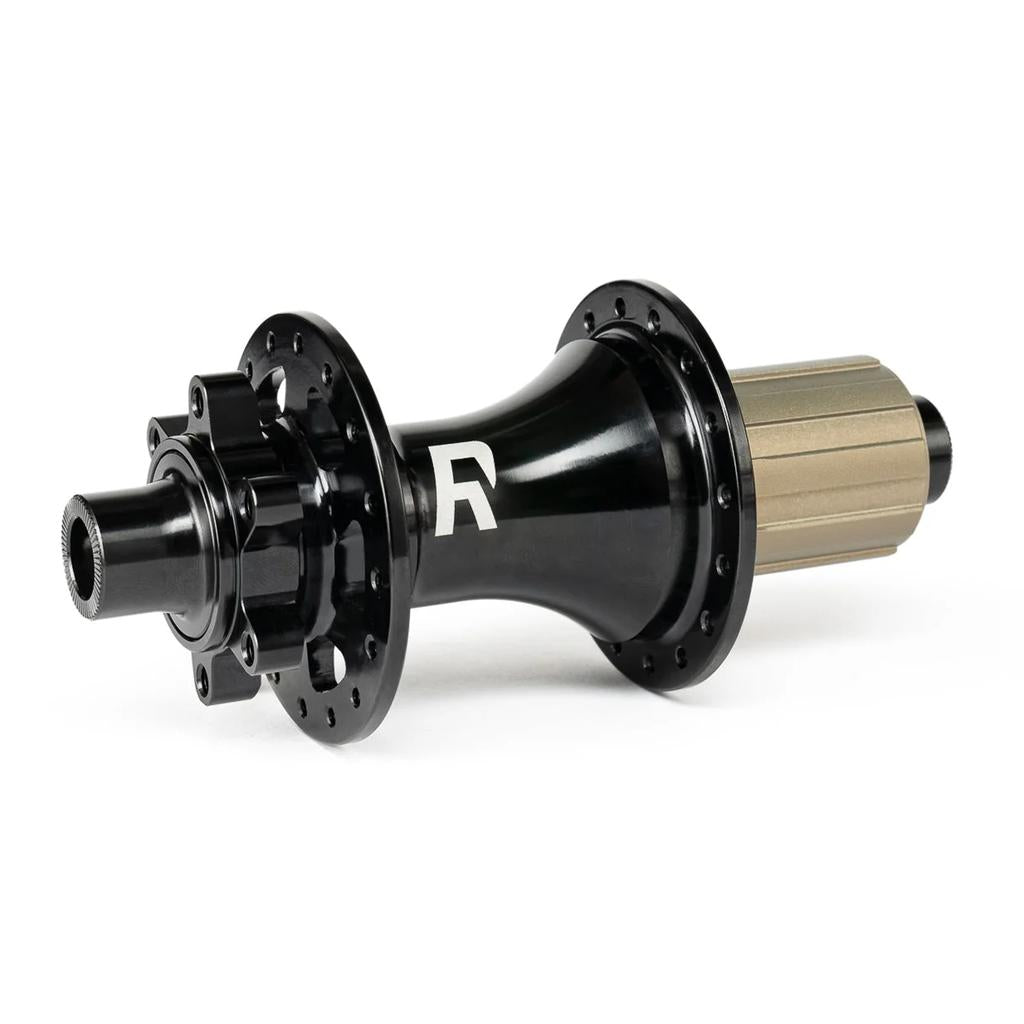

The Radio Sonar 148 Rear Hub is a black and gold hub featuring a logo, multiple spoke holes, and a freehub body.

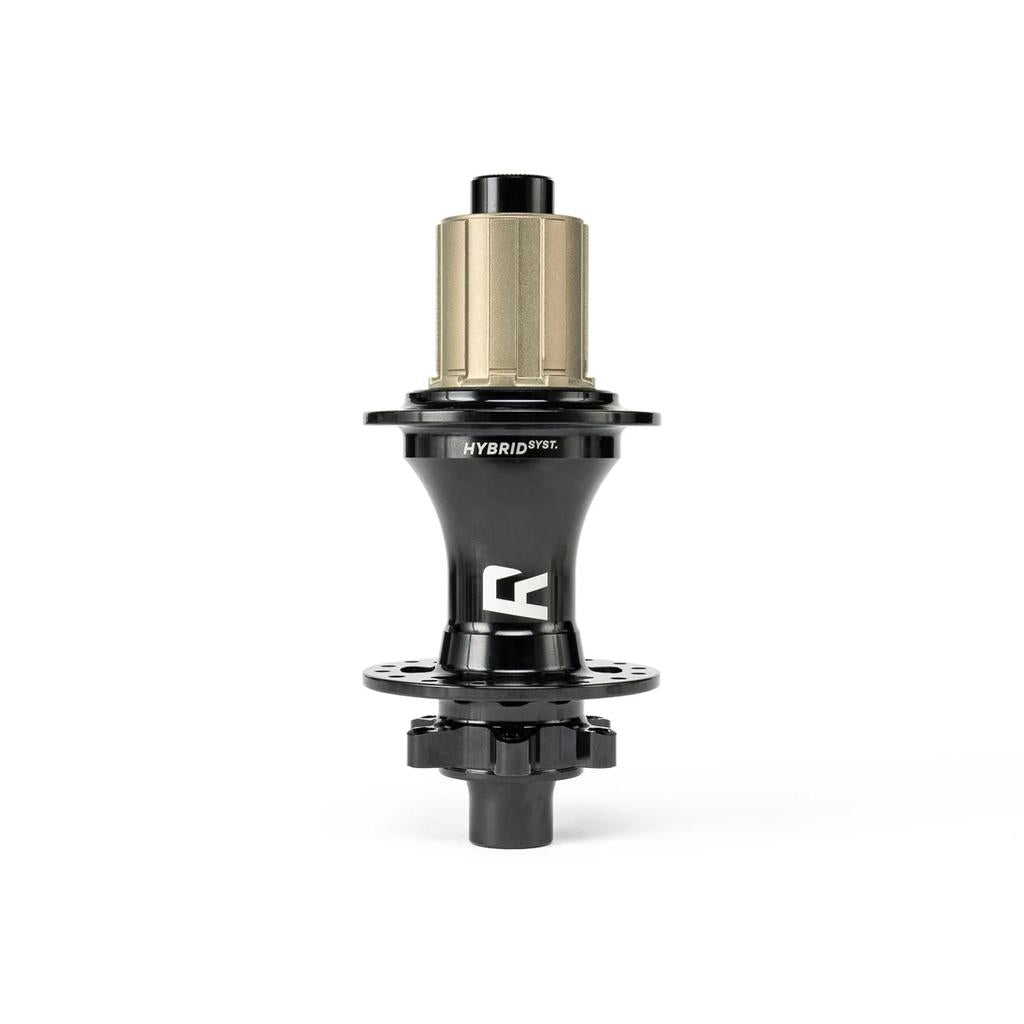

A black and gold Radio Sonar 148 Rear Hub labeled "HYBRID 19/21" is shown upright against a white background, featuring the innovative Hybrid Freecoaster System.

Highlights

  • Fits 148 x 12mm frames
  • Freecoaster or cassette
  • Shimano HG freehub body
  • MagnaDrive pawl retention

Description


NEW FREERIDE 148X12MM VERSION! The wait is over. Radio MTB-specific Sonar Freecoaster Hub is here. Using the patented Wethepeople BMX “HYBRID” Freecoaster system it creates a totally new type of freecoaster hub that functions unlike anything else. Fully convertible into a regular cassette hub with no extra parts.


Based on a similar construction to a regular cassette hub, the Radio Sonar Freecoaster Hub offers a super lightweight, simple-to-adjust Freecoaster hub with the durability advantages of a cassette hub. With a much larger (and fully adjustable) slack system, and a “MagnaDrive” magnetic pawl retention system, the Sonar Freecoaster requires little to no maintenance compared to the heavy and unreliable clutch-style freecoasters of the past. On top of that, it helps to eliminate pedal kickback on full-suspension bikes.


Despite the advantages of a Freecoaster hub, the Sonar Freecoaster Hub weighs 33% less than most Freecoaster hubs and offers zero friction and resistance making it one of the smoothest and fastest rolling hubs out there, no matter if you’re going forwards or backwards.

Features
  • Fits 148 x 12mm frames. Built for trail and enduro bikes running 148mm rear spacing and a 12mm thru axle, laced 32 hole.
  • Freecoaster or cassette. It converts into a regular cassette hub with no extra parts, so you can change your mind after it is built.
  • Shimano HG freehub body. The 35mm HG driver takes a standard Shimano cassette, and the brake side uses a 6 bolt rotor mount.
  • MagnaDrive pawl retention. Magnets hold the pawls instead of a clutch, so it needs little to no maintenance compared to older clutch style freecoasters.
  • 300g and zero drag. A third lighter than a conventional clutch style freecoaster, and the adjustable slack helps kill pedal kickback on full suspension bikes.

Specifications
  • Fits: 148 x 12mm rear spacing, trail and enduro frames
  • Bearings: Hub 6902-2RS (x2), driver 15267-RS / 6902-2RS
  • Driver: Shimano HG 35mm freehub body
  • Hole count: 32h
  • Axle: 12mm thru axle
  • Mount: 6 bolt disc
  • Weight: 300g (10.5oz)
  • Colour: Glossy Black
  • Note: Fully convertible into a regular cassette hub with no extra parts. Gap and slack are adjustable.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Radio Sonar 148 Rear Hub

Brand: Radio SKU:

$339.99 AUD

Or 4 payments of $84.99 AUD with

Colour - Black

Spoke Holes - 32 Hole

Drive Side - RHD

Radio Sonar 148 Rear Hub - Black / 32 Hole / RHD

$339.99 AUD
