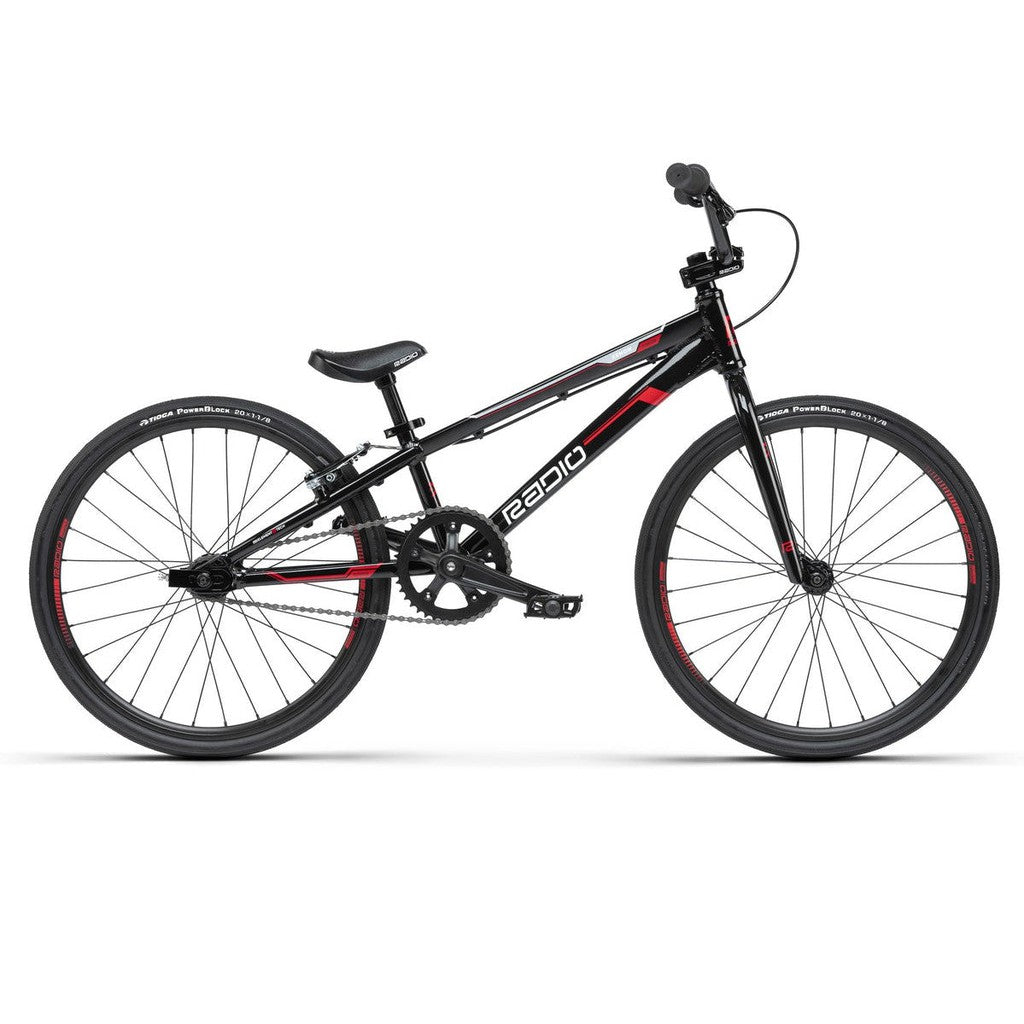

A black and red Radio Xenon Junior Bike race bike on a white background.

Radio Xenon Junior Bike (2021) / Black/Red / 18.5TT

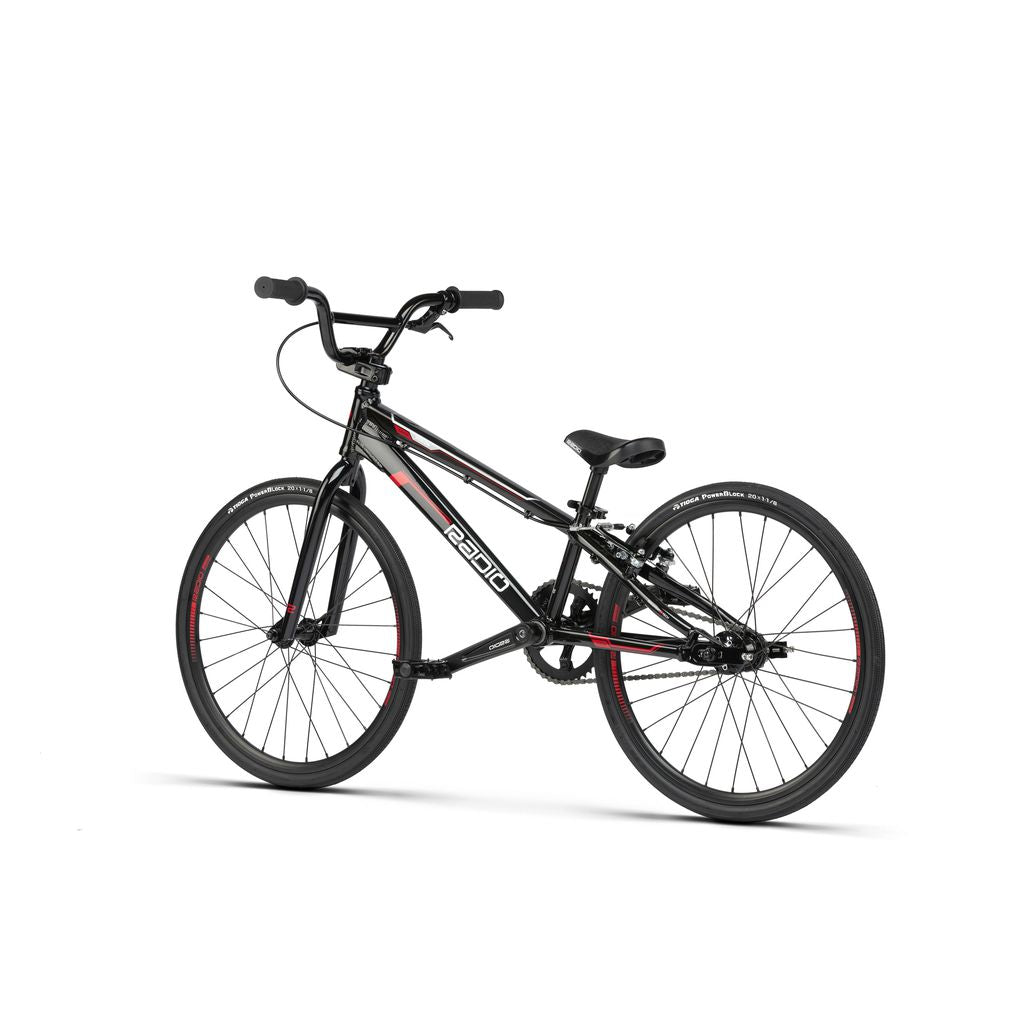

A black and red Radio Xenon Junior Bike on a white background.

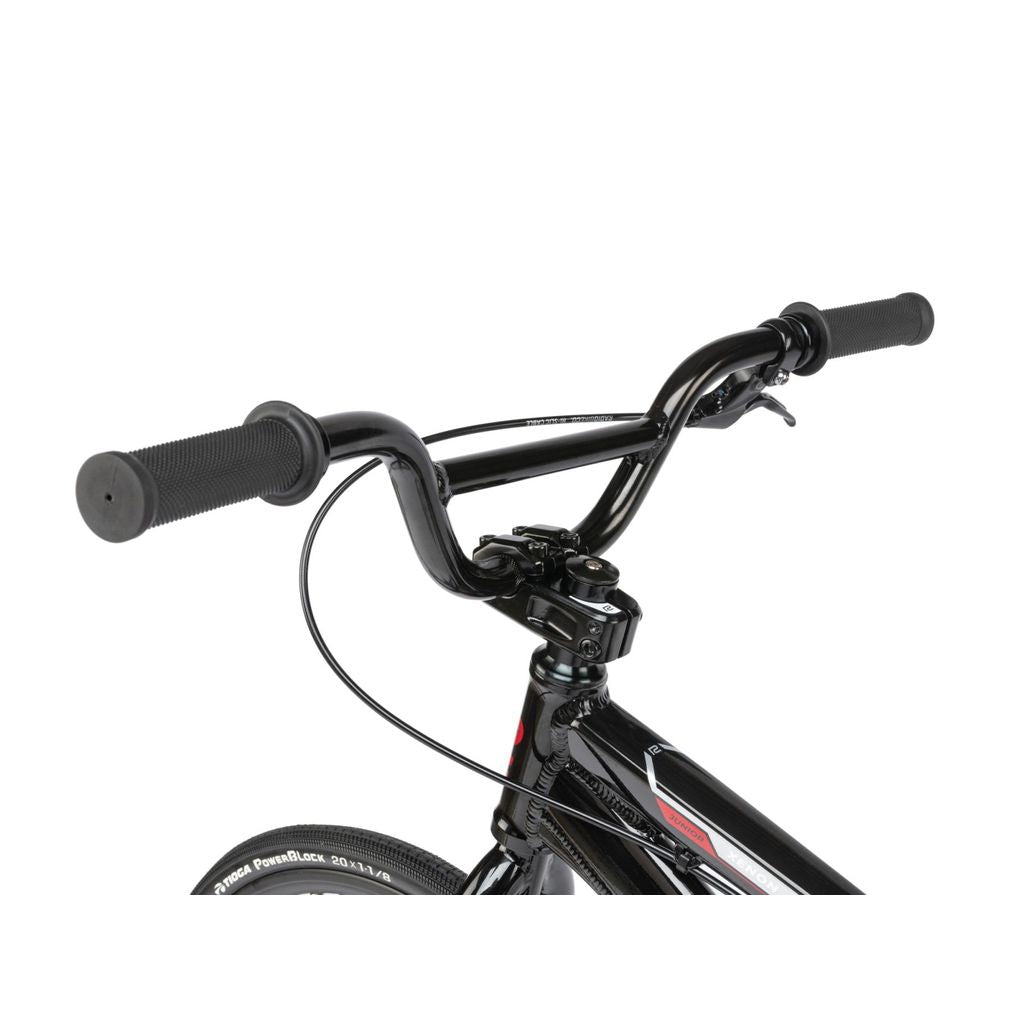

A black Radio Xenon Junior Bike with handlebars on a white background.

A black and red Radio Xenon Junior Bike with a red handlebar and disc brake ready.

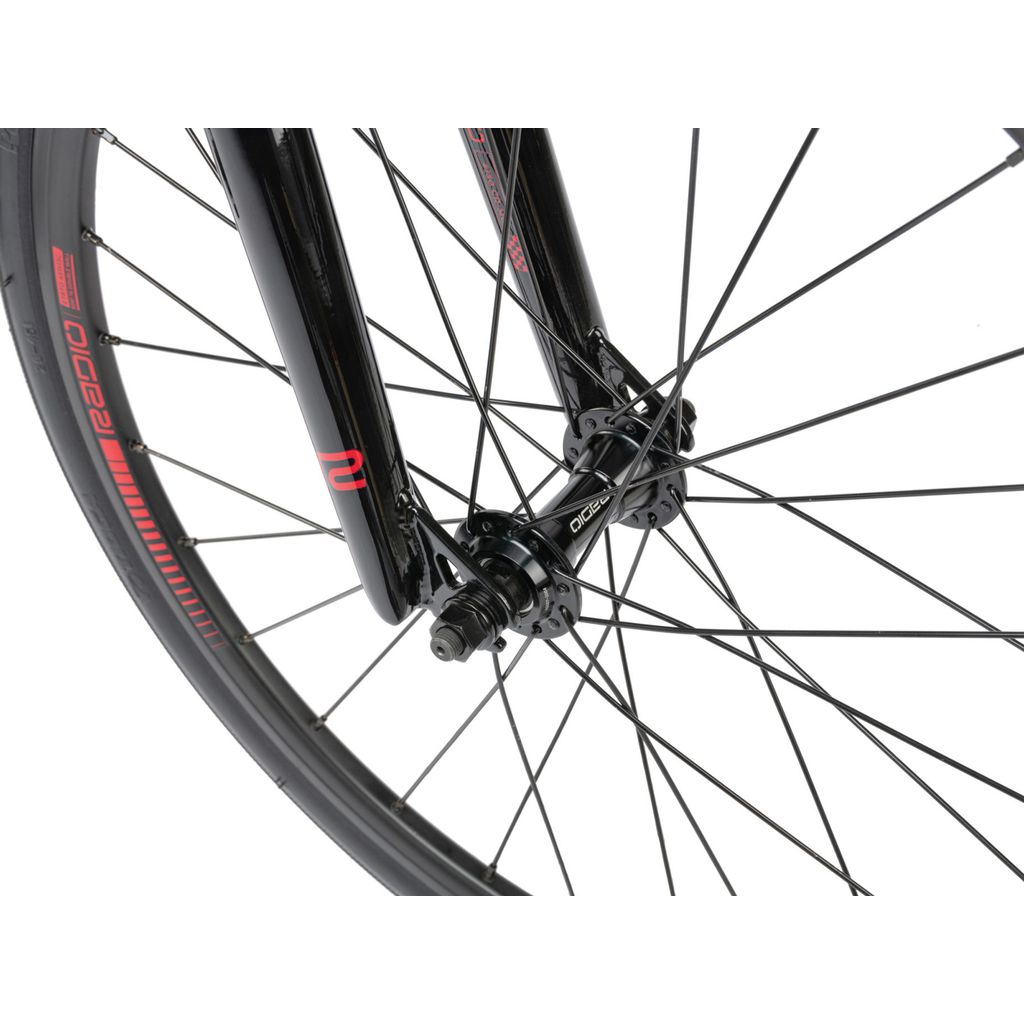

A close up of a black Radio Xenon Junior Bike race wheel with red spokes.

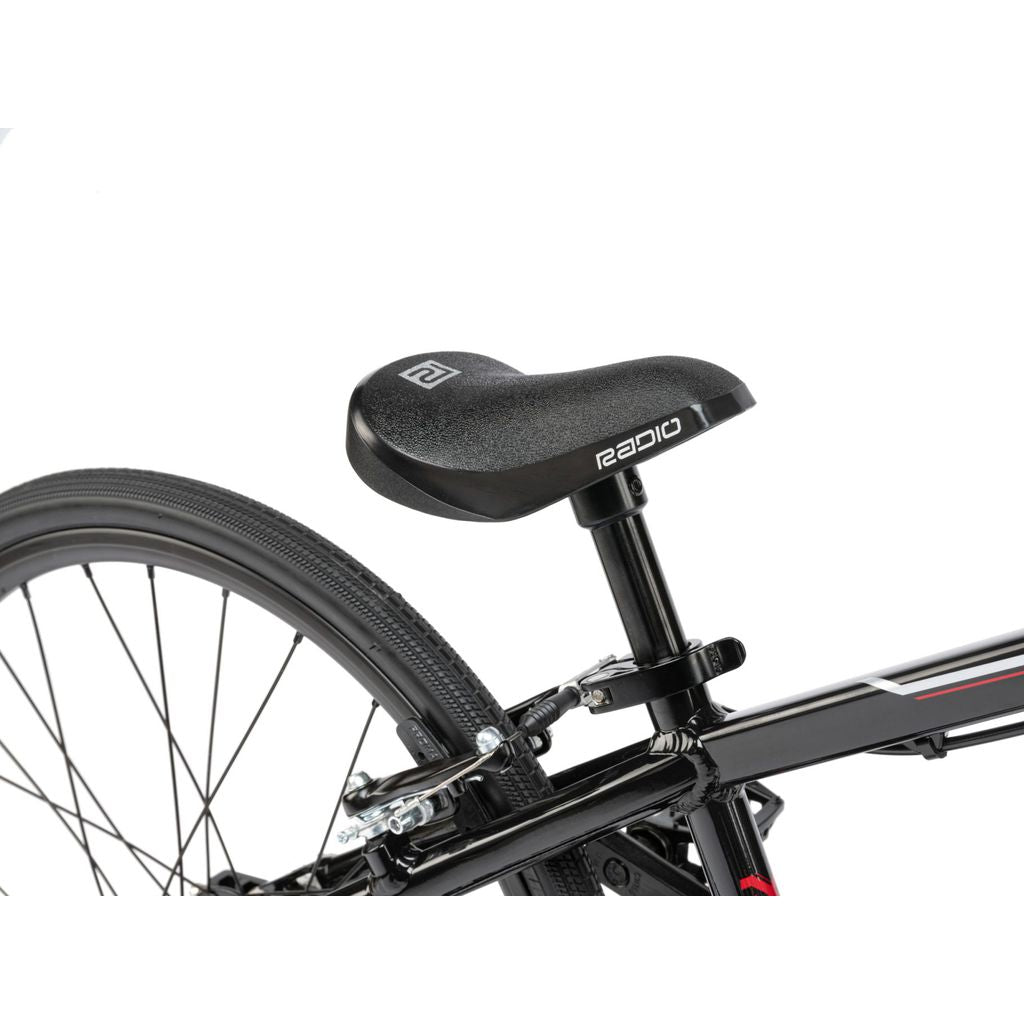

A black Radio Xenon Junior Bike race bike seat.

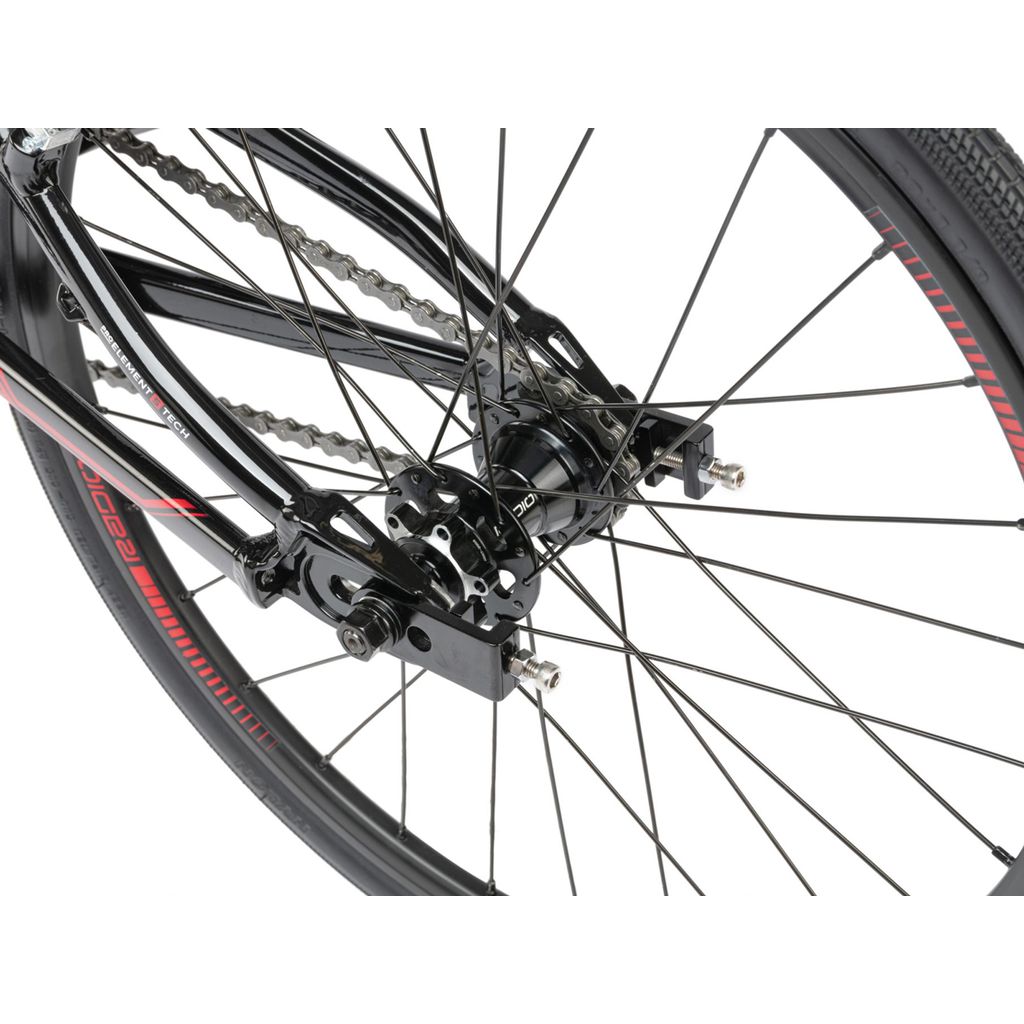

A black Radio Xenon Junior Bike with disc brake ready.

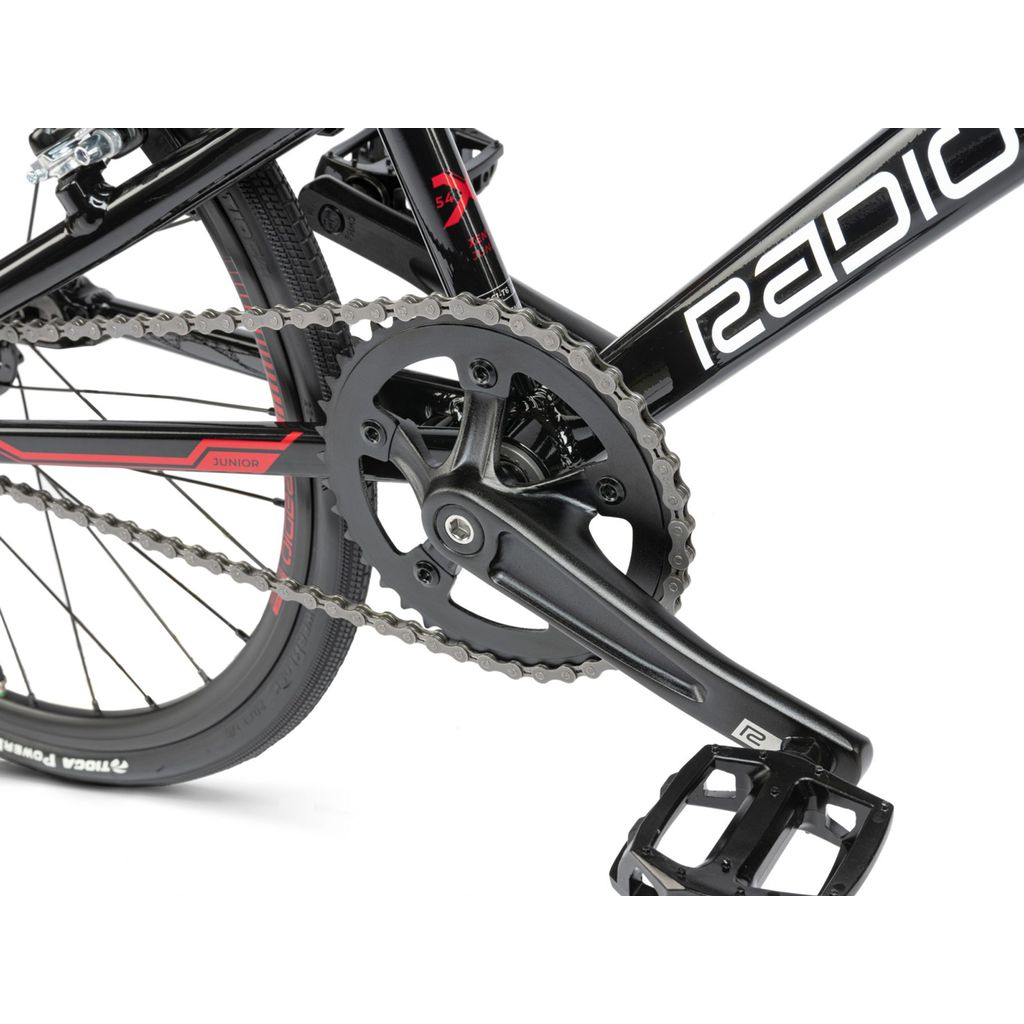

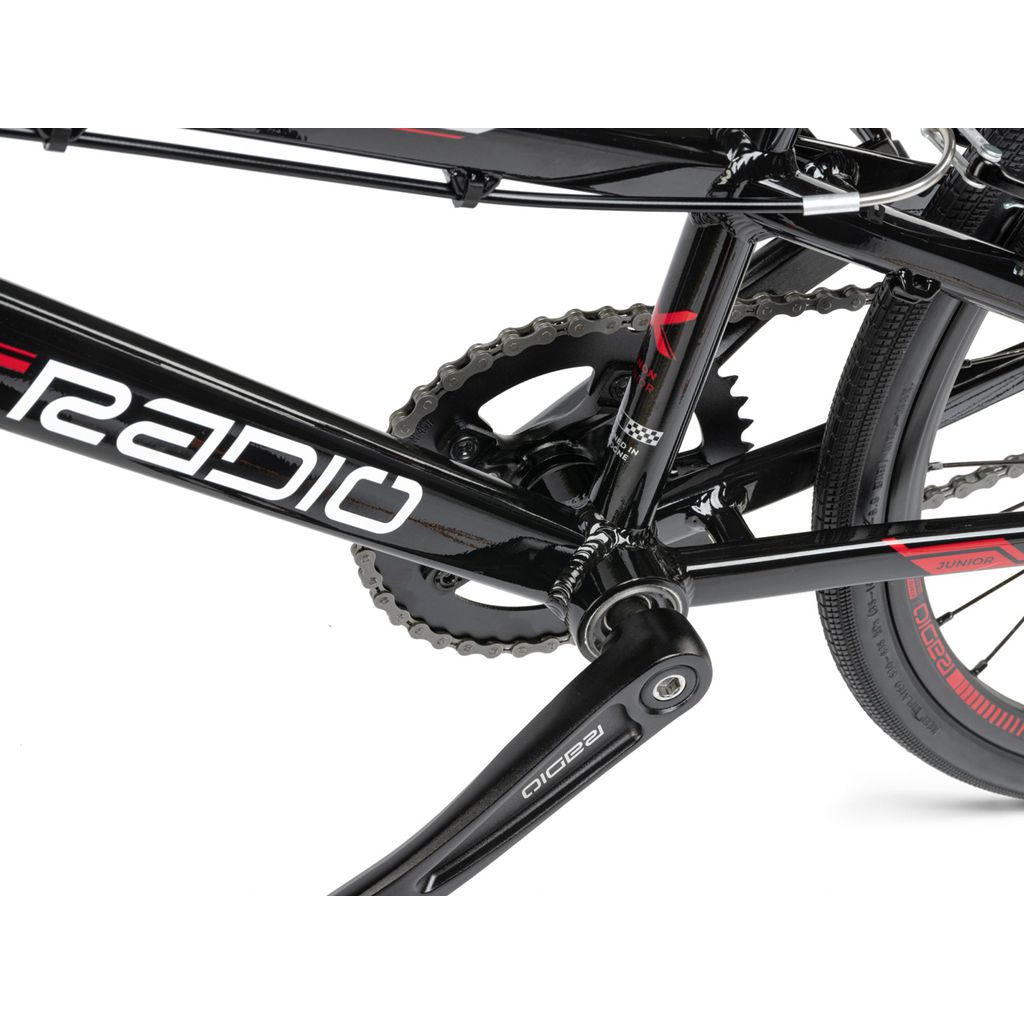

A black Radio Xenon Junior Bike with a chain on it.

A close up of a black Radio Xenon Junior Bike with red spokes.

Description

Building upon their ever increasing successes, the Radio Xenon range is solidifying itself as a trusted mid level complete race bike. The Radio Xenon Junior Bike comes with an array of race winning components, including disc brake ready dropouts.

The frame is manufactured from hydro-formed 6061-T6 alloy, with forks fully built from chromoly, from the steerer tube, to the fork legs. This means that it's a light bike, yet with tough forks, so that it can take on the biggest jumps that your sprocket rider can throw at it.

Sealed bottom bracket and hubs keep maintenance down to a minimum, with quality Radio Raceline components fitted across the bike. The ever-dependable Tioga Powerblocks are employed to keep this pocket rocket rolling and sticking to the race line in the corners.

This BMX race bike is perfectly suited to the rider starting off their racing journey at a club level, whether they are starting off at a club's training sessions, or tackling club racing.

And when they are ready to move their racing up a notch or two, then the Radio Xenon is ready to move with them with a disc brake ready rear disc hub and dropout set up. This means that you can upgrade the brakes or wheels as they take things a little more seriously.

Features

Light alloy frame, chromoly fork. Hydroformed 6061-T6 brings the bike in at 8.07kg while the fully chromoly fork takes the landings a young racer dishes out.
Disc brake ready dropouts. Forged dropouts and a disc cassette rear hub let you upgrade the brakes or wheels as the racing gets more serious.
Junior sized cockpit and cranks. A 40mm topload stem, 24" wide bars with 4.25" rise and 155mm cranks fit a smaller rider properly.
Sealed hubs and bottom bracket. Fully sealed Xenon hubs and a sealed BSA square taper bottom bracket keep the maintenance down between meets.

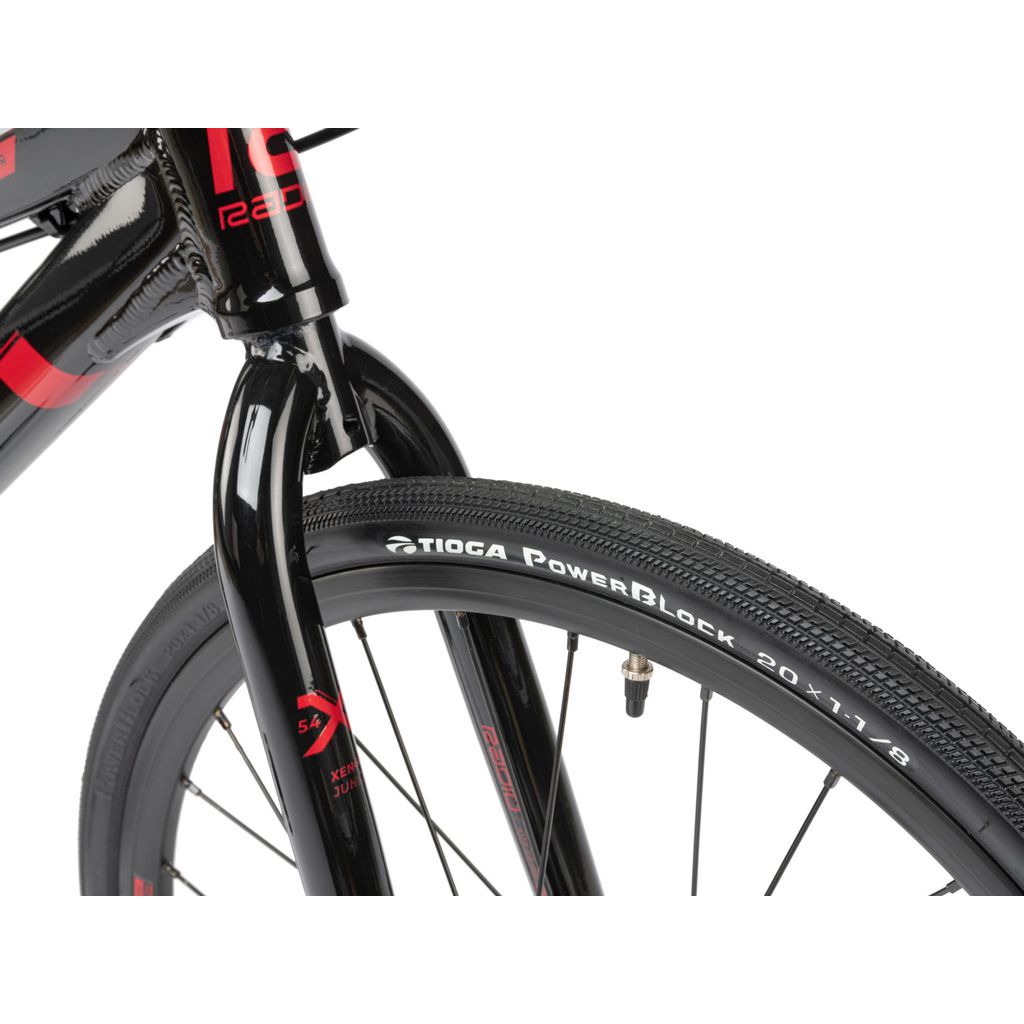

Tioga Powerblock tyres, 20 x 1-1/8". The dependable race tread on 28H Clipper Junior rims sticks to the race line through the corners.

Specifications

Size: 20 inch wheels, 18.5" top tube
Frame: Hydroformed 6061-T6 alloy, forged and disc brake mount ready dropouts
Top tube: 18.5"
Bottom bracket height: 10.6"
Fork: Chromoly, 1" butted steerer, chromoly fork legs, 23mm offset
Headset: Radio Raceline integrated, sealed, 1"
Stem: Radio Raceline Cobalt topload, 40mm extension, alloy
Bars: 6061-T6 alloy, 4.25" rise, 24" width, 8° backsweep, 2° upsweep
Grips: Radio Raceline Xenon, diamond knurling, clamp on, 115mm
Brakes: Promax MV-85, rear
Brake lever: Promax XL-378, rear
Cranks: Radio Raceline Xenon 3-piece, forged alloy, CNC machined, 155mm
Bottom bracket: Radio Raceline, BSA square taper, sealed
Sprocket: Radio Raceline, 40T, alloy
Chain: KMC Z6, 1/2" x 3/32"
Pedals: Radio Raceline Xenon Junior, alloy
Front hub: Radio Raceline Xenon, CNC alloy, fully sealed, 28H, 3/8" chromoly axle
Rear hub: Radio Raceline Xenon, CNC alloy, fully sealed, 28H, disc brake cassette, 3/8" chromoly axle
Rear cog: Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette
Rims: Radio Raceline Clipper Junior, sleeved joint, 28H, alloy, front and rear
Tyres: Tioga Power-block, 20" x 1-1/8"
Seat: Radio Raceline Xenon, pivotal, no padding
Seat post: Radio Raceline, 22.2mm, alloy
Seat clamp: Radio Raceline Xenon, quick-release, alloy
Gearing: 40x16, 50.98" gear ratio
Weight: 8.07kg

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Xenon Junior Bike

Name: Radio Xenon Junior Bike
Brand: Radio
SKU: RABK175-21-BLK
Price: 989.99 AUD
Availability: OutOfStock

Brand: Radio SKU: Click to copy the SKU and show the pick location

From

$989.99 AUD

$999.99 AUD

Or 4 payments of $247.49 AUD with

Recommended Rider Height:

120-150cm

Colour - Black/Red

Top Tube Length - 18.5

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
