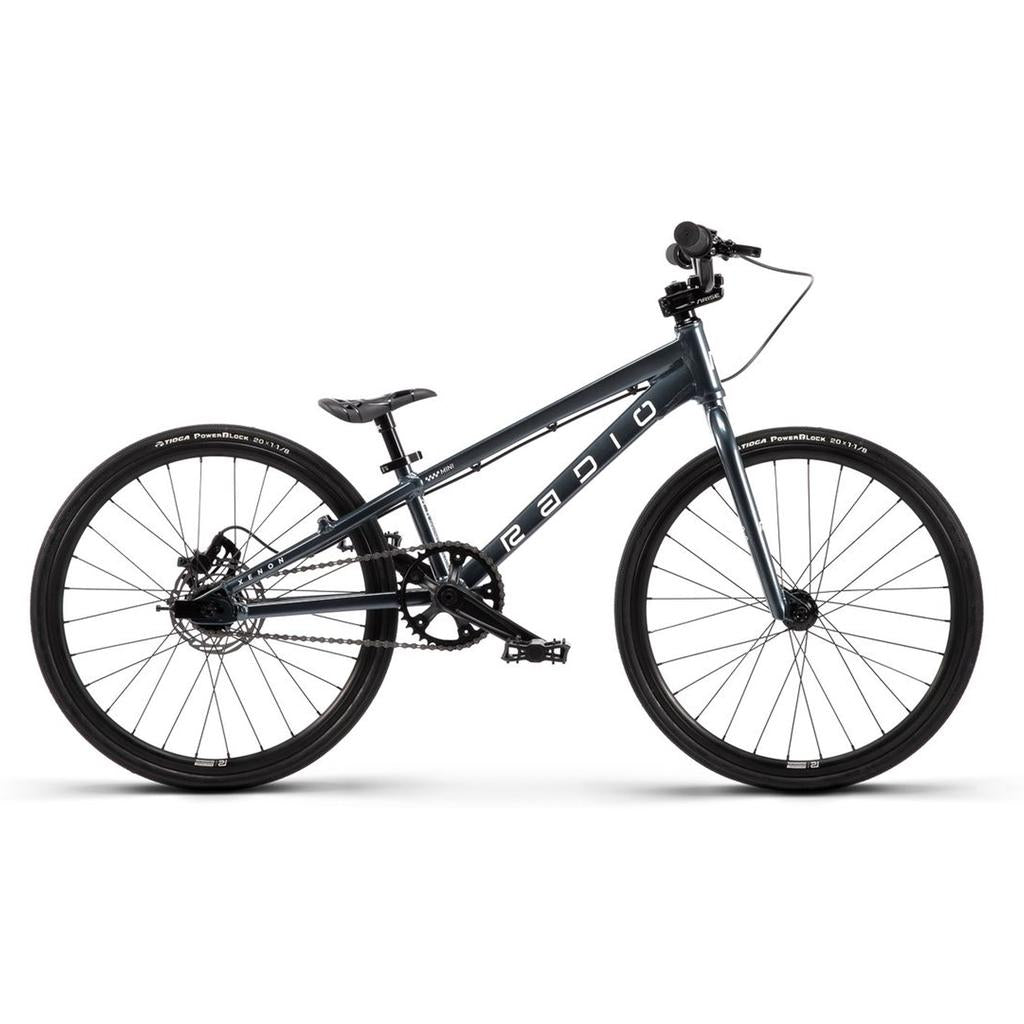

Side view of the Radio Xenon Mini Disc 20 Inch Bike, a lightweight BMX with hydroformed 6061-T6 alloy frame, flat handlebars, and thin tires, shown on a white background.
Close-up of the Radio Xenon Mini Disc 20 Inch Bike's lightweight BMX crankset, chainring, chain, pedal, and rear wheel with a hydroformed 6061-T6 alloy frame shown against a white background.

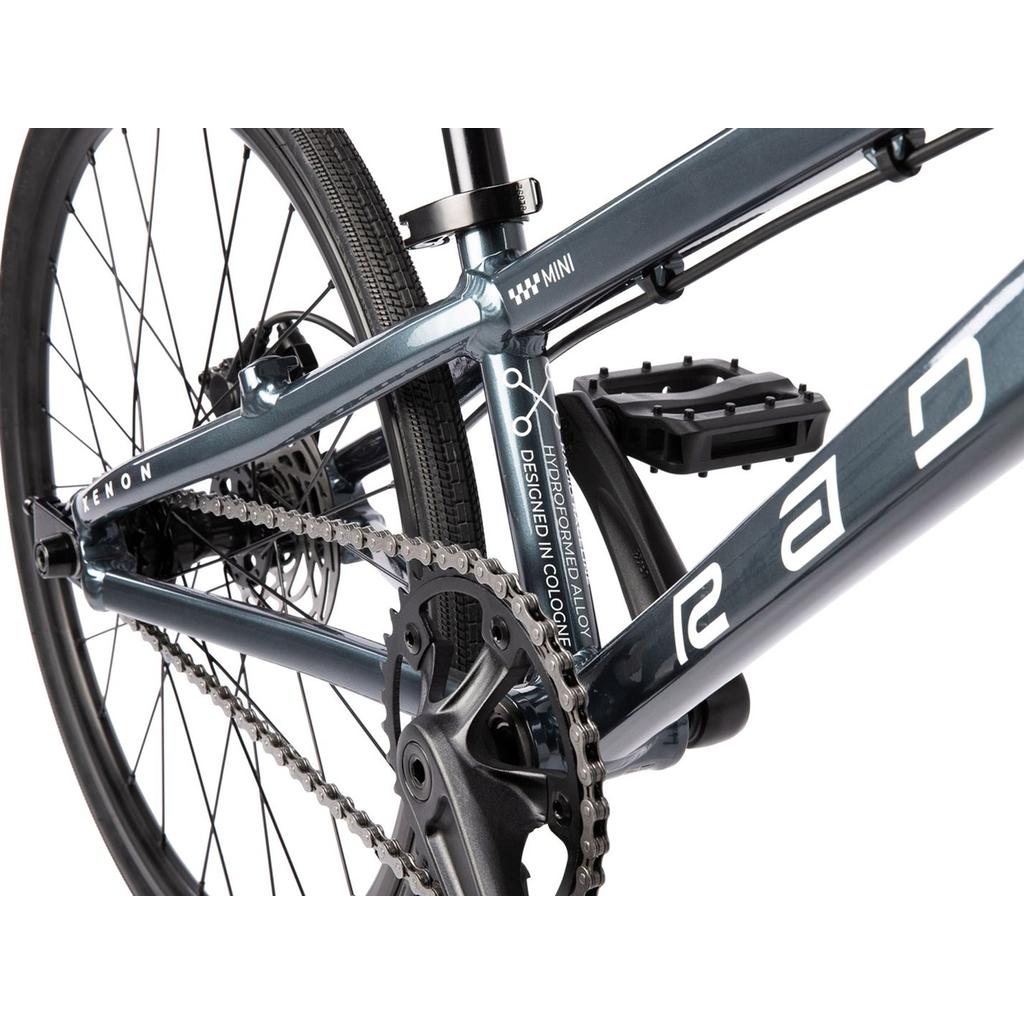

Close-up of a Radio Xenon Mini Disc 20 Inch Bike, highlighting its hydroformed 6061-T6 alloy frame, chain, pedal, rear wheel, and metallic blue finish with white branding and design accents.

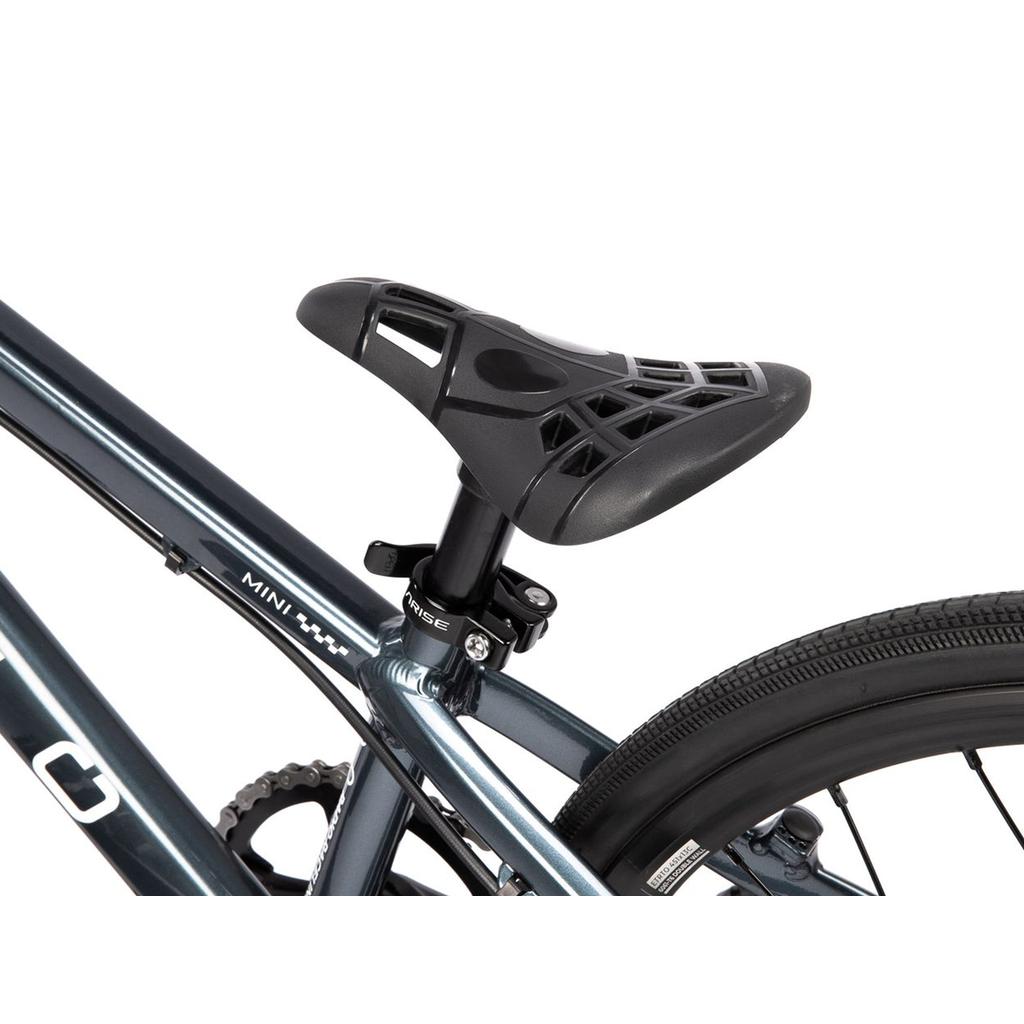

Close-up of the Radio Xenon Mini Disc 20 Inch Bike’s seat, seat post, and part of the rear wheel and tire attached to its hydroformed 6061-T6 alloy frame, highlighting features of this lightweight BMX model.

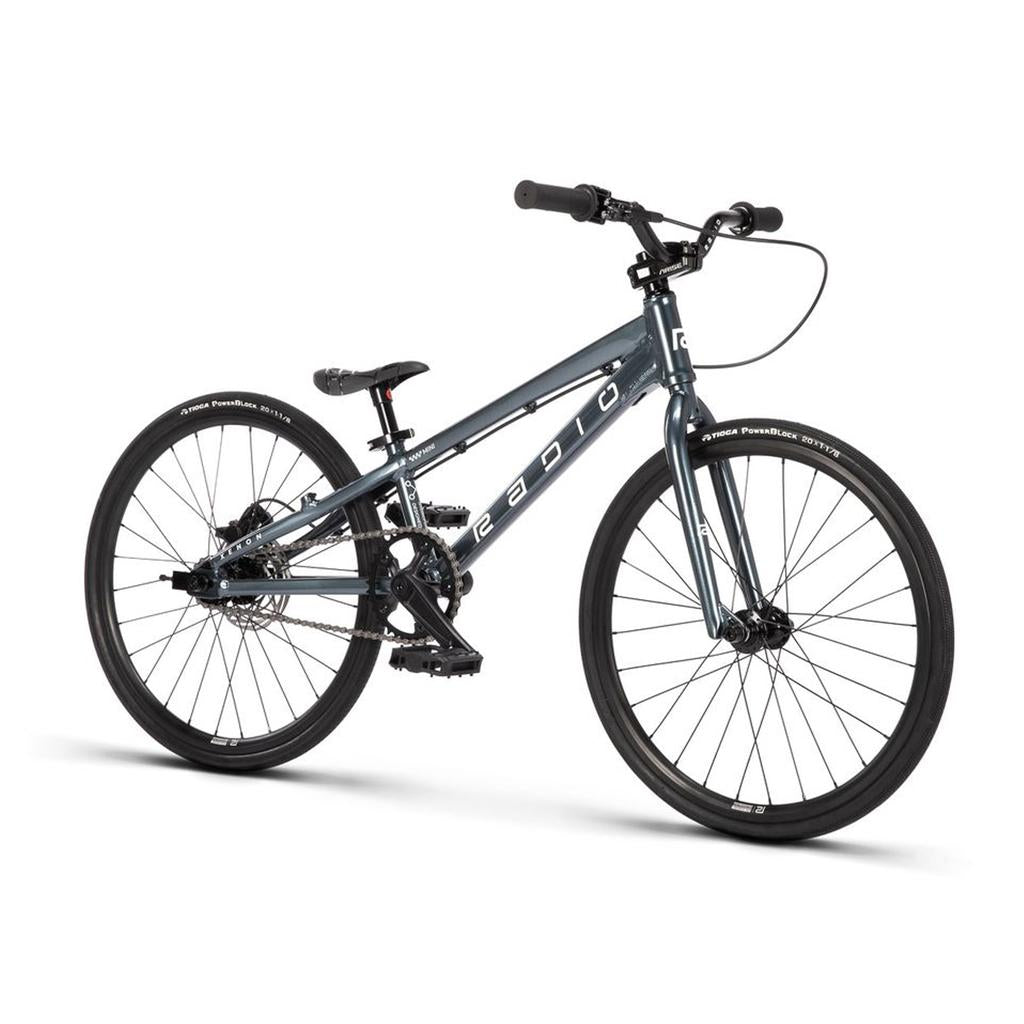

The Radio Xenon Mini Disc 20 Inch Bike is a gray BMX-style bicycle with a hydroformed 6061-T6 alloy frame, black tires, flat handlebars, and "RADIO" branding on the frame, displayed against a white background.

Description

The Radio Xenon Mini is a purpose-built little weapon, light and dialled straight out of the box. It is built around a hydroformed 6061-T6 alloy frame with disc brake ready dropouts, with a full crmo fork up front and compact geometry that keeps it easy to handle.

Radio Raceline Xenon parts run right through it: 3pc cranks, sealed hubs and a smooth rolling cassette, with Tioga Power Block tyres and a rear disc brake to match the speed. At 7.55 kg it suits younger riders chasing progression without fighting a heavy bike, on track laps or at the local.

Features
  • Light enough to keep up. At 7.55 kg the Xenon Mini is easy for a young rider to pick up and push, so progression comes faster.
  • Hydroformed 6061-T6 alloy frame. Forged, disc brake mount ready dropouts and compact geometry keep it strong and snappy without the weight.
  • Full crmo fork up front. A 1" butted steerer, crmo legs and 23mm offset add toughness where the front end cops the most.
  • Rear disc brake power. The Arise Xenon disc brake and matching lever bring proper stopping power to match how fast this thing rolls.
  • Radio Raceline Xenon kit throughout. 140mm 3pc cranks, a sealed BSA square taper bottom bracket, sealed hubs and a smooth cassette, on Tioga Power Block tyres.

Specifications
  • Size: 20"
  • Frame: Hydroformed 6061-T6 alloy, forged and disc brake mount ready dropouts
  • Fork: Crmo, 1" butted steerer, crmo fork legs, 23mm offset
  • Headset: Radio Raceline integrated, sealed, 1"
  • Stem: Arise Cobalt toploader, 40mm extension, alloy
  • Bars: 6061-T6 alloy
  • Grips: Radio Raceline Xenon, diamond knurling, clamp on, 115mm
  • Brakes: Arise Xenon disc brake, rear
  • Brake lever: Arise Xenon disc brake lever
  • Cranks: Radio Raceline Xenon 3pc, forged alloy, CNC machined, 140mm
  • Bottom bracket: Radio Raceline, BSA square taper, sealed
  • Tyres: Tioga Power Block
  • Weight: 7.55 kg

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Radio Xenon Mini Disc 20 Inch Bike

Brand: Radio SKU:

$1,399.99 AUD

Or 4 payments of $349.99 AUD with

Colour - Dark Grey

Top Tube Length - 17.6

$1,399.99 AUD

Price match request

Radio Xenon Mini Disc 20 Inch Bike - Dark Grey / 17.6
