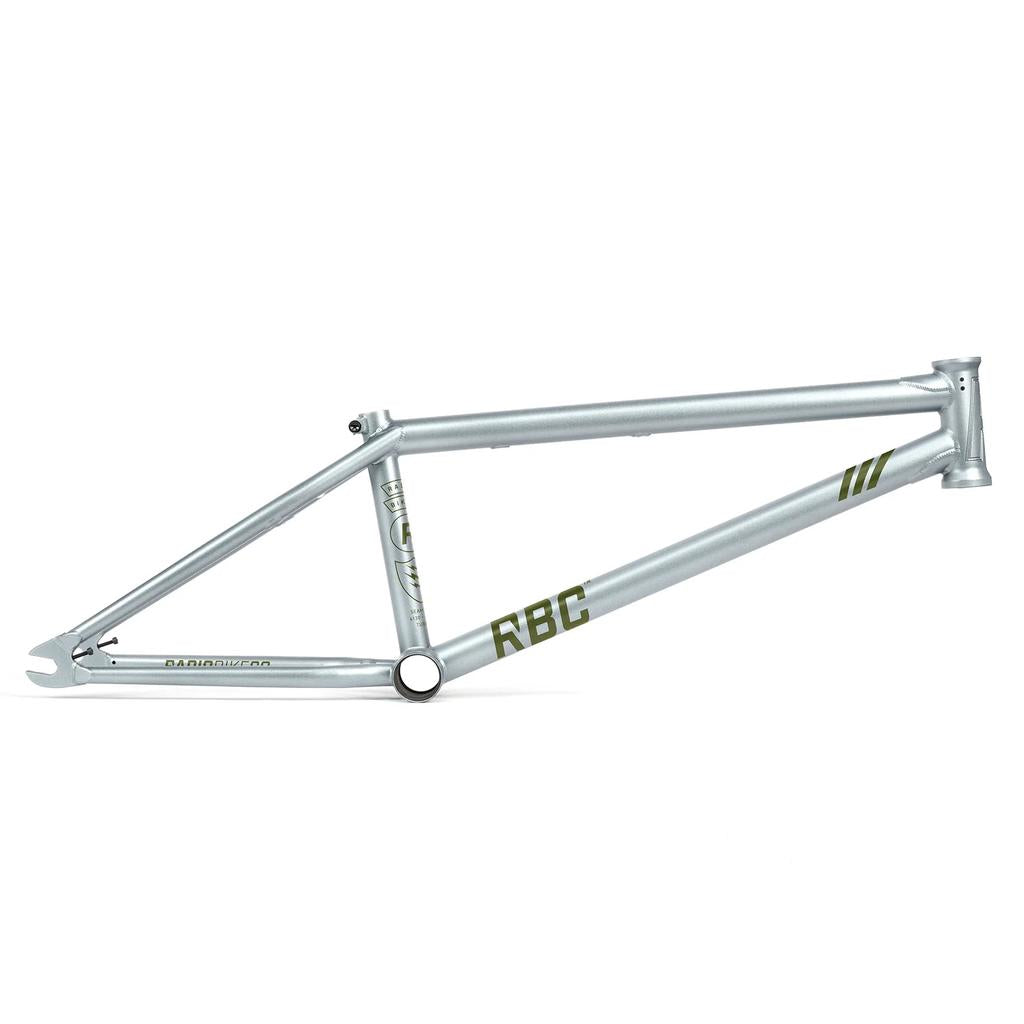

The Rant Squad Frame is a lightweight silver BMX frame with green decals and all-rounder geometry, shown from the side on a white background.

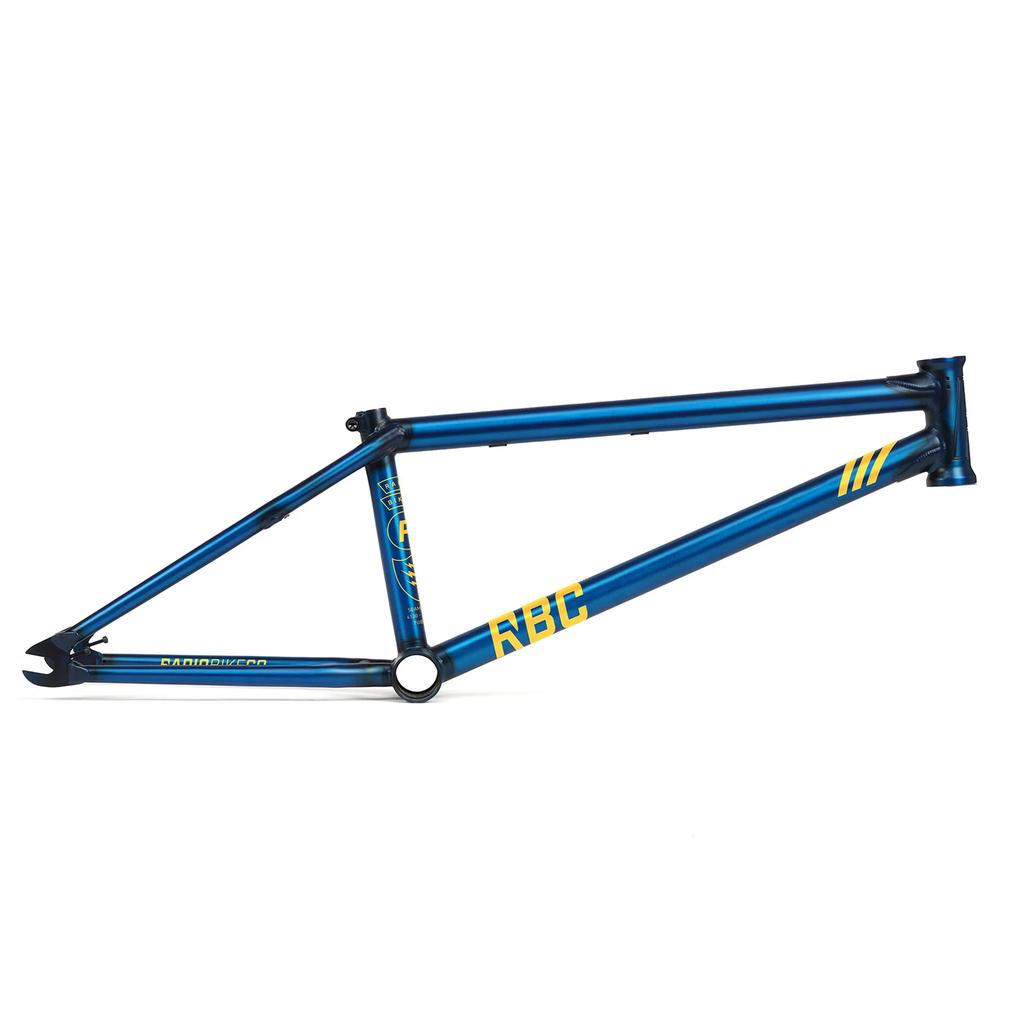

The Rant Squad Frame is a blue BMX frame with lightweight, all-rounder geometry, yellow and white text and graphics, shown from the side against a white background.

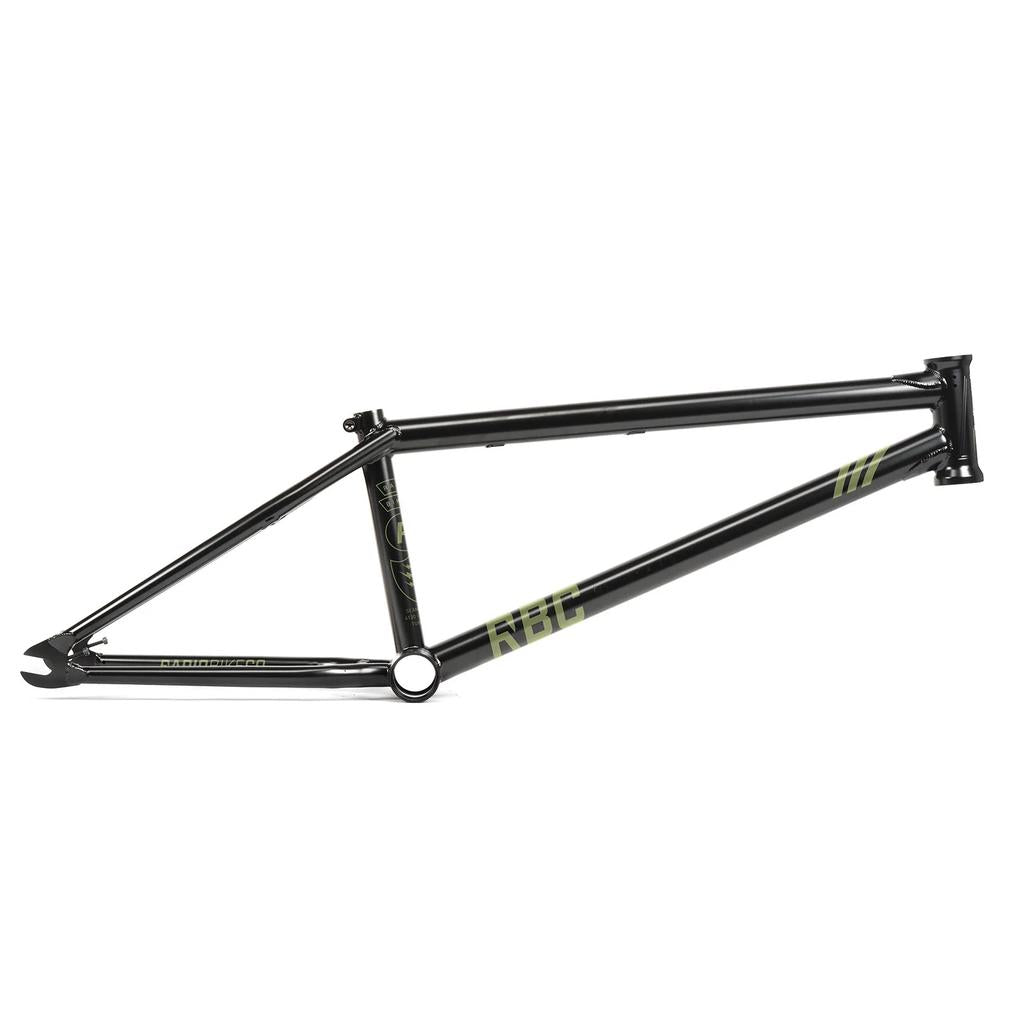

The Rant Squad Frame features a lightweight matte black BMX design with green graphics and all-rounder geometry, shown on a white background.

Description

The Squad is a do-it-all frame: a mix of technical but stable geometry that suits skatepark, street and dirt rather than specialising in one of them. The angles and lengths are a blend, so nothing feels out of place wherever you point it.

Slimmer, lighter weight tubing keeps it down to 2.26 kg in the 21", and a custom CNC machined head tube logo finishes it off. Removable brake mounts and cable guides, and it includes a lifetime guarantee.

Features

All-round park, street and dirt geometry. A blend of angles and lengths that stays stable on dirt without feeling slow in a skatepark.
Light at 2.26 kg. Slimmer, lighter weight tubing throughout keeps the 21" frame light while staying one of the tougher frames going.
13" to 13.5" adjustable chainstay. Slam it short for park riding or run it out longer for stability on trails and bigger jumps.
Custom CNC machined head tube logo. A machined detail on the 117mm tall integrated head tube that sets this frame apart from the rest.
Removable brake mounts and cable guides. Run a brake for dirt or strip it clean for street, with rotor tab holes on the head tube.

Specifications

Top tube: 20.6", 21"
Chainstay: 13" to 13.5"
Head tube angle: 75.25°
Seat tube angle: 71°
Standover: 8.6"
Bottom bracket height: 11.8"
Bottom bracket: Mid size
Brake mounts: Removable, with rotor tab holes on the head tube
Cable routing: Removable cable guides
Head tube: 117mm tall, integrated
Weight: 2.26 kg (21")
Note: Includes lifetime guarantee

Rant Squad Frame

Name: Rant Squad Frame
Brand: Radio
SKU: RAFR203-03-GUN
Price: 899.99 AUD
Availability: OutOfStock

Brand: Radio SKU: Click to copy the SKU and show the pick location

$899.99 AUD

Or 4 payments of $224.99 AUD with

Colour - Gun Metal

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
