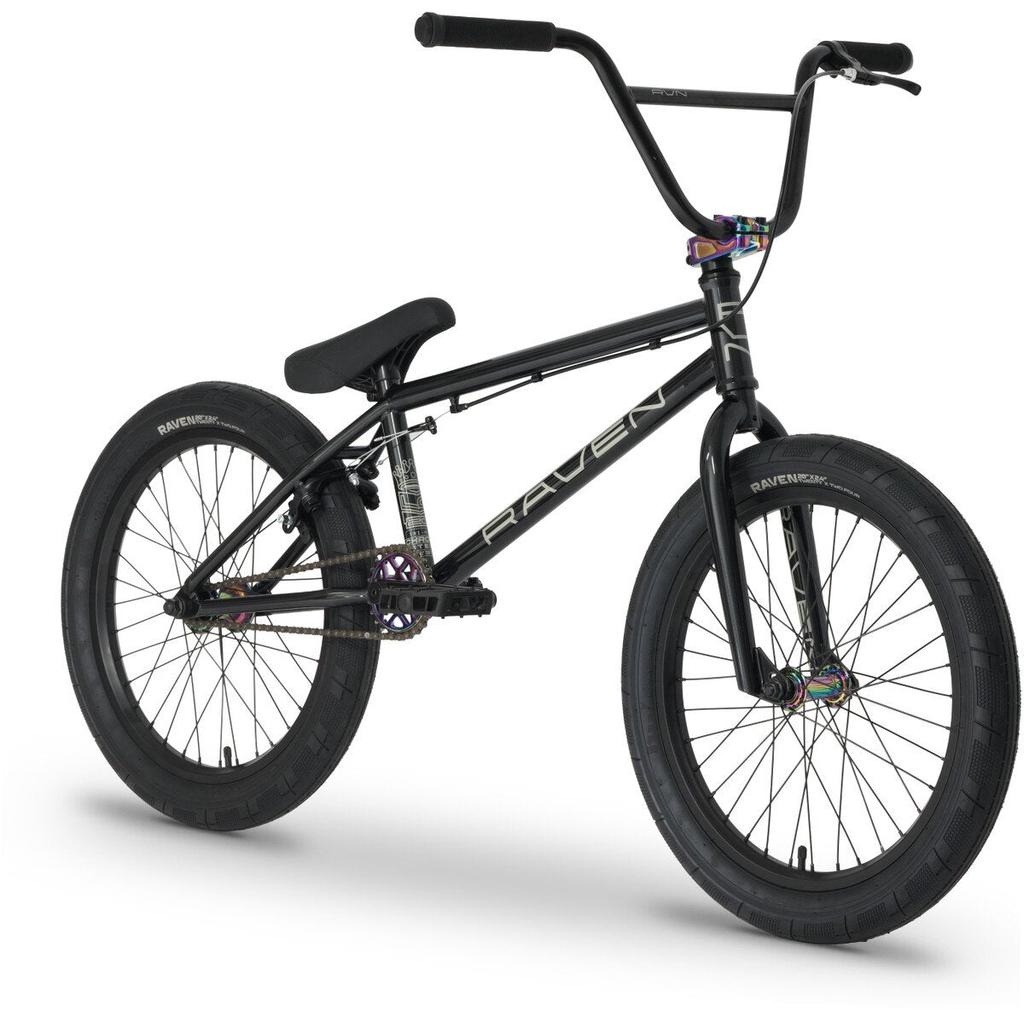

The Raven LC 20 Inch Bike is shown on a plain white background, featuring a black chromoly frame, thick tires, high handlebars, and a padded seat.

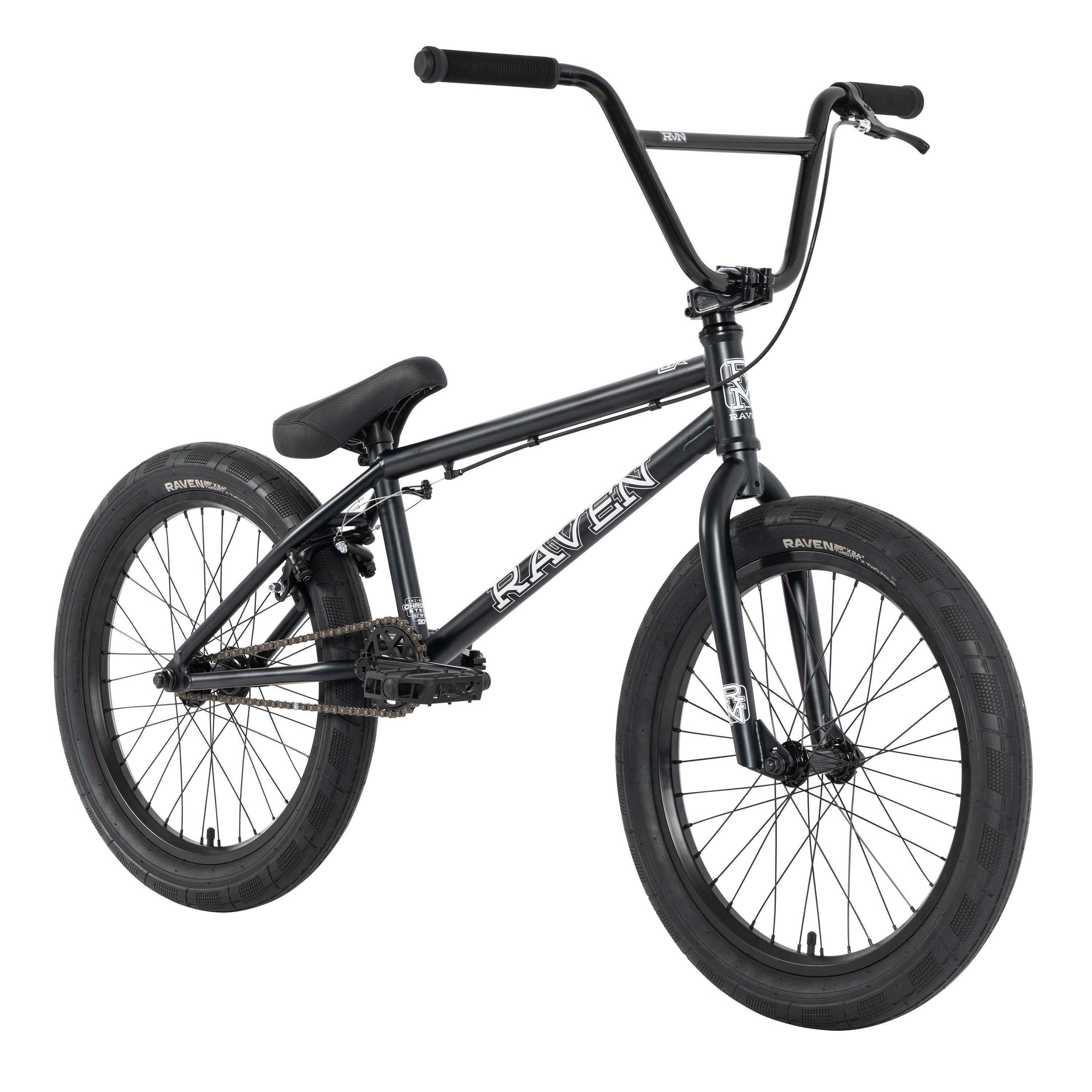

The Raven LC 20 Inch Bike is a black BMX model with a logo on its Cro-Mo frame, equipped with wide tires, handlebars, a padded seat, and alloy double wall rims.

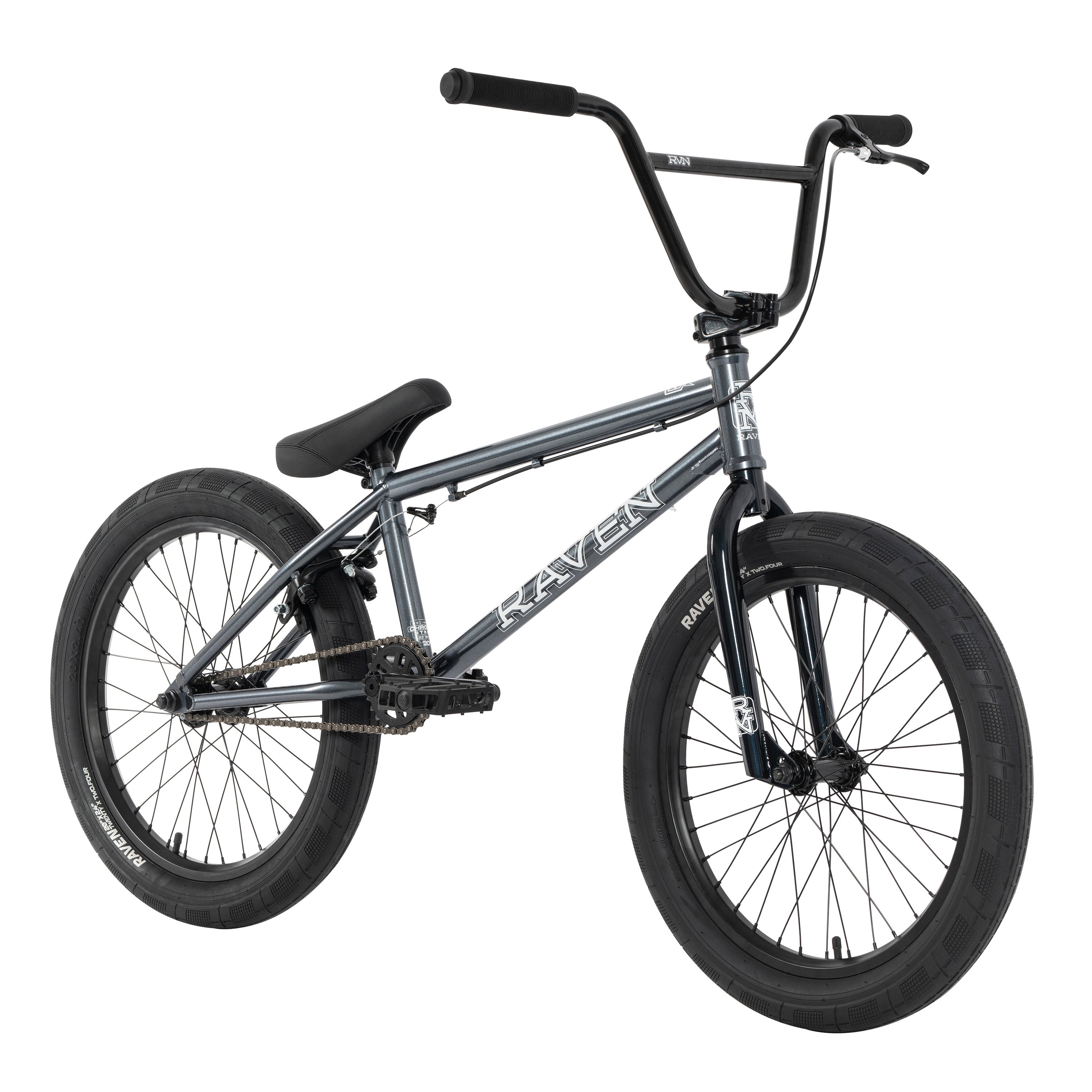

The Raven LC 20 Inch Bike is a gray BMX bike featuring a sturdy Cro-Mo frame with the brand name "Raven" on it, black tires, and handlebar grips. It comes equipped with Alloy Double Wall Rims for enhanced durability and a dependable Rear Alloy U brake for smooth stopping.

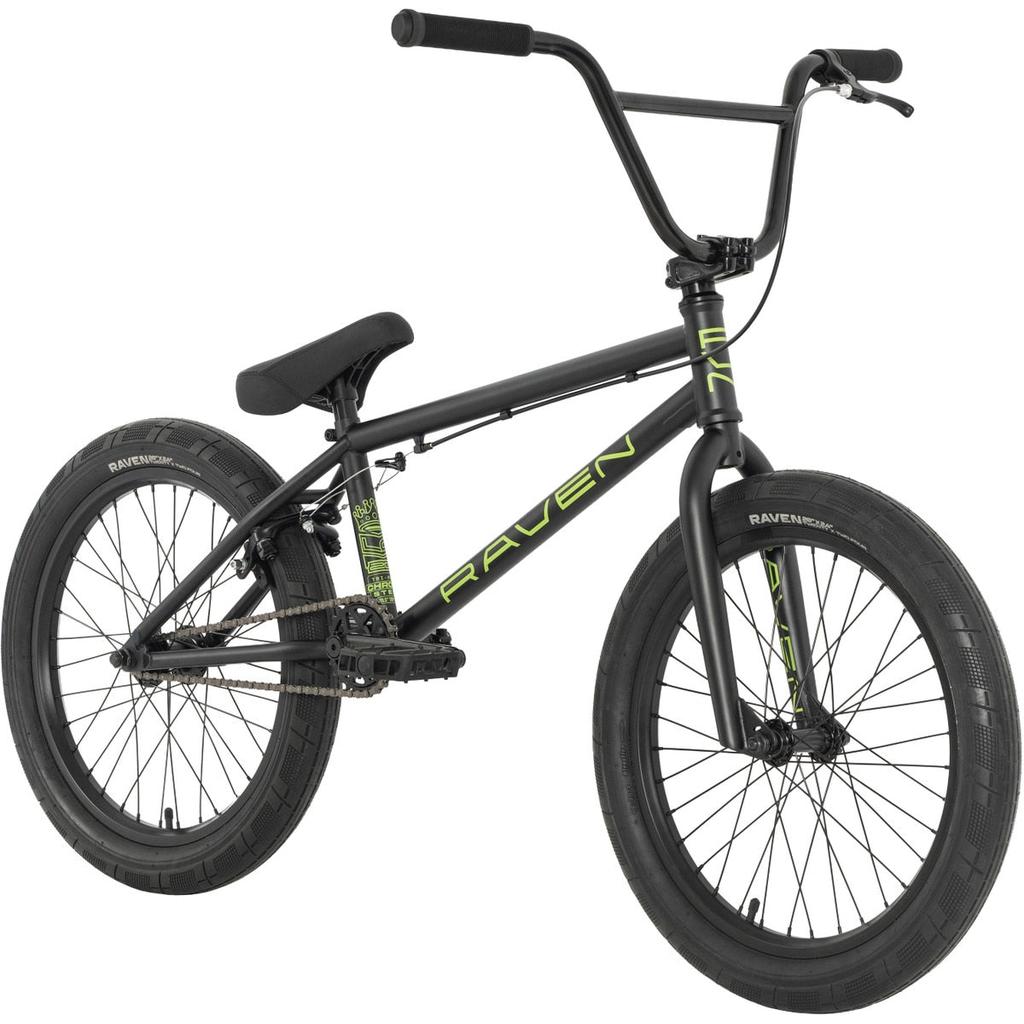

The Raven LC 20 Inch Bike is a black BMX with thick tires and "RAVEN" in green on its chromoly frame, displayed front-side on a white background.
Close-up of the Raven LC 20 Inch Bike, featuring a black frame with "RAVEN" in green lettering. Visible pedal, seat, and front fork stand out against a black background, while the chromoly frame showcases durability and performance.

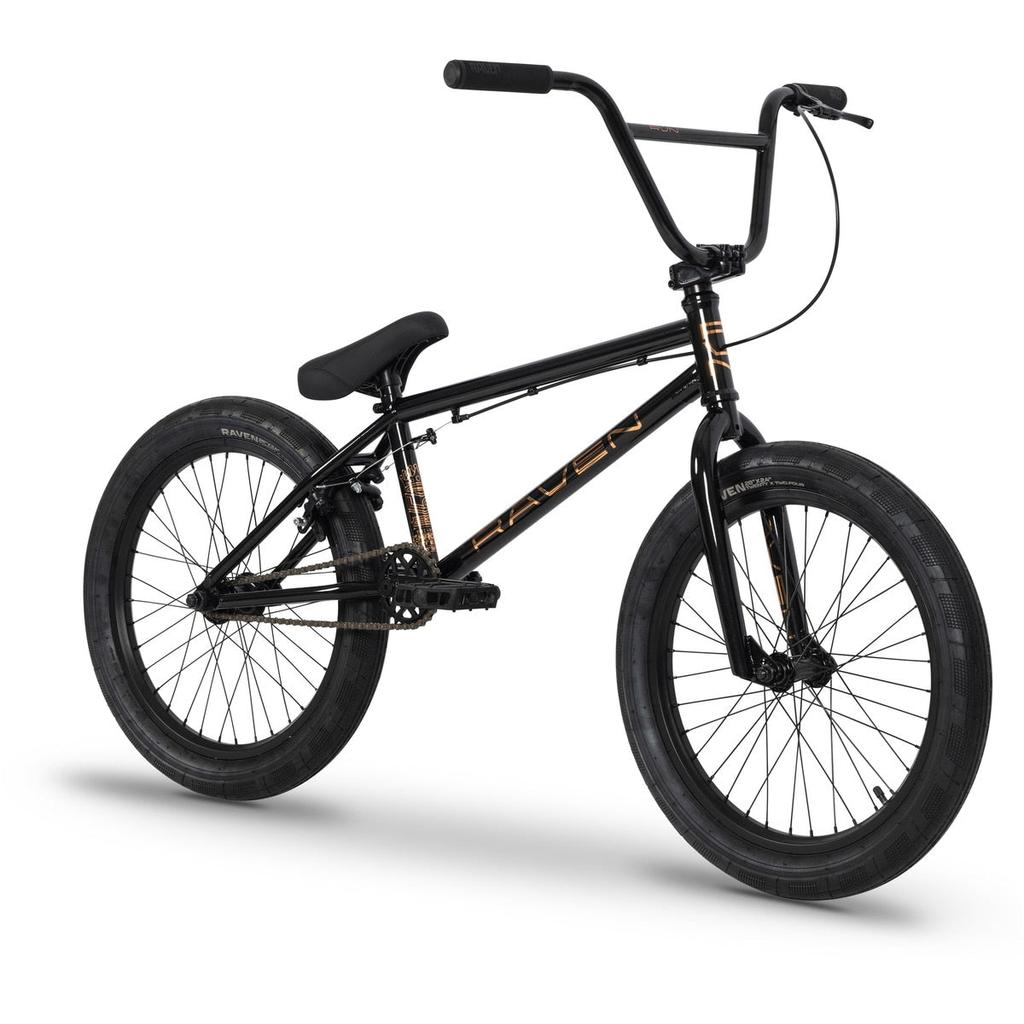

The Raven LC 20 Inch Bike features thick tires, upright handlebars, and a lightweight chromoly frame, displayed on a white background.

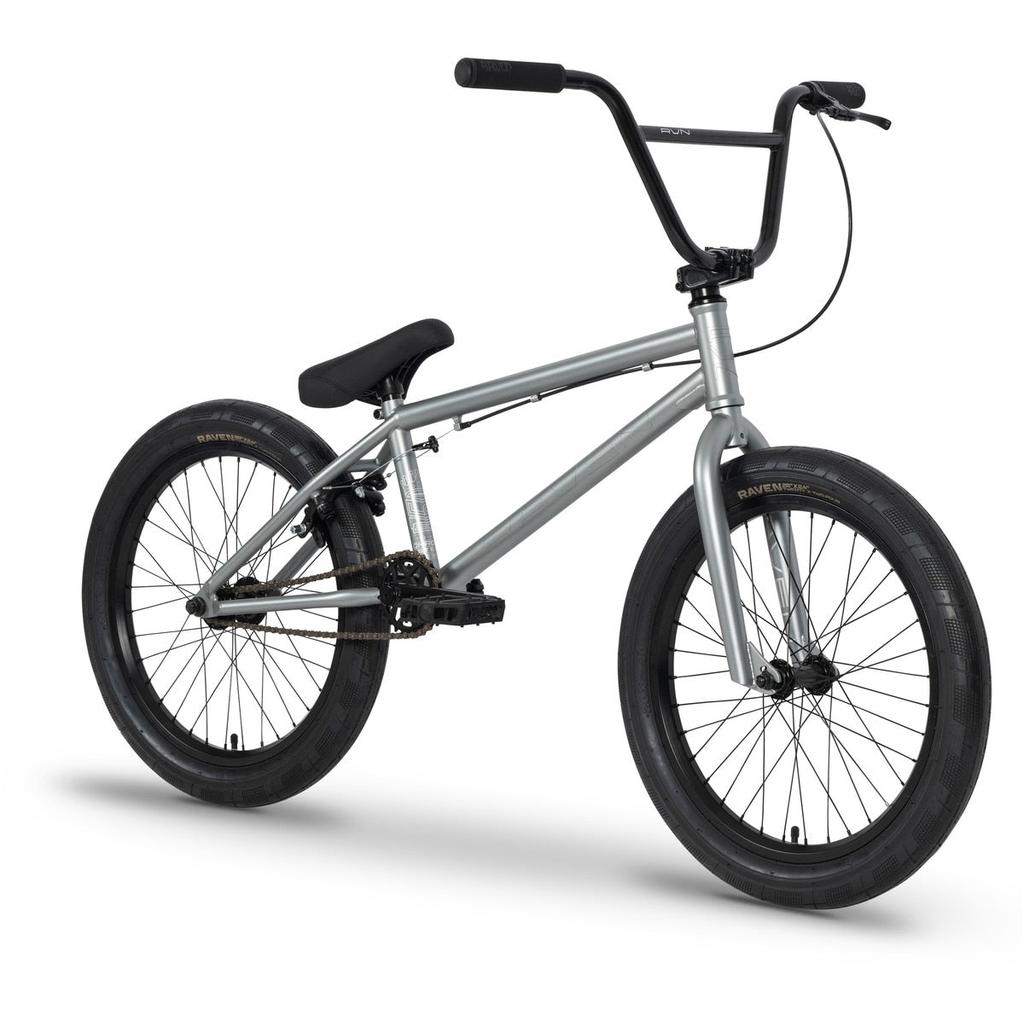

The Raven LC 20 Inch Bike features a silver chromoly frame with black handlebars, seat, and tires, displayed against a white background.

Description

Stepping things up without stepping into high-price territory, the Raven LC 20 is built for riders who want real BMX feel straight out of the box. With a semi chromoly frame for additional strength, sealed bearings, and double-wall rims, this one punches way above its price tag.

At the heart of the build is a 20.5 inch top tube—perfect for newer riders who want a bit more room to move. The chromoly down tube, top tube, head tube, BB, and seat tube mean you’re getting strength where it matters, while a semi chromoly fork keeps things solid up front. And with a sealed MID BB, 3-piece chromo cranks, and 25-9 gearing, this rig’s dialled to ride, not just look good.

The Raven 2.4 inch tyres, marble resin pedals, and a sleek one-piece seat/post combo tie it all together. It even comes with a sealed integrated headset, top-load alloy stem, and rear U-brake fitted—ready to roll and ready to grow with your riding.

If you're looking for maximum value with legit spec, the LC delivers—Low Cost, but built to shred.

Features
  • Real BMX feel out of the box. A semi chromoly frame, sealed bearings and double-wall rims give this one proper BMX manners without the high price.
  • 20.5 inch top tube. A bit more room to move for newer riders stepping up, so the bike still fits as their riding grows.
  • Chromoly where it matters. Top tube, down tube, head tube, bottom bracket and seat tube are Cro-Mo, with a Cro-Mo steerer and steel tapered fork legs up front.
  • Sealed MID BB and 3-piece cranks. 170mm 3-piece Cro-Mo cranks with a 25T alloy sprocket and 25-9 gearing, dialled to ride rather than just to look good.
  • Fat 2.4 inch tyres, brake fitted. Raven 20x2.4" tyres on alloy double wall 36H rims, with an alloy U-brake fitted out back and a top-load alloy stem.

Specifications
  • Size: 20" wheels, 20.5" top tube
  • Frame: Cro-Mo main frame (TT, DT, HT, BB, ST), 20.5"
  • Top tube: 20.5"
  • Fork: Cro-Mo steerer tube with steel tapered legs
  • Headset: Integrated sealed
  • Stem: Alloy top load, 4-bolt
  • Bars: Hi-tensile steel
  • Brakes: Front calliper (not fitted), rear alloy U-brake (fitted)
  • Cranks: 3 piece Cro-Mo, 170mm
  • Bottom bracket: Sealed MID
  • Sprocket: 25T alloy
  • Chain: KMC
  • Pedals: Marble resin platform
  • Front hub: Raven alloy 3/8 front, sealed
  • Rear hub: Raven alloy 14mm rear, sealed bearing
  • Spokes: 36H, 14g
  • Rims: Alloy double wall, 36H
  • Tyres: Raven 20x2.4"
  • Seat: One piece seat and post combo
  • Seat post: One piece seat and post combo
  • Gearing: 25-9

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Raven LC 20 Inch Bike

Brand: Raven SKU:

From

$494.99 AUD

 $548.99 AUD

Or 4 payments of $123.74 AUD with

Colour - Shadow Bronze

Top Tube Length - 20.5

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
