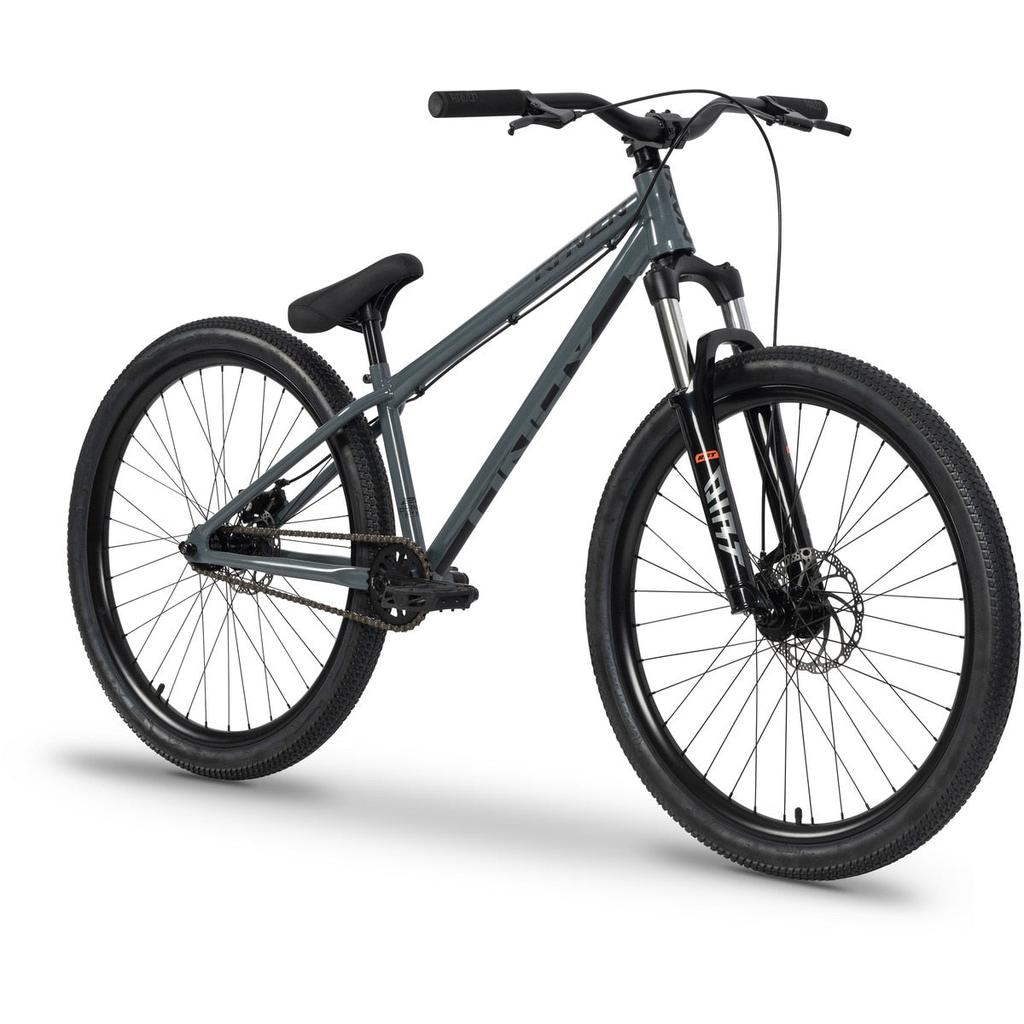

The Raven Onyx 26 Inch Dirt Jumper Bike, featuring a gray Chromoly frame, thick black tires, front suspension fork, flat handlebars, single gear, and disc brakes, is displayed on a white background.
The Raven Onyx 26 Inch Dirt Jumper Bike is a black single-speed BMX with a chromoly frame, front suspension, flat handlebars, and knobby tires, shown from the side against a white background.
The Raven Onyx 26 Inch Dirt Jumper Bike features a tough chromoly frame, front suspension, disc brakes, flat pedals, and knobby tires in black and teal, displayed in a side view.

Description

Get hyped boys! These DJs are built for shredding and won't break the bank- how good is that! Chromoly Frame, disc brakes, sealed bearings- these lips be smackin!

The Raven Onyx DJ Bike is a 26 Inch dirt jump bike built for riders who demand a ball on a budget! Featuring a Cro-Mo frame with a tapered headtube, an RST Dirt-9 suspension fork, and a reliable 3-piece Cro-Mo crankset, it's designed to handle jumps, pump tracks, and urban riding with ease. Sealed bearing hubs and a sealed MID bottom bracket ensure smooth performance and low maintenance, while Tektro mechanical disc brakes provide dependable stopping power. Finished with double-wall alloy rims, wide 720mm handlebars, and grippy 26 x 2.35" tyres, the Onyx is ready for every session.

Features
  • Cro-Mo frame, tapered head tube. A chromoly frame with a 1.5" head tube and a semi integrated tapered headset: strong where a dirt jumper cops the most abuse.
  • RST Dirt-9 suspension fork. Takes the sting out of the landings on jumps, pump tracks and urban lines.
  • Tektro M280 disc brakes. Mechanical discs with alloy levers give dependable stopping power session after session.
  • Sealed bearings throughout. Raven alloy sealed bearing hubs and a sealed mid bottom bracket run smooth and need very little looking after.
  • Wide bars, wide tyres. 720mm alloy bars with 40mm rise and 26 x 2.35" tyres on 36H double wall alloy rims for grip and control.

Specifications
  • Size: 26" wheels
  • Frame: Cro-Mo with 1.5" head tube
  • Fork: RST Dirt-9
  • Headset: 1 1/8" to 1.5" semi integrated tapered
  • Stem: Alloy, 4 bolt
  • Bars: Alloy, 720mm wide, 40mm rise
  • Brakes: Tektro M280 mechanical disc
  • Brake lever: Alloy
  • Cranks: 3-piece Cro-Mo, 170mm, 48T-19mm
  • Bottom bracket: Sealed mid
  • Chainring: Alloy 30T
  • Chain: KMC
  • Pedals: Resin platform
  • Front hub: Raven alloy, sealed bearing
  • Rear hub: Raven alloy, sealed bearing
  • Rear cog: 16T Cro-Mo freewheel
  • Spokes: 36H, 14g
  • Rims: Alloy double wall, 36H
  • Tyres: 26 x 2.35
  • Seat: BMX fixed
  • Seat post: Alloy
  • Seat clamp: Integrated

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Raven Onyx 26 Inch Dirt Jumper Bike

Brand: Raven SKU:

$799.99 AUD

Or 4 payments of $199.99 AUD with

Colour - Matte Black

Top Tube Length - -

26 inch BMX sizing

A 26 inch is the largest BMX wheel, for riders about 160cm and up, on a 22 to 23 inch top tube. It is a ride feel rather than a size step: more roll and stability, still BMX geometry.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

26 inch BMX sizing

A 26 inch is the largest BMX wheel, for riders about 160cm and up, on a 22 to 23 inch top tube. It is a ride feel rather than a size step: more roll and stability, still BMX geometry.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
