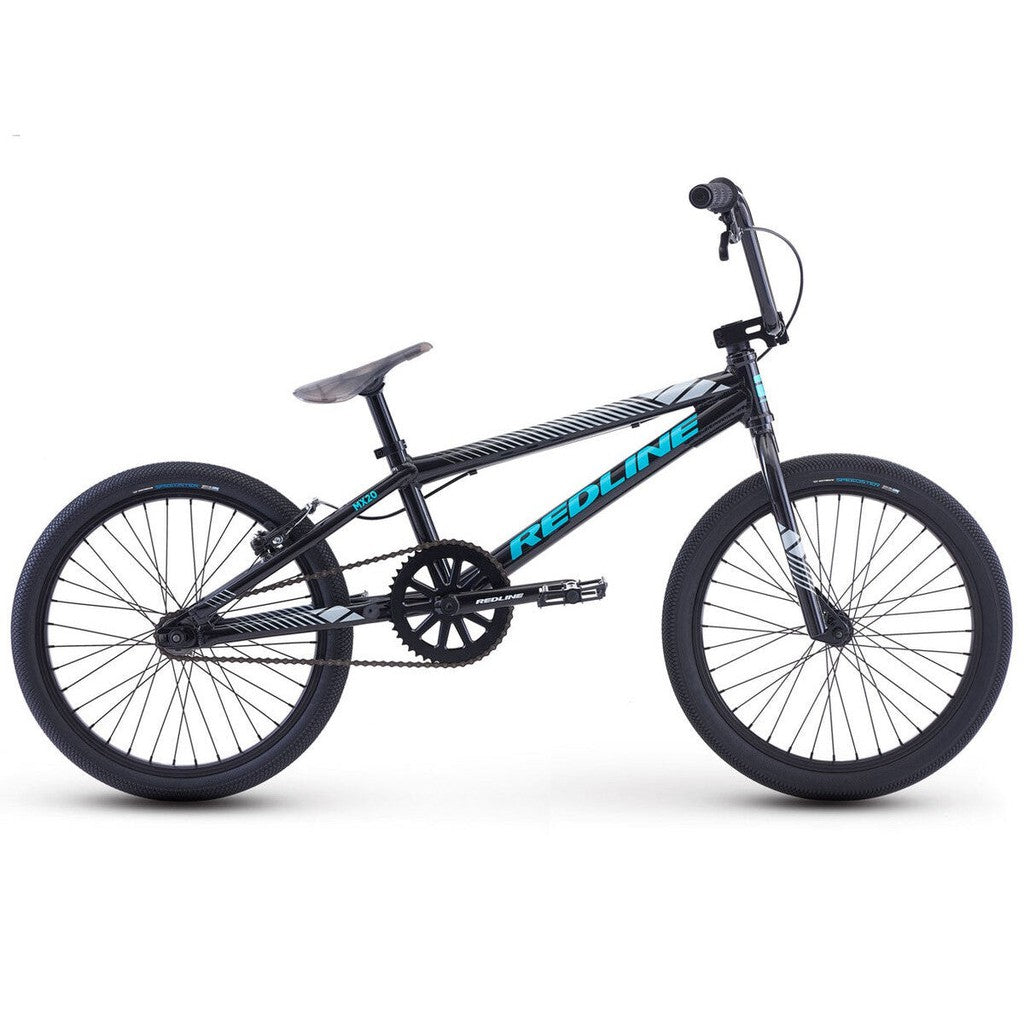

Redline MX Pro 20 (2023) / Black / 20.25TT

Highlights

Race name since the 70s
Light 6061 alloy frame, black finish
Chromoly 3-piece cranks, 175mm
Fat front tyre, faster rear

Description

Redline is a name synonymous with BMX racing since the 70s, and comes with a reputation for producing winners. If you are looking to get your kids out on the racetrack in style, then look no further than the Redline Pro bike. These 20 race bikes are perfect for beginner riders wanting to have an absolute blast and fall in love with BMX racing. Maybe even win some races! They feature an aluminum frame to help keep the weight down and a 3 piece crank for strength. Vee Speedster tyres have been used for loads of grip on track and a Tektro Brake is on the bike, not they'll be tapping it as they go straight to the lead. This looks badd ass in black too.

Features

Race name since the 70s. Redline has been producing winners since the 70s, and the Pro 20 is the full sized race bike in the MX range.
Light 6061 alloy frame, black finish. The alloy frame with an integrated head tube keeps the weight down on a 20.75" top tube built for the gate.
Chromoly 3-piece cranks, 175mm. Race chromoly cranks handle the part of the bike that cops the most force, geared 44x16 for a 54.29" rollout.
Fat front tyre, faster rear. Vee Speedster 20 x 1.95" up front for grip and 20 x 1.75" out back, both on alloy race rims.
Tall bars, Tektro BX310 brake. 8" rise RL race bars, Redline Hex Expert grips, a Pivotal race seat and a Tektro BX310 linear rear brake.

Specifications

Size: 20" wheels, 20.75" top tube
Frame: 6061 alloy with integrated head tube
Top tube: 20.75"
Fork: RL Race Hi-Ten with tapered legs
Headset: Integrated 1-1/8"
Stem: RL Hollow Point 1-1/8" threadless
Bars: RL Race, 8" rise / 10° back / 4° up
Grips: Redline Hex Expert with plugs
Brakes: Tektro BX310 linear, rear
Brake lever: Tektro
Cranks: Race chromoly 3-piece, 175mm
Bottom bracket: Euro
Chainring: Alloy 44T
Chain: KMC S1
Pedals: RL Race 9/16" PC
Front hub: Redline aluminium
Rear hub: RL aluminium flip-flop
Rear cog: 16T
Spokes: Steel
Rims: Alloy Race 20 x 1.75
Tyres: Vee Speedster, front 20 x 1.95", rear 20 x 1.75"
Seat: Pivotal race
Seat post: Pivotal 26.8
Seat clamp: RL alloy
Gearing: 44x16 / 54.29"
Colour: Black

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Redline MX Pro 20 Bike

Name: Redline MX Pro 20 Bike
Brand: Redline
SKU: RLBK005-23-BLK
Price: 999.99 AUD
Availability: OutOfStock

Brand: Redline SKU: Click to copy the SKU and show the pick location

$999.99 AUD

Or 4 payments of $249.99 AUD with

Colour - Black

Top Tube Length - 20.25

Race frames are sized by class, and the class you ride is set by rider height rather than age.

Size	Rider height	Top tube
Micro (18" wheels)	Under 120cm	16.25"
Mini (20" wheels)	110 to 140cm	17 to 18"
Junior	120 to 150cm	18.25 to 18.75"
Expert	130 to 170cm	19.5 to 19.75"
Expert XL	145 to 170cm	20 to 20.75"
Pro	150 to 175cm	20.25 to 20.75"
Pro XL	165 to 180cm	21 to 21.25"
Pro XXL	170 to 185cm and up	21.5 to 21.85"
Pro XXXL	175cm and up	22"
Pro XXXXL	180cm and up	22.5"
Cruiser (24" wheels)	175cm and up	21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two sizes and still growing? Take the larger size.
Racing gates and wanting the bike to turn faster? Take the smaller size.
Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
