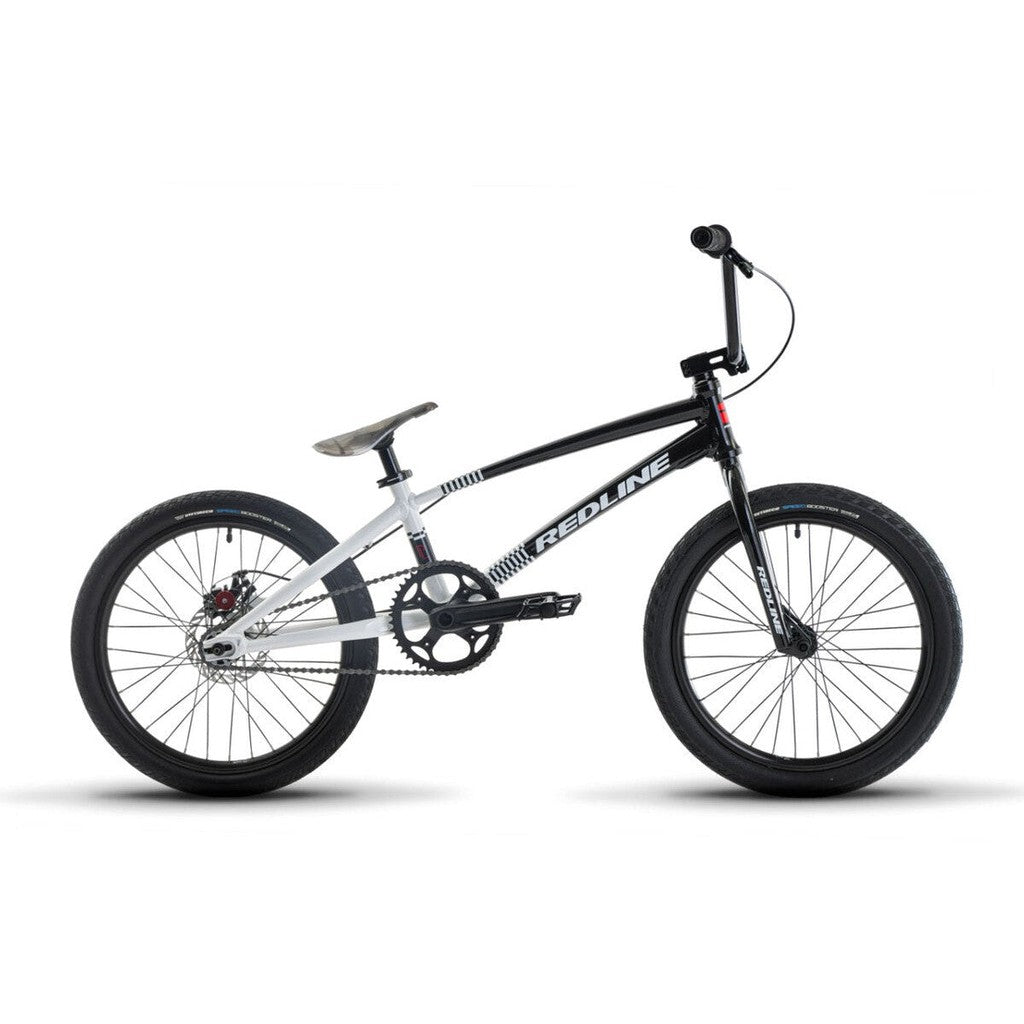

Redline is back for 2023 with their venerable Proline range of complete race bikes. Seen on race tracks across Australia since the birth of BMX racing here, the Proline name is synonymous with riders looking to step up their race game and for this model year, Redline has added performance focused components like Avid disc brakes, along with the Alloy Formed and Butted Tubed frame.
Tried and tested CrMo is used in the forks and Redline know their stuff when it comes to setting up a race bike, with the gearing being 44x16. That 44 is bolted to a set of 170mm forged alloy cranks that sport a CrMo spindle. All gear that can take the hits a rider is likely to dish out at the local track as they start to sent the bigger stuff. That's what BMX is all about right?
Guess who was there at the beginning of BMX? Redline! They've been winning since the 70s with riders like the legendary Stompin Stu Thompson and later on, Aussie Sam ""I Am"" Willoughby. It's a company that sure knows its riders and how to beat the competition.
Key Specs:
TT Length: 21""
Crank Length: 170mm
Gearing: 44x16
Gear Ratio: 54.29
Tyre Size: 20x1.95 / 20x1.75
| Size | 21TT |
| Frame | RL Proline Proprietary Alloy Formed and Butted Tubing |
| Fork | RL Proline Full Chromo With Tapered Legs |
| Headset | Sealed Integrated Headset 1 1/8, Aluminum top cap |
| Stem | RL Aluminum HollowPoint 55mm |
| Handlebar | RL Pro Chromo 8.0"" Rise / 10° Back / 4° Up |
| Grips | RL Pro Hex Grips |
| Brake | Mechanical Disc - Lever Promax XL-373 / Avid Caliper |
| Disc Rotor | 120mm |
| Crank | Proline 2pc Alloy Forged Cranks, 170mm w/24mm Chromo Spindle |
| Chainring | 44t, Alloy, 104 BCD |
| Chainring Bolts | Alloy |
| Bottom Bracket | External Sealed Euro BB |
| Pedals | RL Aluminum 9/16"" Platform |
| Chain | KMC Z6 |
| Front Hub | Redline Aluminum Fully Sealed |
| Rear Hub | Redline Aluminum, Cassette, Fully Sealed |
| Spokes | Stainless Steel 14g |
| Rear Cog | 16T |
| Front / Rear Rim | A-M6 Alloy Race, 20 x 1.5, 32h |
| Tyres | Vee Speed Booster, F. 20 x 1.95"" / R. 20 x 1.75 |
| Seat / Post | Race Pivotal / Aluminum Pivotal 26.8mm |
| Seat Clamp | RL Quick Release |
| Gearing / Ratio | 44x16 / 54.29 |
| Weight | TBA |
