Description

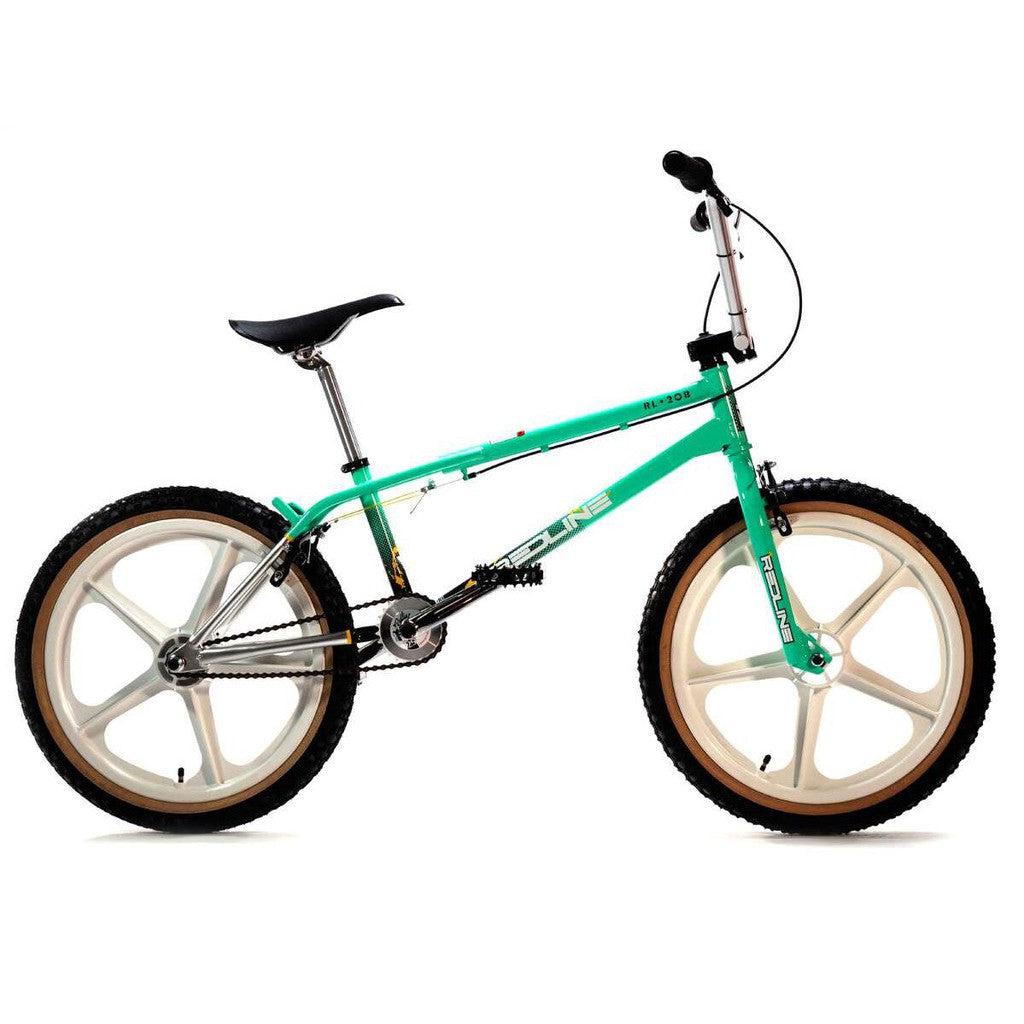

The Redline RL20B TUFF II Retro 20 Inch Bike is not just a machine but an emotional connection to the wonderful world of BMX. The bike's retro design and style bring back memories of a time when BMX was new and exciting, and riders were pushing the limits of what was possible. The Redline RL20B bike is more than just a bike; it's a symbol of the passion and dedication that BMX riders have for their sport.

The Redline RL20B Retro Bike is not only a bike but a masterpiece of intertwined retro and new school BMX design and engineering. The Redline RL20B bike has a full 4130 chromoly frame, which is a high-end steel alloy known for its strength and durability. The RL20B also features a Redline V Bar with Redline Freaky Grips, Sealed Bearing Integrated Headset, Mid BB (Bottom Bracket), 4130 Chromoly Flight Cranks, Alloy 25T Redline Sprocket, DM24 Double Wall Rims, Sealed Rear 9T Hub and soo much more. This bike means business.

Leading up to Redlines 50th anniversary in 2024 is the release of two of their most popular bikes from that early 70’s/80’s era. So you really don't want to miss out on these epic bikes.

Features

Skyway Tuff II wheels, front and rear. The wheel that defined the era, with the rear running a Skyway Tuff II cassette and a 9T driver.
Full chromoly frame and fork. 4130 chromoly through the RL20B frame and the tapered fork, a high-end steel alloy known for strength and durability.
Colour matched Tektro 990 brakes. Tektro 990 callipers with Skyway colour matched pads and Tektro levers, so the braking gear looks the part too.
Redline Flight cranks, 175mm. Chromoly Flight cranks on a mid bottom bracket, driving an alloy 25T Redline Compact Disc sprocket through a KMC chain.
Forklifter bars, front load stem. A 4-piece Redline Forklifter bar with Hex Pro grips and a sealed integrated headset: a cockpit that holds up to hard riding.

Specifications

Size: 20" wheels, 21.5" top tube
Frame: RL20B, 21.5" TT, full chromoly
Top tube: 21.5"
Chainstay: 15.25" rear end length
Fork: Redline tapered full chromoly with 990 mounts
Headset: Sealed bearing integrated
Stem: Redline front load
Bars: Redline Forklifter 4-piece
Grips: Redline Hex Pro
Brakes: Tektro 990 with Skyway colour matched brake pads
Brake lever: Tektro
Cranks: Redline Flight, 4130 chromoly, 175mm
Bottom bracket: Mid
Sprocket: Redline Compact Disc, alloy, 25T
Chain: KMC 1/2 x 1/8
Pedals: Bear traps
Front hub: Skyway Tuff II front wheel
Rear hub: Skyway Tuff II cassette with 9T driver
Tyres: Vee Rubber Comp III style
Seat: Plastic moulded
Seat post: Railed 25.4
Note: Number plate in the Redline Forklifter shape, supplied with two of each number 0 through 9.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.
