Description

Tear up the streets channelling the heritage of this iconic BMX brand. Redline has been in the bike building game since the 70s and have brought the instantly recognisable SQB (Squareback) design into the current era in the form of the Redline SQB 26 Inch Bike. Anyone BMX racer from the 70s, 80s, 90s and into the 2000s knows that this brand had all the heavy hitters riding for them and this 26 inch rig is perfect for the racer that's a little older, but young at heart still and isn't ready to retire to a road or mountain bike. You only needed one gear back then, and you only need one now right?

With a 26 inch wheel and short wheelbase, this thing will hit 12 o'clock all day long so you can impress the boys at the pub with your wheelies and swagger as you remember the carefree days of shredding the local neighbourhood with your mates. With a bigger wheel and taller seat height, you'll be comfortable as you cruise the waterfront, or out with the kids. Drop the seat low and hit the pump track for a little cardio and send a few of the tables. This bike can do it all.

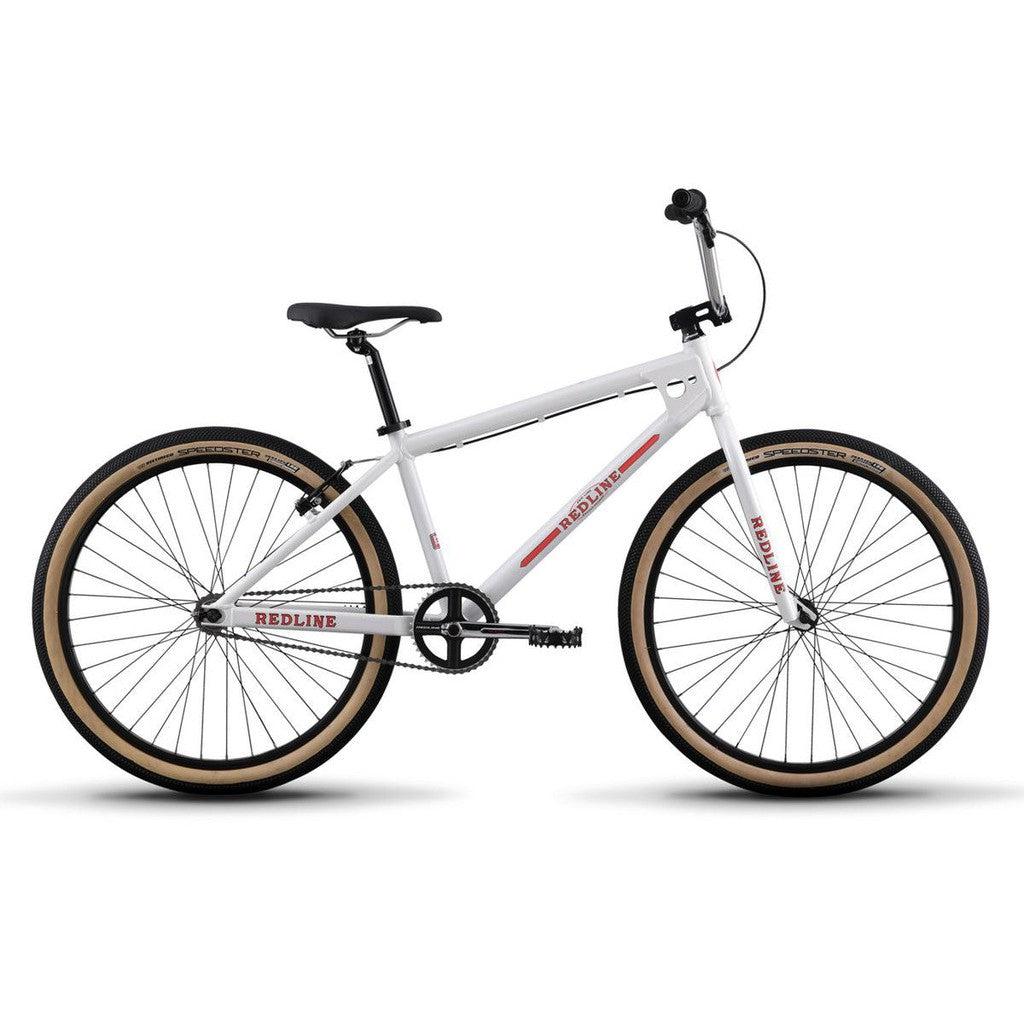

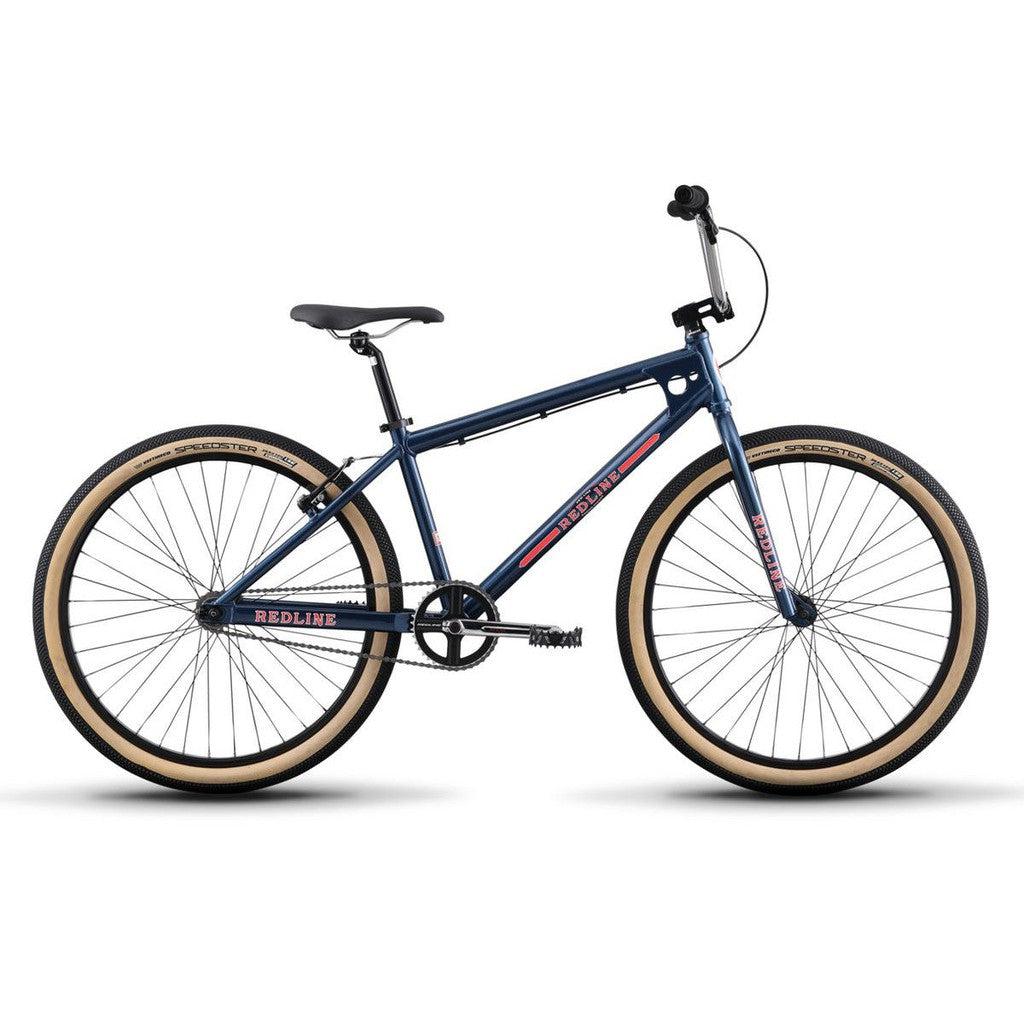

Available in blue, or classic white that you'll recognise from back in the day as a signature Redline colour.

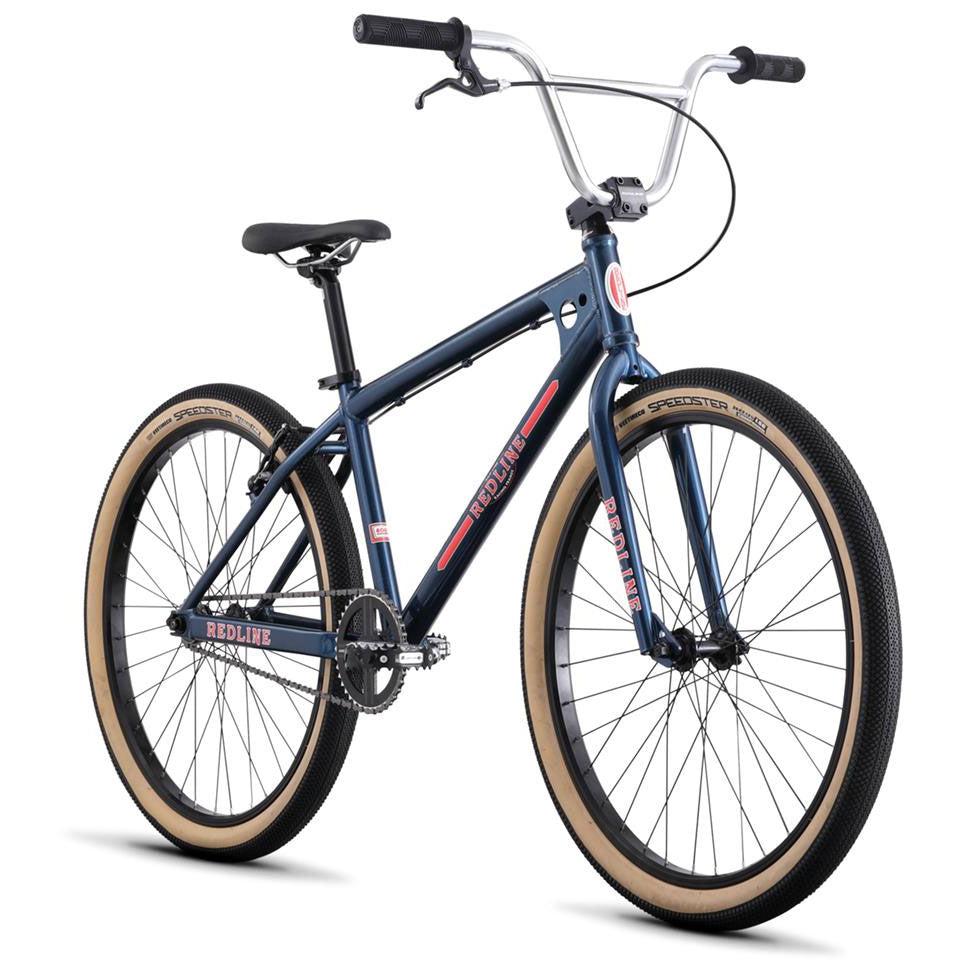

The Redline SQB-26 is a nod to our very first production BMX bike, the Squareback. It features an aluminum alloy frame and a full chromoly steel fork. Vintage-style graphics, double head tube gussets, and the V-shaped handlebar let you roll around town in retro style. You can also bust out a few laps at your local track, thanks to the race-worthy components, including Flight cranks, a Redline Sport saddle, and Vee Speedster 26×2.125 inch tires.

Features

  • Squareback shape, brought forward. The SQB-26 is a nod to Redline's very first production BMX, with vintage-style graphics, double head tube gussets and the V-shaped bar.
  • 6061 alloy frame, chromoly fork. A gusseted alloy frame with oversized chainstays keeps the weight down, while the full chromoly fork handles the rough stuff.

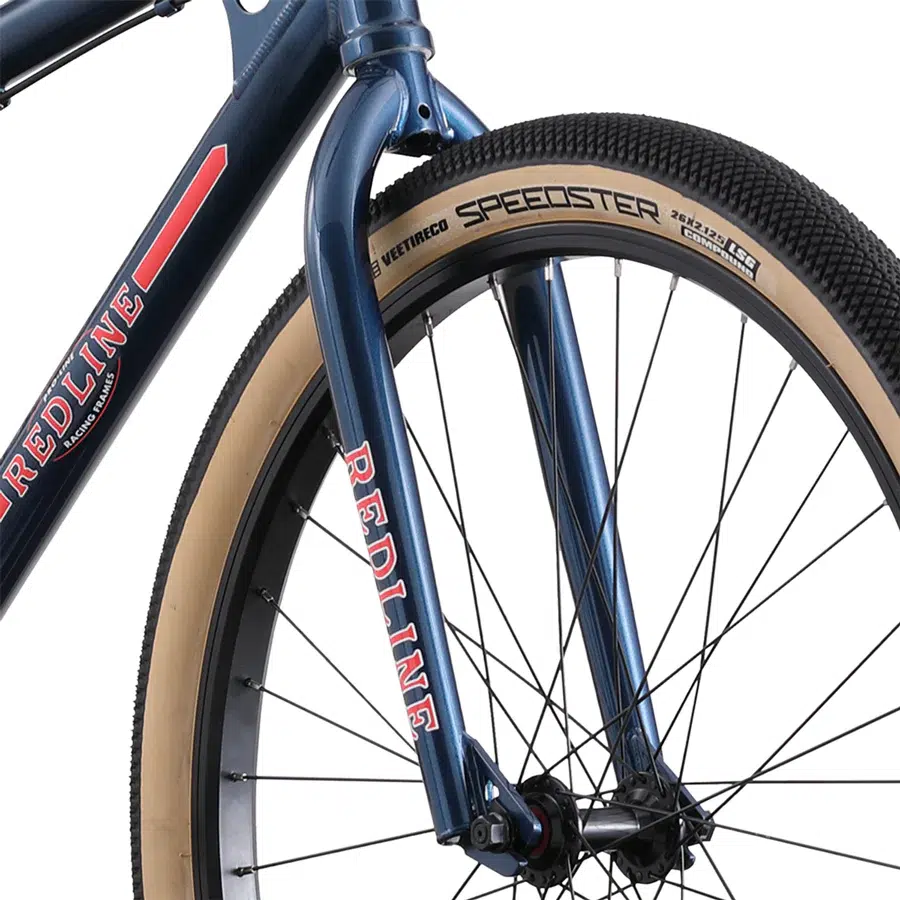

  • 26 inch wheels, short wheelbase. Vee Speedster 26 x 2.125 tyres on 36H alloy rims: easy to loft into a wheelie, comfortable enough to cruise the waterfront.

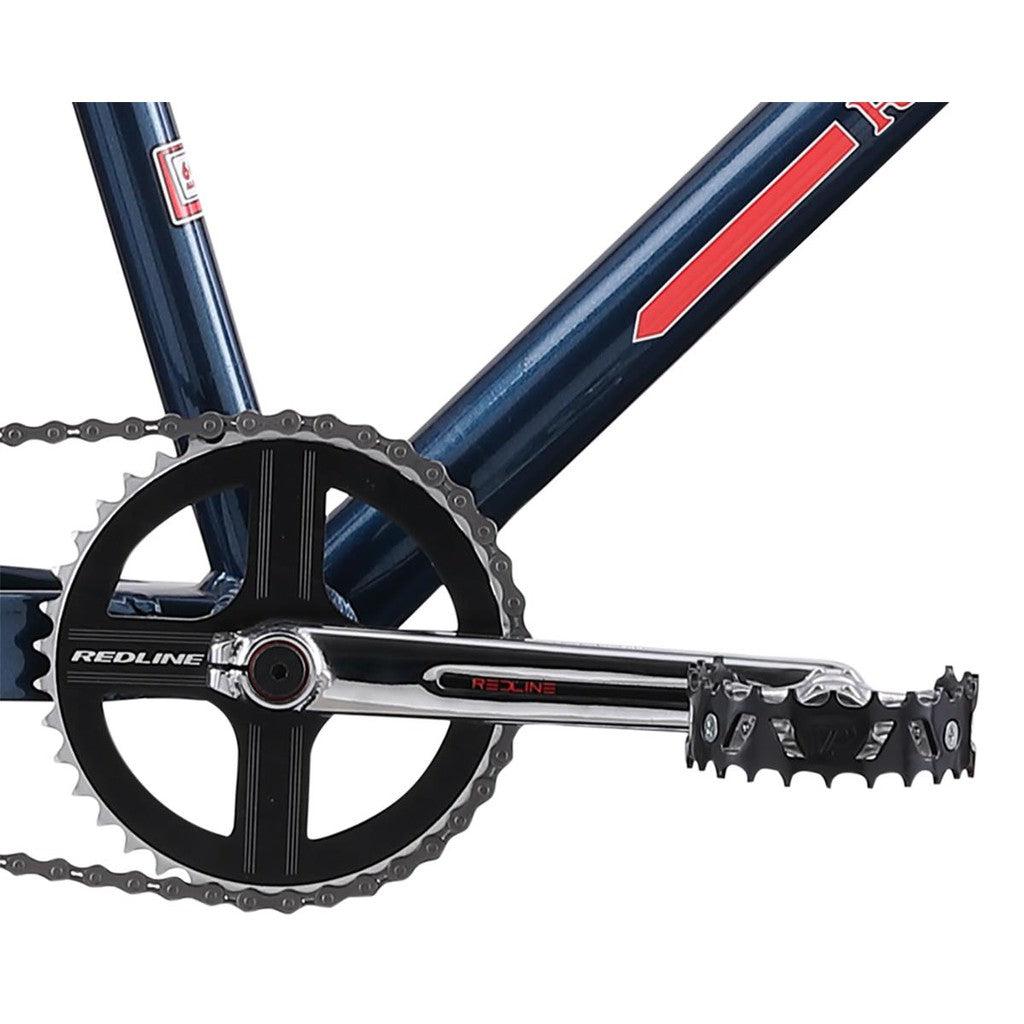

  • Race-worthy 180mm Flight cranks. Classic Flight chromoly cranks with dual pinch, chrome finish and retro decal, geared 39T to 17T on a flip-flop rear hub.
  • Taller seat height, comfortable cruising. A Redline Sport saddle with classic pleats on an aluminium 27.2mm post: run it high to cruise, drop it low for the pump track.

Specifications

  • Size: 26" wheels, 22.2" top tube
  • Frame: 6061 alloy, gussets, oversized chainstays
  • Top tube: 22.2"
  • Chainstay: 16.9"
  • Head tube angle: 71.0°
  • Seat tube angle: 73.0°
  • Bottom bracket height: 12.0"
  • Fork: Full chromoly
  • Headset: Sealed integrated 1 1/8", aluminium top cap
  • Stem: RL aluminium Hollowpoint, 55mm

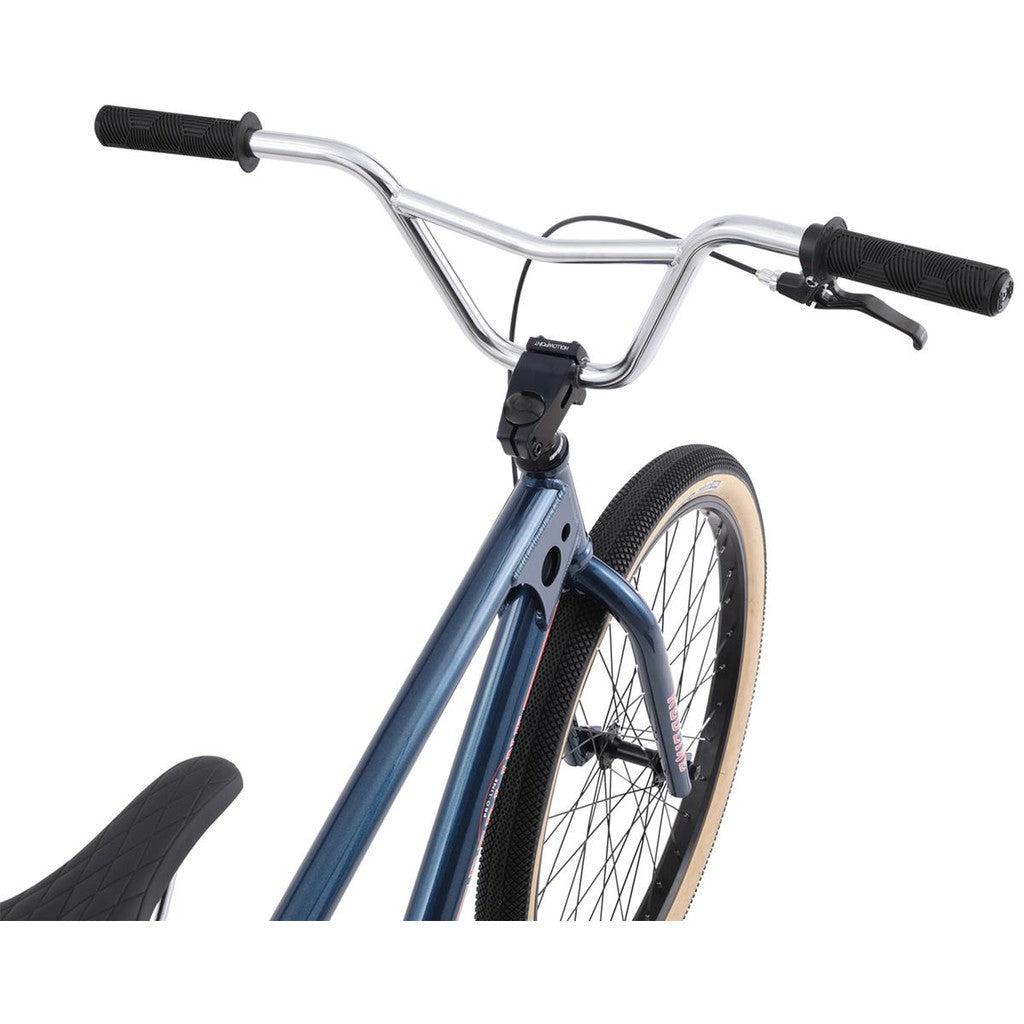

  • Bars: V-bar, chromoly, 7.5" rise, 28.5" wide, 10° back, 4° up, chrome finish
  • Grips: RL Pro Hex
  • Brakes: Tektro 930AL linear
  • Brake lever: Tektro
  • Cranks: Classic Flight, chromoly, dual pinch, chrome finish with retro decal, 180mm
  • Bottom bracket: Sealed Euro
  • Sprocket: Proline, alloy, 39T
  • Chain: KMC Z33
  • Pedals: Bear Cage aluminium 9/16" platform
  • Front hub: Aluminium, fully sealed
  • Rear hub: Aluminium, flip-flop, fully sealed
  • Rear cog: 17T
  • Rims: Alloy, 36H
  • Tyres: Vee Speedster 26 x 2.125
  • Seat: Redline Sport with classic pleat pattern
  • Seat post: Aluminium 27.2mm
  • Gearing: 39T sprocket, 17T cog
  • Colour: Blue or classic white

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.
