Description

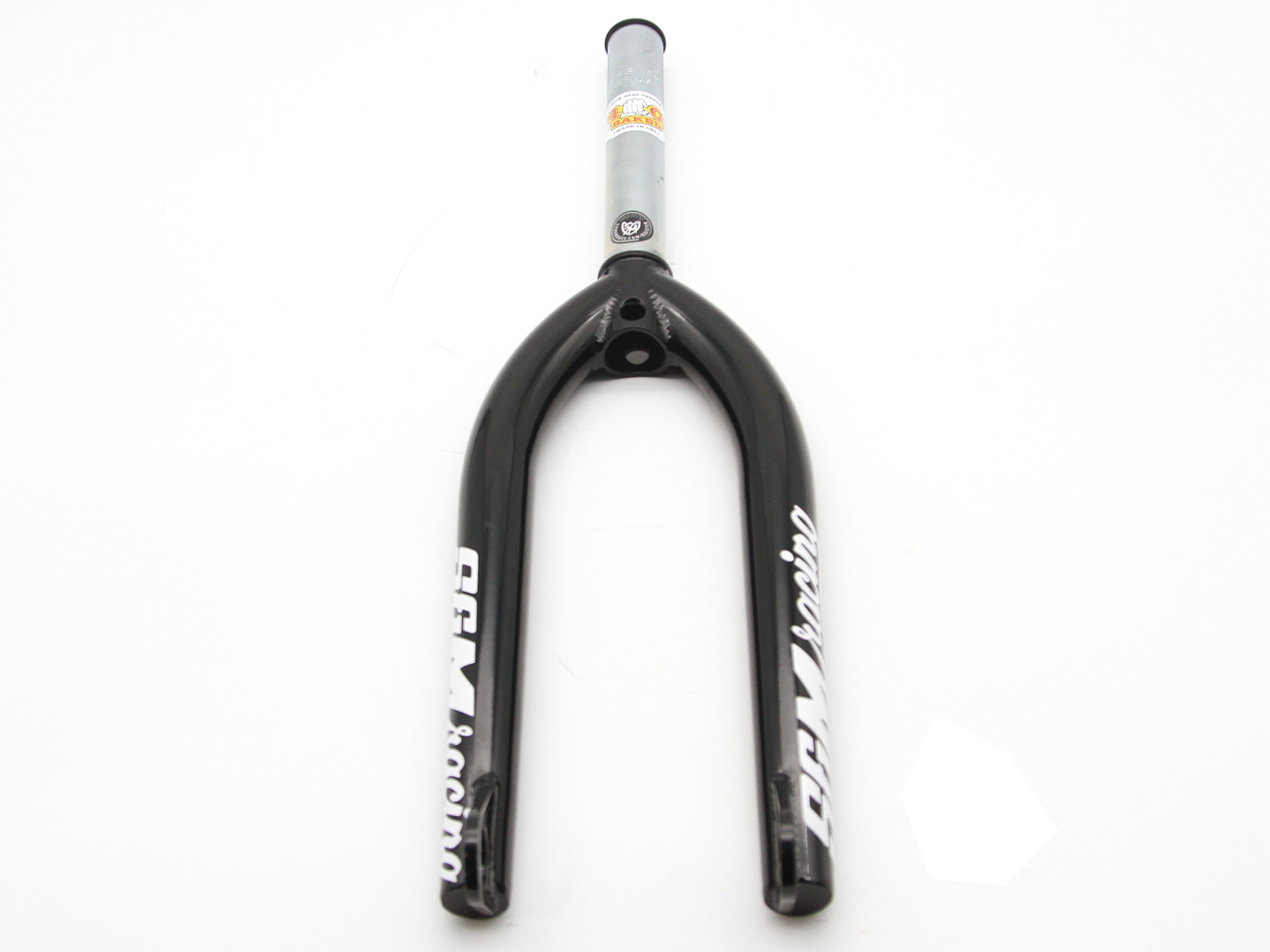

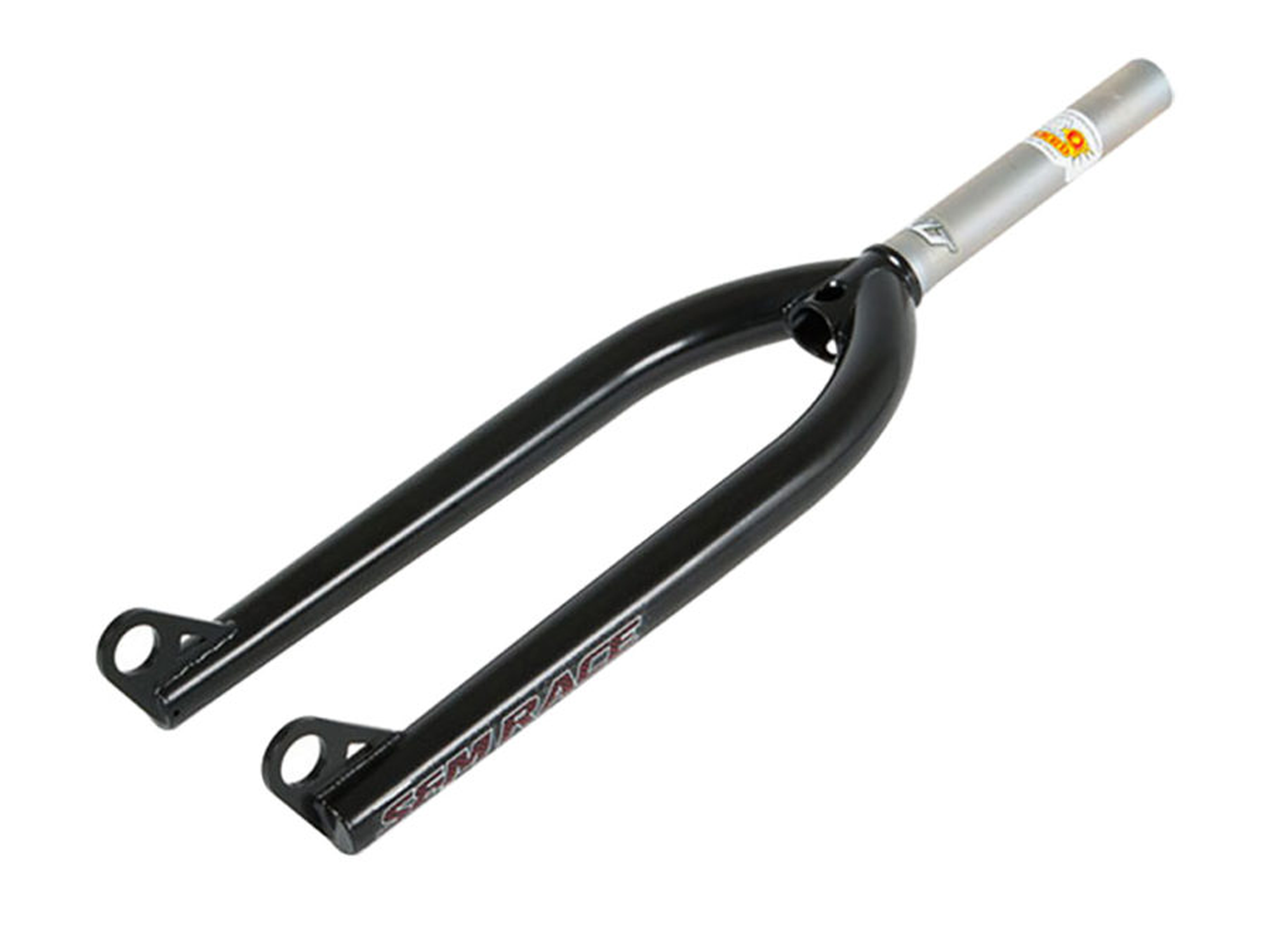

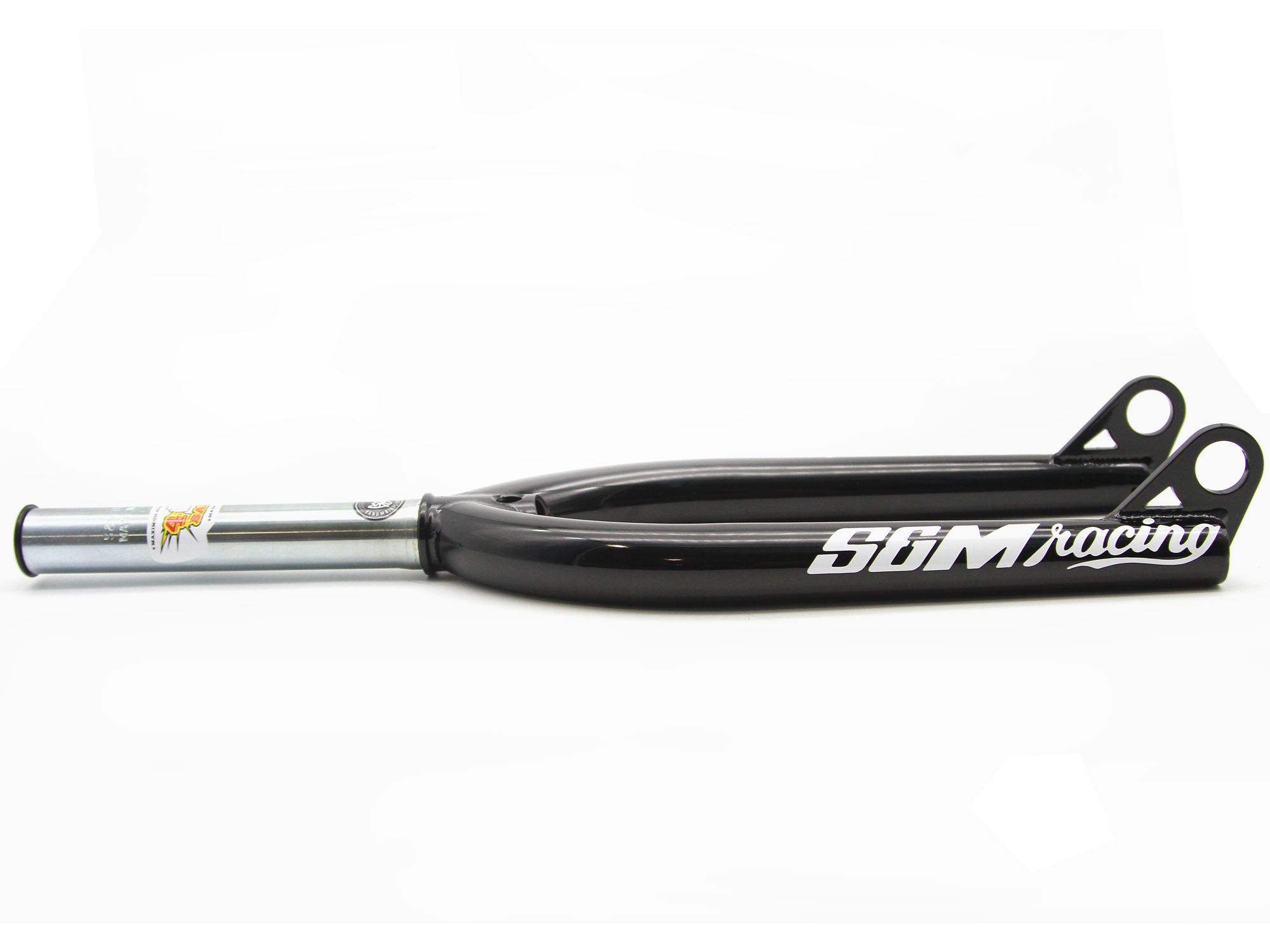

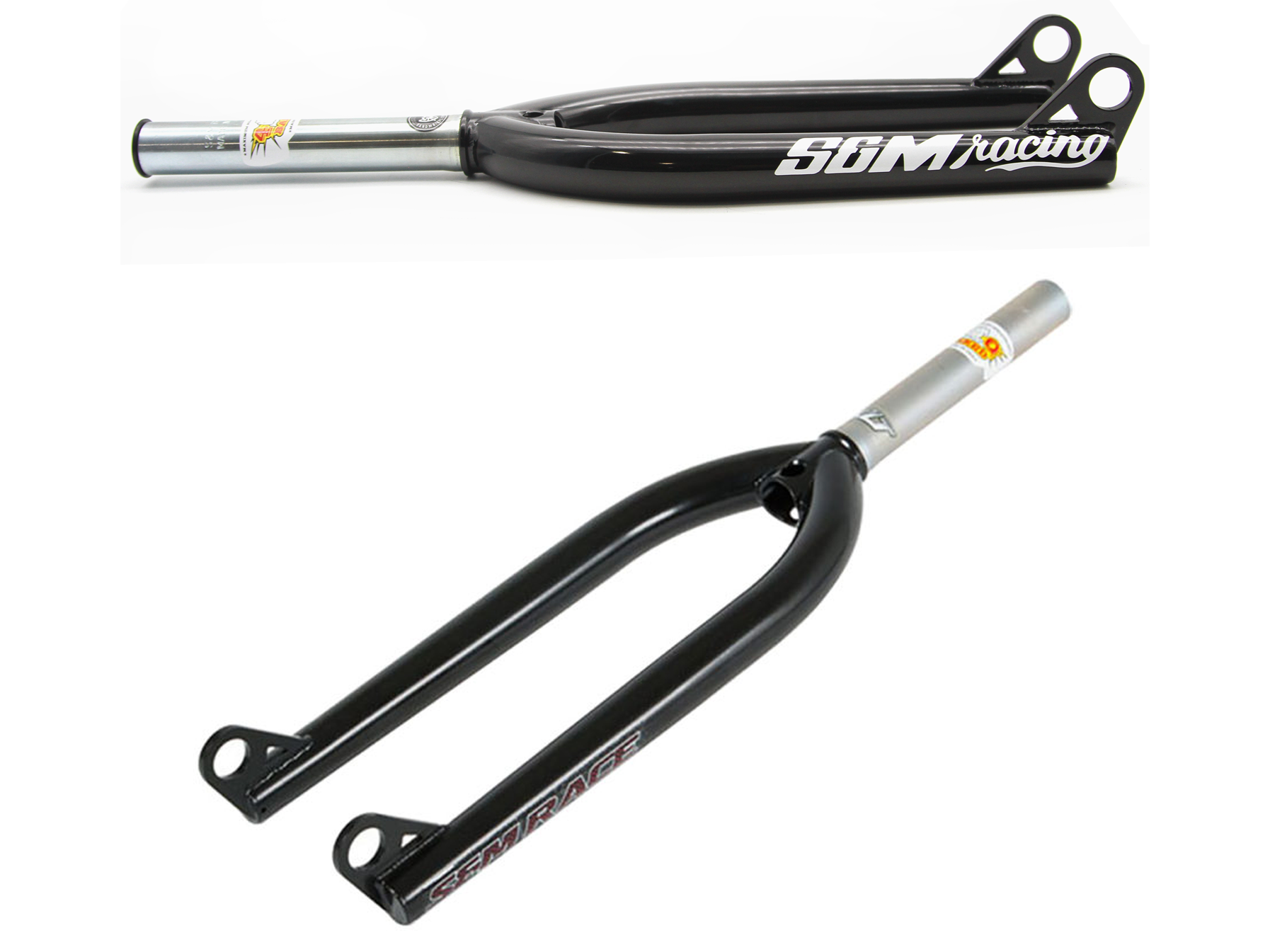

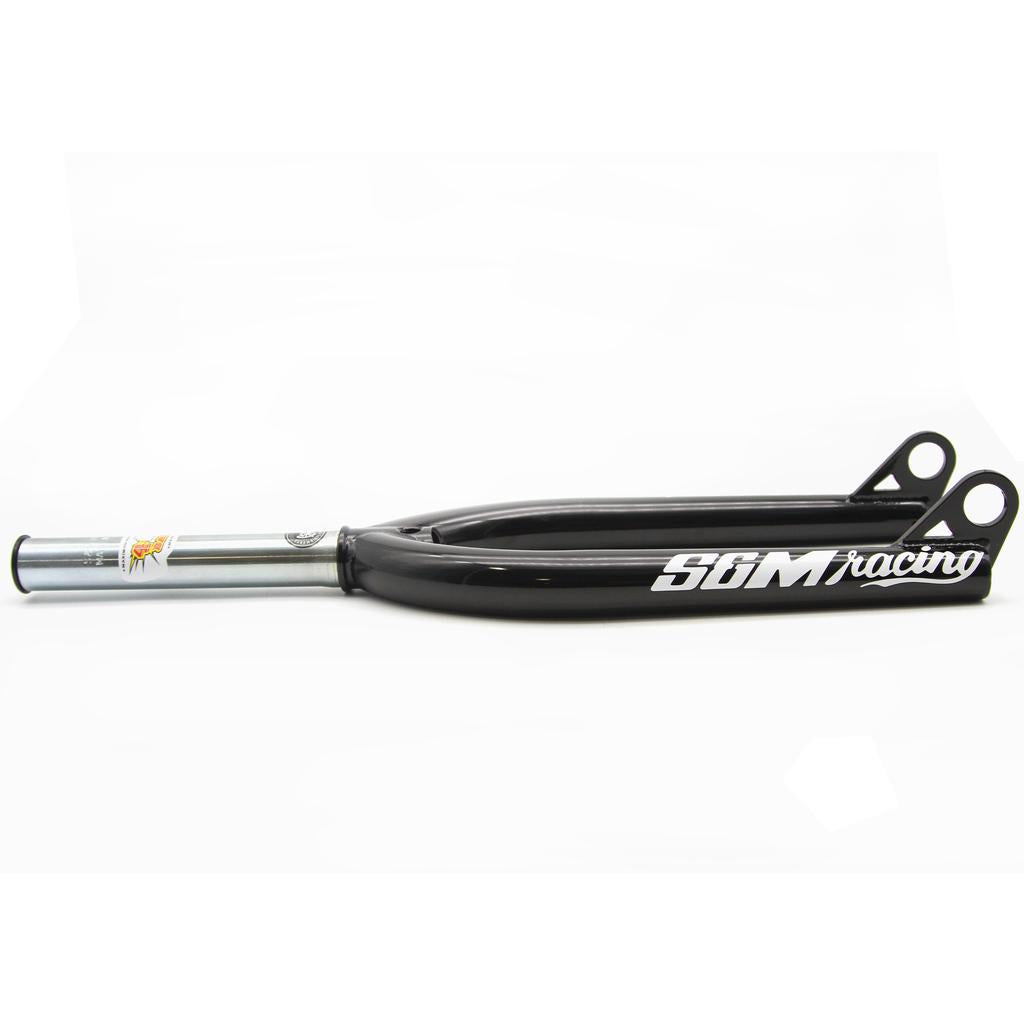

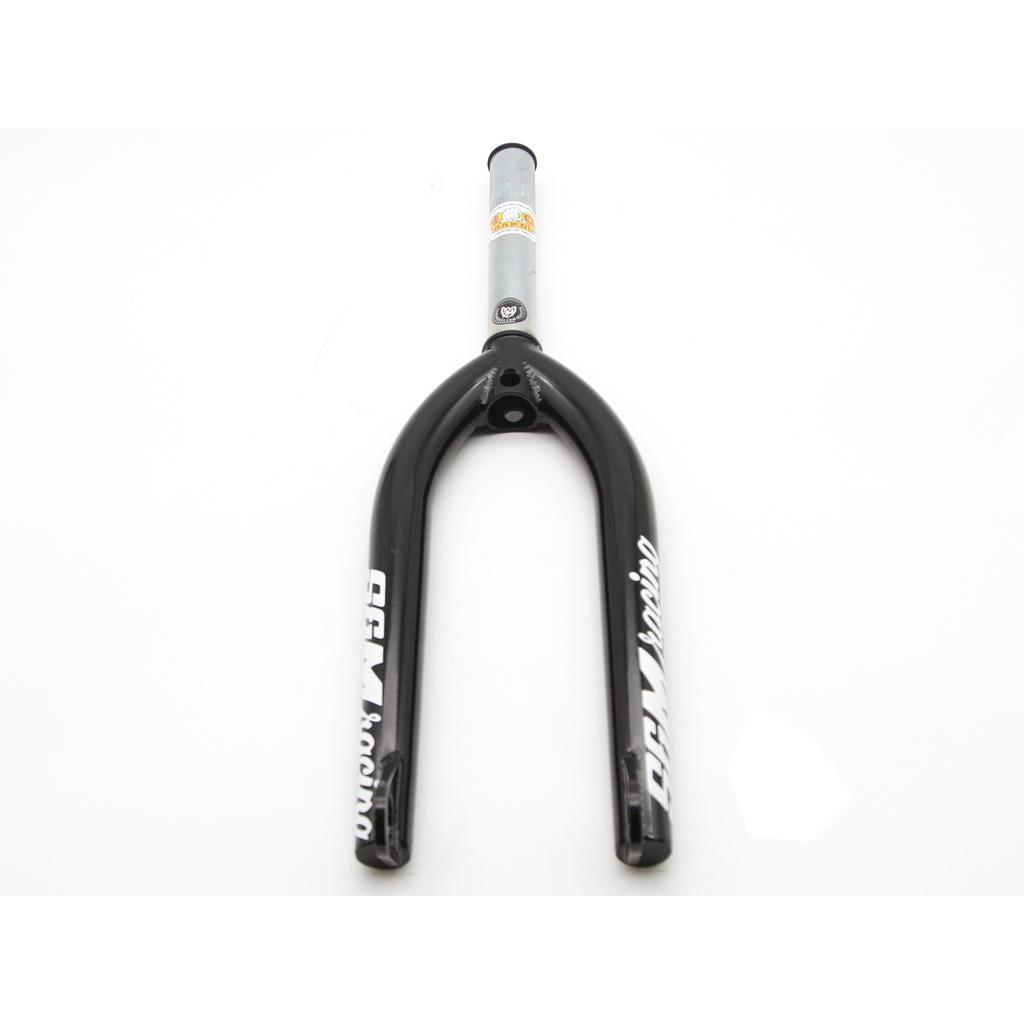

Max out your specs with a set of these ripper forks from S&M!

Designed for use with 20mm thru-axle hubs.

Features

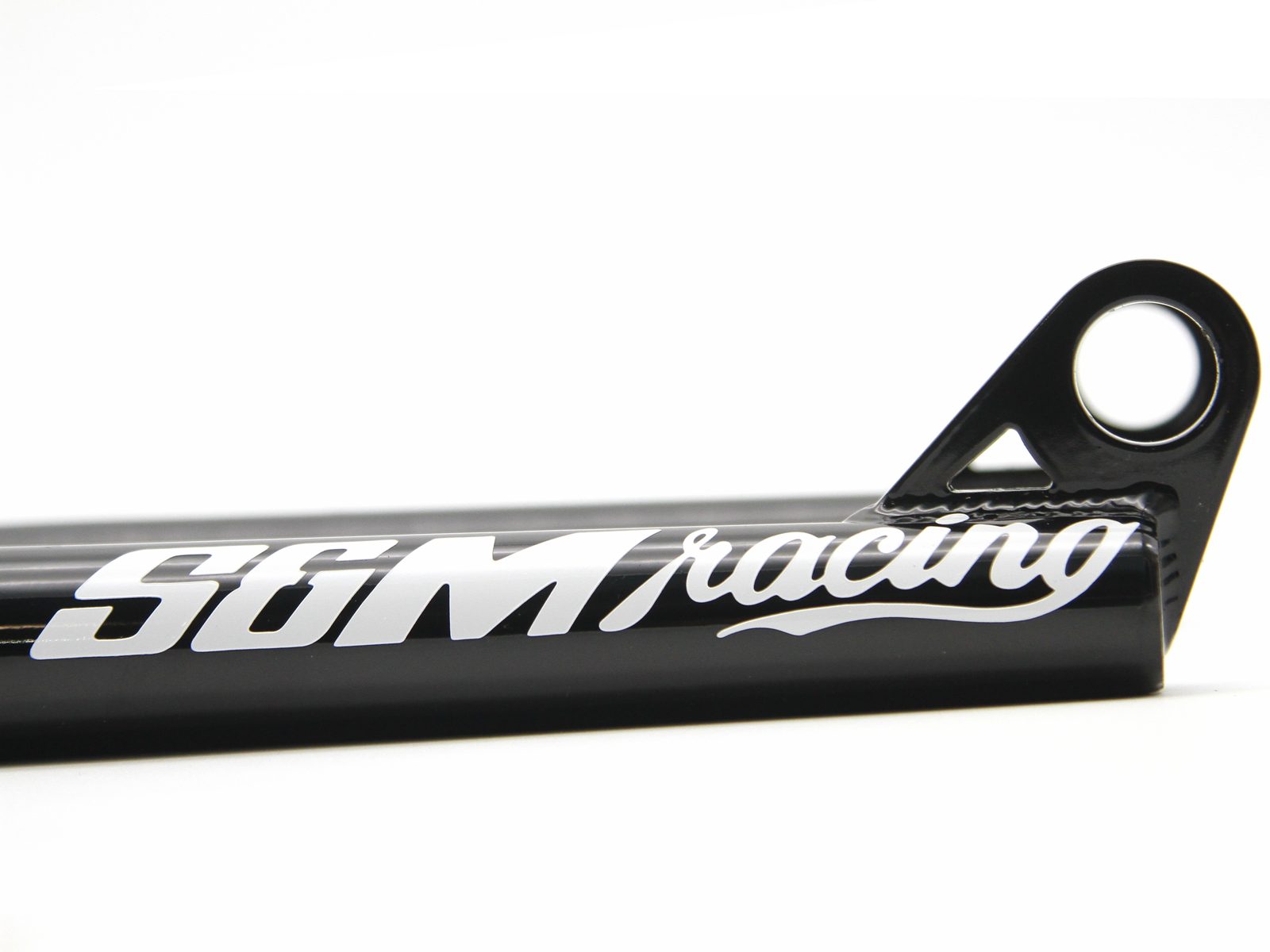

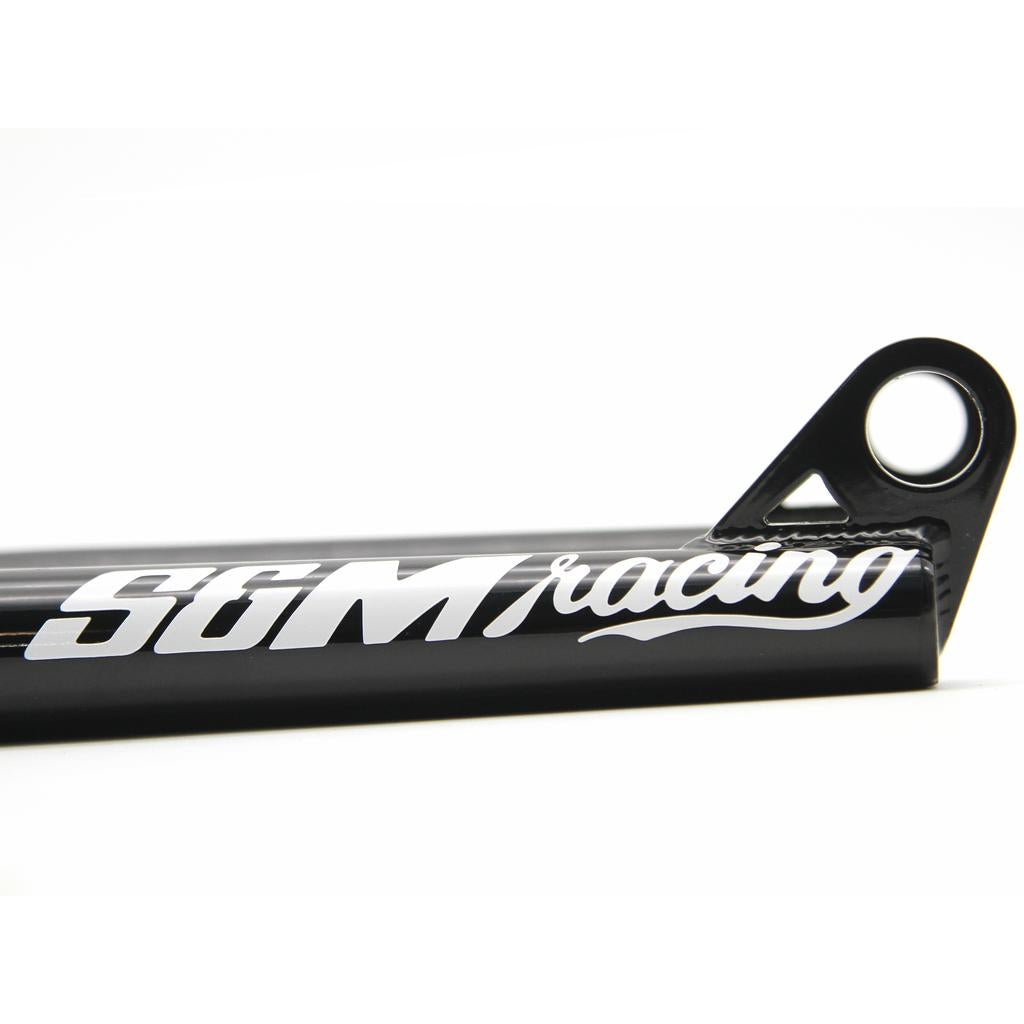

Built for 20mm thru-axle hubs. Laser cut dropouts with a 20mm thru axle hole, so you can run a thru-axle front hub on a race build.
Double butted chromoly legs. Tapered, double butted 4130 CrMo legs put the material where the load goes.

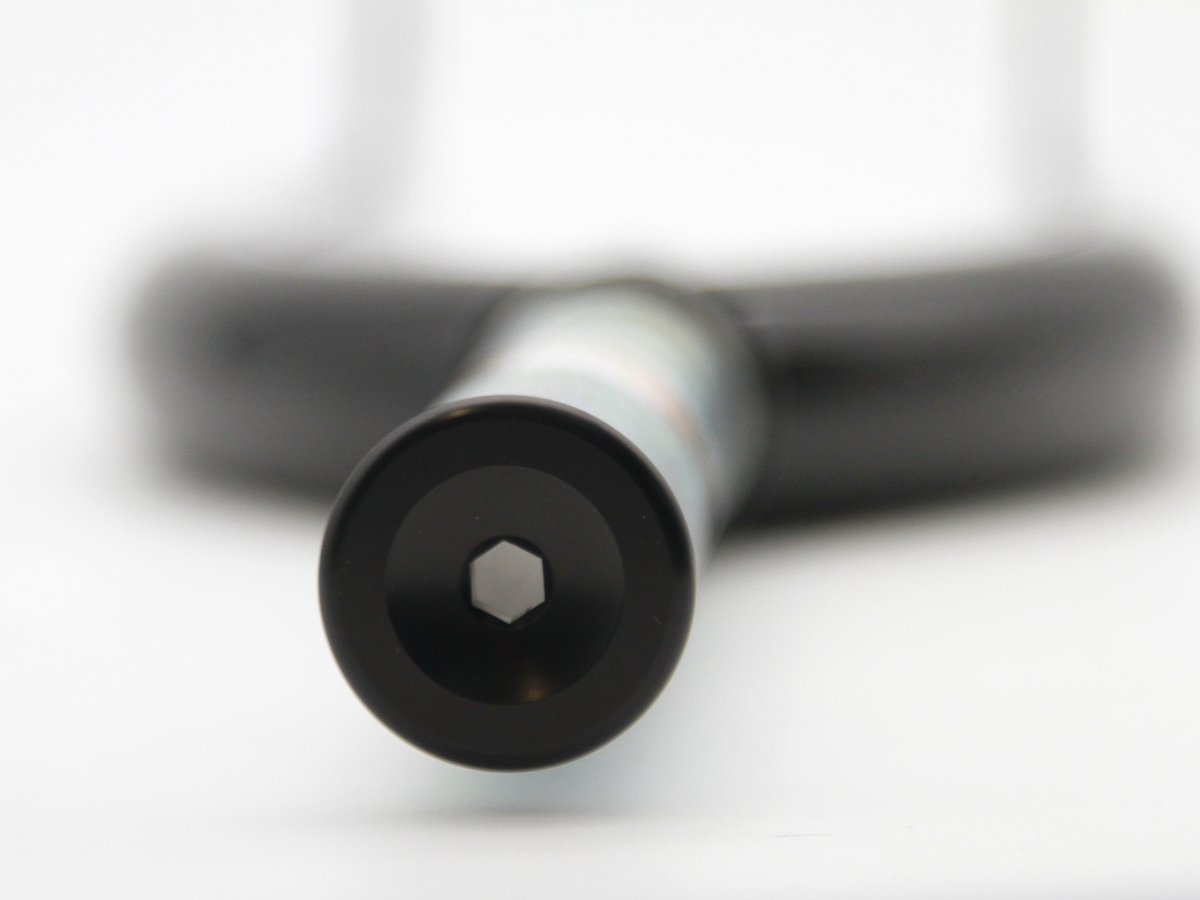

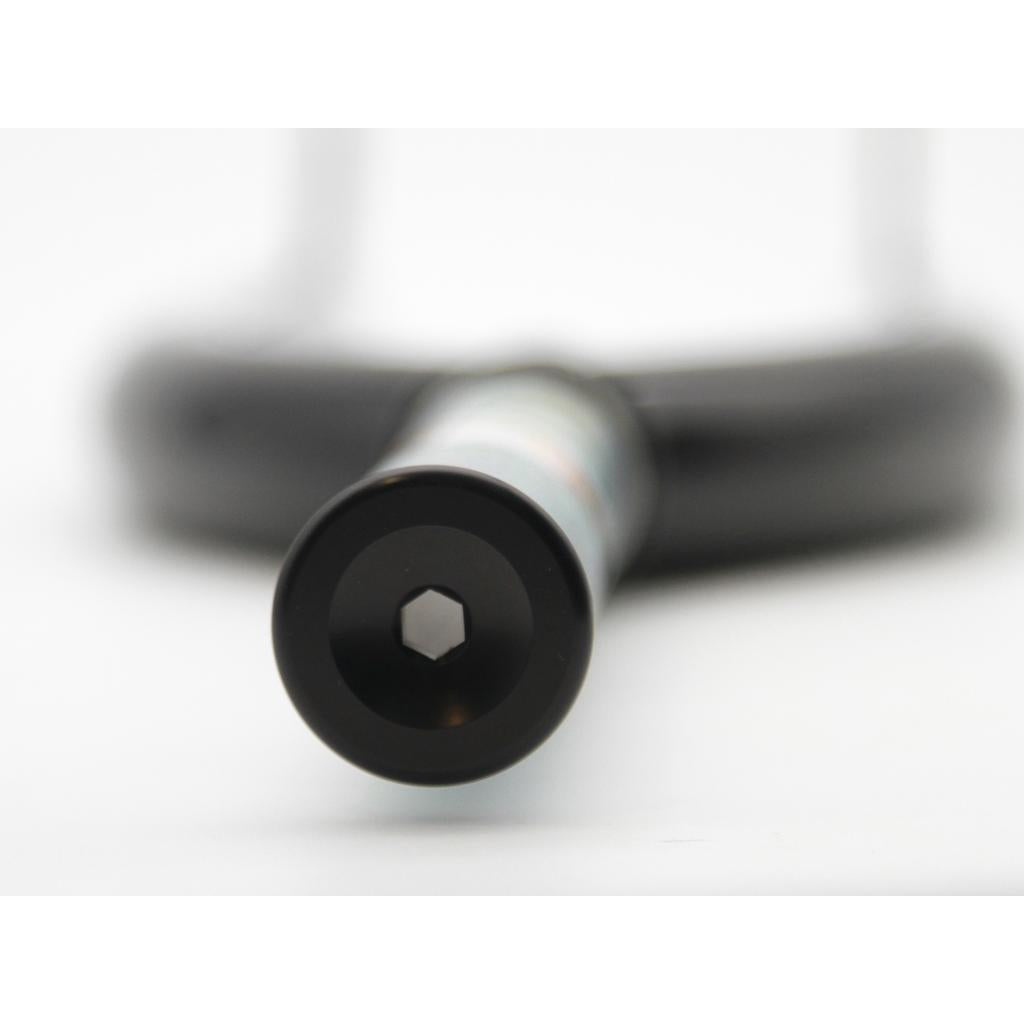

One piece CNC machined steerer. The 172mm steerer tube is machined from a single piece of 4130 CrMo, with an M24 x 1.5 compression thread taking a 6mm Allen key.
33mm offset, 366mm axle to crown. The numbers for a 24 inch build, with the fork coming in at 1.11 kg.
Bring your own bearing race. The steerer uses a non-integrated race, so fit the standard bearing race that comes with your headset.

Dropouts: Laser cut, 20mm thru axle hole
Steerer: Non-integrated race, 1 piece CNC-machined 4130 CrMo, 172mm long
Fork offset: 33mm
Fork legs: Double butted, tapered, 4130 CrMo
Axle size: 20mm thru axle
Wheel size: 24"
Weight: 1.11 kg (24")
Note: Axle to crown 366mm (24"). Compression: M24 x 1.5 thread, 6mm Allen. Heat treat: 4Q baked post-weld. Standard bearing race not supplied, use the one included with your headset.

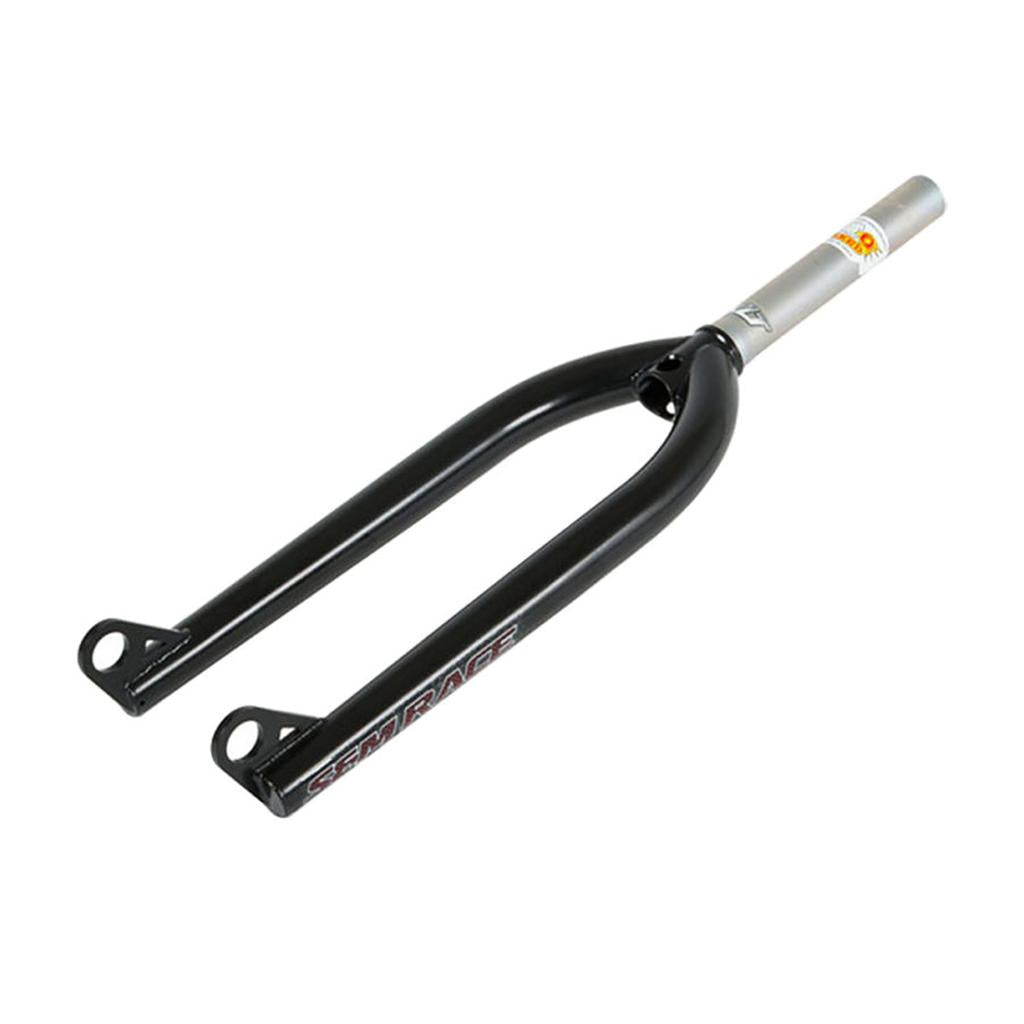

Name: S&M Race XLT Dub 24 Inch Fork
Brand: S&M
SKU: SMFO304-01-BLK
Price: 449.99 AUD
Availability: InStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

From

$449.99 AUD

$459.99 AUD

Or 4 payments of $112.49 AUD with

Colour - Black

Offset - 33mm

Instead of ~~$459.99~~

$449.99 AUD
