Description

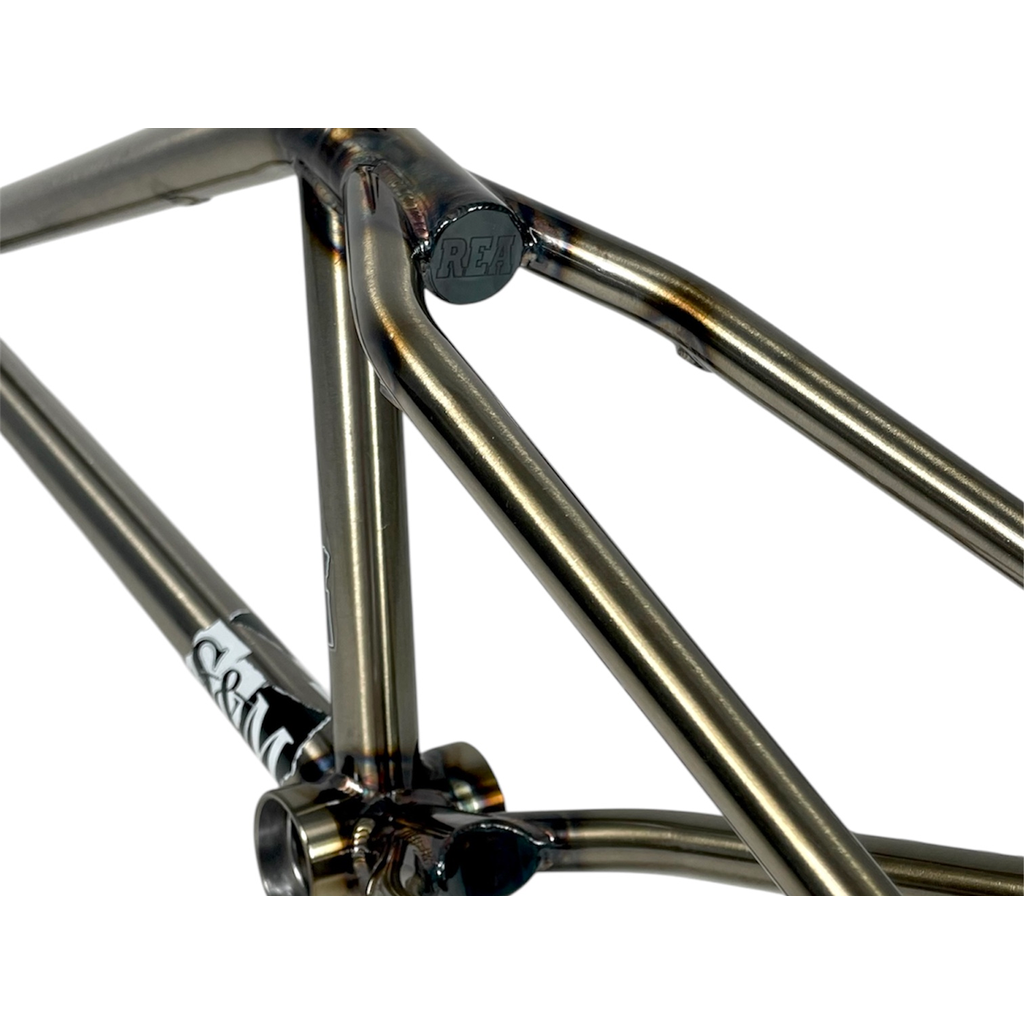

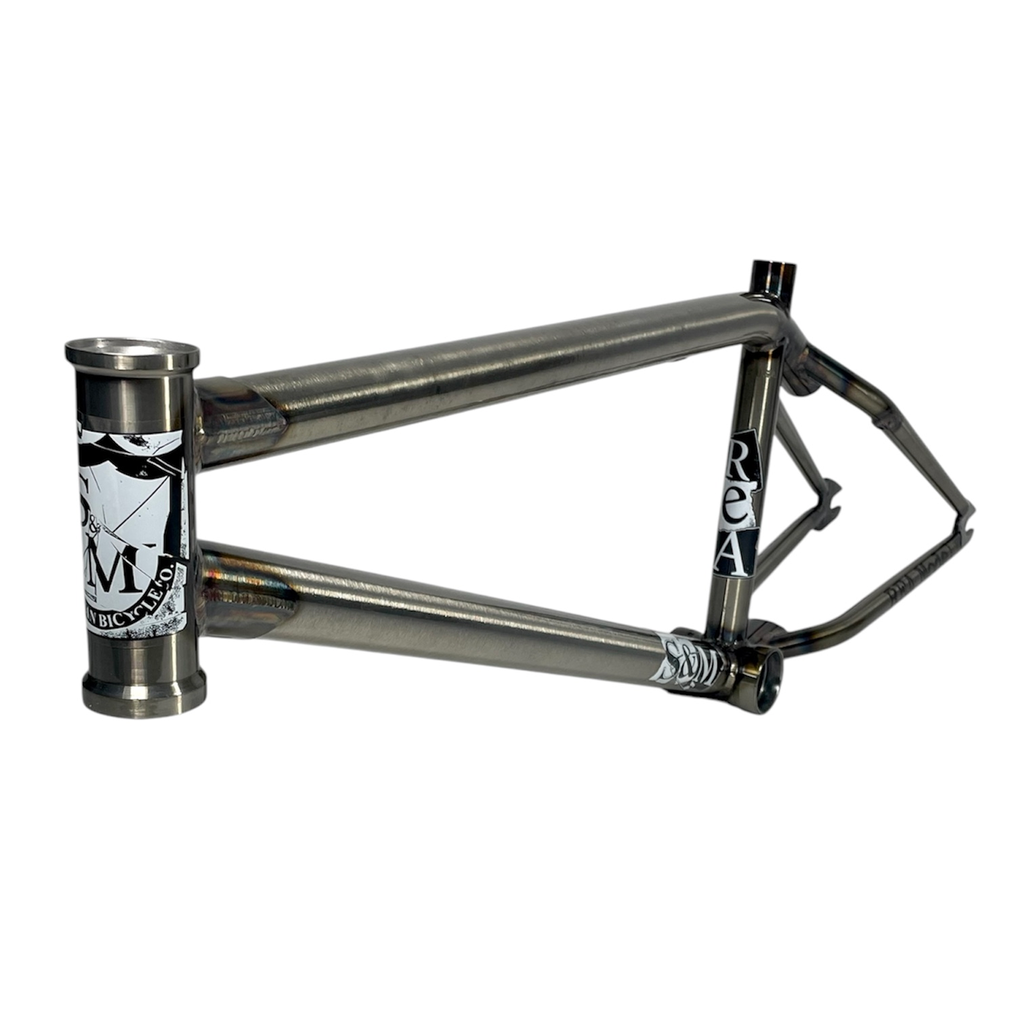

Mid-school disciple Aryei Levenson has been riding S&Ms for over a decade and knows what he likes. The REA morphs the Black Magic and the ATF and adds a double wishbone for that throwback look.

Ride Everything Always: dirt, street and parks. A 21.5" top tube, 13.5" to 14" rear end, 75 degree head tube and 11.625" bottom bracket, on a 5" integrated Campy style head tube and mid bottom bracket, with thread on seat stay brake mounts and 14mm dropouts.

Features
  • Ride Everything Always. Aryei Levenson's frame morphs the Black Magic and the ATF, so it handles dirt, street and parks without being set up for just one.

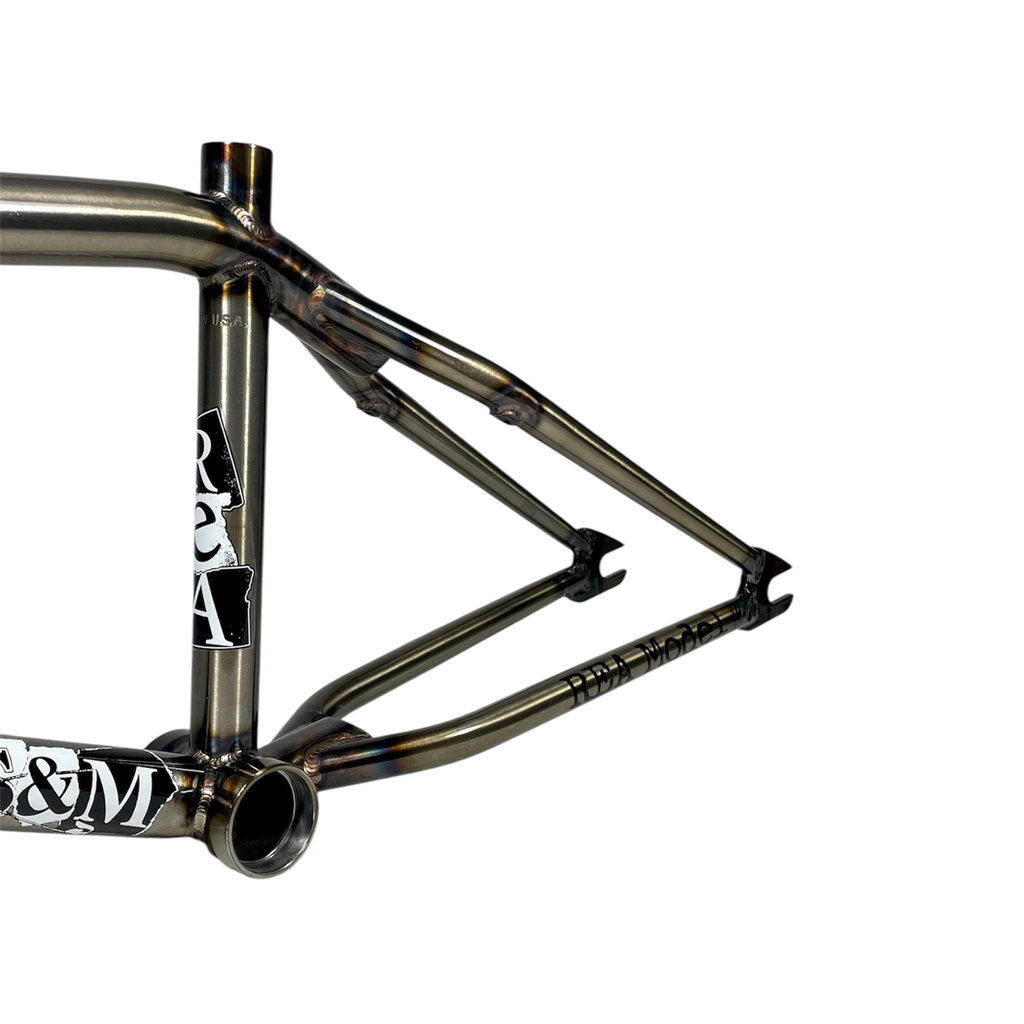

  • Double wishbone rear end. Throwback mid-school detailing on a 13.5" to 14" rear end that stays planted when you carry speed into dirt lines.
  • Long 21.5" top tube. Plenty of room to move around, with a 75 degree head tube and 71 degree seat tube for a balanced mid-school feel.
  • High 11.625" bottom bracket. Pedal clearance stays up and the 9.25" standover gives you space over the frame when things get loose.
  • 5" integrated head tube, mid BB. Thread on seat stay brake mounts, 14mm dropouts and 2.40 kg on the scales for the 21" top tube.

Specifications
  • Top tube: 21.5"
  • Chainstay: 13.5" to 14"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 9.25"
  • Bottom bracket height: 11.625"
  • Bottom bracket: Mid
  • Dropouts: 14mm
  • Brake mounts: Thread-on seat stay

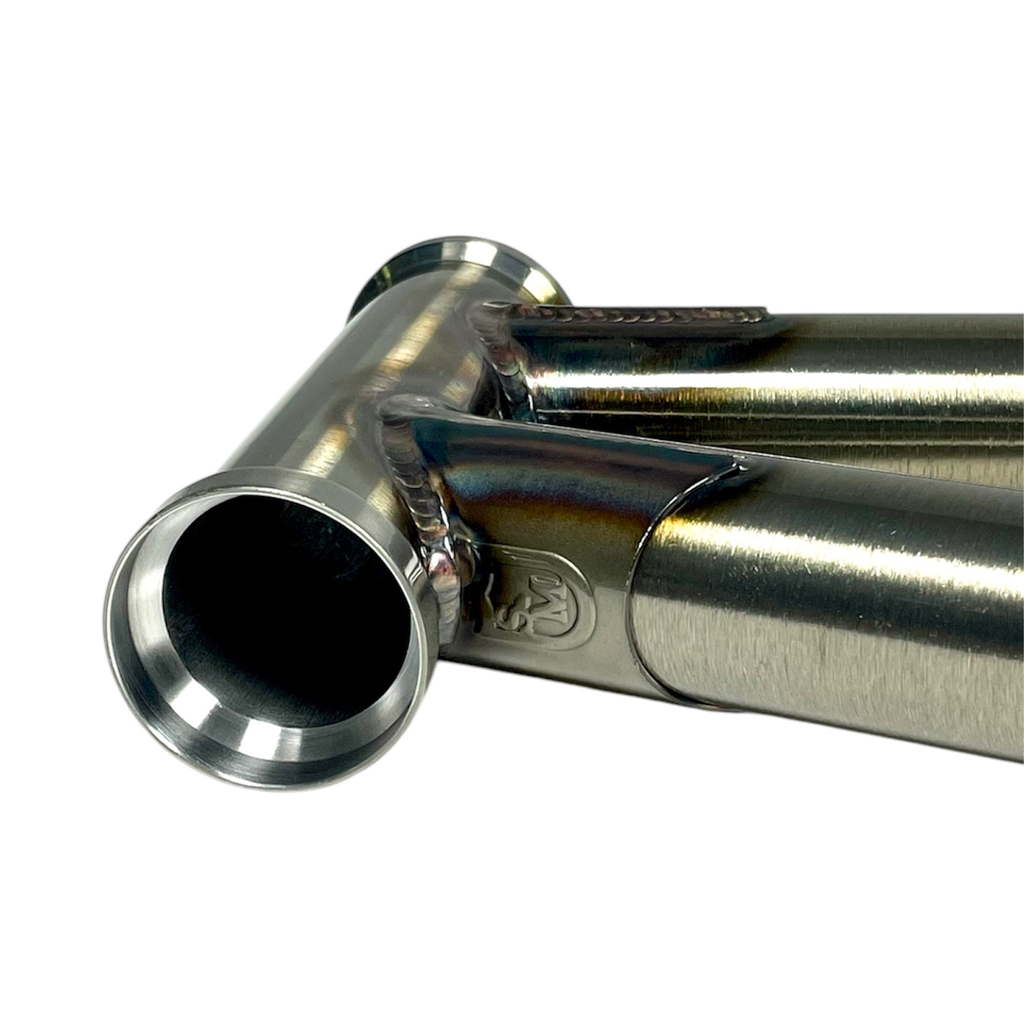

  • Head tube: 5" integrated, Campy style
  • Seat tube: 1" / 25.4mm seat post
  • Seat clamp: No clamp
  • Axle size: 14mm
  • Weight: 5.30 lbs / 2.40 kg (21" top tube)

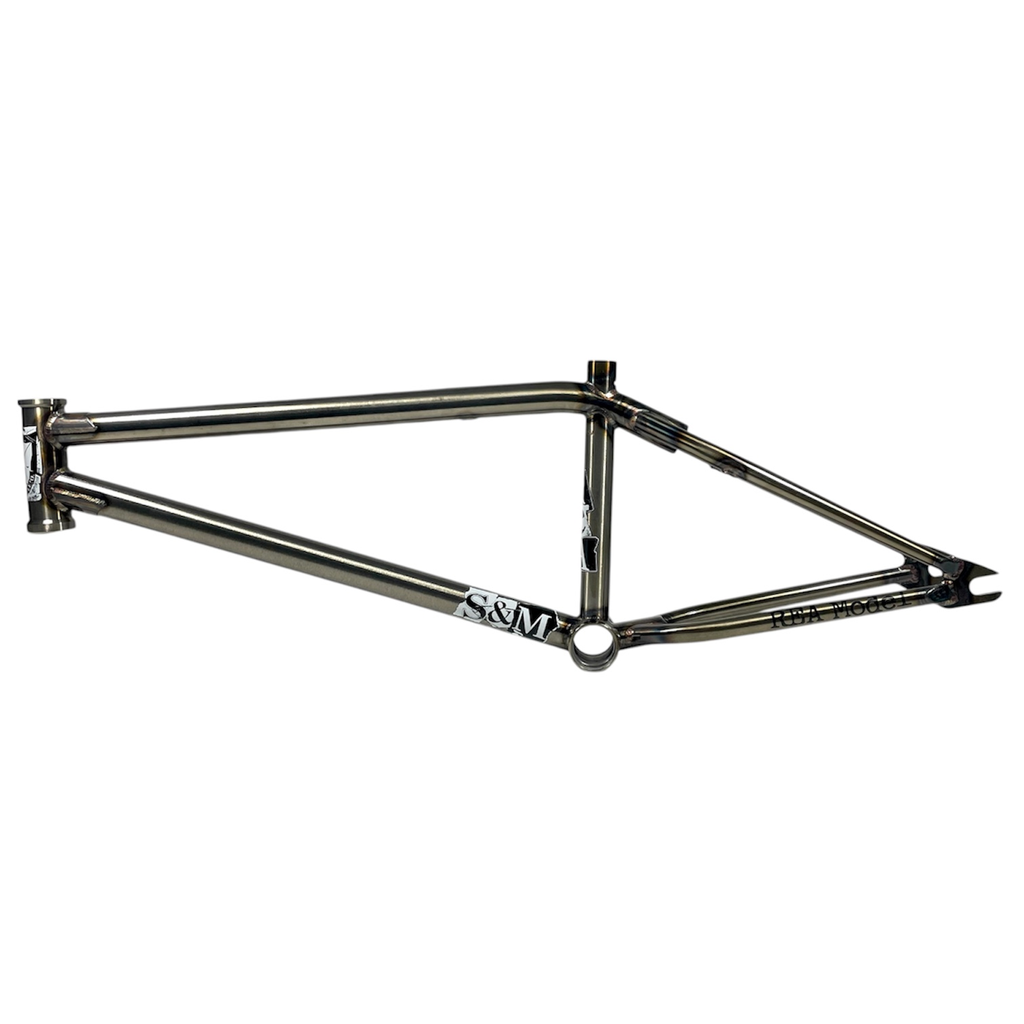

S&M REA 20 Inch Frame (Aryei Levenson)

Brand: S&M SKU:

$1,399.99 AUD

Or 4 payments of $349.99 AUD with

Colour - Gloss Clear

Top Tube Length - 21.5

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
