Description

Length / Weight (without BB)

Features

Two piece, hollow 24mm spindle. A 2 piece design with a hollow 24mm spindle, 113mm long, for the mixture of strength and low weight.
104mm PCD chainring compatible. Takes any 104mm PCD chainring, so you can pick the gearing that suits your racing.
Seven arm lengths. From 140mm through to 170mm, with weights running from 596g at 140mm up to 658g at 170mm.
External euro BB included. Comes with the SD external euro/BSA bottom bracket, which weighs 128g on its own.
BMX specific bearing design. Forged and CNC machined aluminium cups hold the bearings outside the BB shell for greater durability.

Specifications

Arm length: 140mm, 145mm, 150mm, 155mm, 160mm, 165mm and 170mm
Spindle: Hollow 24mm, 113mm spindle length
Bolt pattern: 104mm PCD
Bearings: BMX specific, forged and CNC machined aluminium cups outside the BB shell
Included: SD External Euro/BSA bottom bracket (128g)
Weight: 596g at 140mm, 609g at 145mm, 615g at 150mm, 627g at 155mm, 637g at 160mm, 646g at 165mm, 658g at 170mm, all without BB
Colour: Matt black
Note: Previously installed cranks carry some marks from being installed, but are otherwise in brand new condition.

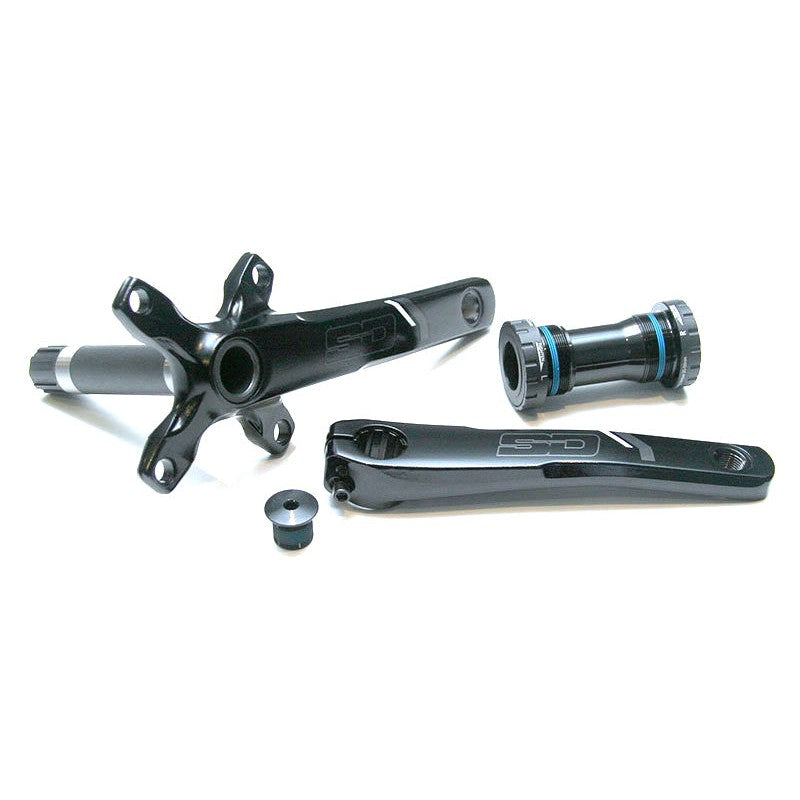

SD Crank Expert Lite Matt Black

Name: SD Crank Expert Lite Matt Black
Brand: SD
SKU: kab6859
Price: 278.99 AUD
Availability: OutOfStock
Rating: 4.0 (1 reviews)
