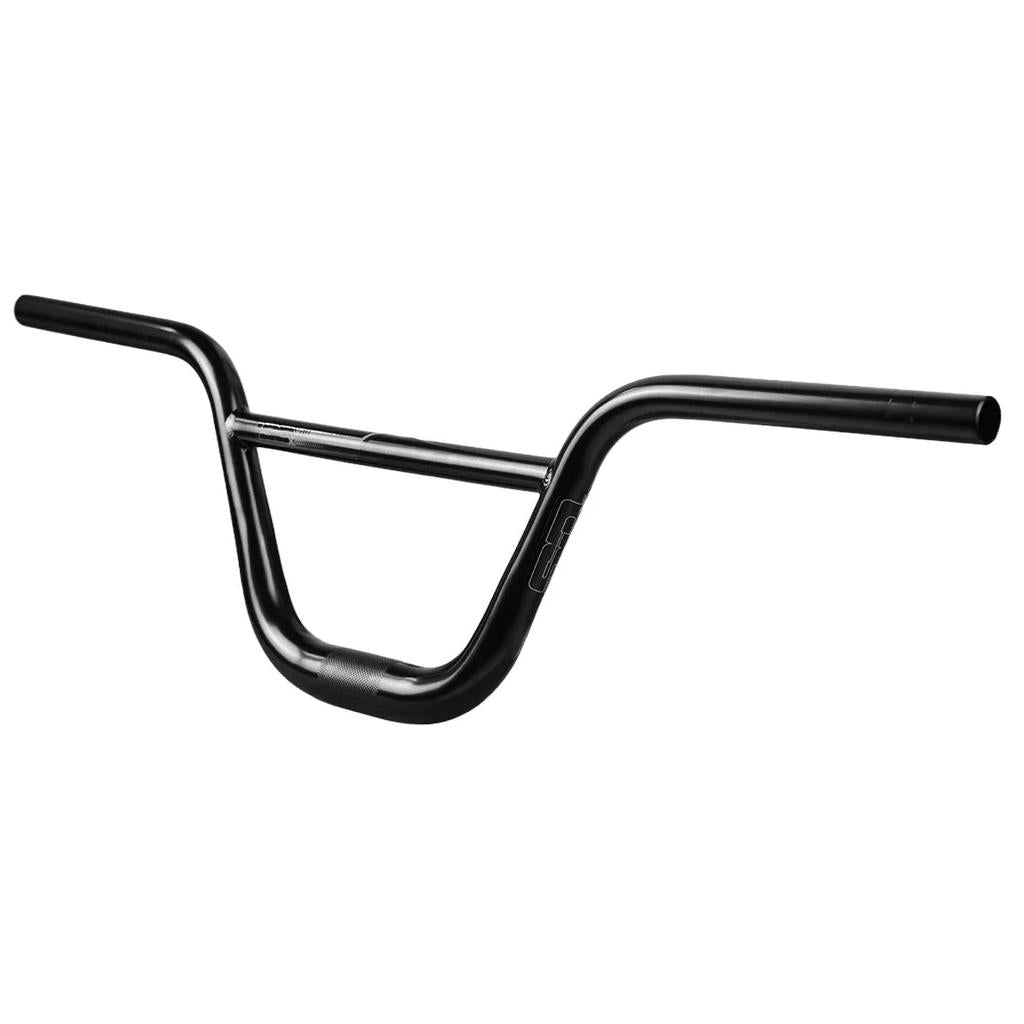

The SD-X Five Alloy Oversize Race Bar is a black BMX handlebar with a crossbar, designed for 31.8mm clamps and lightweight performance, shown on a white background.

Description

Made of high-end multi butted aluminium for weight reduction, the SD-X Five Alloy handlebar retains it stiffness without compromising strength and responsiveness. With a 31.8mm clamping surface contributing to its inherent performance advantages, this alloy bar mirrors its chromoly cousin with its 5 degree backsweep.

Features

Seven rises to choose from. From 3.5 inch up to 6.5 inch rise, with width growing from 22.5 inch to 25.6 inch as the bar gets taller.
Oversize 31.8mm clamp. The 31.8mm clamping surface is where a lot of the front end stiffness comes from.
Multi butted aluminium. High end multi butted aluminium drops weight while holding onto stiffness, strength and responsiveness.
5 degree backsweep. Five degrees back and two degrees up, mirroring the geometry of its chromoly cousin.
From 321 grams. The 3.5 inch rise weighs 321g and the tallest 6.5 inch bar 452g, so you can pick your height and know the trade.

Specifications

Sizes: 3.5", 4", 4.5", 5", 5.5", 6", 6.5" rise
Width: 22.5" at 3.5" rise up to 25.6" at 6.5" rise
Rise: 3.5" to 6.5"
Backsweep: 5°
Upsweep: 2°
Clamp diameter: 31.8mm
Material: Multi butted aluminium
Weight: 321g at 3.5" rise, 371g at 4", 385g at 4.5", 397g at 5", 415g at 5.5", 441g at 6", 452g at 6.5"
