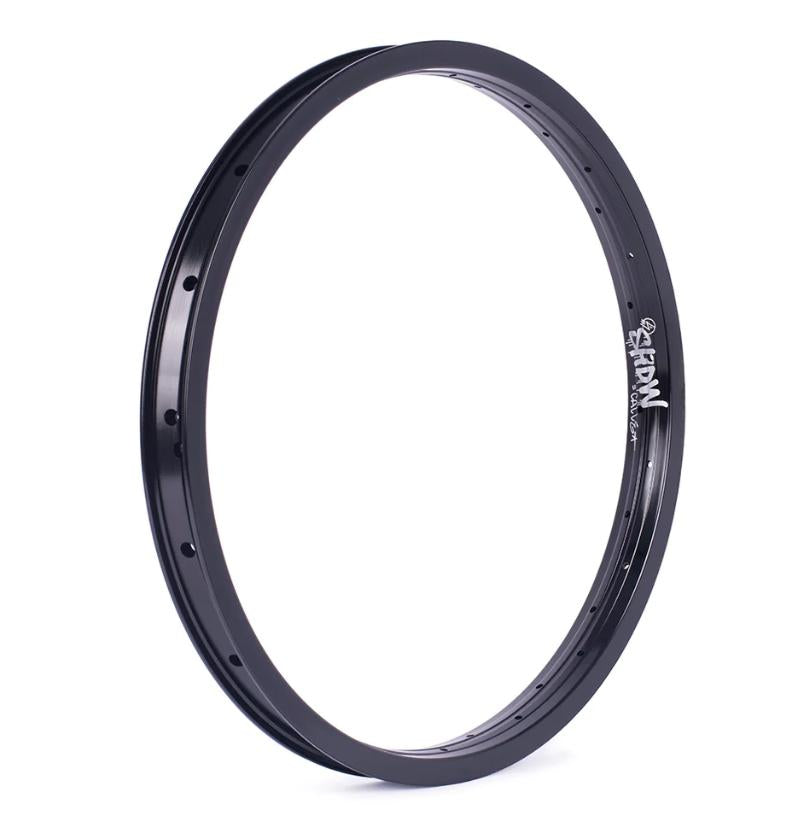

The Shadow Calle Rim is a black, high-strength aluminum rim with multiple spoke holes, shown standing upright against a white background.

Description

Wheel size: 20"
Material: Extruded heat treated 6061-T6 alloy with welded seam
Hole count: 36H, offset spoke
Rim width: 36mm
Rim depth: 18.5mm
Weight: 17.4 oz
Note: Dual chamber double wall design. ERD 388mm.

Simone Barraco's signature rim, built for his mix of technical and burly street riding. Shadow used a proprietary high strength aluminium alloy and a specially designed internal spoke seat to make this their strongest rim yet, so it takes the abuse whether you run high pressure or super low pressure in the streets.

It is a 20 inch, 36 hole rim with offset spoke drilling and a dual chamber double wall design, 36mm wide and 18.5mm tall. The extruded, heat treated 6061-T6 alloy shell has a welded seam. ERD is 388mm and the weight is 17.4 oz.

Features

Simone Barraco's signature rim. Built around what Simone's technical and burly street riding asks of a rim, which is not to fold.
Dual chamber double wall. The dual chamber double wall design is what gives this rim its strength when you land heavy.
36mm wide, 18.5mm tall. A wide profile that supports the tyre whether you run high pressure or super low in the streets.
Heat treated 6061-T6 alloy. Extruded heat treated 6061-T6 with a welded seam, using a proprietary high strength alloy and a specially designed internal spoke seat.
36 hole, offset drilling. A 36 hole 20 inch rim with offset spoke drilling, and an ERD of 388mm for working out spoke lengths.
