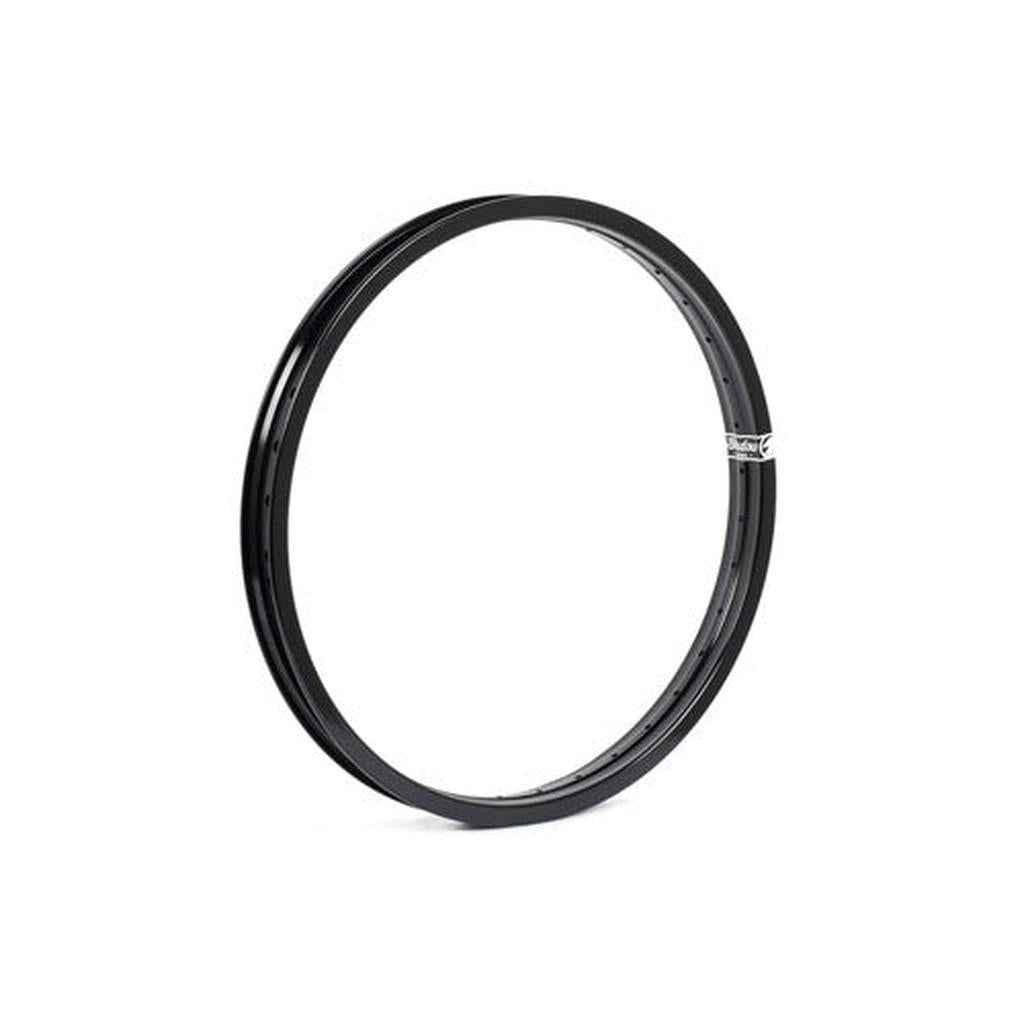

The Shadow Truss Rim is a black metal BMX bike rim with multiple spoke holes, shown upright on a white background.

Description

Material: Heat treated 6061-T6 alloy, welded seam
Hole count: 36
Rim width: 38mm, double walled
Weight: 17.75 oz
Note: ERD 389.6mm for working out spoke lengths.

The Truss rim borrows from modern bridge design. Internal chambers handle compression as well as tension, giving a very rigid structure that transfers load from a single impact point across a considerably wider area.

It is a double walled, 38mm wide rim in heat treated 6061-T6 alloy with a welded seam and centreline spoke drilling. The spoke area is increased to limit spoke pull through and add structural integrity, so the rim keeps you rolling.

Features

38mm wide, double walled. A wide double walled section puts more material where the impacts land.
Bridge inspired internal chambers. The chambers are built to handle compression and tension, spreading load from one point across a wider area.
Increased spoke area. More material around the spoke holes limits spoke pull through and adds structural integrity.
36 hole centreline drilling. Drilled 36 hole through the centreline of the rim for the wheel build.
Heat treated 6061-T6 alloy. Heat treated alloy with a welded seam makes for a stronger, more impact resistant rim.
