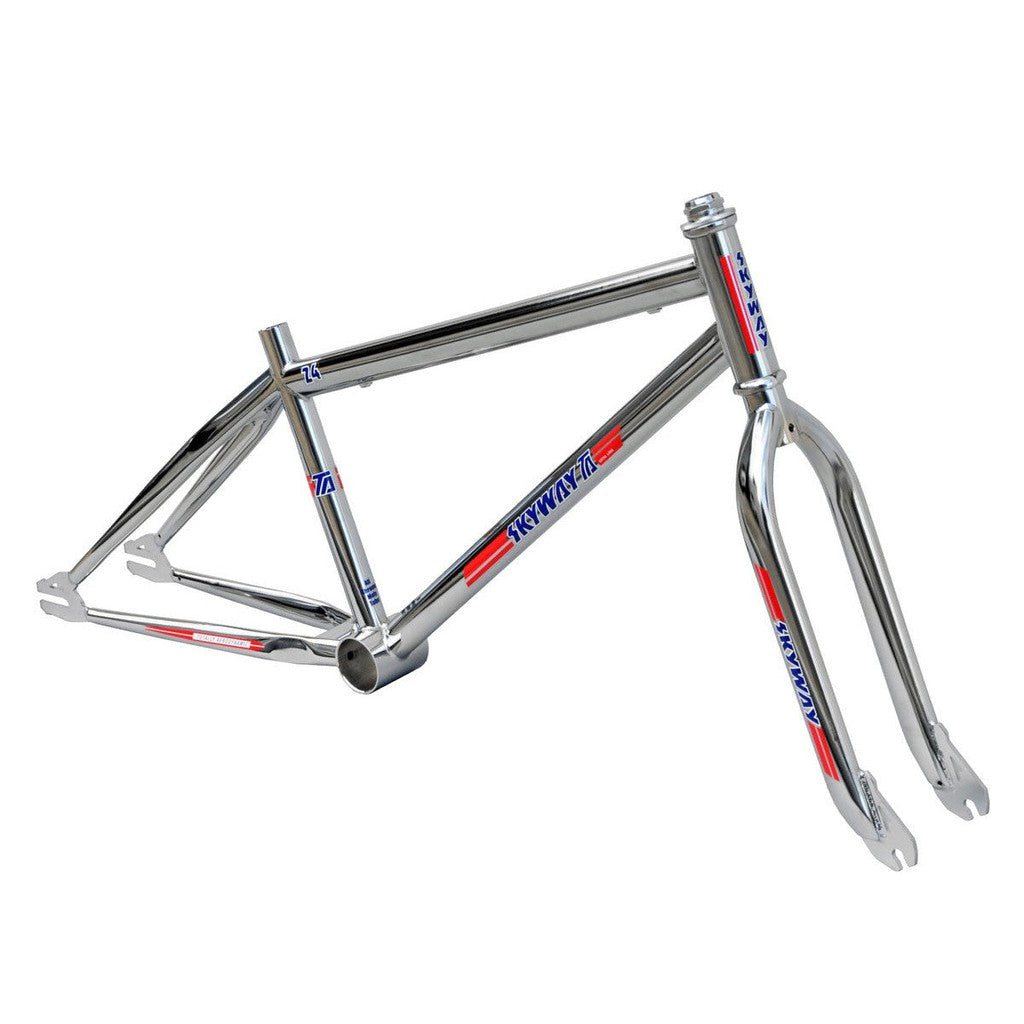

A shiny silver Skyway TA 24 Replica Frame / Fork / Bars Kit with Chromoly Teardrop Tubing and blue and red decals, displayed on a white background.

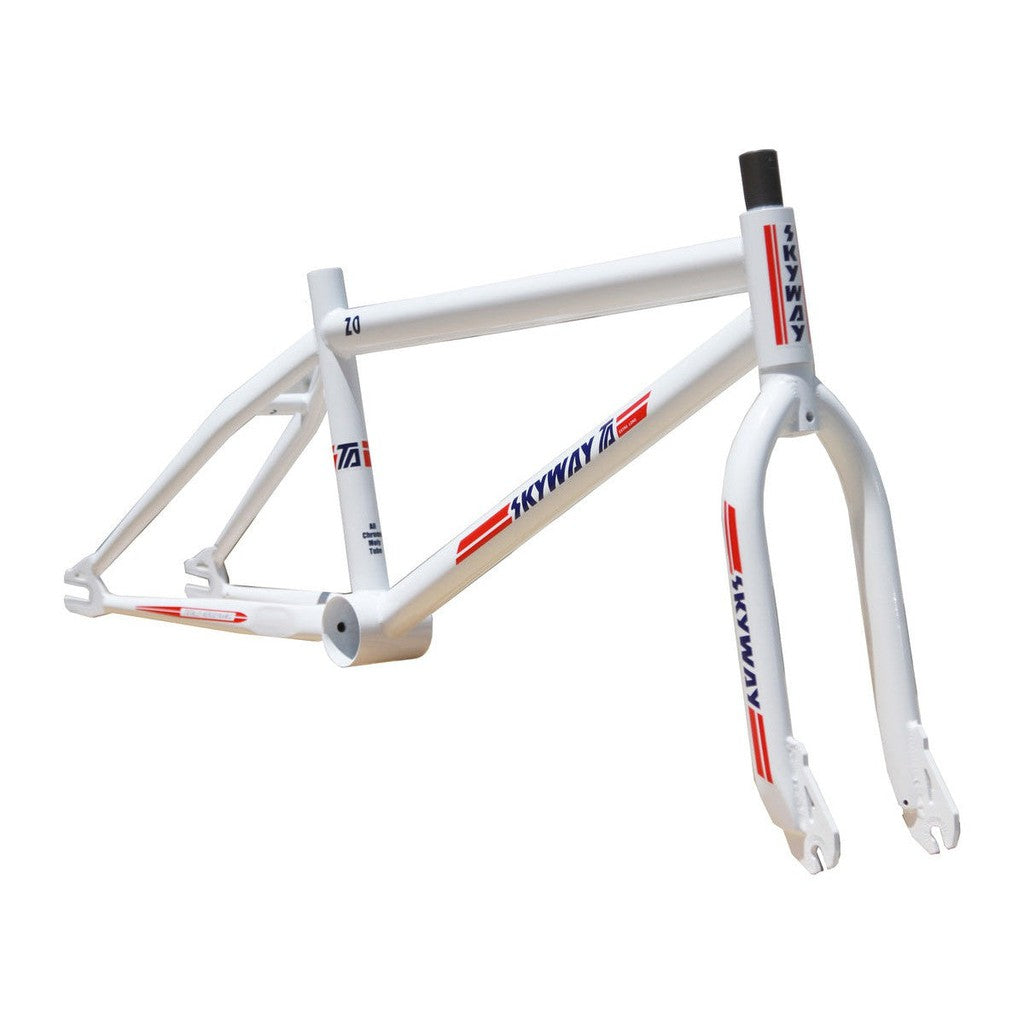

A white BMX bike frame and handlebars with blue and red decals, branded “Skyway TA 24 Replica Frame / Fork / Bars Kit,” are displayed against a white background.

Description

The Skyway TA (Totally Aerodynamic) frame kits are as unique as anything released in BMX, and this one is a 24" cruiser kit with the frame, fork and bars together. Every tube except the head tube and BB shell uses the full chromoly teardrop tubing the TA is known for.

It is built to the classic 1980s spec: a 1" head tube, 1" threaded fork steerer, USA bottom bracket shell and a side pull brake bridge, TIG welded for extra strength. Add your own Skyway parts and build it out from there.

Features

Frame, fork and bars together. One 24" cruiser kit to start a build from, ready for you to add your favourite Skyway parts.
Teardrop chromoly tubing throughout. Every tube except the head tube and BB shell uses the full chromoly teardrop profile the TA is known for.
Classic 1980s spec. A 1" head tube, 1" threaded fork steerer, USA bottom bracket shell and side pull brake bridge, as the original was.
TIG welded for extra strength. The 20" and 24" kits are TIG welded, so the joints are held together the modern way.
Long, relaxed cruiser fit. A 22.0" top tube and 15.8" chainstays, with 29" bars at 6.75" rise, 3° upsweep and 13° backsweep.

Specifications

Sizes: 24"
Top tube: 22.0"
Chainstay: 15.8"
Bottom bracket: USA
Material: Full chromoly teardrop tubing in every tube except the head tube and BB shell
Brake mounts: Side pull brake bridge
Head tube: 1"
Seat tube: 25.4mm post
Steerer: 1" threaded
Wheel size: 24"
Note: Bars: 6.75" rise, 29" wide, 3° upsweep, 13° backsweep

Skyway TA 24 Replica Frame / Fork / Bars Kit

Name: Skyway TA 24 Replica Frame / Fork / Bars Kit
Brand: Skyway BMX
SKU: SWFR005-24-CHP
Price: 899.99 AUD
Availability: InStock
Rating: 5.0 (1 reviews)
