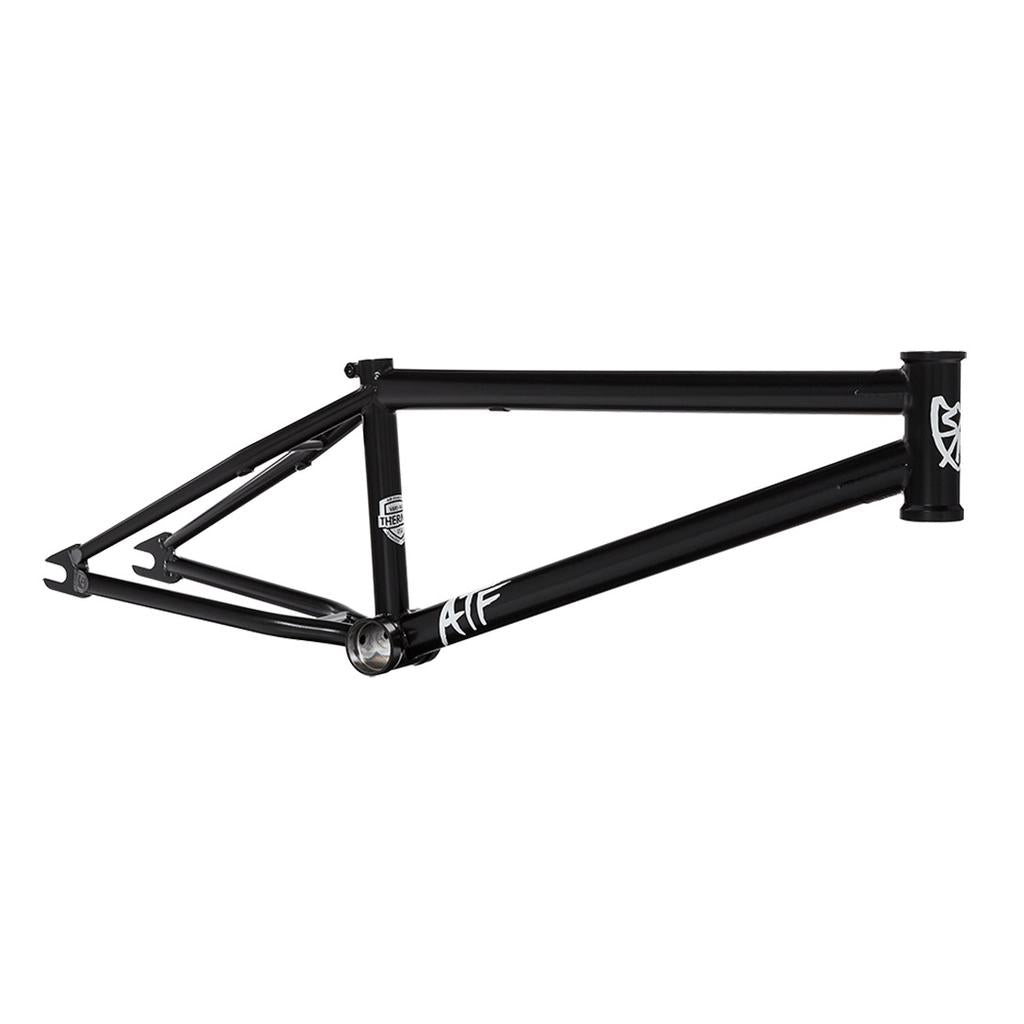

The S&M ATF 18 Inch Frame is a sleek black BMX bike frame with white graphics, designed in a minimalistic style. Made from durable chromoly, it's an all-terrain frame ideal for adventure seekers.
The S&M ATF 18 Inch Frame features a metallic finish, a triangular structure, branding near the front and bottom areas, and durable chromoly construction for added strength.

Description

The ATF 18″ is a scaled-down version of S&M's tried and true ATF frame, for smaller riders who are taking BMX seriously. ATF stands for All Terrain Frame, and the geometry and proportions are fine-tuned to rip it up at the park, in the dirt or on the street.

It is 100% chromoly with a butted Thermal-X tubeset, an 18.5″ top tube, a 12.4″ rear end and an 8″ standover, and it weighs 2.12 kg. Brake mounts are thread-on 990 and sold separately. Made in the USA.

Features
  • Scaled for smaller riders. An 18.5″ top tube, 12.4″ rear end and 8″ standover, so the bike fits now instead of being grown into.
  • 100% chromoly, butted Thermal-X. Full chromoly construction at 2.12 kg, light enough for a young rider to throw around.
  • All Terrain Frame. Fine-tuned geometry for park, dirt and street, so it is not locked into one kind of riding.
  • Brakes optional. Thread-on 990 mounts are sold separately and there are no gyro tabs, so the frame can run clean or braked.
  • Made in the USA. S&M build it at home with 14mm 4Q-baked dropouts, an integrated head tube and an integrated seat clamp.

Specifications
  • Top tube: 18.5″
  • Chainstay: 12.4″
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 8″
  • Bottom bracket height: 10.5″
  • Bottom bracket: Mid
  • Material: 100% chromoly
  • Tubing: Butted Thermal-X
  • Dropouts: 14mm slot, 4Q-baked
  • Brake mounts: Thread-on 990, mounts sold separately
  • Head tube: Integrated (45°/45°, 41.8mm)
  • Seat tube: 1″ (25.4mm) post
  • Seat clamp: Integrated
  • Wheel size: 18″
  • Weight: 2.12 kg
  • Made in: USA
  • Note: No gyro tabs

S&M ATF 18 Inch Frame

Brand: S&M SKU:

$1,199.99 AUD

Or 4 payments of $299.99 AUD with

Colour - Matte Black

Top Tube Length - 18.5

$1,199.99 AUD

Price match request

S&M ATF 18 Inch Frame - Matte Black / 18.5

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

18.5
Matte Black

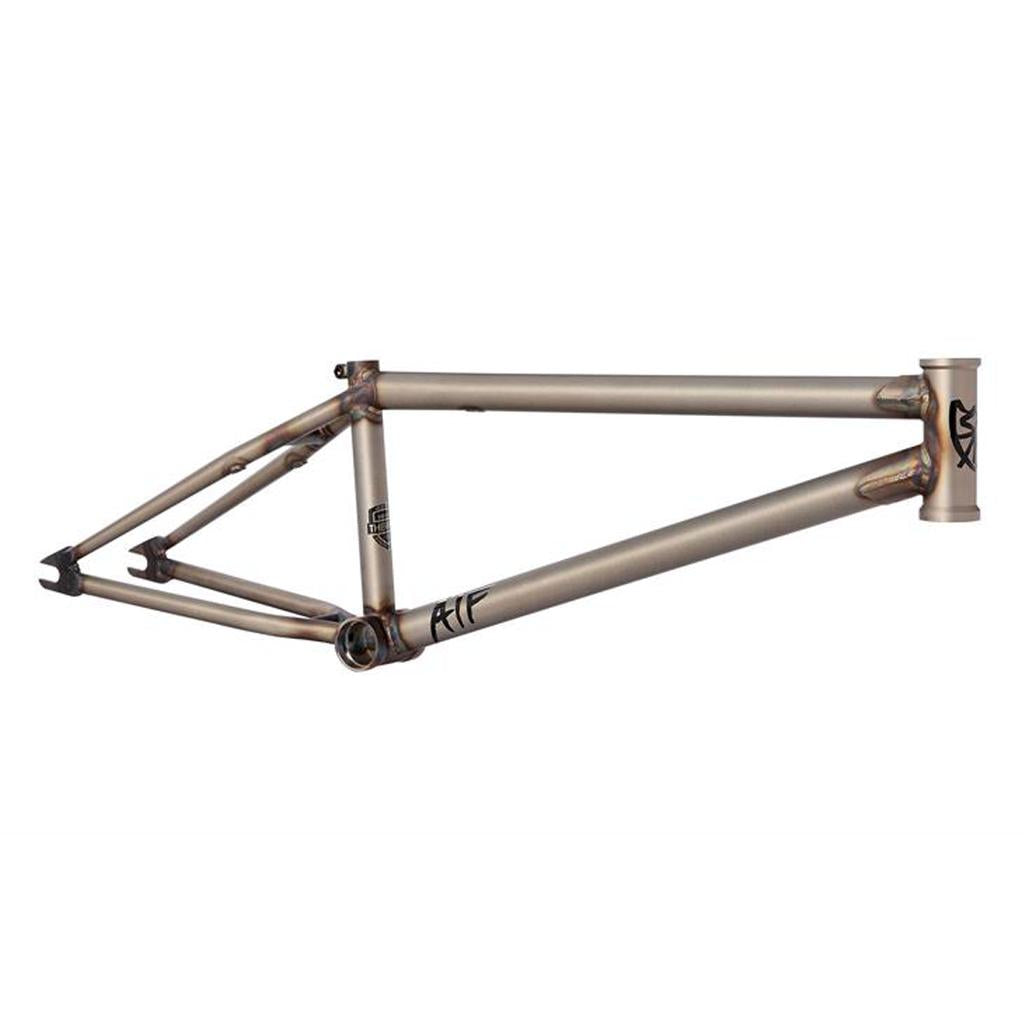

Primer Clear

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
