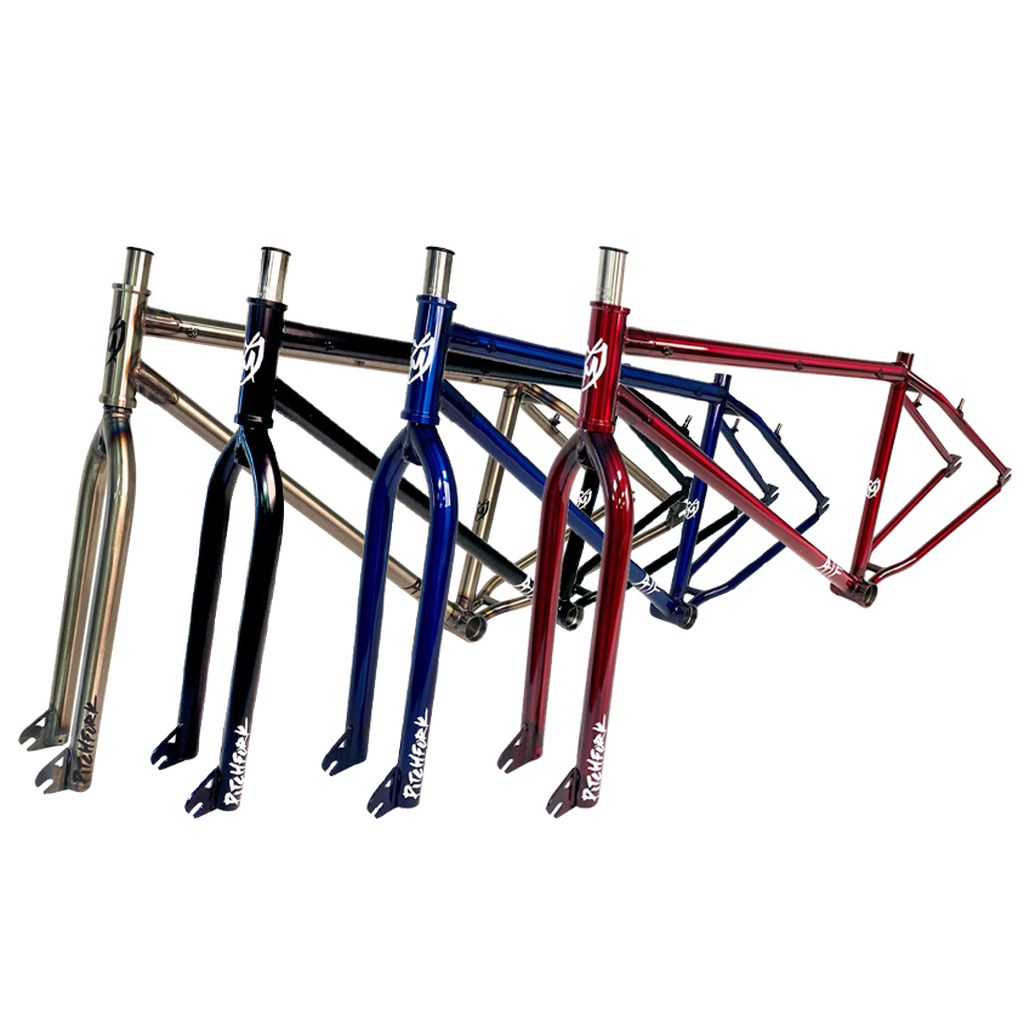

A group of S&M ATF 29 Inch Frame & Fork Kit with V-brake mounts.

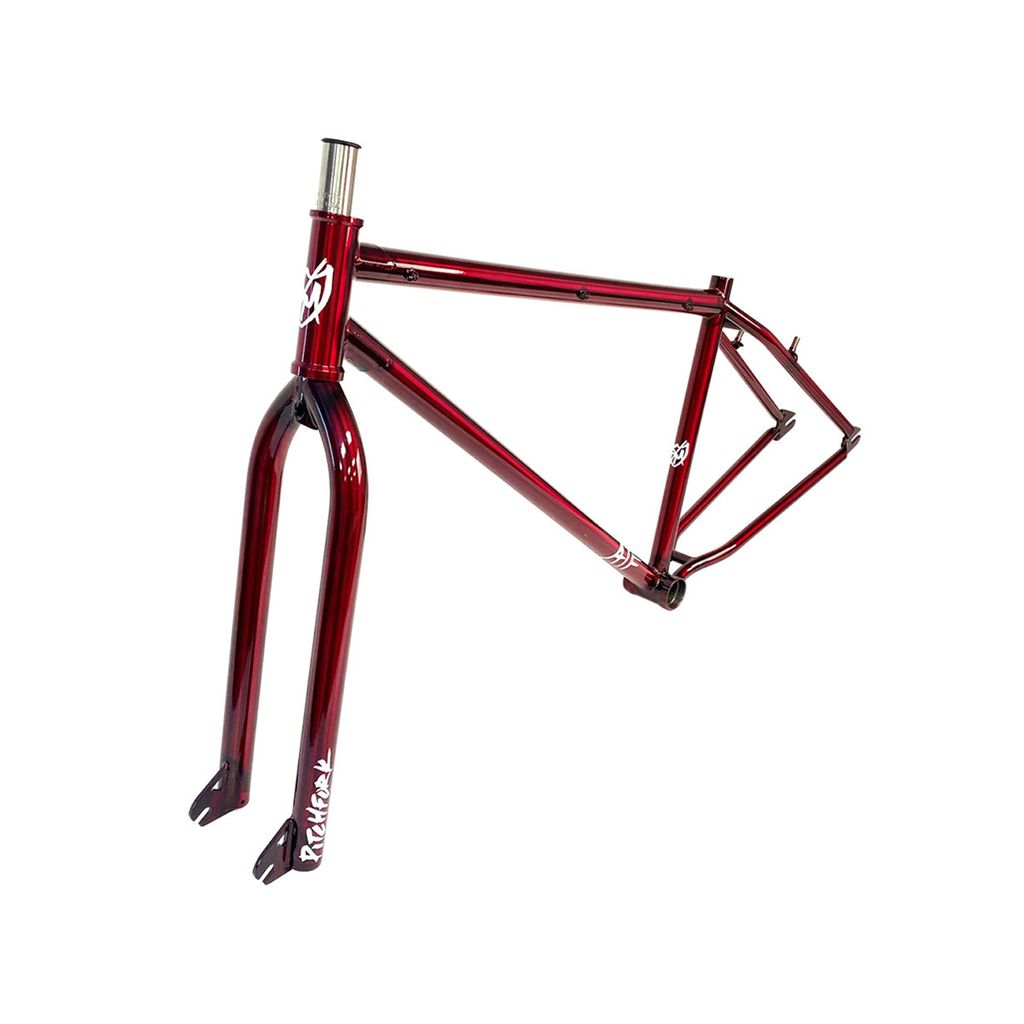

A S&M ATF 29 Inch Frame & Fork Kit with white writing on it, suitable for V-brake mounts.

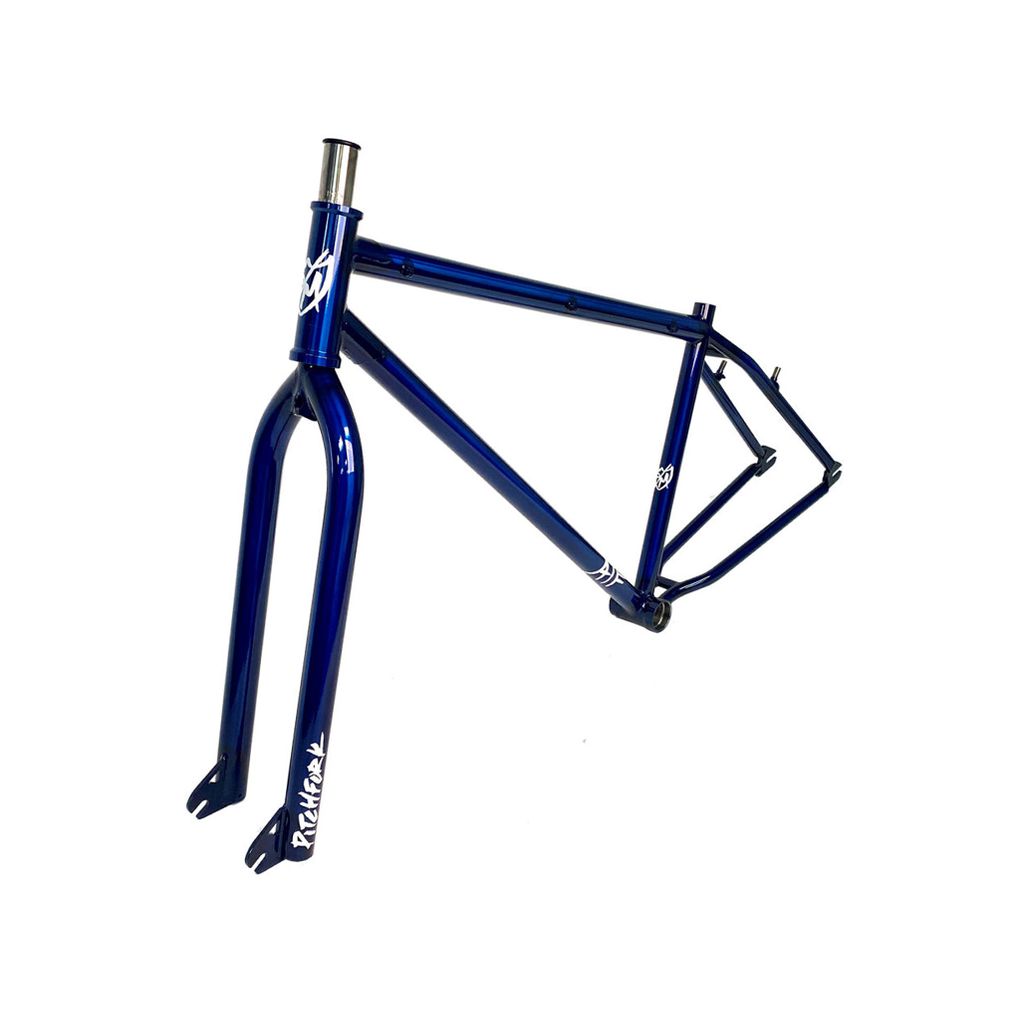

A S&M ATF 29 Inch Frame & Fork Kit with white writing on it, featuring V-brake mounts.

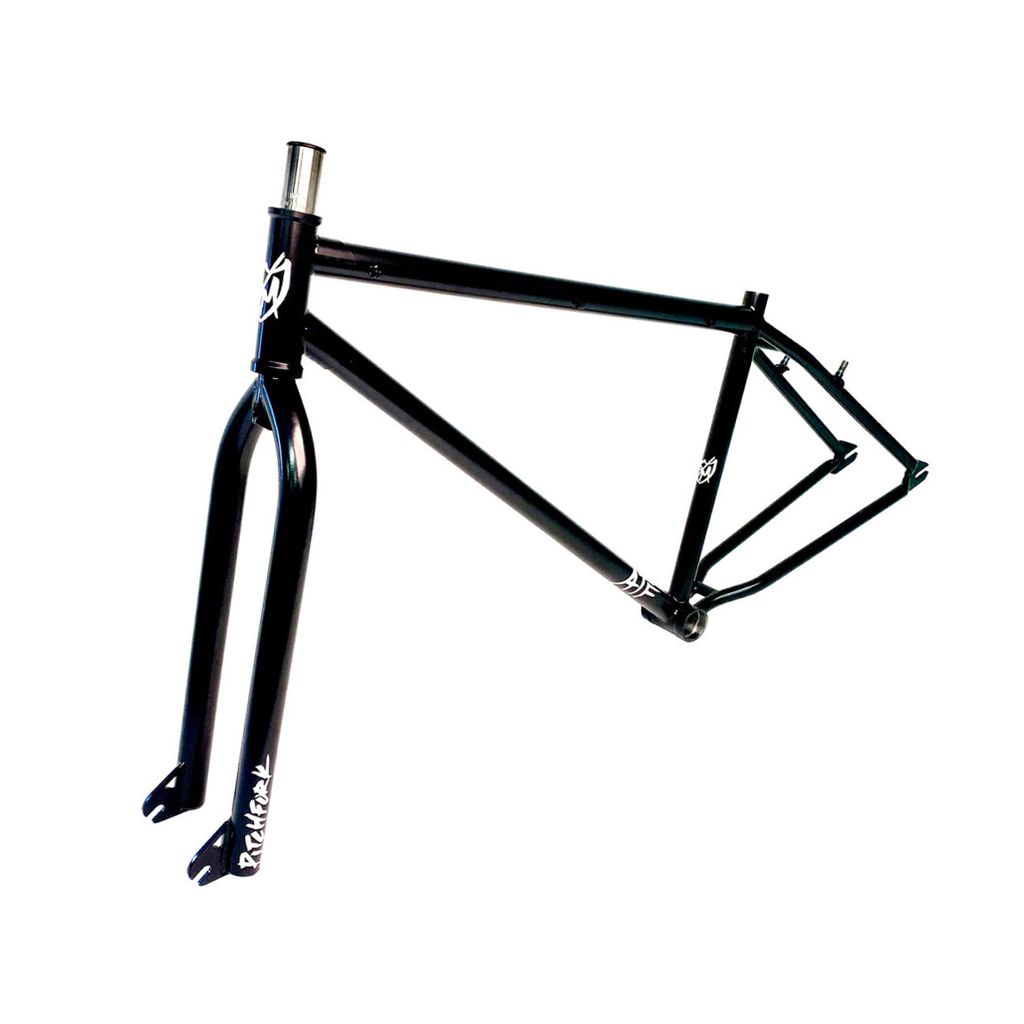

A S&M ATF 29 Inch Frame & Fork Kit with white writing and V-brake mounts on it.

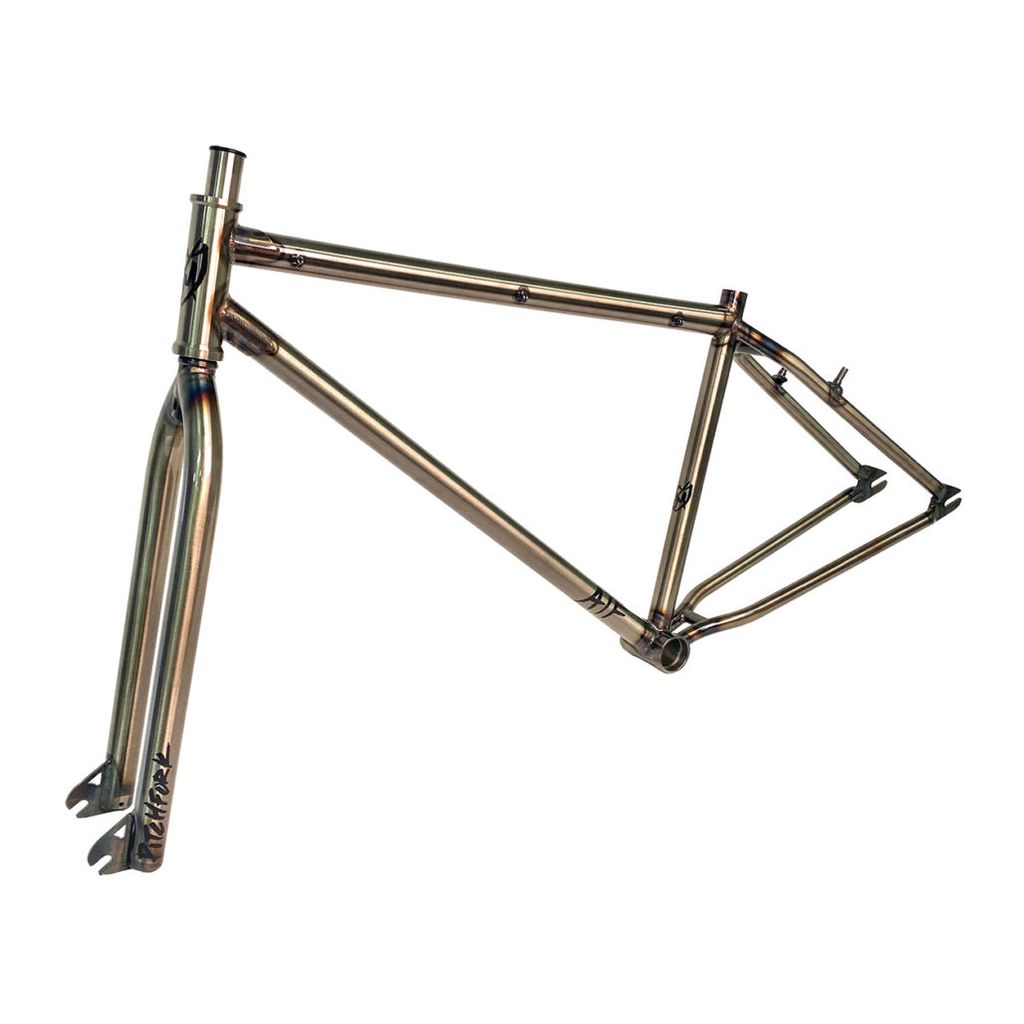

A S&M ATF 29 Inch Frame & Fork Kit with a white background and V-brake mounts.

Highlights

ATF geometry in 29 inch
Frame and matching fork
V-brake mounts, three cable guides
Integrated head tube, mid BB

Description

S&Ms iconic ATF now comes in a 29 Inch frame and fork kit! Key features include an integrated head tube, mid-BB and V-brake mounts. This kit is a cruiser-build dream!

Features

ATF geometry in 29 inch. The iconic S&M ATF scaled up for 29" wheels, sold as a frame and fork kit.
Frame and matching fork. A 23.75" top tube frame with a 435mm axle to crown fork, so the front end is sorted from the start.
V-brake mounts, three cable guides. Set up for V-brakes with the guides already on the frame, which is what a cruiser build wants.
Integrated head tube, mid BB. A 5.15" tall integrated head tube and a mid bottom bracket keep the build straightforward.
3/8" dropouts front and rear. Frame slots and PF fork dropouts both take a 3/8" axle, with 172mm of integrated PFXLT steerer and straight gauge 1.25" legs.

Specifications

Top tube: 23.75"
Chainstay: 17.75" rear end
Head tube angle: 69°
Seat tube angle: 69°
Standover: 15.25"
Bottom bracket height: 12.25"
Bottom bracket: Mid
Dropouts: 3/8" slots on the frame, 3/8" PF on the fork
Brake mounts: V-brakes with 3 cable guides
Head tube: 5.15" tall, integrated
Seat clamp: None, no integrated clamp
Steerer: 172mm integrated PFXLT
Fork legs: Straight gauge 1.25", 435mm axle to crown
Wheel size: 29"

S&M ATF 29 Inch Frame & Fork Kit

Name: S&M ATF 29 Inch Frame & Fork Kit
Brand: S&M
SKU: SMFR097-02-BLK
Price: 1799.99 AUD
Availability: InStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

From

$1,799.99 AUD

$1,999.99 AUD

Or 4 payments of $449.99 AUD with

Colour - Matte Black

Top Tube Length - 23.75

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
