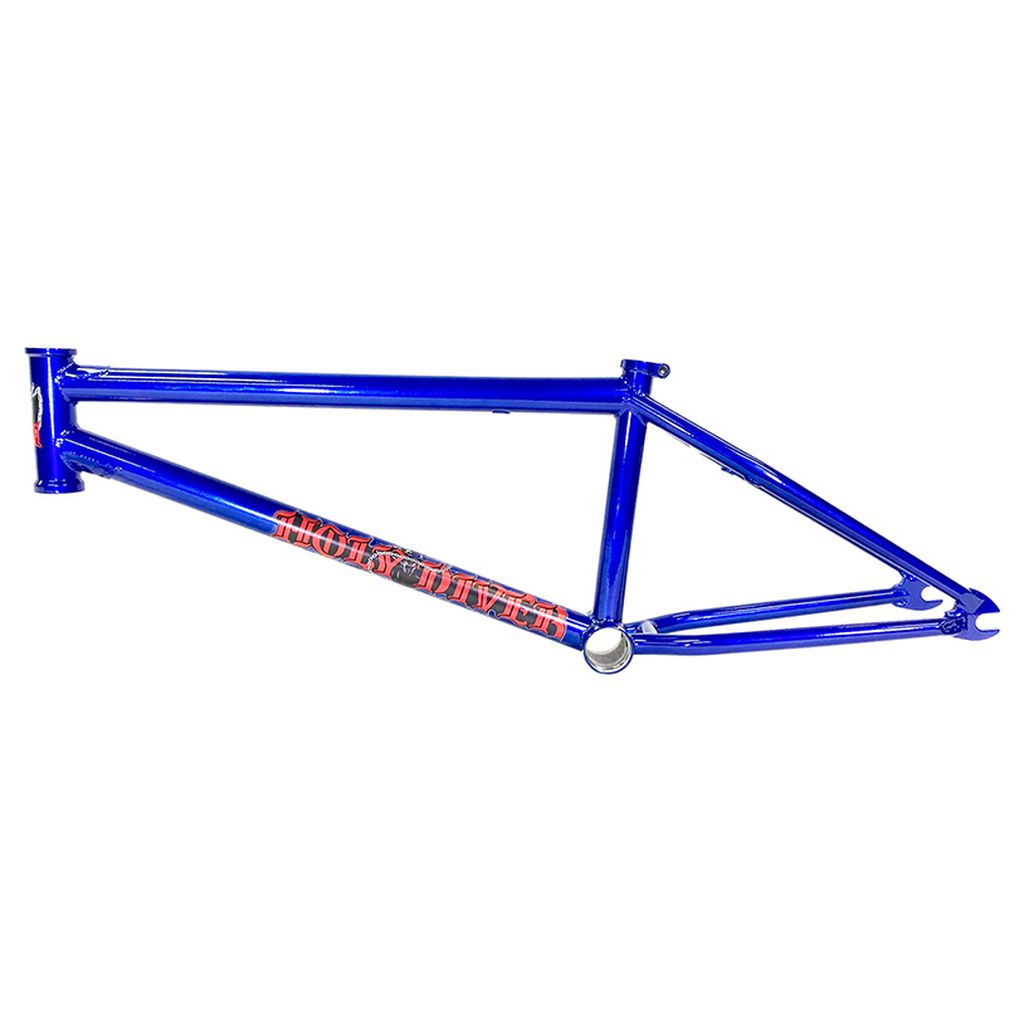

The S&M Holy Diver Frame in blue features red "S&M Holy Diver" text, responsive street geometry, and ultra-strong dropouts for durability.

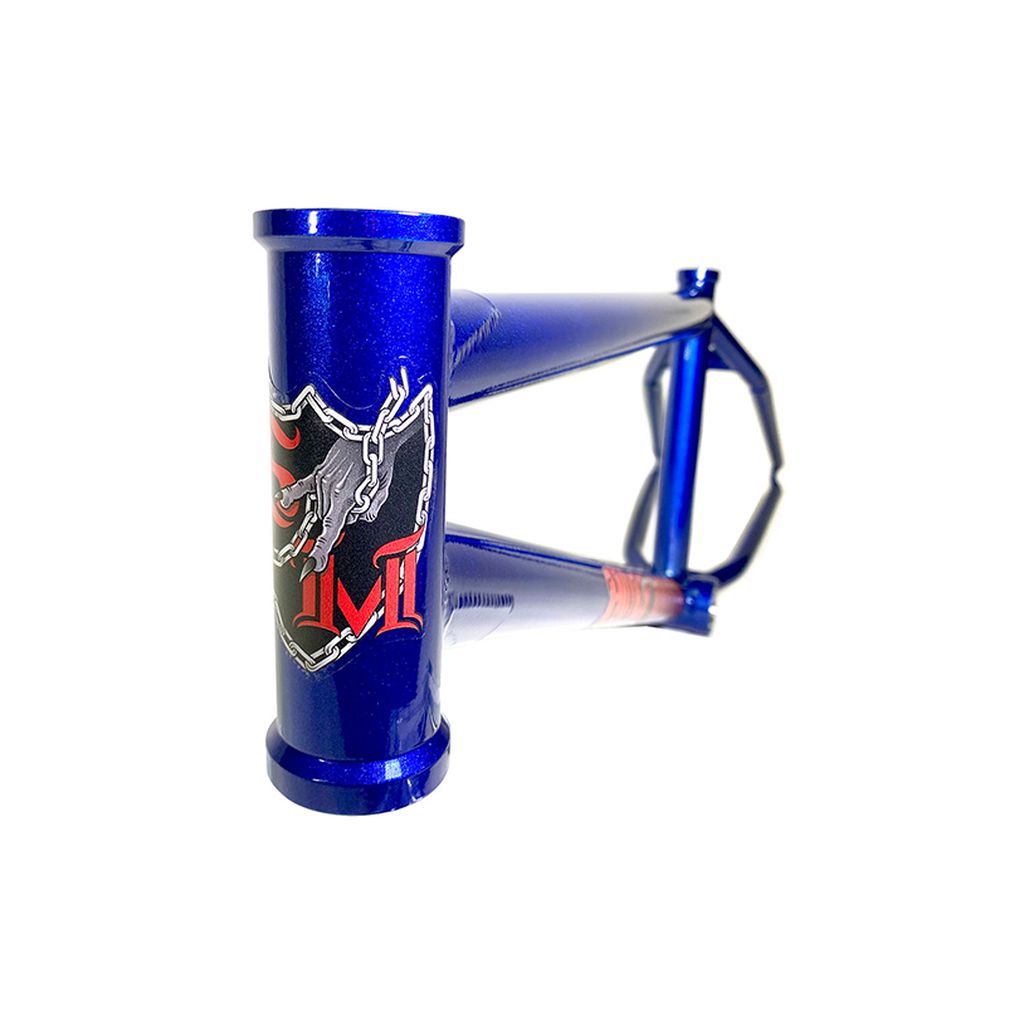

The S&M Holy Diver Frame showcases a black and red chain emblem on its blue head tube. It features responsive street geometry, ensuring nimble handling, making it ideal for urban adventures.

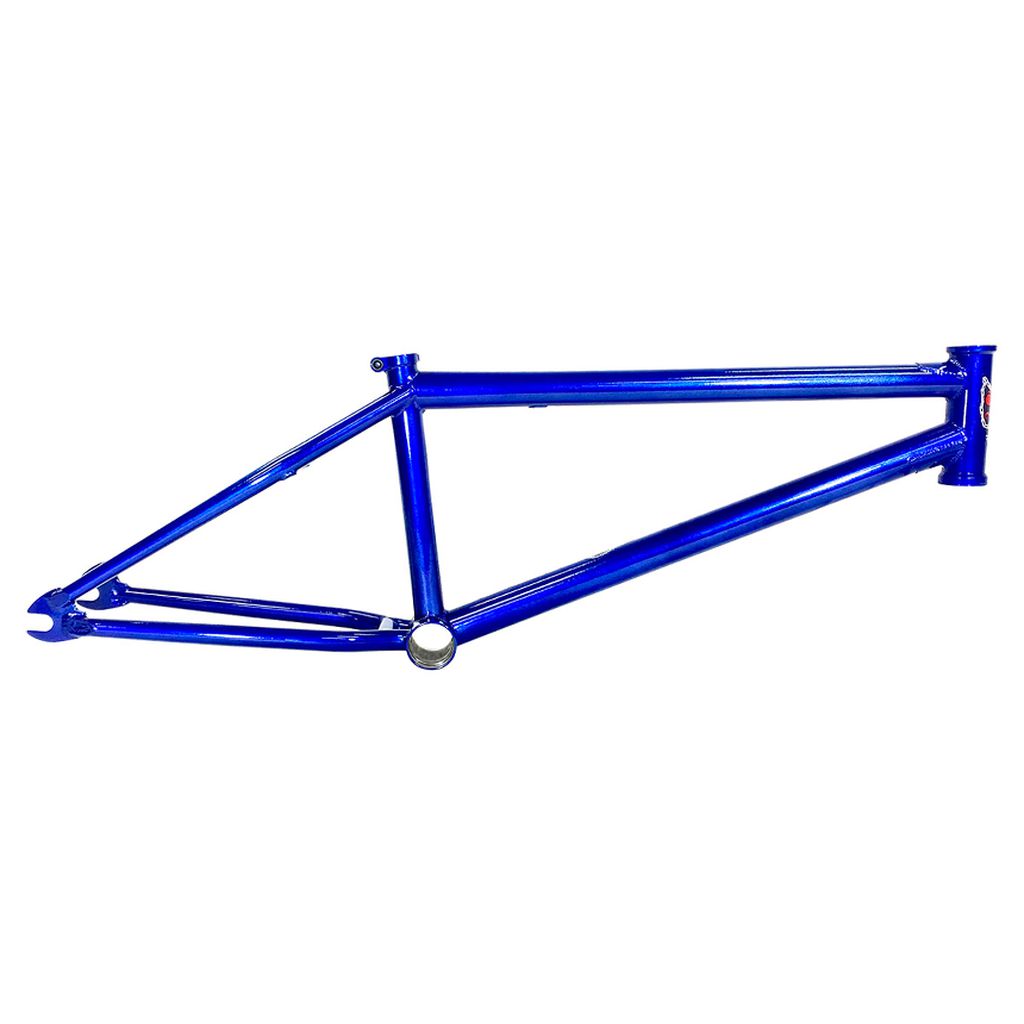

The S&M Holy Diver Frame, a blue bicycle frame with ultra-strong dropouts and responsive street geometry, is isolated on a white background.

Description

The Holy Diver was designed to react quickly, take a beating and come back swinging. A 21" top tube, a 12.7" to 13" rear end and responsive modern street geometry sit on ThermalX butted tubing, with a laser cut top tube gusset adding strength where the top tube meets the head tube.

The dropouts are compact, heat-treated and a quarter inch thick, so they are ultra strong and leave ample peg clearance. A taller 5" head tube cuts down the number of spacers you need under the stem, and the frame comes in at 2.12 kg.

Features

Quarter inch thick dropouts. Compact heat-treated dropouts with a 14mm slot are ultra strong and leave ample clearance for pegs.
Taller 5" head tube. The extra height reduces the number of spacers needed under the stem for a cleaner front end.
Laser cut top tube gusset. Extra material where the top tube meets the head tube adds strength at the spot that takes the hits.
ThermalX butted tubing, 2.12 kg. Butted tubing keeps the weight down on a frame built to take a beating.
Responsive street geometry. A 21" top tube, 75.5° head tube angle, 71° seat tube angle, 11.7" bottom bracket height and 9" standover.

Specifications

Sizes: 21" top tube
Chainstay: 12.7" to 13"
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.7"
Bottom bracket: Mid
Tubing: ThermalX butted tubing
Dropouts: 14mm slot, 4Q-Baked, 1/4" thick heat-treated
Brake mounts: Thread-on 990 mounts, no gyro tabs
Head tube: 5" integrated (45°/45°, 41.8mm)
Seat tube: 1" (25.4mm) seat post
Seat clamp: Investment cast
Weight: 2.12 kg

S&M Holy Diver Frame

Name: S&M Holy Diver Frame
Brand: S&M
SKU: SMFR013-02-SEA
Price: 1299.99 AUD
Availability: OutOfStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

From

$1,299.99 AUD

$1,599.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Blue

Top Tube Length - 21

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
