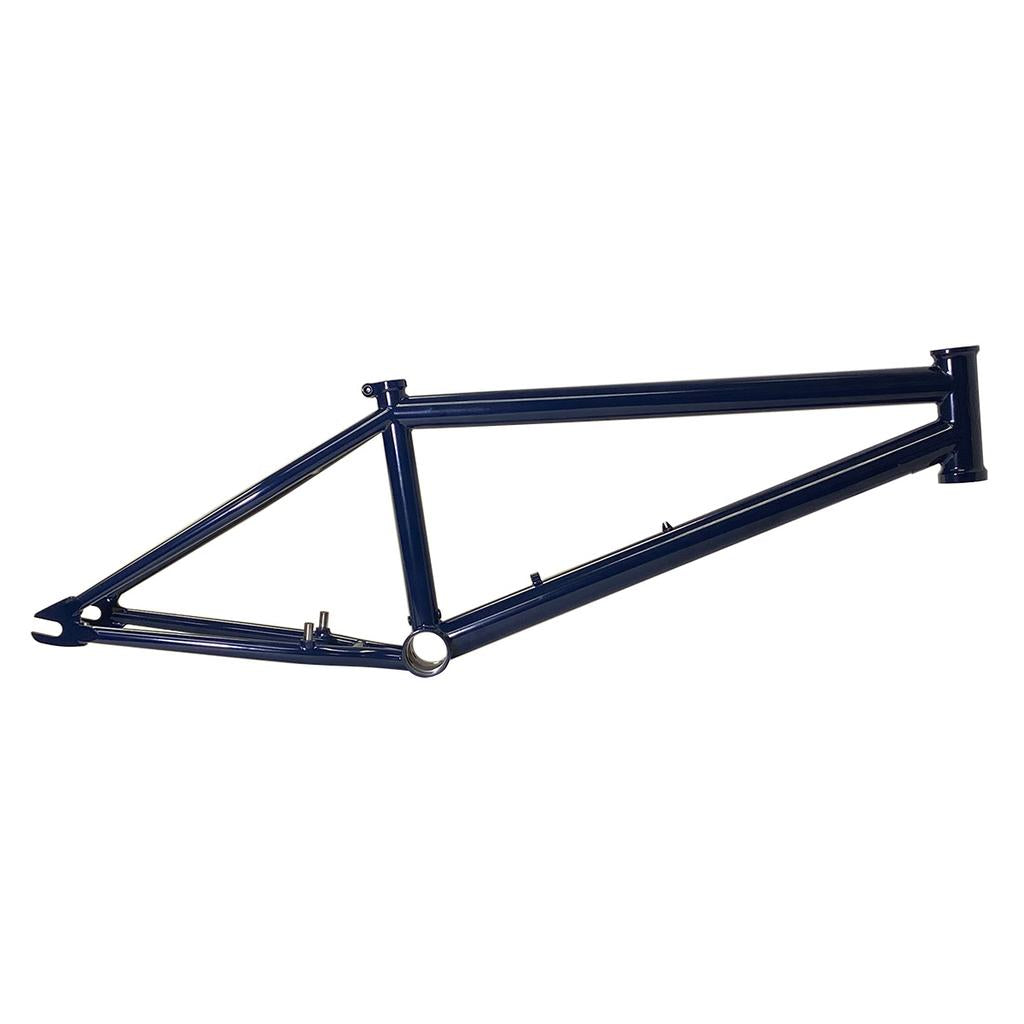

A dark blue S&M Rambler Thru N Thru Frame (Nathan Halahan), built for dirt jump riders, is shown without wheels, fork, or components against a white background.

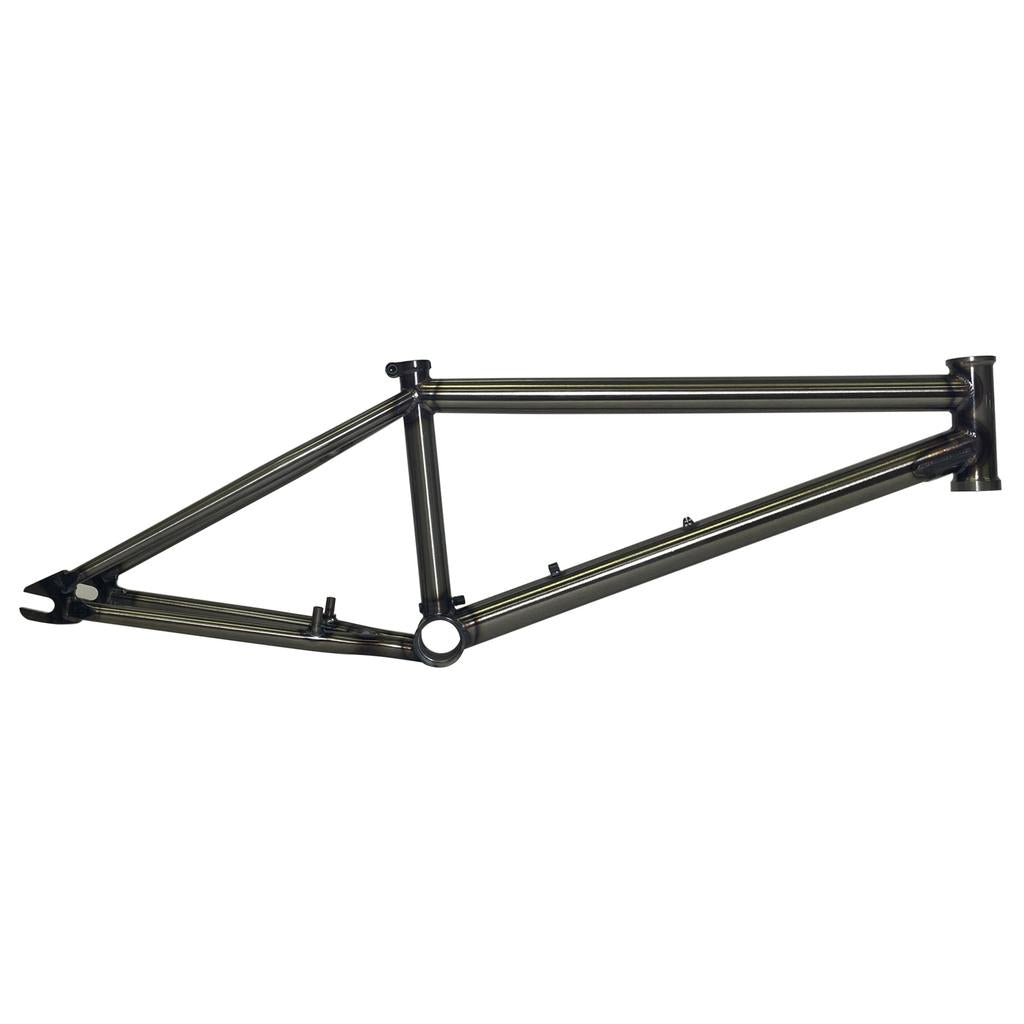

The S&M Rambler Thru N Thru Frame (Nathan Halahan), a metallic BMX dirt jump frame inspired by the S&M RAMBLER, is shown without wheels, seat, or handlebars against a plain white background.

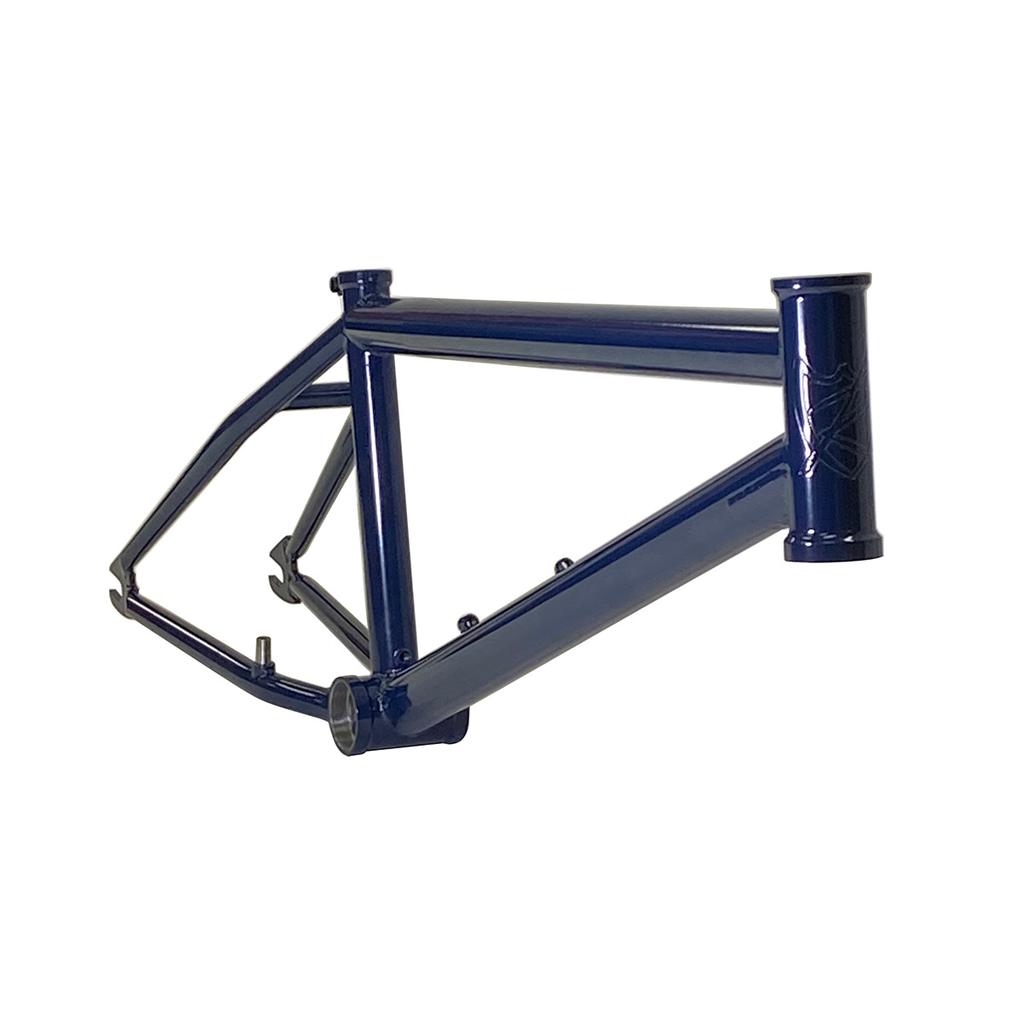

The S&M Rambler Thru N Thru Frame (Nathan Halahan), shown in blue from the side on a white background without wheels, seat, or handlebars—perfect as the foundation for your next dirt jump BMX build.

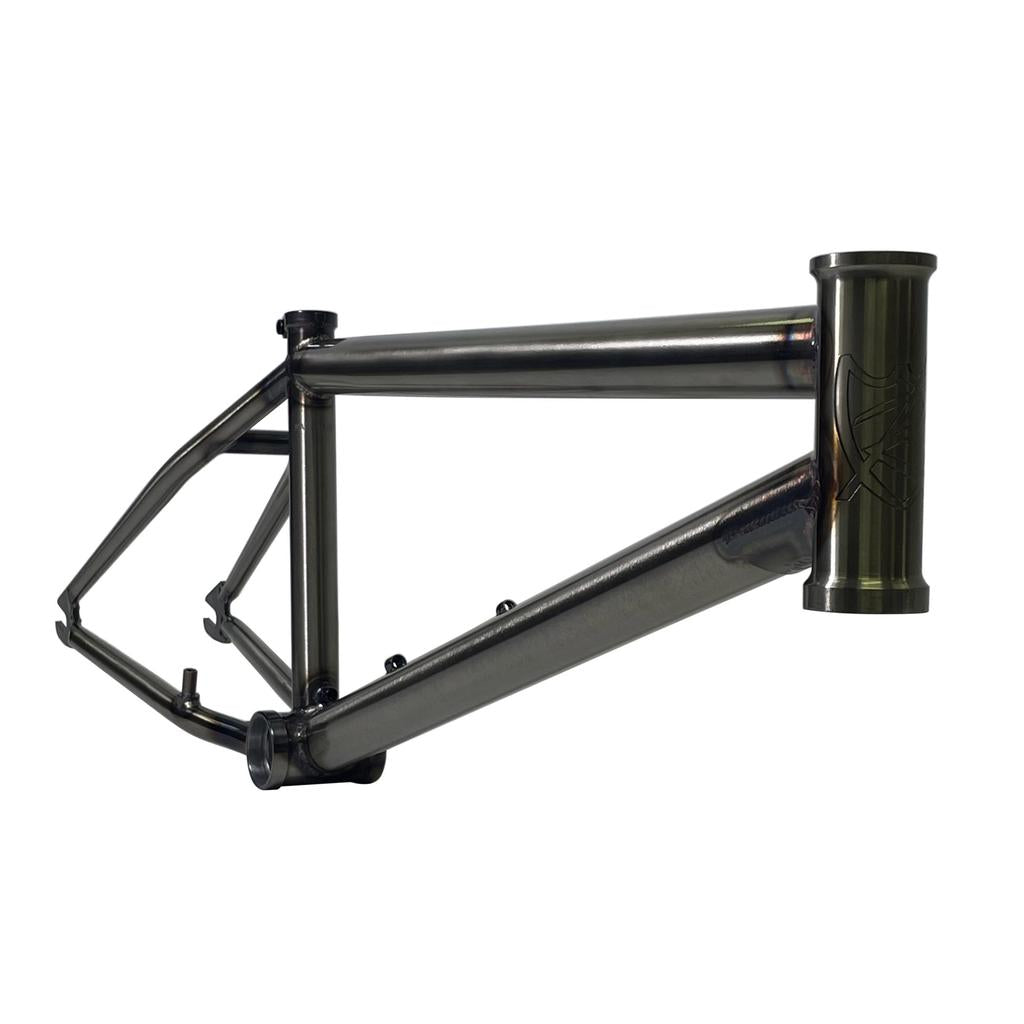

Glossy metal S&M Rambler Thru N Thru Frame (Nathan Halahan), ideal for dirt jump bike fans, displayed against a plain white background.

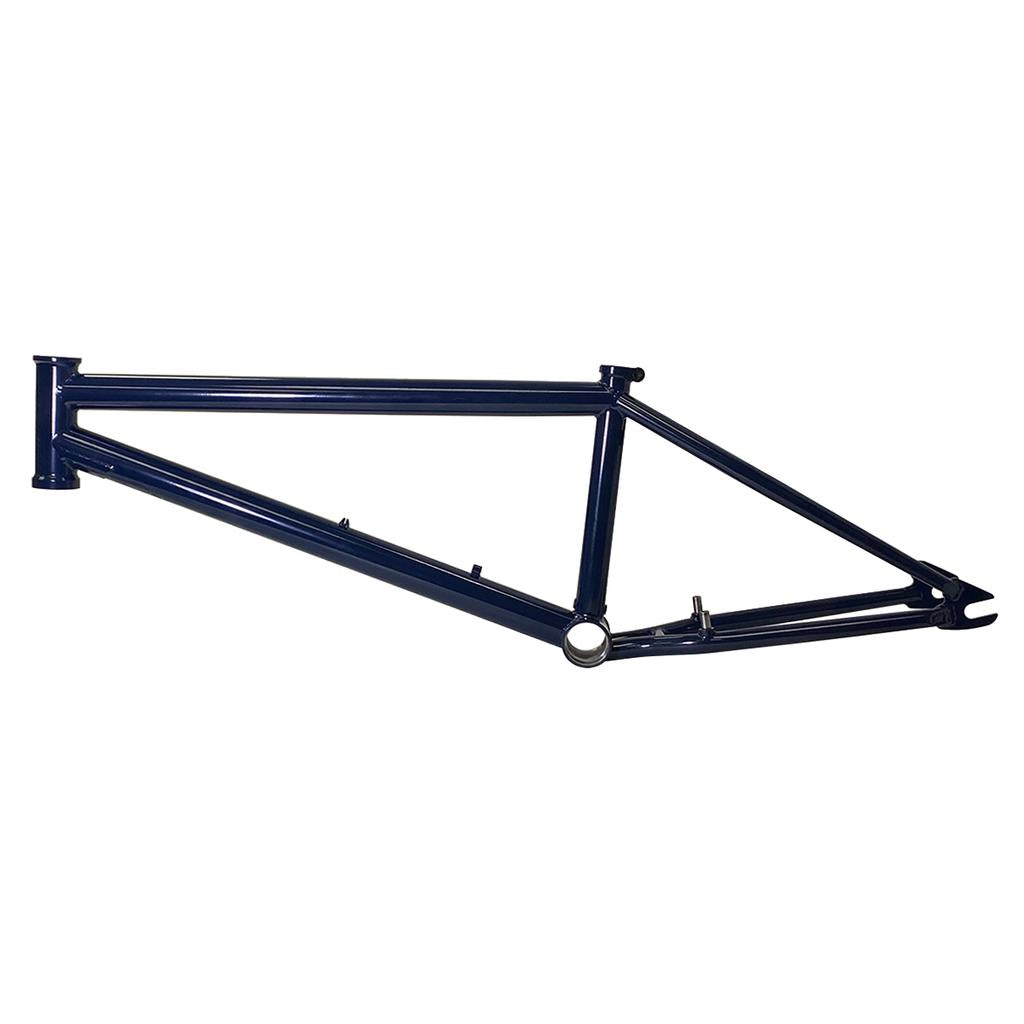

The S&M Rambler Thru N Thru Frame (Nathan Halahan) BMX frame in blue metal is displayed against a white background.

A tall, cylindrical, glossy dark blue vase with a subtle embossed abstract design on its front, inspired by the sleek curves and modern style of the S&M Rambler Thru N Thru Frame (Nathan Halahan).

Description

Long back end, low bottom bracket and a relaxed head tube: the S&M Rambler is at home on the big lines. Nathan Halahan is Grade A(ape) at riding little bikes on big piles of dirt, and his version of the Rambler is set up to give him the confidence to keep doing it.

Nate's frame runs a 74.25° head tube angle and a slightly shorter rear end than standard. It is built from a butted Thermal-X tubeset, comes in 21" and 21.5" top tube sizes and weighs 2.45 kg.

Features

Long back end for trails. A 13.75" to 14.5" rear end and a relaxed 74.25° head tube angle keep you settled on big lines.
Nathan Halahan's own geometry. Nate's version runs a 74.25° head tube angle and a slightly shorter rear end than the standard Rambler.
Low 11.6" bottom bracket. The bottom bracket sits at 11.6" with a 9.25" standover height and a 71° seat tube angle.
Butted Thermal-X tubeset. S&M's butted Thermal-X tubing brings the frame in at 2.45 kg.
Welded 990 mounts, 14mm dropouts. Chainstay 990 mounts are welded on and the 4Q-Baked dropouts take a 14mm axle, with no gyro tabs.

Specifications

Sizes: 21", 21.5" top tube
Chainstay: 13.75" to 14.5"
Head tube angle: 74.25°
Seat tube angle: 71°
Standover: 9.25"
Bottom bracket height: 11.6"
Bottom bracket: Mid
Tubing: Butted Thermal-X
Dropouts: 14mm slot, 4Q-Baked
Brake mounts: Welded chainstay 990. No gyro tabs
Head tube: 5" integrated (45°/45°, 41.8mm)
Seat tube: 1" (25.4mm) seat post
Seat clamp: Integrated
Weight: 2.45 kg

S&M Rambler Thru N Thru Frame (Nathan Halahan)

Name: S&M Rambler Thru N Thru Frame (Nathan Halahan)
Brand: S&M
SKU: SMFR017-04-BGV
Price: 1299.99 AUD
Availability: OutOfStock

Brand: S&M SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Blue Groove

Top Tube Length - 21.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
