Highlights

  • Pro XXXXL, 22.5" top tube
  • Double butted 7005 aluminium
  • Universal 10/15/20mm dropouts
  • Post mount disc, 120mm rotor

Description

New colours for the Speedco M2 Alloy Disc frames bring a fresh update and confirm that the V-brake is dead. Speedco has ditched the brake post mounts on the seat stay to produce a alloy frame that has a sleek clean look befit of a BMX race frame of the modern era.

With geometry that mimics the Velox carbon frames, the Pro disc frames are manufactured from 7005 series aluminium that is heat treated and double butted for weight reduction and increased strength. The down tube is tapered and wider at the bottom bracket to provide increased stiffness in this critical area.

Features of the M2 disc frame include a seamless integrated chain tensioner system and internal cable routing from front of top-tube to mid seat-stay exiting right at the brake caliper, keeping the hydraulic hose protected as possible.

Speedco's reputation for producing quality BMX race frames in both aluminium and carbon is well known in the racing community and the M2 disc frame continues this legacy of innovation and style. Some of the fastest riders on the planet ride Speedco frames.

Making the jump to your first disc brake frame? Contact LUX's customer service team and they will step you through the process to ensure that everything goes together smoothly. They can help you choose the right wheelset and disc brake set up for your new race rig.

Features

  • Pro XXXXL, 22.5" top tube. The longest 20" size in the M2 Pro range, one of eight sizes that also covers two 24" cruisers.
  • Double butted 7005 aluminium. Heat treated tubing that cuts weight and adds strength, with a tapered down tube that widens at the bottom bracket for stiffness.
  • Universal 10/15/20mm dropouts. Axle blocks for all three sizes come with the frame, so it takes whatever race wheelset you already have.
  • Post mount disc, 120mm rotor. Works with post mount disc brakes and 120mm discs, with the mounts for 10 and 15mm included and the 20mm mount sold separately.
  • Press-fit BB86 and tapered head tube. A press-fit BB86 shell and a 1-1/8" to 1.5" tapered head tube, matched to modern race cranks and forks.

Specifications

  • Sizes: Pro L 20.5", Pro XL 21", Pro XL+ 21.35", Pro XXL 21.75", Pro XXXL 22", Pro XXXXL 22.5", Pro XL 24 21.75", Pro XXL 24 22.5" top tube
  • Top tube: 22.5"
  • Bottom bracket: Press-fit BB86 shell
  • Material: 7005 series aluminium, heat treated
  • Tubing: Tapered down tube, wider at the bottom bracket
  • Butting: Double butted
  • Dropouts: Universal 10/15/20mm with integrated chain tensioner
  • Brake mounts: Post mount disc, 120mm discs, no seat stay V-brake posts
  • Cable routing: Internal, front of top tube to mid seat stay, exiting at the calliper
  • Head tube: 1-1/8" to 1.5" tapered
  • Seat tube: 27.2mm seat post
  • Axle size: 10mm, 15mm or 20mm, 145mm thru bolt length
  • Note: Included: 10/15/20mm axle blocks, chain tension screws and nuts, internal cable routing hardware, and disc brake mounts for 10 and 15mm. The 20mm disc brake mount is sold separately.

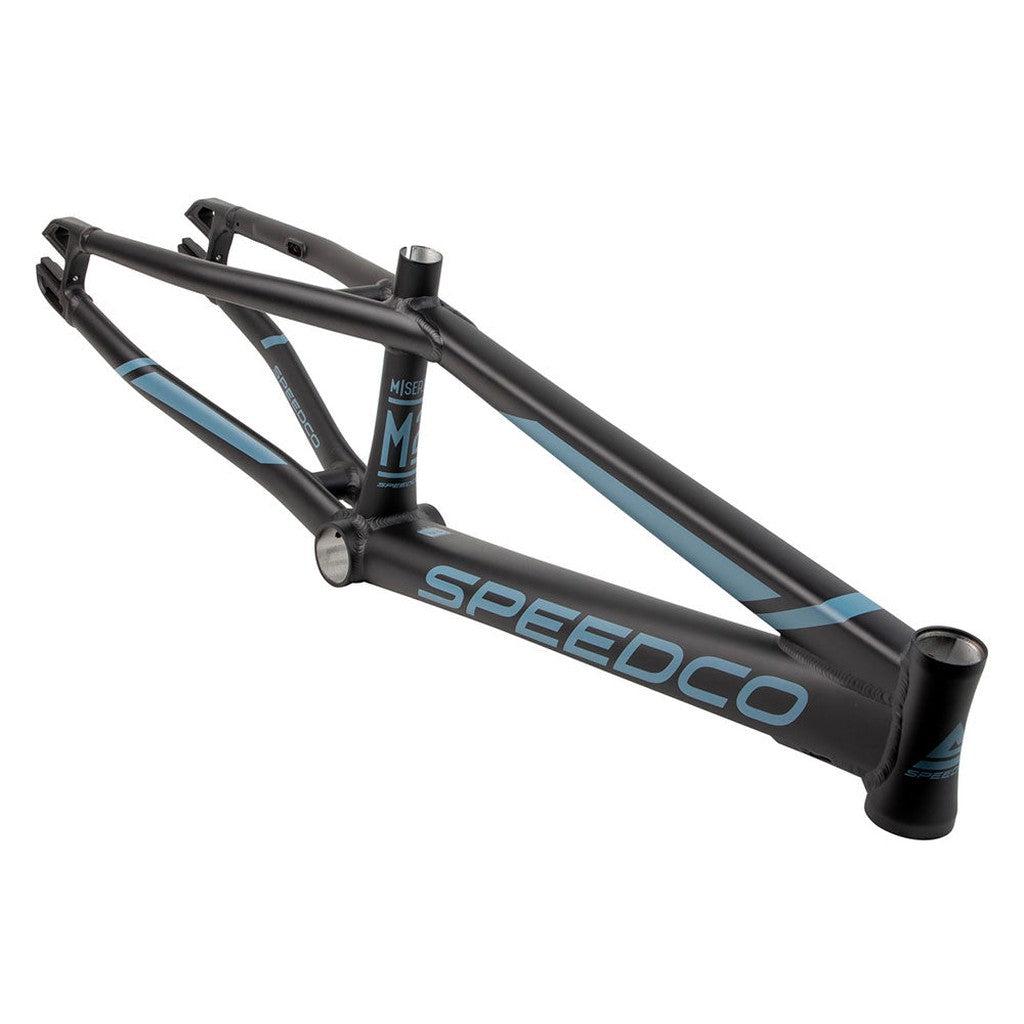

Speedco M2 Pro XXXXL Frame

Brand: Speedco SKU: Click to copy the SKU and show the pick location

Sale priceFrom

$799.99 AUD

Regular price$1,199.99 AUD

Or 4 payments of $199.99 AUD with

Colour - Matte Gold

Top Tube Length - 22.5

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
