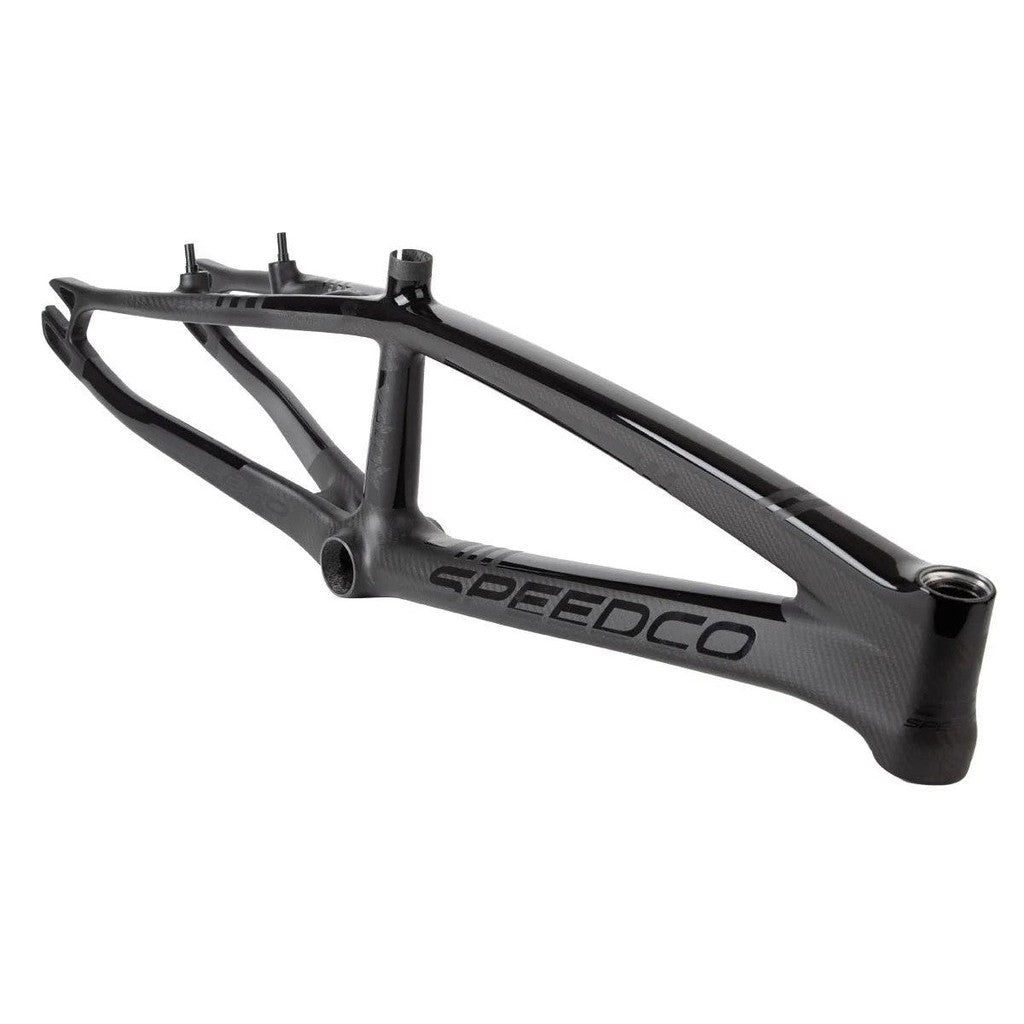

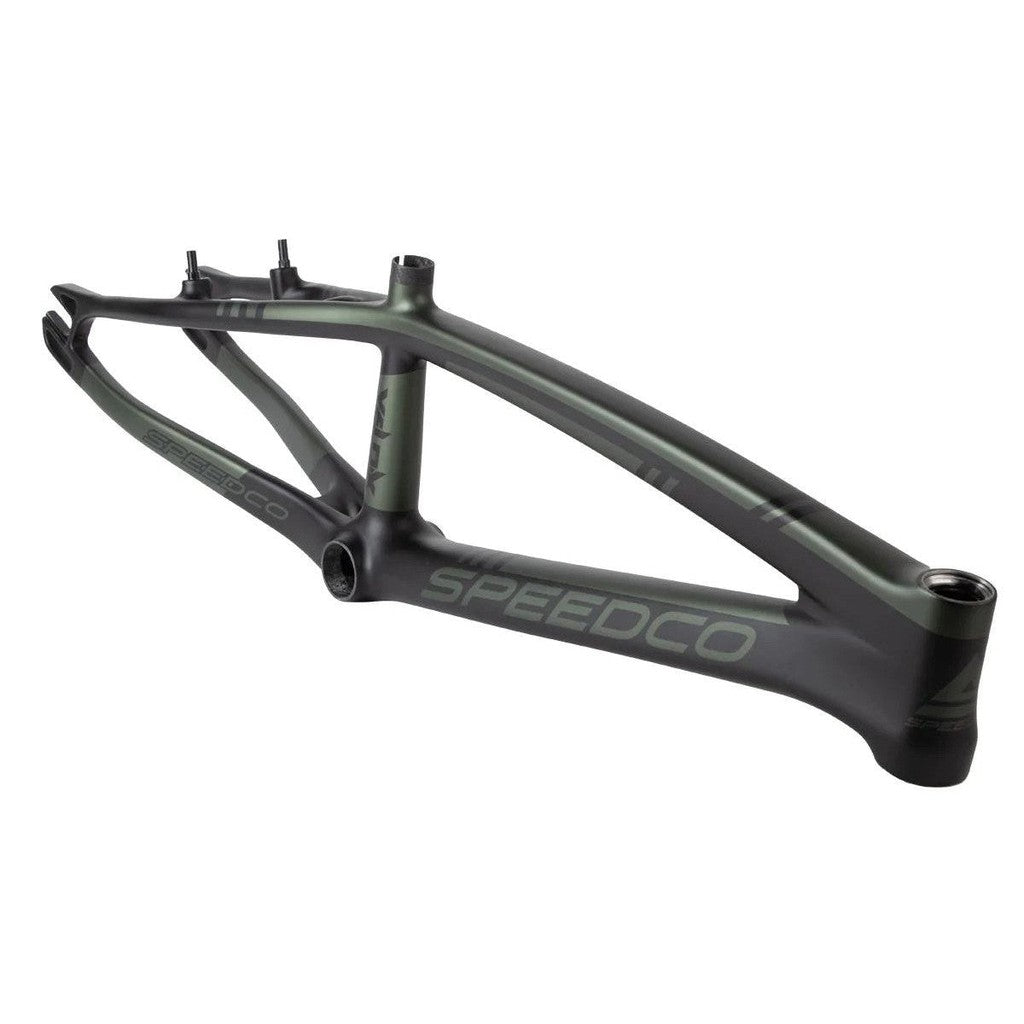

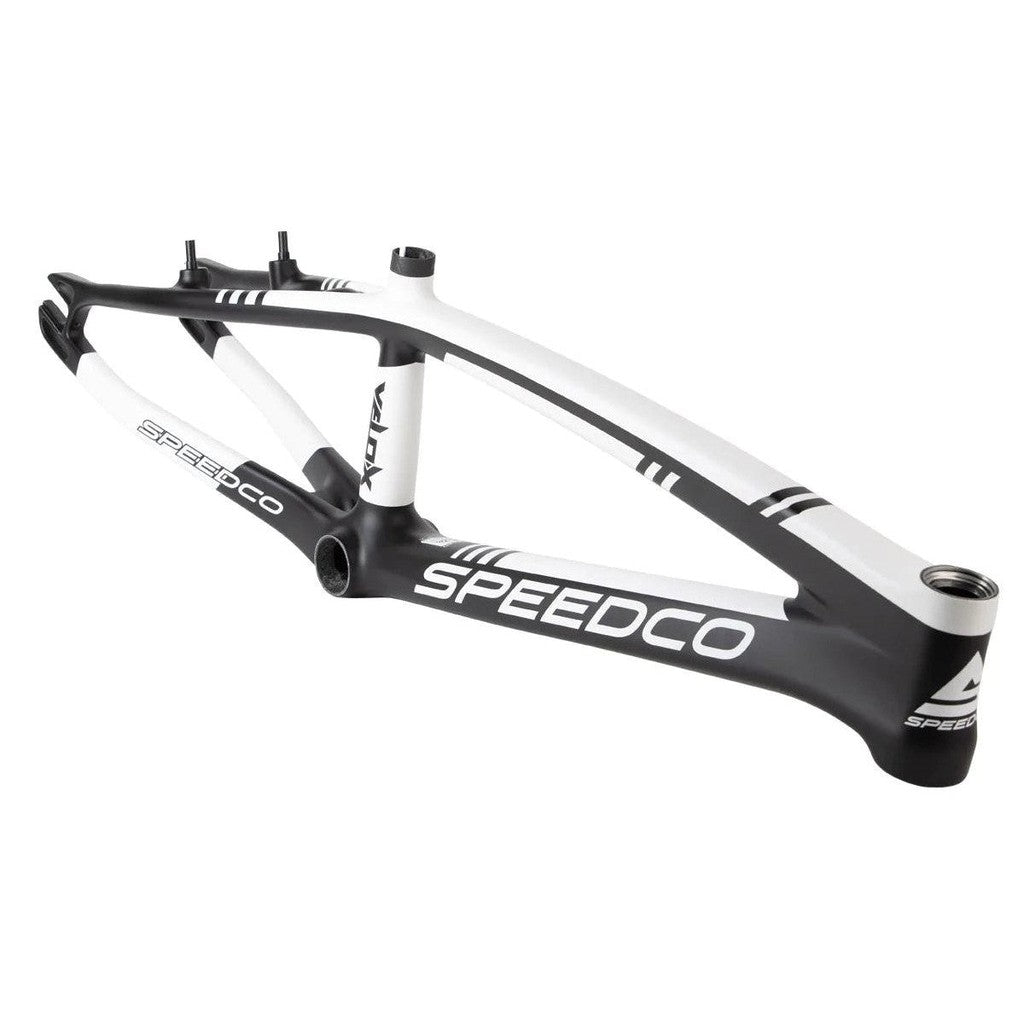

The Speedco Velox Carbon Pro frames, available in Pro, Pro XL, Pro XXL, and Pro XXXL, Pro 24 & Pro 24 XL are the most advanced frame in BMX racing – period. They’re made of T700 Toray carbon fiber, which is the highest strength carbon for BMX, promoting max rigidity and combined strength in a featherweight winning machine.
Speedco's Pro XXXL frame weighs in at 1.27kg, making it the lightest frame on the market of its size. The down-tube is 53mm wide at the head tube junction, and it tapers to 73mm at the bottom bracket which is wider than the shell of most frames on the market. The asymmetrical chain-stay is 73mm behind the BB, and the combination of the two are the main ingredients in a responsive frame built to holeshot; the rest is up to you. Plain and simple, Speedco frames are designed by riders who still smash gates and sprints on a regular basis. Their cubicle is the gate, their meeting room is the podium, and their lives revolve around the sport of BMX and winning races.
- Required Thru Bolt Length: 145mm
|
Velox Pro Geometry |
||||||
| Model Name | Top Tube | BB Height | Rear Center | Seat Tube Angle | Head Tube Angle | Weight |
| Pro 20"" | 20.5"" | 11.5"" | 14.75"" | 72 | 74 | 2.6lbs (1.18kg) |
| Pro XL 20"" | 21"" | 11.5"" | 15.2"" | 72 | 74 | 2.67lbs (1.21kg) |
| Pro XXL 20"" | 21.75"" | 11.5"" | 15.2"" | 72 | 74 | 2.72lbs (1.23kg) |
| Pro XXXL 20"" | 22"" | 11.5"" | 15.2"" | 72 | 74 | 2.80lbs (1.27kg) |
| Pro 24"" | 21"" | 12"" | 15.4"" | 69.5 | 73 | 2.9lbs (1.32kg) |
| Pro XL 24"" | 21.75"" | 12"" | 15.4"" | 69.5 | 73 | 2.95lbs (1.34kg) |
