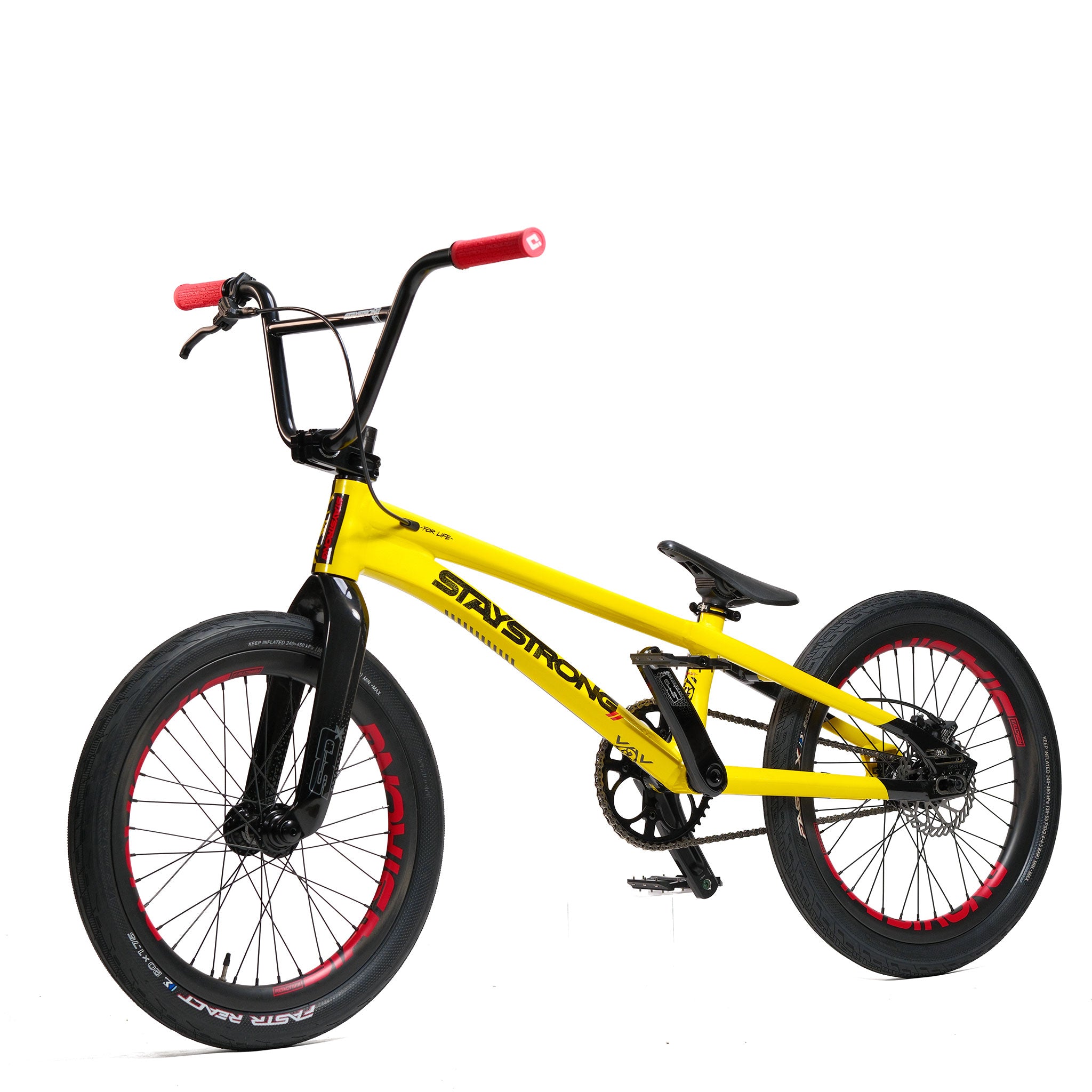

The Stay Strong V5.1 Pro XXXL Race Bike is photographed on a white background and features a yellow frame, black handlebars and seat, red handle grips and wheel rims, along with thick black tires. Built with durable aluminum inspired by the iconic Stay Strong V5.1 frames, this custom race bike delivers impressive style and performance.

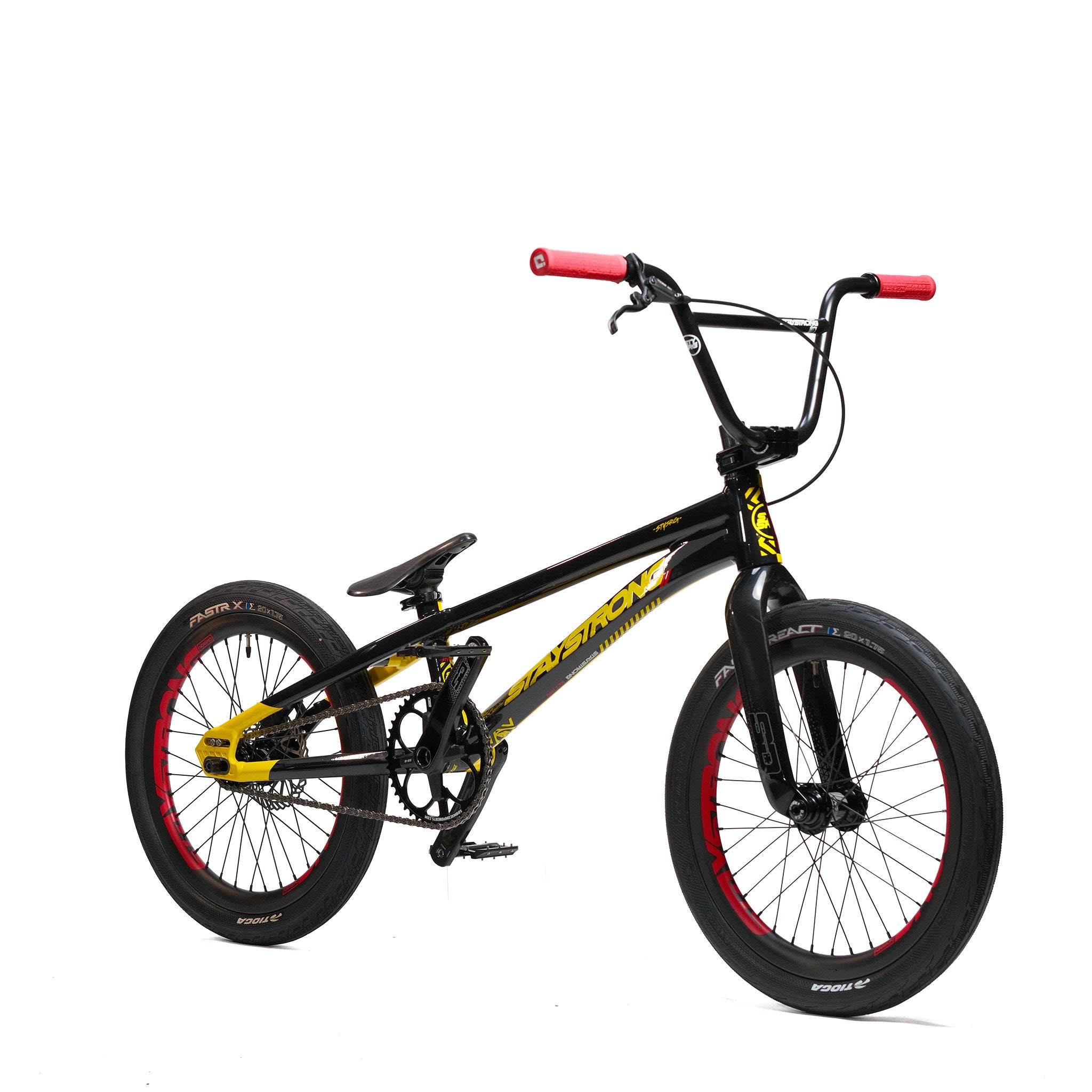

The Stay Strong V5.1 Pro XXXL Race Bike, shown here with a black frame, red handlebar grips, red wheel accents, and yellow highlights, features a robust aluminium construction reminiscent of high-end custom race bikes—beautifully photographed on a white background.

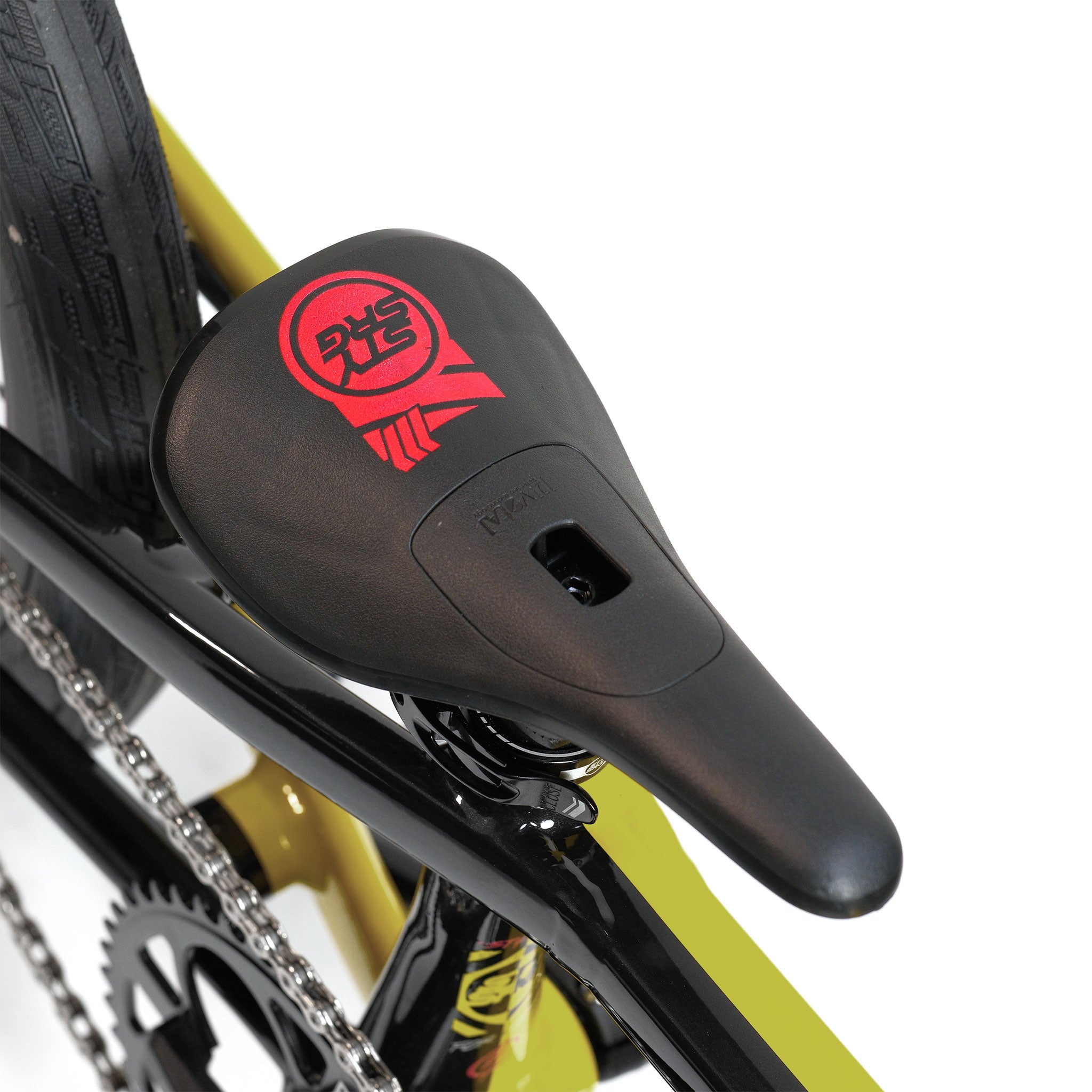

Close-up of the Stay Strong V5.1 Pro XXXL Race Bike’s black saddle with red graphics, mounted on its durable aluminium frame—showing the chain, tire, and part of the crankset.

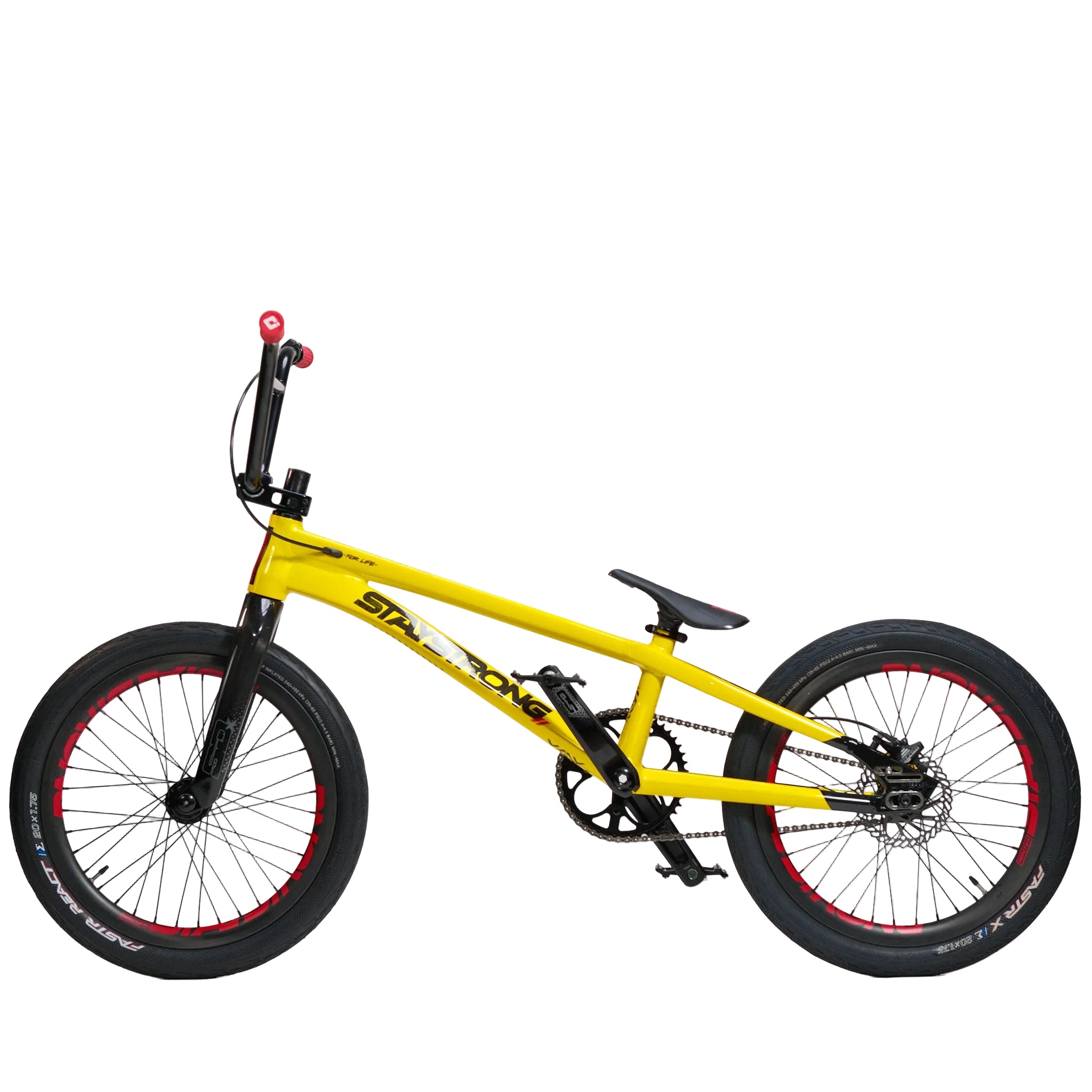

Stay Strong V5.1 Pro XXXL Race Bike, shown in yellow with black and red accents from a side view. The frame displays "STAY STRONG" in bold lettering and features the durable Stay Strong V5.1 aluminium construction. This custom race bike is equipped with thick tires and does not include a visible kickstand.

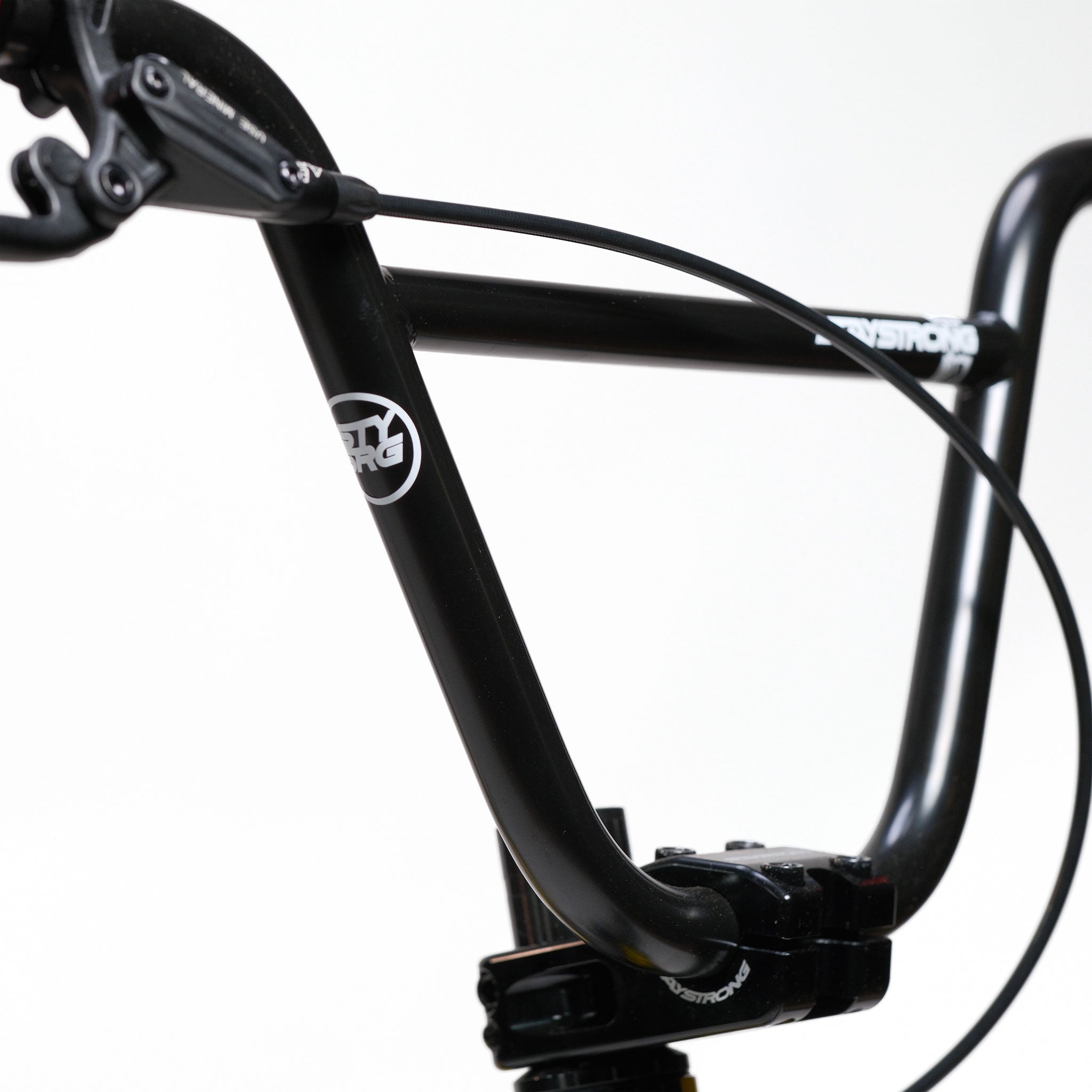

Close-up of a black bicycle handlebar with cables and brake lever against a plain white background, highlighting the precision engineering featured in custom race bikes like the Stay Strong V5.1 Pro XXXL Race Bike.

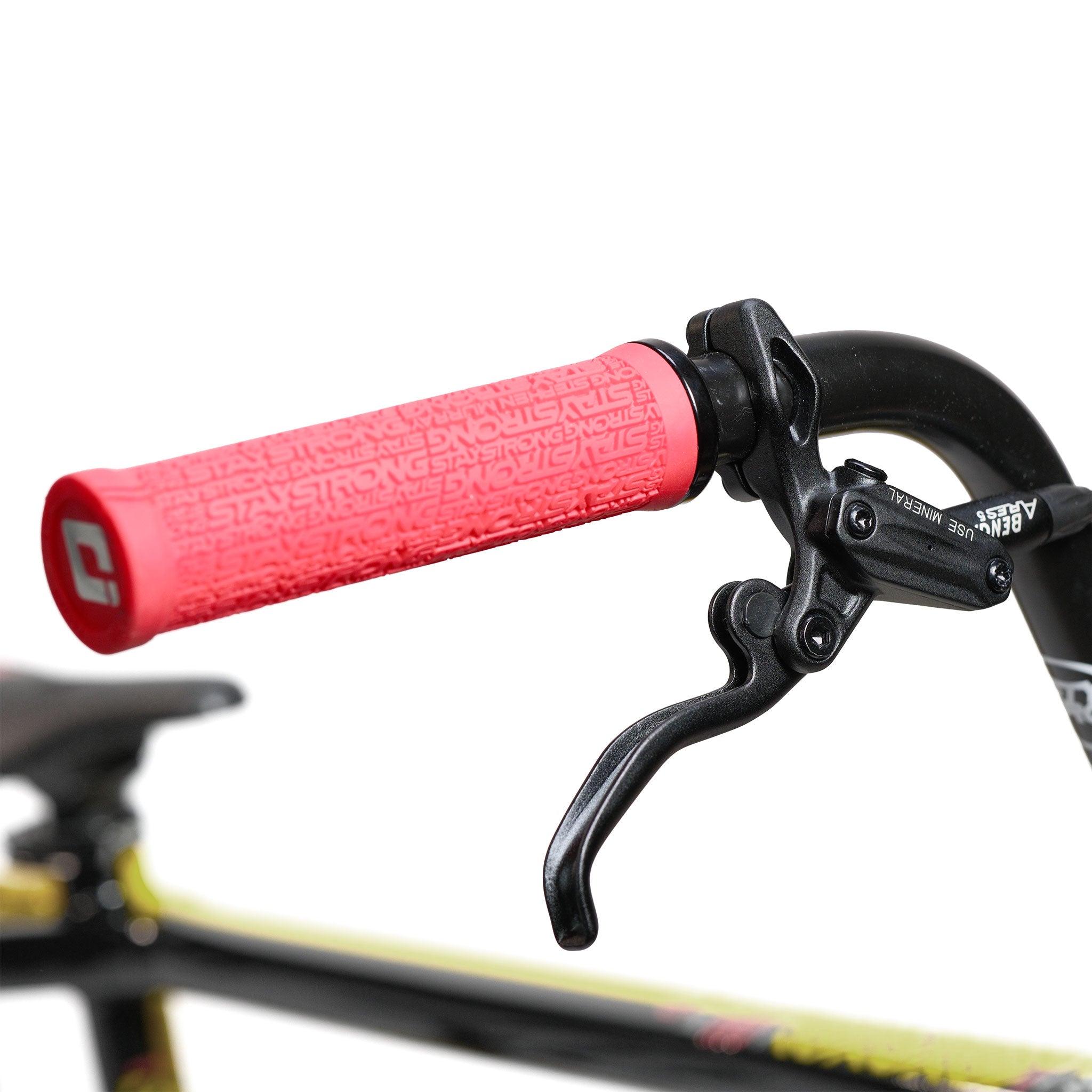

Close-up of the Stay Strong V5.1 Pro XXXL Race Bike’s black handlebar, featuring a red rubber grip and a brake lever; part of the seat and frame is visible in the background, highlighting the precision craftsmanship and robust aluminium frame that define this custom race bike.

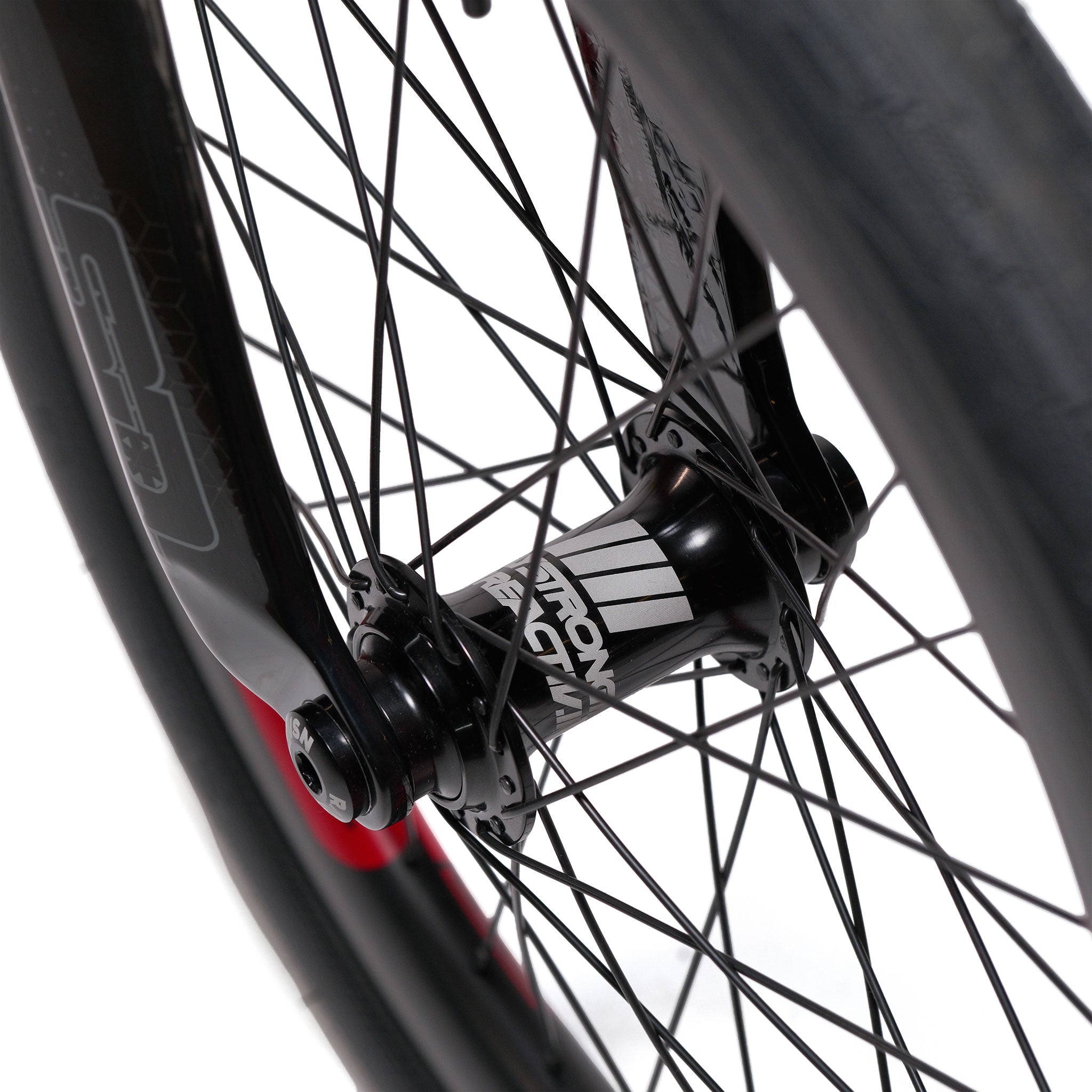

Close-up view of a black bicycle wheel hub with spokes, featuring white text on the hub, along with part of the tire and rim—an ideal complement for the Stay Strong V5.1 Pro XXXL Race Bike or custom race bikes built with precision aluminium frames.

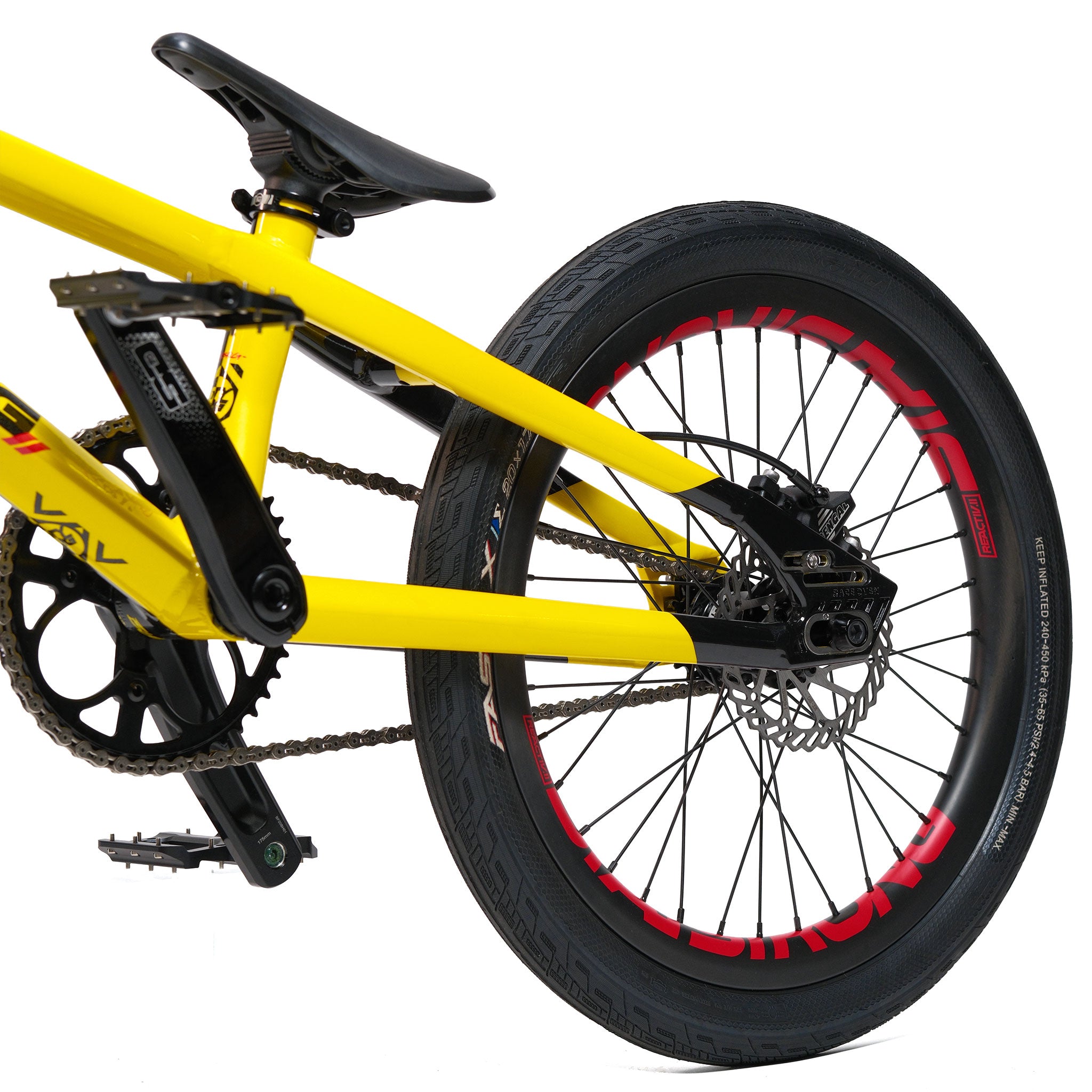

Close-up of the rear section of a yellow Stay Strong V5.1 Pro XXXL Race Bike, built with an aluminium frame, highlighting the pedal, chain, black seat, and rear wheel with a disc brake and red accents on the tire rim—perfect for fans of custom race bikes.

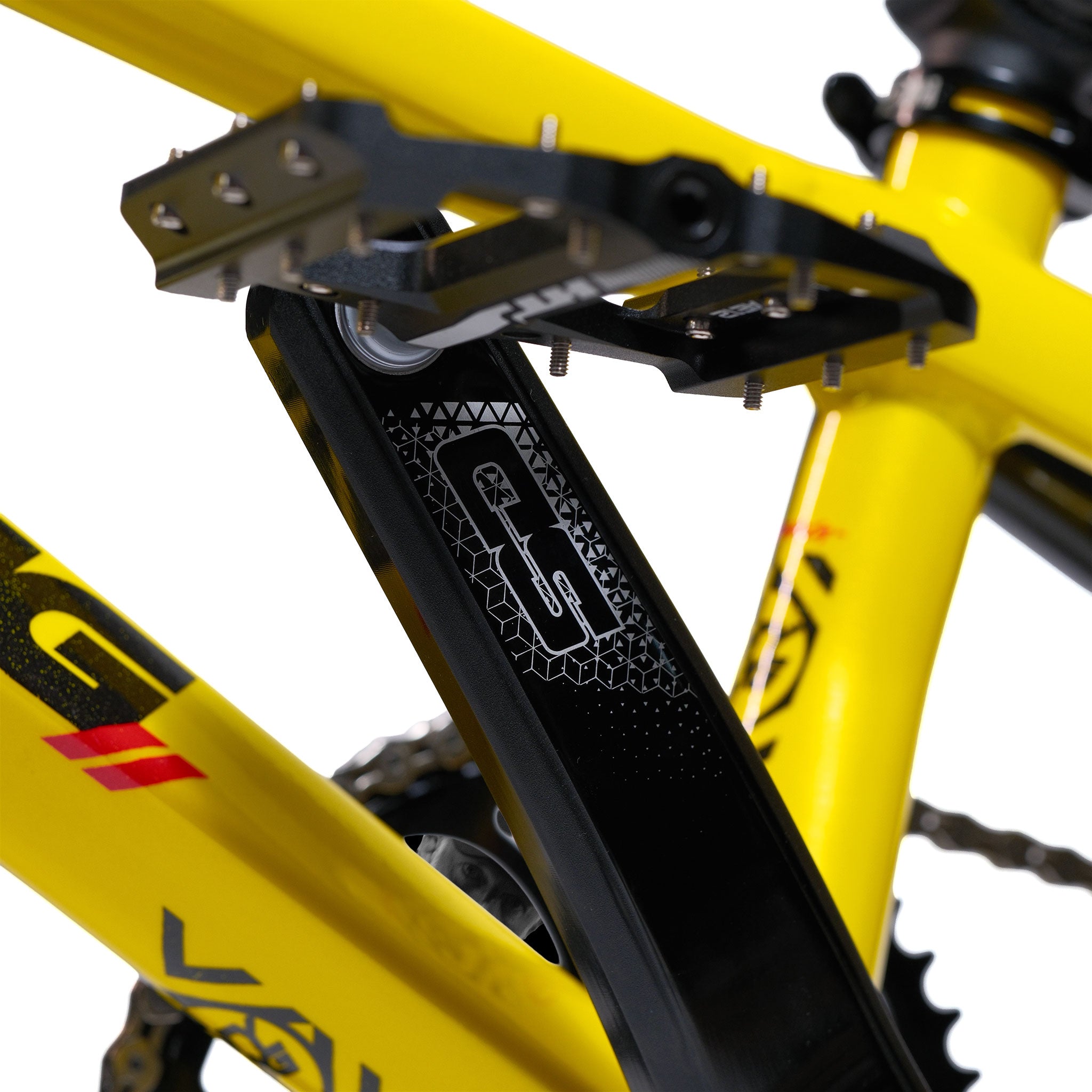

Close-up of a black bicycle crank arm and pedal attached to the yellow Stay Strong V5.1 Pro XXXL Race Bike aluminium frame, highlighting detailed branding and part of the custom race bike’s drivetrain.

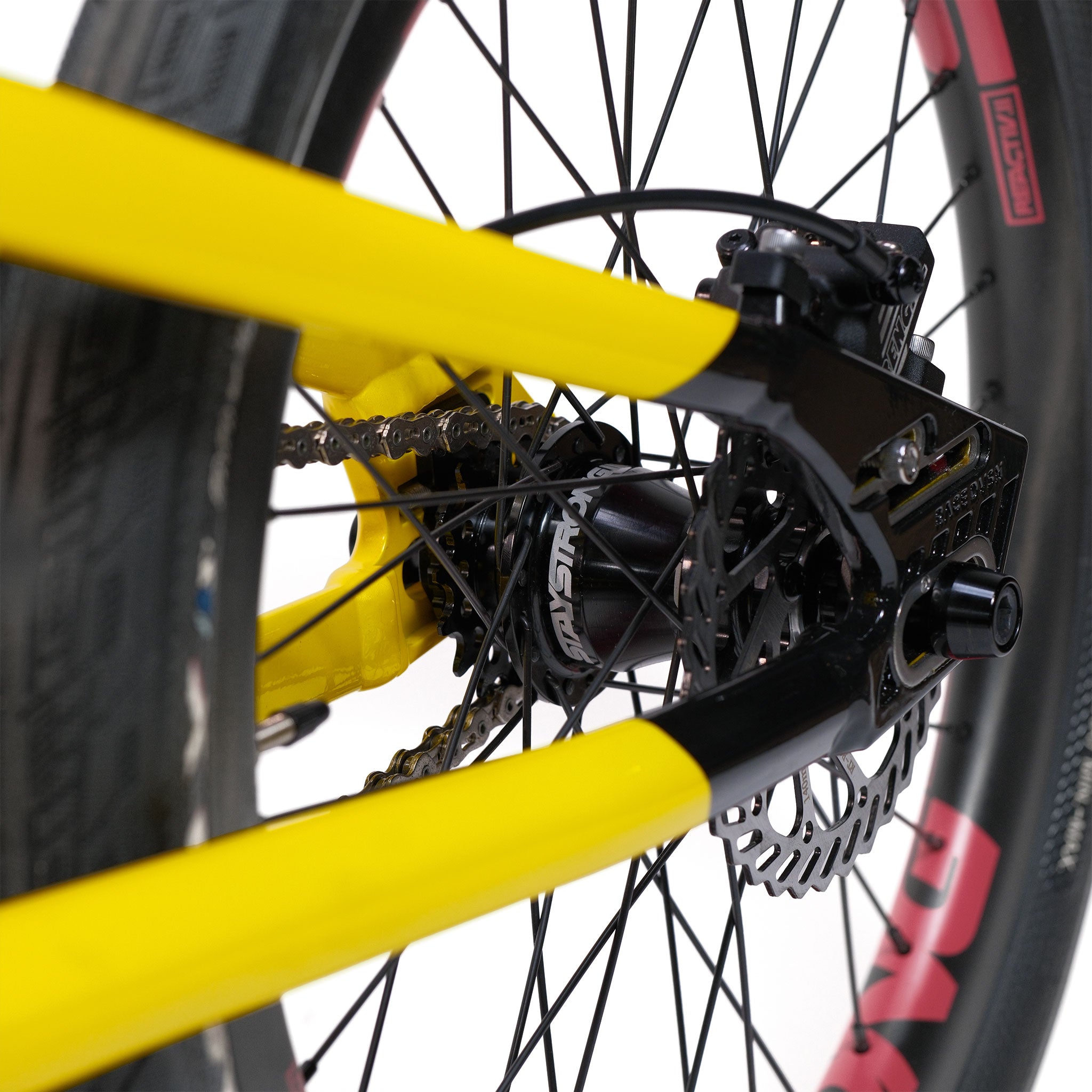

Close-up of the rear wheel and disc brake of a yellow Stay Strong V5.1 Pro XXXL Race Bike, featuring the chain, spokes, and branded hub—a striking detail often found on custom race bikes and premium aluminium frames.

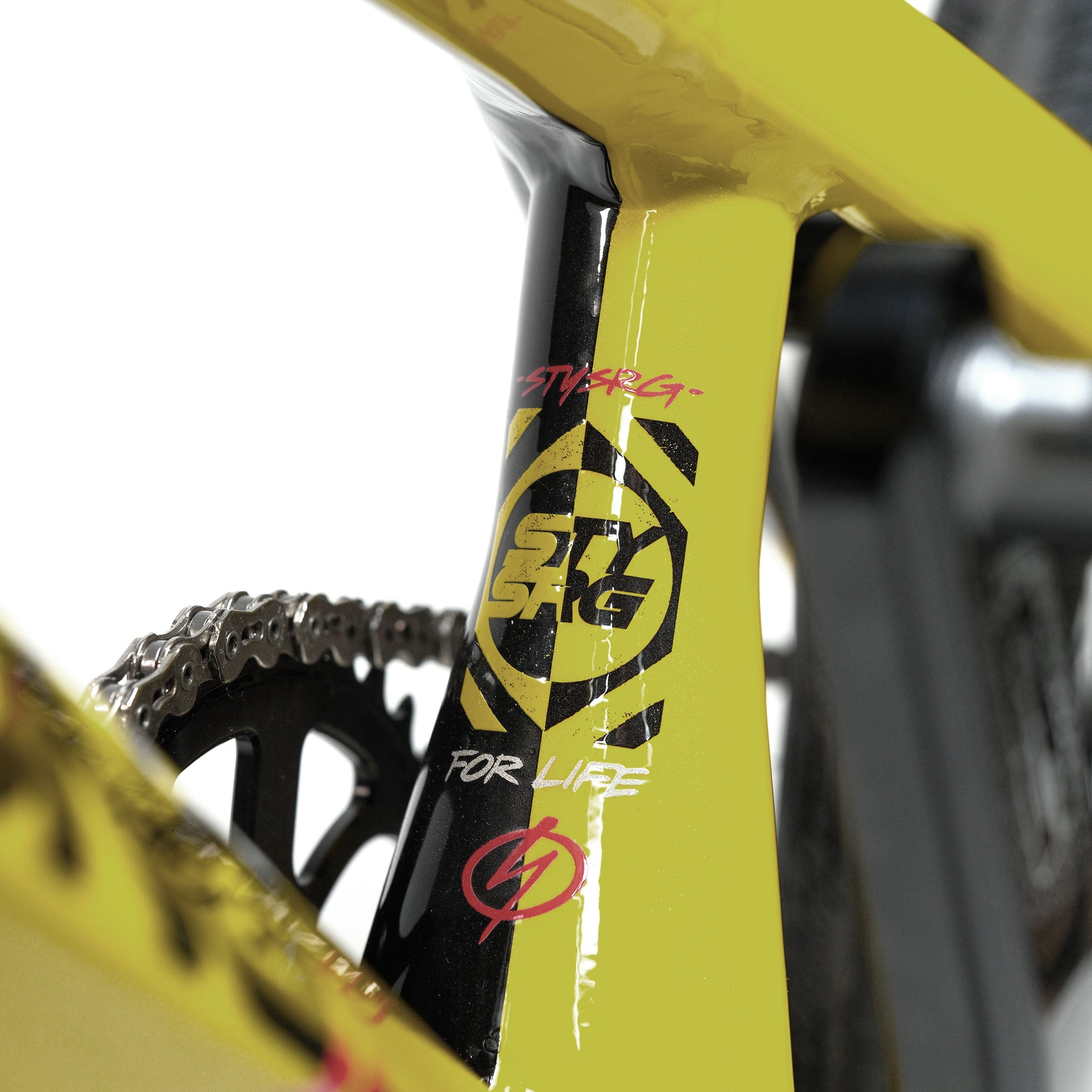

Close-up of a yellow and black Stay Strong V5.1 Pro XXXL Race Bike frame, featuring the logo "STY SA6," the phrase "FOR LIFE," and gear components in the background—highlighting the precision engineering of this custom race bike’s high-performance aluminium frame.

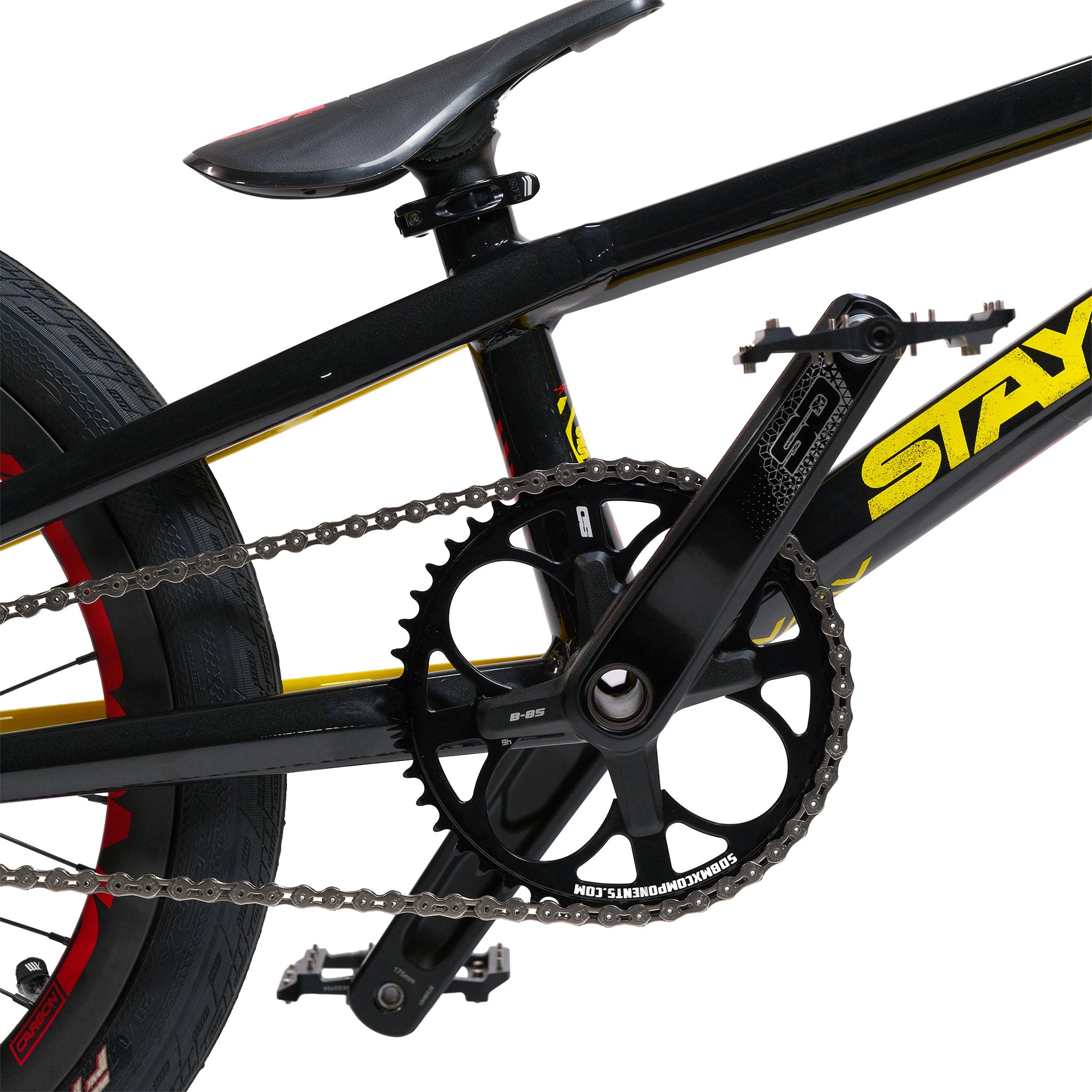

Close-up of a black bicycle's rear wheel, chain, crankset, and seat post, highlighting part of the yellow "STAY" logo on the frame. This detailed shot showcases the quality construction typical of custom race bikes and the durability of aluminium frames, as featured on the Stay Strong V5.1 Pro XXXL Race Bike.

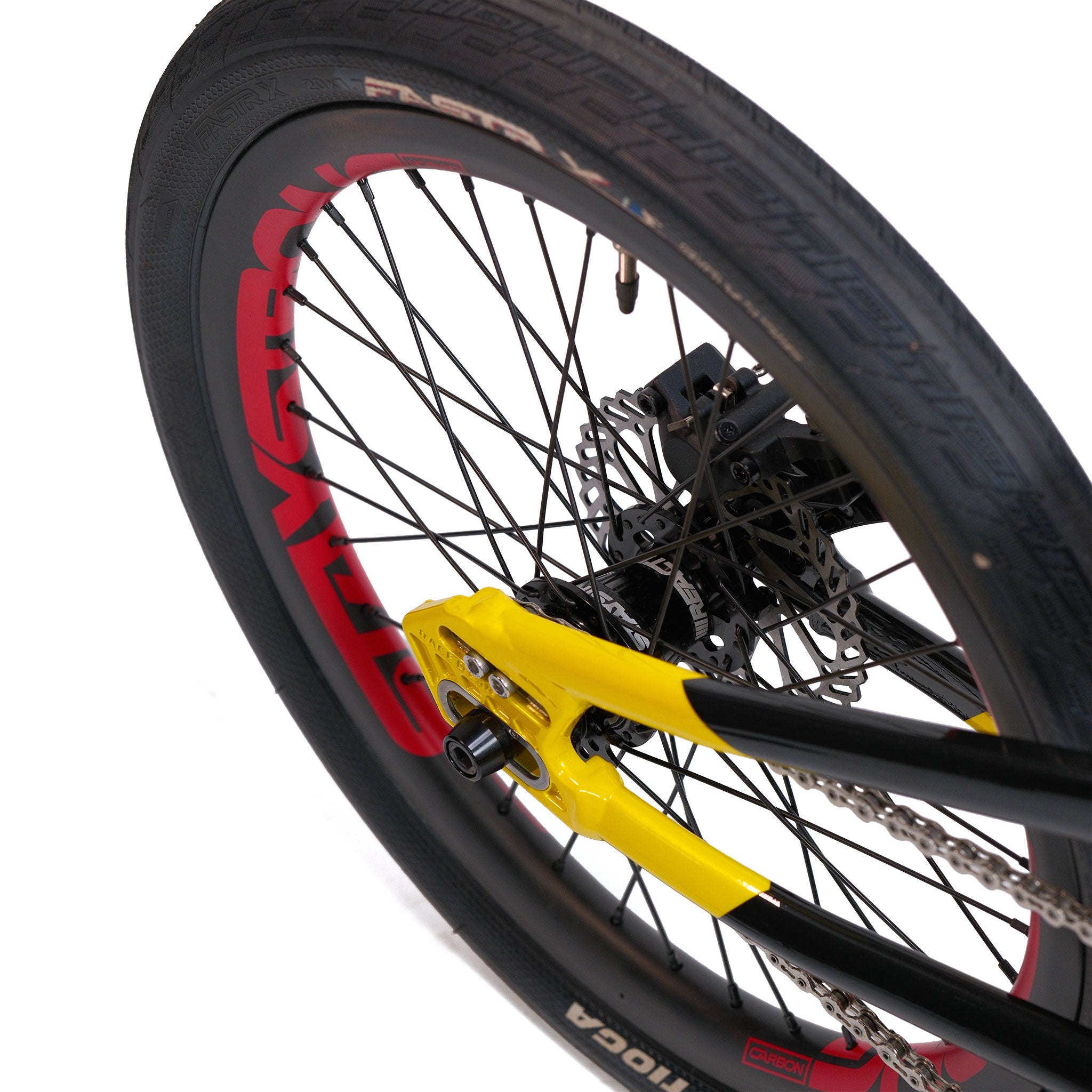

Close-up of the Stay Strong V5.1 Pro XXXL Race Bike’s rear wheel, featuring a black tire, red label, yellow axle mount, disc brake, and visible chain—highlighting the precision engineering and lightweight aluminium frame that define this custom race bike.

Description

Things are really ramping up for the Stay Strong brand in 2026 and we're excited to join in on the celebrations of the launch of the V5.1 frames by build not one, but two custom race bikes based on these aluminium frames.

You've clocked that this Pro XXXL build and that it looks like you're getting two bikes for the price of one with the split paint scheme found on the v5.1 frames. We admit that when we saw the build sheet that we were a little sceptical on the colour combos, but there's no doubting that you won't be seen out there on the race track on this rig.

Based on the 22.25 inch frame, you taller riders will appreciate the stability of a frame of this size. With proven geometry from years of racing experience behind this brand, this build wants for nothing in the part's department. Running Stay Strong carbon rims and their Reactiv hubset, alongside a suite of Stay Strong components in the cockpit paired with SD B-84 24mm cranks, this is a bike that will take the hits and the wins.

An aluminium frame, carbon forks and carbon wheels, this is a classic winning formula that not only stands out with the black and yellow paint scheme, it'll add stability to your riding with it's long wheelbase and add to your trophy cabinet.

This bike is built and ready to ship or pick up in store. Add it to your cart and see you on the gate!

Features
  • Built for taller riders. The 22.25" top tube and long wheelbase add stability for bigger riders, built on geometry proven over years of racing.
  • Aluminium frame, carbon fork, carbon wheels. A classic winning formula: the Stay Strong V5.1 Pro XXXL frame runs an SD Pro Tapered 1.5 V2 carbon fork and Reactiv 2 carbon rims.
  • Stay Strong Reactiv 2 hubset. A 20mm front and a 10mm disc race rear, laced with Spectre T302 Sandvik 14G spokes to take the hits.
  • Bengal disc brake kit. Stay Strong's disc kit matches the disc-specific V5.1 frame and the Reactiv 2 disc race rear hub.
  • Race gearing, 8.44kg all up. SD B-85 175mm cranks and a 46T chainring turn a 17T cassette cog for 54.01" gearing, weighed without pedals.

Specifications
  • Size: Pro XXXL, 20"
  • Frame: Stay Strong V5.1 Pro XXXL Disc, aluminium
  • Top tube: 22.25"
  • Fork: SD Pro Tapered 1.5 V2 Carbon Fork 20 Inch 20mm, Gloss Black
  • Headset: SD Tapered Headset 1.5 to 1 1/8
  • Stem: Stay Strong Top Line V2 Race Stem, 57mm
  • Bars: Stay Strong Pro Straight Bars, 8.25"
  • Grips: ODI x Stay Strong REACTIV V2.1, Red
  • Brakes: Stay Strong Bengal Disc Brake Kit
  • Cranks: SD Crank B-85 Matt Black, 175mm
  • Bottom bracket: SD BB86 Bottom Bracket 24mm
  • Chainring: SD CNC 6061 Chainring, 46T, alloy bolts
  • Chain: KMC K1 SL Race Chain
  • Pedals: Not included
  • Front hub: Stay Strong Reactiv 2, 20mm
  • Rear hub: Stay Strong Reactiv 2 Disc Race, 10mm
  • Rear cog: SD Ace Shimano Cassette Cog, 17T
  • Spokes: Spectre T302 SB Sandvik 14G, black
  • Rims: Stay Strong Reactive 2 Carbon Rim, Black/Red
  • Tyres: Tioga React S-Spec front, Fastr X S-Spec rear
  • Seat: Stay Strong Seat, Black/Red
  • Seat post: Pivotal Post Alloy
  • Seat clamp: Stay Strong 31.8mm
  • Gearing: 46 x 17, 54.01"
  • Weight: 8.44kg (without pedals)
  • Colour: Split black and yellow paint scheme

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Stay Strong V5.1 Pro XXXL Race Bike

Brand: Stay Strong SKU:

$5,299.99 AUD

Or 4 payments of $1,324.99 AUD with

Colour - Black/Yellow

Top Tube Length - 22.25

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
