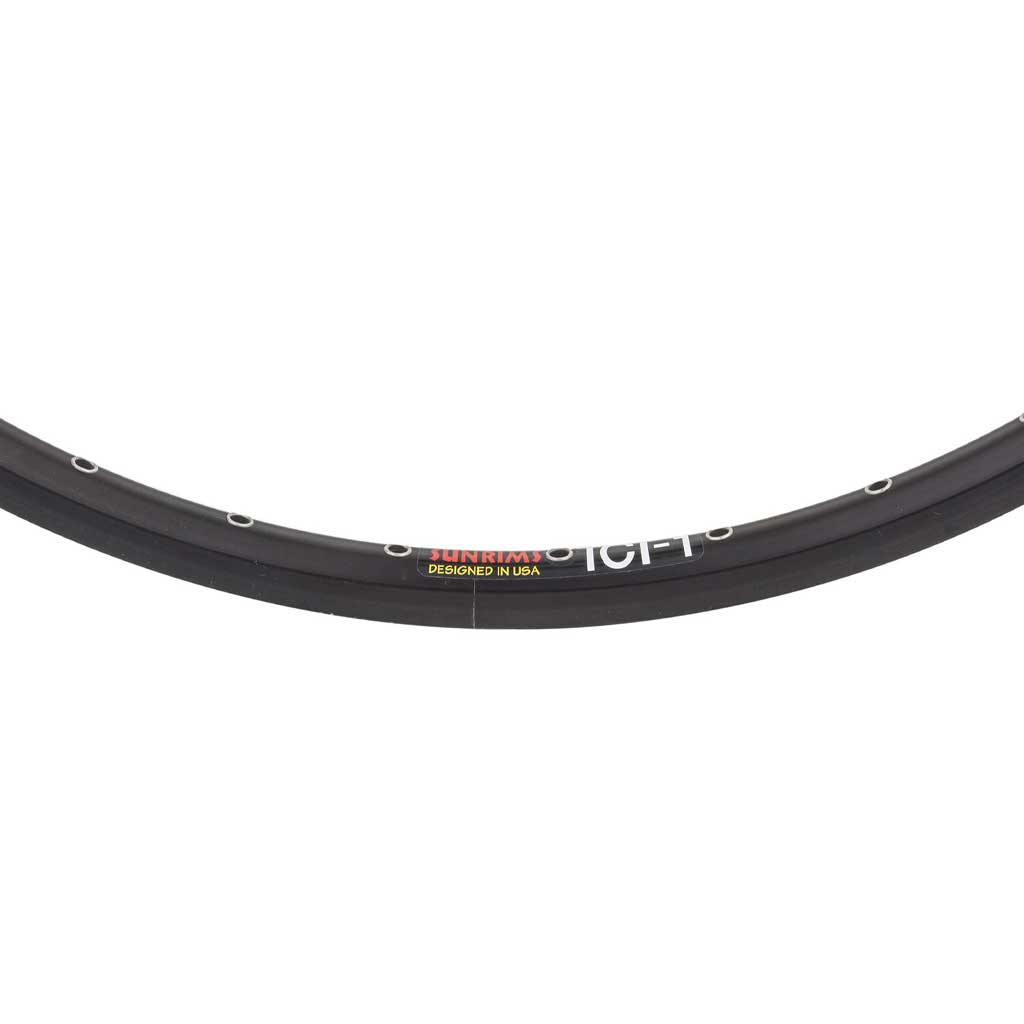

Close-up of a Sun ICI-1 24 x 1-1/8" 36H (520mm) Black double wall bicycle rim segment with multiple spoke holes and a "DESIGNED IN USA" label, ideal for 24 inch BMX setups.
Technical drawing of the Sun ICI-1 24 x 1-1/8" 36H (520mm) Black BMX rim, double wall, cross-section: 21.6mm top width, 17.3mm height, and 16mm middle width.

Highlights

  • Light 395g cruiser rim
  • Narrow 16mm internal width
  • 36 hole, 14g spokes
  • Double wall construction

Description

The Sun Ringle ICI-1 24" rim is a solid budget-friendly option for cruiser builds. Lightweight at 395g with a double wall construction, it’s built for the track — quick out the gate and easy to get up to speed.

The narrow 16mm internal width is made for 24 x 1-1/8" race tyres, keeping things fast and dialled. 36 hole drilling with 14g spoke compatibility makes it an easy lace-up with most standard hubs.

Features
  • Light 395g cruiser rim. At 395g it is quick out the gate and easy to get up to speed on a cruiser build.
  • Narrow 16mm internal width. The narrow internal width is made for 24 x 1-1/8 inch race tyres, keeping things fast and dialled.
  • 36 hole, 14g spokes. 36 hole drilling with 14g spoke compatibility makes it an easy lace up with most standard hubs.
  • Double wall construction. Double wall build gives it strength for the track without the weight of a heavier freestyle rim.
  • Tube only, presta valve. This one runs tubes rather than tubeless, and the valve hole is drilled for presta.

Specifications
  • Fits: 24 x 1-1/8" race tyres
  • Wheel size: 24" (520mm ISO)
  • Material: Double wall
  • Hole count: 36
  • Spokes: 14g
  • Rim width: 16mm inside, 22mm outside
  • Rim depth: 17.3mm profile
  • Brake surface: NMSW (non machined sidewall)
  • Valve: PV (presta)
  • Weight: 395g
  • Colour: Black
  • Note: Tube only, not tubeless. ERD 507.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.
