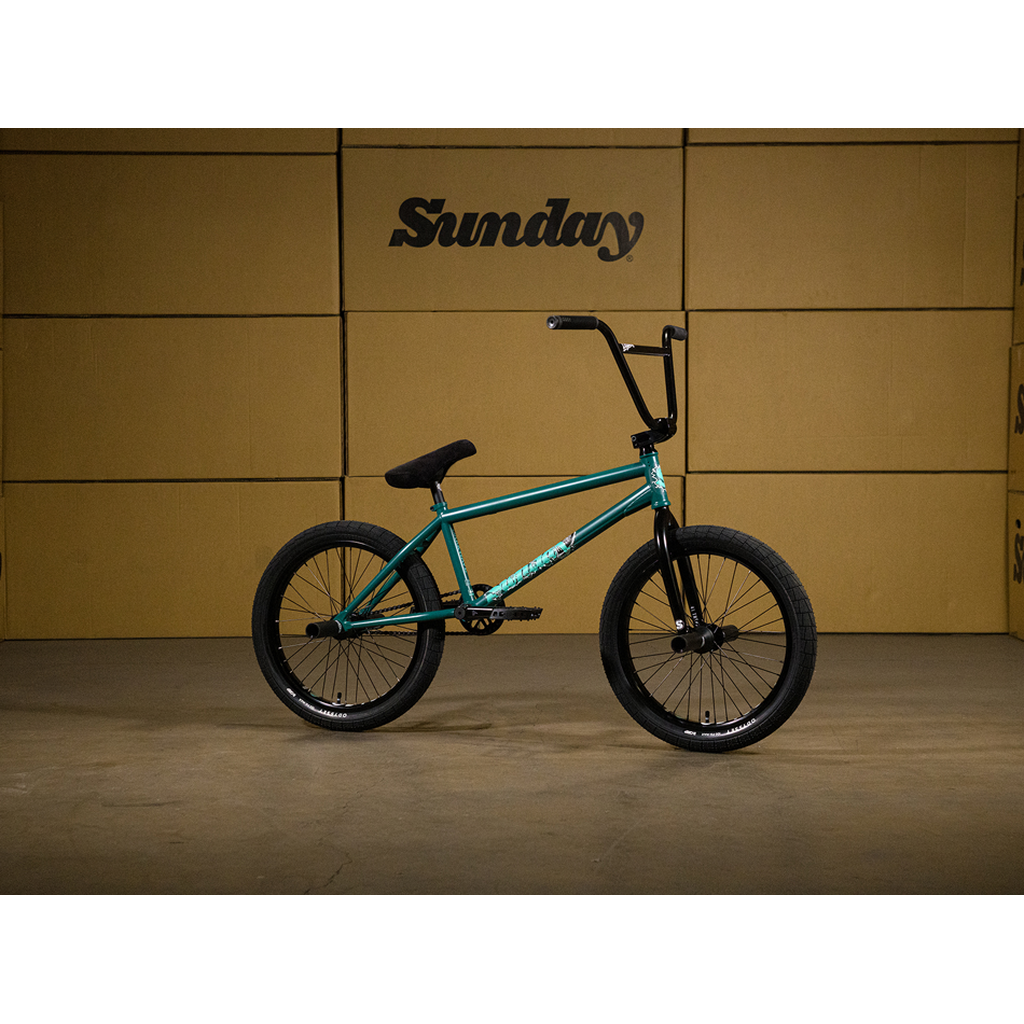

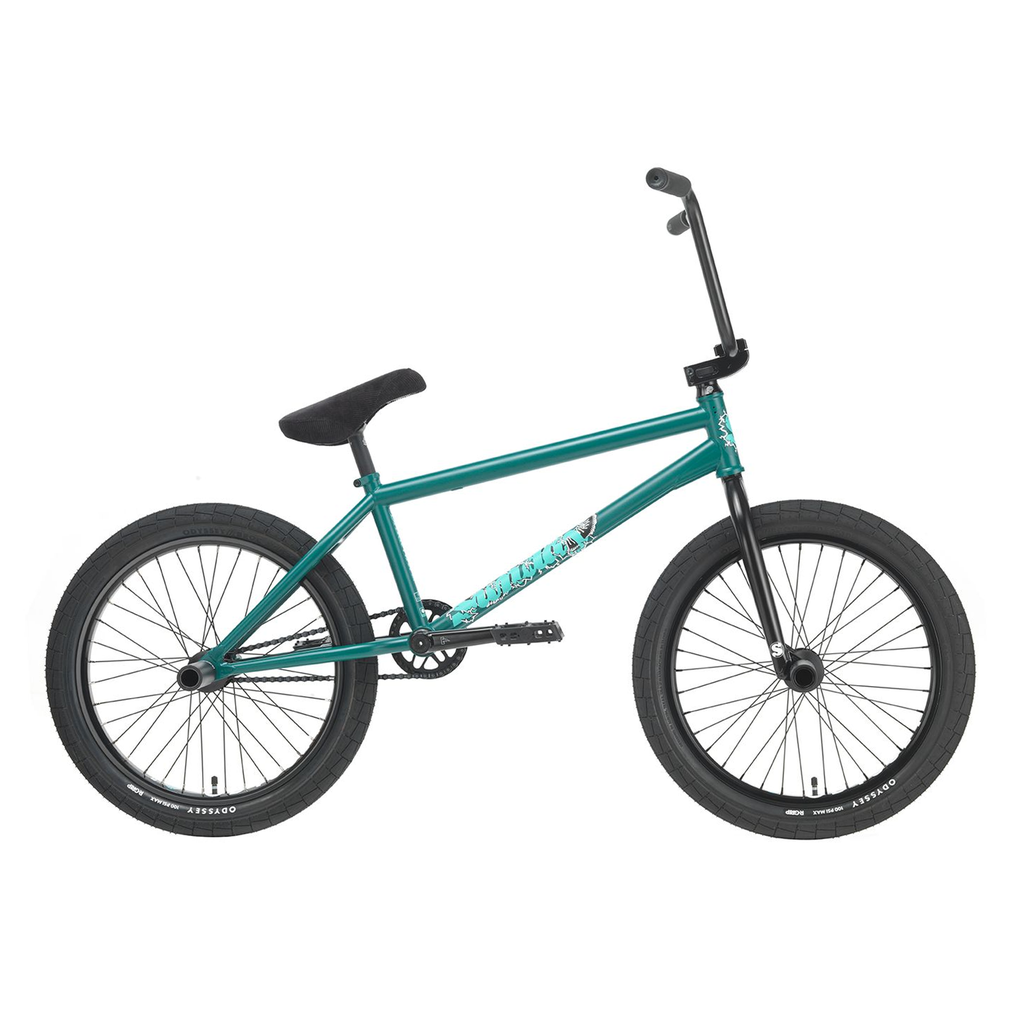

This is the Broc Raiford Darkwave Authentic. Authentically awesome! This 20 inch bike is everything you need and then some! These have been lit up with the best of the best Sunday and Odyssey parts to make a complete bike feel as aftermarket as it gets!
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey and Sunday products.
Features
- 100% aftermarket parts kit
- Lifetime warranty on bars, forks, and cranks
- Sunday Darkwave frame
- Sunday Darkwave 41-thermal forks
- Odyssey BROC 41-thermal bars
- Odyssey Thunderbolt 41-thermal cranks
- Odyssey Broc v2 stem
- Odyssey Clutch v2 freecoaster
- Odyssey Vandero Pro front hub
- Odyssey Hazard lite rims
- Odyssey Broc tyres with R-grip
Specifications

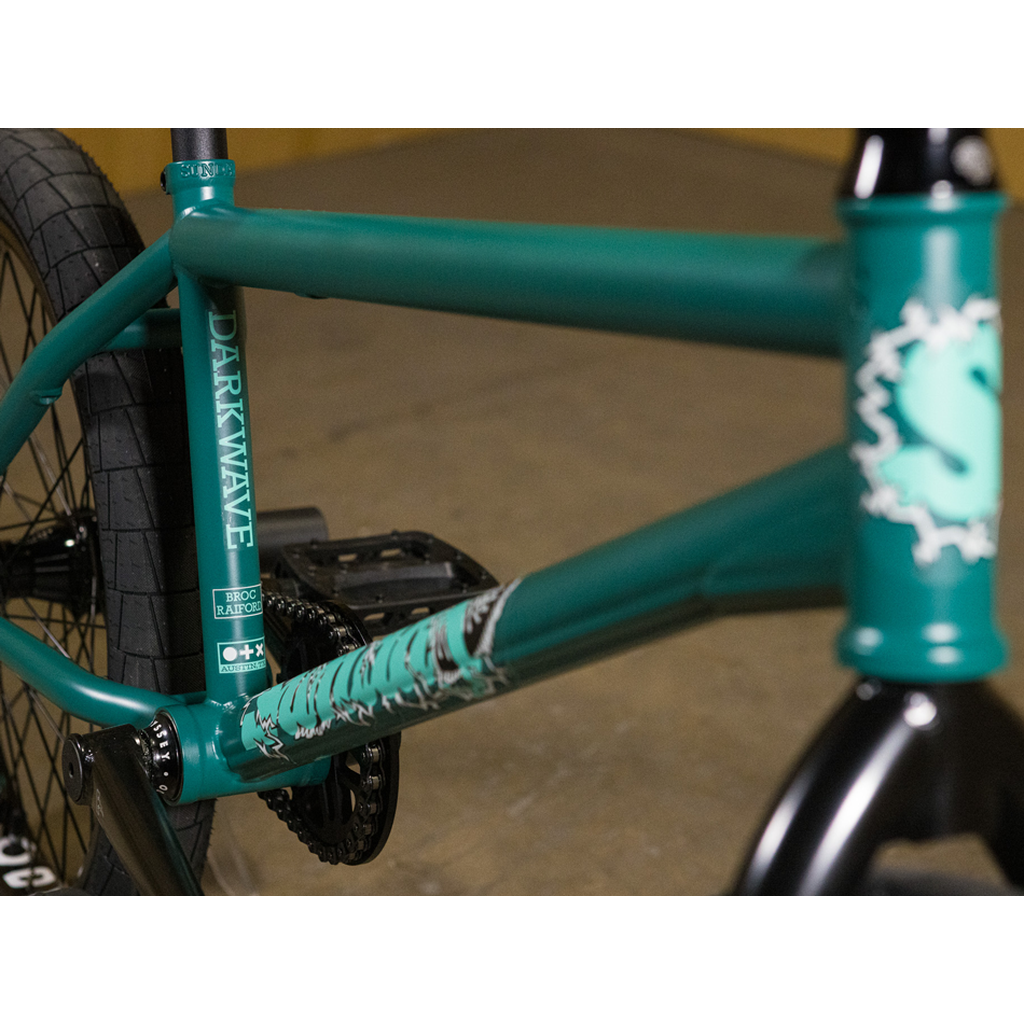

Frame - Sunday Darkwave, 21" 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork - Sunday 'Darkwave', 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

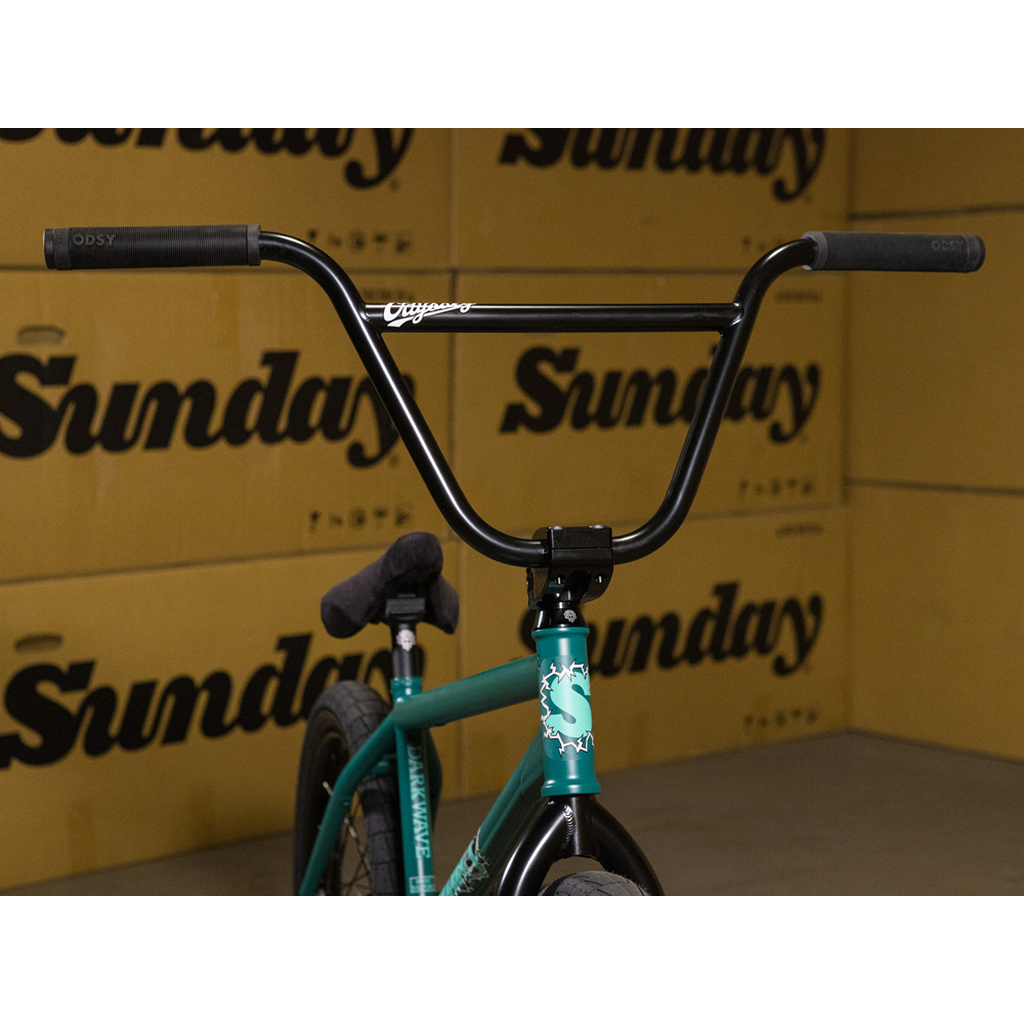

Handlebar - Odyssey 'BROC' Bar, 41-Thermal, aftermarket bar

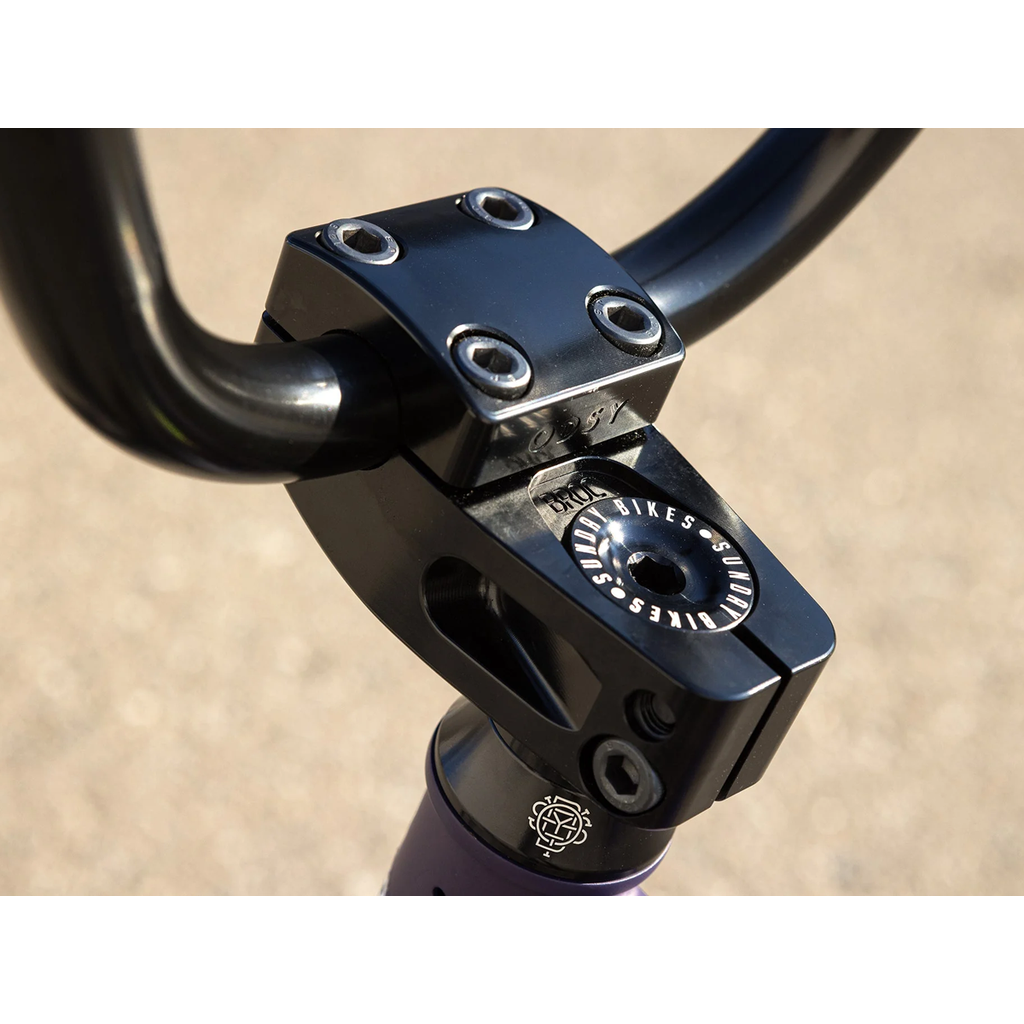

Stem - Odyssey 'BROC V2' Stem, 50mm
Headset - Odyssey 'Pro' Conical, 1-1/8"
Headset Cap - Sunday aftermarket, aluminum
Brake Lever - Odyssey 'Springfield'
Brakes - Odyssey 'Springfield' U-brake
Brake Cable - Odyssey Linear 'Quik Slic'

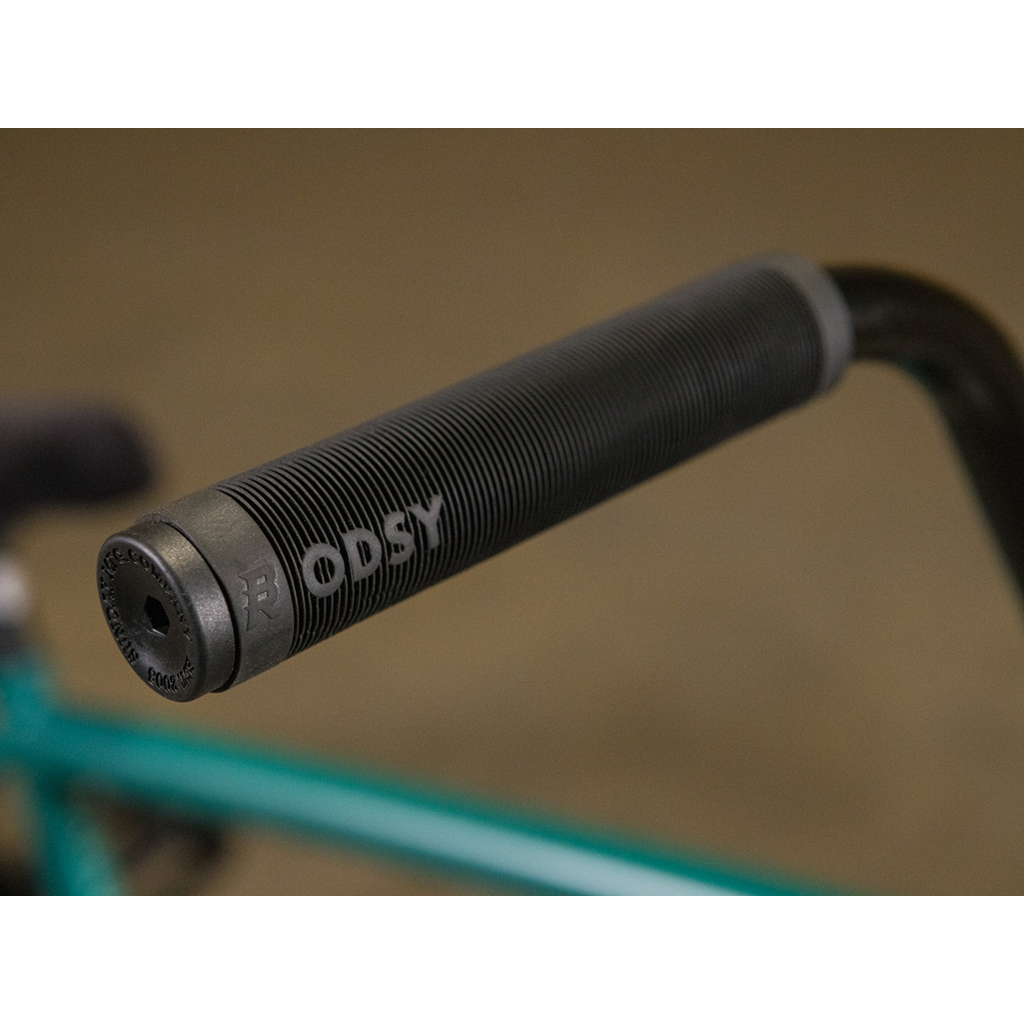

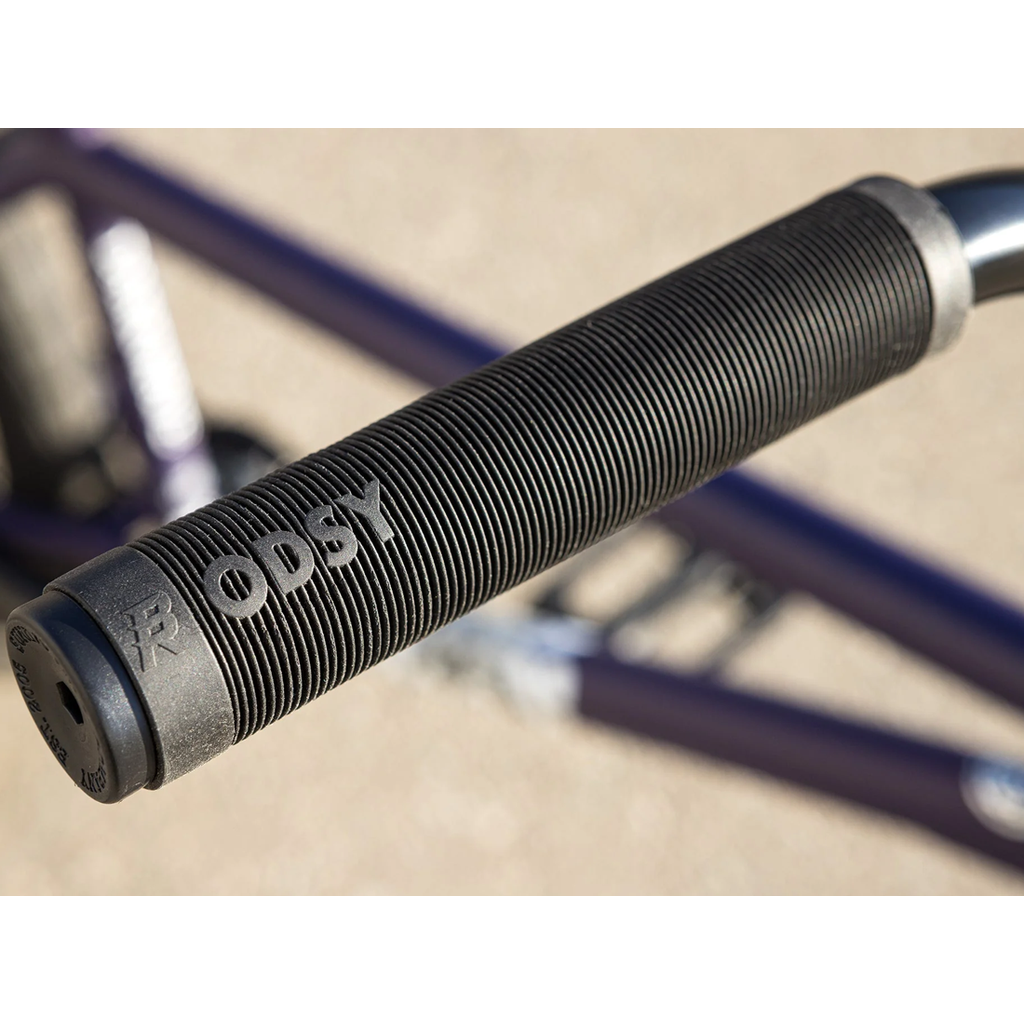

Grips - Odyssey 'Broc Raiford'

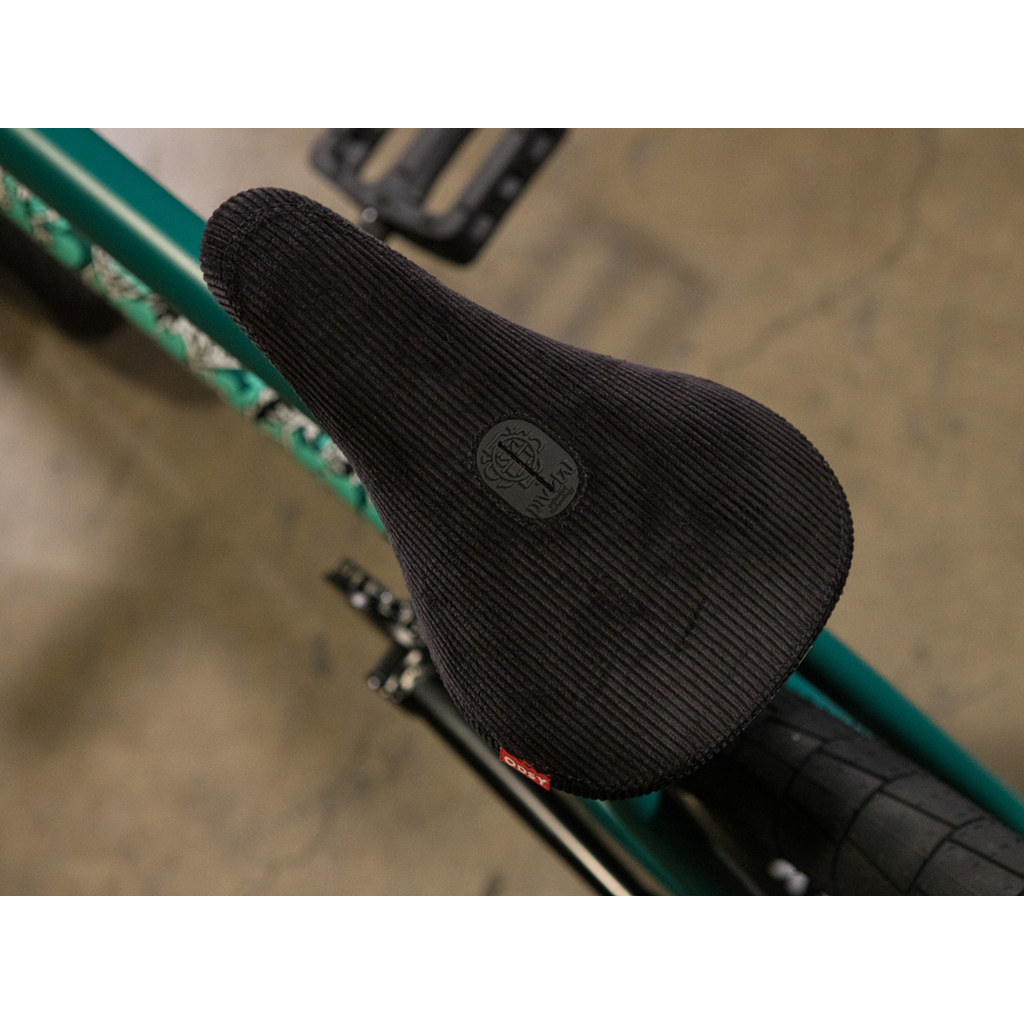

Seat - Odyssey 'Broc Raiford Signature', pivotal
Seat Alternate - Odyssey 'Big Stitch', pivotal
Seat post - Odyssey pivotal
Seat Clamp - Integrated

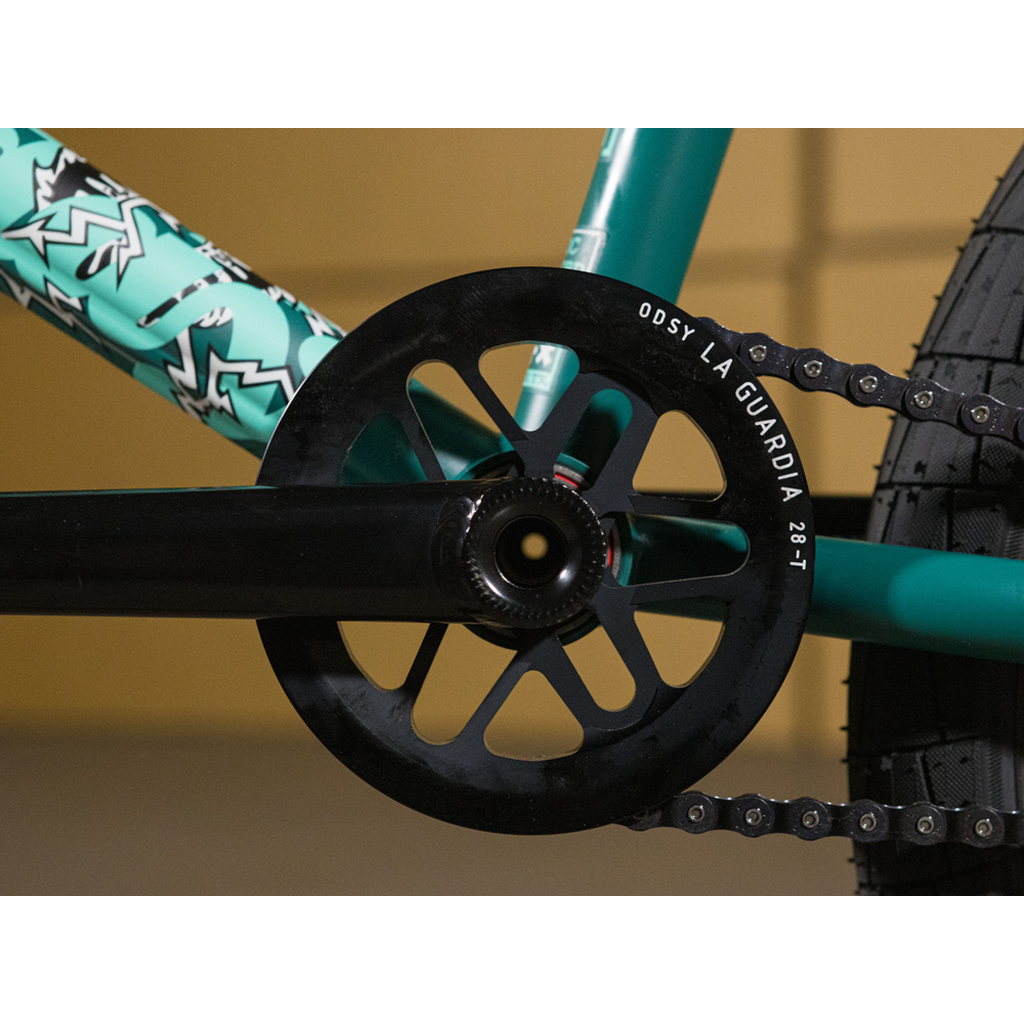

Sprocket - Odyssey 'La Guardia' sprocket, 28T
Cranks - Odyssey 'Thunderbolt', 170mm, 100% Cr-Mo, 41-thermal,
BB Parts - Odyssey sealed, mid, 22mm

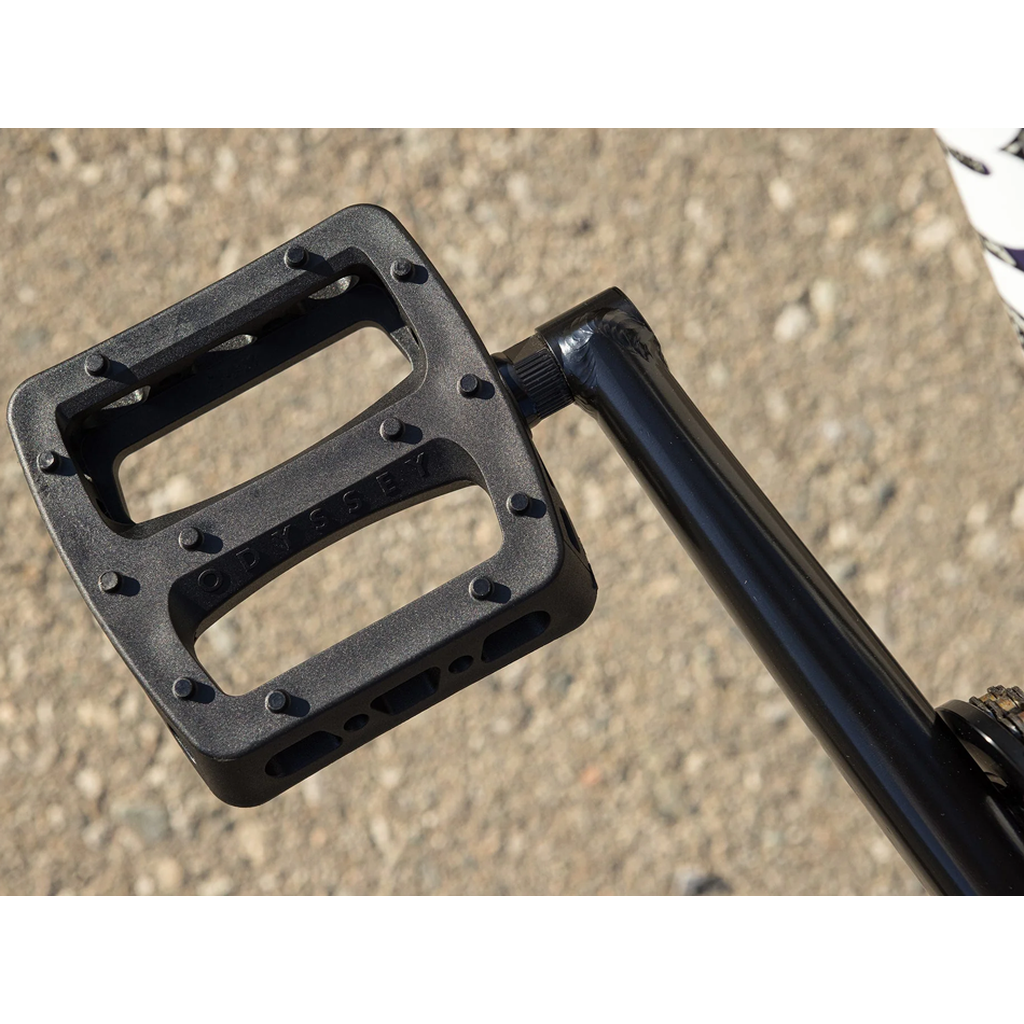

Pedals - Odyssey 'Twisted PC' Pro
Rims - Odyssey 'Hazard lite', 20", 36H

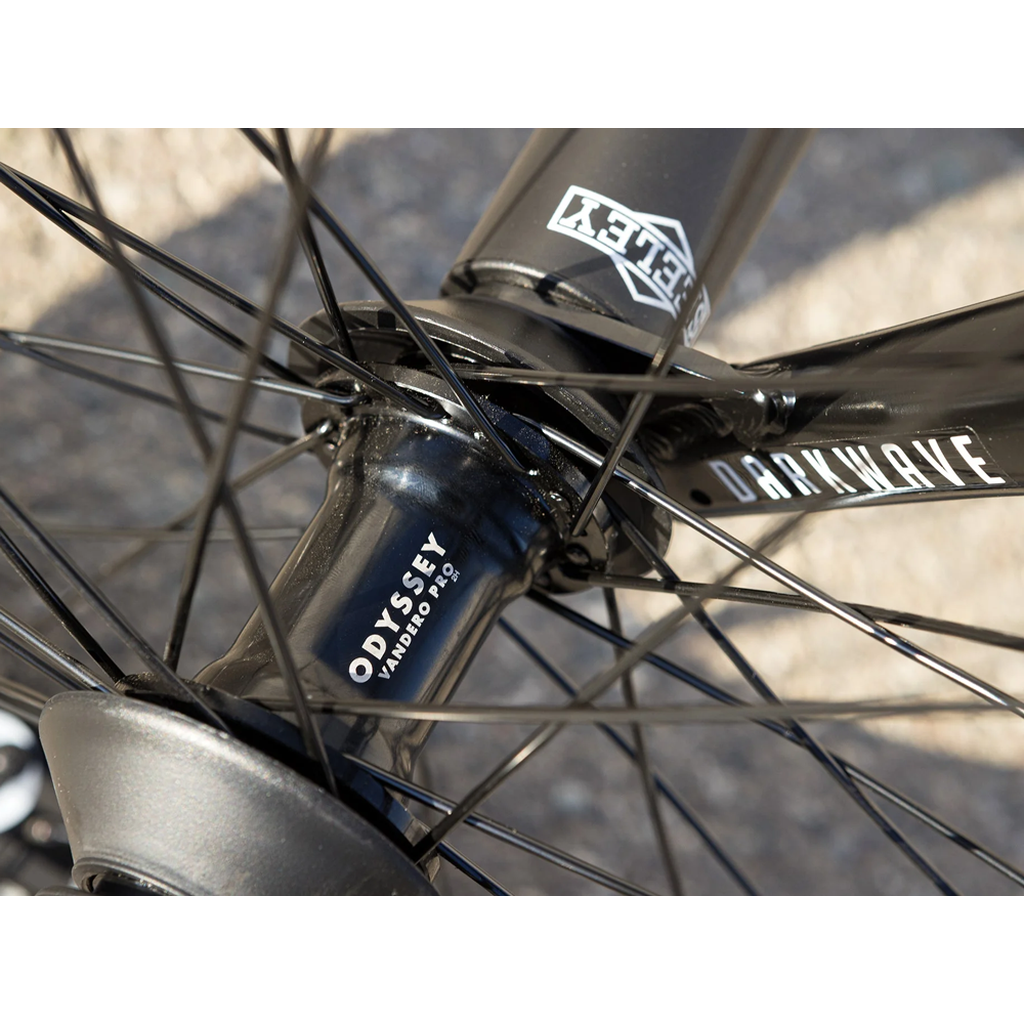

Front Hub - Odyssey 'Vandero Pro', 36H, sealed, 3/8" female axle, 2 plastic guards

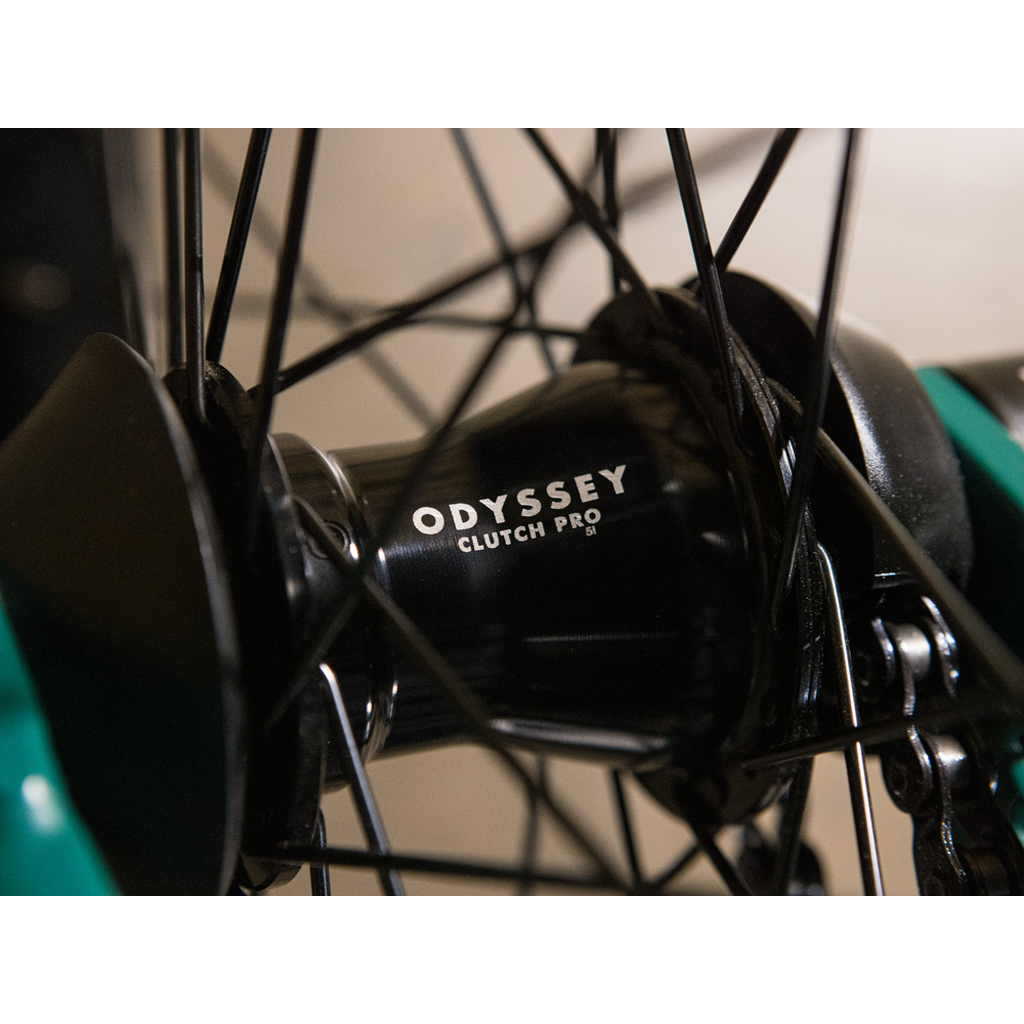

Rear Hub - Odyssey 'Clutch V2' freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive side plastic guard
Spokes - 14g steel, black

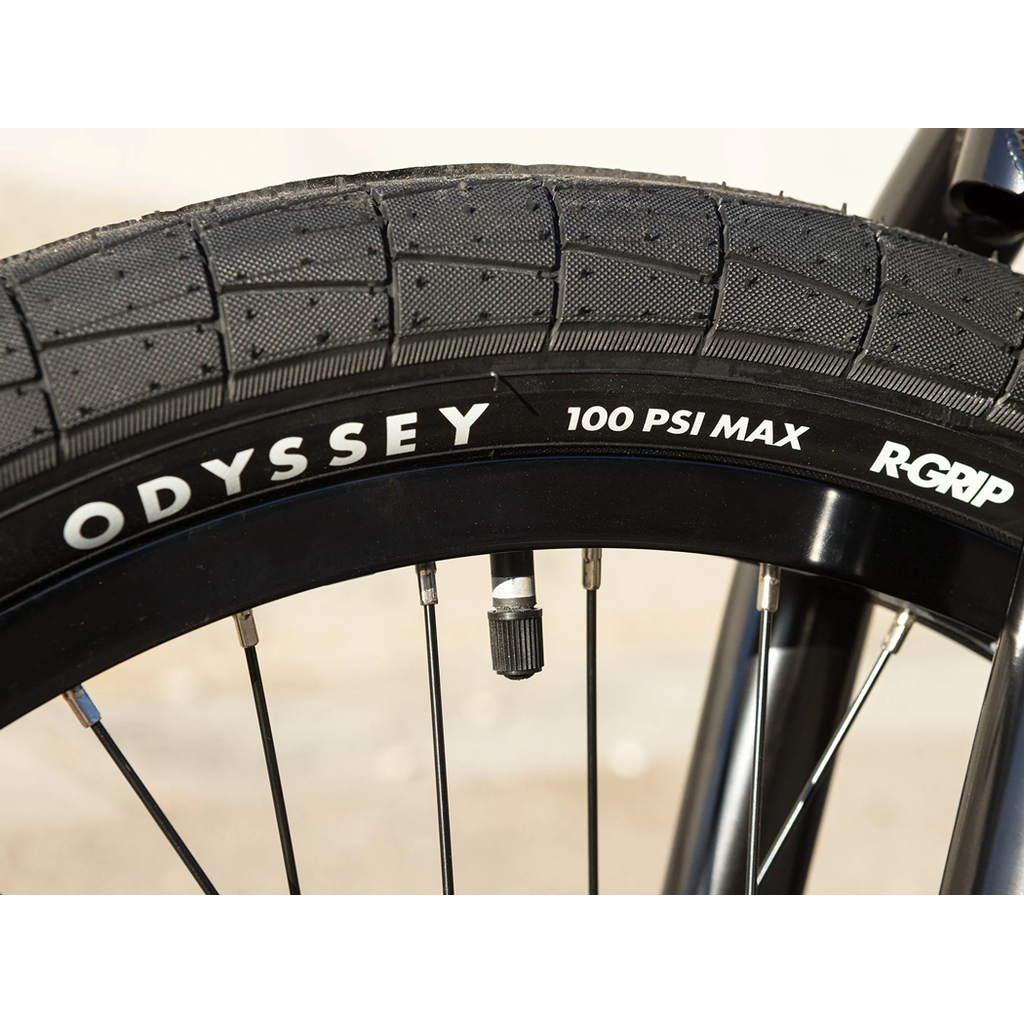

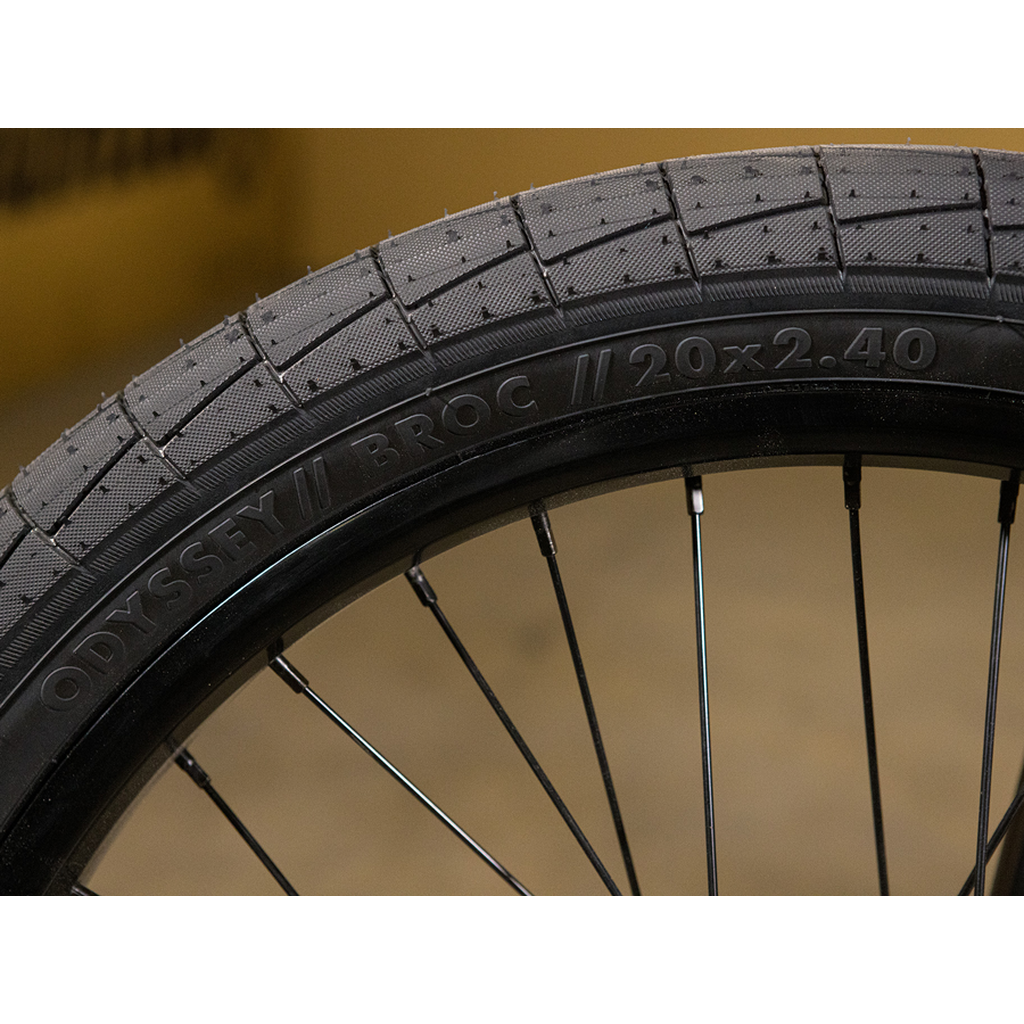

Tyres - Odyssey 'Broc' tyre, 20 x 2.4" (F & R)
Chain - Odyssey 'Bluebird' half-link
Pegs - Sunday 'Seeley' peg 4.75" (x4)
Approx. Weight - 24.97lbs (brakeless)
Frame Geometry
Top Tube Length - 21.0"
Head Tube Angle - 75.25°
Seat Tube Angle - 71°
Chainstay Length - 13.25"-13.5”
Bottom Bracket Height - 11.75"
Standover - 9.25”
Handlebar Geometry
Rise - 9.8"
Width - 29"
Backsweep - 10°
Upsweep - 2°
