Description
This bad boy is as authentic as it gets! Aftermarket parts are oozing out of this beast, making it one of the best complete bikes on the market. Included is a Lifetime warranty on bars, forks, and cranks, so you can sleep easy brother!

Features
  • Exactly what Broc rides. A 100% aftermarket parts kit, right down to Broc Raiford's own signature Odyssey product on the grips, seat and tyres.
  • Lifetime warranty on bars, forks, cranks. The 41-Thermal Darkwave forks, Odyssey BROC bars and Odyssey Thunderbolt cranks all carry a lifetime warranty.
  • Odyssey Clutch V2 freecoaster. The Clutch V2 lets you roll backwards without pedalling, paired with a sealed Vandero Pro front hub on Hazard Lite rims.
  • Sunday Darkwave chromoly frame. A 21" 100% chromoly aftermarket frame with the wave downtube and removable brake hardware.
  • Signature contact points. Odyssey Broc Raiford grips, a signature pivotal seat, Broc tyres with R-grip and a 50mm Broc V2 stem.

Specifications
  • Size: 20"

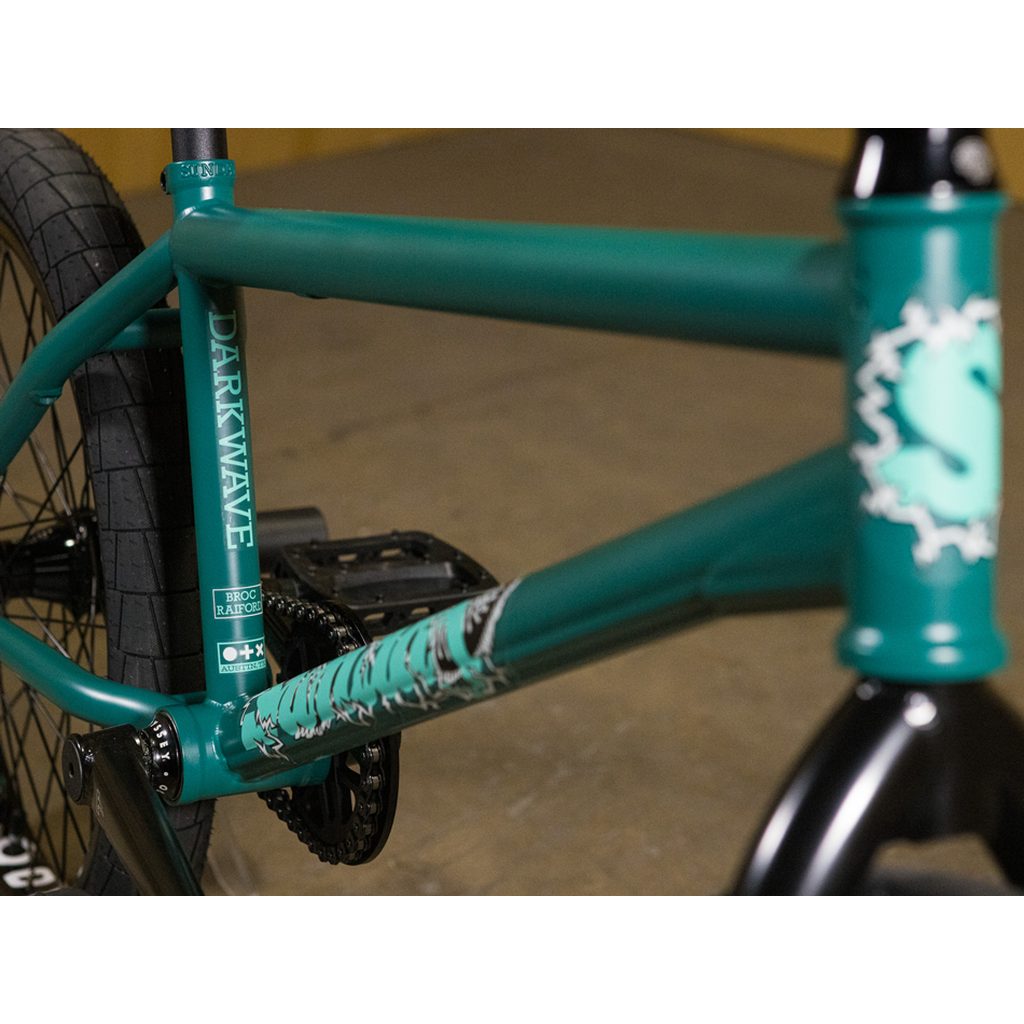

  • Frame: Sunday Darkwave, 21", 100% chromoly aftermarket, wave downtube, removable brake hardware
  • Top tube: 21"
  • Fork: Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket, 28mm offset
  • Headset: Odyssey Pro conical, 1-1/8", with Sunday aftermarket aluminium cap

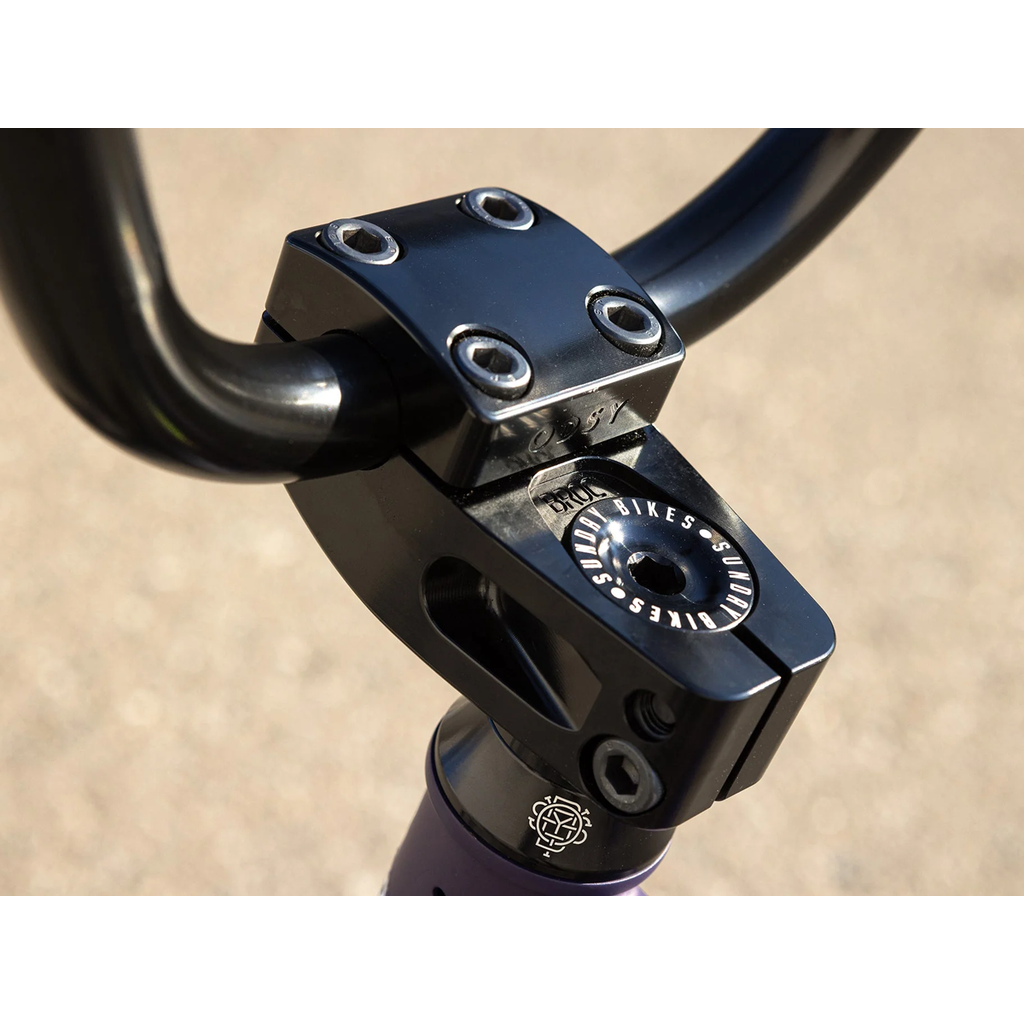

  • Stem: Odyssey BROC V2, 50mm

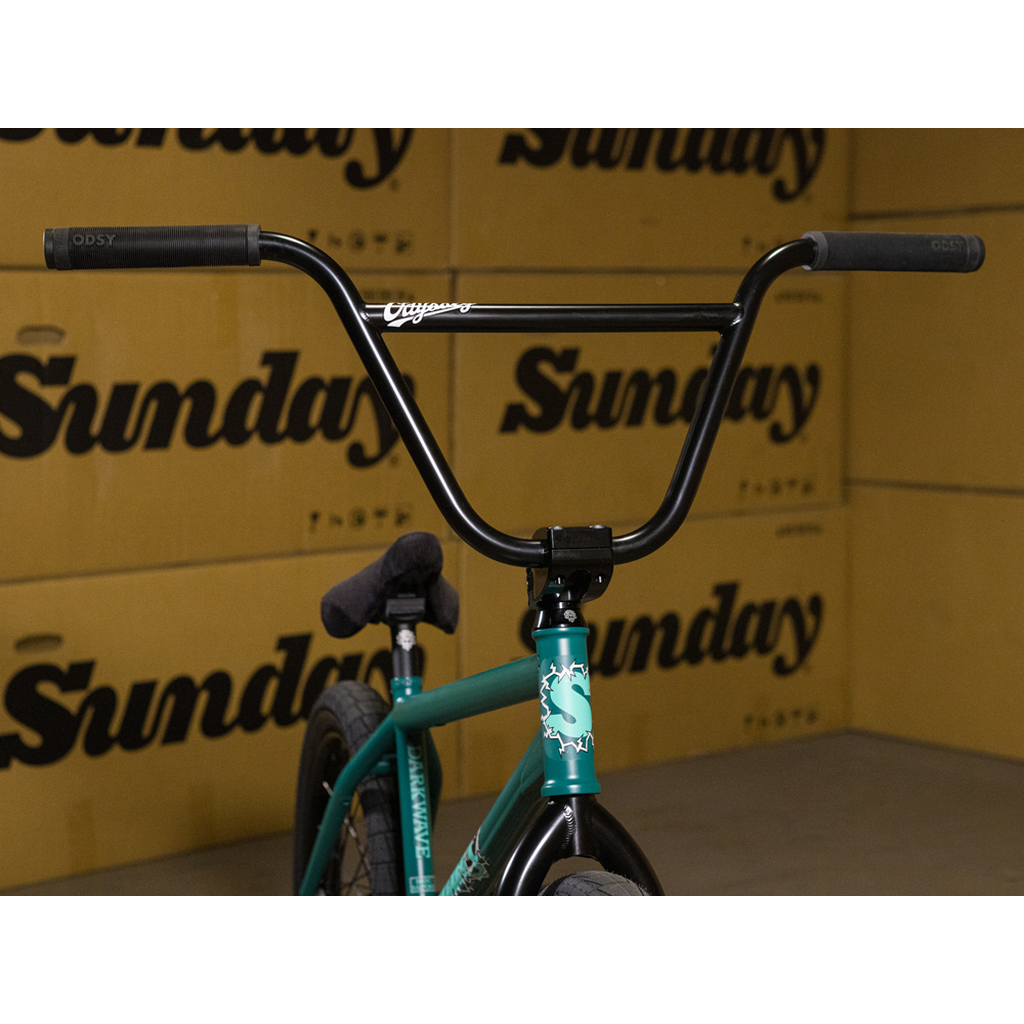

  • Bars: Odyssey BROC, 41-Thermal aftermarket bar

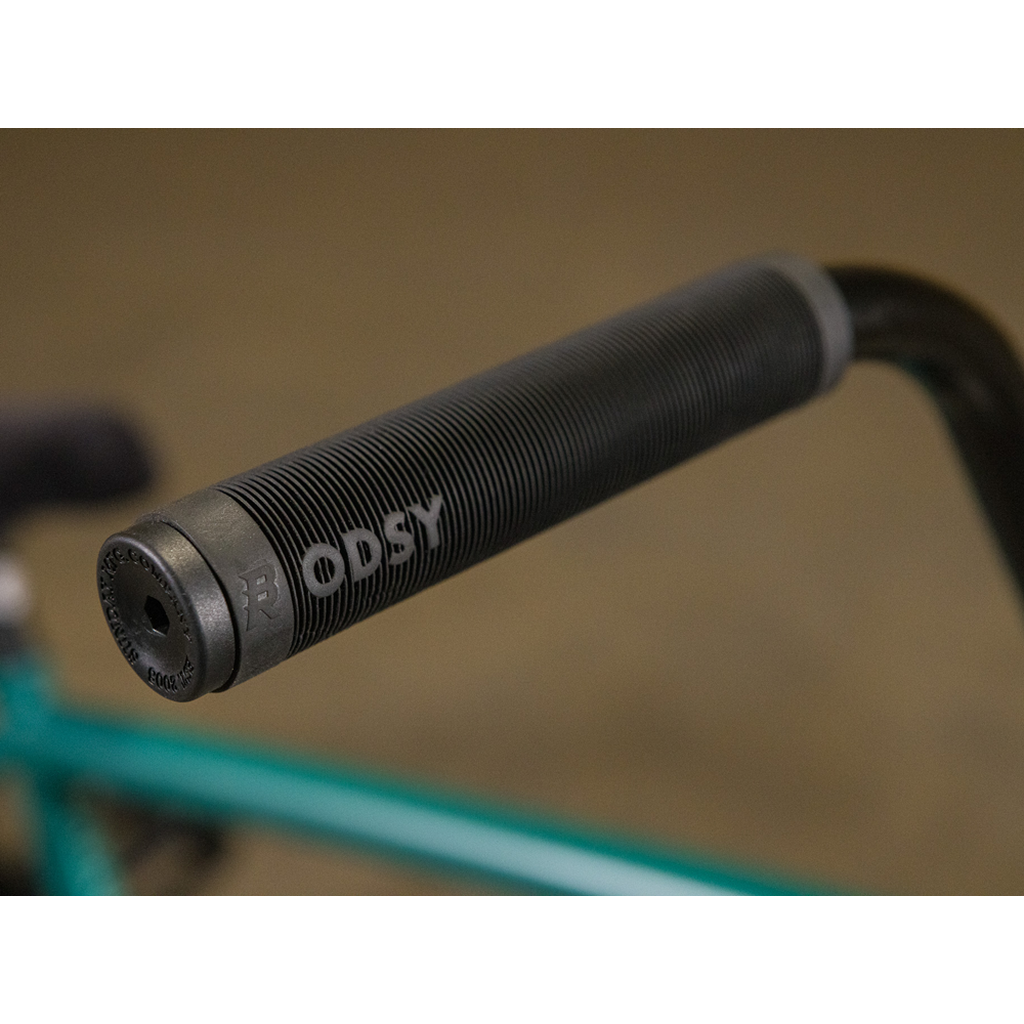

  • Grips: Odyssey Broc Raiford
  • Brakes: Odyssey Springfield U-brake, Odyssey Linear Quik Slic cable
  • Brake lever: Odyssey Springfield
  • Cranks: Odyssey Thunderbolt, 170mm, 100% Cr-Mo, 41-Thermal
  • Bottom bracket: Odyssey sealed, mid, 22mm

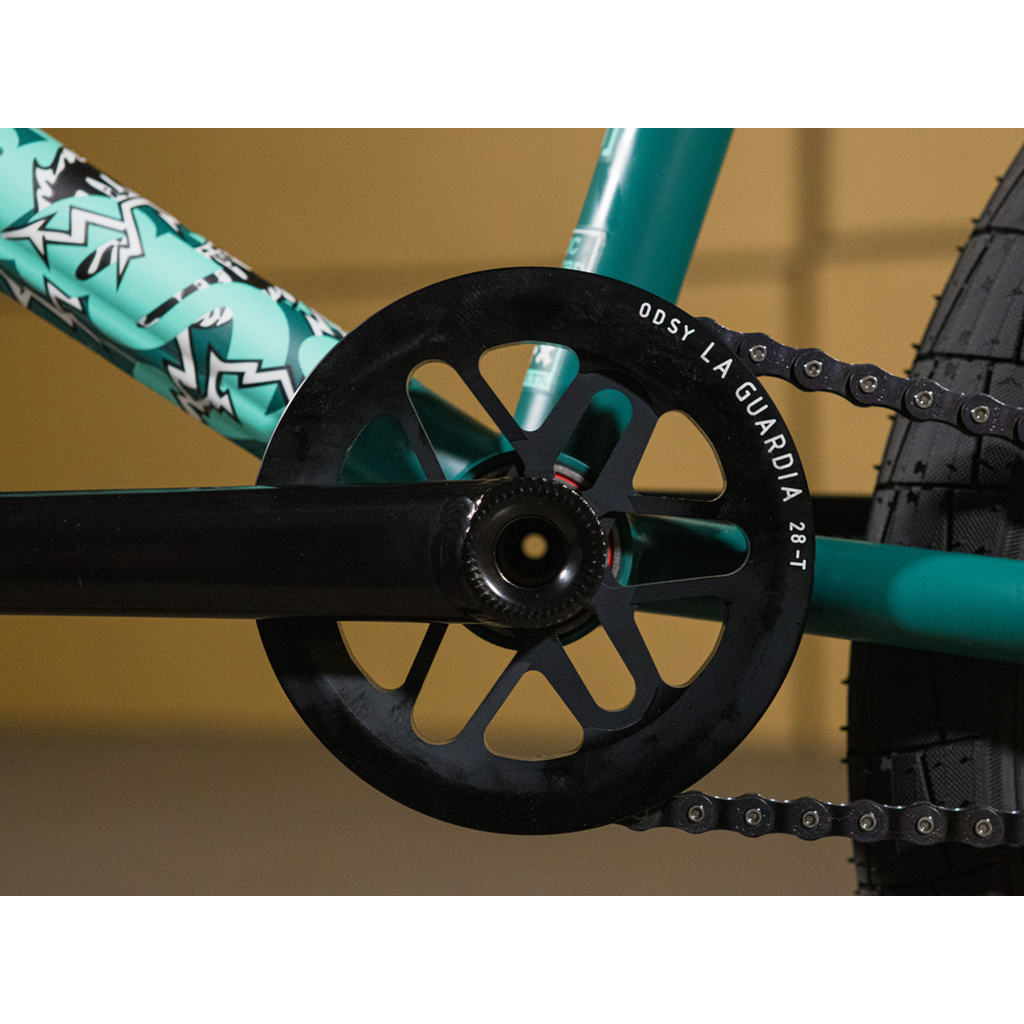

  • Sprocket: Odyssey La Guardia, 28T

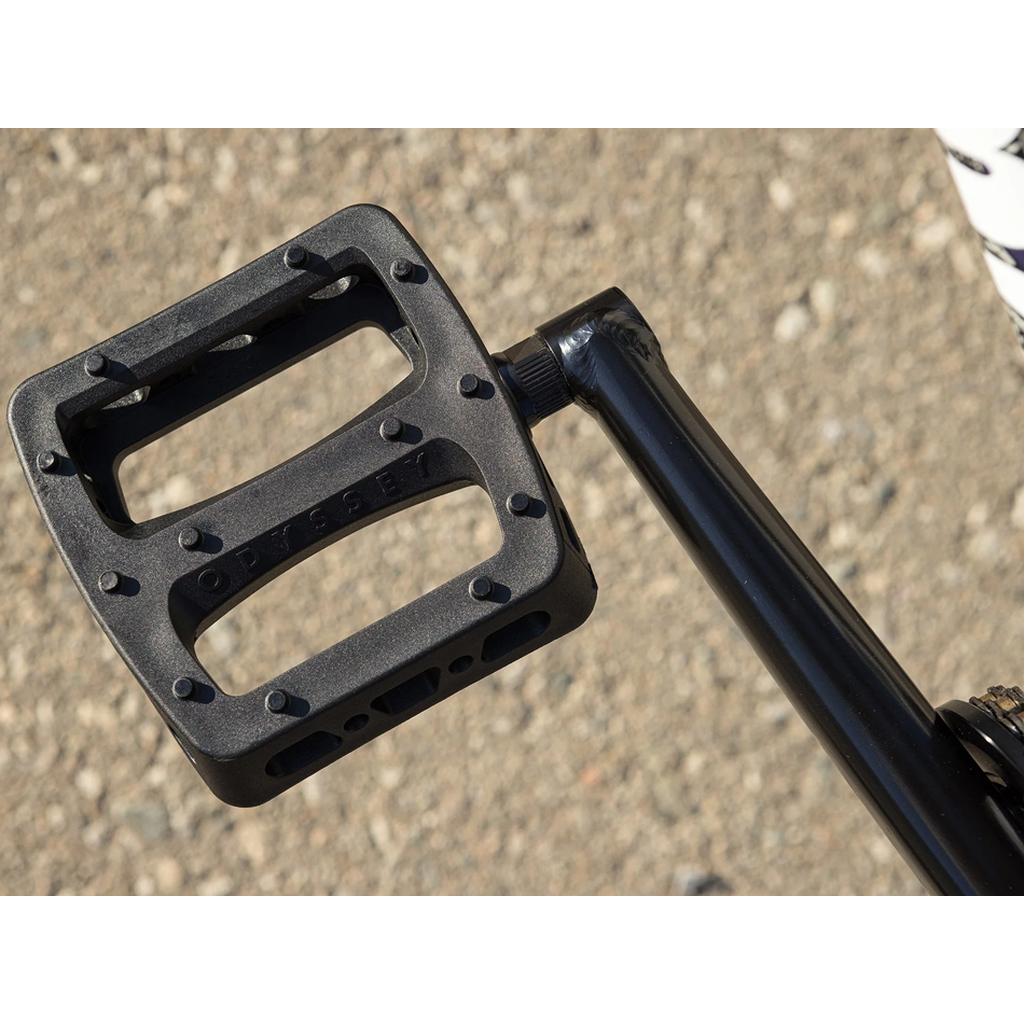

  • Pedals: Odyssey Twisted PC Pro

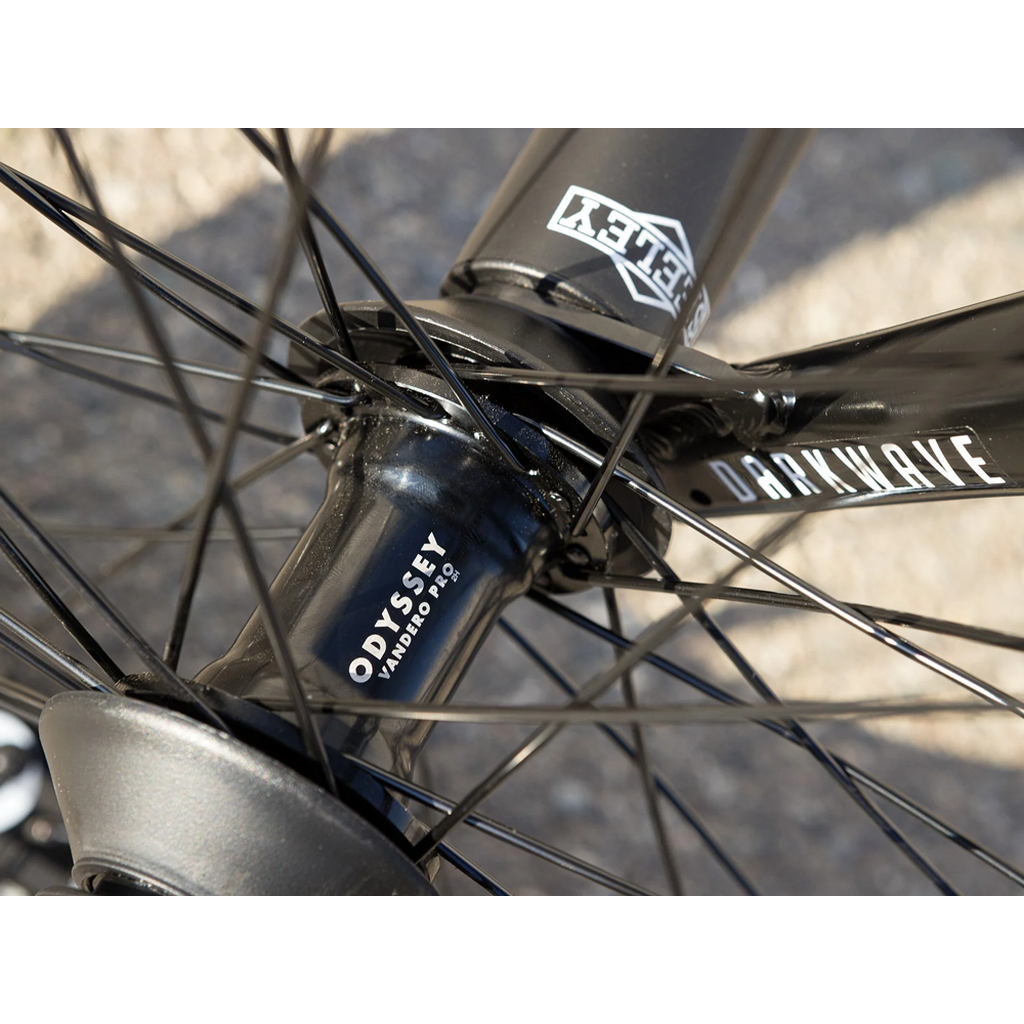

  • Front hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
  • Rear hub: Odyssey Clutch V2 freecoaster
  • Rims: Odyssey Hazard Lite, 20", 36H

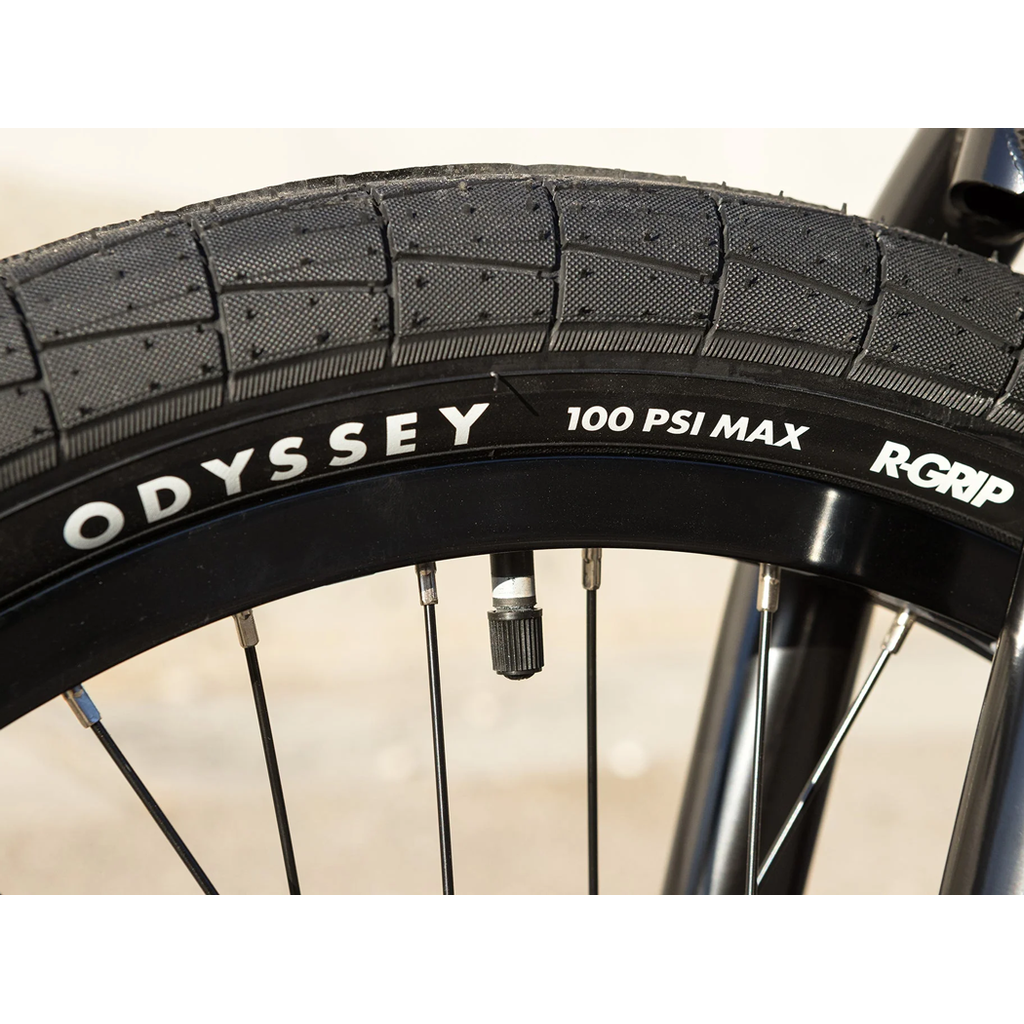

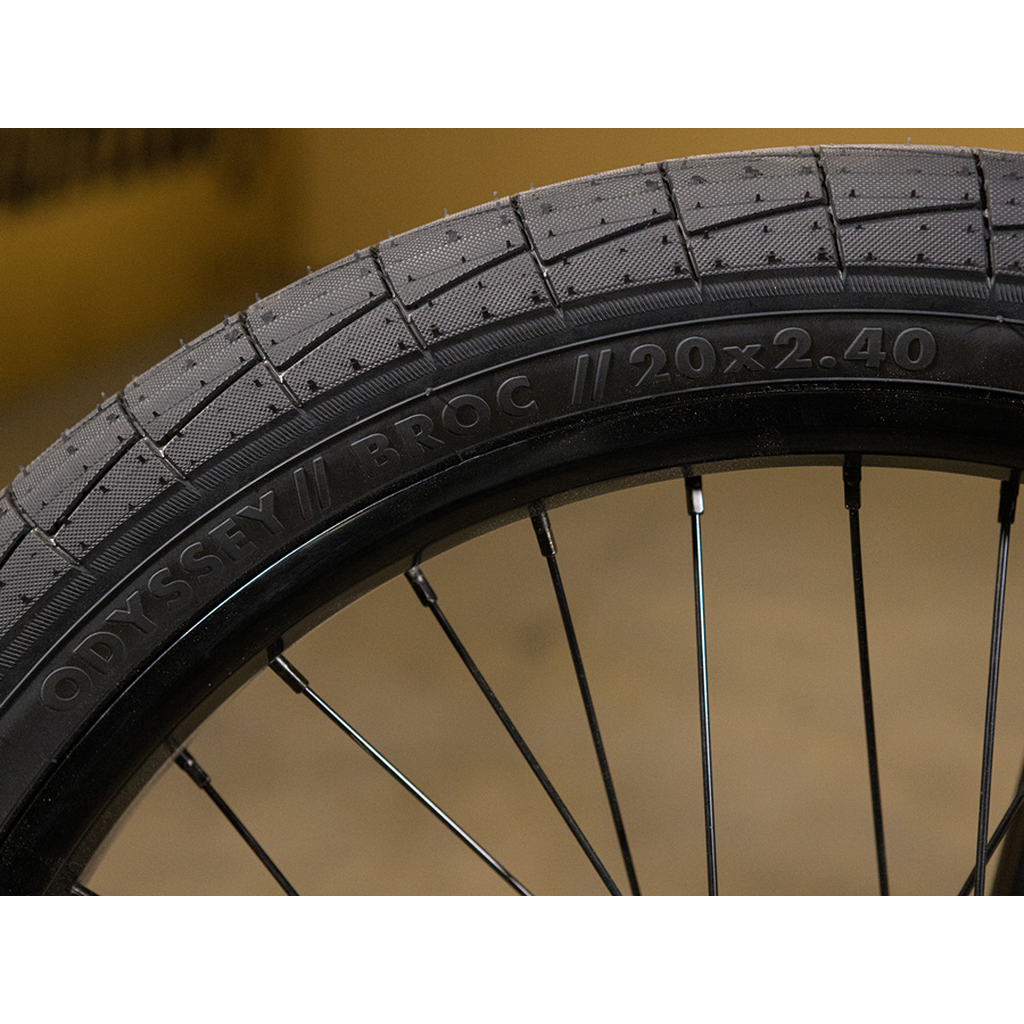

  • Tyres: Odyssey Broc with R-grip

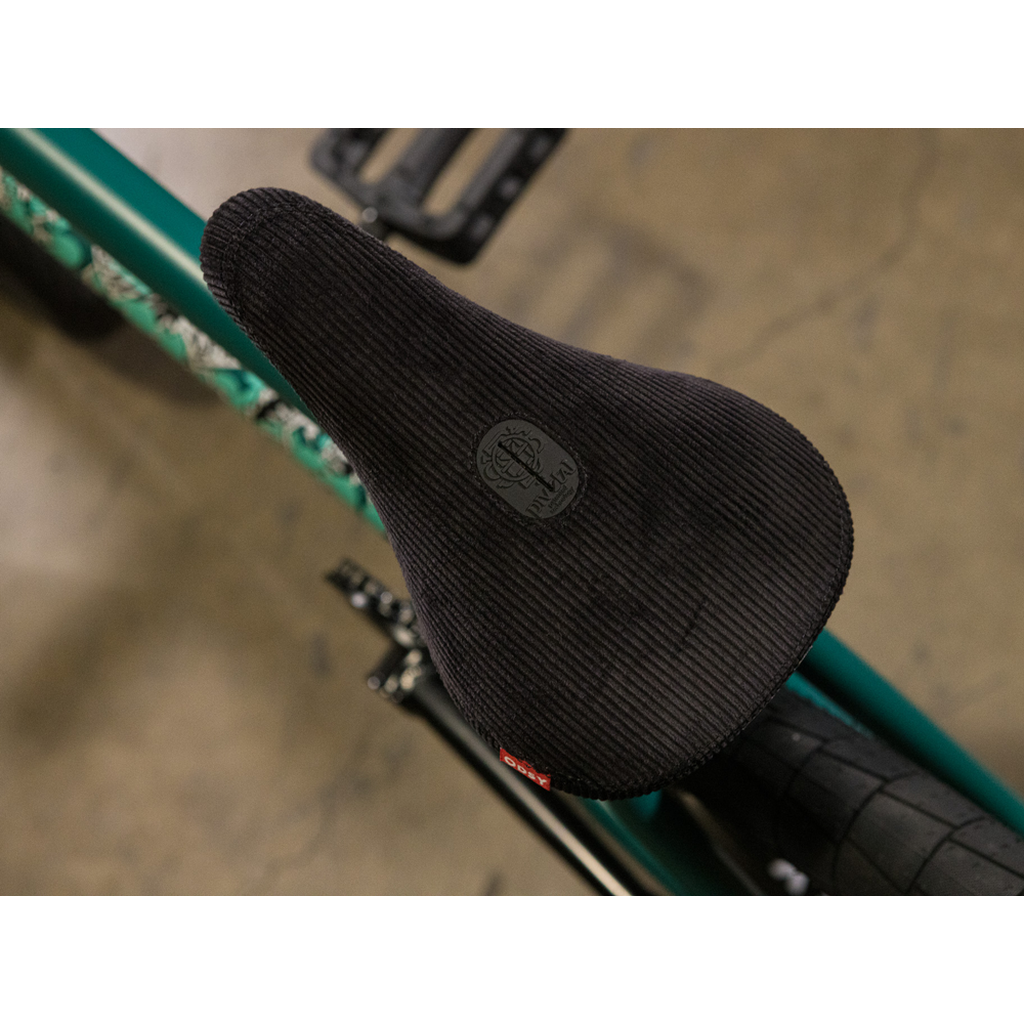

  • Seat: Odyssey Broc Raiford Signature, pivotal, or Odyssey Big Stitch, pivotal
  • Seat post: Odyssey pivotal
  • Seat clamp: Integrated

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

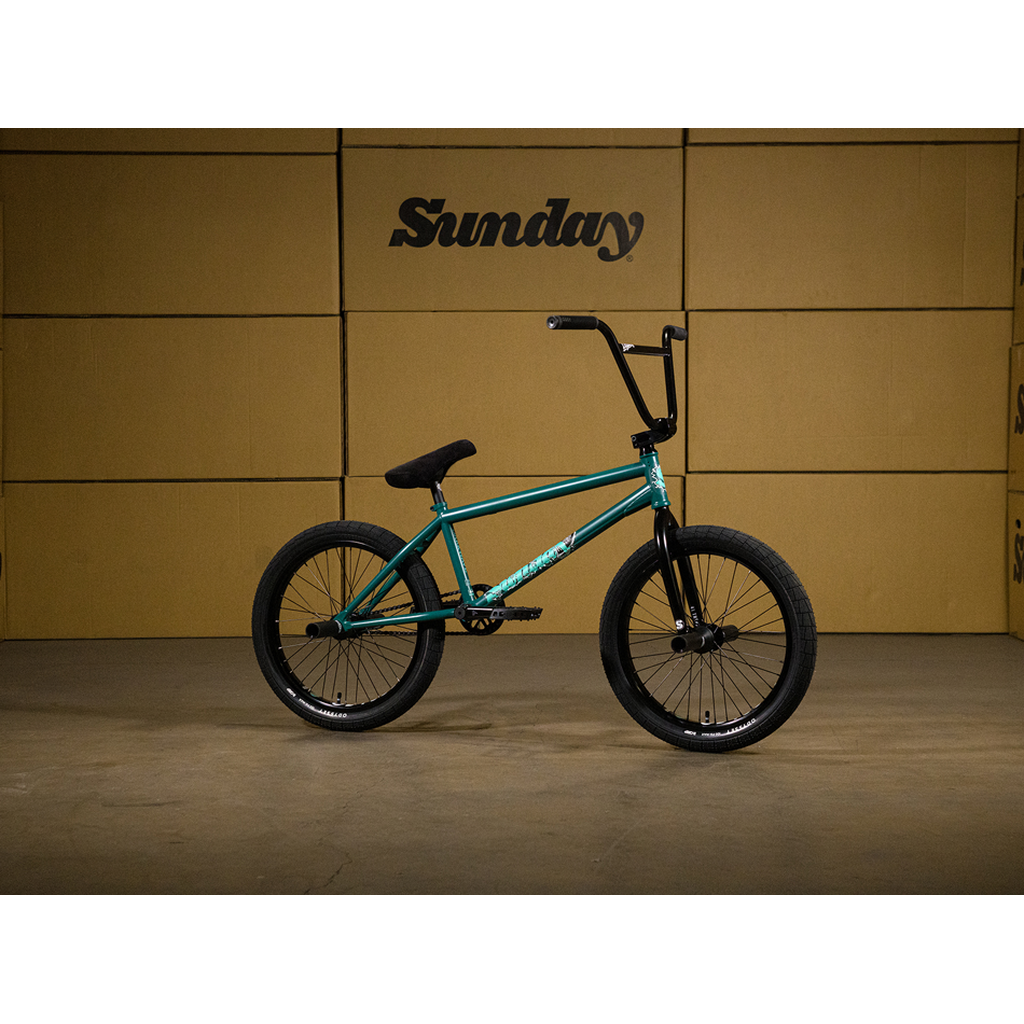

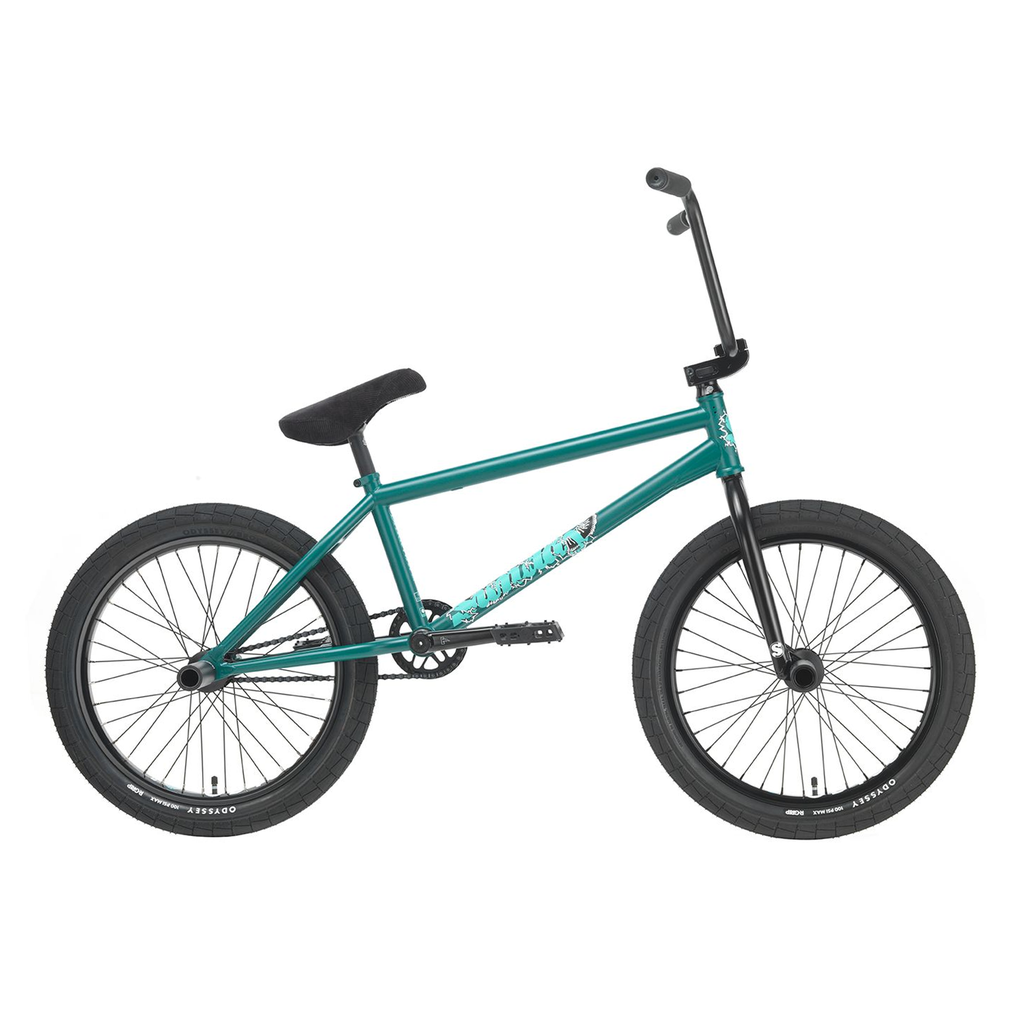

Sunday Darkwave Authentic 20 Inch Bike (2026) / Broc Raiford Signature

Brand: Sunday SKU:

$2,699.99 AUD

Or 4 payments of $674.99 AUD with

Colour - Matt Pine Green

Top Tube Length - 21.25

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
