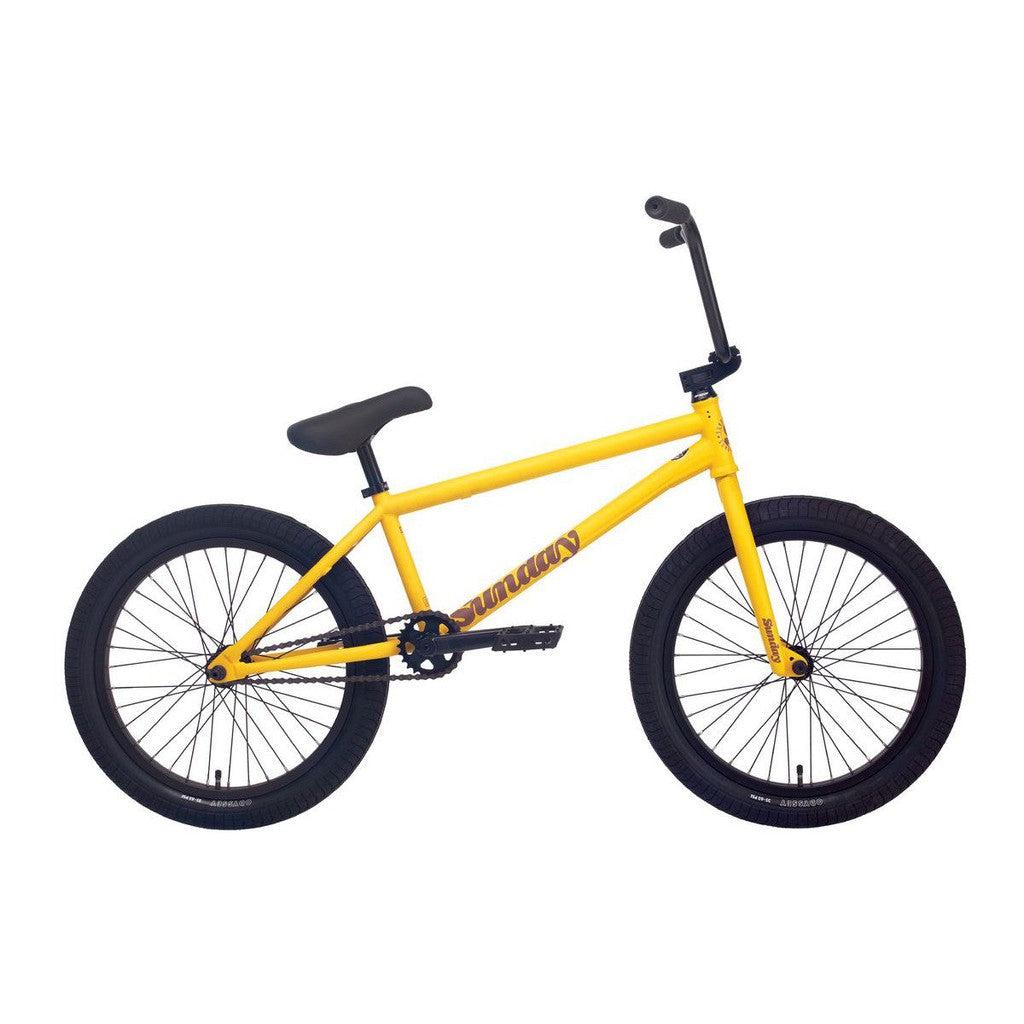

Sunday EX 20 Bike (2022) / Julian Arteaga / Julian Arteaga / 21TT

Description

Get ready to shred with one of these insane completes from the legends at Sunday! Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.

Features
  • 100% chromoly frame, fork and bars. Chromoly right through the front end handles the impacts that come with pro-level riding, and the frame carries Sunday's signature wave down tube.
  • Removable brake hardware. Run the Odyssey Springfield U-brake and Quik Slic cable, or take the mounts off for a clean frame when you ride brakeless.
  • Odyssey C5 sealed cassette hub. A 9T driver and sealed bearings front and rear keep both wheels rolling smoothly with much less maintenance.
  • Wide 2.4" Odyssey Path Pro OEM tyres. Plenty of grip and cushioning on rough concrete and dirt, laced to 36 spoke Sunday Lightning rims.
  • Dialled Sunday drivetrain. Saker 165mm three piece cranks on a sealed mid bottom bracket, a 25T Sabertooth v2 sprocket and a KMC Z1 chain, 11.7 kg all up.

Specifications
  • Size: 21" top tube
  • Frame: Sunday EX, 100% chromoly with wave down tube and removable brake hardware
  • Top tube: 21"
  • Chainstay: 13.2-13.5"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 9"
  • Bottom bracket height: 11.5"
  • Fork: Sunday EX, 20", 100% chromoly with 2-piece steerer tube and welded pre-load, 25mm offset
  • Headset: FSA integrated conical, 1-1/8"
  • Stem: Sunday Freeze front load, 48mm
  • Bars: Sunday, 100% chromoly, 2-piece, 9" rise, 28.5" width, 12° backsweep, 4° upsweep
  • Grips: Odyssey Broc Raiford
  • Brakes: Odyssey Springfield U-brake with Odyssey Quik Slic cable
  • Brake lever: Odyssey Springfield
  • Cranks: Sunday Saker, 165mm, 3-piece
  • Bottom bracket: Sealed, mid, 19mm
  • Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminium
  • Chain: KMC Z1 wide
  • Pedals: Odyssey Twisted PC Pro
  • Front hub: Sunday, 36H, low-flange, sealed, 3/8" female axle
  • Rear hub: Odyssey C5 cassette hub, 36H, 14mm male axle, 9T driver, non-drive side plastic guard
  • Rims: Sunday Lightning, 20", 36H
  • Tyres: Odyssey Path Pro OEM, 20 x 2.4"
  • Seat: Sunday Badge, Pivotal
  • Seat post: Sunday Pivotal
  • Seat clamp: Sunday
  • Weight: 11.7 kg (with brakes)

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Sunday EX 20 Bike / Julian Arteaga

Brand: Sunday SKU:

From

$1,099.99 AUD

 $1,199.99 AUD

Or 4 payments of $274.99 AUD with

Recommended Rider Height:

175cm+

Colour - Julian Arteaga

Top Tube Length - 21

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
