Description

Easily one of the most creative riders on planet earth and maybe ever the solar system (can't be sure) Erik Elstran needs a whip that stands out, performs and shreds! Sunday have decided to give this bike the beans with a host of aftermarket Sunday and Odyssey Parts making this ripper rig super special.

Features

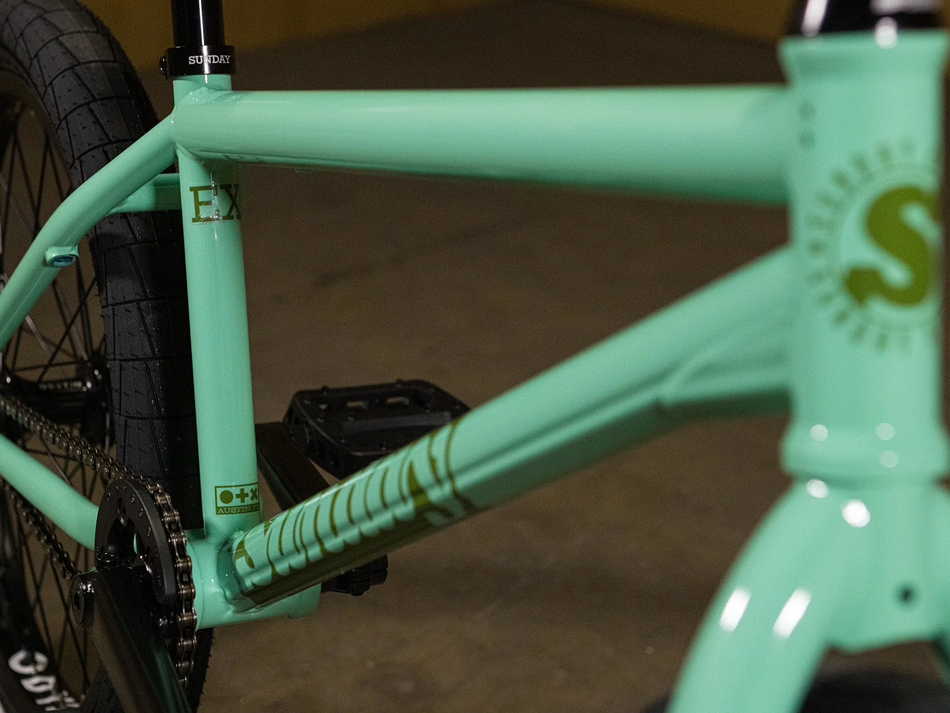

Chromoly frame, fork and bars. Erik Elstran's EX is 100% chromoly throughout, and this is the first Sunday tier to get their signature wave down tube.
Stable 21" geometry. A 21" top tube with a 75° head angle, 13.2 to 13.5" chainstays and an 11.5" bottom bracket height keeps things settled at speed.
Odyssey C5 cassette hub. The C5 switches between right and left hand drive, so you can set the bike up whichever way you pedal.
Removable brake hardware. Bolt on the Odyssey Springfield U-brake and lever, or take the mounts off the frame for a clean look.
Broc tyres on Stage 2 rims. Odyssey Broc 2.40" tyres give plenty of grip and cushion, on rims built for street and park abuse.

Specifications

Size: 20" wheels, 21" top tube
Frame: Sunday EX, 100% chromoly with wave down tube and removable brake hardware
Top tube: 21"
Chainstay: 13.2 to 13.5"
Head tube angle: 75°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.5"
Fork: Sunday EX, 20", 100% chromoly with 2-piece steerer tube, welded pre-load, 25mm offset
Headset: FSA integrated conical, 1-1/8"

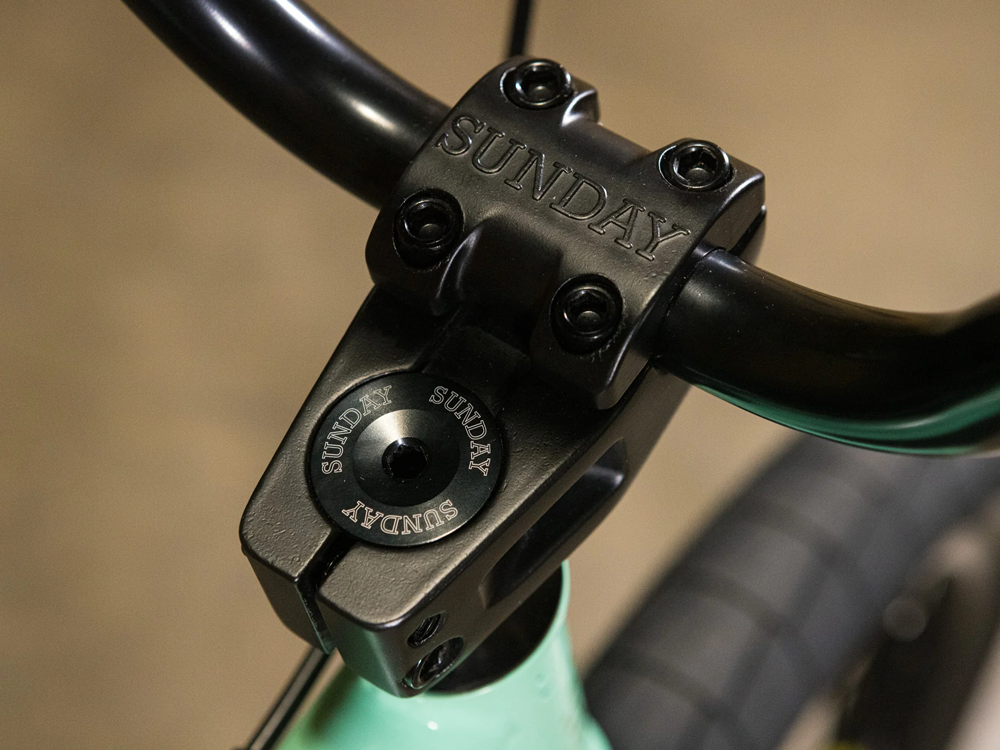

Stem: Sunday Freeze top load, 48mm

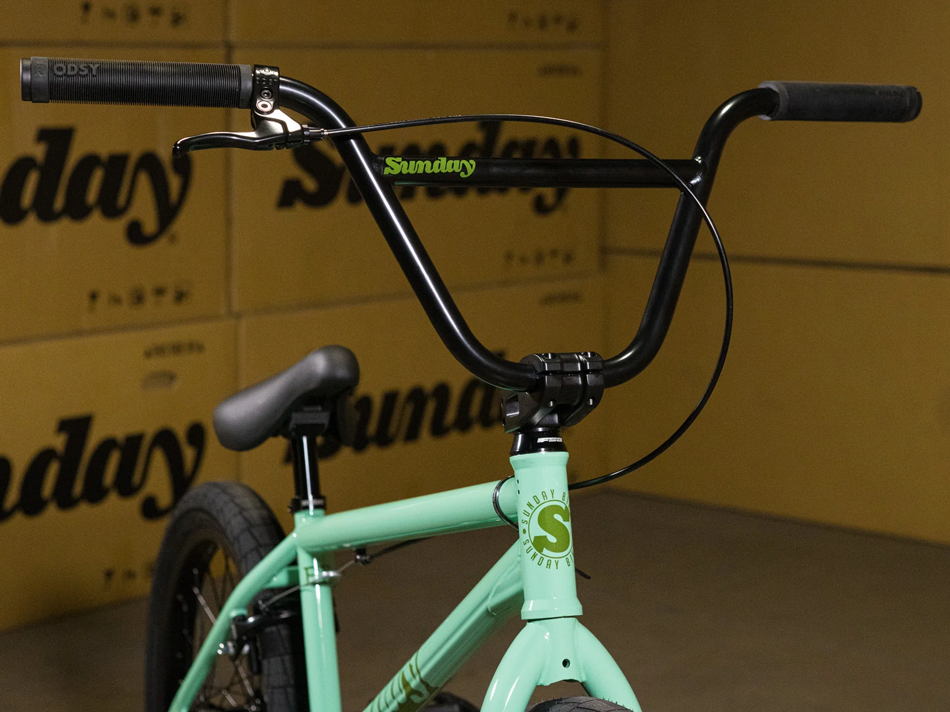

Bars: Sunday, 100% chromoly, 2-piece, 9" rise, 28.5" wide, 12° backsweep, 4° upsweep

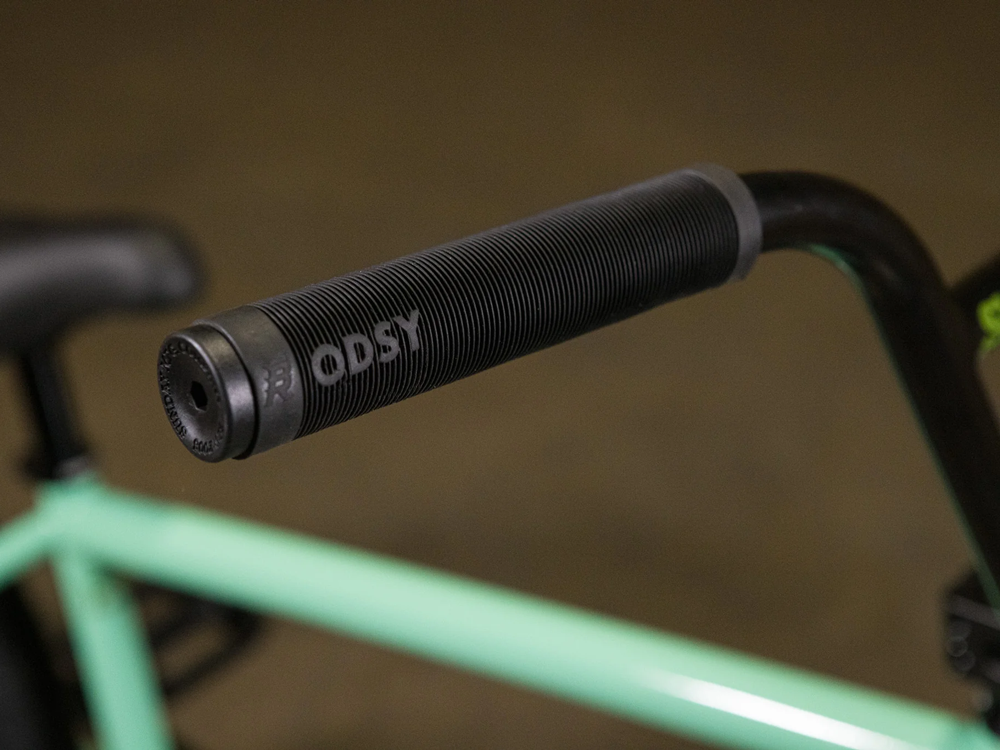

Grips: Odyssey Broc Raiford Signature

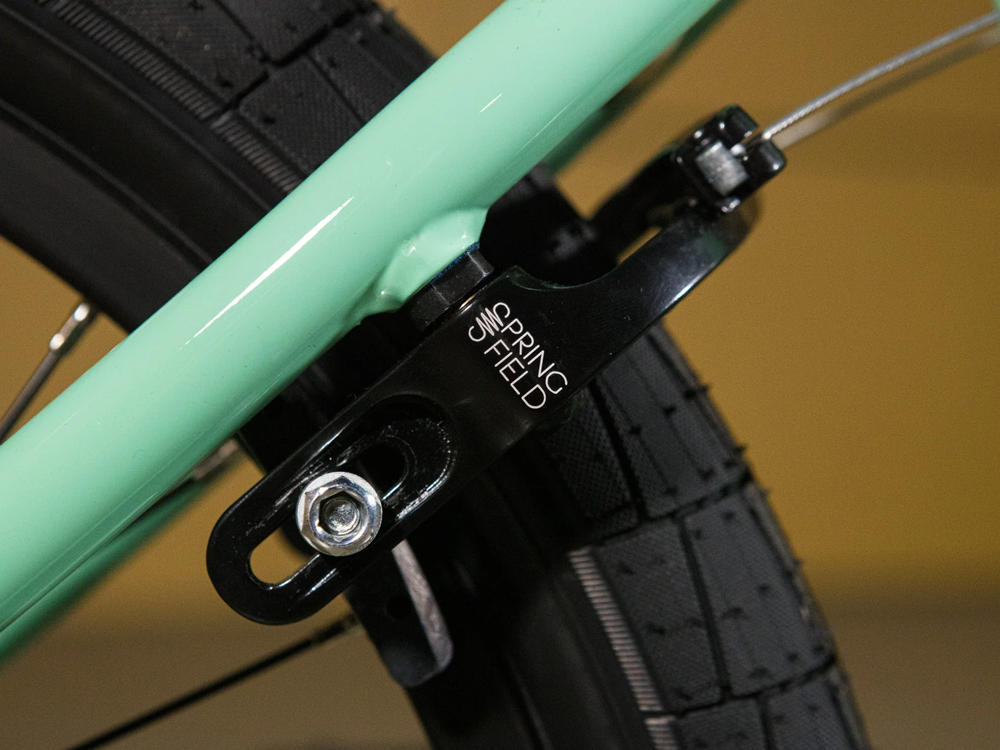

Brakes: Odyssey Springfield U-brake
Brake lever: Odyssey Springfield

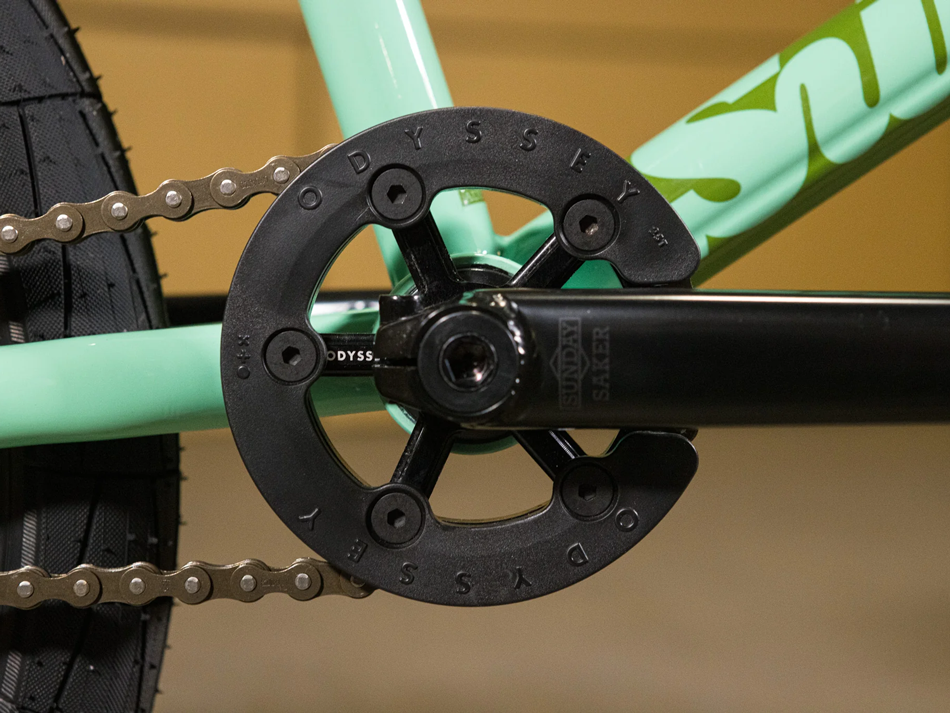

Cranks: Sunday Saker, 3-piece, 165mm
Sprocket: Odyssey Utility Pro, 25T

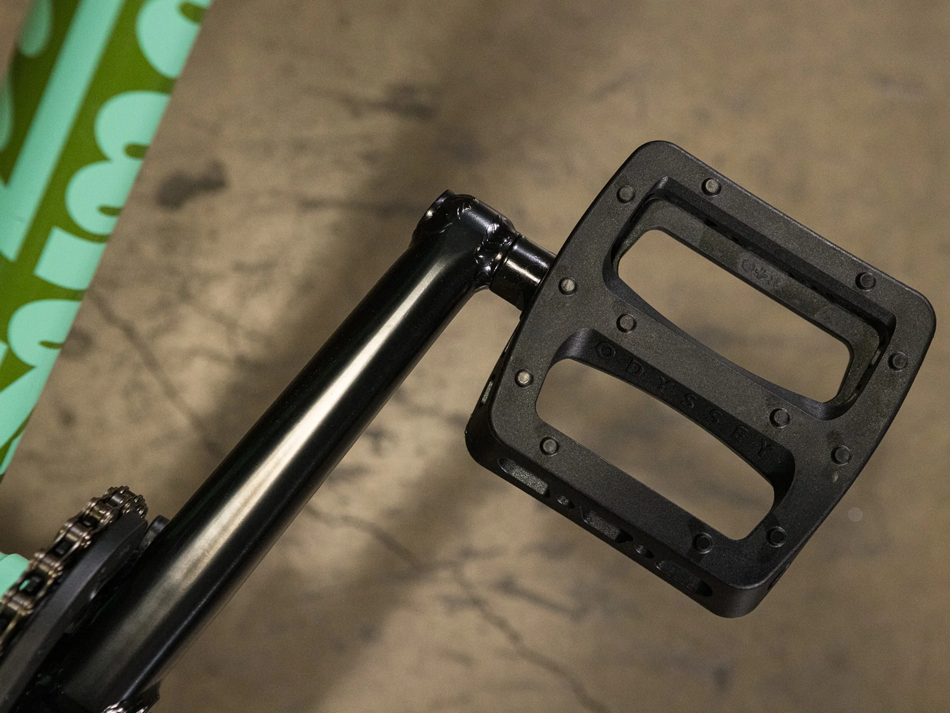

Pedals: Odyssey Twisted Pro

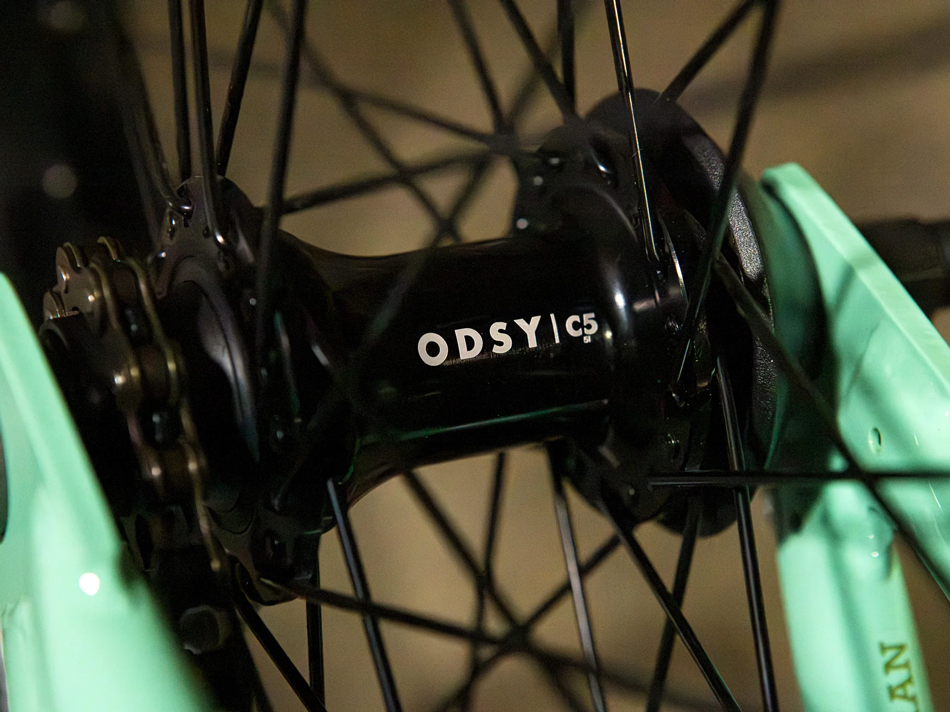

Rear hub: Odyssey C5 cassette, RHD and LHD switchable

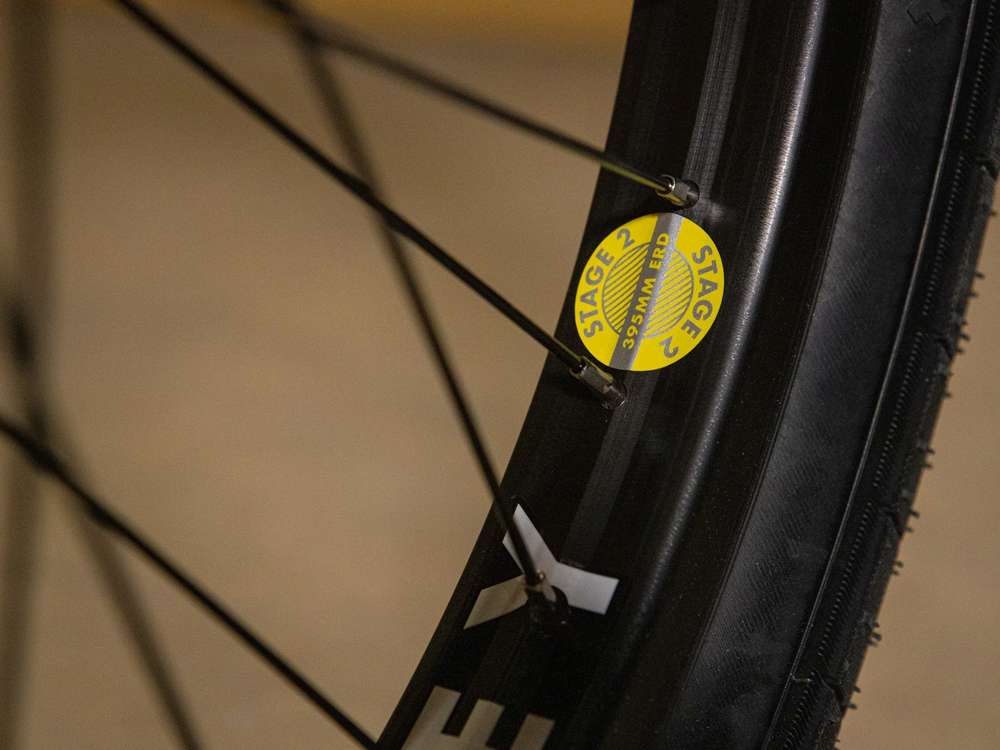

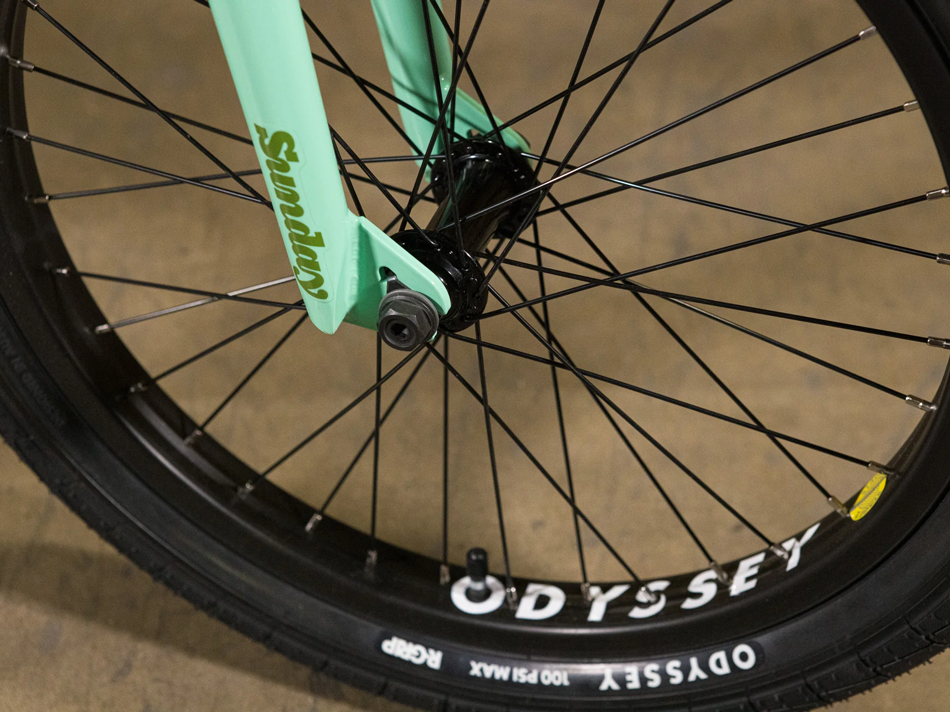

Rims: Odyssey Stage 2

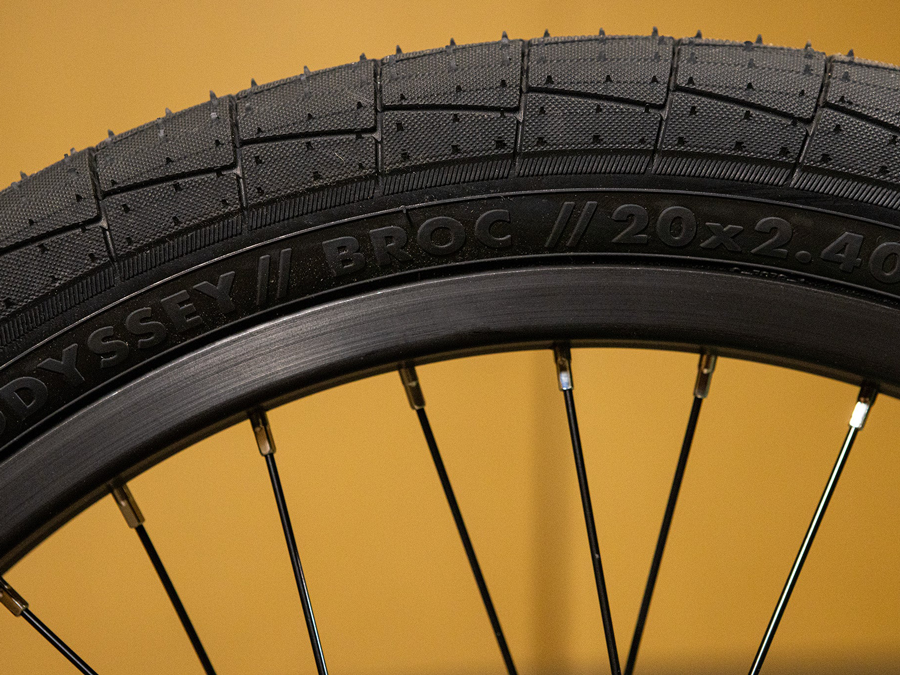

Tyres: Odyssey Broc, 2.40"

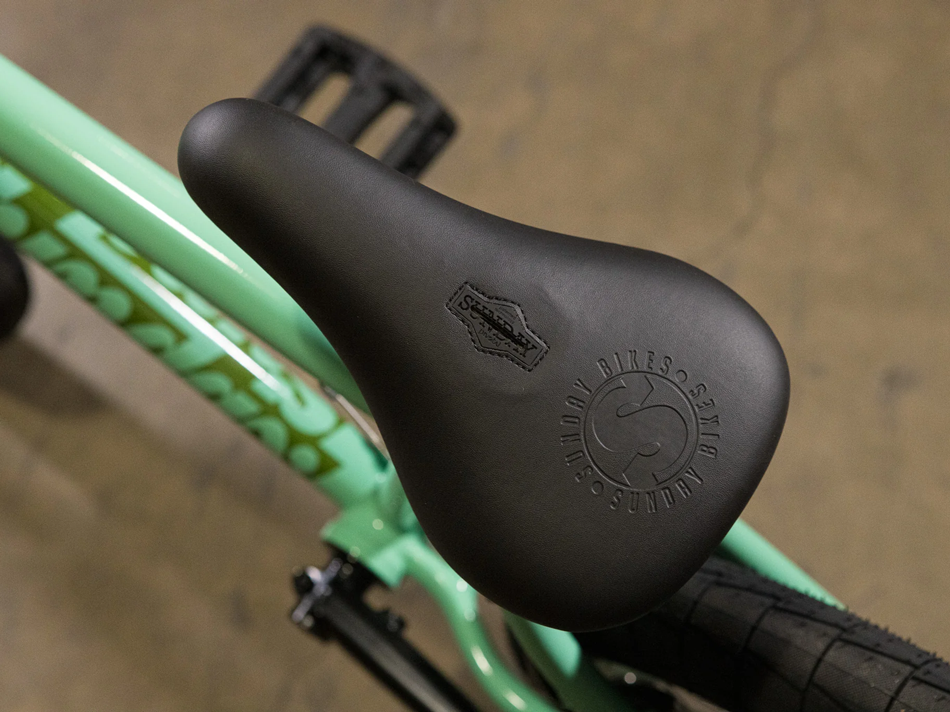

Seat: Sunday Badge, Pivotal
Seat post: Sunday Pivotal
Seat clamp: Sunday
Note: Odyssey Springfield brake, lever and Quik-Slick cable are included (not pictured). Alloy top cap: Sunday M16, aluminium.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

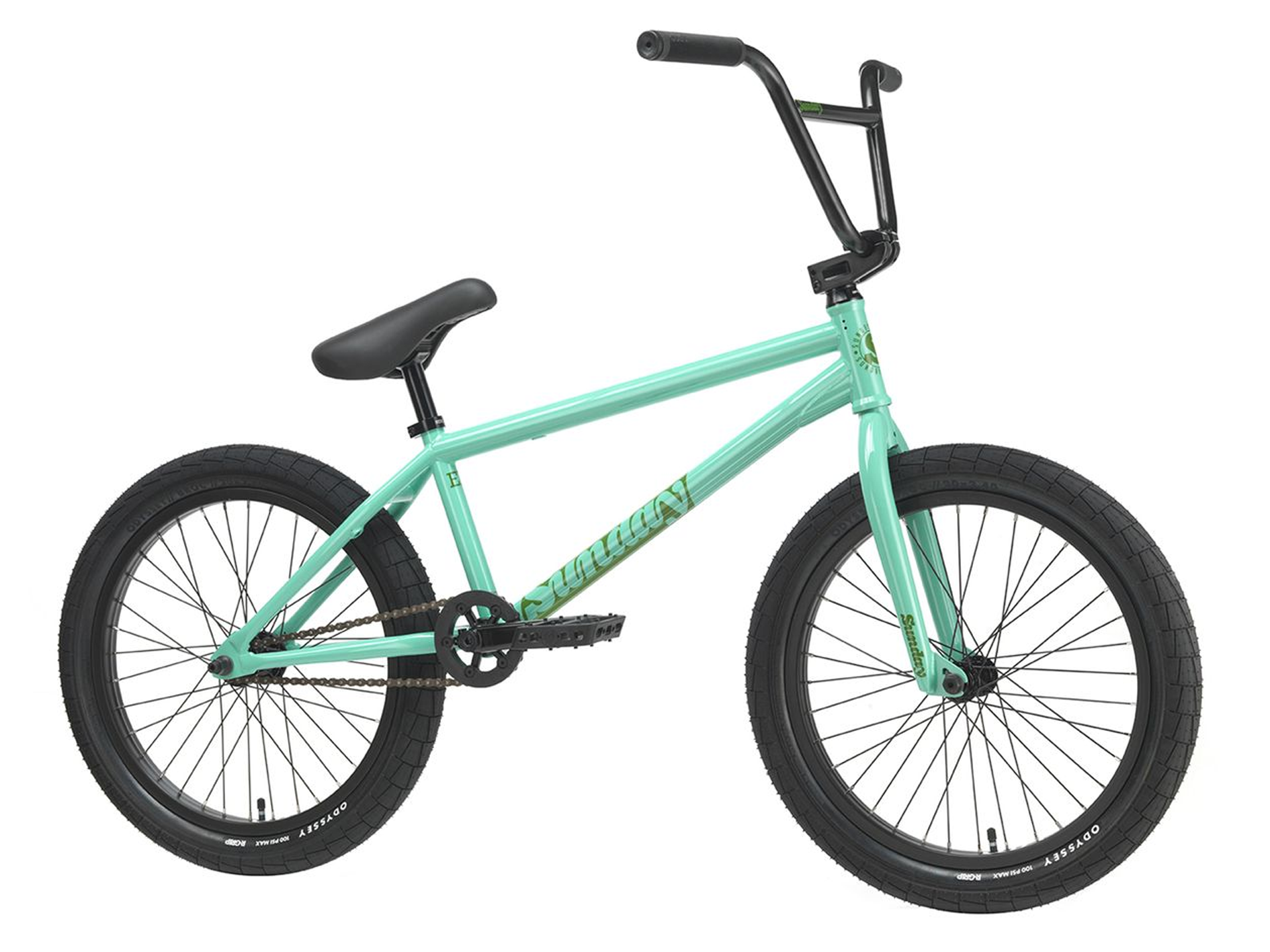

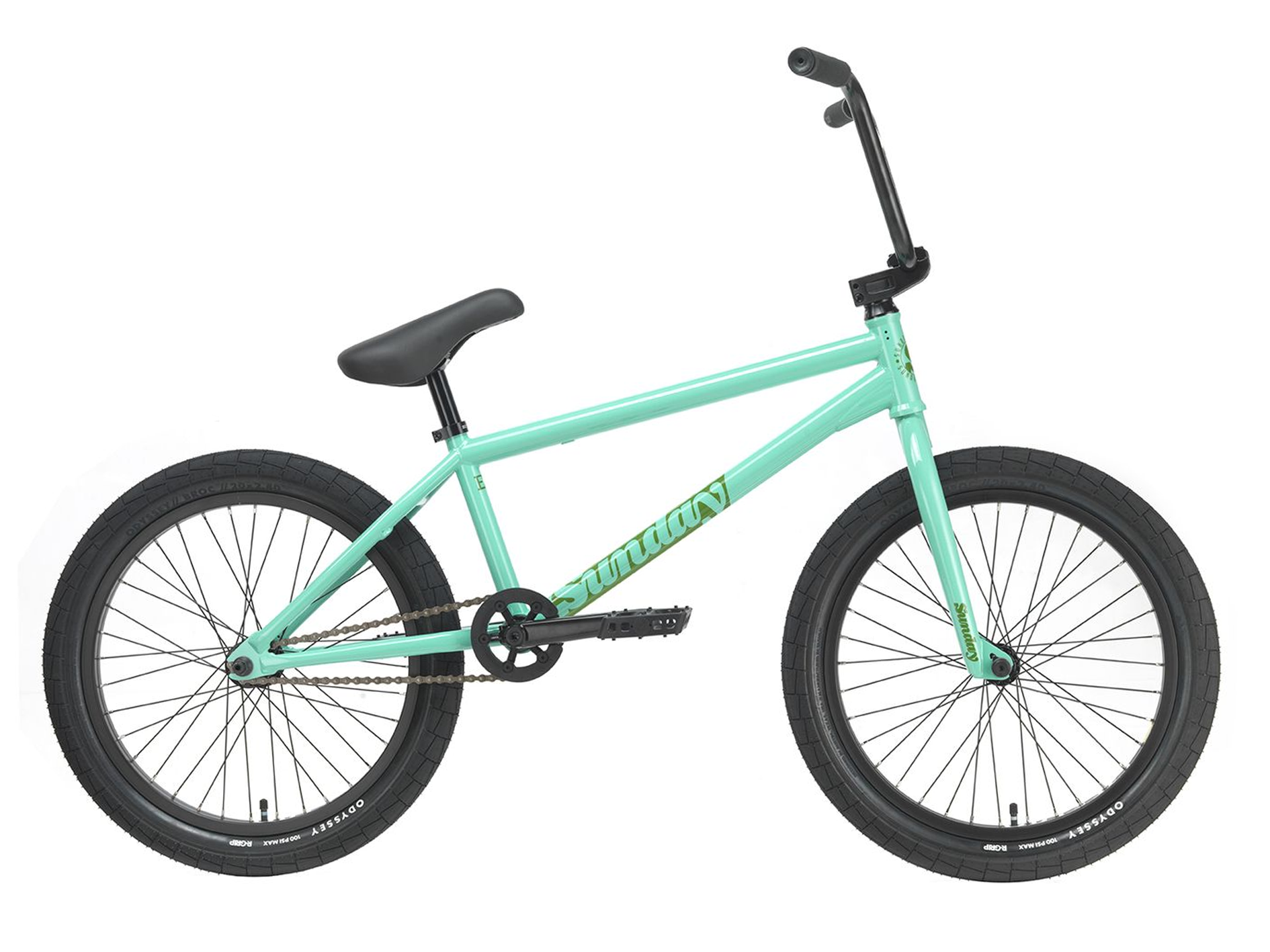

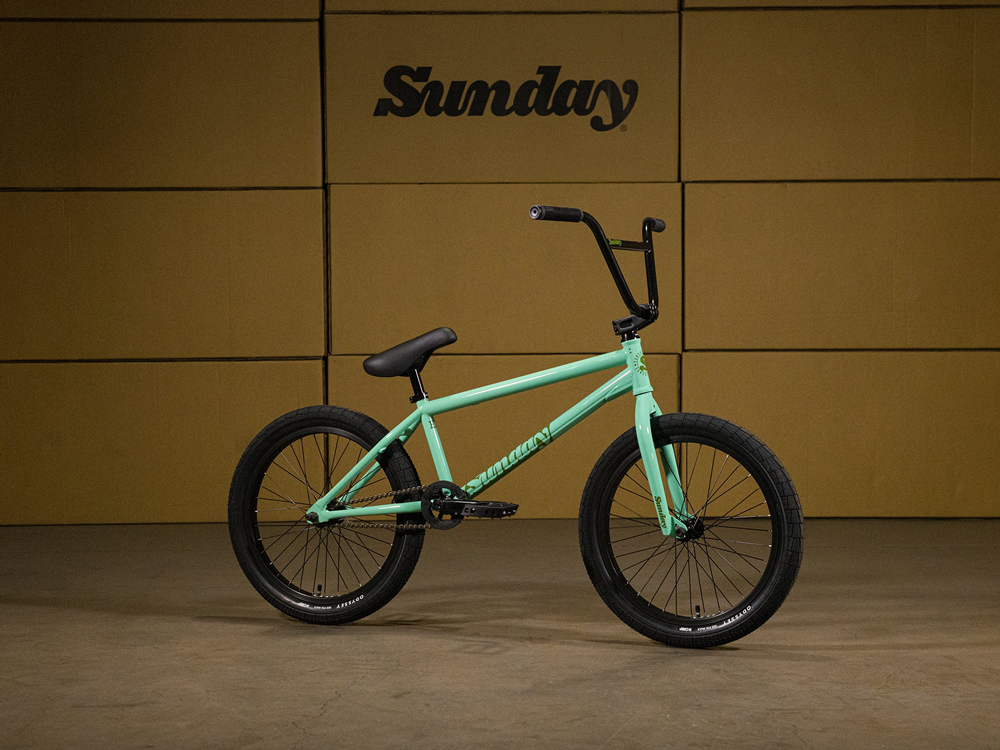

Sunday EX (Erik Elstran) 20 Inch Bike

Name: Sunday EX (Erik Elstran) 20 Inch Bike
Brand: Sunday
SKU: SUBK245-26-TOO
Price: 1299.99 AUD
Availability: InStock

Brand: Sunday SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour - Gloss Toothpaste

Top Tube Length - 21

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
