Fire on all cylinders with these boss bikes from Sunday! These boast a bunch of aftermarket parts on a strong chromoly frame, fork and bar making it a versatile and dialled bike for shredders taking things more seriously.

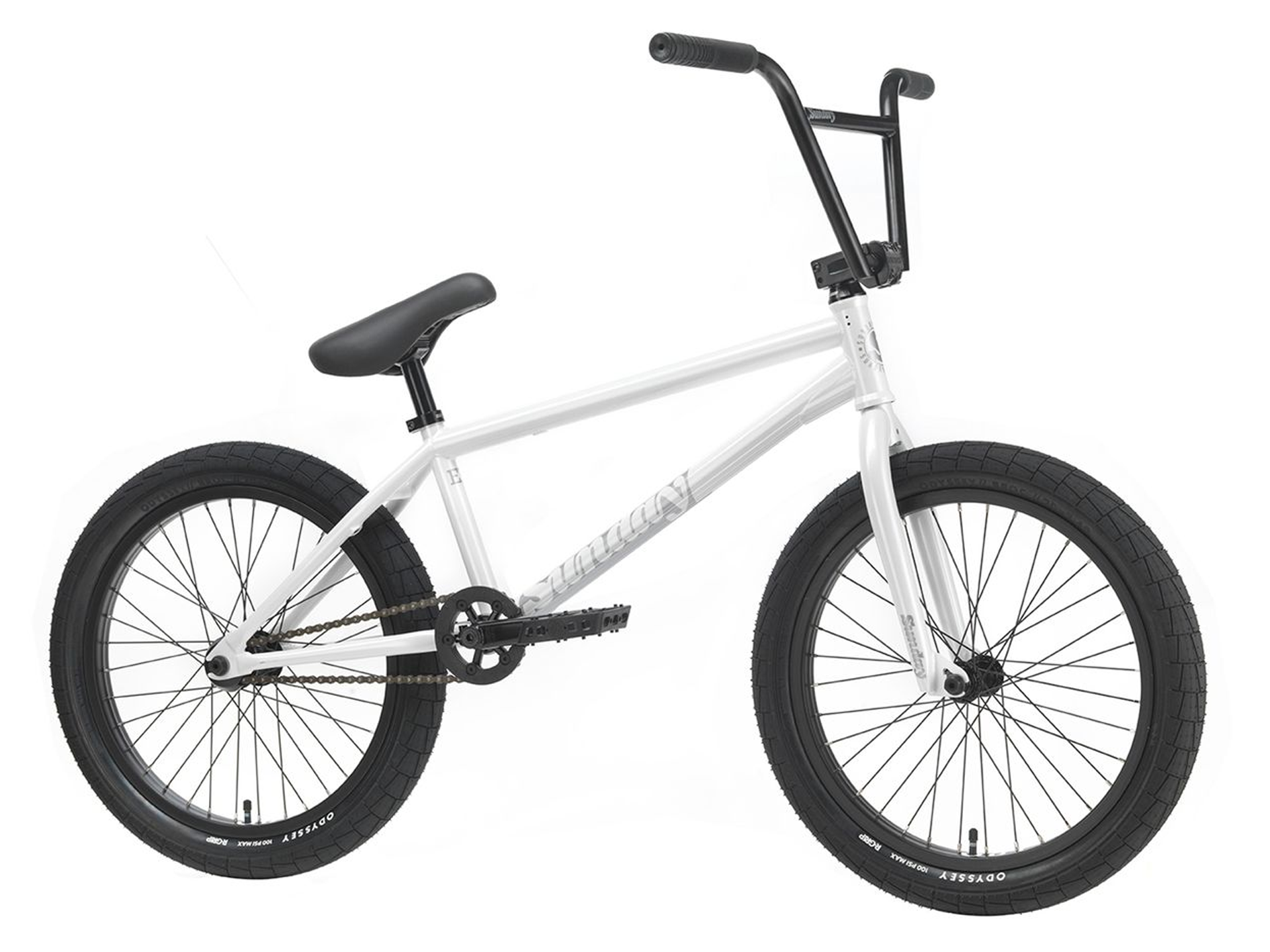

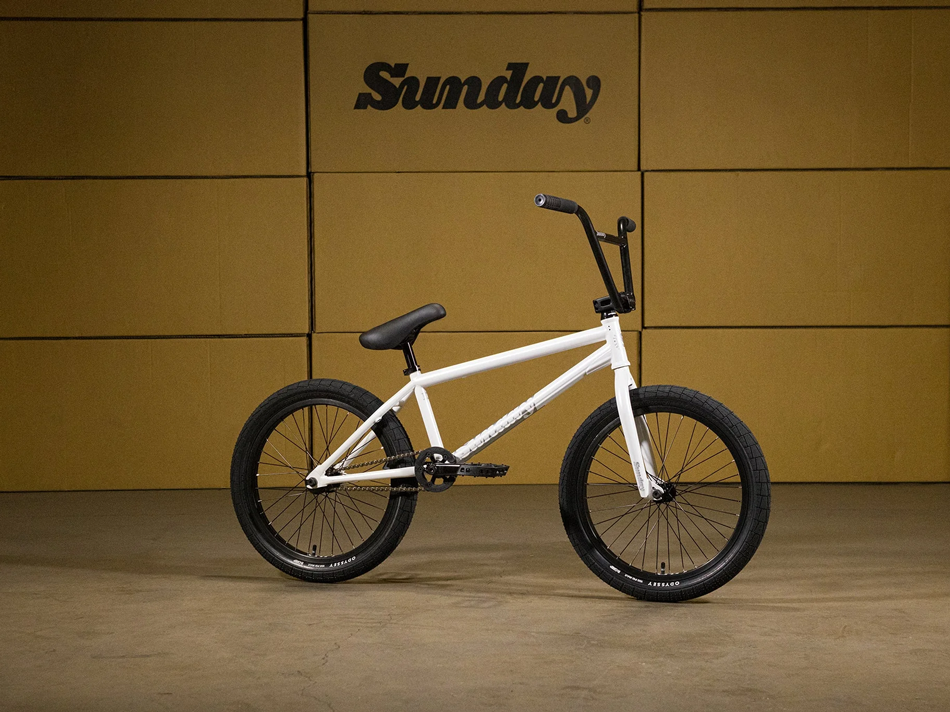

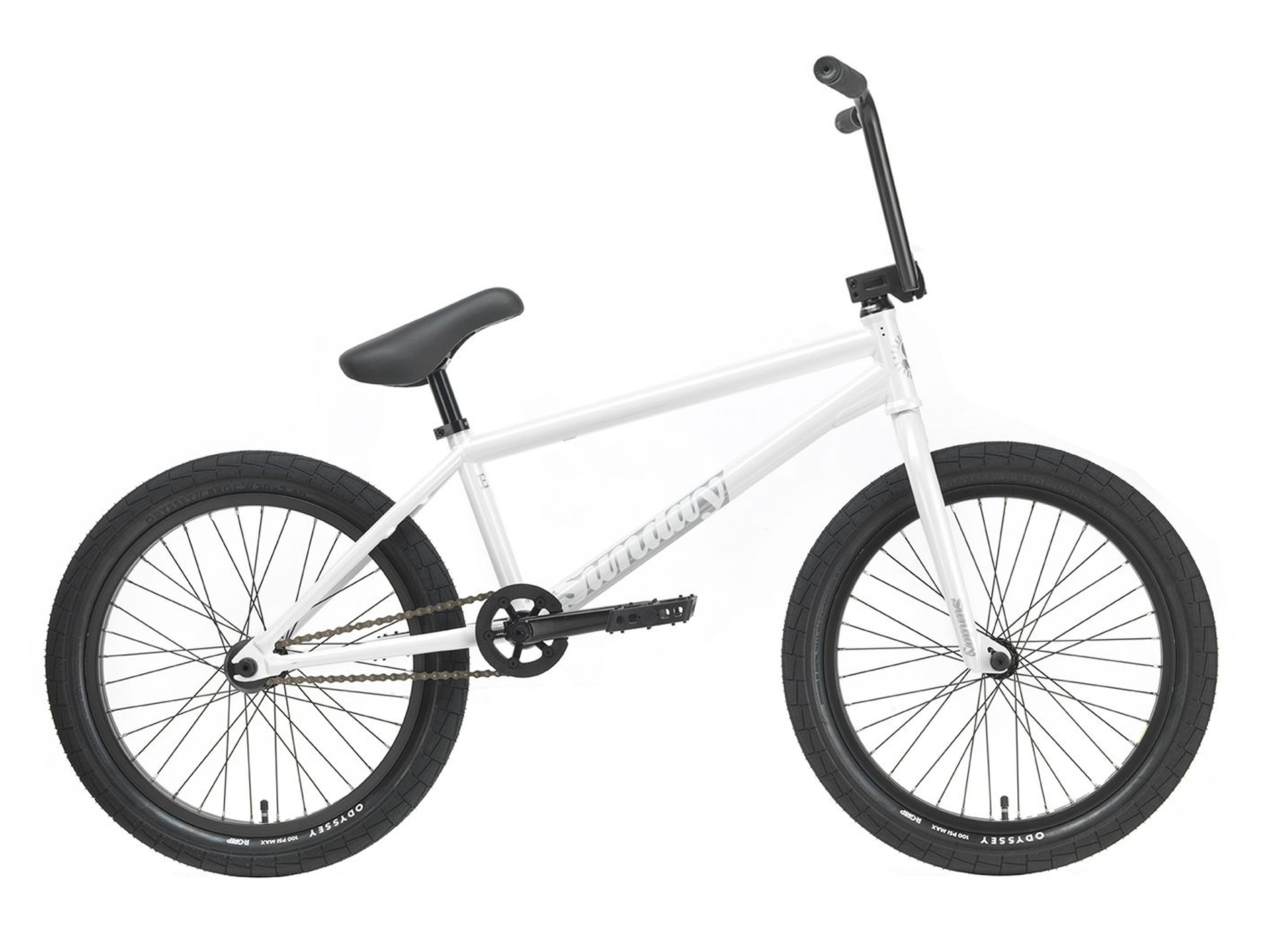

With a 100% Cr-Mo frame, fork, and bars, the EX is a bike that is difficult to match.

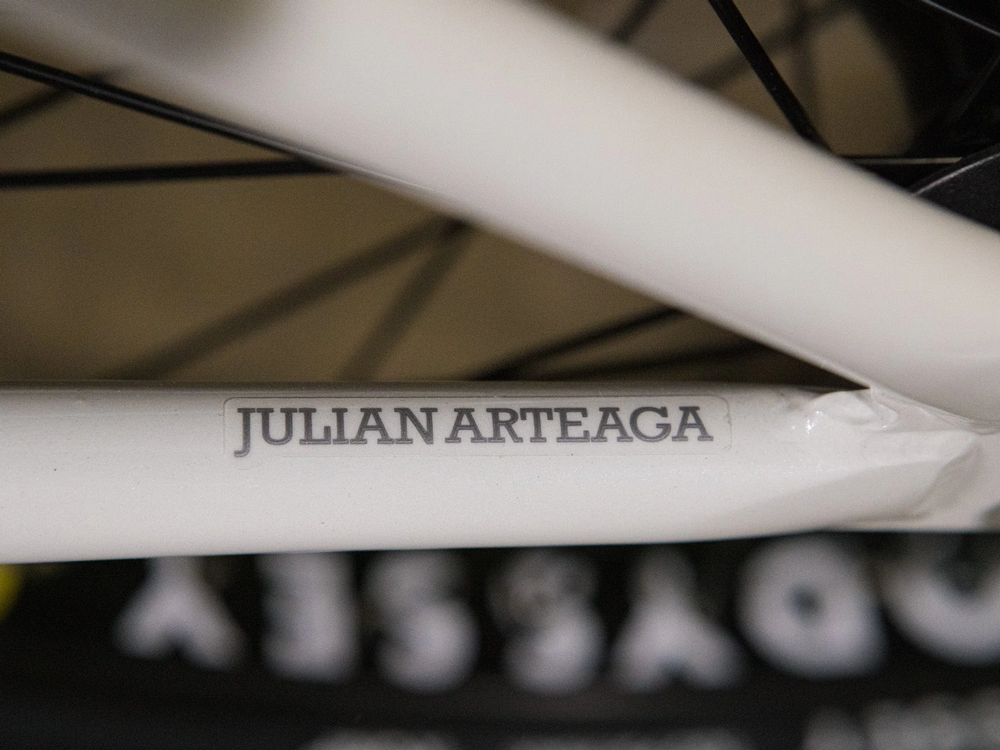

Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.
Features
- 100% Cr-Mo frame, fork, and bars

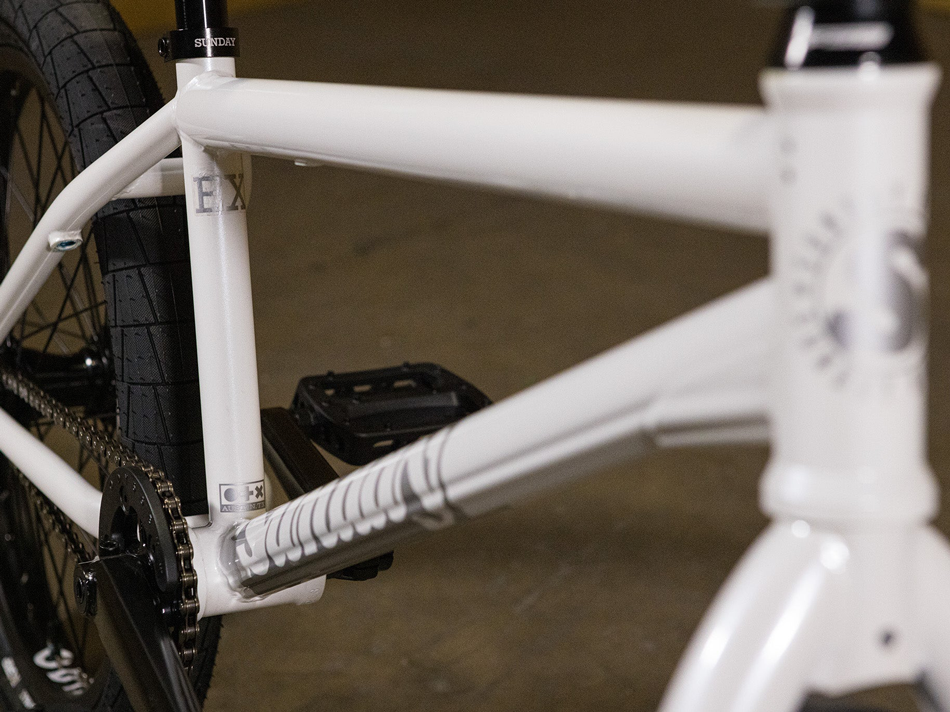

- Sunday Signature wave down tube
- Odyssey Broc Raiford grips
- FSA conical headset
- Sunday Sabretooth v2 25T sprocket
- Sunday Saker 3-PC cranks, 165mm
- Odyssey Stage 2 rims
- Odyssey Path Pro OEM 2.40" tyres
- Sealed rear hub
- Sealed front hub
Specifications
Frame - 20.75", 100% Cr-Mo frame with wave downtube, removable brake hardware
Fork - Sunday 'EX', 20", 100% Cr-Mo fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar - 4 piece
Stem - Sunday 'Freeze' front load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday 'M16', aluminium
Brake Lever - Odyssey 'Springfield'
Brakes - Odyssey 'Springfield' U-brake
Brake Cable -Odyssey Linear Quik Slic

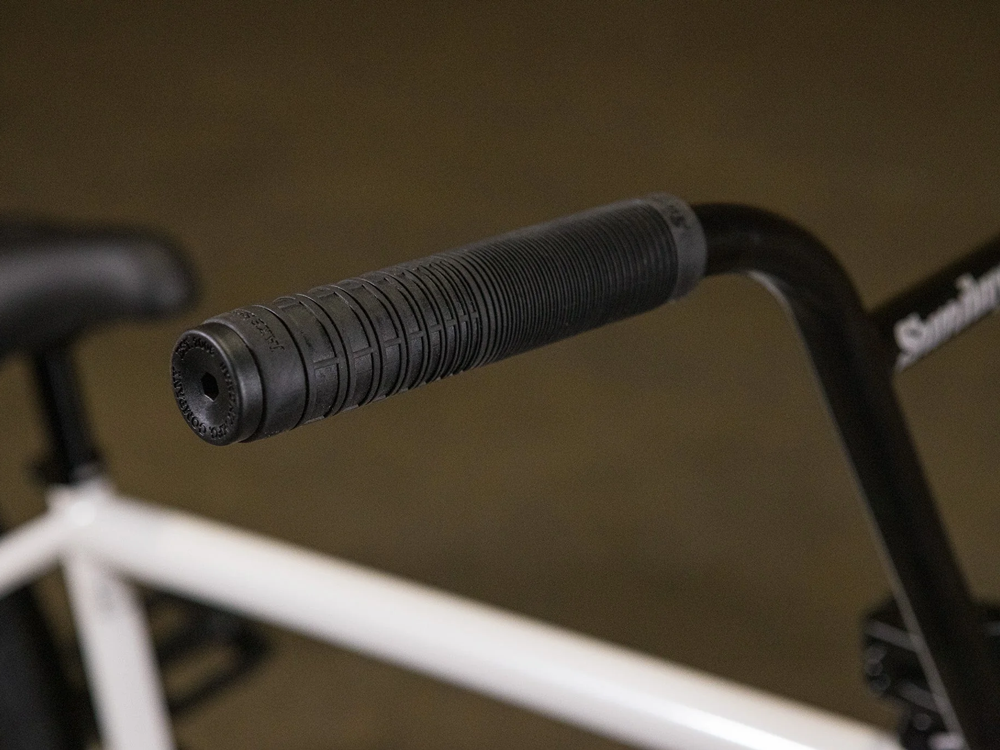

Grips - Sunday Jake Seeley Signature

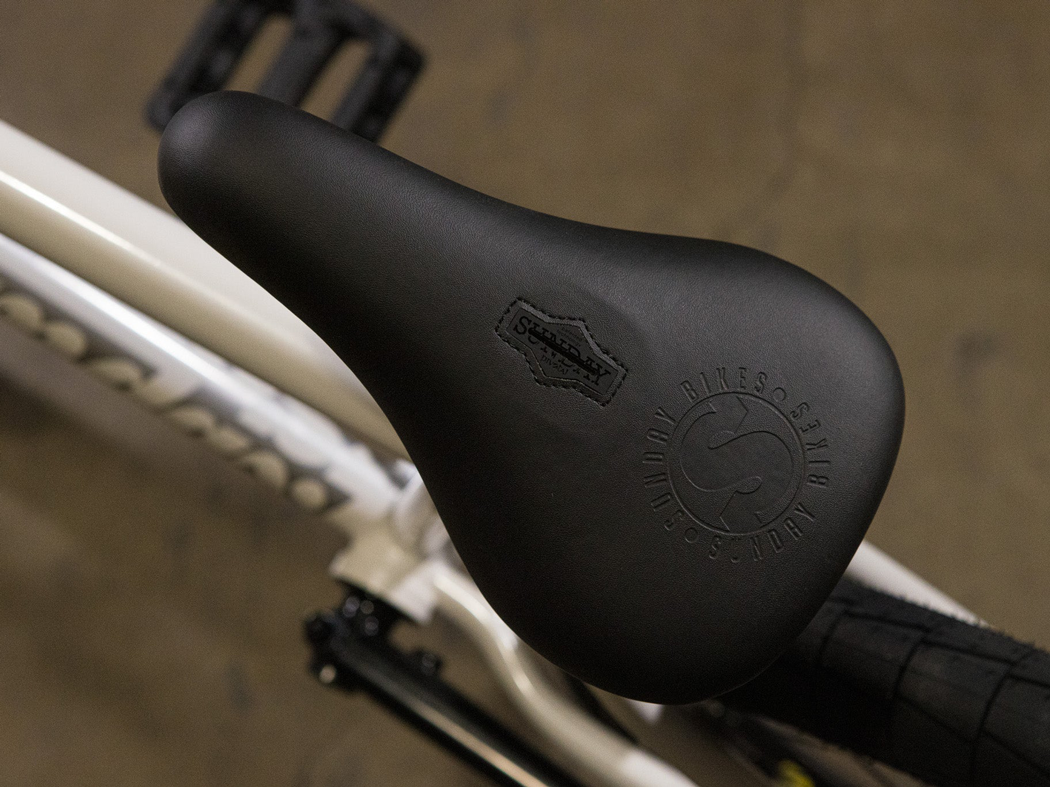

Seat - Sunday 'Badge', pivotal
Seat post - Sunday pivotal
Seat Clamp - Sunday

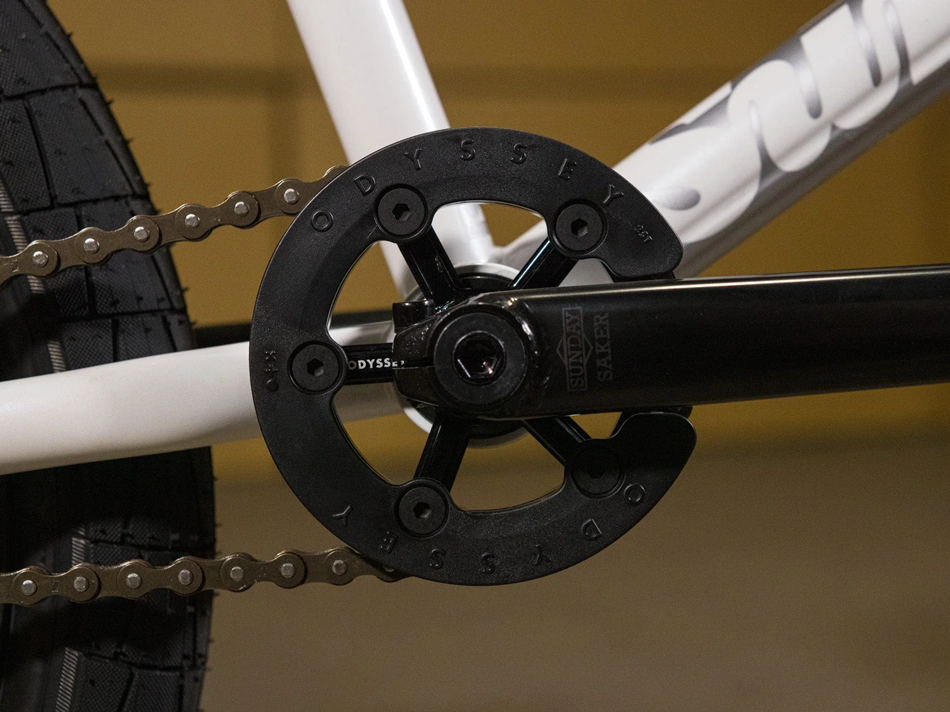

Sprocket - Odyssey Utility Pro, 25T, w/Plastic Guard
Cranks - Sunday 'Saker', 165mm
BB Parts - Sealed, mid, 19mm

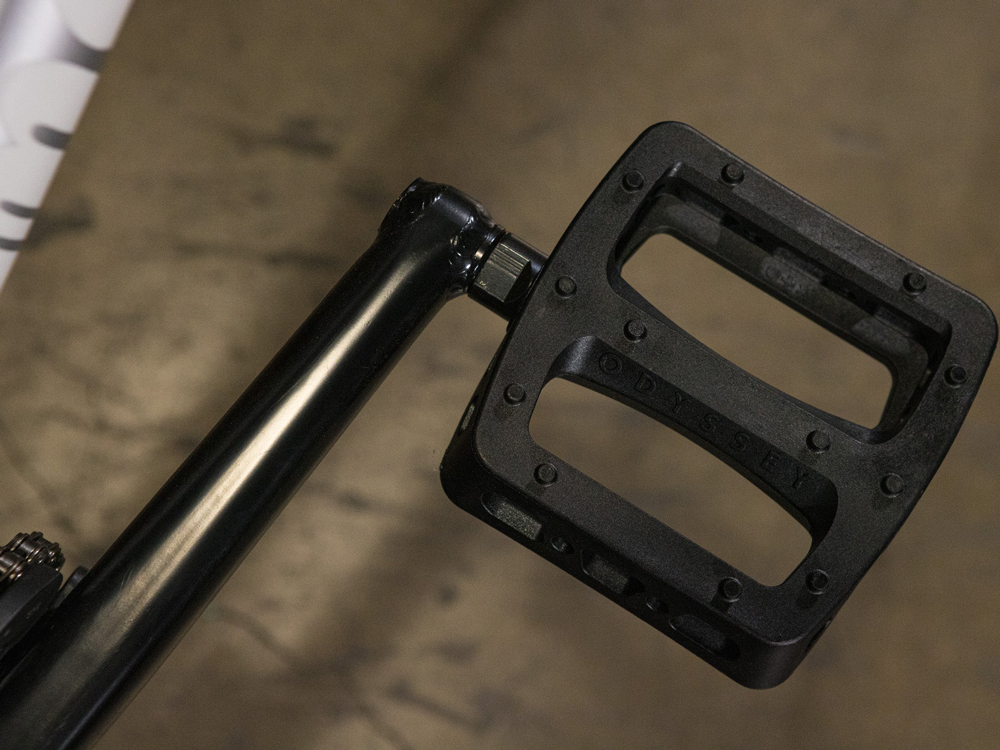

Pedals - Odyssey 'Twisted PC Pro'

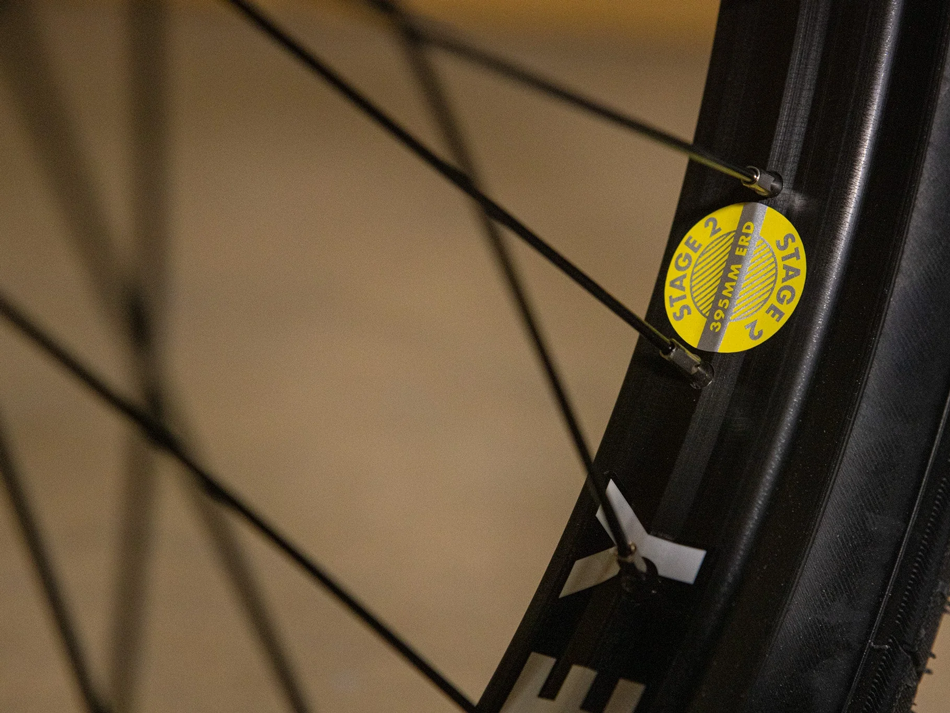

Rims - Odyssey 'Stage 2', 20", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts

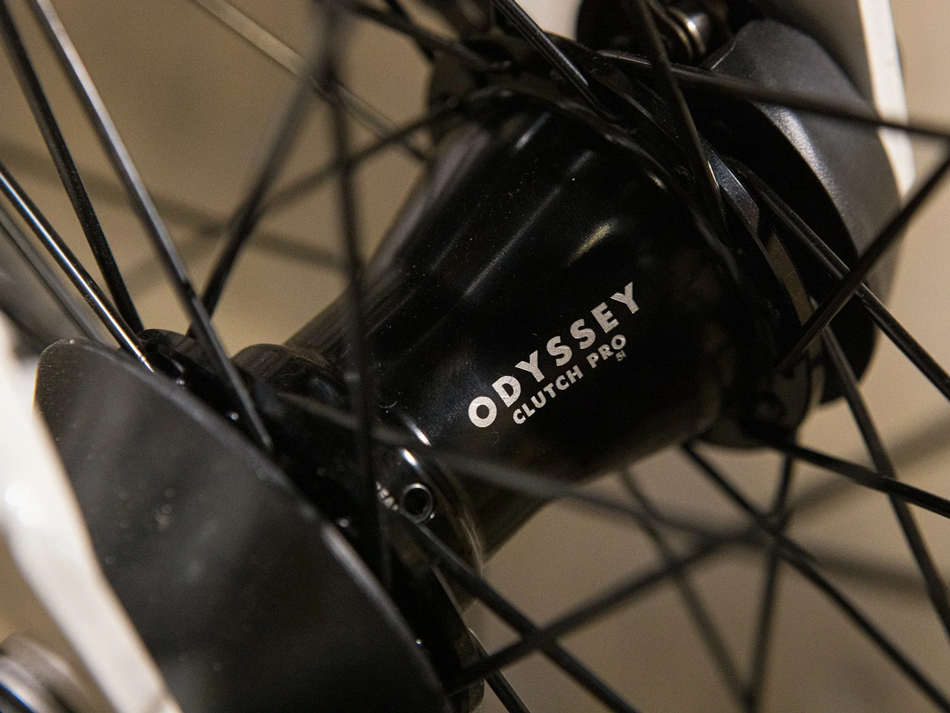

Rear Hub - Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, plastic guards
Spokes - 14g steel, black

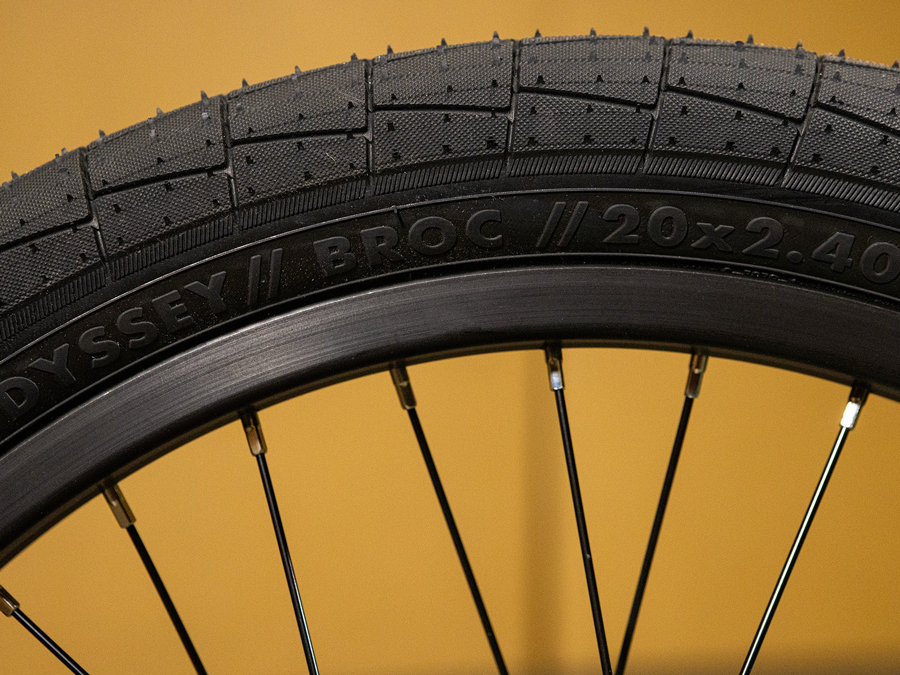

Tyres - Odyssey BROC Tyre, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.7kgs (with brakes)
Frame Geometry
Top Tube Length - 20.75"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9"
Handlebar Geometry
Rise - 9"
Width - 29"
Backsweep - 12°
Upsweep - 4°
