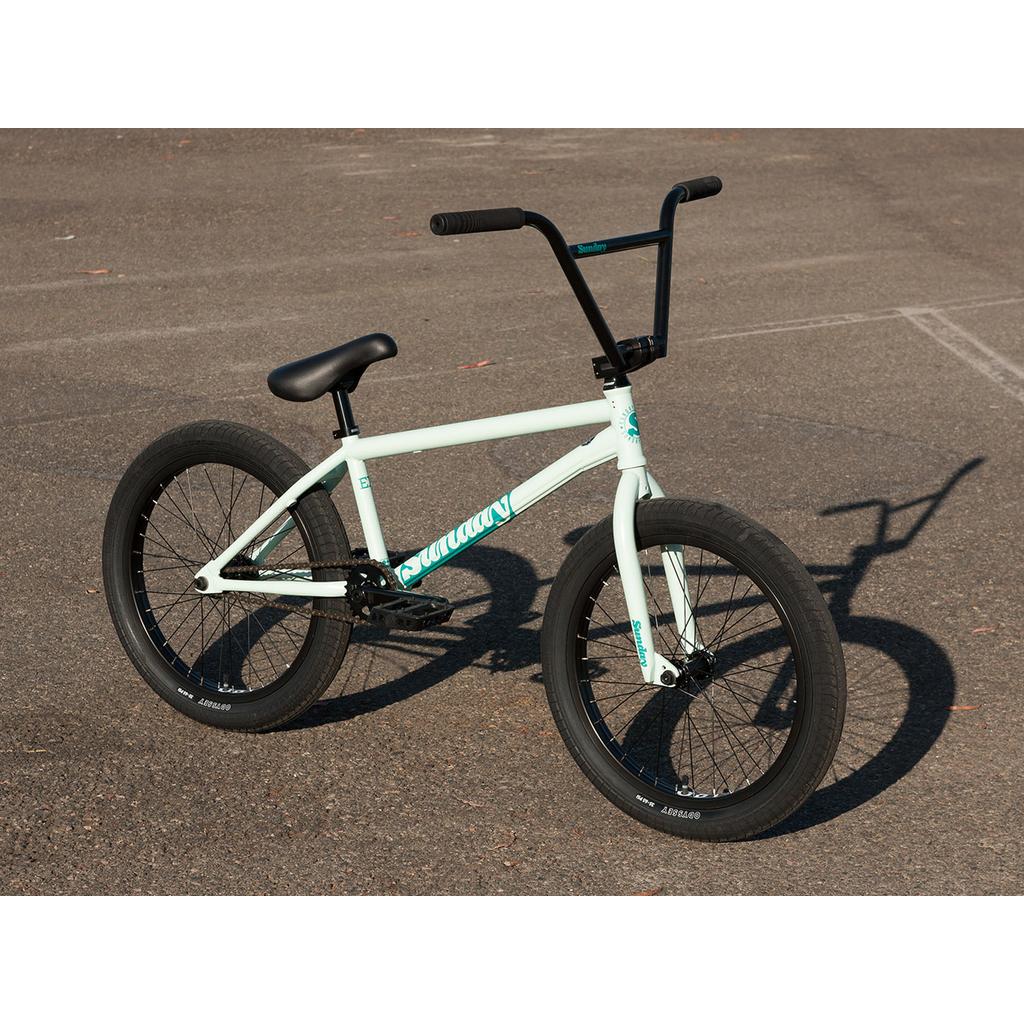

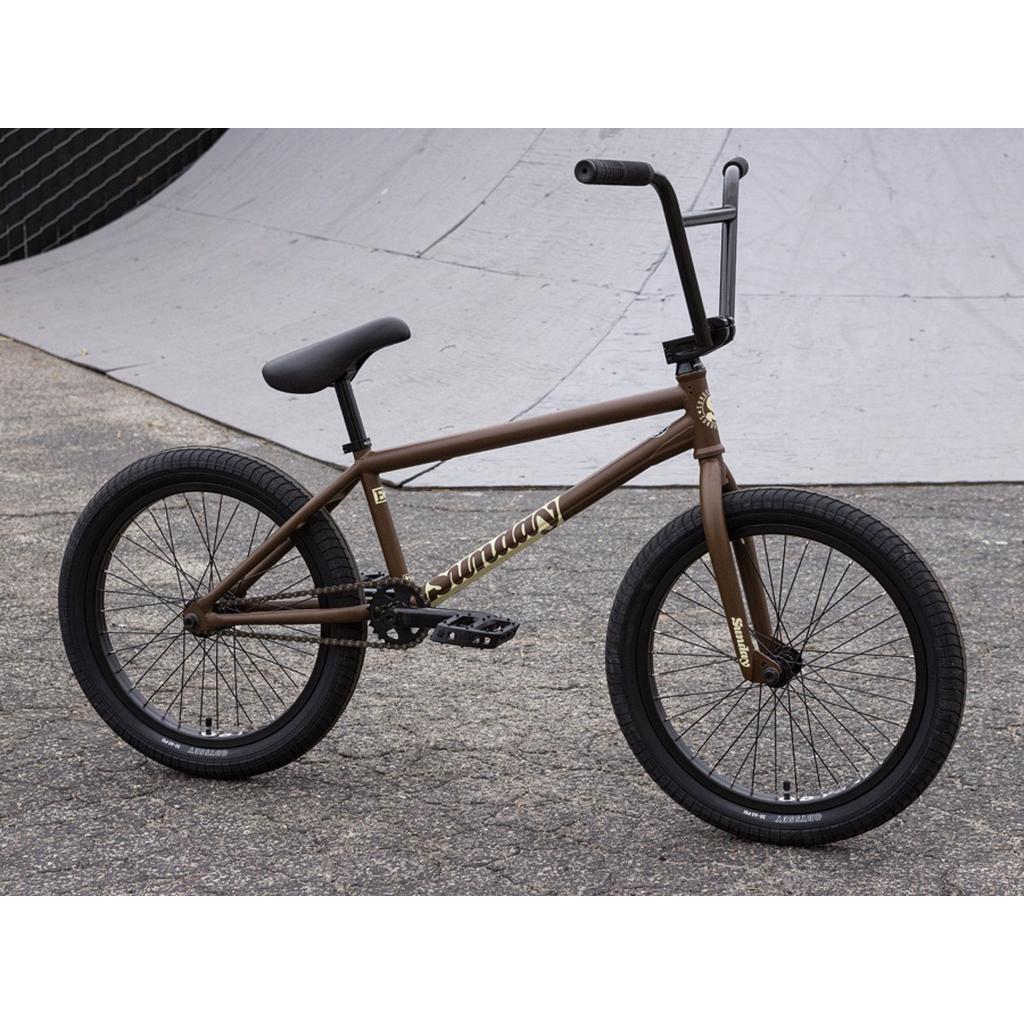

This is Julian Arteaga's signature bike and isn't it a beauty! Built tough and loaded full of top notch parts. This bike means business!
With a 100% Cr-Mo frame, fork, and bars, the EX is a bike that is difficult to match.
Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.
Follow @juliansalright
Features
- 100% Cr-Mo frame, fork, and bars

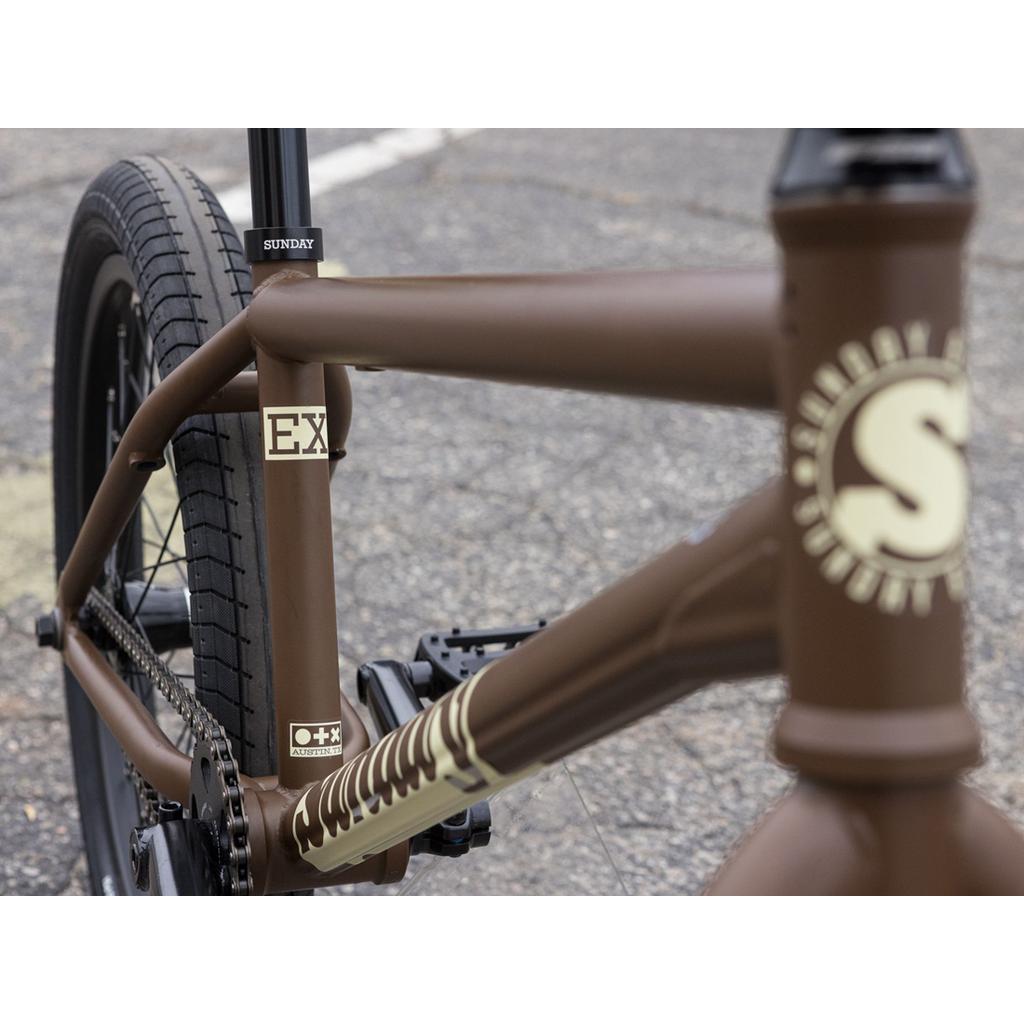

- Sunday Signature wave down tube

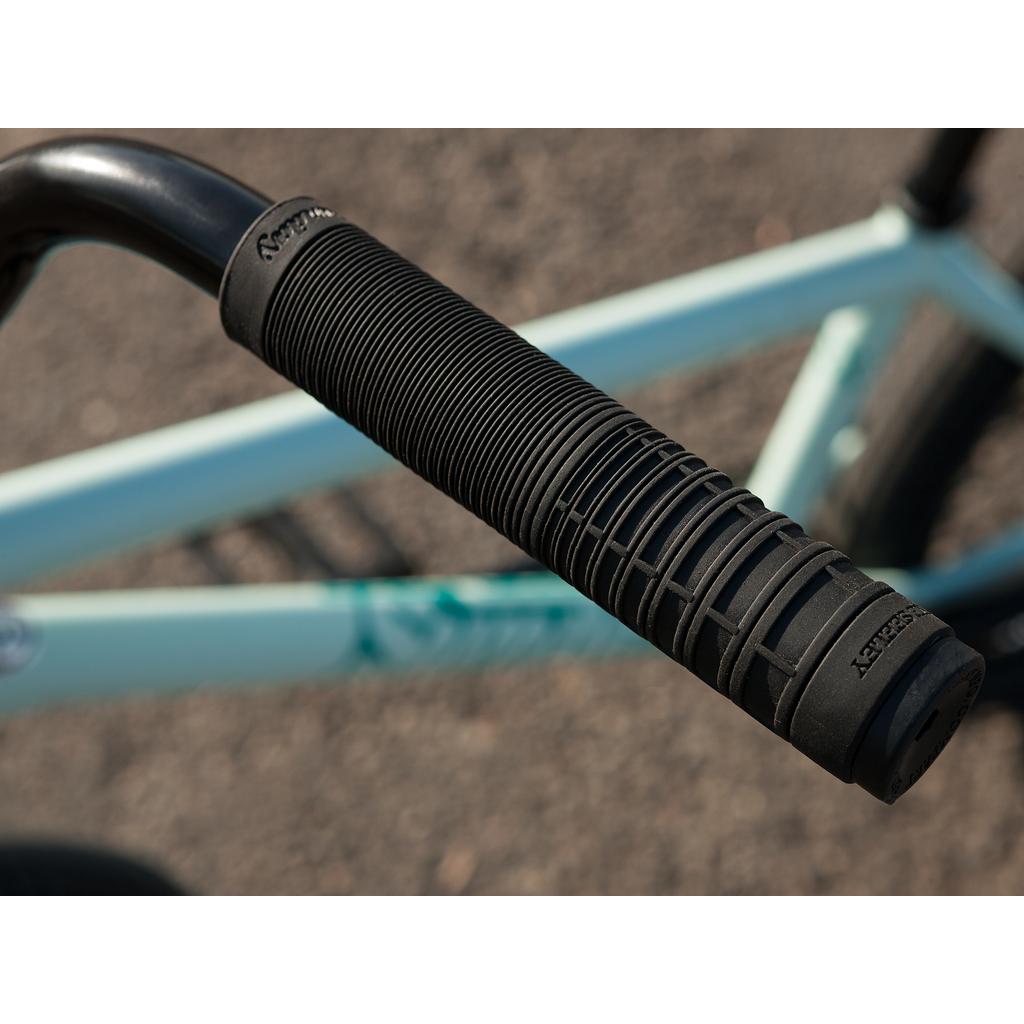

- Odyssey Broc Raiford grips
- FSA conical headset
- Sunday Sabretooth v2 25T sprocket
- Sunday Saker 3-PC cranks, 165mm
- Odyssey Stage 2 rims
- Odyssey Path Pro OEM 2.40" tyres
- Sealed rear hub
- Sealed front hub
Specifications

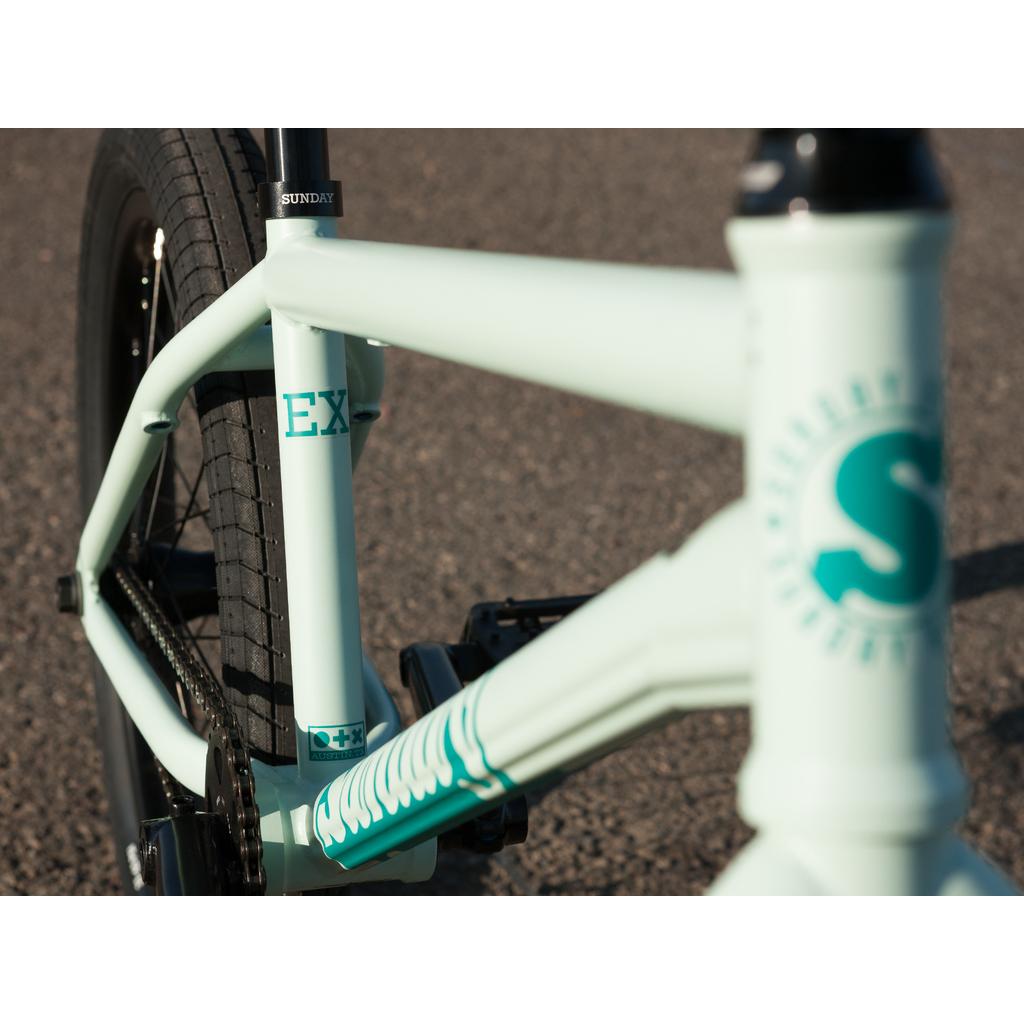

Frame - 20.75"(Mint/Brown), 21"(Mustard) top tube, 100% Cr-Mo frame with wave downtube, removable brake hardware
Fork - Sunday 'EX', 20", 100% Cr-Mo fork w/ 2-piece steerer tube and welded pre-load, 25mm offset

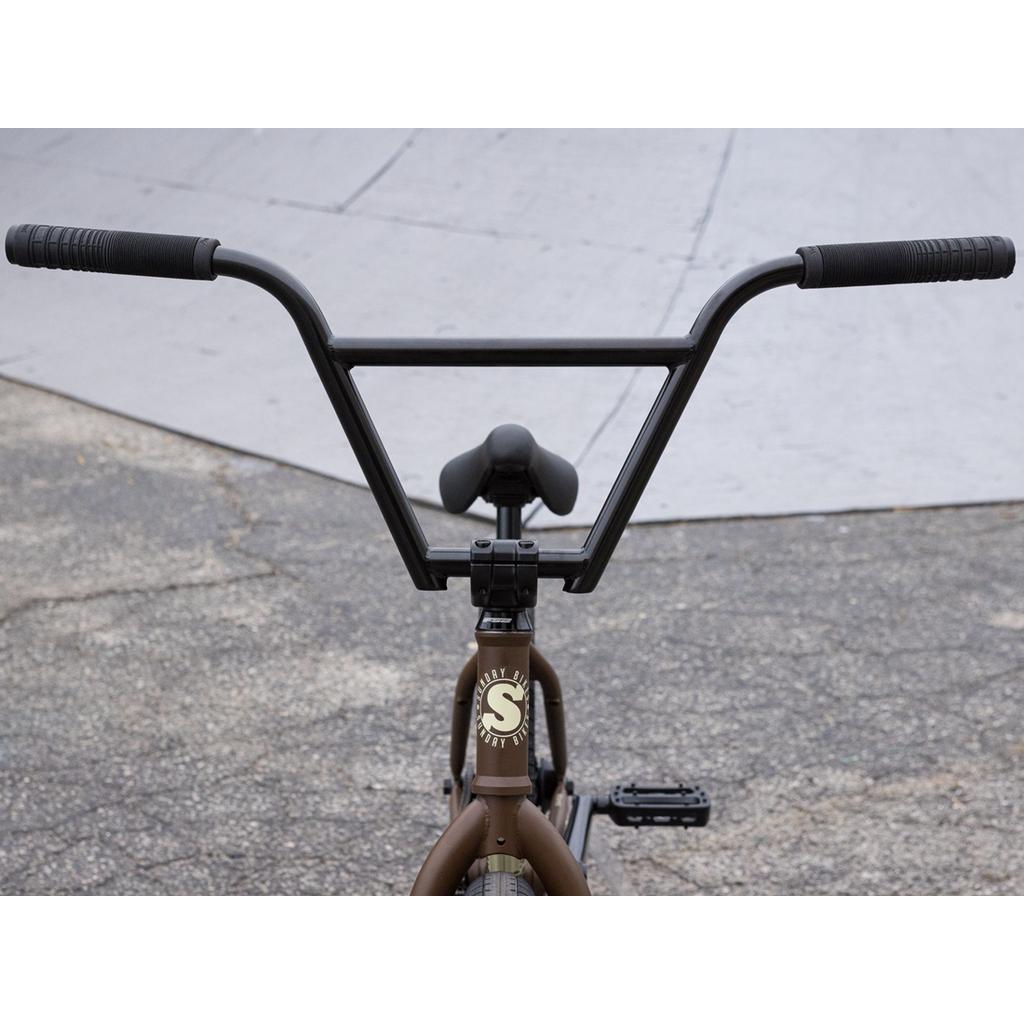

Handlebar - 4 piece (Mint/Brown), 2 piece (Mustard)

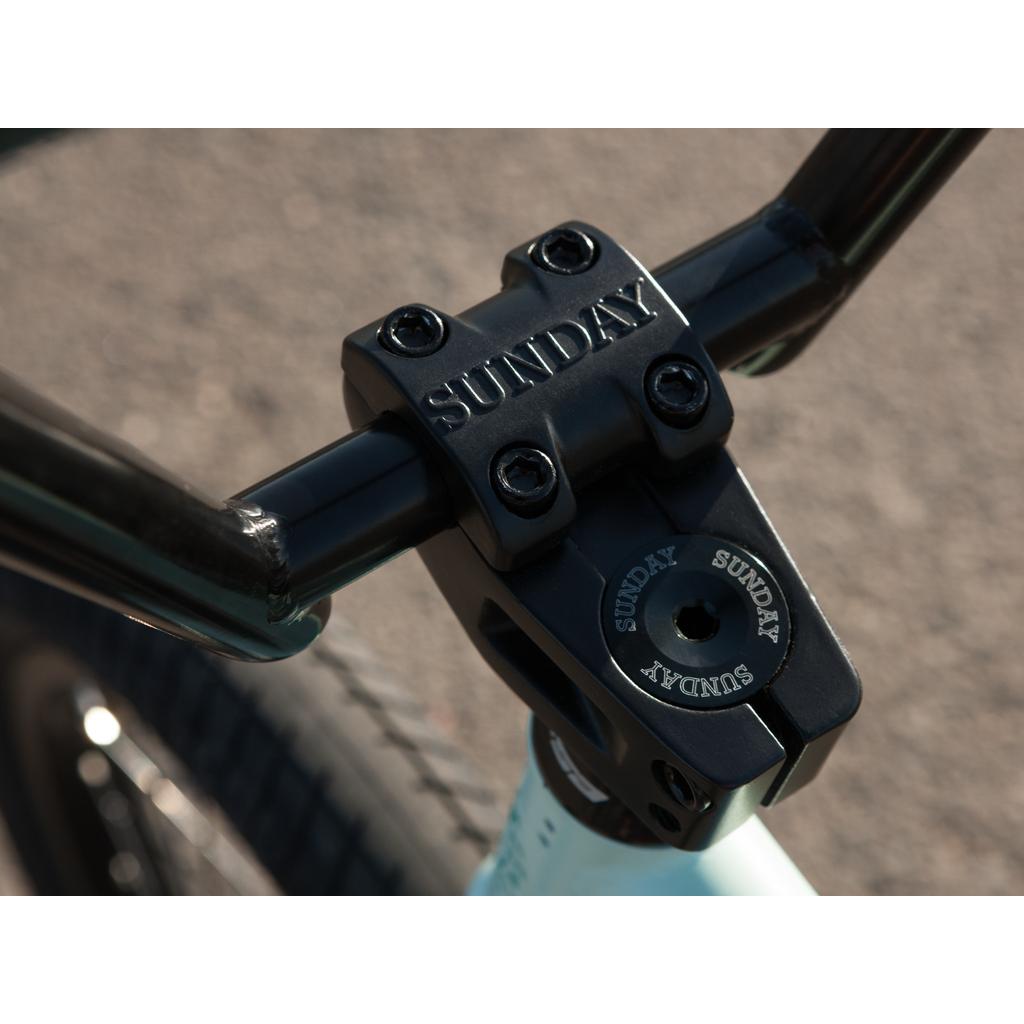

Stem - Sunday 'Freeze' front load, 48mm

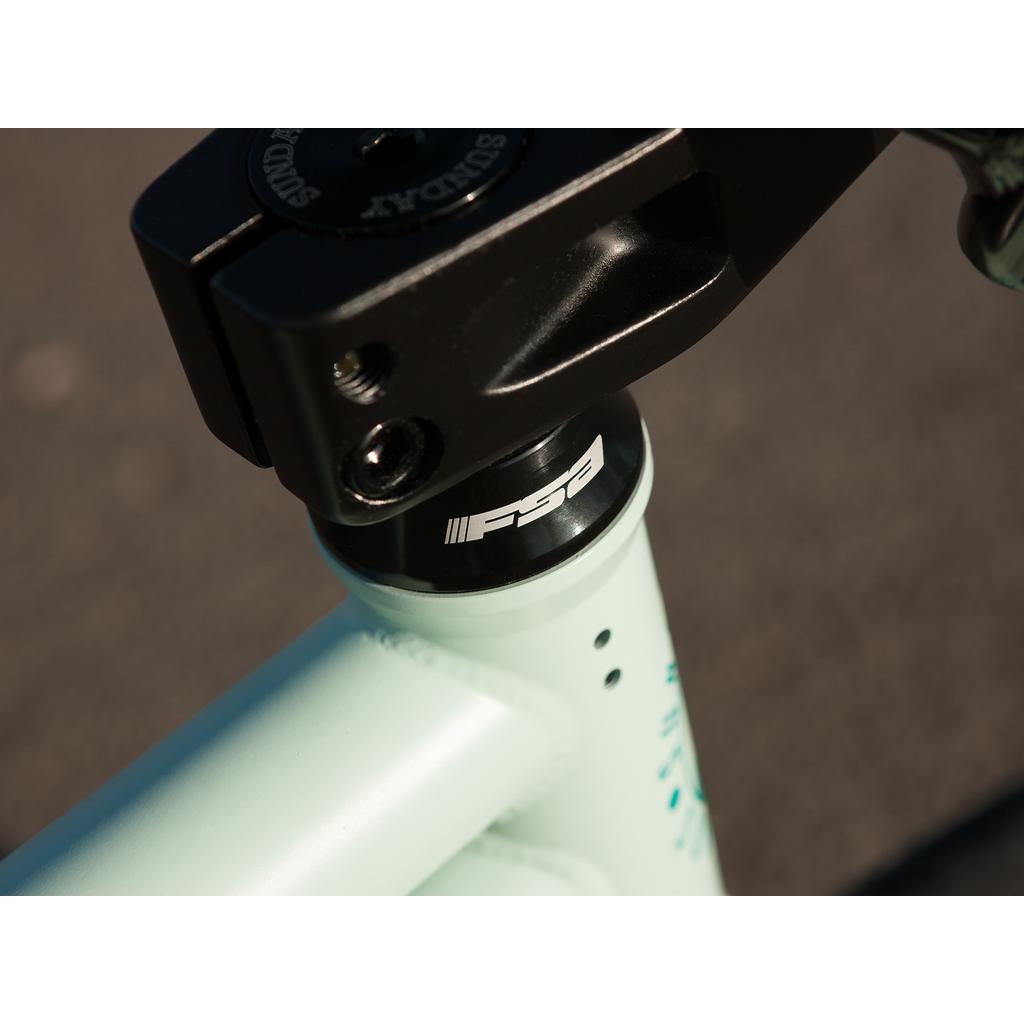

Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday 'M16', aluminium
Brake Lever - Odyssey 'Springfield'
Brakes - Odyssey 'Springfield' U-brake
Brake Cable - Odyssey 'Quik Slic'
Grips - Odyssey

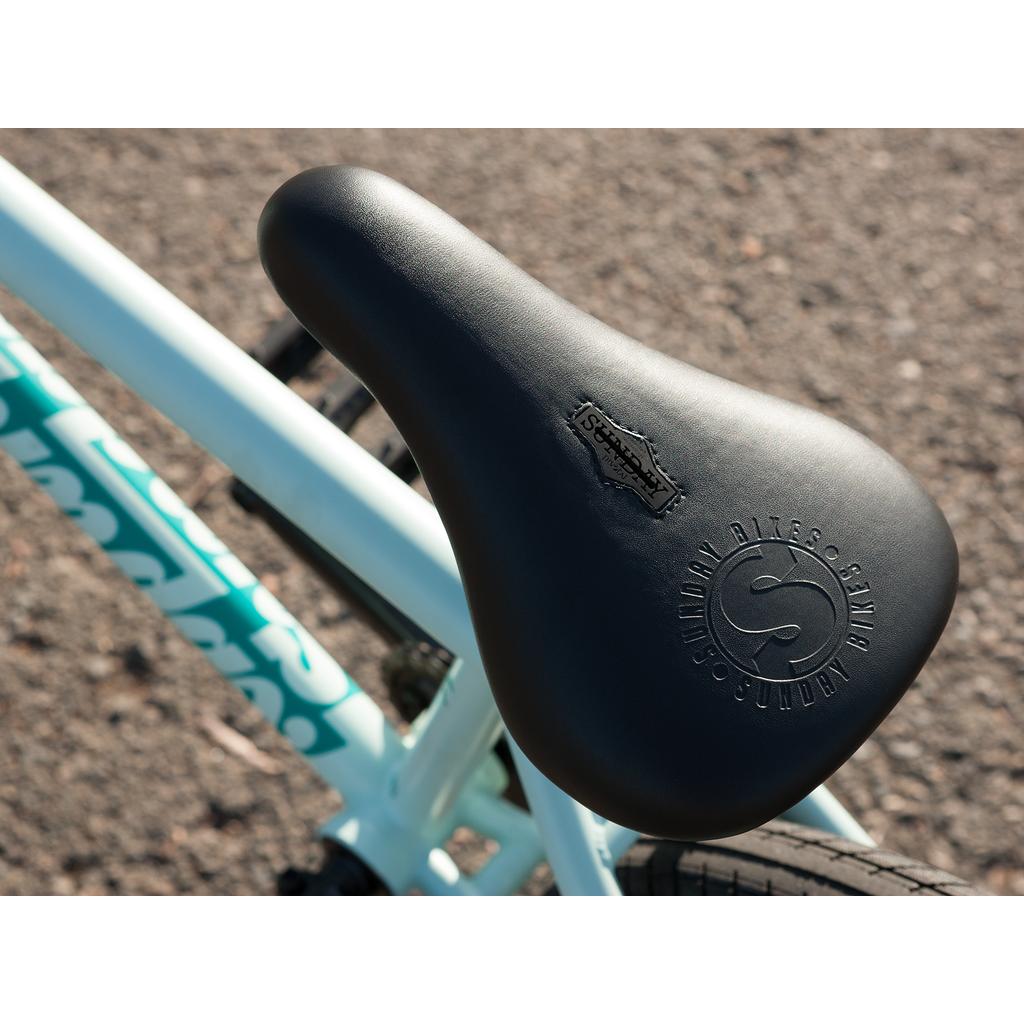

Seat - Sunday 'Badge', pivotal
Seat post - Sunday pivotal
Seat Clamp - Sunday
Sprocket - Sunday 'Sabertooth v2', 25T, 6061 aluminum

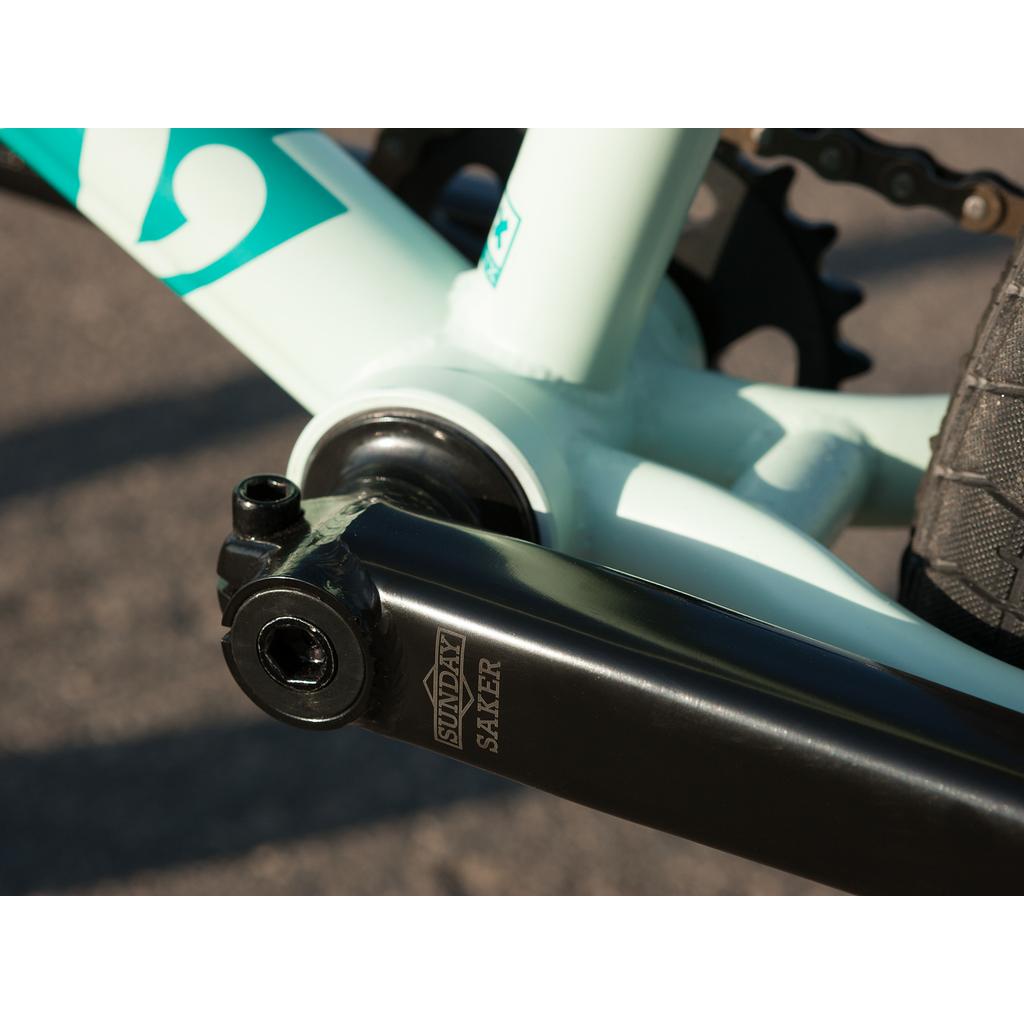

Cranks - Sunday 'Saker', 165mm
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey 'Twisted PC Pro'
Rims - Odyssey 'Stage 2', 20", 36H
Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle

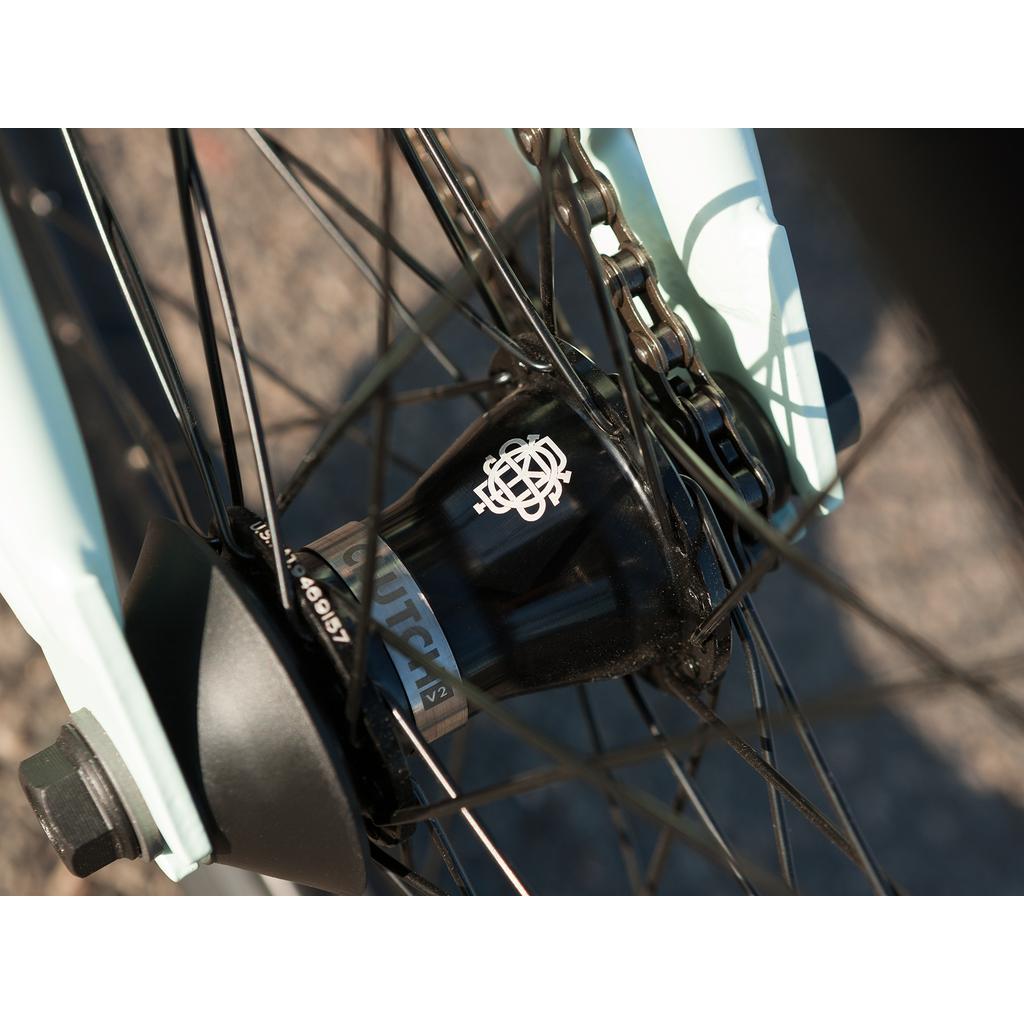

Rear Hub (Mint/Brown)- Odyssey 'Clutch V2' freecoaster, 36H, 14mm female axle w/9T Driver, RHD, non-drive side plastic guard
Rear Hub (Mustard) - Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
Spokes - 14g steel, black
Tyres - Odyssey 'Path Pro OEM', 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.7kgs (with brakes)
Frame Geometry
Top Tube Length - 20.75"(Mint/Brown), 21"(Mustard)
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9"
Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
