Description

Oh yeah, cheers Broc! This weapon is oozing with Sunday and Odyssey goodness and is built from full chromoly for super strength. It features a 21 Inch top tube for all the taller fellas and a freecoaster on the rear so you can rip it in reverse whenever you feel like it. This bad boy is fully sealed too, so you can sleep easy knowing that your bearings are wearing a raincoat.

Features

Pro-level build, 21" top tube. A 100% chromoly frame with an integrated 1-1/8" head tube and removable brake hardware, sized for taller riders.

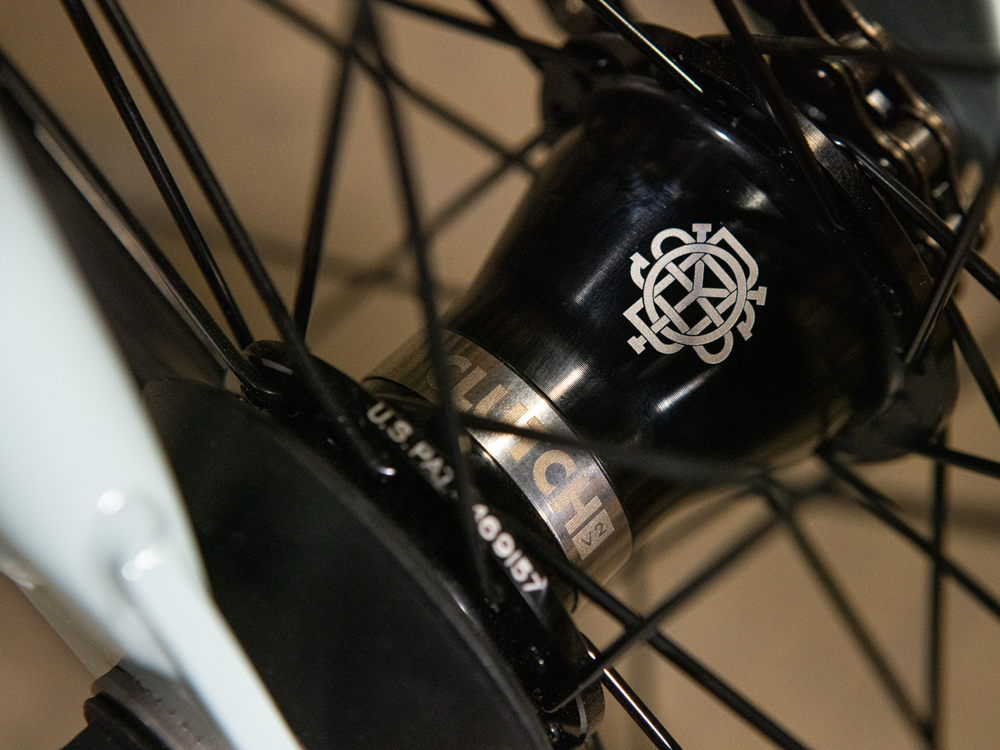

Odyssey Clutch v2 freecoaster. Roll backwards whenever you feel like it, and the hub comes in both right and left hand drive.
Fully sealed front and rear hubs. Sealed bearings at both ends keep the wheels turning smoothly and stay protected from grit and water.

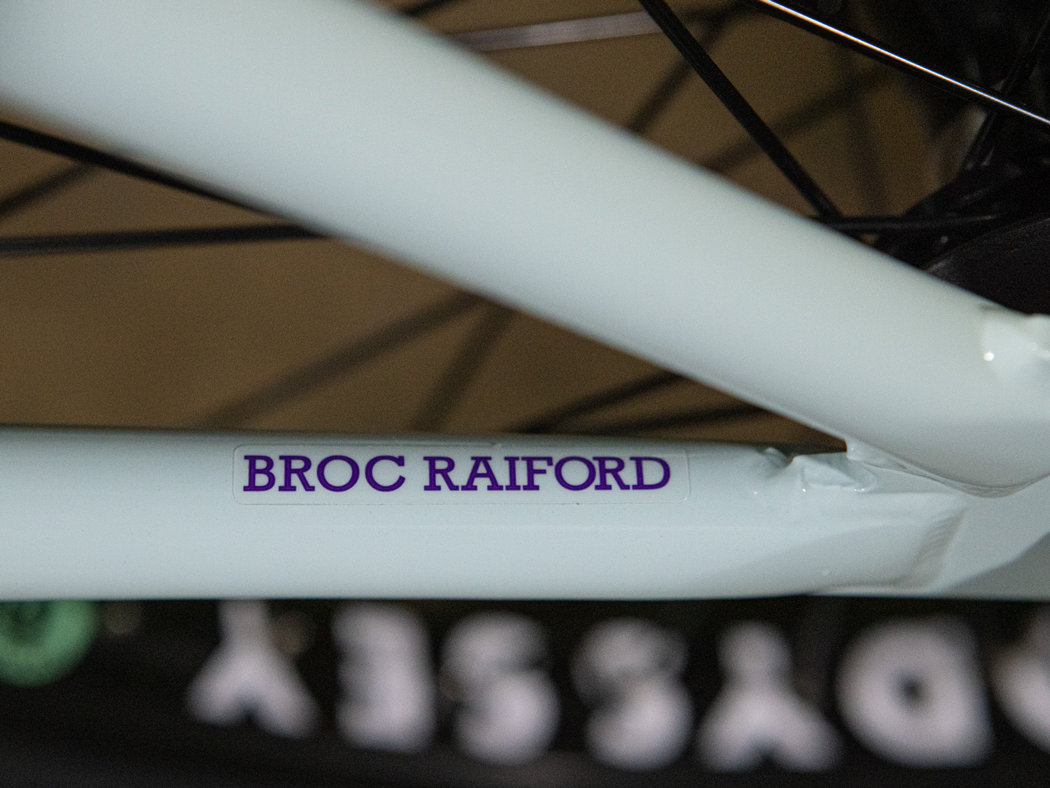

Broc's own grips and seat. Odyssey Broc Raiford grips and his signature Pivotal seat, with a plain Odyssey Pivotal seat as the alternate.
Path Pro tyres on Stage 1 rims. Odyssey Path Pro OEM 2.40" rubber gives a wide, grippy footprint on rims built to take hits.

Specifications

Size: 20" wheels, 21" top tube

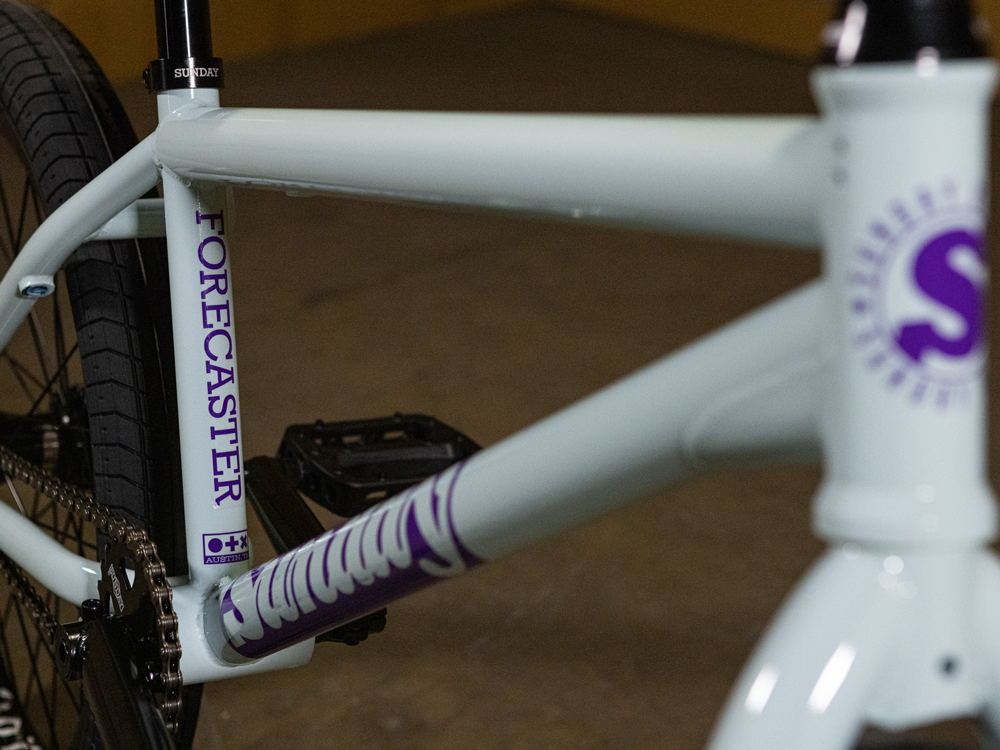

Frame: Sunday Forecaster, 100% chromoly with integrated 1-1/8" head tube and removable brake hardware
Top tube: 21"
Fork: Sunday Forecaster, 20", 2-piece chromoly steerer tube with welded pre-load
Headset: FSA integrated conical, 1-1/8"
Stem: Sunday Freeze front load, 48mm

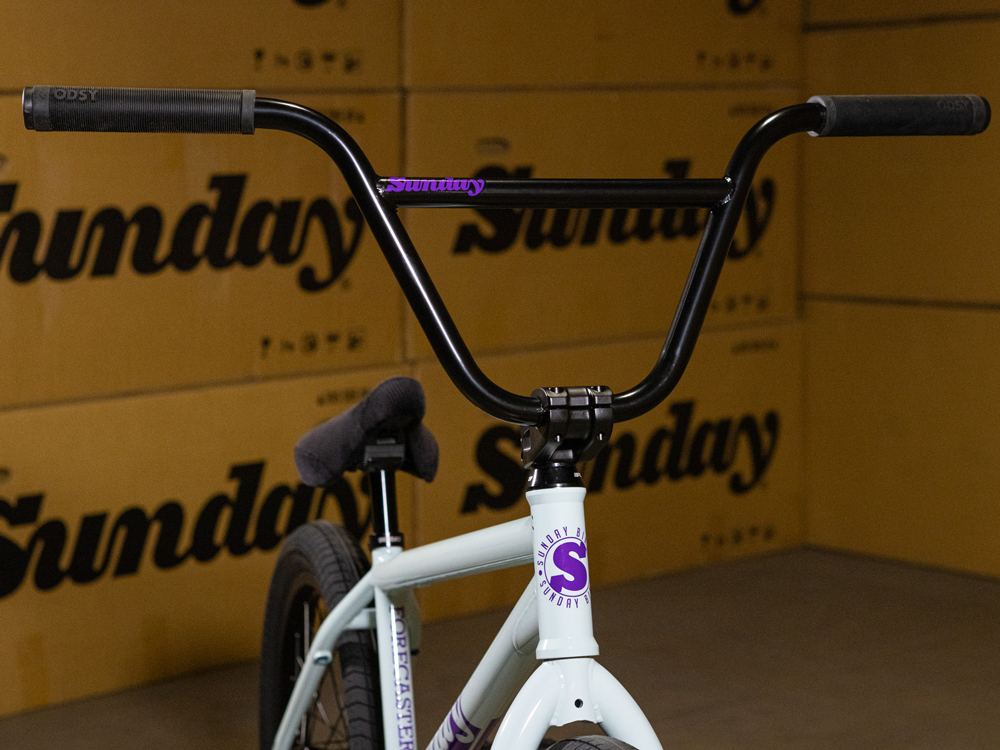

Bars: Sunday, 2-piece

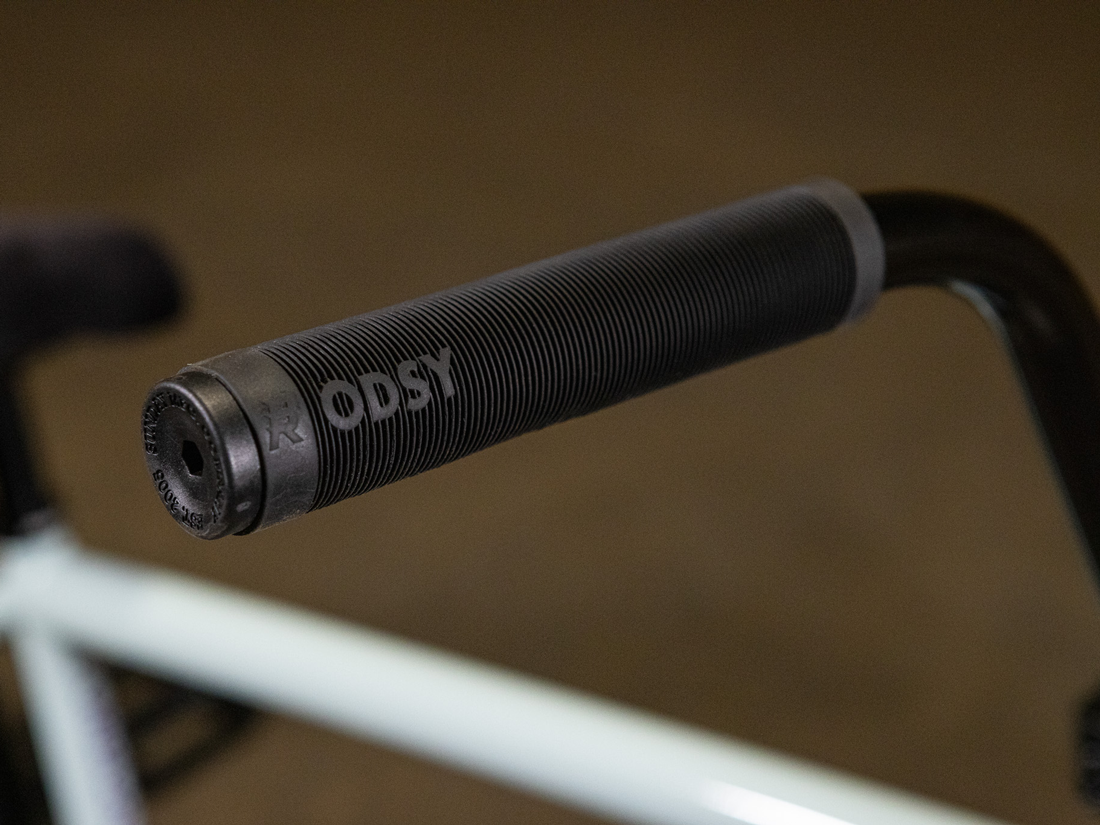

Grips: Odyssey Broc Raiford
Brakes: Odyssey Springfield U-brake
Brake lever: Odyssey Springfield

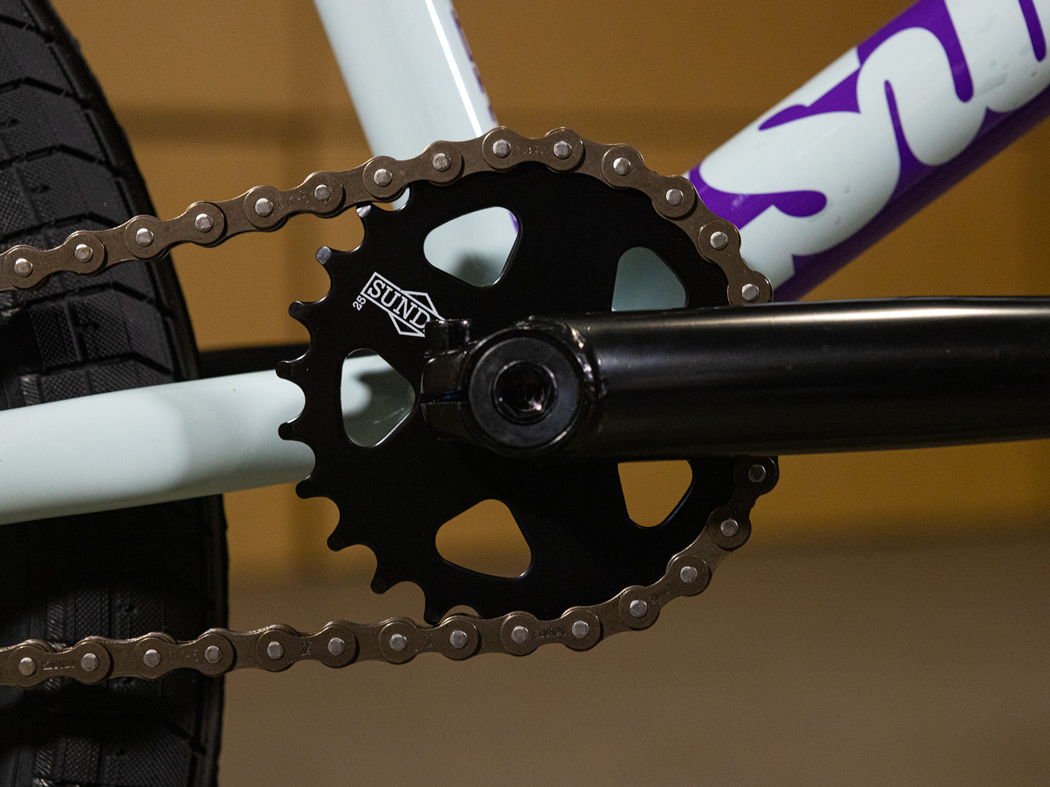

Sprocket: Sunday Sabertooth v2, 25T, steel

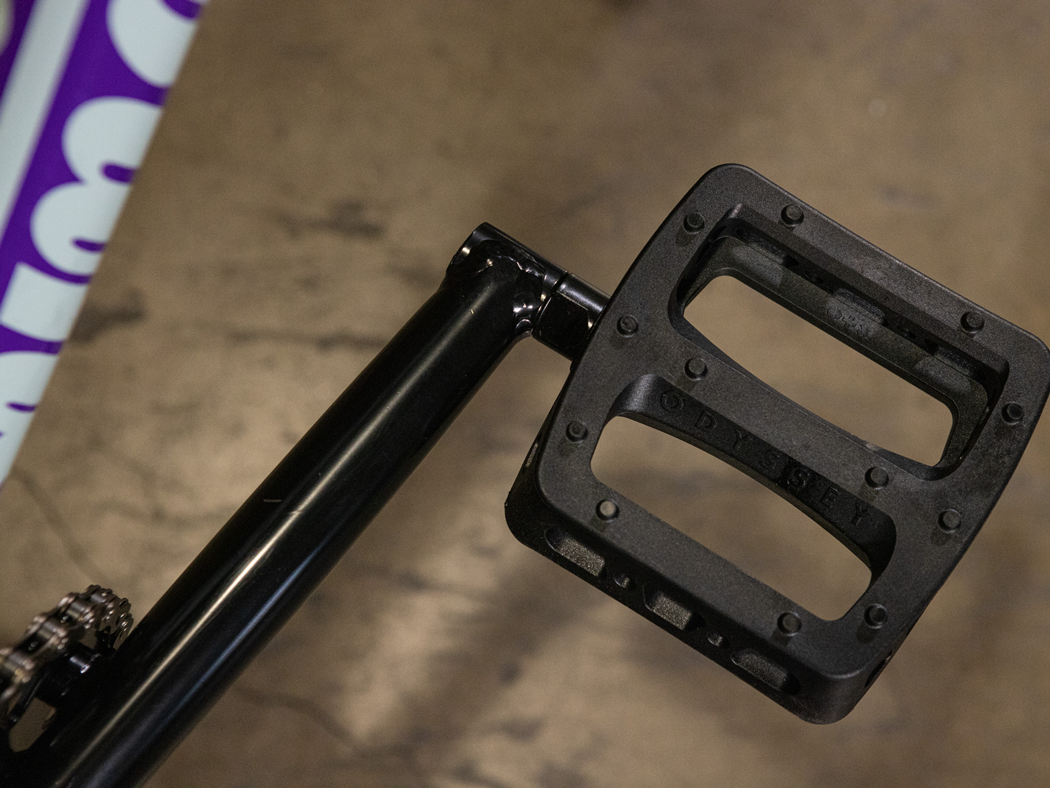

Pedals: Odyssey Twisted Pro
Front hub: Sealed
Rear hub: Odyssey Clutch v2 freecoaster, sealed, available LHD or RHD

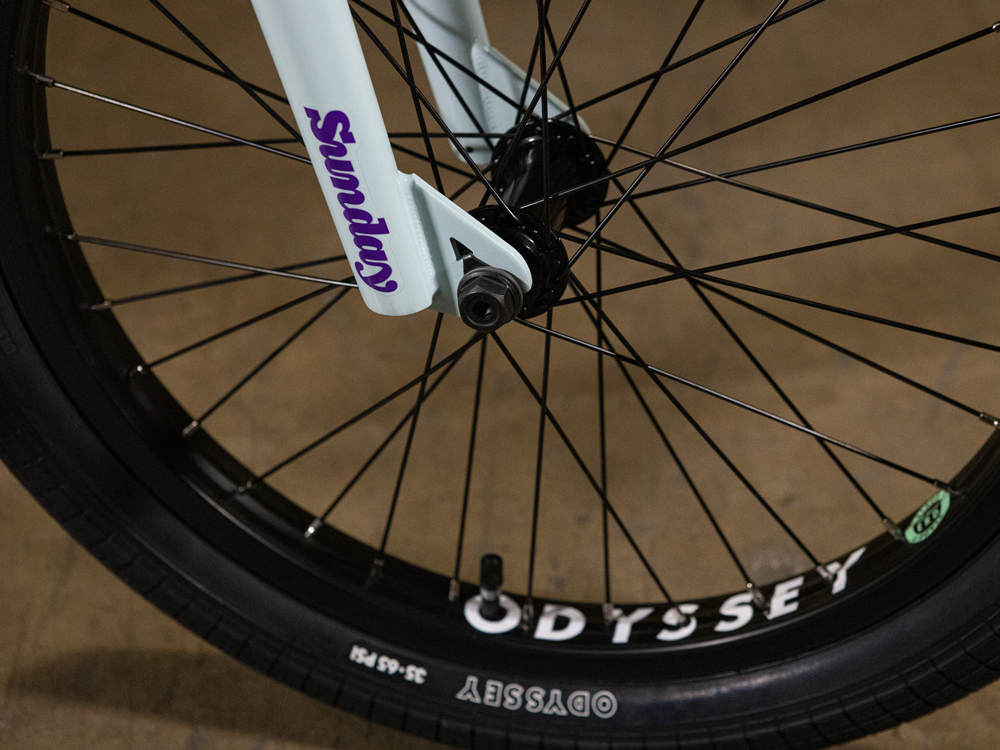

Rims: Odyssey Stage 1
Tyres: Odyssey Path Pro OEM, 2.40"

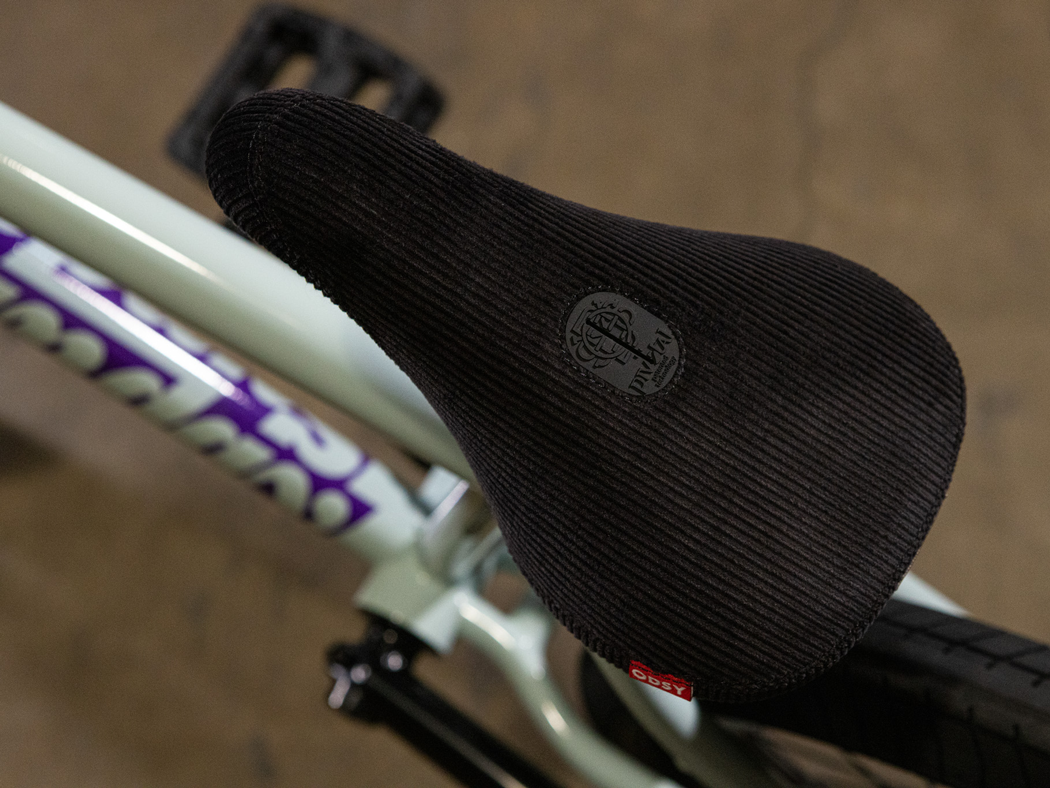

Seat: Odyssey Broc Raiford Signature, Pivotal (alternate: Odyssey Pivotal)
Seat post: Sunday Pivotal
Seat clamp: Sunday
Colour: Gloss Sky Blue
Note: Odyssey Springfield brake, lever and Quik-Slick cable are included (not pictured). Alloy top cap: Sunday M16, aluminium.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

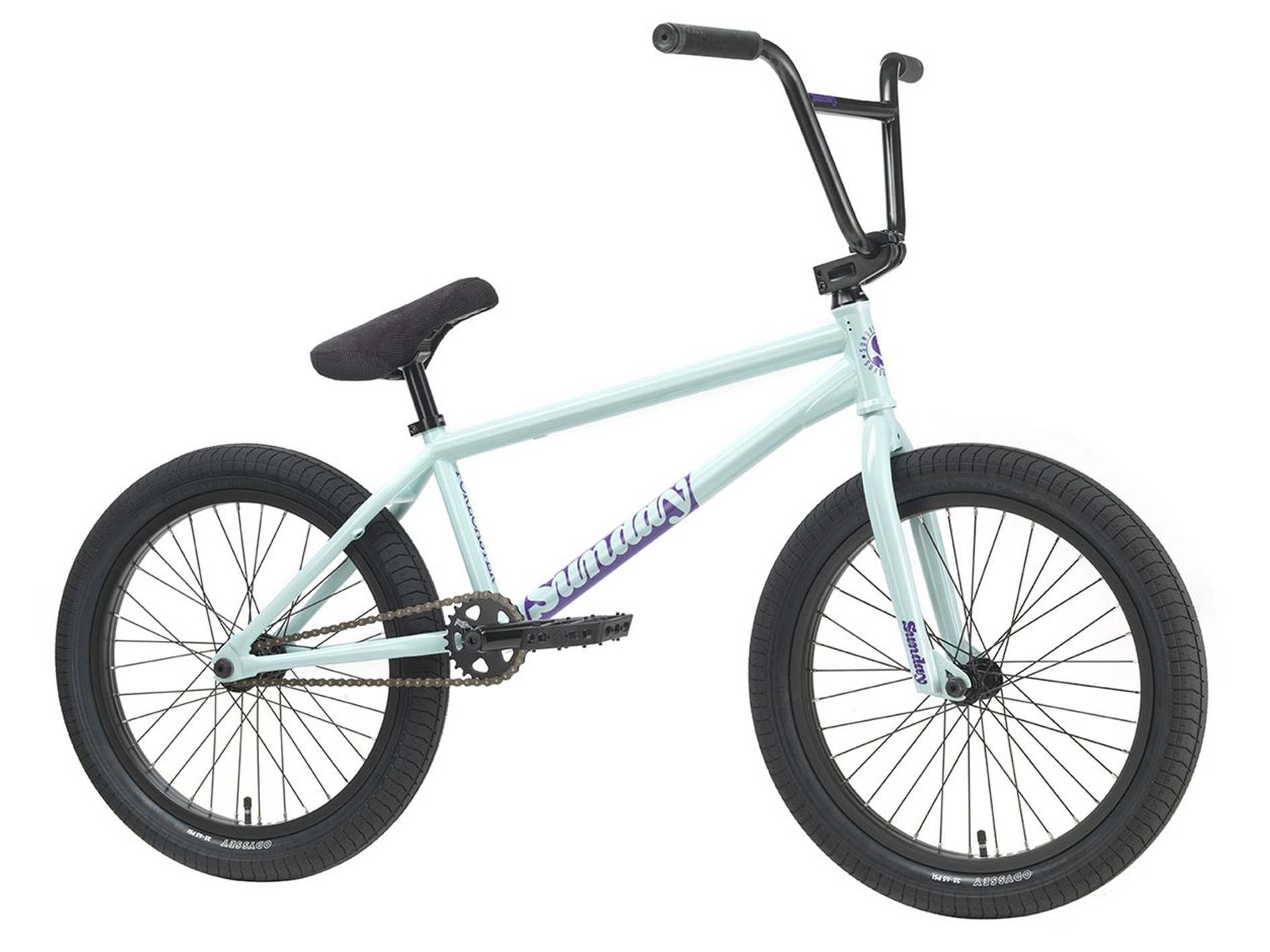

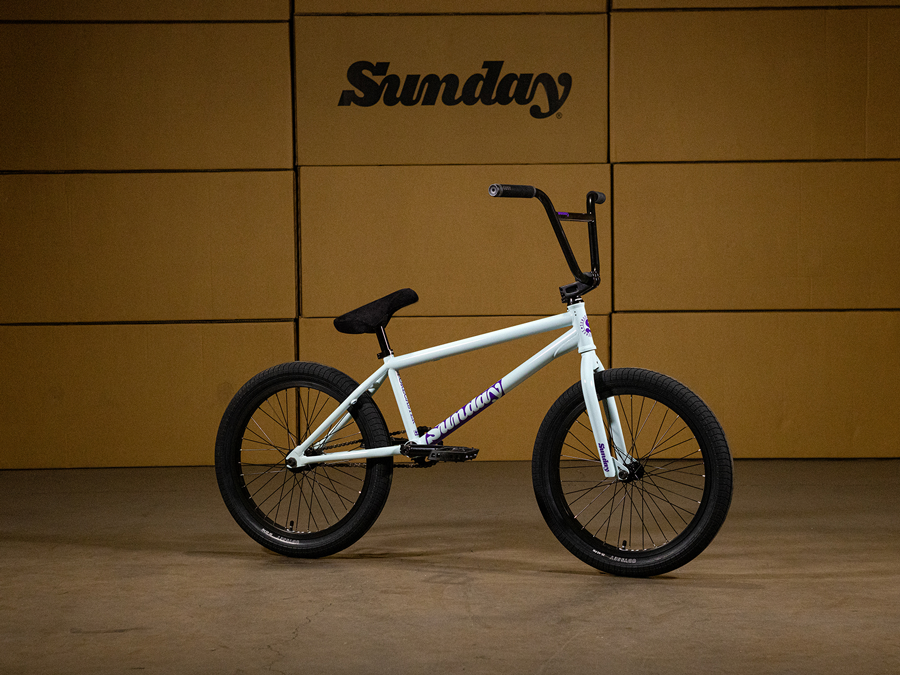

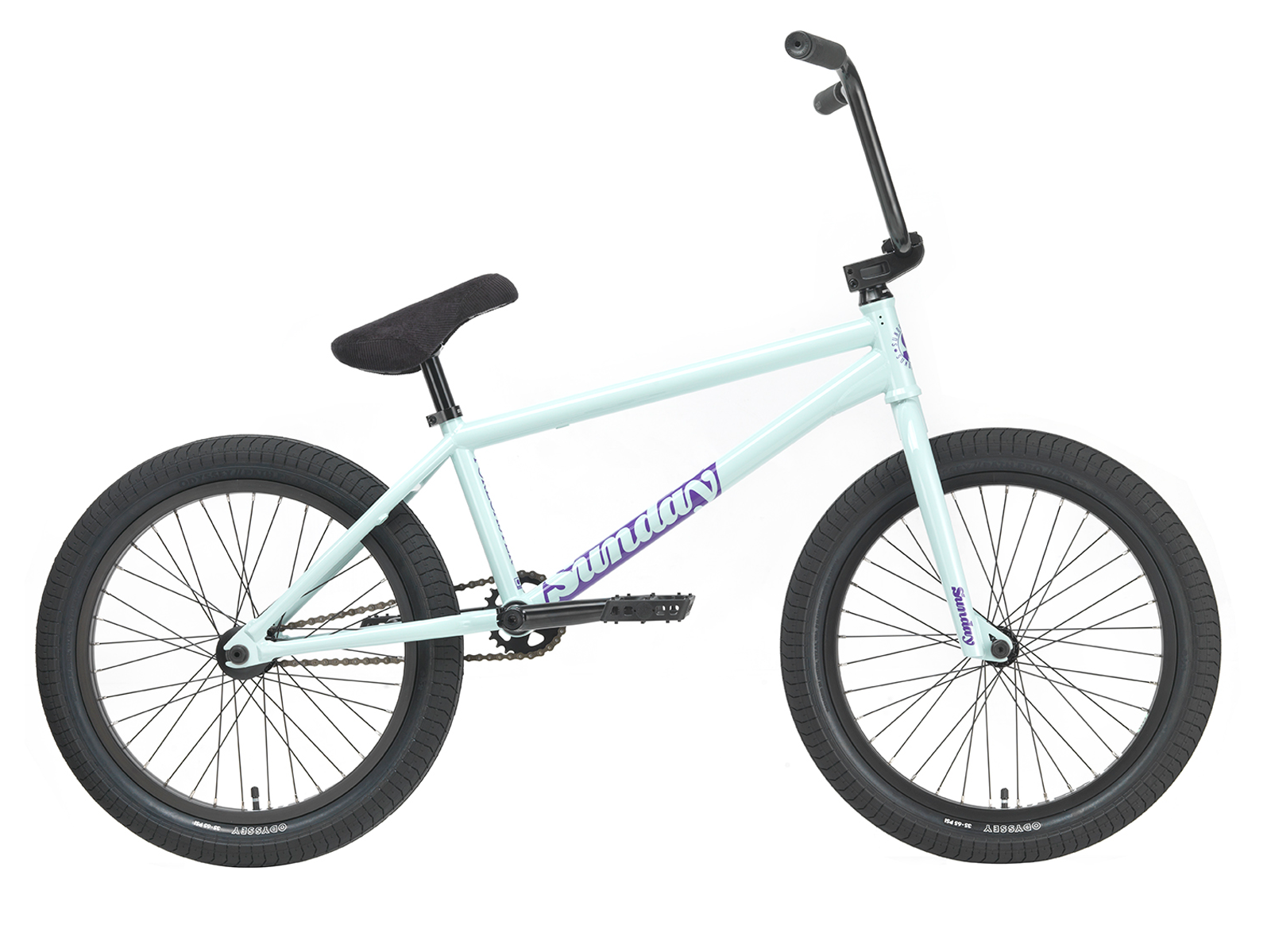

Sunday Forecaster (Broc Raiford) 20 Inch Bike

Name: Sunday Forecaster (Broc Raiford) 20 Inch Bike
Brand: Sunday
SKU: SUBK242-26-BLU
Price: 1199.99 AUD
Availability: InStock

Brand: Sunday SKU: Click to copy the SKU and show the pick location

$1,199.99 AUD

Or 4 payments of $299.99 AUD with

Colour - Gloss Sky Blue

Top Tube Length - 21

Drive Side - Right Hand Drive

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
