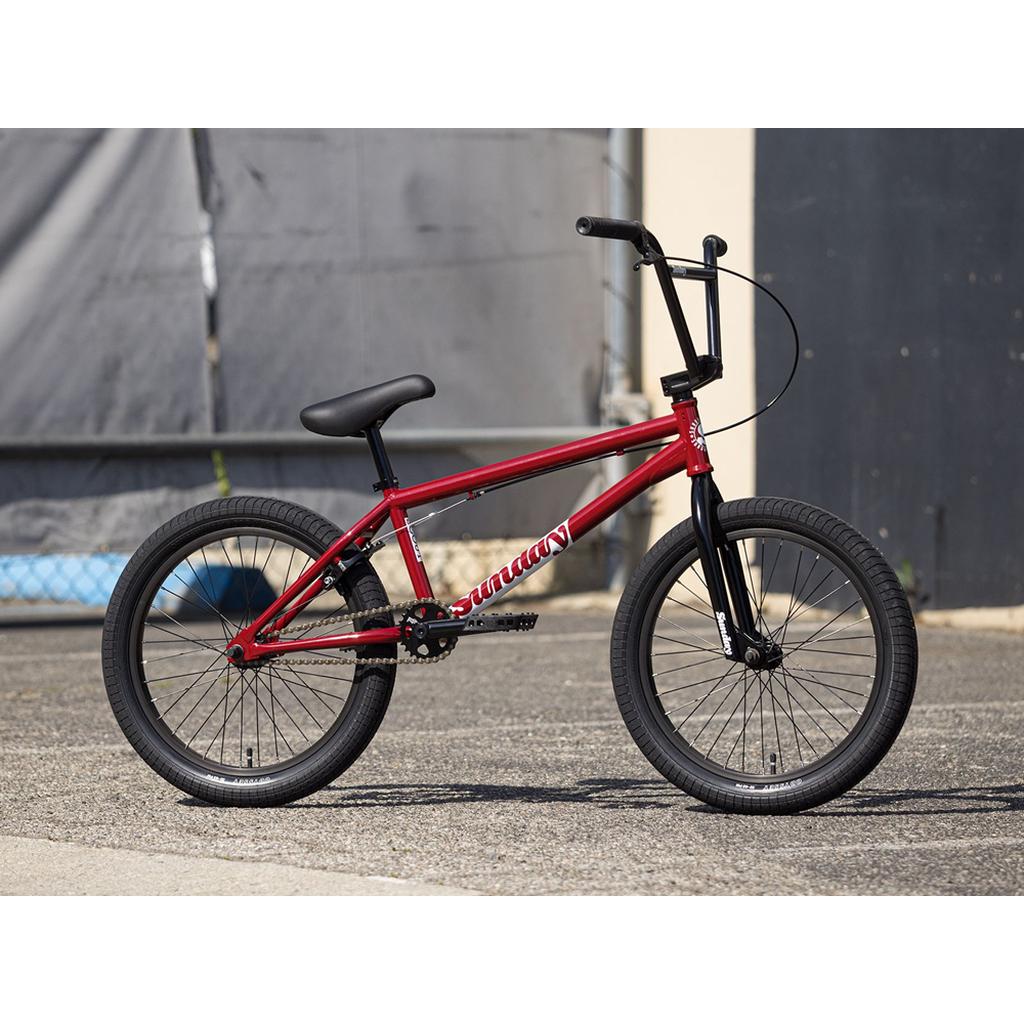

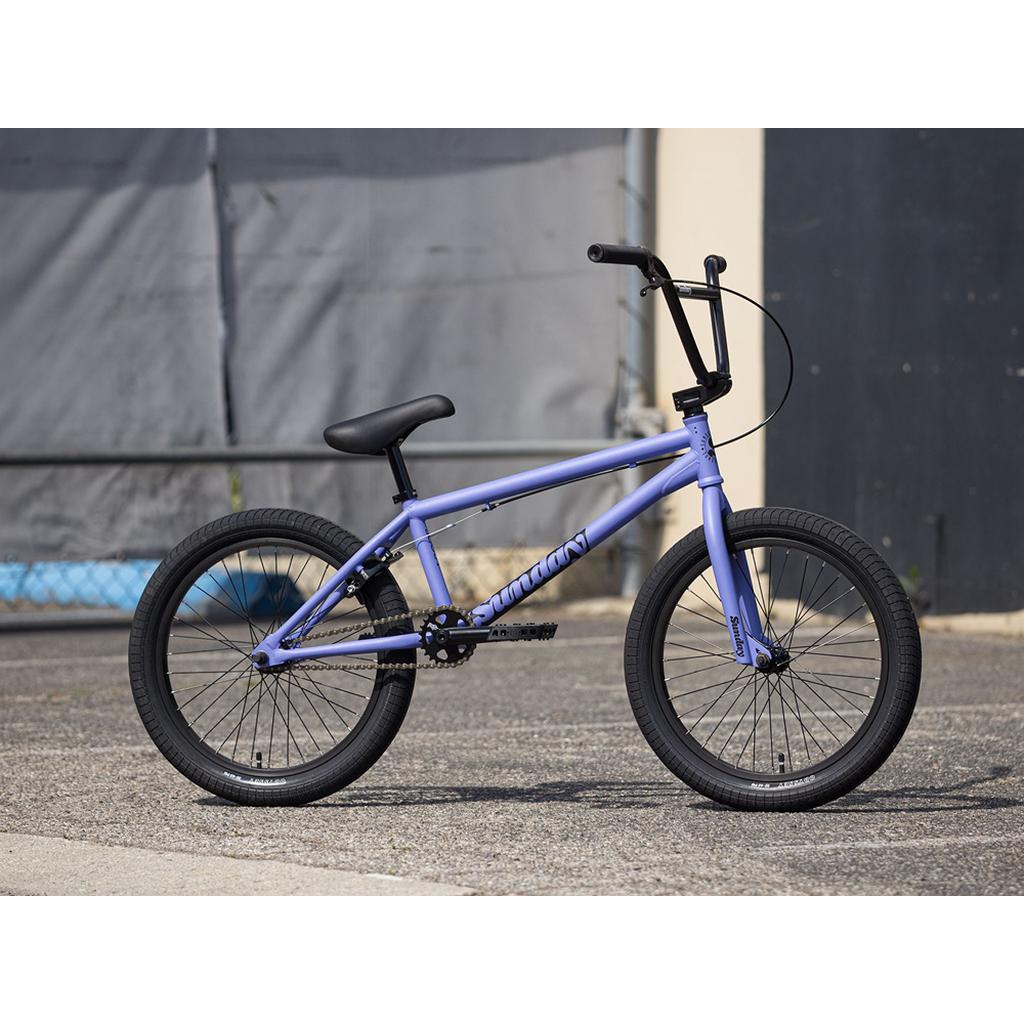

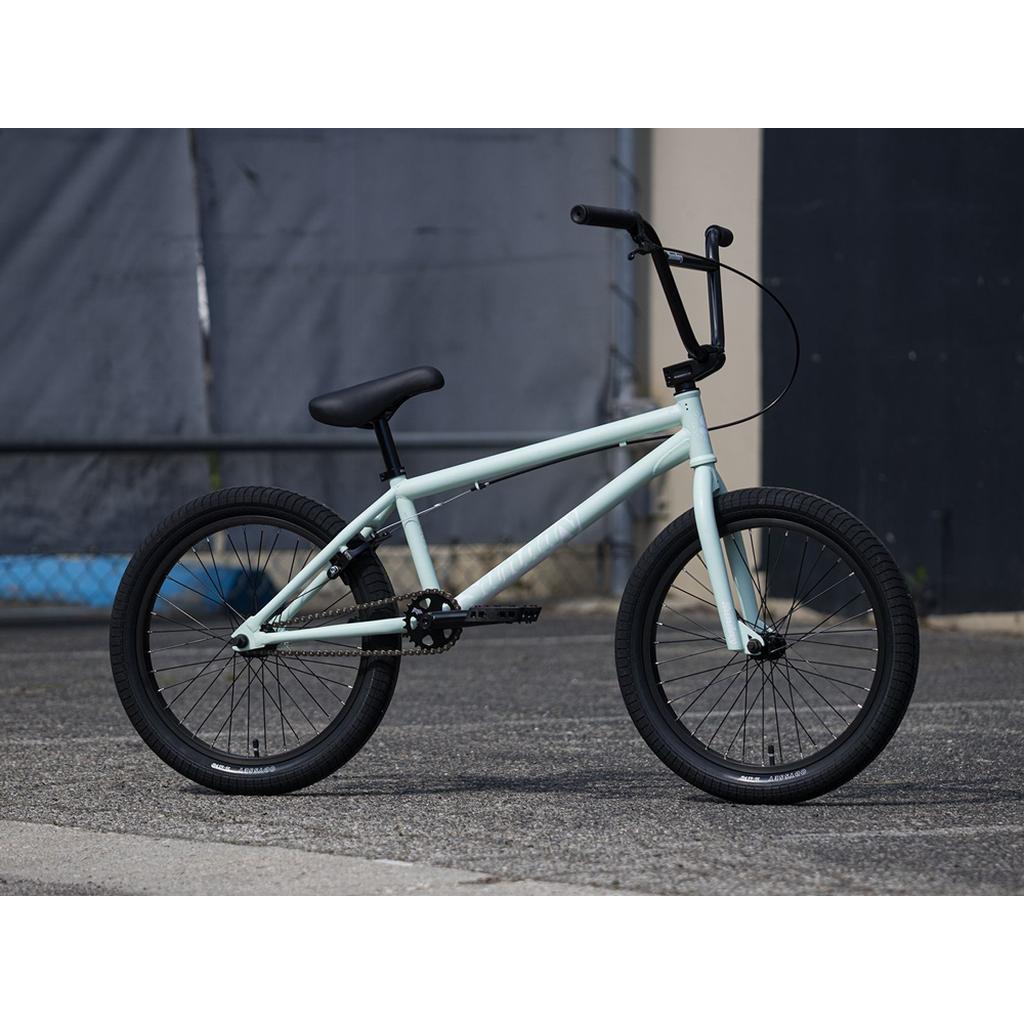

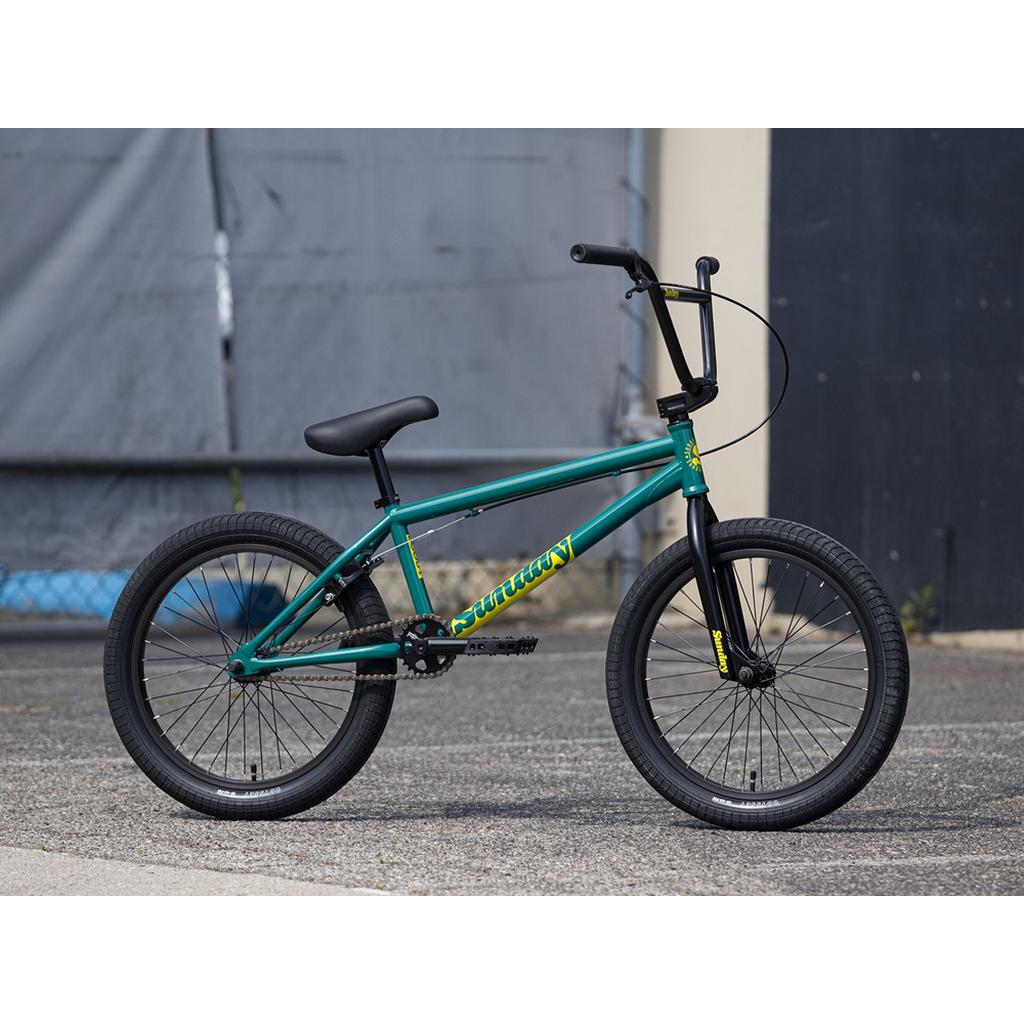

Shred like there is no tomorrow on these rad rides from Sunday! Stacked full of epic parts from Sunday and Odyssey and available in 2 different top tube options- a 20.75TT for the slightly shorter and a 21TT for the slightly taller.
Note- The Matte Mustard colour way comes with 4 piece bars for the street vibes!
Features
- Sunday Freeze top load stem
- Odyssey Springfield brakes and lever
- Odyssey Path Pro OEM 2.40" tyres
- Odyssey Twisted Pro pedals
- Sunday Badge pivotal seat
- FSA headset
- Sealed front and rear hubs
Specifications

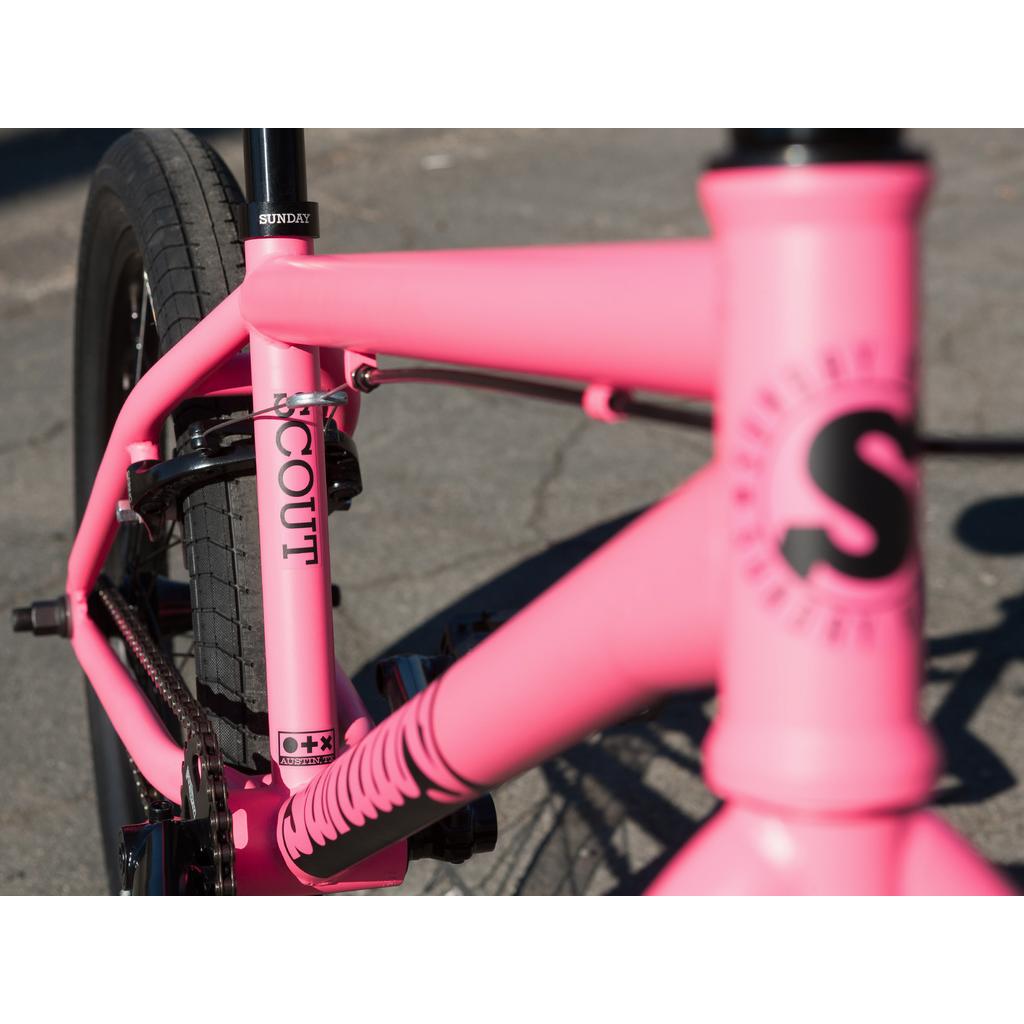

Frame - Sunday Scout, 20.75" & 21” top tube, integrated 1-1/8" head tube, chromoly down tube and dropouts
Fork - Sunday Scout, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar - Sunday, 2-piece, Sunday, 4-piece (Matt Mustard only)

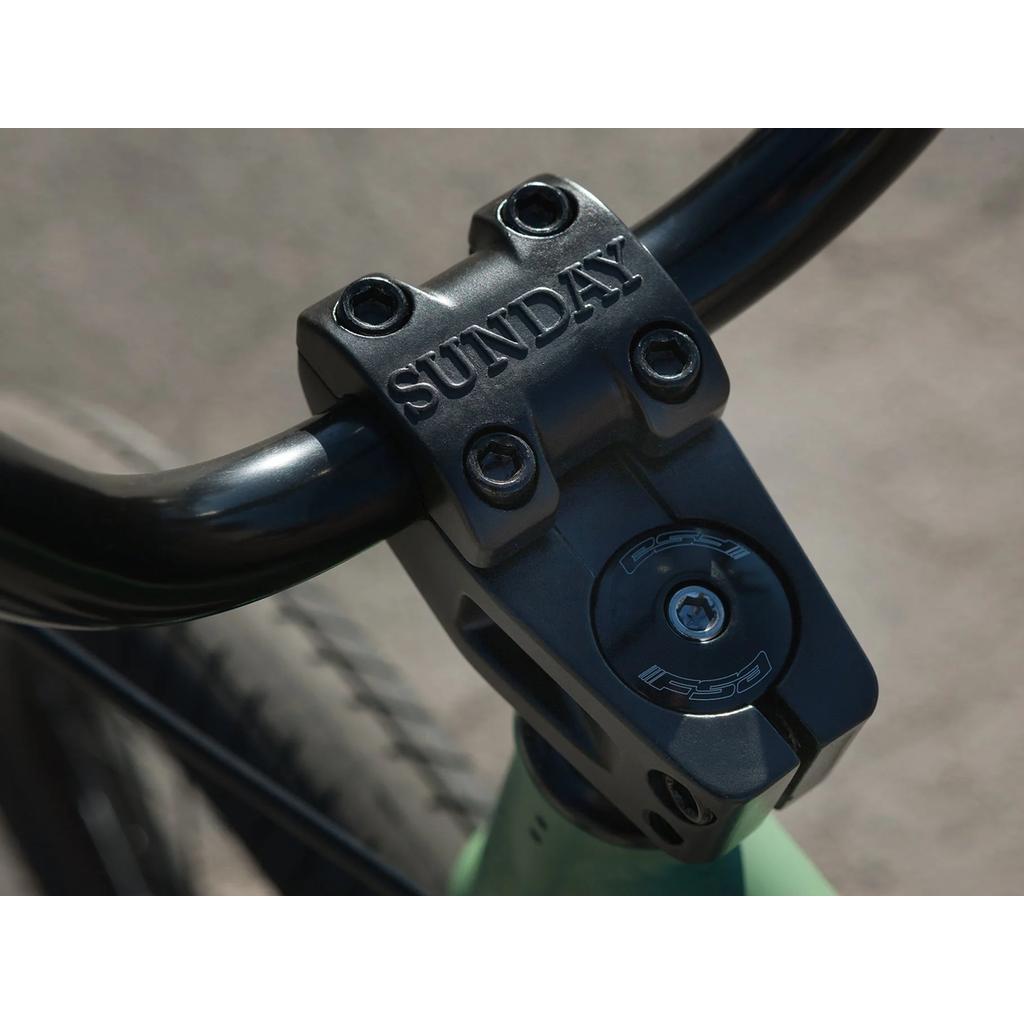

Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated, 1-1/8"
Alloy Cap - FSA aluminium cap

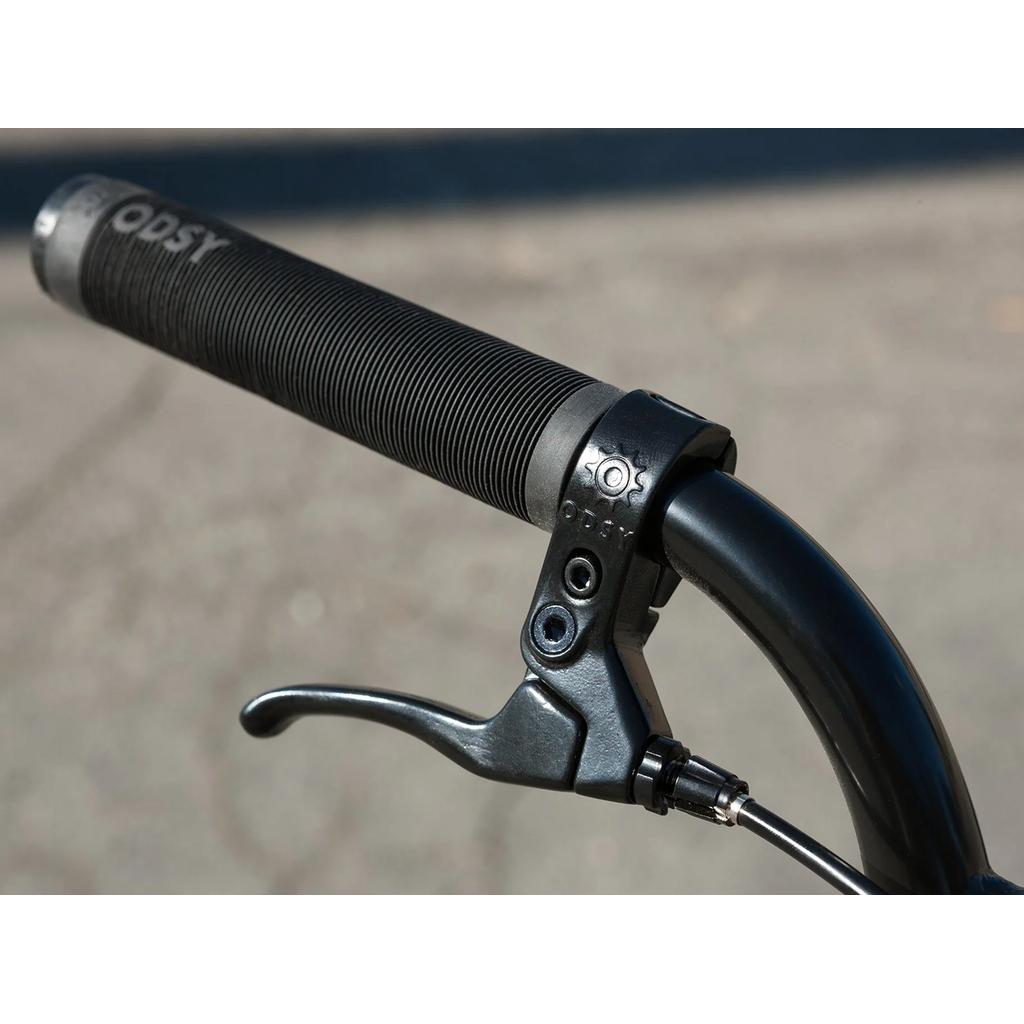

Brake Lever - Odyssey Springfield

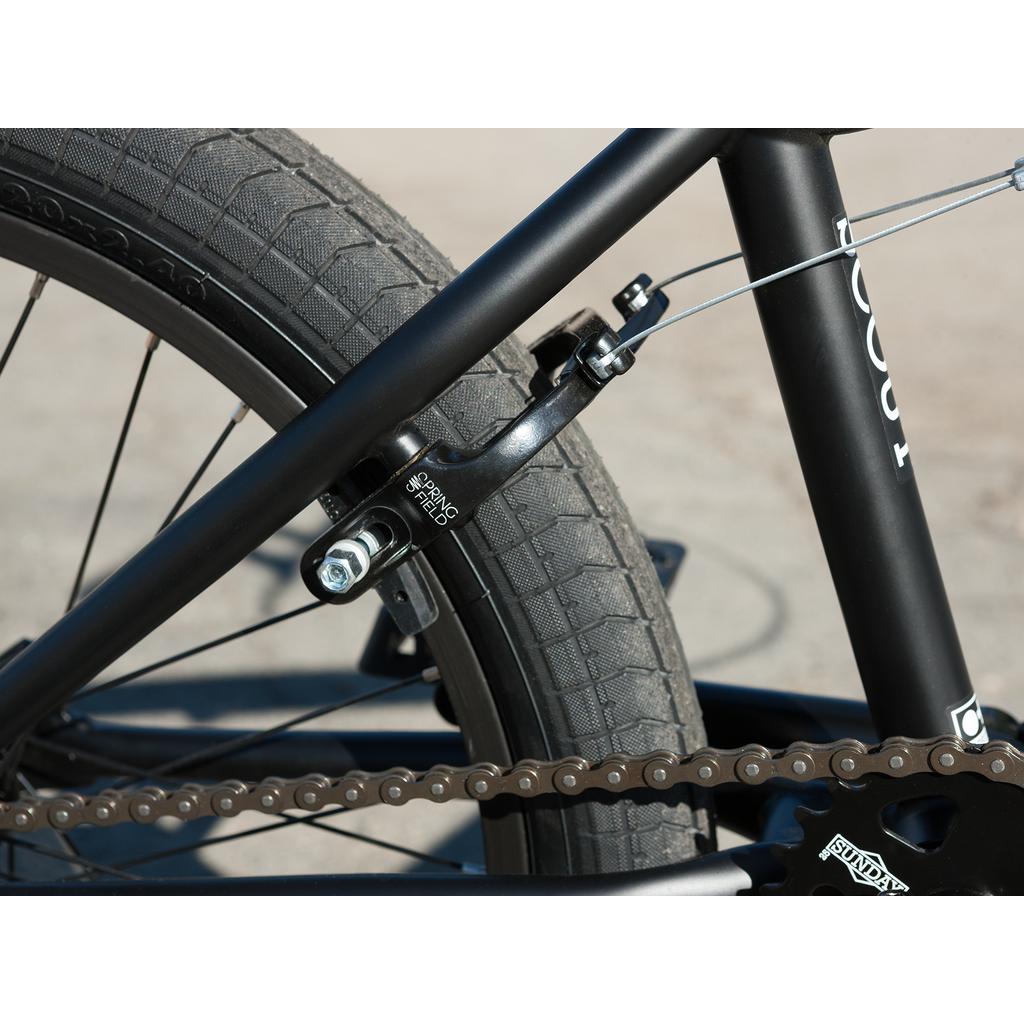

Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic

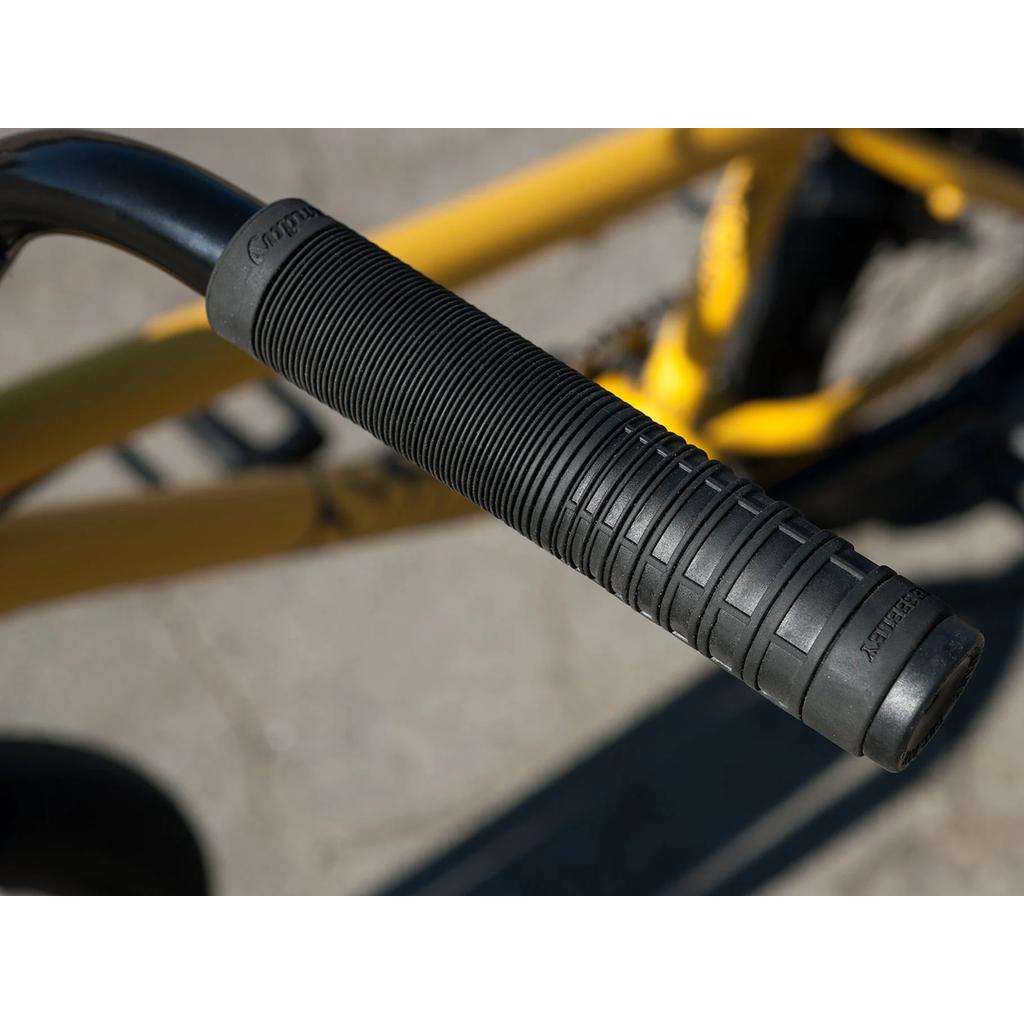

Grips - Odyssey Broc Raiford, Sunday Jake Seeley (Matt Mustard only)
Seat - Sunday Badge, pivotal
Seat post - Sunday, pivotal
Seat Clamp - Sunday
Sprocket - Sunday Sabertooth v2, 25T, steel
Cranks - 170mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - P-7X aluminum, 20", 20H

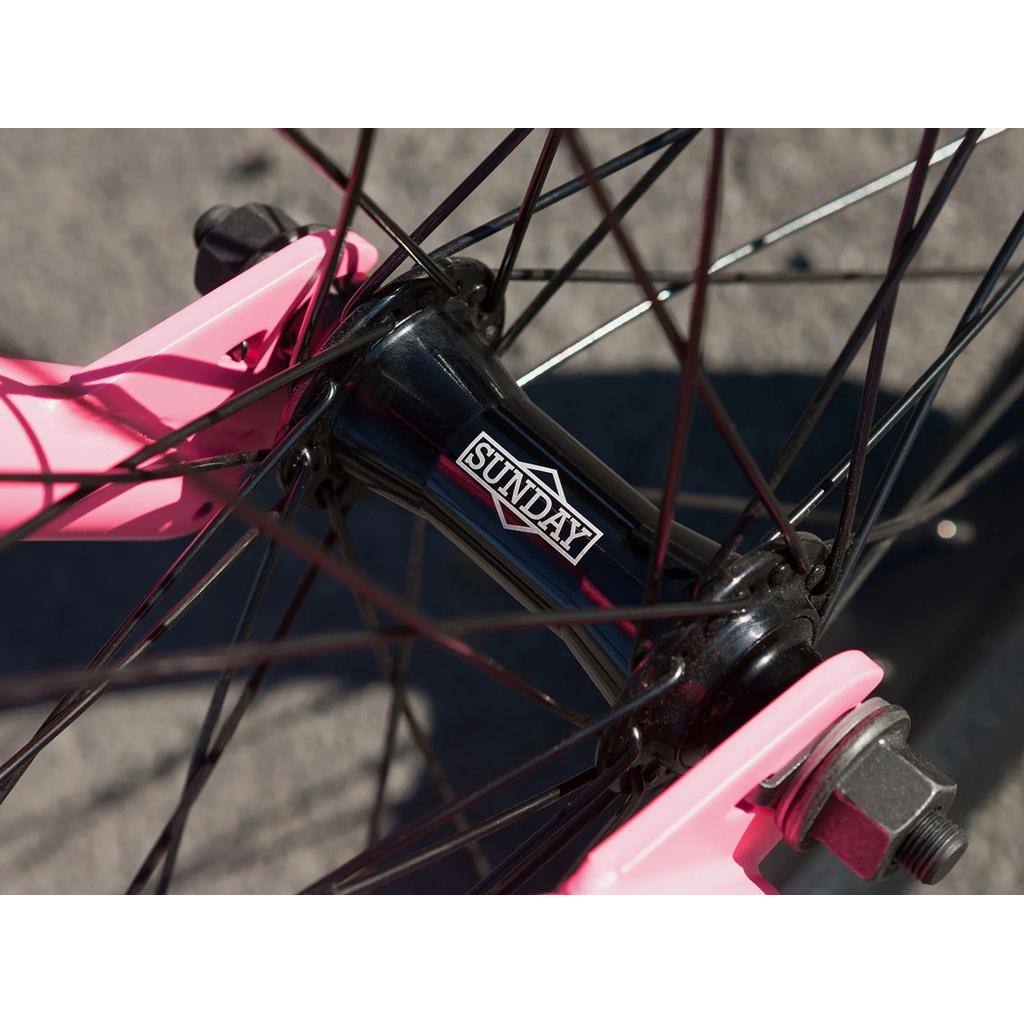

Front Hub - Sunday, 36H, low-flange, sealed, 3/8" axle
Rear Hub - Sunday 36H, sealed, 14mm axle w/ 9T Driver
Spokes - 14g steel, black
Tyres - Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 12.16kgs (with brakes)
Frame Geometry
Top Tube Length - 20.75" / 21"
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 9”
Handlebar Geometry
Rise - 9"
Width - 28.5" / 29”
Backsweep - 12°
Upsweep - 3°/4°
