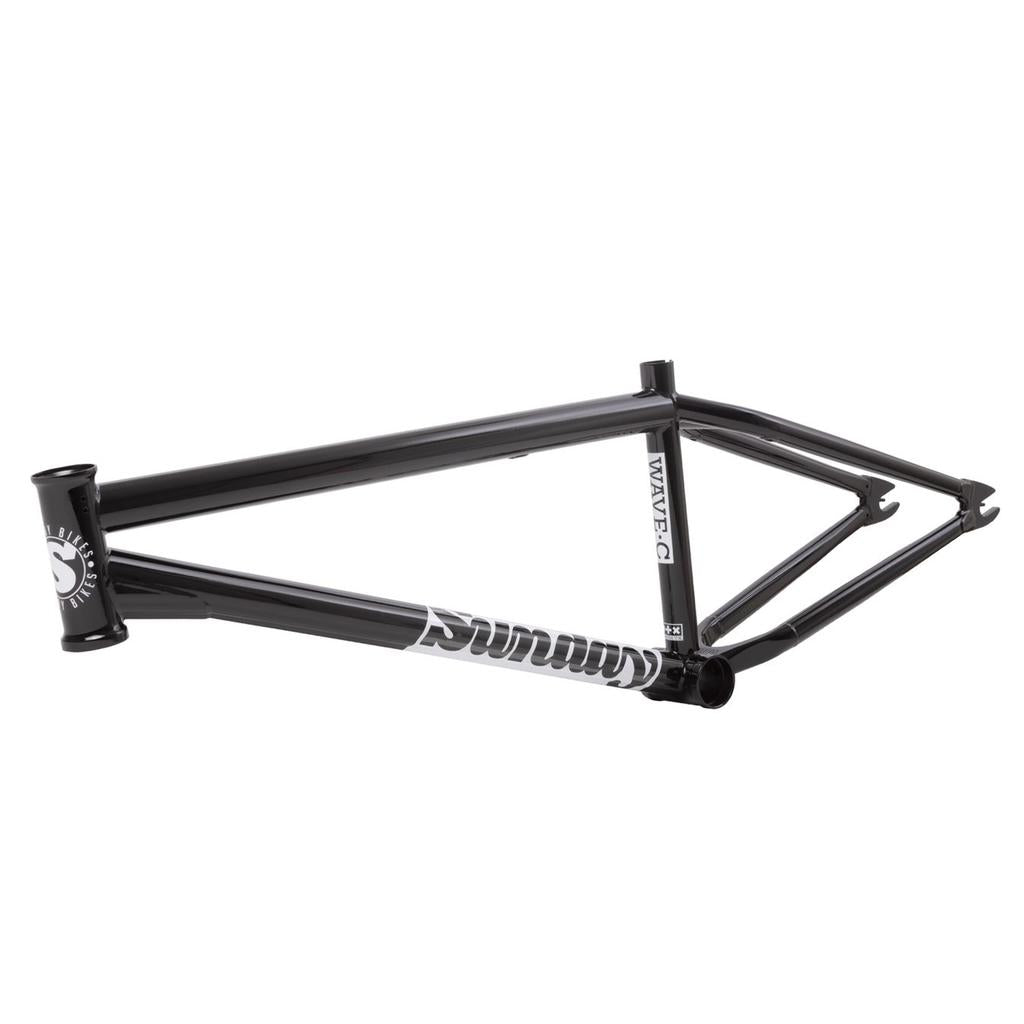

This is what happens when you eat your veggies boys! A big, brutal 24 inch frame for all the rowdy ones out there! This frame is full chromoly, features super strong wave tubing and is dripping with signature Sunday styling.
It's been over a decade since Sunday has offered a 24" aftermarket frame, so they are stoked to say that an all-new WAVE C is being re-introduced to their lineup. Perhaps they were too early with this style of shred-able frame back in 2011, but the 24" scene has grown a lot since (maybe thanks to them). Those who are looking for a dialled 100% 4130 chromoly aftermarket 24" frame now have a great option in the WAVE C.
Features
- 100% 4130 Chromoly Frame
- Proven 24" geometry that rides like a pro-level 20" bike

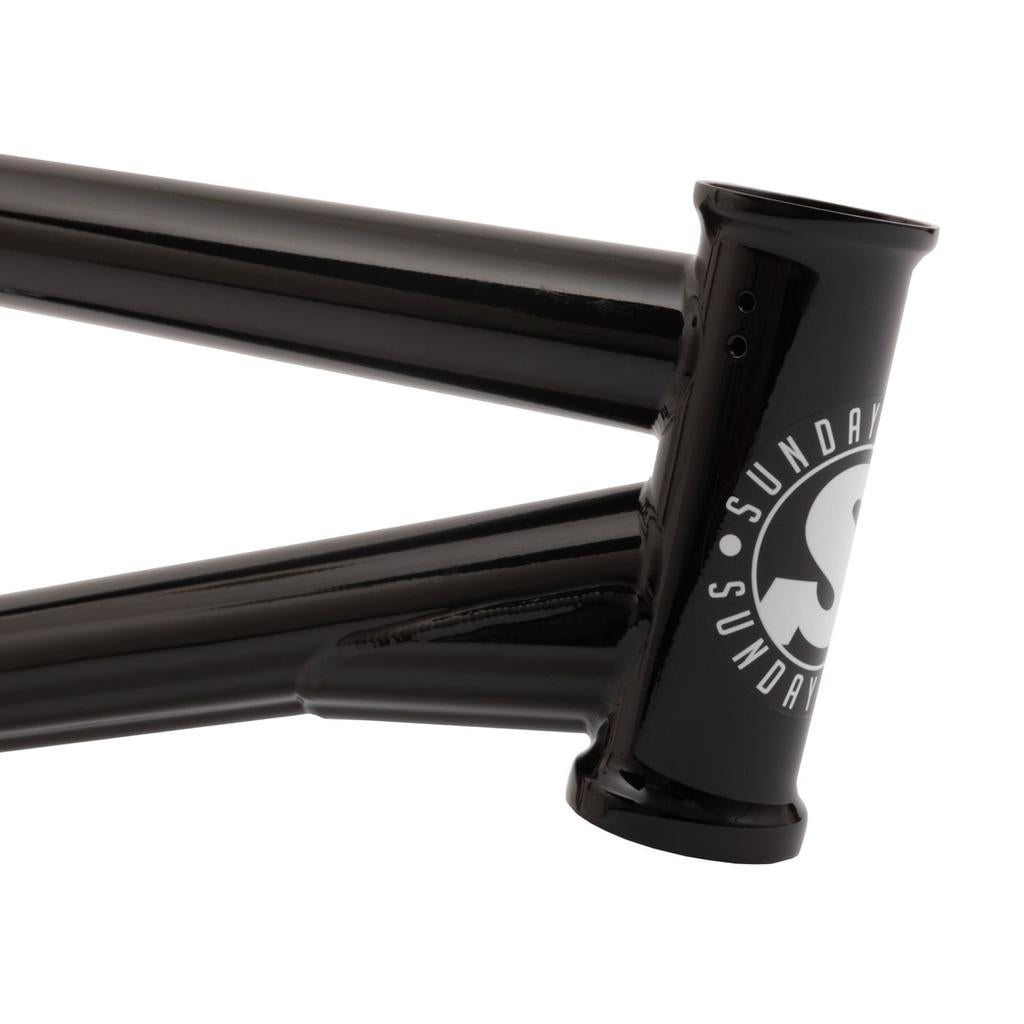

- Wave Down Tube: Down tube dents can significantly weaken the front end of your bike. The Wavelength's double-butted, 1.45" diameter down-tube features Sunday's proven Wave shaping to help fight against denting from rails, ledges, coping and whatever else happens to get thrown at it.

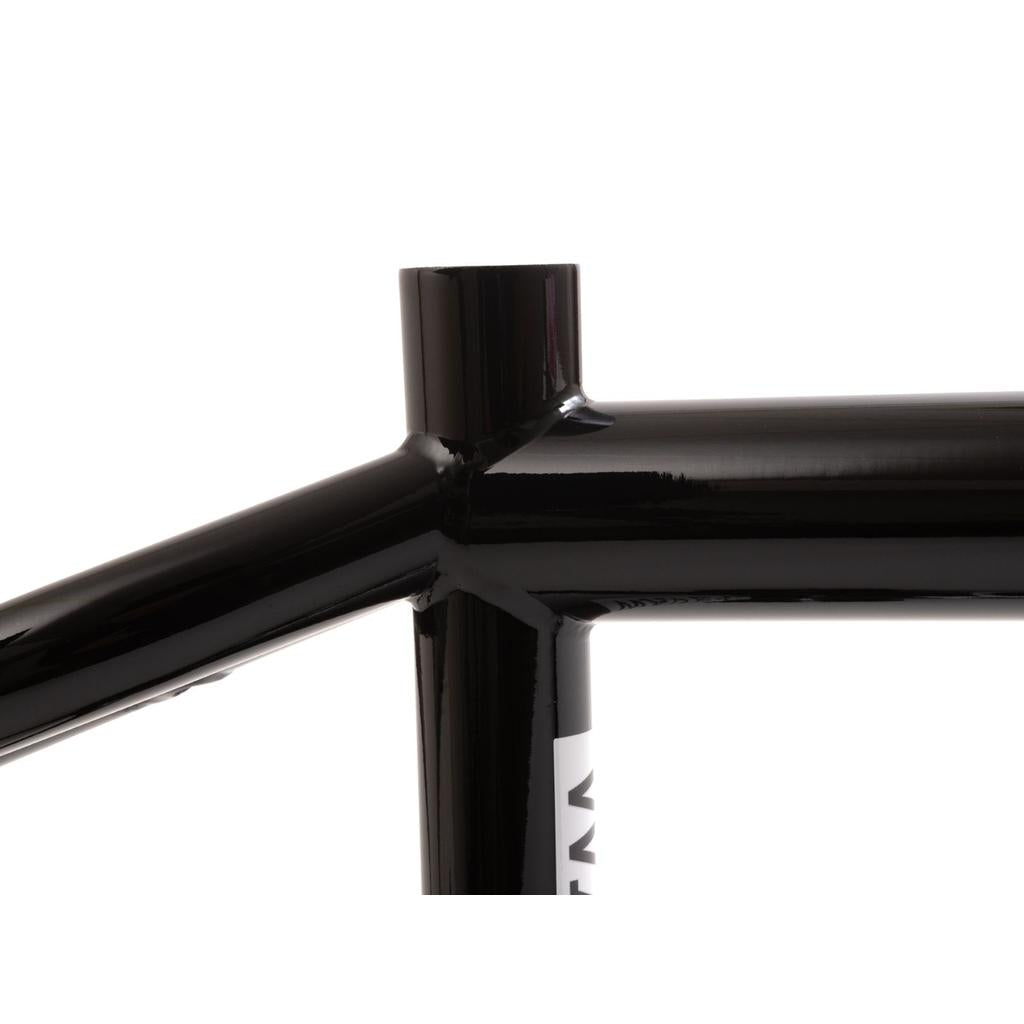

- Mitre Cut Top Tube: A mitre-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
- Hollow Chainstay Yoke: An all-new yoke design allows for an ultra-short chainstay length for improved maneuverability
- Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.

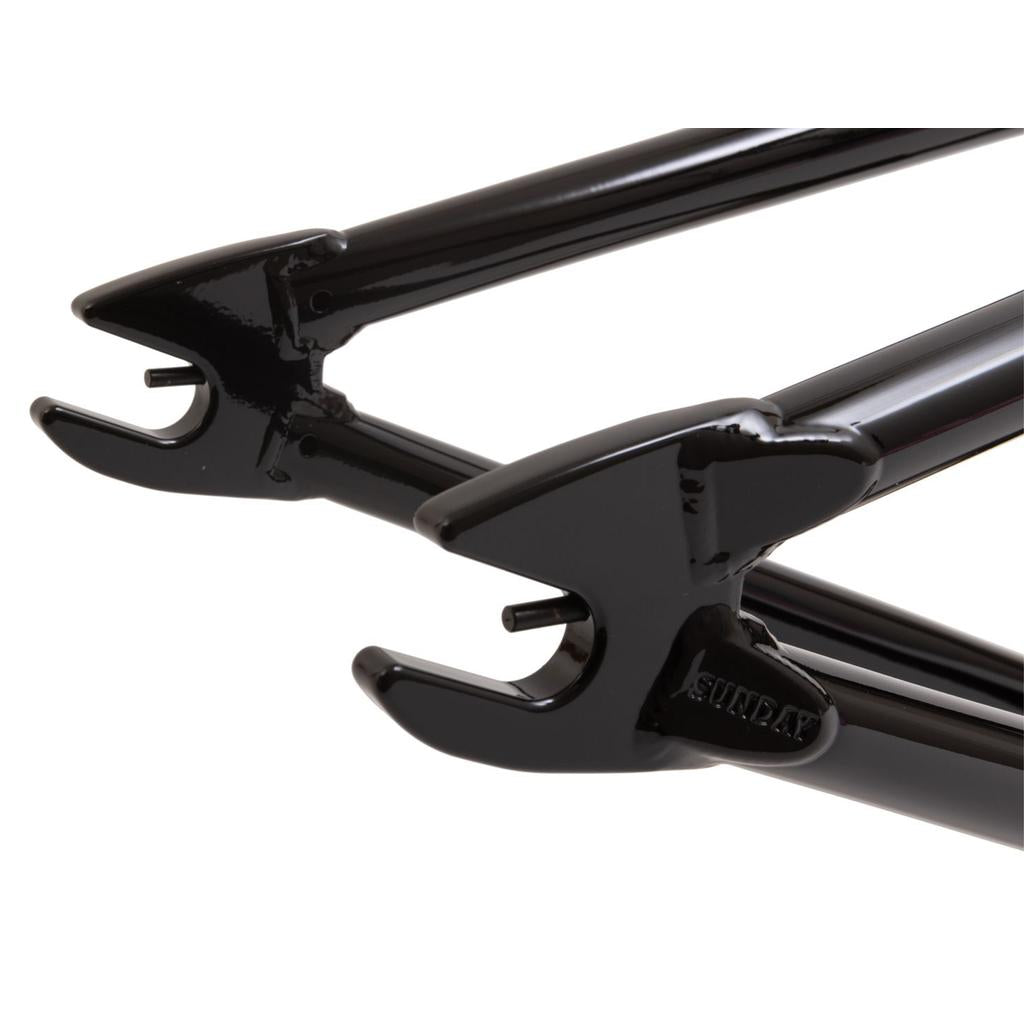

- Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal.
- Removable Brake Hardware: Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup.
- Rust-Proof Coating: All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today.
Geometry
Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.1"-14.35”
Bottom Bracket Height: 13”
Standover: 9.125”
Tyre Clearance: 2.2”
Head Tube: 4.8”
Weight: 5.9 lbs
Recommended Gear Ratio: 25/10
