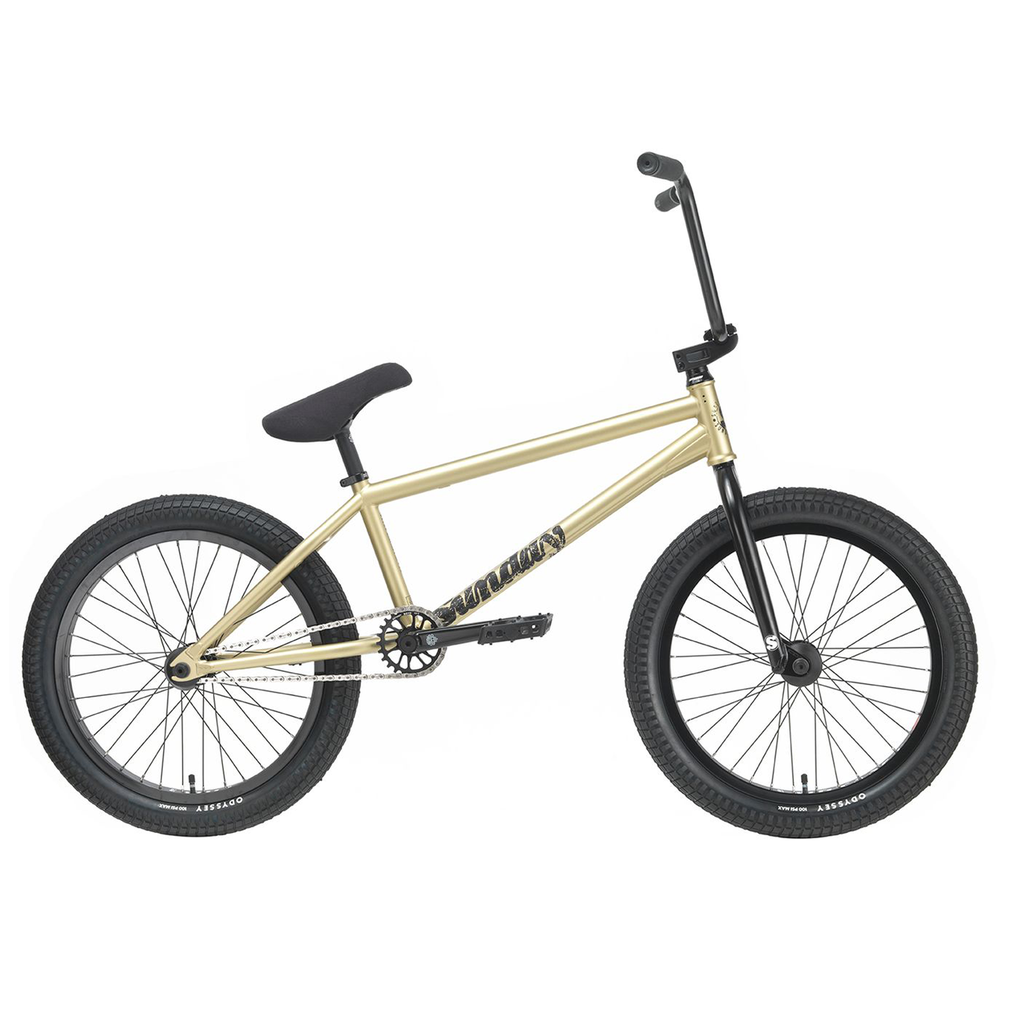

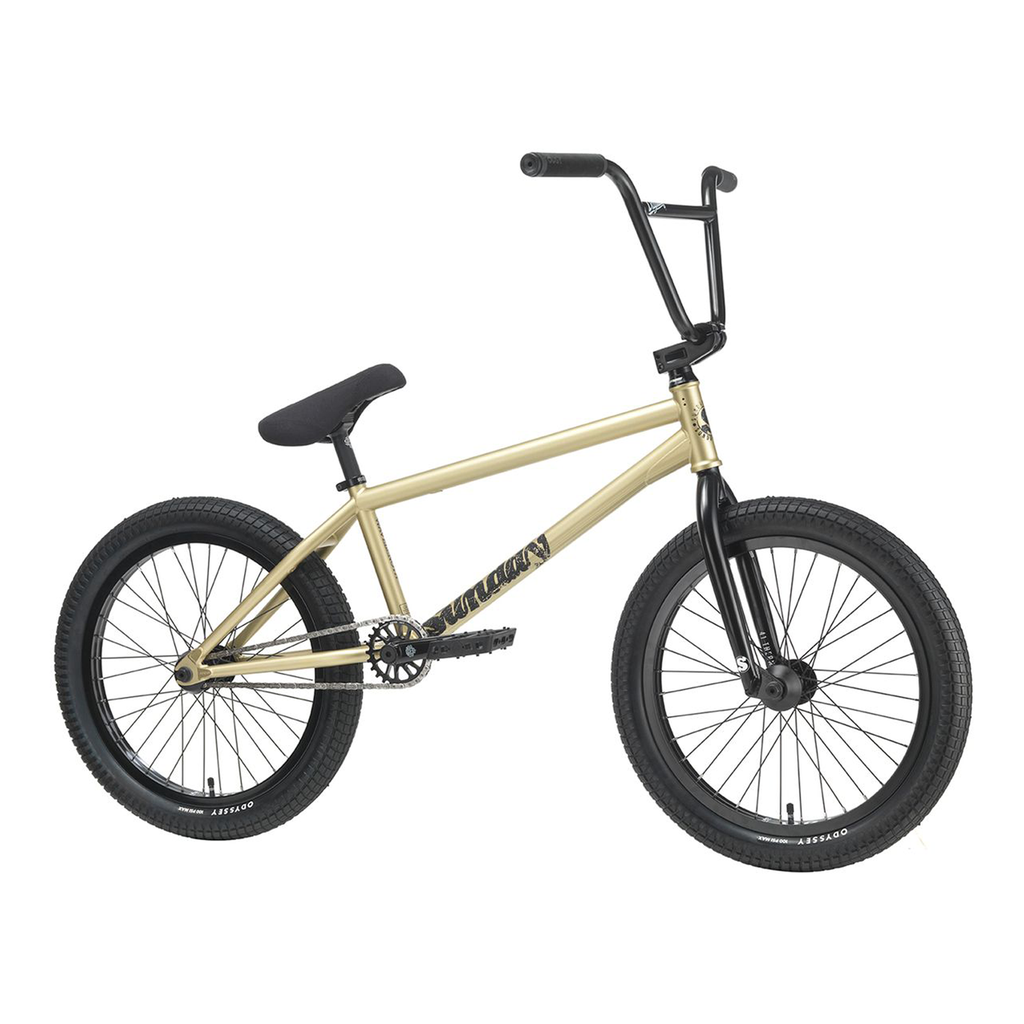

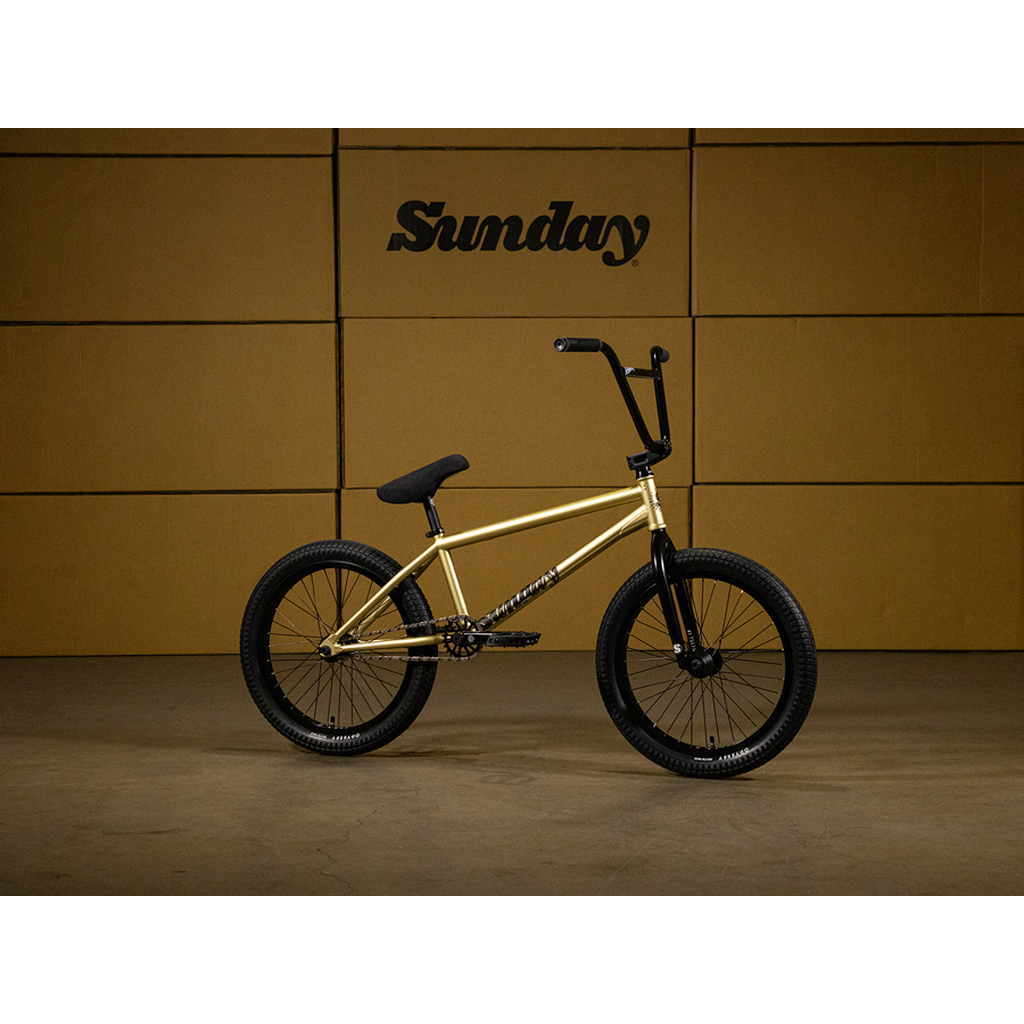

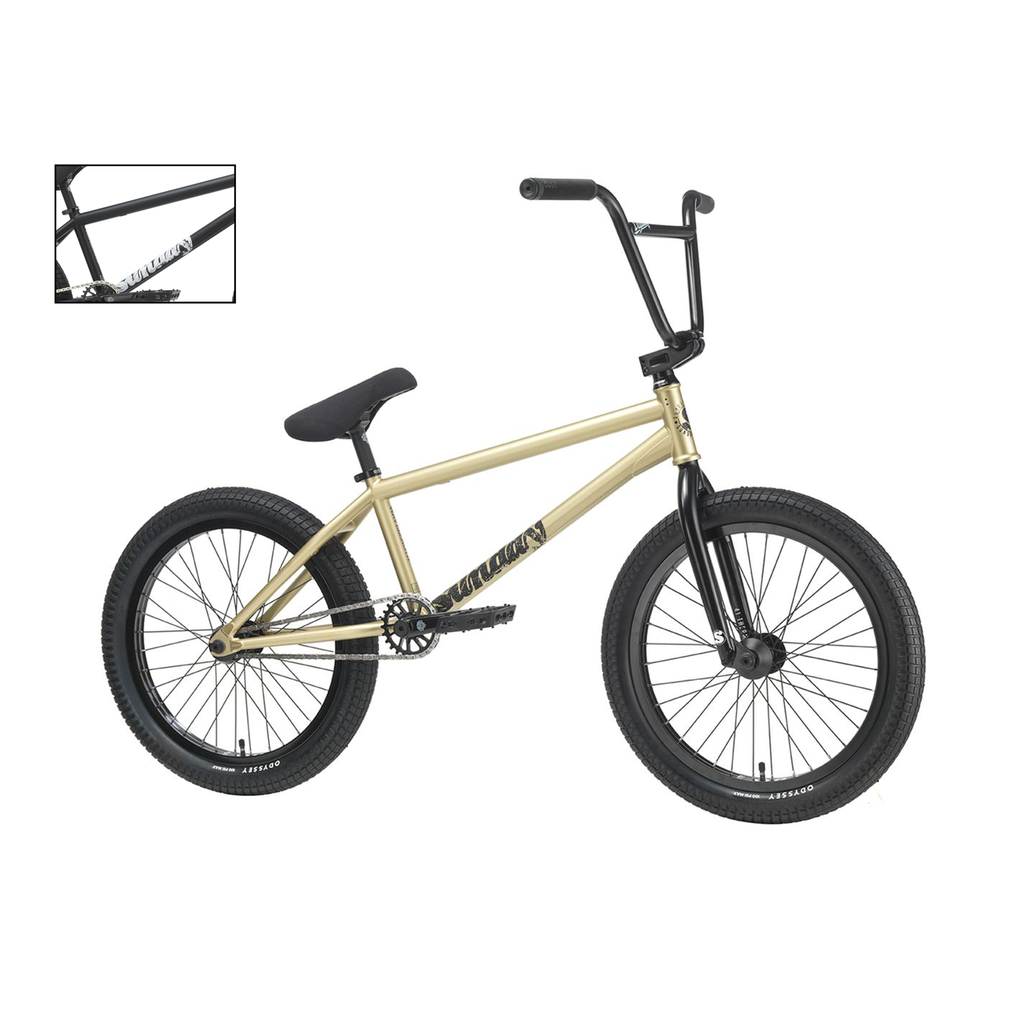

OOOOOH Yeah. Gaz and Sunday have teamed up to create another masterpiece this year! This bike is loaded up with the absolute best of the best parts from Sunday and Odyssey and will leave you salivating! This bike is built for people who want quality and strength, without the massive price tag.
This model features Gary’s signature frame along with an amazing aftermarket parts package including right-hand, left-hand switchable Odyssey Calibur V2 Cranks, switchable rear Cassette hub, Evo 2.5 brakes, Aitken Street tyres and loads of aftermarket parts for a build similar to the previous Soundwave Special cassette bike.
Features
- Sunday Wavelength 100% chromoly frame
- Sunday Darkwave 41-thermal forks
- Odyssey BROC 41-thermal bars
- Odyssey Calibur cranks
- Odyssey Evo 2.5 brakes
- Odyssey Vandero Pro front hub
- Odyssey Hazard Lite rims
- Odyssey Aitken Street tyres
Specifications

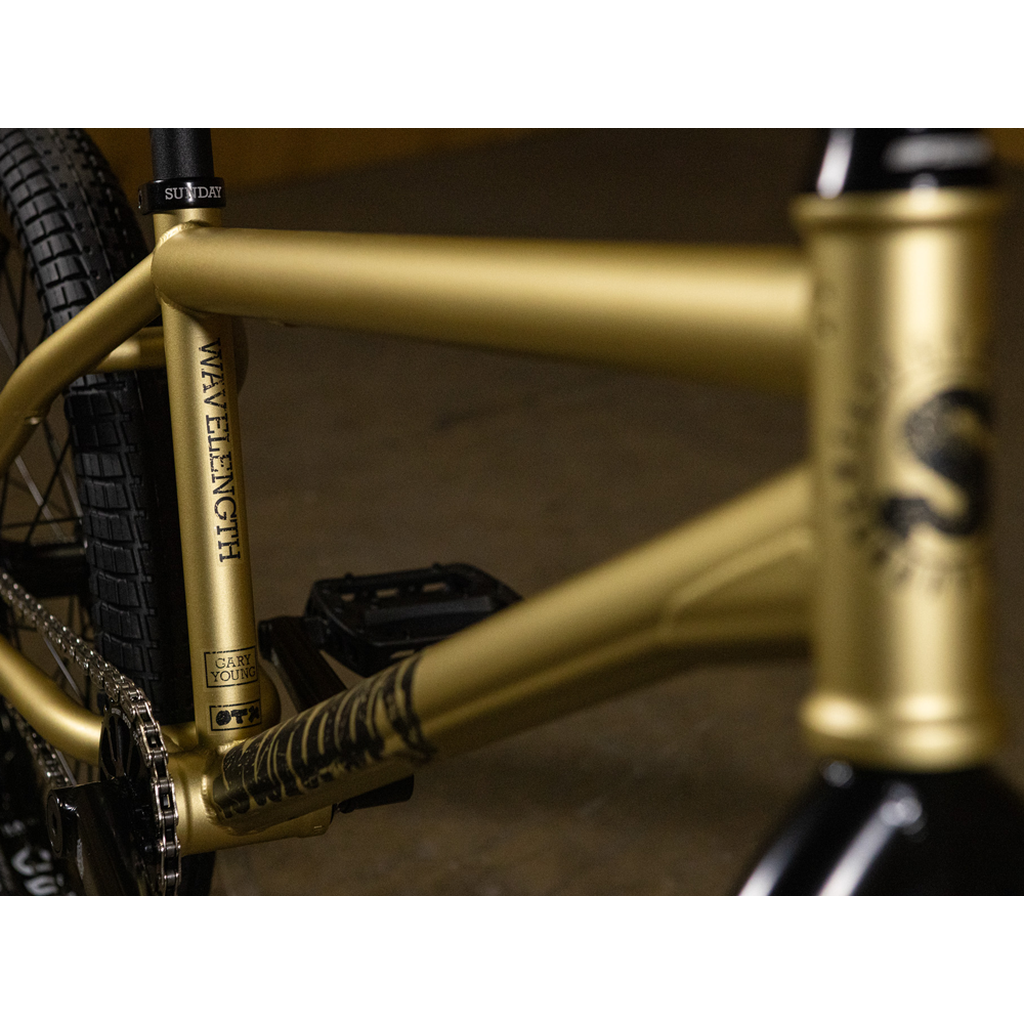

Frame - Sunday Wavelength, 21" TT, 100% chromoly, aftermarket frame, w/ removable brake hardware
Fork - Sunday Darkwave, 20", 100% chromoly, 41-thermal, aftermarket fork, 28mm offset

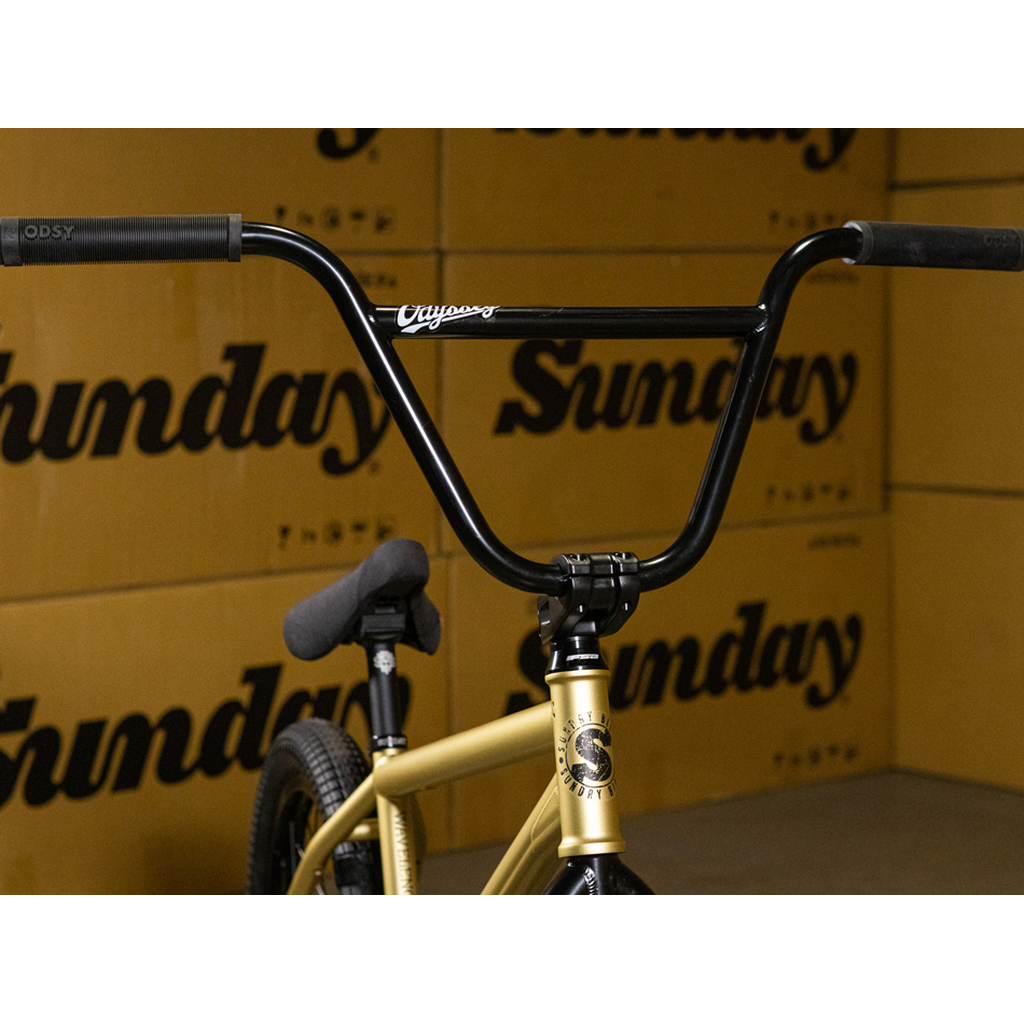

Handlebar - Odyssey Super Highway bar, 41-thermal, aftermarket bar
Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Headset Cap - Sunday aftermarket, aluminium
Brake Lever - Odyssey monolever
Brakes - Odyssey Evo 2.5
Brake Cable - Odyssey Linear Quik Slic

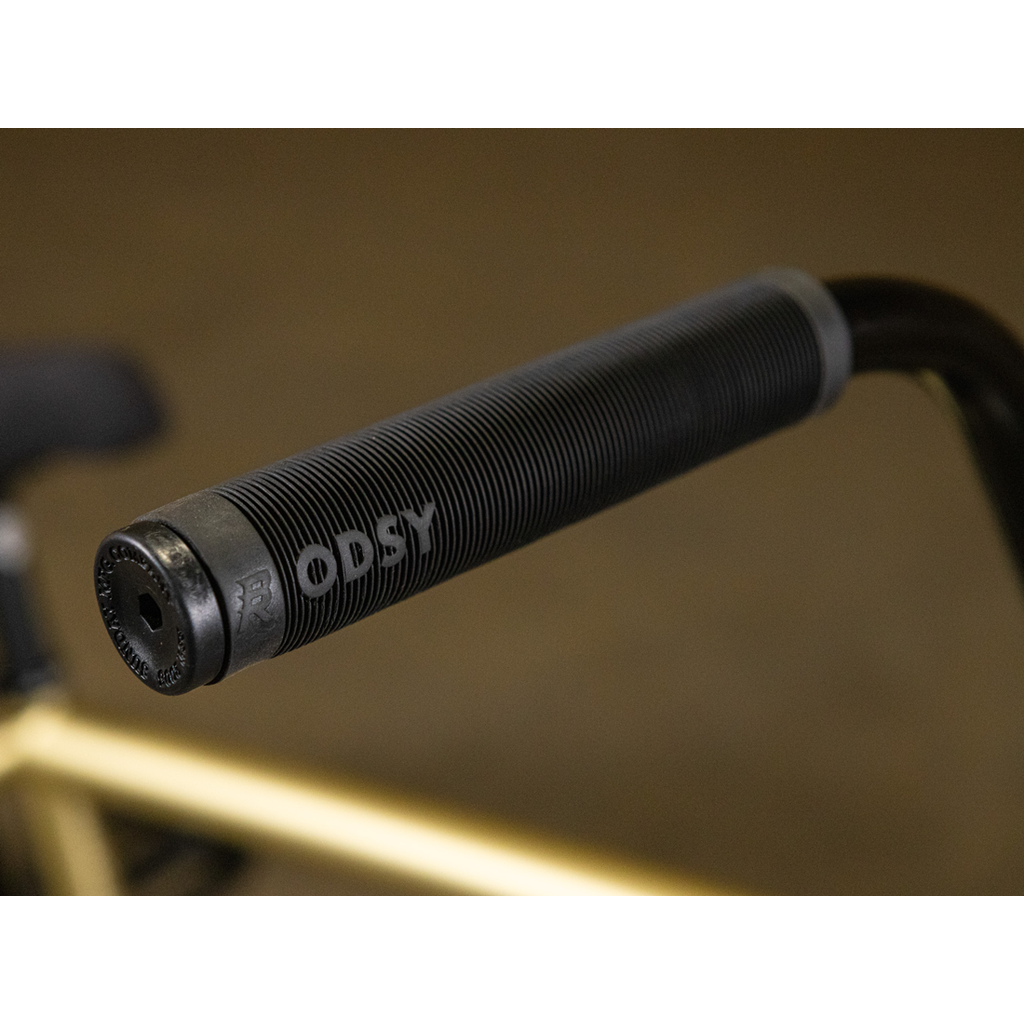

Grips - Odyssey

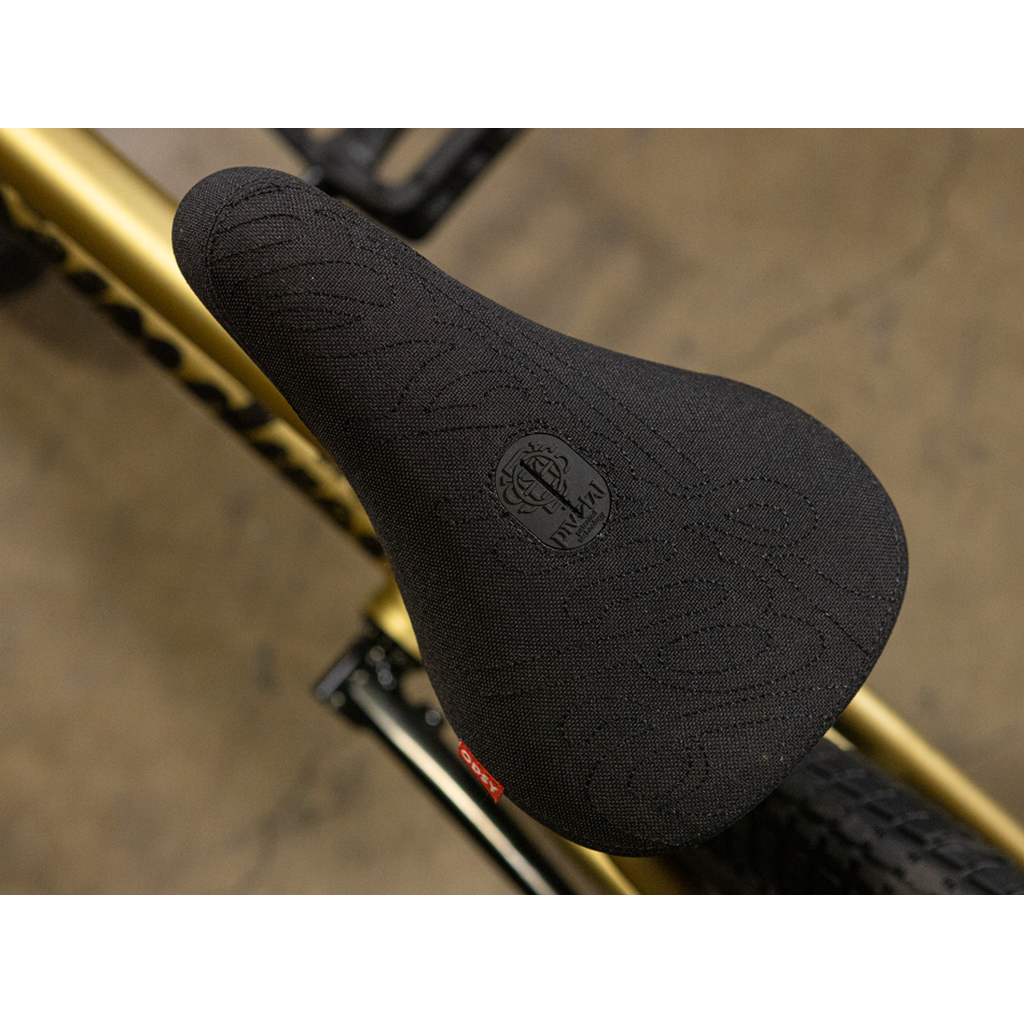

Seat - Odyssey Slugger stitch, pivotal
Seat Post - Odyssey Pivotal
Seat Clamp - Sunday aftermarket

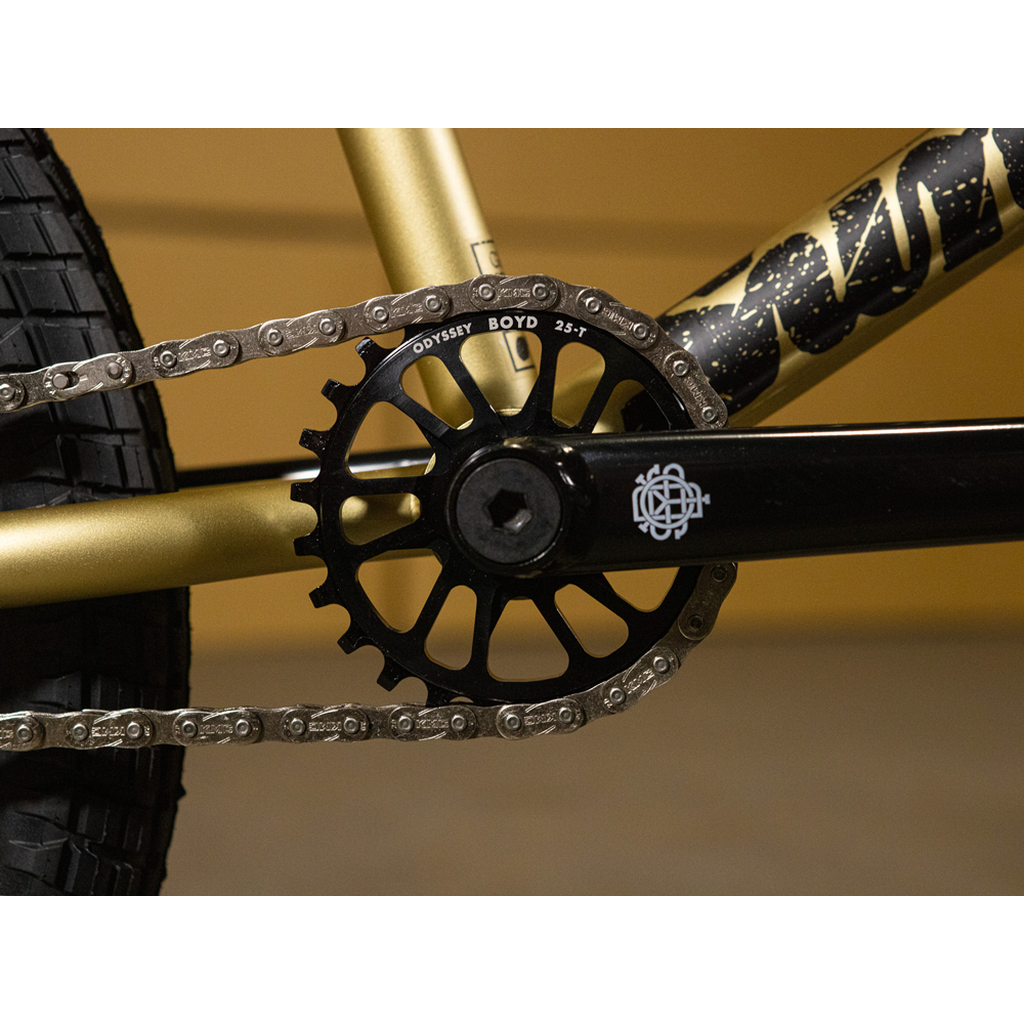

Sprocket - Odyssey BOYD sprocket, 25T
Cranks - Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD compatible
BB Parts - Sealed, mid, 22mm
Pedals - Odyssey Twisted PC Pro

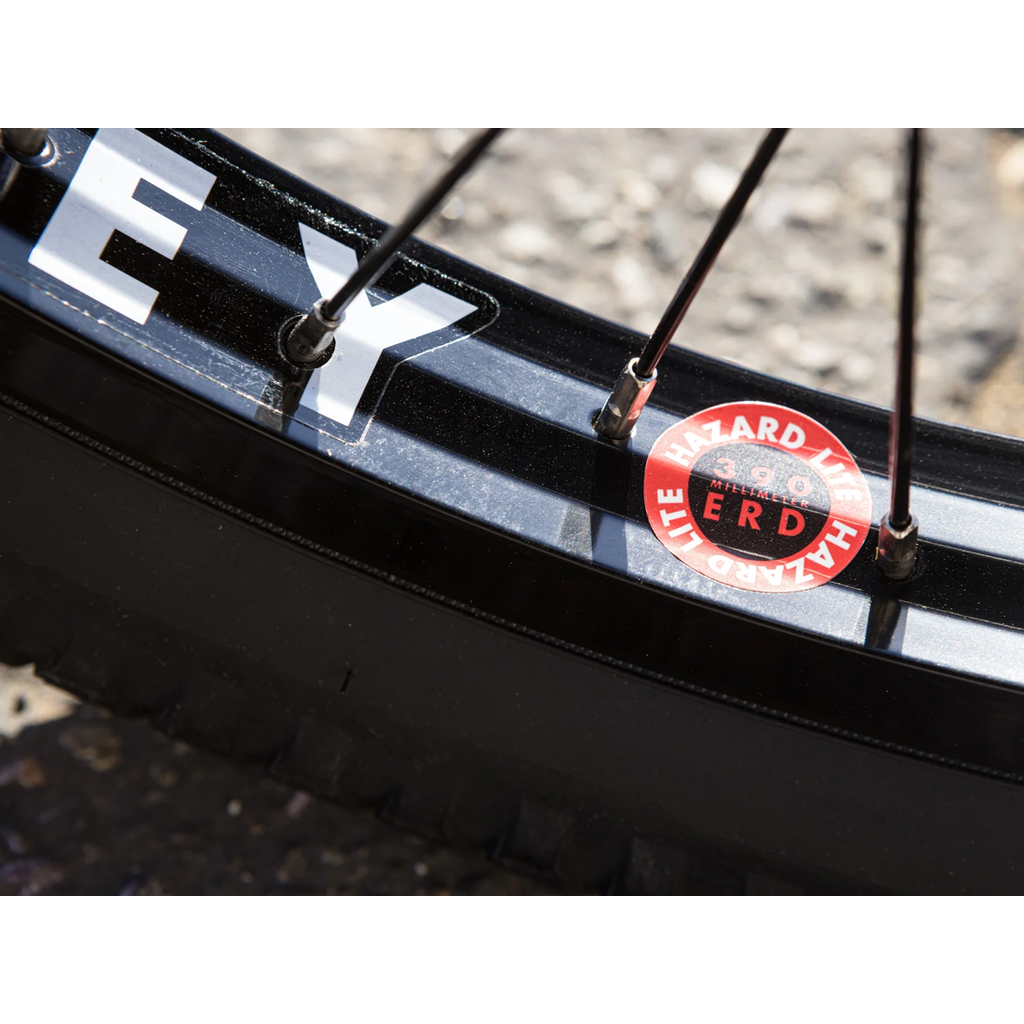

Rims - Odyssey Hazard Lite, 20", 36H

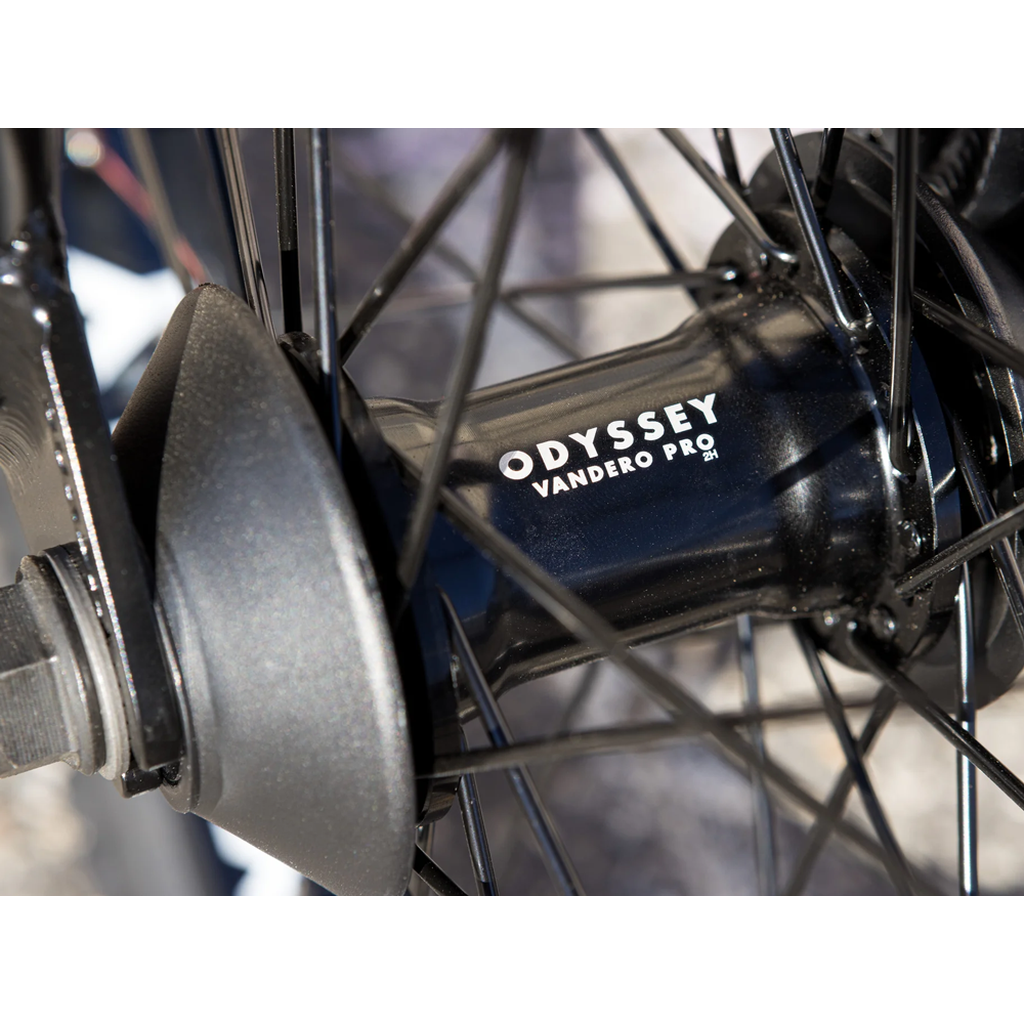

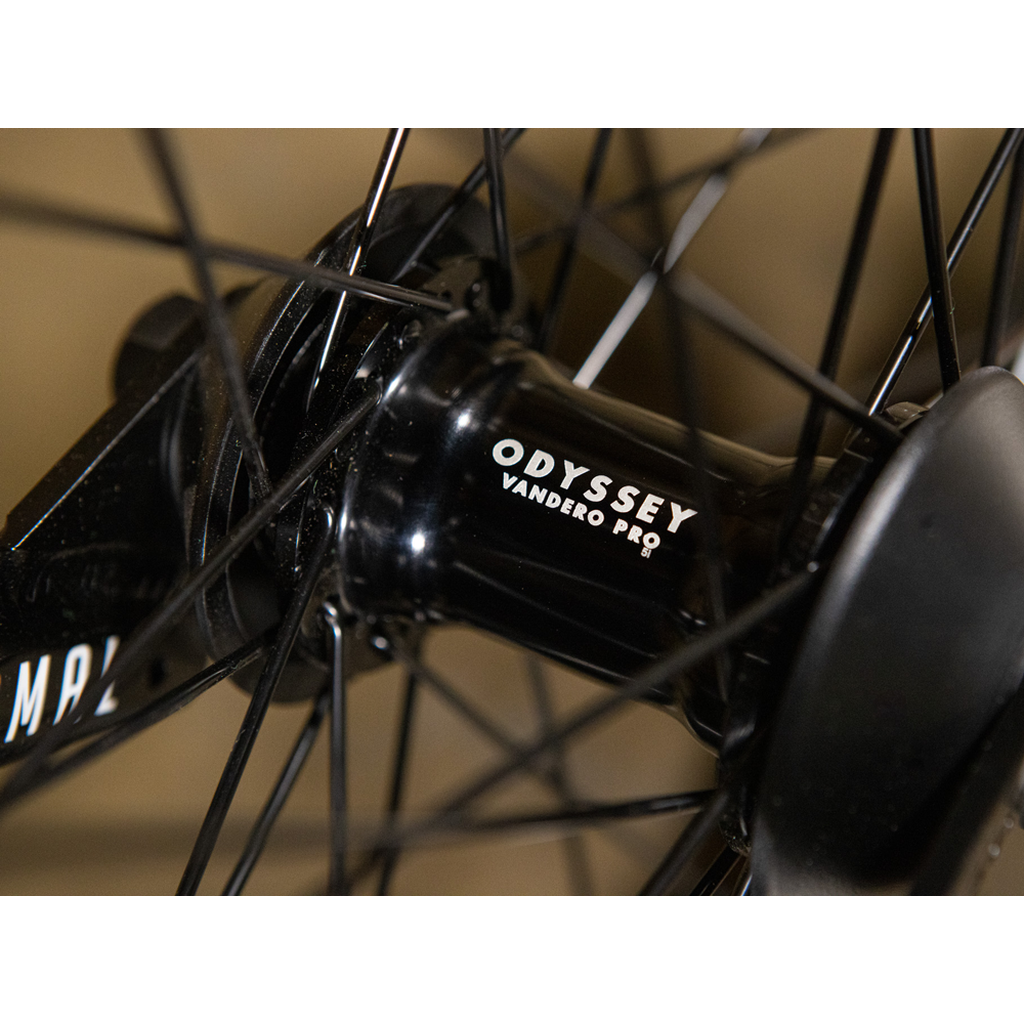

Front Hub - Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub -

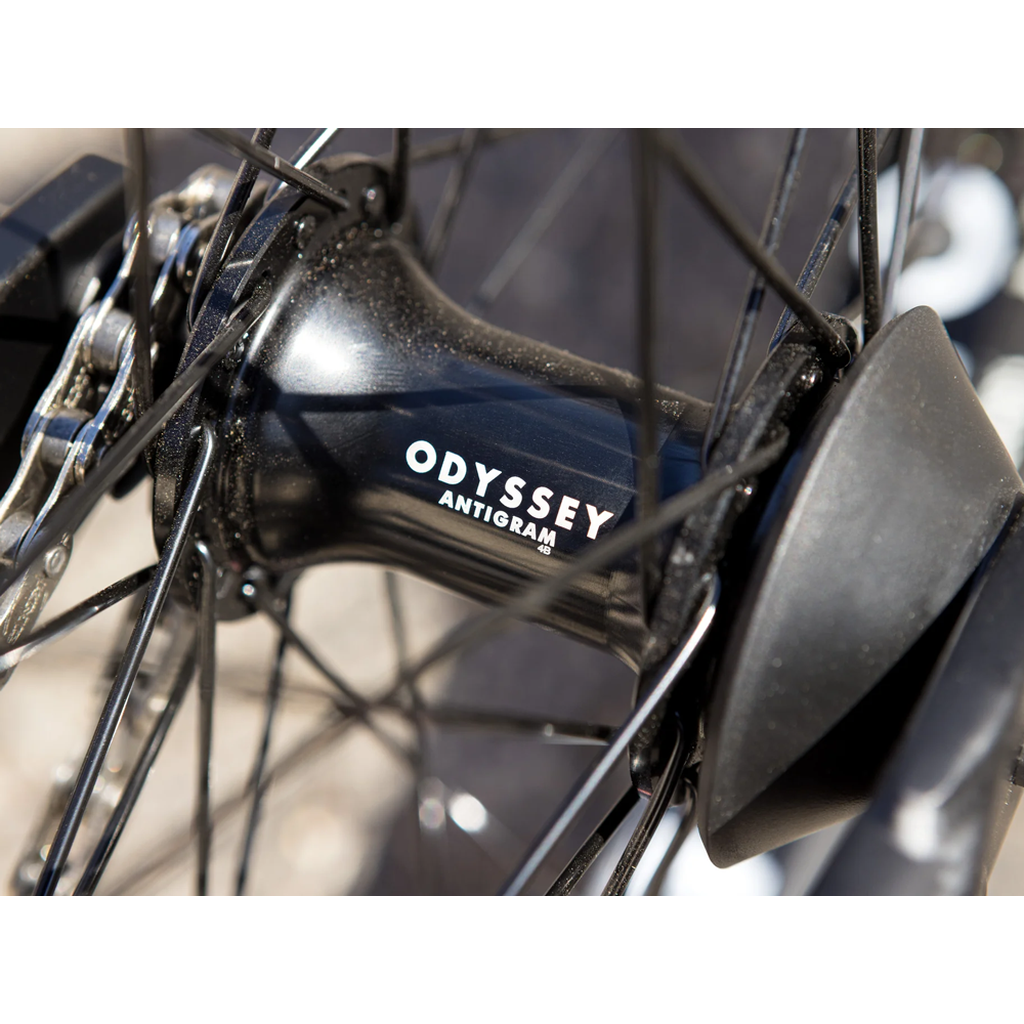

BLACK - Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD switchable, non-drive side plastic guard

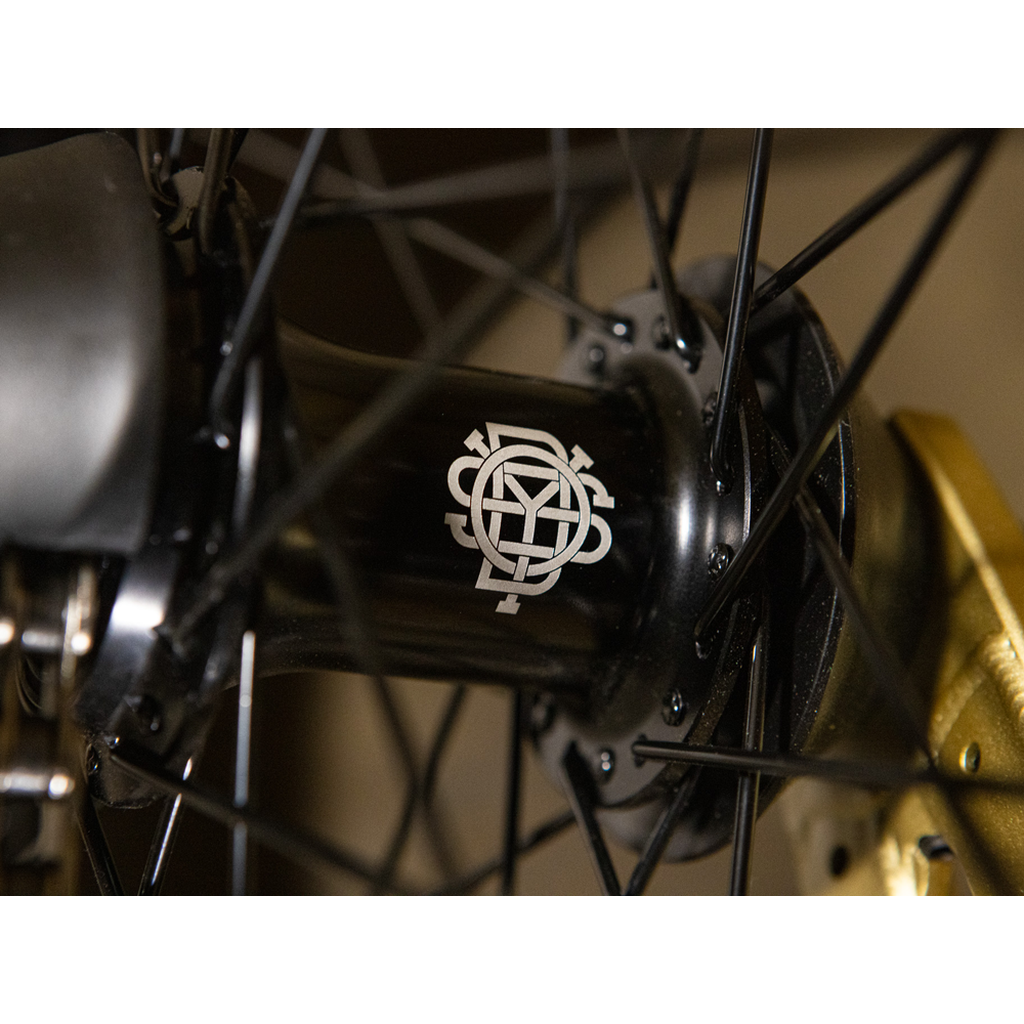

GOLD - Odyssey Hexagram cassette, 36H, 14mm inbound axle bolts w/ 9T driver, RHD/LHD Switchable, w/ plastic guards
Spokes - 14g steel, black

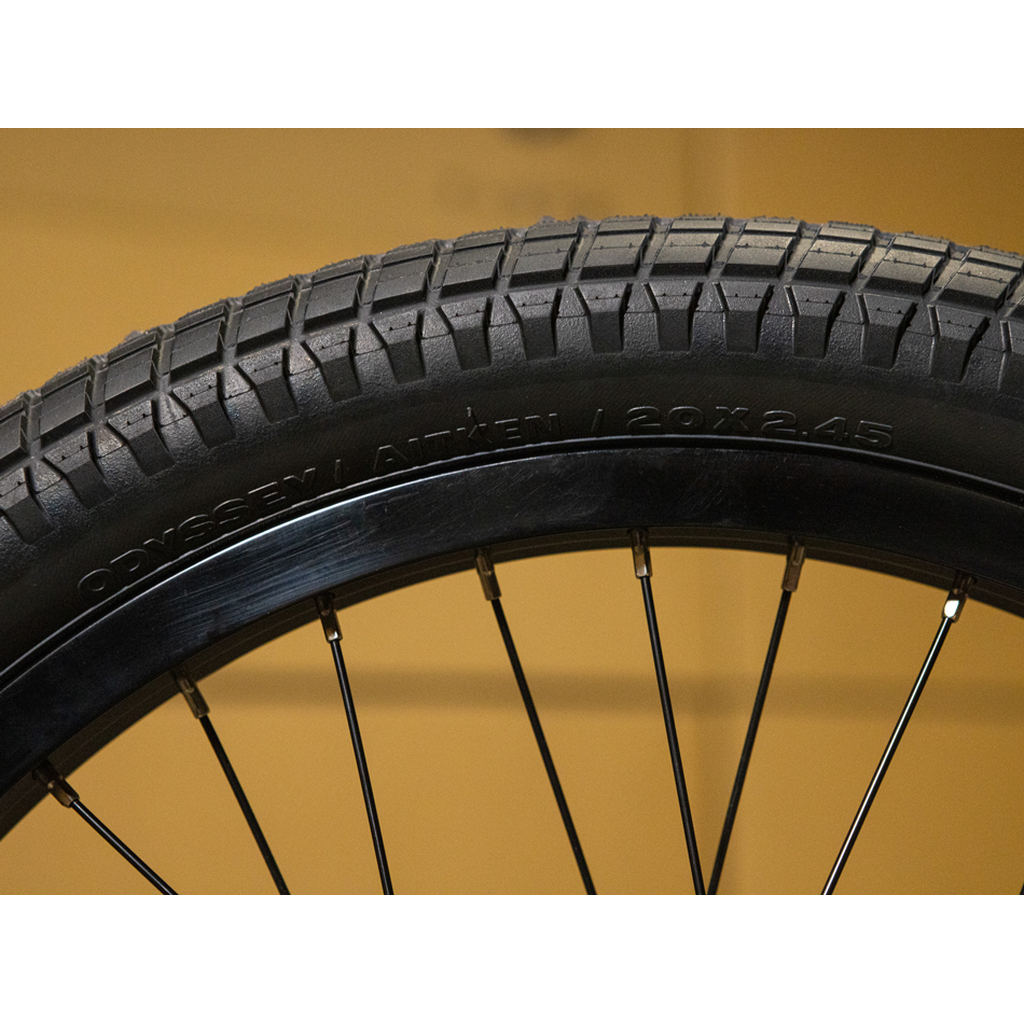

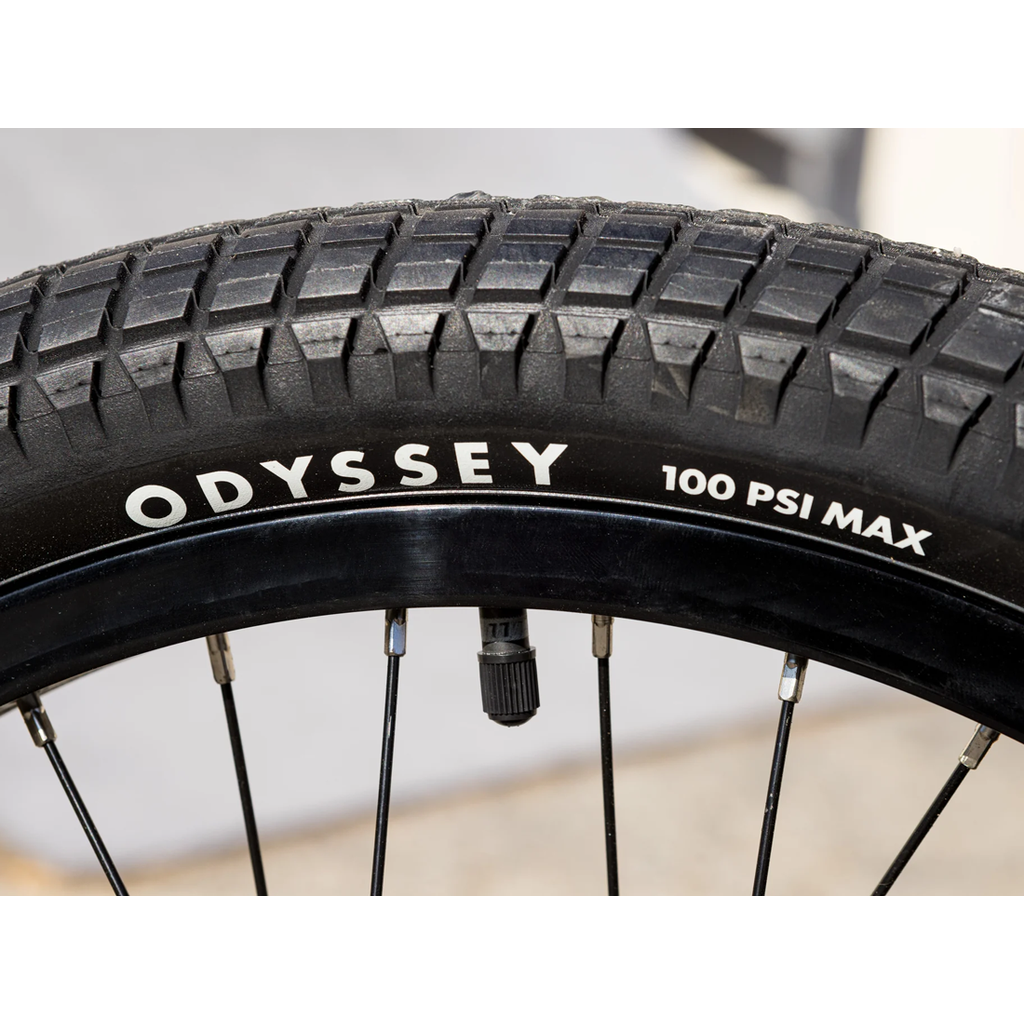

Tyres - Odyssey Aitken Street, 2.45" (F & R)
Chain - KMC Z1 eHX-W
Frame Geometry
Top Tube Length - 21"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.65"-14"
Bottom Bracket Height - 11.5"
Standover - 9"
Handlebar Geometry
Rise - 9.5"
Width - 29"
Backsweep - 11°
Upsweep - 1°
