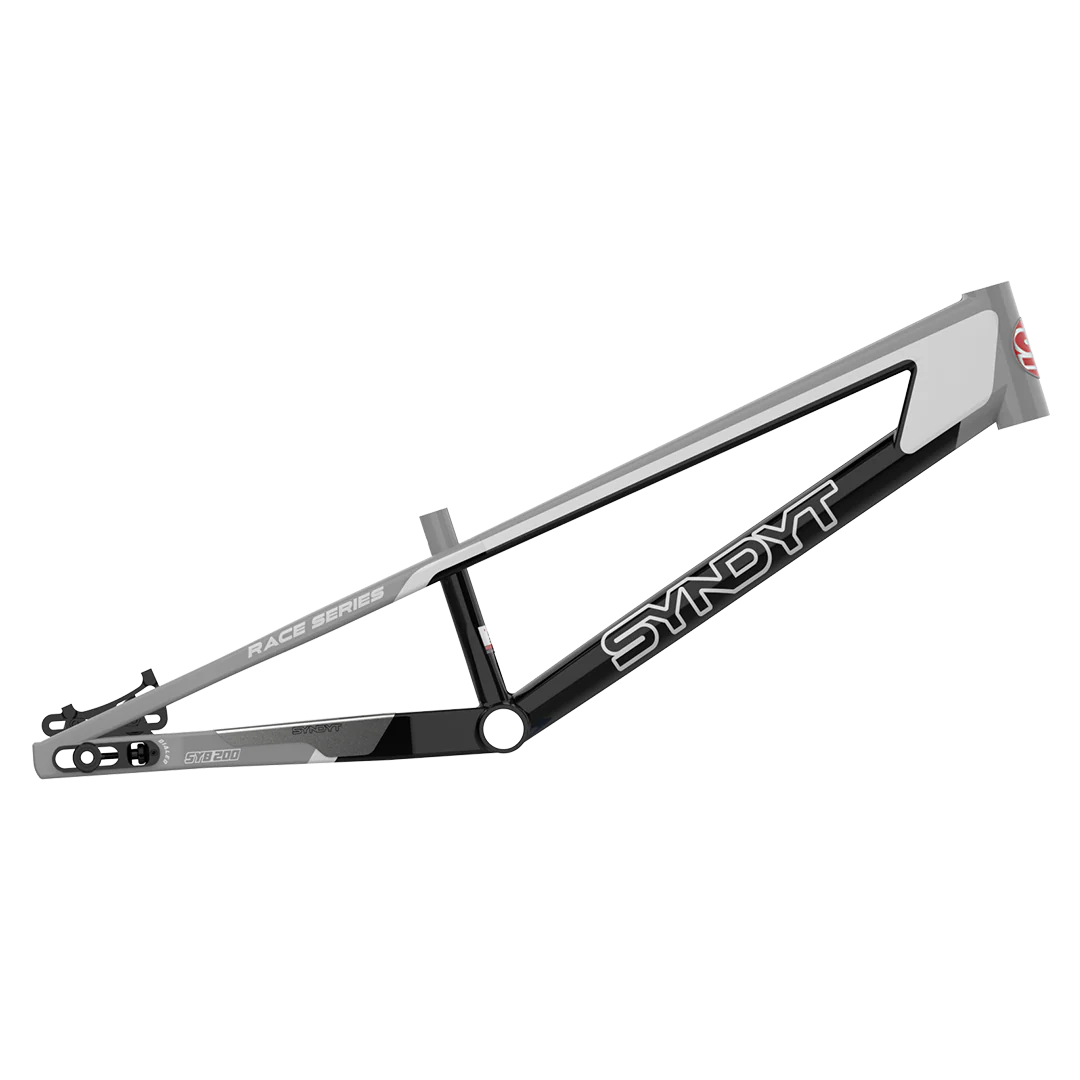

Introducing the SYNDYT BMX Racing Frames, a groundbreaking evolution in BMX frame design that sets a new standard for performance and exclusivity within the SYNDYT community.
Crafted from premium 6061 custom handcrafted alloy, these frames embody the perfect balance of durability, lightweight precision, and an unparalleled ride quality. Employing state-of-the-art hydroforming technology and featuring triple-butted tubes, our frames deliver optimal power transfer and responsiveness, enhancing your overall riding experience.
Features
-
SYB 195: Expert XL 20“ Top Tube
-
Standard Euro BB
-
1 to 1 1/8** Head Tube
-
10/15 mm Rear Hub Compatible
-
451mm Wheel with Disc Brake Mount
-
Fits 140mm disc brake rotor only
-
Integrated Chain Tensioners
- Includes 1" Fork adaptor headset
Specifications
- Material: 6061-T6 Aluminum
- Tapered 38/42 Integrated Head Tube
- 22.2 Seat Post
- 25.4 Seat Tube Clamp
- 68MM European BB Shell
- 110mm O.L.D. Rear hub spacing
- Disc Only, Post Mount, 140mm Rotor
- Internal rear brake cable routing
- Integrated Chain Tensioner w/ 38mm of adjustment
- Includes axle hardware for 10mm bolt-on and 15mm Thru Axle
- Frame width for 15mm Thru Axle: 152mm
- Includes Headset for 1” Steer and Tapered 1” – 1-1/8”
- Weight - 1400g
