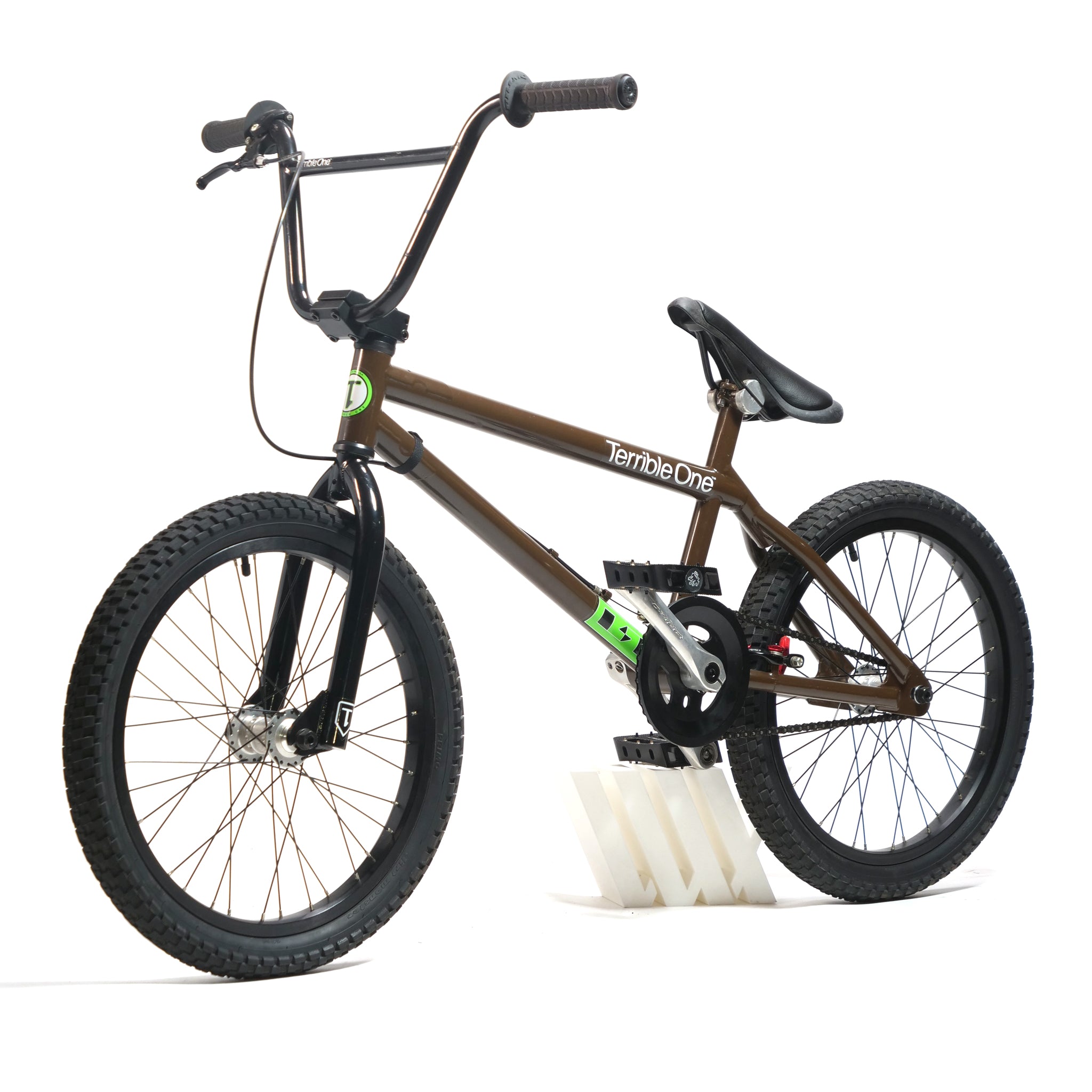

Brown Terrible One Barcode Garrett Byrnes Custom 20 Inch BMX Bike (2003) with black handlebars, seat, and tires, sporting the signature logo on a classic Mid School frame, displayed on a white stand against a plain background.
A Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) with a brown frame and black handlebars, seat, and tires is displayed on a white background, highlighting its iconic Mid School BMX design.

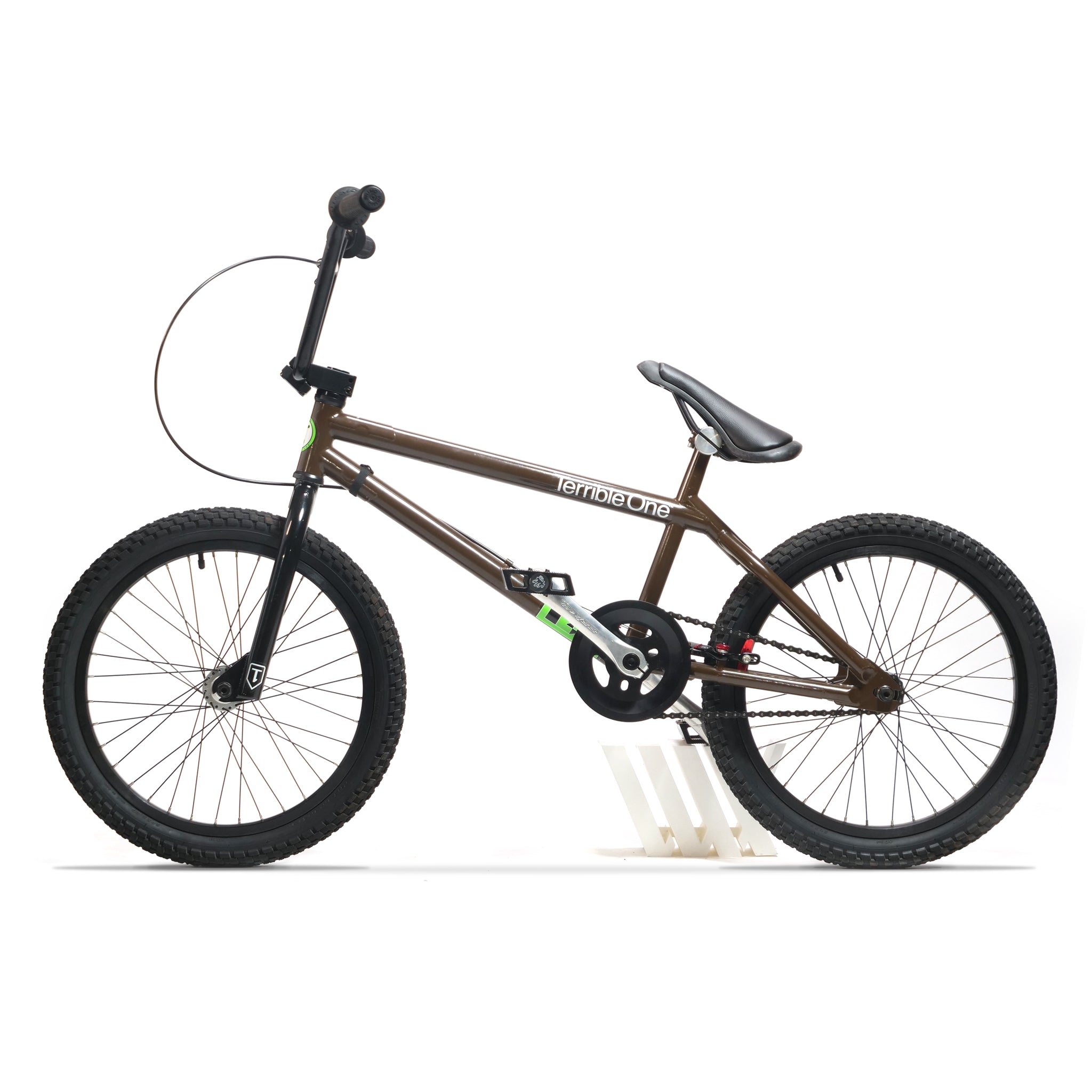

A 2003 Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike in brown, featuring black handlebars, tires, and seat, is displayed in profile against a white background.

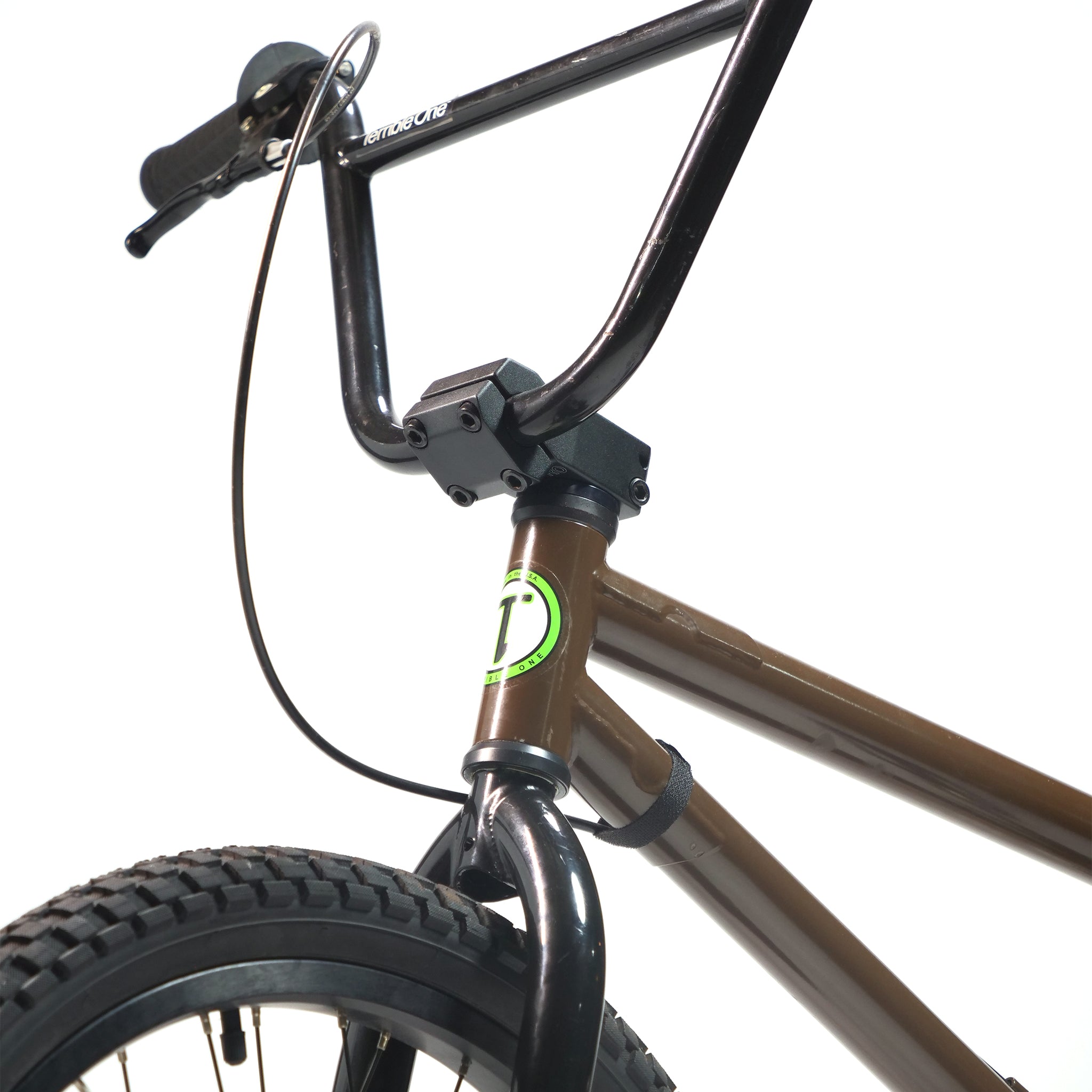

Close-up of a Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) BMX in brown, highlighting Mid School frame, handlebars, front tire, and brake cable against a white background.

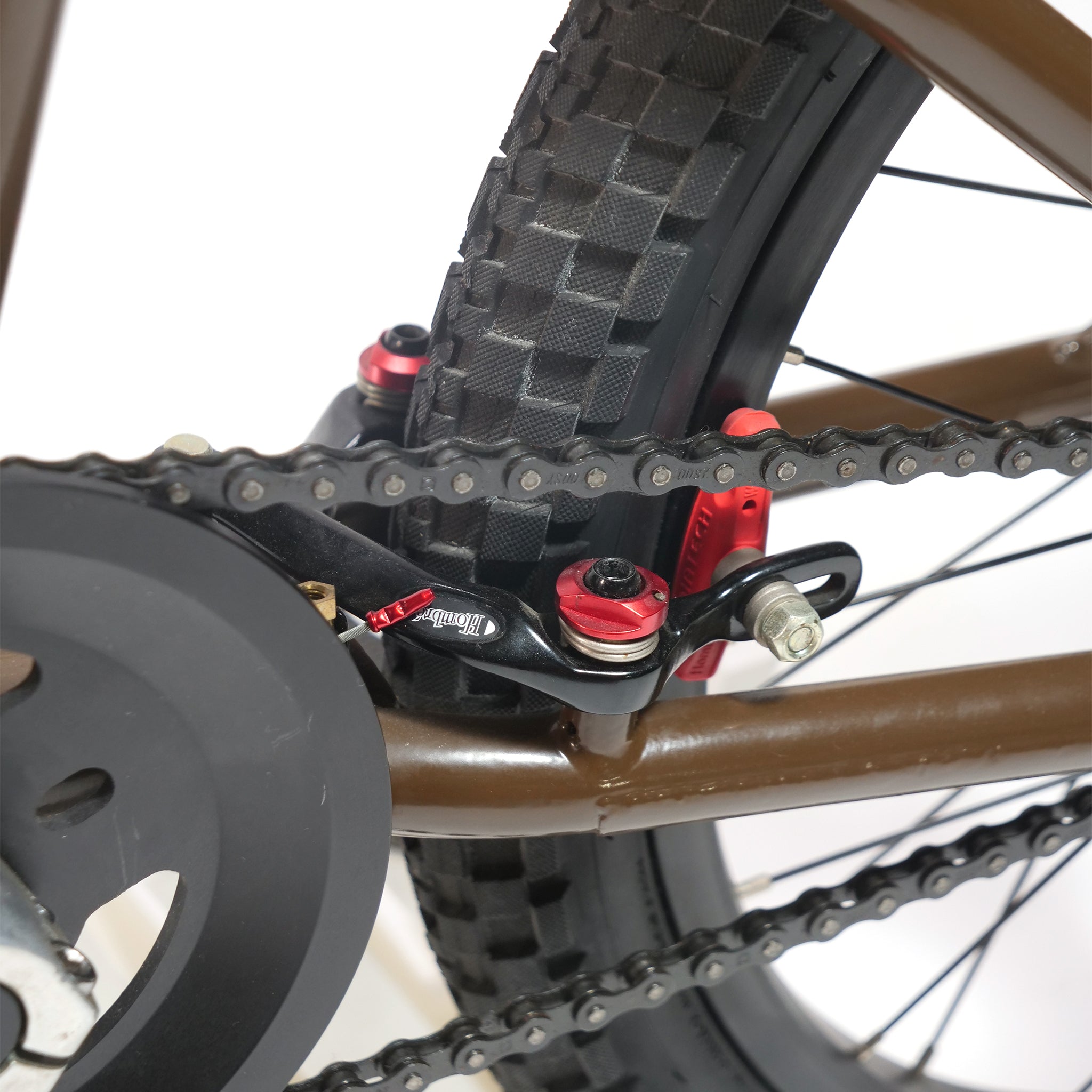

Close-up of the Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) rear wheel, showcasing the chain, tire, and signature chain tensioner—an iconic Mid School frame detail—set against a white background.

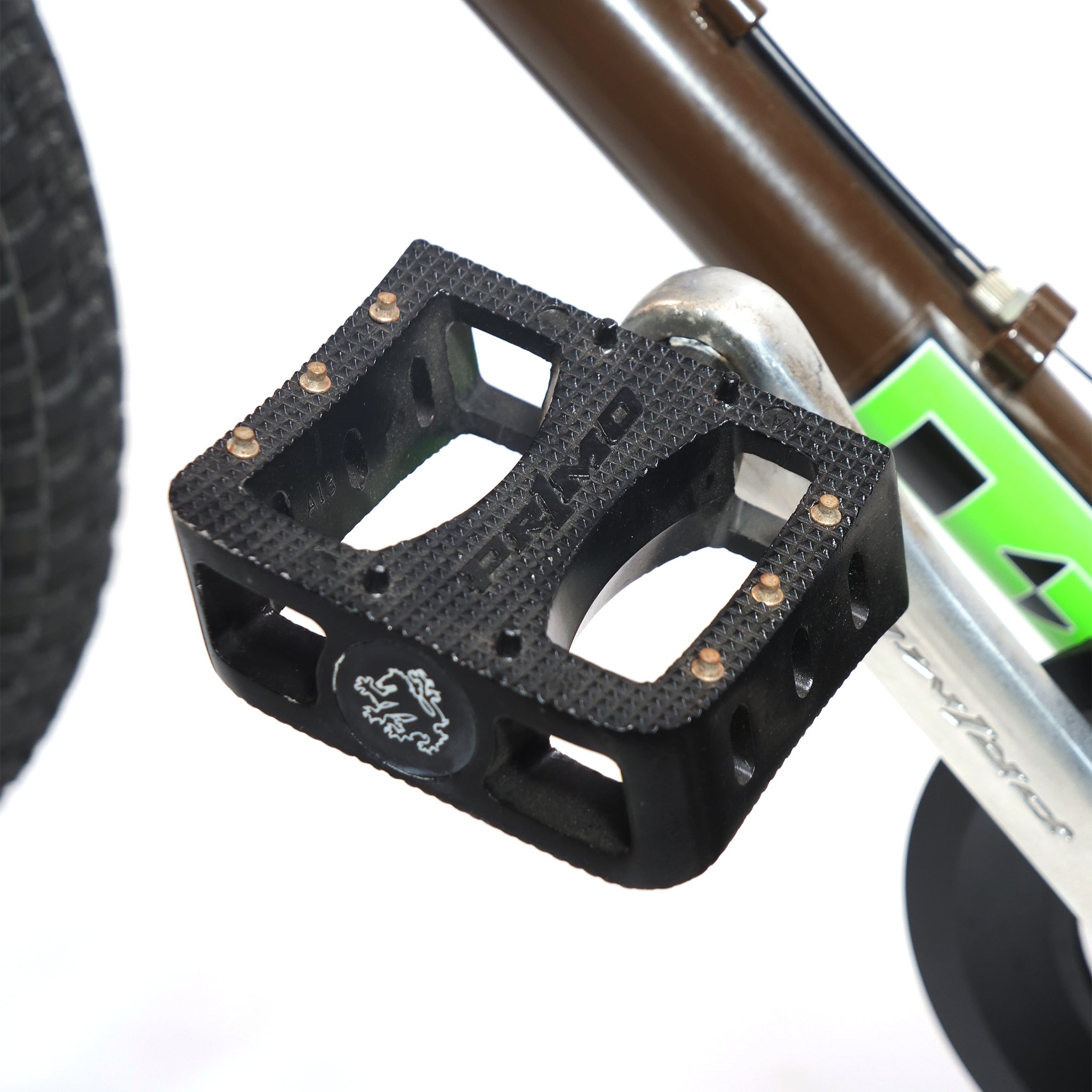

Close-up of a black DH Pro bicycle pedal on a silver crank arm, with part of the Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) frame and tire visible in the background.

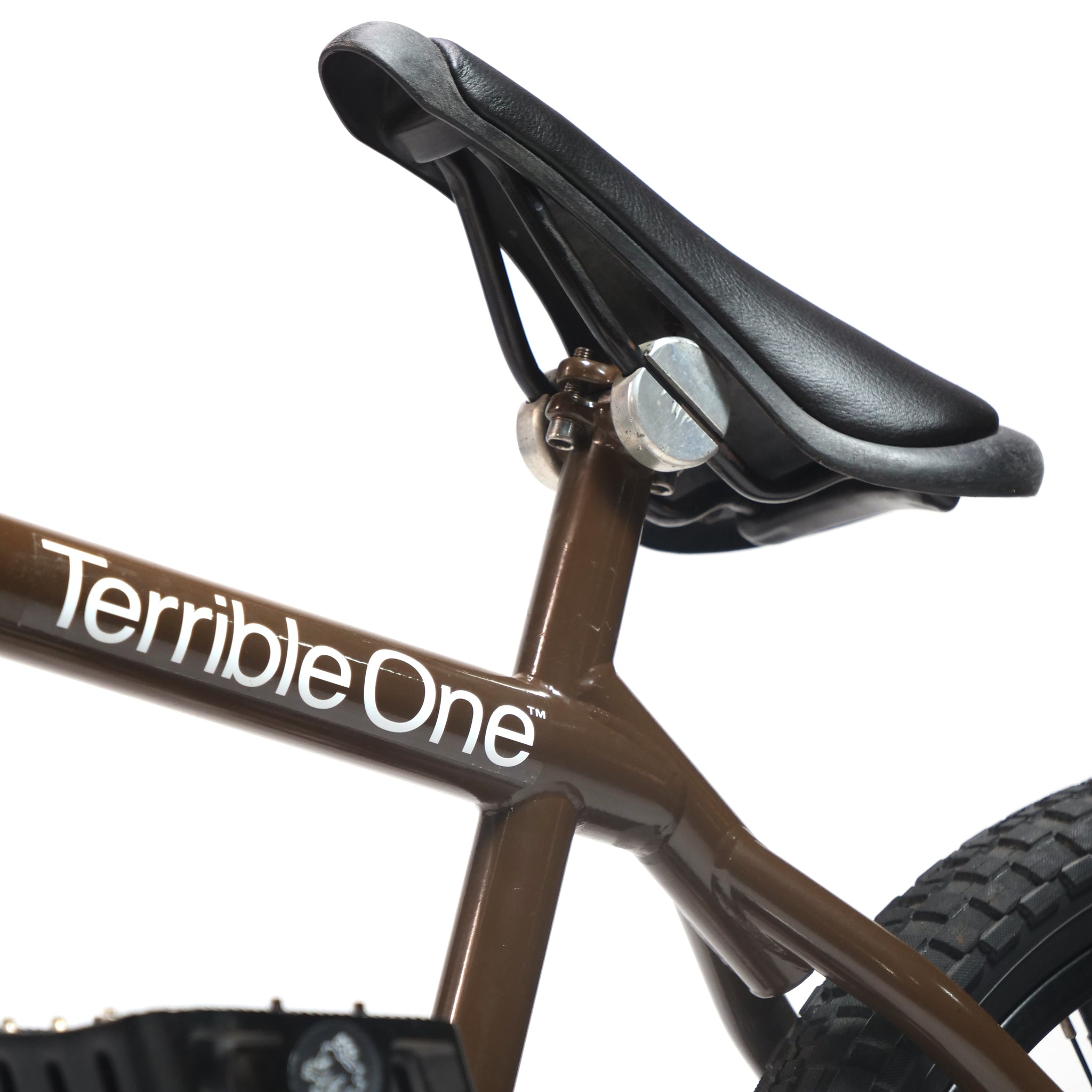

Close-up of a brown Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003), a classic Mid School frame, showing the brand name and black seat against a white background.

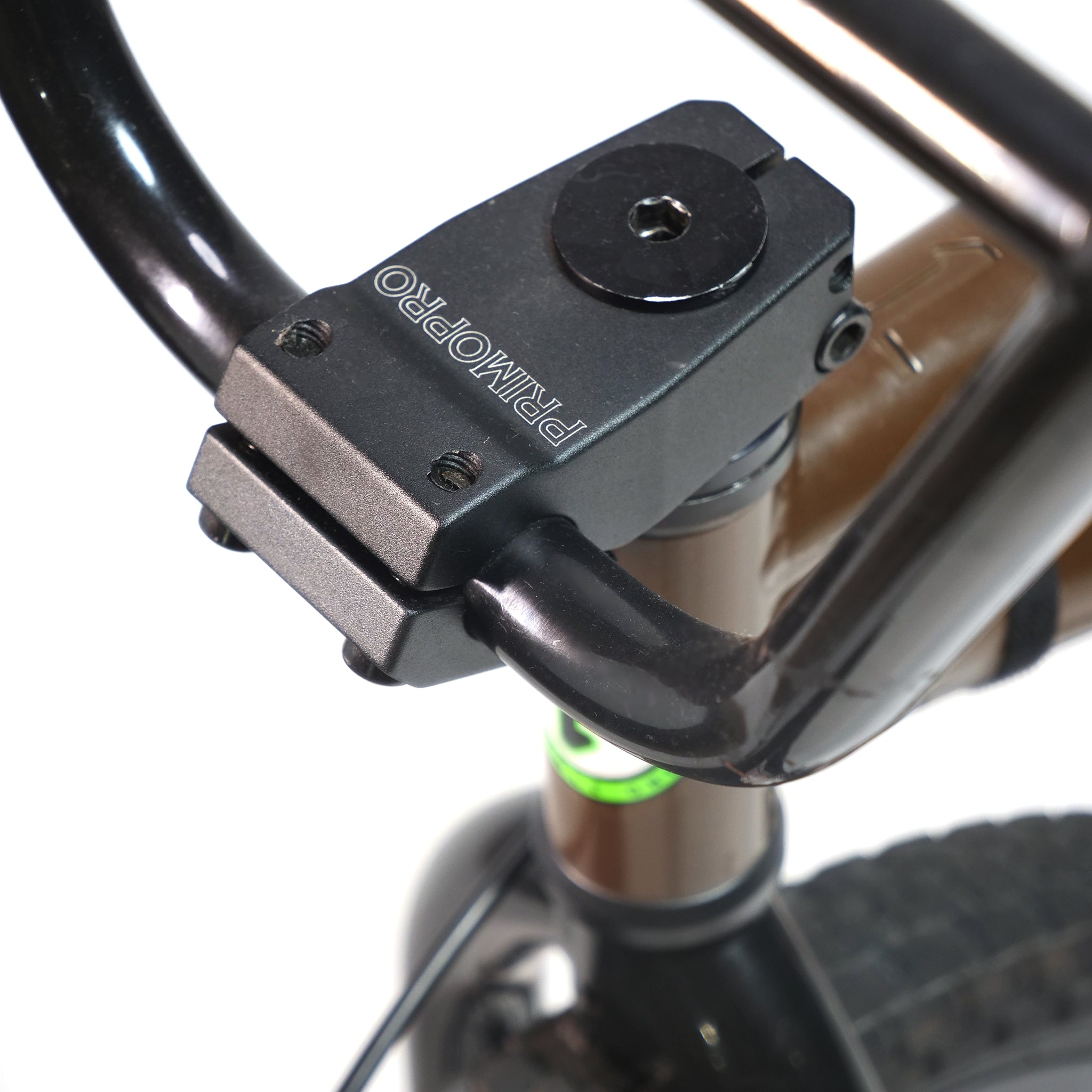

Close-up of a BMX handlebar and "PRIMO PRO" stem on a Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003), featuring a brown frame in the classic Barcode style and a visible black front tire.

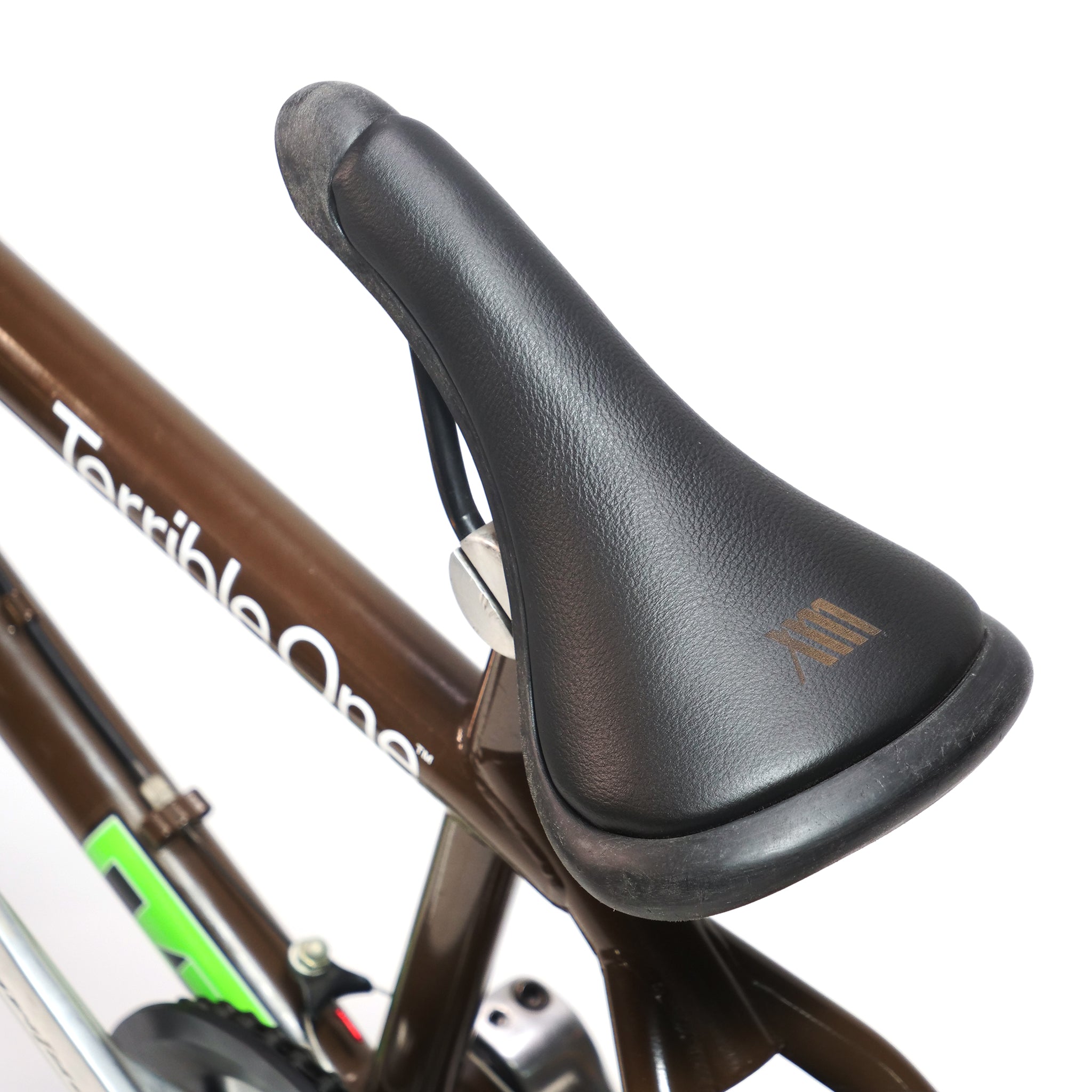

Close-up of a black seat on a Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) with the iconic frame and visible "Terrible One" branding.

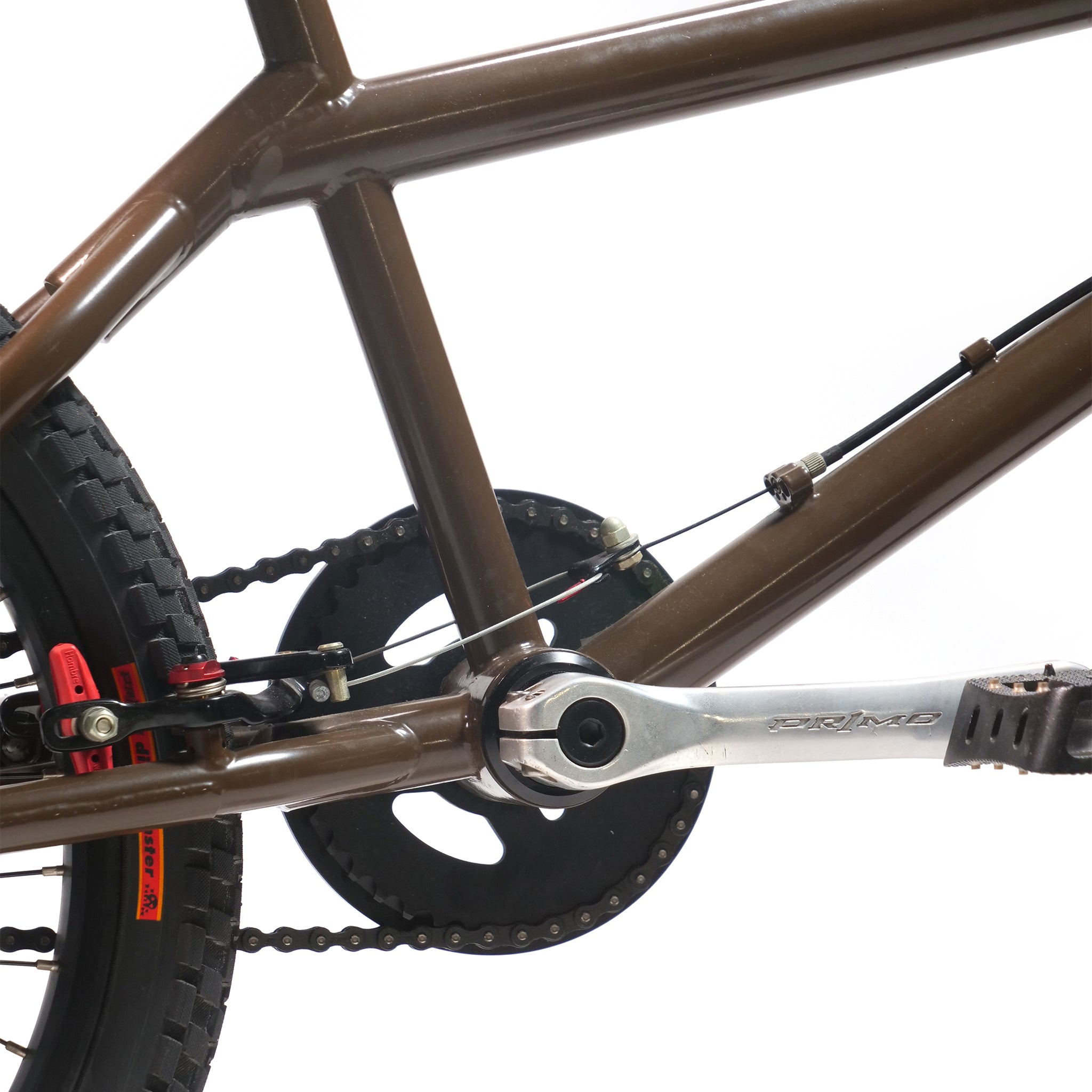

Close-up of a brown Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) frame, showing the rear wheel, chain, pedal, crank arm, and part of the brake system against a white background.

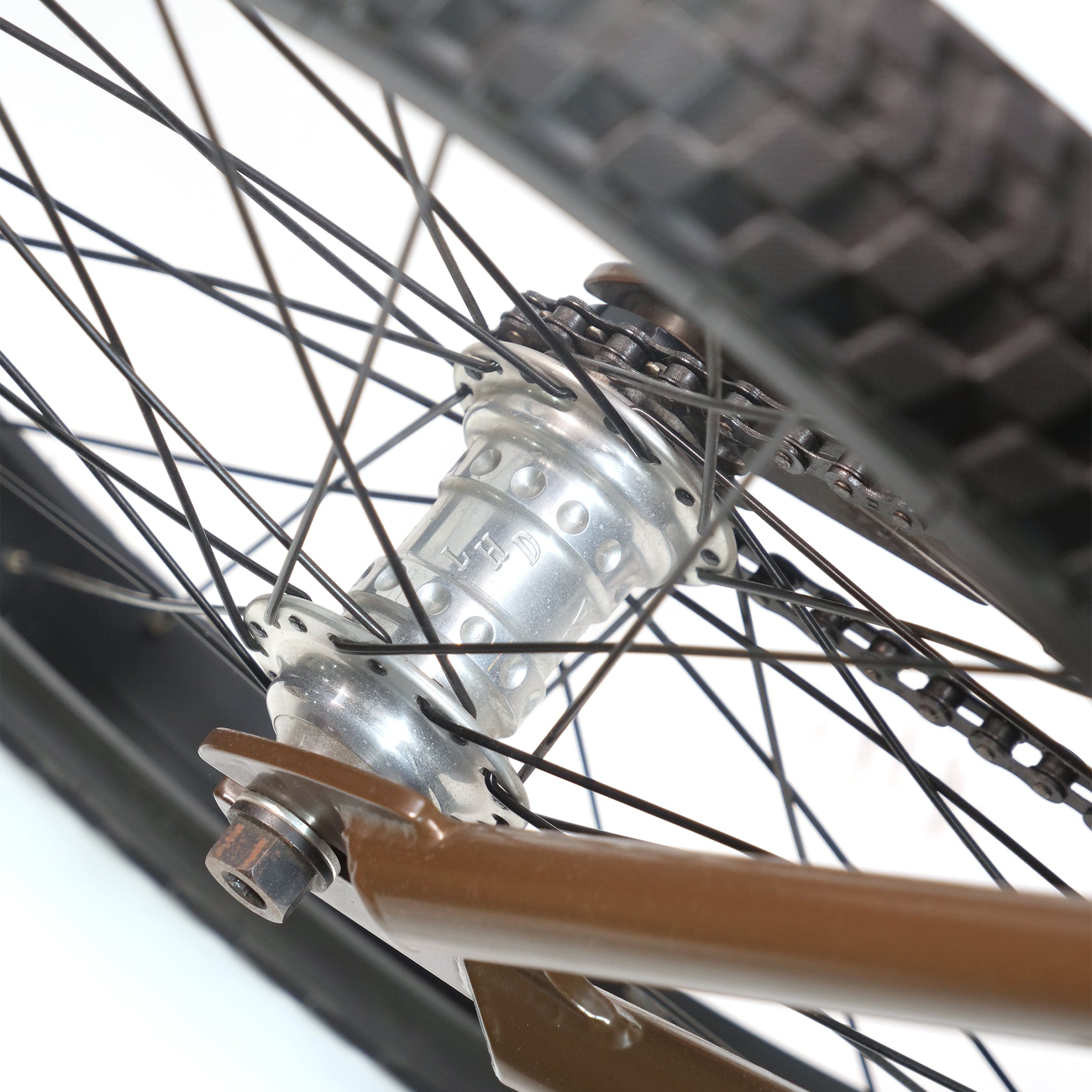

Close-up of a bicycle wheel showing the rear hub, spokes, tire, and part of the Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003) frame.

Description

Terrible One Garrett Byrnes Signature Barcode Bike Build.

The Terrible One "Garrett Code" frame could possibly be one of the most iconic "Mid School" frames ever, with only 50 frames being made in each size option (20", 20.625" and 21").
Just as unique as Garretts's own riding style, the frame featured a built in railed seat post with incorporated Marvins Guts, as well built in chain stay guards.

This frame was expertly recondition and re-painted in 2014.
It was later featured in the Terrible One Garrett Byrnes Barcode/SFA timeline published in 2016.
Bike was assembled late 2014.

Due to the nature of this build, some parts are slightly used but are structurally sound.

Features
  • Iconic mid school frame. The Terrible One Garrett Code frame, with only 50 made in each size, this one being the 20.625".
  • Built in railed seat post. The frame carries a railed post with Marvins Guts incorporated, plus built in chainstay guards.
  • Reconditioned and repainted in 2014. Restored then assembled late 2014, and later featured in the Terrible One Barcode and SFA timeline published in 2016.
  • New old stock parts throughout. Primo, Profile, Odyssey, Alex and Dia-Compe parts, most of them unused stock from the era.
  • Period correct build, 12 kg. Primo Powerbite 175mm cranks, Profile SS hubs, Alex DM24 rims and Primo Dirt Monster 2.2 tyres.

Specifications
  • Size: 20" wheels, 20.625" frame
  • Frame: Terrible One 2003 Garrett Byrnes Barcode, 20.625", built in railed seat post with Marvins Guts, built in chainstay guards
  • Top tube: 20.625"
  • Fork: Tuff Neck with Federal preload bolt
  • Headset: Solid (NOS)
  • Stem: Primo Pro (NOS)
  • Bars: Terrible One 8.85"
  • Grips: Primo V-grip (NOS)
  • Brakes: Dia-Tech Hombre (NOS) with Odyssey Linear cable
  • Brake lever: Dia-Compe Tech77 (NOS)
  • Cranks: Primo Powerbite 175mm
  • Sprocket: Macneil Bash Guard 39t (NOS)
  • Chain: Odyssey Bluebird (NOS)
  • Pedals: Primo Super Tenderizer (NOS)
  • Front hub: Profile SS 36h (NOS)
  • Rear hub: Profile SS LHD 36h (NOS)
  • Rear cog: 13t
  • Spokes: DT Champ (NOS)
  • Rims: Alex DM24 36h front and rear (NOS)
  • Tyres: Primo Dirt Monster 2.2 front and rear (NOS)
  • Seat: GT Drop Nose LUX Edition
  • Seat post: Built in with Marvins Guts
  • Gearing: 39/13
  • Weight: 12 kg
  • Note: Due to the nature of this build, some parts are slightly used but structurally sound. NOS means new old stock.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Terrible One Barcode Garrett Byrnes Custom 20 Inch Bike (2003)

Brand: Terrible One SKU:

From

$3,299.99 AUD

 $3,999.99 AUD

Or 4 payments of $824.99 AUD with

Recommended Rider Height:

175cm+

Colour - Brown

Top Tube Length - 20.625

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
