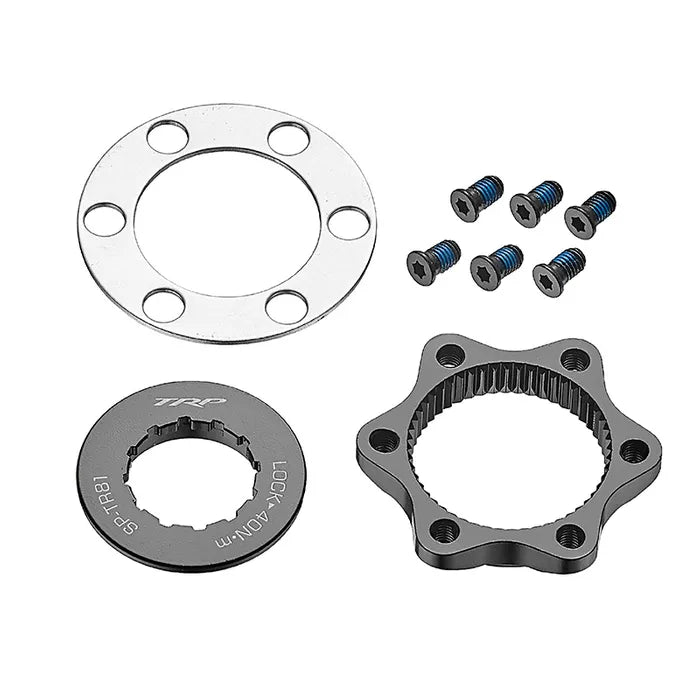

Picture of the TRP Centerlock ISO Adapter Kit - Internal Tool type, showing its various components: a metal rotor lockring, a spacer ring with multiple holes, a star-shaped spline adapter, and six screws.

Description

TRP have thought this one out, and that's why it's our choice of centerlock adapter to keep your brakes locked in when you need them!

The combination of low profile, chamfered Torx bolts mating to to the disc compression-plate gives a flat surface for the lock-ring to fasten against. Which has opened up the design up to implement the larger lock-ring profile, which allows the use of an Shimano type cassette tool for fastening, allowing you to really torque the disc-mount up compared to other designs with a smaller fastening system.
*Not compatible with axle/cone hardware with a 20mm or larger diameter.

**Requires 12-spline Shimano type cassette tool with an approximate outer diameter of 23.4mm

Features
  • Check your axle first. Not compatible with axle or cone hardware measuring 20mm or larger in diameter, so measure before you order.
  • Needs a cassette tool. Fitting takes a 12 spline Shimano type cassette tool with an outer diameter of roughly 23.4mm.
  • Larger lock ring profile. The bigger lock ring lets you really torque the disc mount up compared with designs using a smaller fastening system.
  • Low profile Torx bolts. Chamfered Torx bolts mate to the disc compression plate and leave a flat surface for the lock ring to fasten against.

Specifications
  • Mount: Centerlock, internal tool type
  • Note: Not compatible with axle or cone hardware with a 20mm or larger diameter. Requires a 12 spline Shimano type cassette tool with an approximate outer diameter of 23.4mm.

TRP Centerlock ISO Adapter Kit - Internal Tool type

Brand: Tektro SKU:

$44.99 AUD

Or 4 payments of $11.24 AUD with

Colour - Black

$44.99 AUD

Price match request

TRP Centerlock ISO Adapter Kit - Internal Tool type - Black

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane
