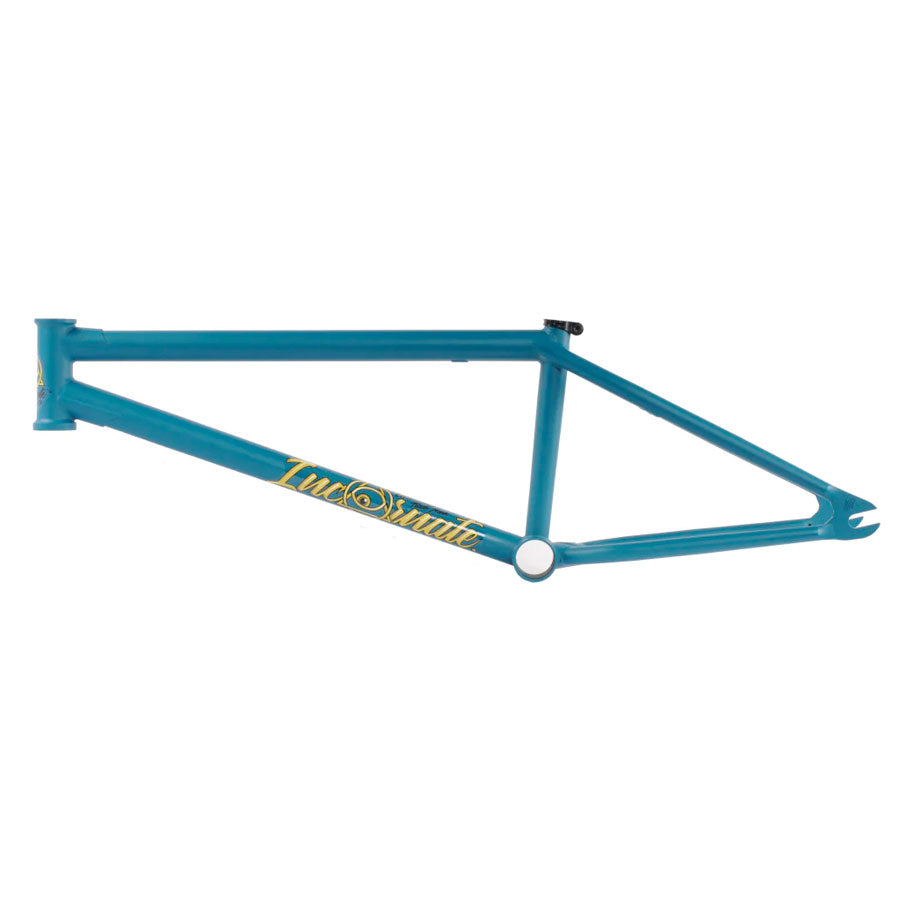

A blue United Incarnate V2 Frame on a white background perfectly showcases the strength and Incarnate graphics.
The United Incarnate V2 bicycle frame stands out on a pristine white background, showcasing its strength and sleek graphics.
A blue United Incarnate V2 Frame with an eye on it representing strength and graphics.

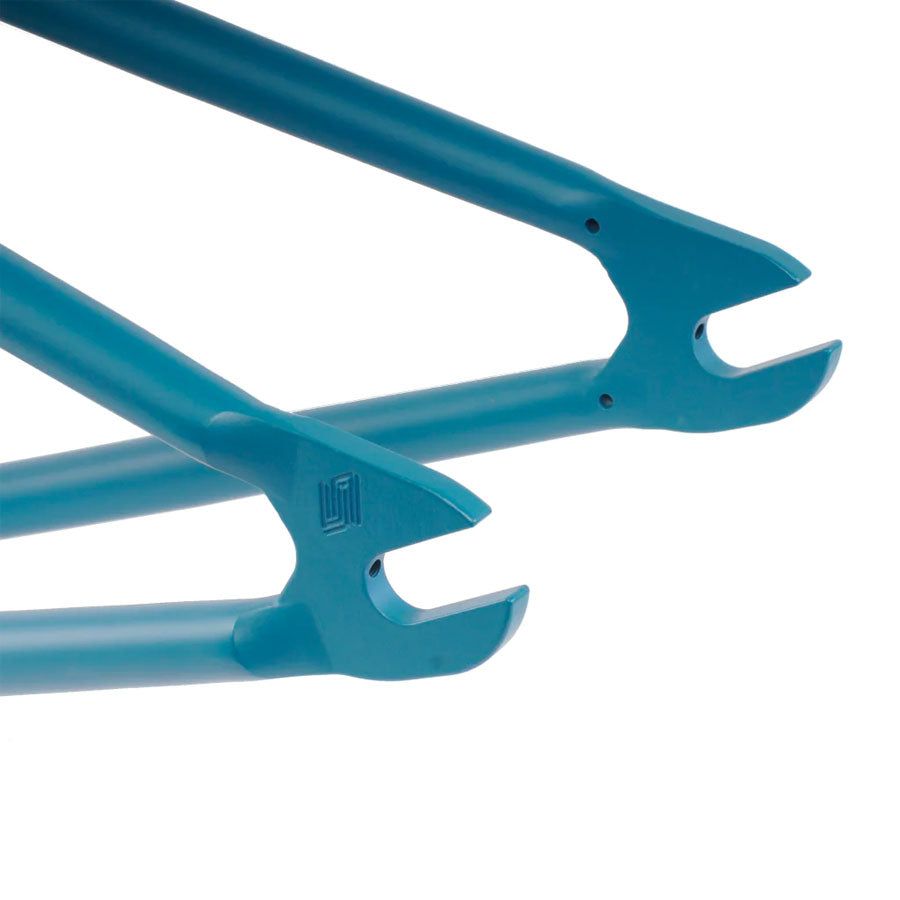

Two United Incarnate V2 Frames on a white background showcasing their strength and graphics.
A blue United Incarnate V2 Frame with yellow handlebar showcasing vibrant graphics.

Description

The second rendition of the bomb proof Incarnate. Boasting an even thicker tube set to offer even more strength you can rely on. Newly designed cast drop outs with built in chain tensioners and a fresh facelift on the graphics. The incarnate still features the Ultra slim invest cast wishbone for that added strength and stiffness where its needed and comes with the shallower pitched seat tube angle to move the bottom bracket forward making the feel of the bike smaller without changing the top tube length. 13” slammed back end with thickened chain stays. Top and Down tube gussets for extra strength out the front. Relatively steep head tube angle at 75.5 to keep front-end tricks responsive. We even added removable brake mounts due to popular demand!

Features
  • Even thicker tube set. The second Incarnate runs a heavier tube set than the original, and keeps the ultra slim invest cast wishbone for stiffness where it is needed.
  • Top and down tube gussets. Extra material at the front of the frame, where the hardest hits land.
  • Cast dropouts with chain tensioners. Newly designed cast dropouts have the tensioners built in, so the wheel stays where you set it.
  • Removable brake mounts. Added by popular demand, so you can run a brake or take the mounts off if you ride brakeless.
  • Steep 75.5° head tube angle. A relatively steep front end keeps front-end tricks responsive, while the shallower seat tube angle moves the bottom bracket forward and makes the bike feel smaller.

Specifications
  • Chainstay: 13" slammed, thickened chain stays
  • Head tube angle: 75.5°
  • Seat tube angle: Shallower pitch, bottom bracket moved forward without changing top tube length
  • Tubing: Thickened tube set, top and down tube gussets, invest cast wishbone
  • Dropouts: Cast, with built in chain tensioners
  • Brake mounts: Removable

United Incarnate V2 Frame

Brand: United SKU:

$649.99 AUD

Or 4 payments of $162.49 AUD with

Colour - 21

Top Tube Length - Flat Teal Blue Justin Care Colourway

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
