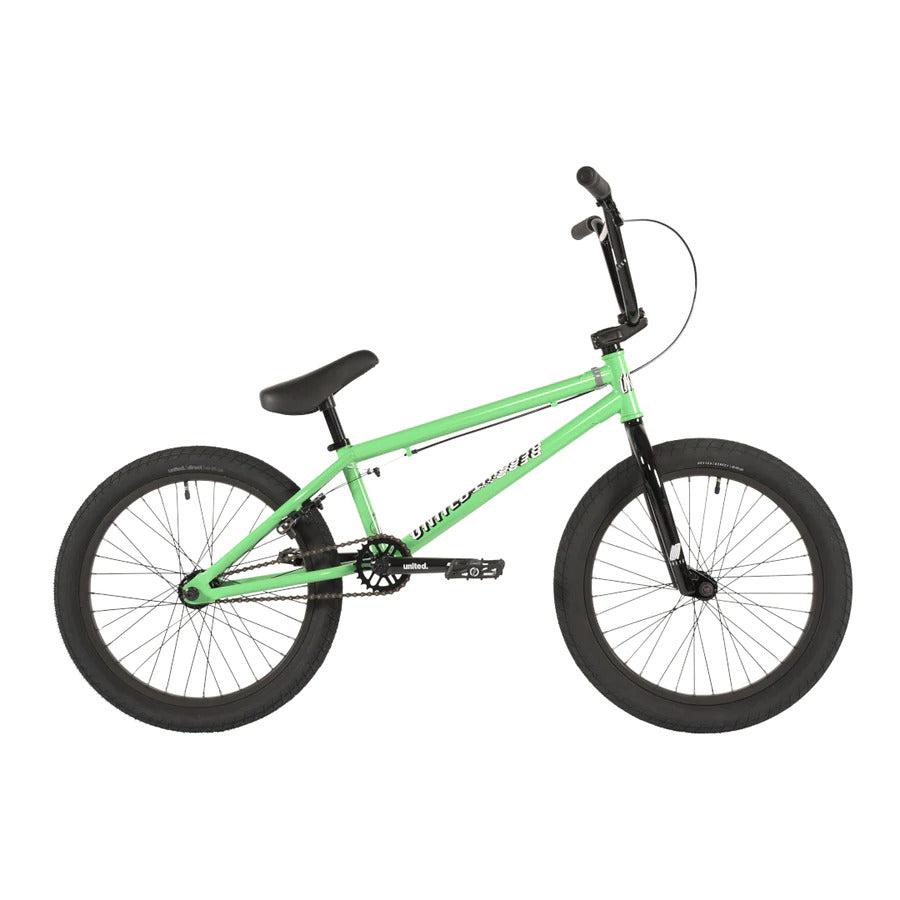

United Recruit Jr Bike / Quiet Wave Green / 20TT

Description

Shred the gnar on this sweet bike from United!

Features
  • Scaled down 20 inch fit. A 20" top tube with 8.25" bars and 165mm cranks puts a smaller rider in control of a real 20 inch bike.
  • Fully sealed rear cassette hub. A sealed 9t driver with four pawls on a 14mm axle rolls smoothly, stays loud and keeps grit out.
  • Sealed mid bottom bracket. The cranks spin on sealed bearings, so the busiest part of the bike needs far less attention.
  • Genuine United parts kit. United Team grips and bar ends, Supreme PC pedals and United Direct tyres all come fitted from the factory.
  • Hi ten frame with brake mounts. 1020 hi tensile tubing with welded brake mounts, a 1 1/8" head tube and an embossed top tube gusset.

Specifications
  • Size: 20" wheels, 20" top tube
  • Frame: 1020 hi ten, welded brake mounts, 1 1/8" head tube, mid BB, embossed logo top tube gusset
  • Top tube: 20"
  • Chainstay: 13.25"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 7.8"
  • Bottom bracket height: 11.8"
  • Fork: Cromo steerer tube, 1020 tapered hi tensile steel legs
  • Headset: 1 1/8" A headset, painted to match the frame colour
  • Stem: United 50mm reach top load, embossed United logo on faceplate, forged detailing on sides
  • Bars: 8.25" x 27" 1020 hi tensile steel, 1.5° up sweep, 11° back sweep
  • Grips: United Team grips
  • Bar ends: United bar ends
  • Brakes: 990 rear
  • Brake lever: Alloy
  • Cranks: 3pc 165mm, tubular, 8 spline, printed United logo
  • Bottom bracket: United sealed bearing mid
  • Sprocket: 25t steel
  • Chain: X410
  • Pedals: United Supreme PC
  • Front hub: 36h, looseball bearings, 10mm axle
  • Rear hub: 36h sealed alloy cassette hub, 14mm axle, sealed bearing 9t driver, 4 pawl, ultra loud mechanism
  • Rims: Alloy 36h, single wall, front and rear
  • Tyres: United Direct, 20 x 2.3" front, 20 x 2.1" rear, 65psi
  • Seat: United padded seat/post combo with custom sewn patch on rear
  • Seat post: Integrated with seat
  • Seat clamp: Alloy

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

United Recruit Jr 20 Inch Bike

Brand: United SKU:

From

$634.99 AUD

 $729.99 AUD

Or 4 payments of $158.74 AUD with

Recommended Rider Height:

147-168cm

Colour - Quiet Wave Green

Top Tube Length - 20

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
