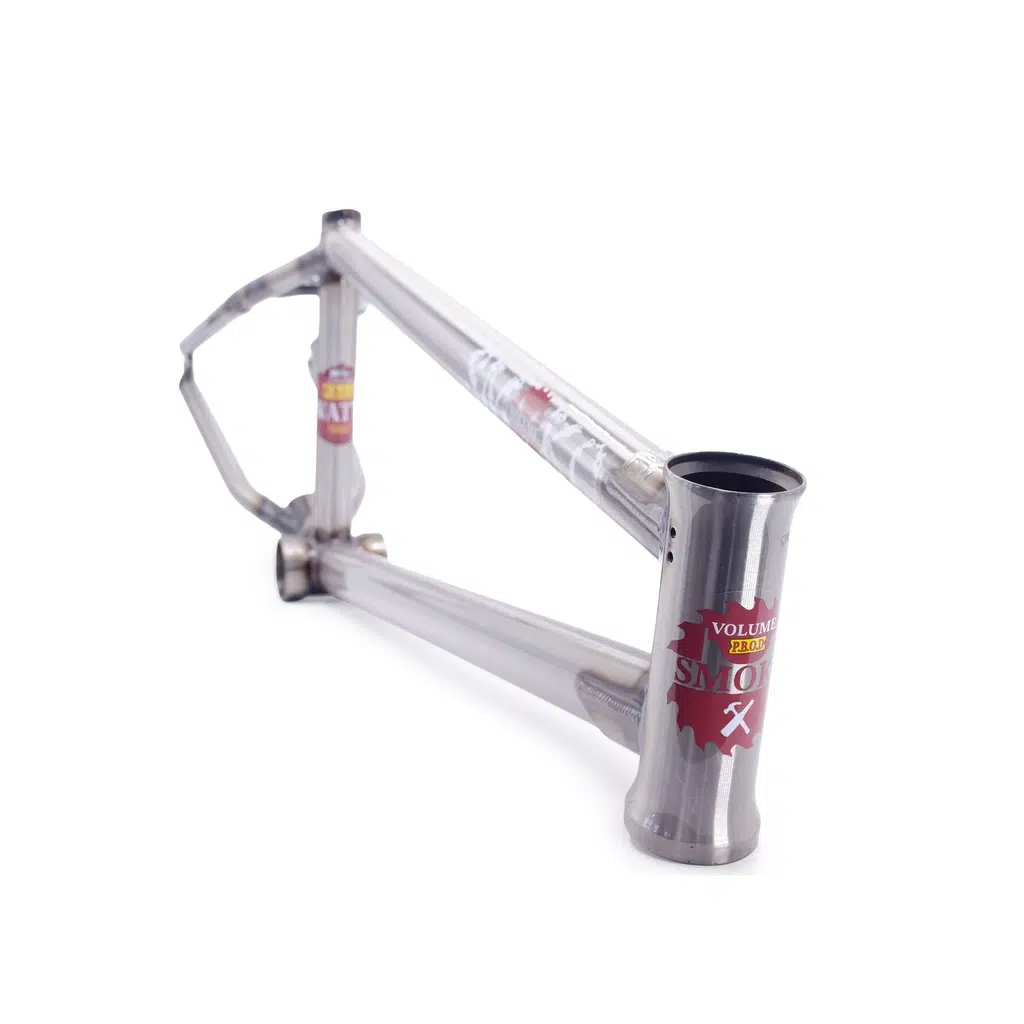

The Volume Jason Watts Smoko Frame, a chromoly bicycle masterpiece, features striking red and yellow decals elegantly set against a pristine white background.

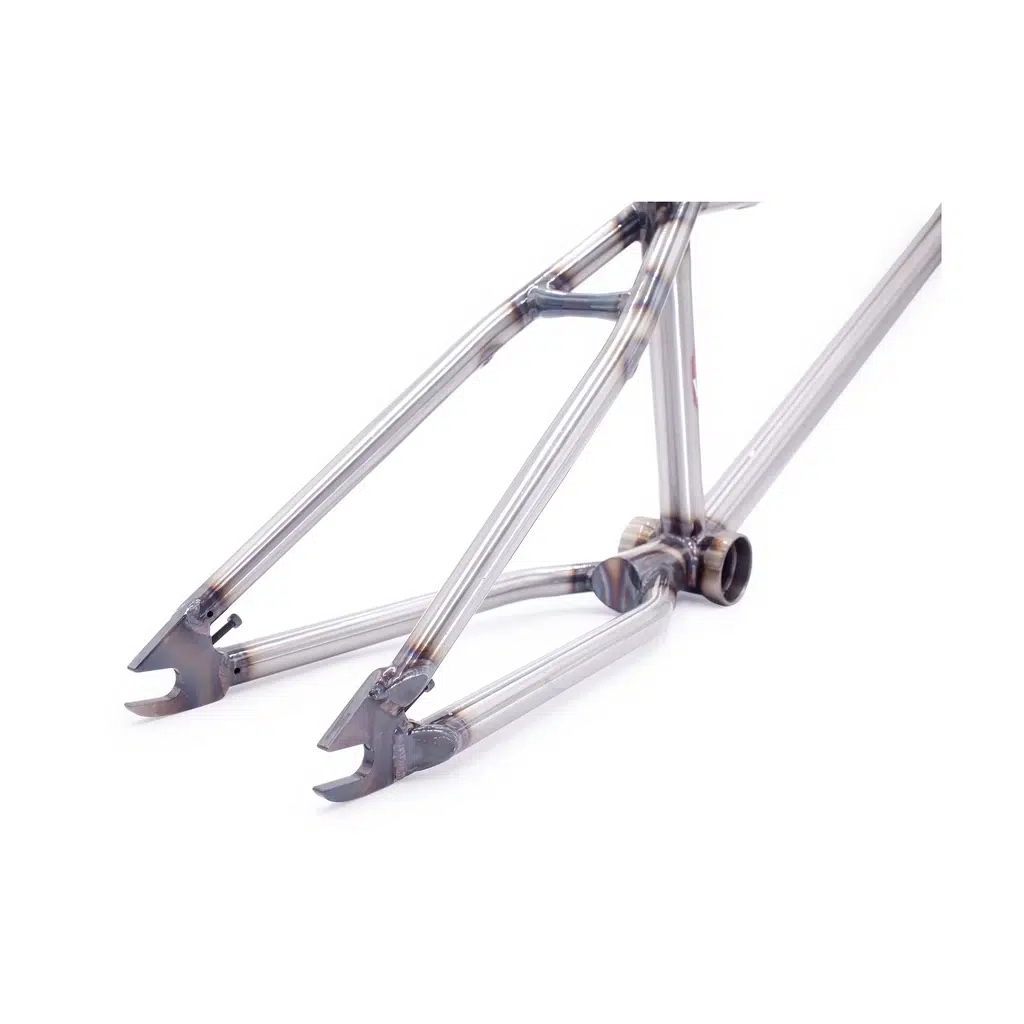

The Volume Jason Watts Smoko Frame, constructed from durable chromoly, features sleek welds and dropouts presented on a pristine white background. This steel frame perfectly balances strength and style for any cycling enthusiast.

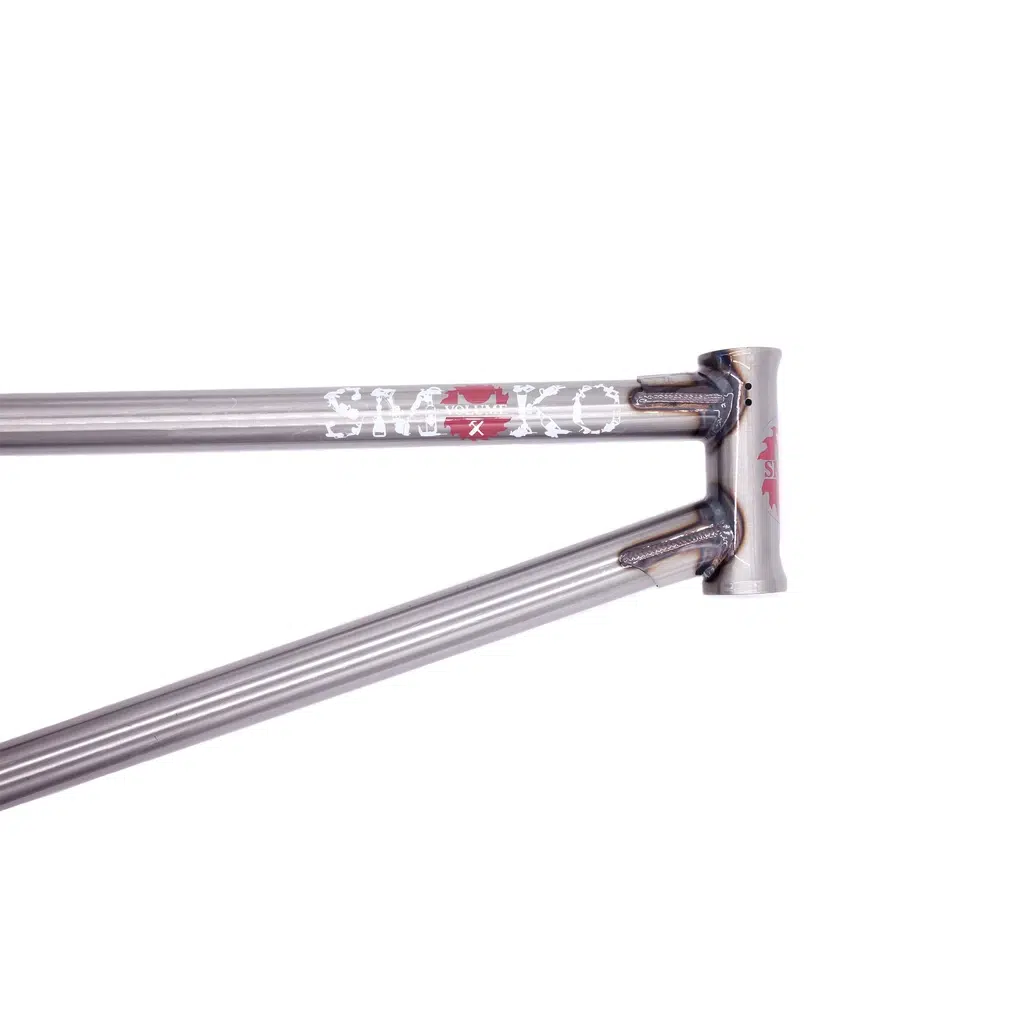

The Volume Jason Watts Smoko Frame boasts a chromoly construction with a metallic finish, highlighting a visible weld and elegantly displaying the "Volume" logo on the head tube.

Description

The all new Smoko Frame. Jason Watts' Signature Frame. This is a fully heat treated chromoly frame with multi butted tubing for weight saving.
With an oval downtube for dent resistance, 6mm thick laser cut dropouts with built in chain tensioners, classic wishbone chainstay, a CNC seatstay bridge and an externally butted seat tube.
The frame also features our new 'Stacked Logo' top tube gusset for the extra bit of style.


Features
  • Jason Watts signature frame. Fully heat treated chromoly with multi butted tubing, so weight comes out of the frame without taking strength with it.
  • Oval down tube. Shaped for dent resistance where the frame cops the most direct hits.
  • 6mm laser cut dropouts. Heat treated and thick, with built in chain tensioners so the wheel stays where you set it.
  • Classic wishbone chainstay. A CNC seatstay bridge and an externally butted seat tube round out a 13.8 inch rear end when slammed.
  • Removable seatstay brake mounts. Run a rear brake or take the mounts off for a clean back end, your call.

Specifications
  • Top tube: 20.75", 21", 21.25" and 21.5"
  • Chainstay: 13.8" (slammed)
  • Head tube angle: 74.5°
  • Seat tube angle: 71°
  • Bottom bracket height: 11.4" (varies with tyre and rim)
  • Material: Fully heat treated chromoly
  • Tubing: Oval down tube, wishbone chainstay, CNC seatstay bridge, Stacked Logo top tube gusset
  • Butting: Multi butted, externally butted seat tube
  • Dropouts: Heat treated laser cut, 6mm thick, built in chain tensioners
  • Brake mounts: Removable seatstay mounts
  • Head tube: Integrated, 45° x 45° Campy spec, 5" tall
  • Seat tube: 9" tall, 25.4 seat post

Volume Jason Watts Smoko Frame

Brand: Volume SKU:

$749.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Clear Raw

Top Tube Length - 21.5

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
